Motore, Marmitta Impugnatura

Apparato di taglio, Campana frizione Avviamento, Filtro aria, Bobina

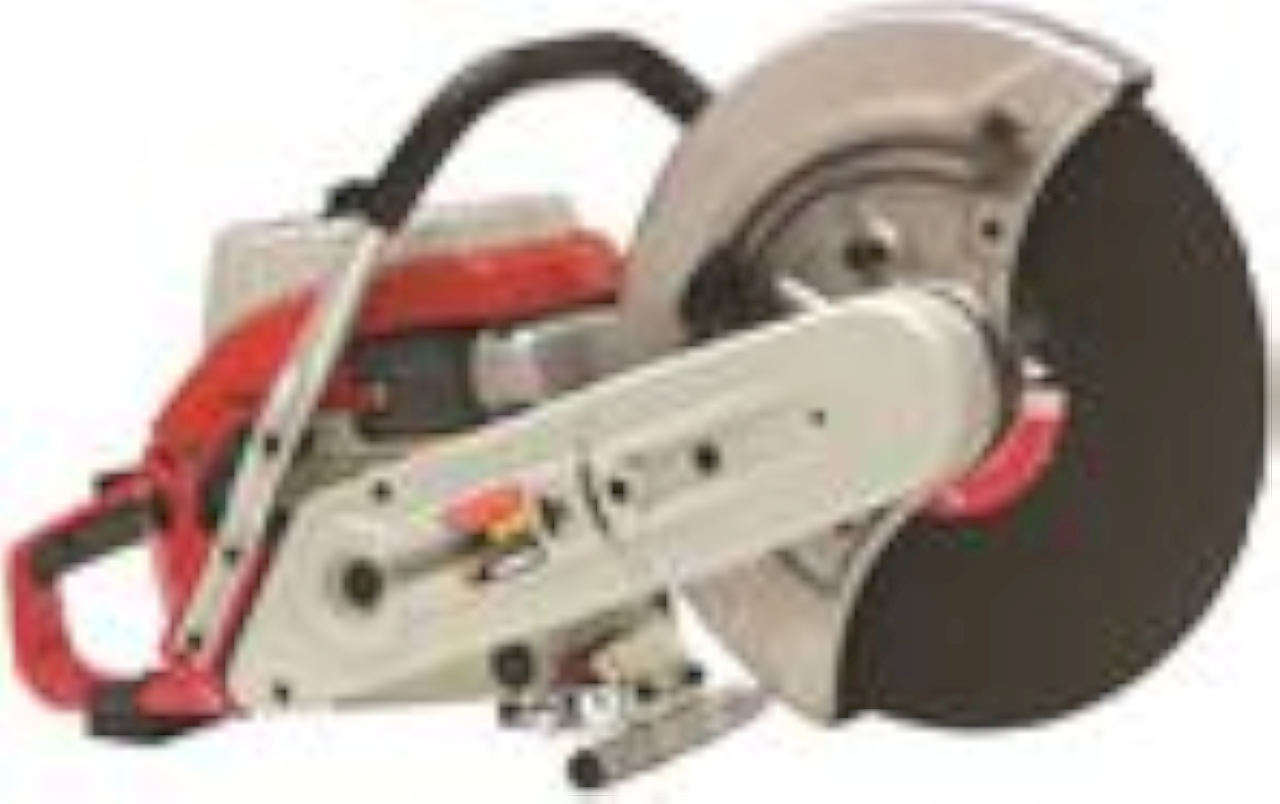

Informazioni tecniche
CILINDRATA	73,5
POTENZA	3,4 (4,6)
PESO	10,6
DIMENSIONE	765 X 220 X 390
PROFONDITà DI TAGLIO	127
PROFONDITà DI TAGLIO CON DISCO ABRASIVO355 PROFONDITà DI TAGLIO CON DISCO DIAMANT3A6T0O INTERNO DISCO STANDARD 20 INTERNO DISCO OPTIONAL 22 SERBATOIO MIX 800

Carburatore Carrello

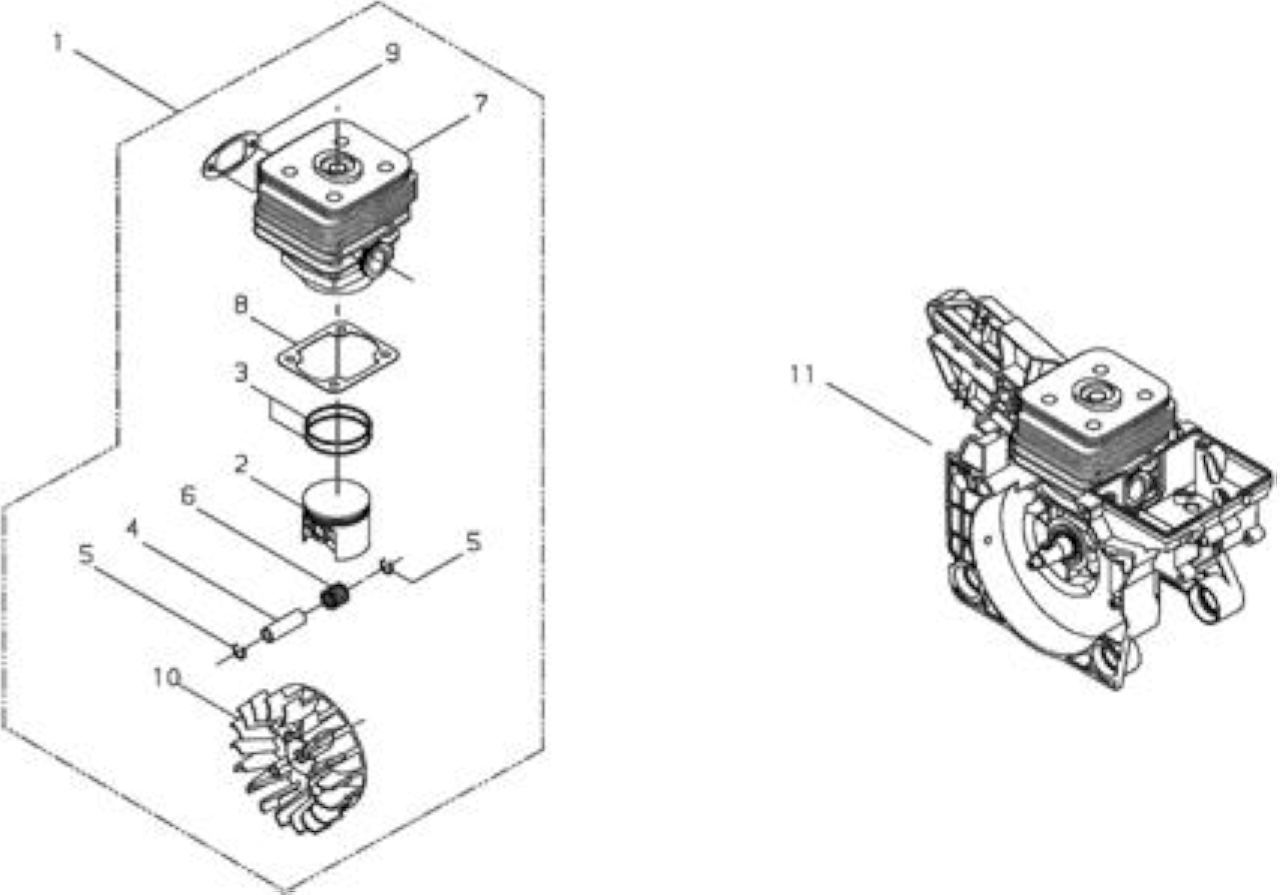

Kit motore Kit acqua

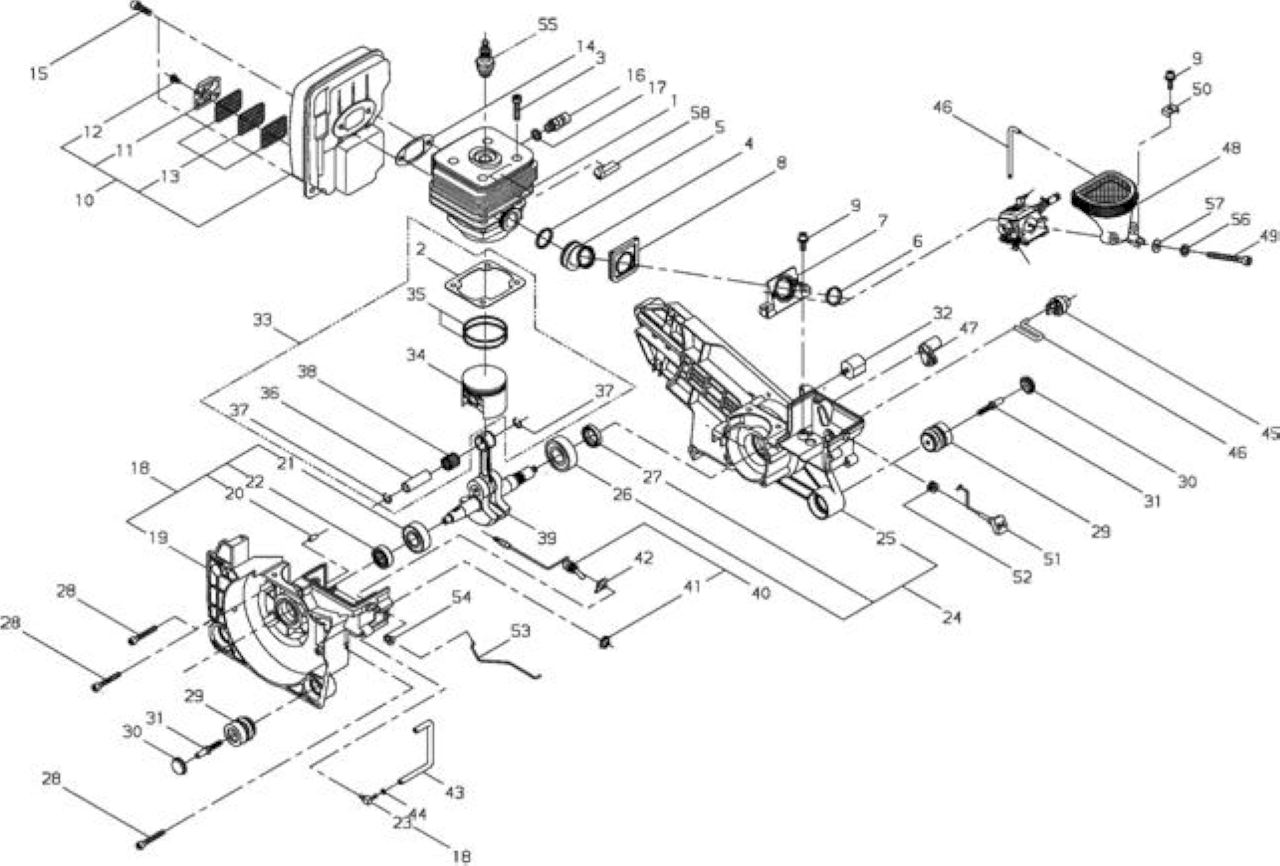

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR3801012112	*VEDI SKRA130001680 *	1
2	SKR3801012120	*VEDI SKRV100000580 *	1
3	ECR2216912190	*VEDI ECRV204000690 *	4	M6×25
4	SKR3801012210	*VEDI ECRA202000190 *	1
5	SKR2218212160	*VEDI ECRV451000920 *	1
6	SKR2215012170	*VEDI ECRV360000120 *	1
7	SKR3801012220	SUPPORTO	1
8	ECR3801012230	SEAL	1
9	ECR1106005141	*VEDI ECRV203001020 *	3	M5×14
10	SKR3801015010	*VEDI ECRA030000640 *	1
11	ECR3801015140	*VEDI ECRA312000020 *	1
12	ECR1120305080	*VEDI ECR9157805008 *	2	M5×8
13	ECR6800615130	SCREEN	3
14	SKR3801015210	*VEDI ECRV104001630 *	1
15	ECR1106006200	*VEDI ECRV204000700 *	4	M6×20
16	SKR3801016110	*VEDI ECRA014000091 *	1
17	SKR2217316160	GUARNIZIONE	1
18	ECR6800021012	*VEDI ECRP021029210 *	1
19	ECR6800021112	CRANK CASE M	1
20	ECR1249250100	*VEDI ECRV623000060 *	2
21	SKR203006202	*VEDI ECR90081036202 *	1	6202
22	SKR2215521630	*VEDI ECRV508000080 *	1
23	SKR2215021220	*VEDI ECRV185000000 *	1
24	SKR3801021021	*VEDI ECRP021025831 *	1
25	ECRP021025831	CARTER MOTORE (C)	1
26	SKR203006203	CUSCINETTO A SFERE 6203C3	1	6203
27	SKR2216921630	*VEDI ECRV510000030 * 1
28	ECR2216921910	*VEDI ECRV203001450 * 6		M5×35
29	SKR7233033710	AMMORTIZZATORE 4
30	SKR2215033720	TAPPO 4
31	SKR2216933770	FERMO 4
32	SKR2005087160	*VEDI SKRV401000450 * 1
33	ECR6800498311	*VEDI ECRP021029250 * 1
34	SKR3801041110	*VEDI SKRA100000890 * 1
35	SKR2216941210	*VEDI SKRA101000560 * 2
36	SKR2216941220	*VEDI SKRV610000010 * 1
37	SKR2215541230	*VEDI SKRV580000060 * 2
38	SKR2215541281	*VEDI SKRV557000030 * 1
39	ECR3801042012	*VEDI ECRA011001070 * 1
40	SKR6800071340	*VEDI SKRA440001680 * 1
41	ECR2215422130	*VEDI ECRV266000090 * 1
42	ECR6800071330	SWITCH PLATE 1
43	SKR2215582111	TUBO ASPIRAZIONE 1
44	SKR2215082140	*VEDI ECRV490000760 * 1
45	ECR12318139130	PRIMER - ARANCIONE 1

-

Rif.	Articolo	Descrizione	Q.tà	Nota
47	ECR3801081440	*VEDI ECRV131000170 *	1
48	SKR3801082470	COLLETTORE	1
49	ECR0102005600	*VEDI ECR90010505060 *	2	M5×60
50	ECR3801082420	*VEDI ECRV150002560 *	1
51	SKR3801083310	*VEDI SKRA240000180 *	1
52	SKR2215033410	GOMMINO	1
53	SKR3801083321	*VEDI ECRC454000320 *	1
54	SKR3801083330	GOMMINO	1
56	SKR160005131	RONDELLA ELASTICA D5	2	F5
57	ECR0161305080	*VEDI ECR90060300005 *	2	F5

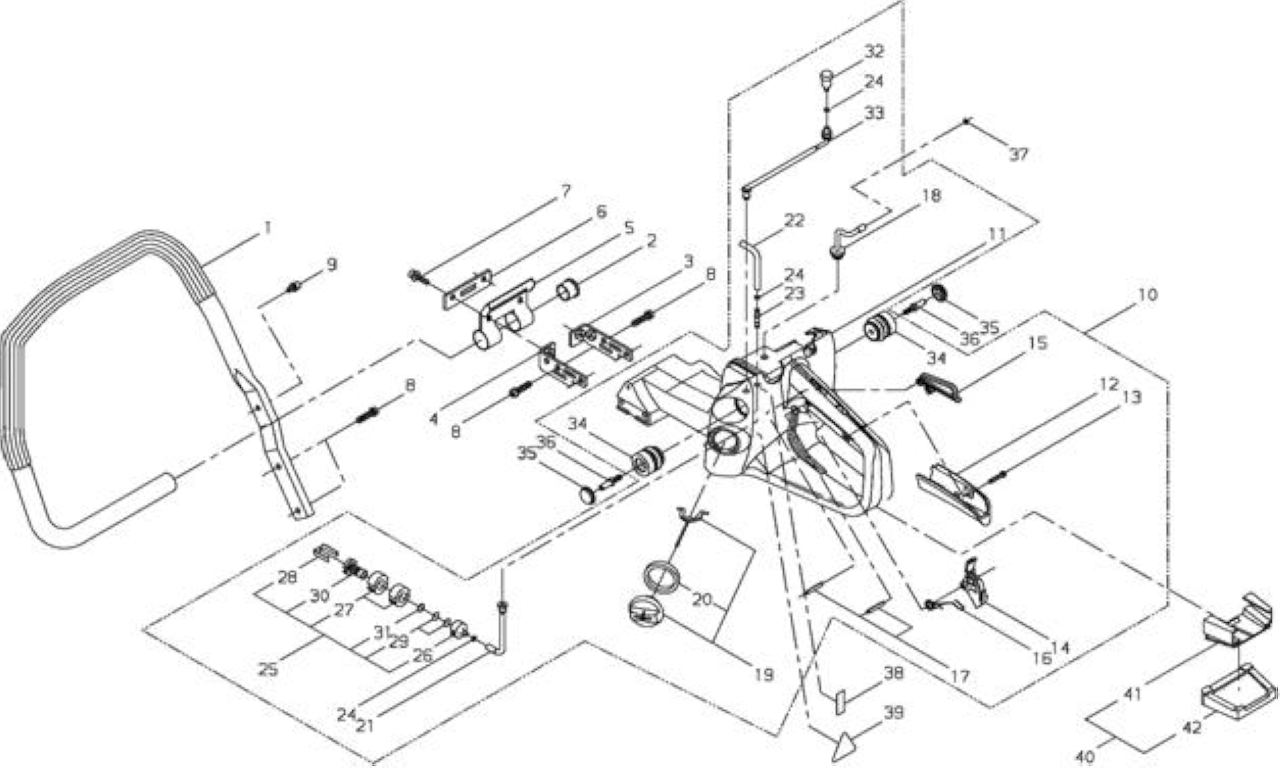

1	SKR3801032110	*VEDI ECRC040000630 *	1
2	ECR3801032440	*VEDI ECRV494000340 *	1
3	SKR3801032460	*VEDI ECRC519002430 *	1
4	SKR3801032470	*VEDI ECRC519002440 *	1
5	SKR3801032330	*VEDI SKRC405000450 *	1
6	ECR3801032480	*VEDI ECRV150002570 *	1
7	ECR1106005204	*VEDI ECRV203001680 *	2	M5×20
8	SKR2216932220	*VEDI ECRV204000710 *	6	F6×23
9	SKR1102205100	BULLONE	1	M5×10
10	SKR3801032025	*VEDI ECRC4100000791 *	1
11	ECR3801032211	*VEDI ECRC410000820 *	1
12	SKR2218233230	*VEDI ECRC403000530 *	1
13	ECR0128004222	*VEDI ECR9144904022 *	1	4X22
14	ECR2218233326	*VEDI ECRC450000640 *	1
15	SKR2218233331	*VEDI SKRC460000310 *	1
16	SKR2218233340	*VEDI SKRV452000850 *	1
17	SKR1242040255	*VEDI ECR9306040250 *	2	F4×25
18	SKR3801032371	TUBETTO	1
19	SKR3801032041	TAPPO SERBATOIO COMPL.	1
20	SKR3801032271	*VEDI ECRV107000090 *	1
21	SKR3801032381	TUBETTO	1
22	SKR3801032390	TUBETTO	1
23	SKR7293385620	*VEDI SKRV186000210 *	1
24	SKR2002085540	*VEDI SKRV490000500 *	3
25	SKR3801032420	FILTRO PESCANTE COMPLETO	1
26	SKR2212885410	*VEDI SKR2212885401 *	1
27	ECR3801032430	*VEDI ECRA371000030 *	2
28	SKR2212885440	MORSETTO	1
29	SKR2211885460	FILTRO	2
30	SKR2212885470	*VEDI ECRA372000000 *	1
31	SKR2212885480	*VEDI ECRV5830000200 *	1
32	SKR2080033910	*VEDI ECRA356000140 *	1
33	ECR3801032412	*VEDI ECRV470001630 *	1
34	SKR7233033710	AMMORTIZZATORE	2
35	SKR2215033720	TAPPO	2
36	SKR2215033770	BULLONE	2
37	SKR2002085540	*VEDI SKRV490000500 *	1
38	ECR1940100256	*VEDI ECRX524002680 *	1
39	ECR1940200221	*VEDI ECRX505004010 *	1
40	ECR3801032501	*VEDI ECRA175000240 *	1
41	ECR3801032510	HOLDER	1
42	ECR3801032520	RUBBER FOOT	1

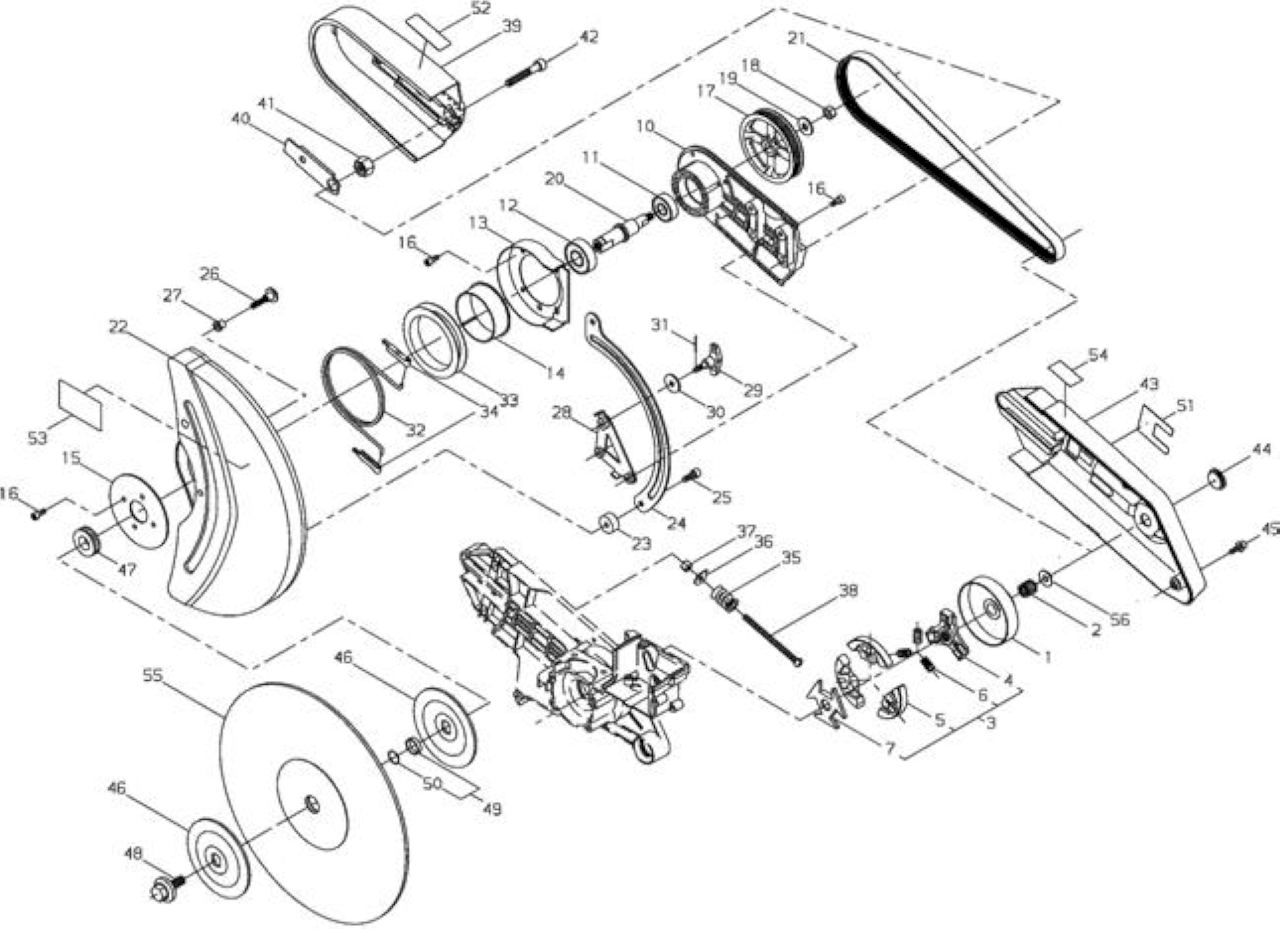

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR3801151110	*VEDI SKRA556001200 *	1
2	SKR3801051320	CUSCINETTO PIGNONE	1
3	SKR2216951200	*VEDI SKRA056000650 *	1
4	SKR2216951210	*VEDI SKRA552000290 *	1
5	SKR2216951220	MASSA FRIZIONE	3
6	SKR2215051230	*VEDI ECRA566000210 *	3
7	SKR2216951240	* VEDI ECRA552000300 *	1
10	SKR3801063110	*VEDI ECRC530000180 *	1
11	SKR200606201	*VEDI ECR90081206201 *	1	6201DDU
12	SKR200606203	* VEDI ECR90081206203 *	1	6203DDU
13	SKR3801063330	PIASTRA MOLLA	1
14	SKR3801063310	*VEDI ECRV583000210 *	1
15	SKR3801063320	*VEDI ECRV316000020 *	1
16	SKR102005160	*VEDI ECR90010505016 *	10	M5×16
17	SKR3801064111	PULEGGIA CINGHIA	1
18	SKR150008061	DADO M8	1	M8
19	SKR1540120007	COLLARINO	1
20	SKR3801064120	ALBERINO GUIDA	1
21	SKR3801064131	*VEDI SKRV196000120 *	1
22	ECR3801165112	*VEDI ECRC370000050 *	1
23	ECR1540120101	*VEDI ECRV354000340 *	2
24	ECR6800265330	PIASTRINA	1
25	SKR102006200	BULLONE	2	M6×20
26	SKR2008751210	*VEDI SKRA557000040 *	2
27	SKR1540100008	COLLARINO	2
28	SKR3801065330	*VEDI ECRC371000030 *	1
29	ECR6800265341	*VEDI ECRV299000470 *	1
30	SKR1540120008	*VEDI ECRV304000320 *	1
31	ECR0242720125	PIN	1	F2.0×12
32	SKR1752098200	MOLLA	1
33	SKR3801065360	SEDE MOLLA	1
34	SKR3801065370	SUPPORTO MOLLA	2
35	ECR1750017500	*VEDI ECRV450001240 *	1
36	ECR3801066330	*VEDI ECRV304000290 *	1
37	ECR3801066310	*VEDI ECRV264000190 *	1
38	ECR1120306908	*VEDI ECR9157906090 *	1	M6×90
39	SKR3801067310	*VEDI SKRC361000090 *	1
40	SKR3801067320	TIRANTE	1
41	SKR3801067330	DADO BLOCCAGGIO	1
42	SKR102008500	BULLONE	2	M8×50
43	SKR3801067341	*VEDI ECRC361000070 *	1
44	ECR3801067351	*VEDI ECRV141000120 *	1
45	ECR1106005141	*VEDI ECRV203001020 *	2	M5×14
46	SKR3801068110	*VEDI ECRC365000400 *	2
47	SKR1540121022	SPESSORE	1
48	SKR3801068130	*VEDI ECRV206000280 *	1

Rif.	Articolo	Descrizione	Q.tà	Nota
49	ECR3801098071	*VEDI ECRP021035070 *	1	F20
50	SKR6800069310	*VEDI ECRV582000210 *	1
51	ECR3801191030	LABEL TRADE	1
52	ECR1940100254	*VEDI ECRX524002670 *	1
53	ECR1940200220	*VEDI ECRX505004050 *	1
54	ECR1940500006	LABEL ARROW	1
55	ECR1860735502	*VEDI ECRM618000000 *	1	EC7600 14"
56	ECR3801051330	*VEDI ECRV265000260 *	1	M8

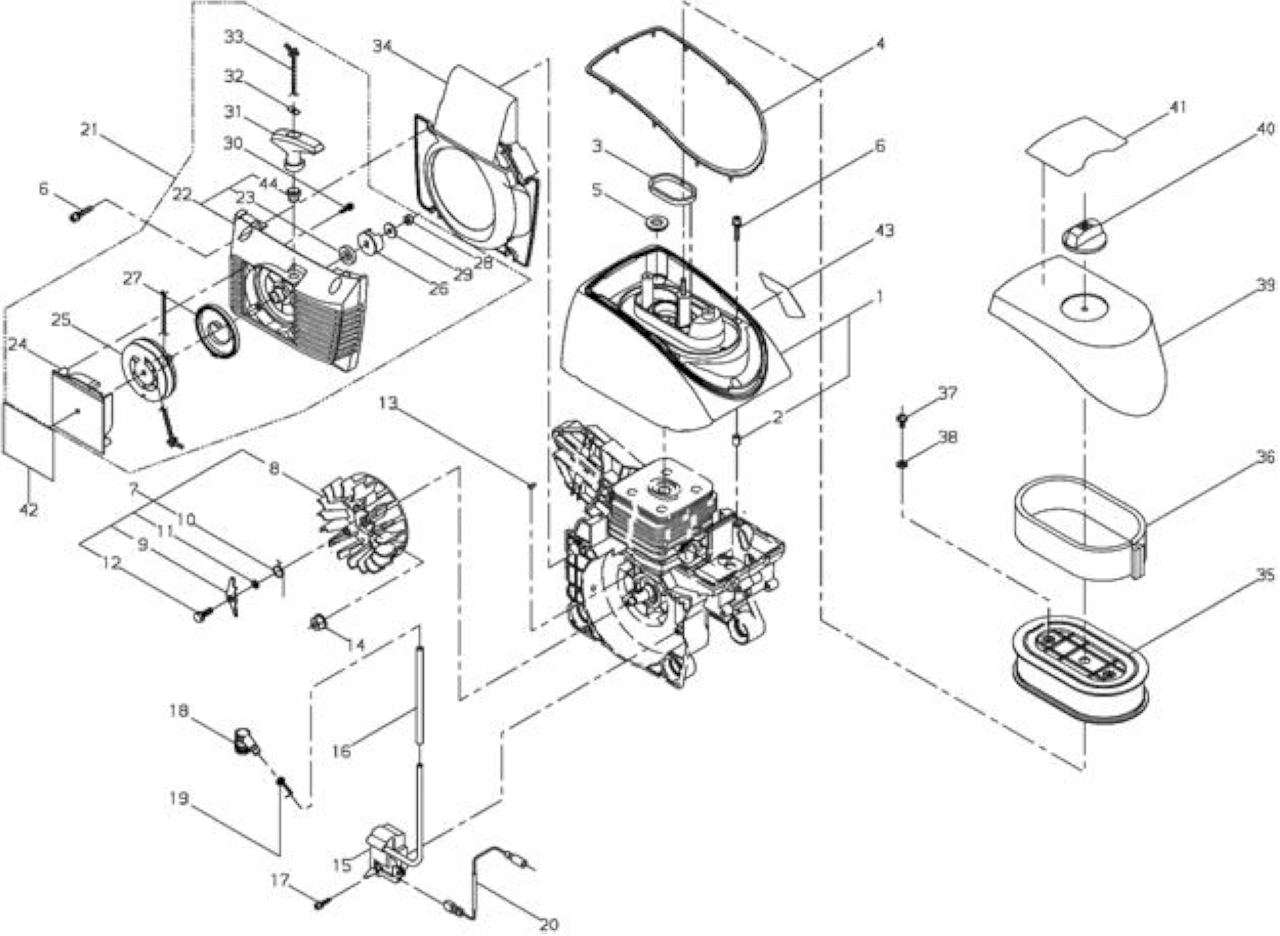

1	SKR3801031111	*VEDI ECRA160002140	*	1
2	ECR1790106100	*VEDI ECRV354000290	*	4
3	SKR3801031311	GUARNIZIONE		1
4	SKR3801031321	*VEDI ECRA228000010	*	1
5	ECR3801067351	*VEDI ECRV141000120	*	1
6	ECR2216031150	*VEDI ECRV203001640	*	8	M5X25
7	ECR3801071011	*VEDI ECRA409000980	*	1
8	ECR3801071112	*VEDI ECRA409000990	*	1
9	SKR3801071120	GANCIO AVVIAMENTO		2
10	SKR1752014801	MOLLA DI RITORNO		2
11	ECR1540110030	*VEDI ECRV304000300	*	2
12	SKR2210071441	BULLONE		2
13	SKR240303100	*VEDI ECR9311503010	*	1
14	SKR2216971460	DADO VOLANO		1	M8X1.0
15	SKR3801071212	*VEDI SKRA411001100	*	1
16	ECR3801071320	*VEDI ECRV475005290	*	1
17	SKR1102204160	BULLONE		2	M4X16
18	SKR3801071330	*VEDI ECRA427000160	*	1
19	SKR2215472230	*VEDI SKRA426000040	*	1
20	ECR1435201700	*VEDI ECRV485002100	*	1
21	SKR3801075011	*VEDI SKRA051002131	*	1
22	SKR3801075310	*VEDI ECRA500001630	*	1
23	ECR3801075320	*VEDI ECRV505000150	*	1
24	SKR3801075330	COPERCHIO		1
25	SKR3801075341	*VEDI ECRA506000431	*	1
26	SKR3801075410	*VEDI SKRA507000060	*	1
27	SKR3801075360	*VEDI SKRA504000240	*	1
28	SKR150006051	DADO M6		1
29	ECR3801075370	*VEDI ECRV304000310	*	1
30	ECR3200377370	*VEDI ECRV252000530	*	1
31	SKR2210475420	MANOPOLA		4
32	SKR2210475430	FERMO		1
34	SKR3801075210	GUIDA ARIA		1
35	SKR3801082581	*VEDI SKRA226001270	*	1
36	SKR3801082311	*VEDI SKRA226001280	*	1
37	ECR3801082561	*VEDI ECRV253000730	*	2	M5X12
39	SKR3801082131	*VEDI SKRA232001290	*	1
40	SKR3801082460	POMELLO		1
41	ECR1942200044	LABEL CAUTION		1
42	ECR3801191020	LABEL TRADE		1
43	ECR1940100300	LABEL INST		1
44	SKR3801075400			1

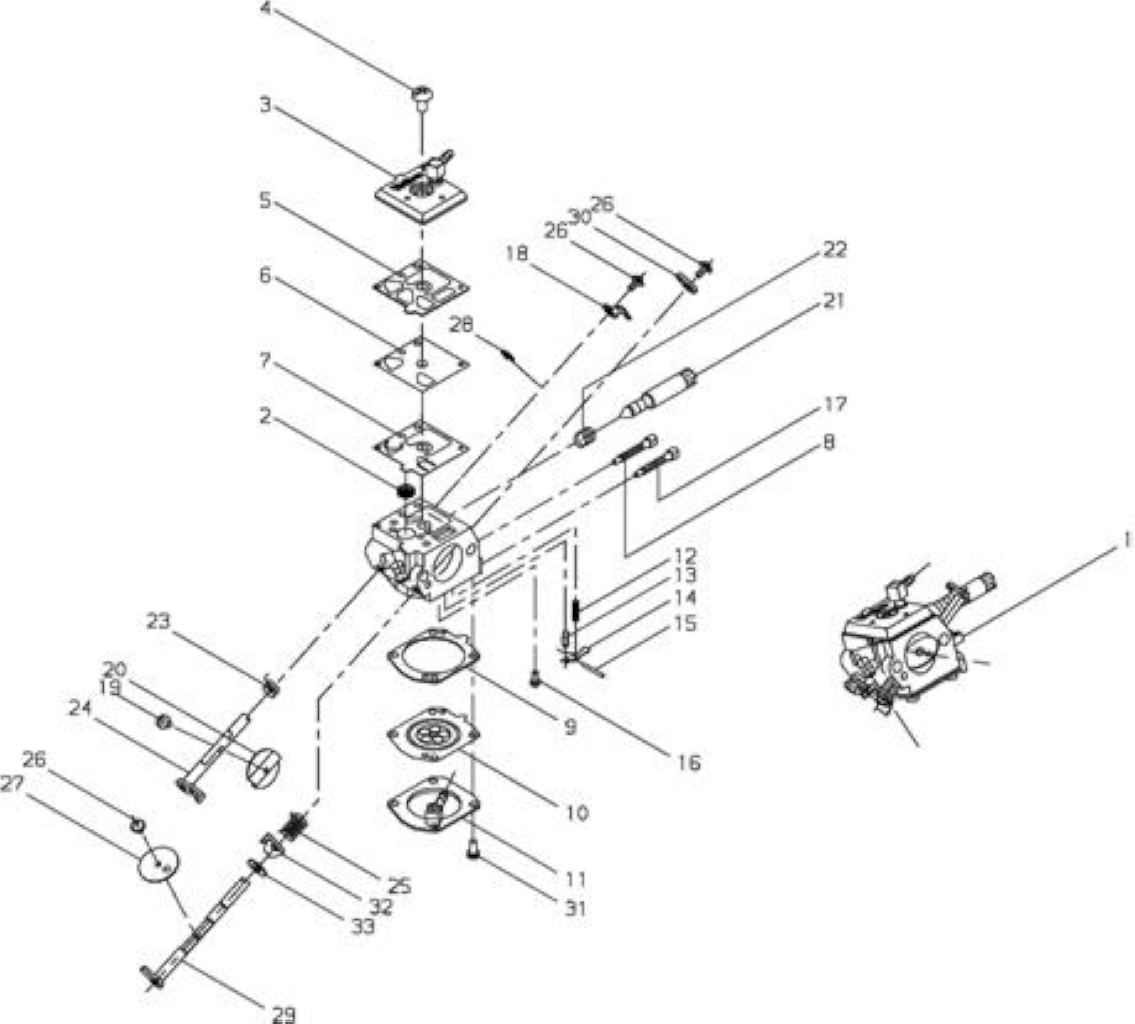

1	ECR6800681010	*VEDI ECRA021003150 *	1
2	SKR7003081380	*VEDI ECR12312610631 *	1
3	SKR2215081120	*VEDI SKRP003002850 *	1
4	SKR2215081130	VITE	1
5	SKR2215081140	*VEDI ECR12312512330 *	1
6	SKR2216981180	*VEDI ECRP003003150 *	1
7	SKR2216981150	*VEDI ECRP003003130 *	1
9	SKR2215081290	*VEDI ECR12314016131 *	1
10	SKR2215081260	*VEDI ECR12314116130 *	1
11	ECR3801081350	COVER DIAPHRAGM	1
12	SKR2215081270	MOLLA LEVA	1
13	SKR2003681440	*VEDI ECR12313719830 *	1
14	SKR2215081230	BILANCIERE	1
15	SKR2210081250	*VEDI ECR12313803930 *	1
16	SKR2210081240	VITE	1
17	ECR6800681330	H NEEDLE	1	H
18	SKR2216081390	FERMO	1
19	SKR2080381140	VITE	1
20	SKR2215081340	VALVOLA ACCELERATORE	1
21	SKR2215681410	*VEDI ECRP003003030 *	1
22	SKR2215681420	*VEDI ECR12313304260 *	1
23	SKR2215081430	*VEDI SKRP003000560 *	1
24	ECR3801081370	*VEDI ECRP003003320 *	1
25	ECR3801081380	*VEDI ECRP003000610 *	1
26	SKR2080381150	VITE	3
27	SKR3801081390	*VEDI ECRP003003330 *	1
28	SKR7003081390	ANELLO	1
29	SKR3801081400	*VEDI SKRP003003340 *	1
30	SKR2215681380	*VEDI ECRP003003020 *	1
31	SKR2210081351	VITE COMPLETA	4
32	SKR3801081420	*VEDI ECRP003000620 *	1
33	SKR2003681185	RONDELLA	1

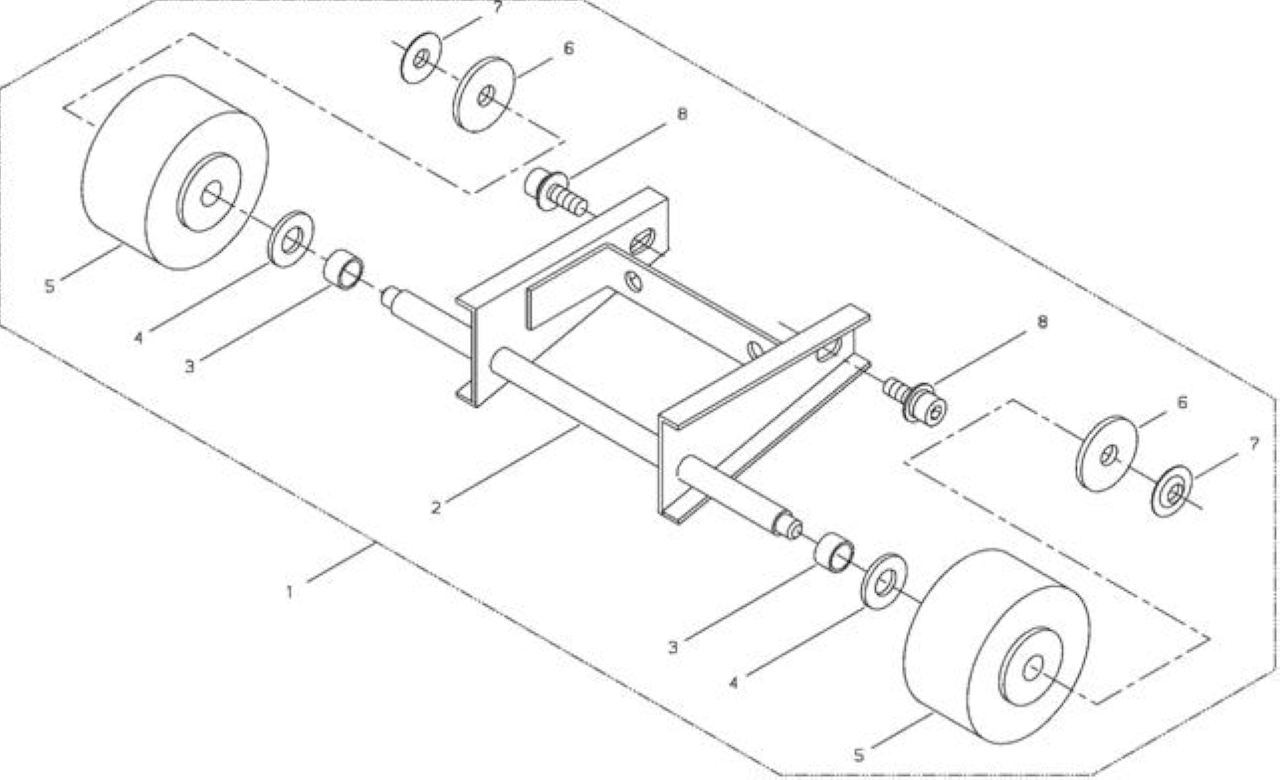

2	ECR6800098330	STAY	1
3	ECR1790108070	COLLAR	2	8,L=7
4	ECR0161200800	*VEDI ECR90060200008 *	2
5	ECR1601100051	CASTER	2	427S-RD-50
6	SKR1540120008	*VEDI ECRV304000320 *	2
7	ECR6800098340	*VEDI ECRV264000200 *	2	OCHIAI SPN-6
8	ECR1106005141	*VEDI ECRV203001020 *	2	M5×14

1	SKR3801098350		1	NON GESTITO
2	SKR3801041110	*VEDI SKRA100000890 *	1
3	SKR2216941210	*VEDI SKRA101000560 *	2
4	SKR2216941220	*VEDI SKRV610000010 *	1
5	SKR2215541230	*VEDI SKRV580000060 *	2
6	SKR2215541281	*VEDI SKRV557000030 *	1
7	SKR3801012112	*VEDI SKRA130001680 *	1
8	SKR3801012120	*VEDI SKRV100000580 *	1
9	SKR3801015210	*VEDI ECRV104001630 *	1
10	ECR3801071112	*VEDI ECRA409000990 *	1
11	ECR6800298331	*VEDI ECRP021029230 *	1

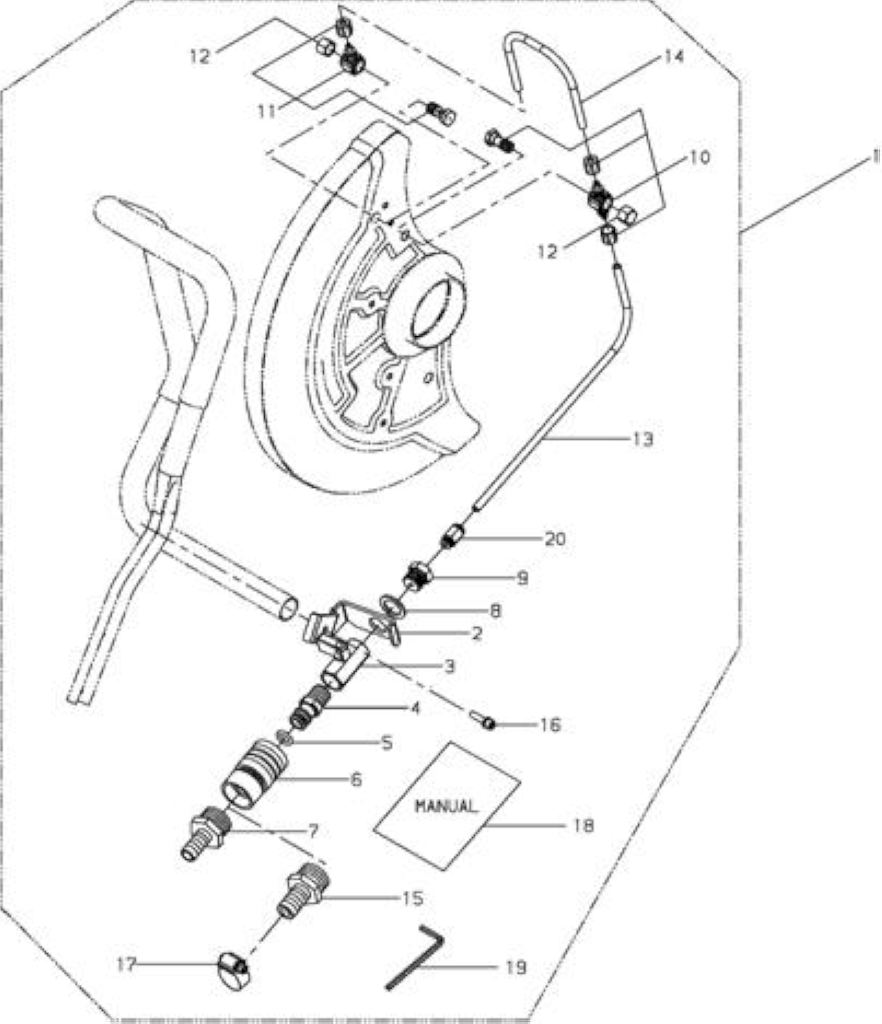

1	ECR6802093310	*VEDI ECRM061000010 *	1
2	ECR6802093320	*VEDI ECRE258000110 *	1
3	ECR6802093330	*VEDI ECRE245000090 *	1
4	ECR6802093341	CONNECTOR	1
5	ECR6802093520	O RING	1
6	ECR6802093350	COUPLER	1
7	ECR6802093360	*VEDI ECRE231000050 *	1	1/2"(F14)
8	ECR6802093370	SPACER	1
9	ECR6802093381	JOINT	1
10	ECR6802093390	*VEDI ECRK033000510 *	1
11	ECR6802093430	*VEDI ECRK033000520 *	1
12	ECR6802093450	*VEDI ECRM652000000 *	2
13	ECR6802093460	*VEDI ECRV471002840 *	1	L370
14	ECR6802093470	*VEDI ECRV471002850 *	1	L235
15	ECR6802093480	*VEDI ECRE231000060 *	1	5/8"(F17)
16	SKR1102205200	*VEDI ECRV203000351 *	1	M5X20
17	ECR6802093490	*VEDI ECRV490000770 *	1
20	ECR6802093511	*VEDI ECRA373000140 *	1
