Motore, marmitta Carter motore, puleggia

Pistone,albero motore, camme&leverismi Ventola, tubolari

Bobina, volano Avviamento

Filtro aria, carburatore Zaino, Serbatoio Impugnatura acceleratore Cinghie

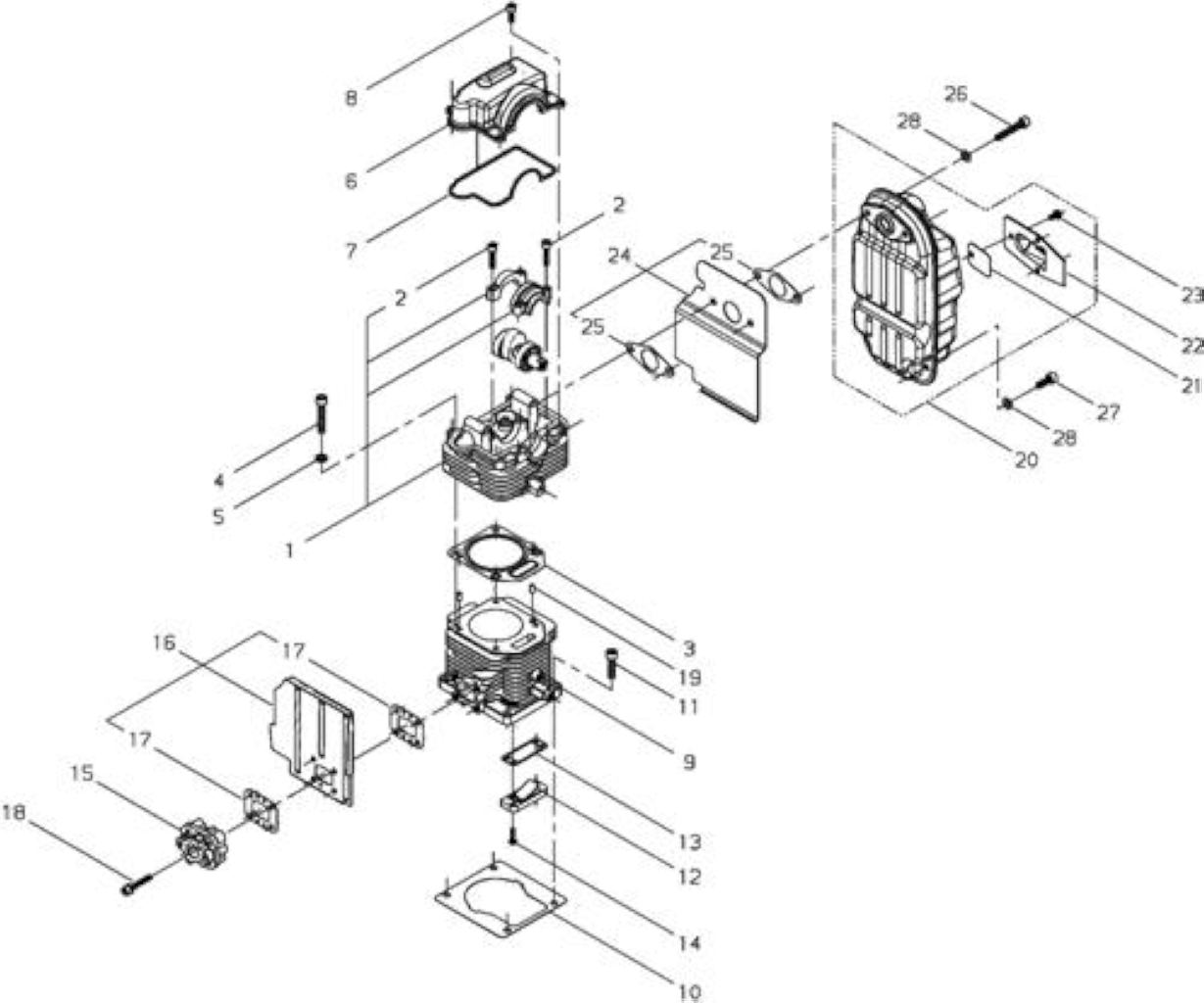

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6890011022

*VEDI SKRP021029450 *

1



2

SKR102005220

*VEDI ECR90010505022 *

4

M5X22

3

SKR6890011260

*VEDI ECRV101000010 *

1



4

ECR0102006350

*VEDI ECR90010506035 *

4

M6X35

5

ECR1162010001

*VEDI ECRV304000140 *

4

11X6.4X1.5

6

SKR6890011271

*VEDI ECRA137000010 *

1



7

SKR6890011281

*VEDI ECRV109000070 *

1



8

SKR102005140

*VEDI ECR90010505014 *

4

M5X14

9

SKR6890012111

CILINDRO X EB8510 EC2 *VEDI NOTE*

1



10

SKR6890012121

*VEDI ECRV100000330 *

1



11

SKR102006250

BULLONE M6X25

4

M6X25

12

SKR6890012310

*VEDI ECRA024000030 *

1



13

SKR6890012320

*VEDI ECRV109000080 *

1



14

ECR0121004140

*VEDI ECR9146104014 *

2

M4X14

15

SKR6890012211

*VEDI SKRA200000430 *

1



16

ECR6890012333

*VEDI ECRA209000230 *

1



17

SKR6890012220

*VEDI SKRV103000630 *

2



18

ECR1102205300

*VEDI ECRV203000580 *

4

M5X30

19

SKR1249240080

*VEDI ECRV622000040 *

2

E4X8F6 C3

20

SKR6890015011

*VEDI ECRA030000101 *

1



21

SKR6890015130

*VEDI ECRA310000160 *

1



22

SKR6890015160

*VEDI ECRA313001211 *

1



23

ECR0121005086

SCREW

3

M5X8

24

SKR6890015210

*VEDI ECRV104001070 *

1



25

SKR6890015320

*VEDI SKRV104001080 *

2



26

ECR0102006355

*VEDI ECR9110906035 *

2

M6X35

27

ECR0102006160

*VEDI ECR90010506016 *

2

M6X16

28

SKR161006080

RONDELLA

4

6MM











Rif.

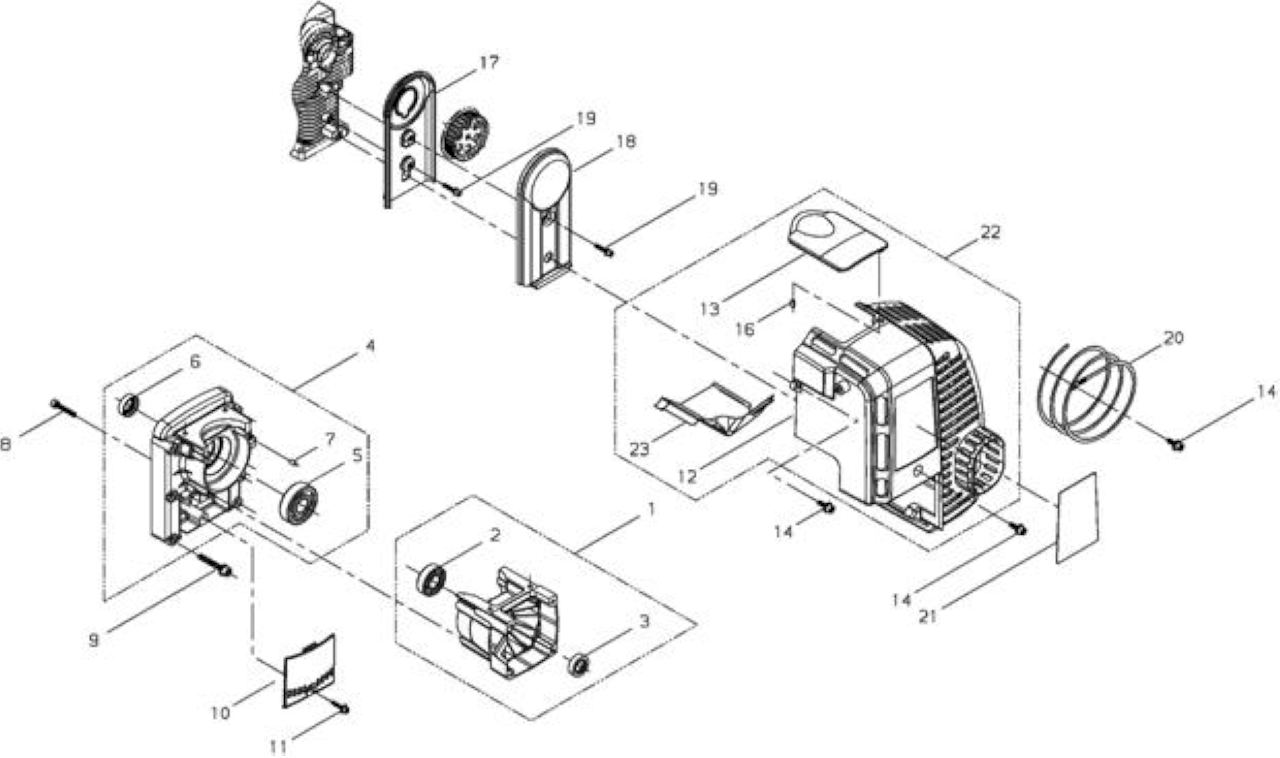

Articolo

Descrizione

Q.tà

Nota

1

SKR6890021011

CARTER MOTORE (S) COMPL.

1



2

SKR1290062020

*VEDI SKR200006202 *

1

6202,C3

3

SKR1231012000

*VEDI SKRV508000040 *

1

15X25X7

4

ECR6890021023

*VEDI ECRP021029490 *

1



5

SKR203006303

*VEDI ECR9400036303 *

1

6303 C3

6

SKR1231012000

*VEDI SKRV508000040 *

1

15X25X7

7

SKR1249240080

*VEDI ECRV622000040 *

2

E4X8F6 C3

8

SKR102005300

BULLONE M5X30

4

M5X30

9

ECR1106006400

*VEDI ECRV204000370 *

6

M6X40

10

ECR6890021311

IGNITION COIL COVER

1



11

ECR1102404200

*VEDI ECRV202000190 *

1

M4X20

12

SKR6890031110

*VEDI SKR6890031321 *

1



13

ECR6890031311

GROMMET

1



14

ECR1102405160

*VEDI ECRV203000740 *

4

M5X16

16

SKR242740085

SPINOTTO

1

4×8

17

SKR6890032110

*VEDI ECRC589000750 *

1



18

SKR6890032120

*VEDI ECRC589000760 *

1



19

SKR1102205120

BULLONE

2

M5X12

20

ECR1439509100

*VEDI ECRV485001330 *

1



21

ECR6890091330

LABEL TRADE

1



22

SKR6890031321

*VEDI ECRP021029502 *

1



23

SKR6890031331

*VEDI ECRA322000090 *

1

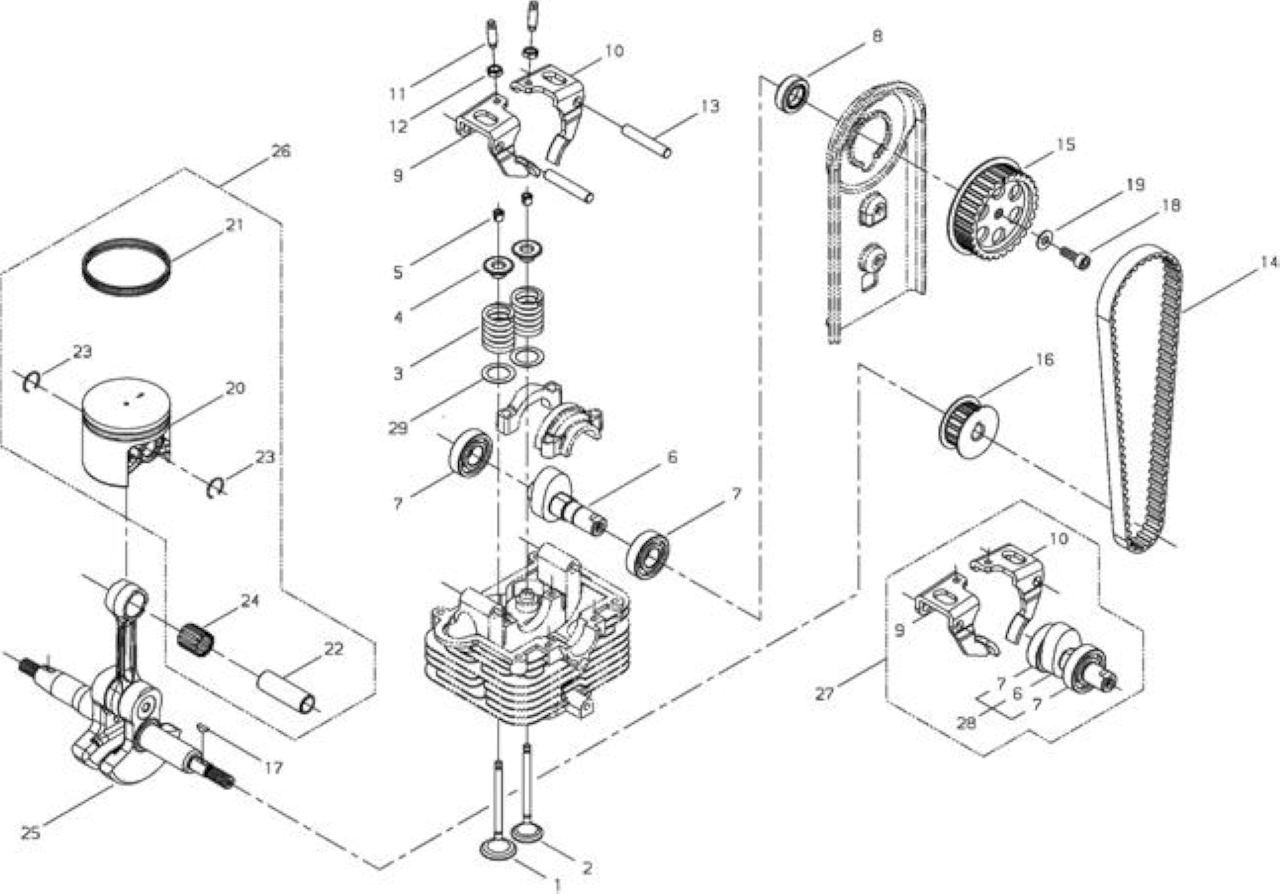

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6890011210

*VEDI SKRA603000020 *

1



2

SKR6890011220

*VEDI SKRA603000030 *

1



3

SKR6890011230

*VEDI ECRA604000000 *

2



4

SKR6890011240

*VEDI ECRA606000030 *

2



5

SKR6890011250

*VEDI SKRA605000010 *

4



6

SKR6890013110

*VEDI SKRA621000010 *

1



7

SKR203006001

*VEDI ECR90080036001 *

2

6001 C3

8

SKR6290142260

*VEDI SKRV505000110 *

1



9

SKR6890013121

*VEDI ECRA610000020 *

1



10

SKR6890013131

*VEDI ECRA610000040 *

1



11

SKR6890013140

* VEDI ECRA613000000 *

2



12

SKR6290144231

*VEDI ECRV263000230 *

2



13

SKR1249260350

* VEDI ECRV624000060 *

2

N6X35.8F6 C3

14

SKR6890013150

*VEDI SKRV196000110 *

1



15

SKR6890013160

*VEDI SKRV176000070 *

1



16

SKR6890013170

*VEDI ECRV176000080 *

1



17

SKR1240803100

CHIAVELLA

*V381000030

1

3X10

18

SKR102005140

*VEDI ECR90010505014 *

1

M5X14

19

ECR0161200500

*VEDI ECR90060200005 *

1

5MM

20

SKR6890041110

*VEDI ECRA10000520 *

1



21

SKR6890041120

*VEDI SKRA101000280 *

2



22

SKR2216941220

*VEDI SKRV610000010 *

1



23

SKR2215541230

*VEDI SKRV580000060 *

2



24

SKR2215541281

*VEDI SKRV557000030 *

1



25

ECR6890042012

*VEDI ECRA011000690 *

1



26

SKR6890098380

*VEDI SKRP021029540 *

1



27

ECR6890098390

*VEDI ECRP021029550 *

1



28

ECR6890013010

*VEDI ECRA621000000 *

1



29

ECR6890011330

*VEDI ECRV393000000 *

2









Rif.

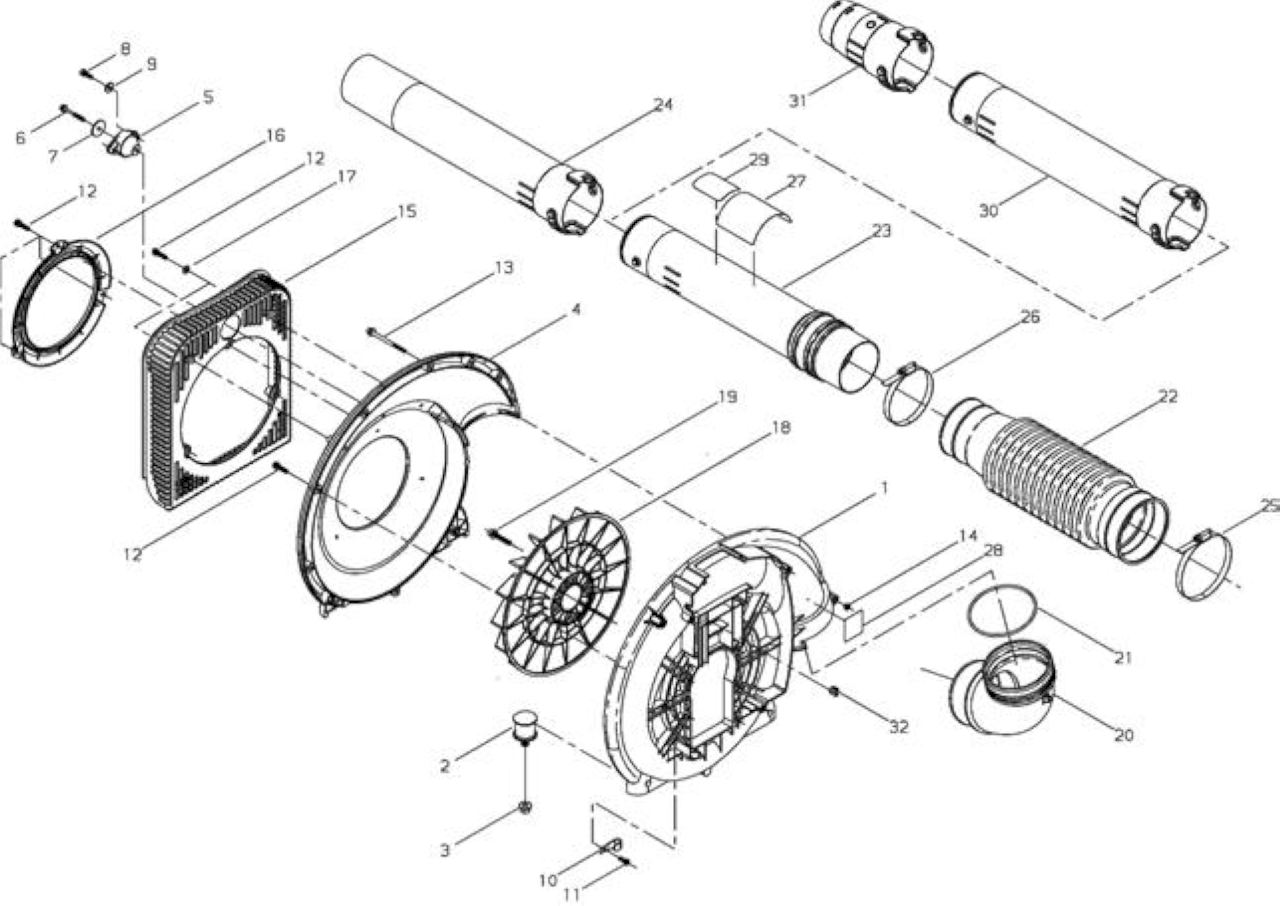

Articolo

Descrizione

Q.tà

Nota

1

SKR6890061113

*VEDI SKRE103000880 *

1



2

SKR6820661320

*VEDI ECRV402000070 *

2



3

ECR1152606202

*VEDI ECRV264000090 *

2

M6

4

SKR6890061121

*VEDI SKRE103000870 *

1



5

SKR6820661330

*VEDI SKRV401000190 *

1



6

ECR6820661340

*VEDI ECRV203000440 *

1



7

ECR1540120009

*VEDI ECRV303000130 *

1

F25XF5.5XL2

8

SKR1102005160

BULLONE

2

M5X16

9

ECR1540110010

*VEDI ECRV303000140 *

2

F15XF5.2XL1.6

10

ECR6820671370

CLAMP

1



11

ECR0128005142

SCREW TAPPING

1

5X14

12

ECR7014031480

*VEDI ECRV203000450 *

14



13

SKR1102405700

BULLONE

2

M5X70

14

ECR1150005001

*VEDI ECRV263000110 *

2

M5

15

SKR6890061130

*VEDI ECRE104000180 *

1



16

SKR6890061310

*VEDI ECRA161000100 *

1



17

ECR0161305080

*VEDI ECR90060300005 *

2

5MM

18

SKR1734307001

VENTOLA

1

F257

19

ECR1102406351

BOLT SW

4

M6X35

20

SKR6890063111

*VEDI SKRE160000160 *

1



21

ECR6890063330

*VEDI ECRV581000170 *

1



22

SKR6890063120

*VEDI SKRE164000120 *

1



23

SKR6890063130

*VEDI SKRE165000510 *

1



24

SKR6890063150

*VEDI SKRE165000520 *

1



25

ECR6890063340

*VEDI ECRV495001290 *

1



26

ECR6890063351

*VEDI ECRV495001300 *

1



27

SKR6890091340

*VEDI SKRX543001310 *

1



28

ECR1940400037

LABEL DECIBEL

1

112DB(A)

29

SKR1940200304

*VEDI ECRX505002830 *

1



30

SKR6890063140

*VEDI SKRE165000530 *

1



31

SKR6890063360

*VEDI SKRE165000540 *

1



32

SKR2210031531

GOMMINO

1

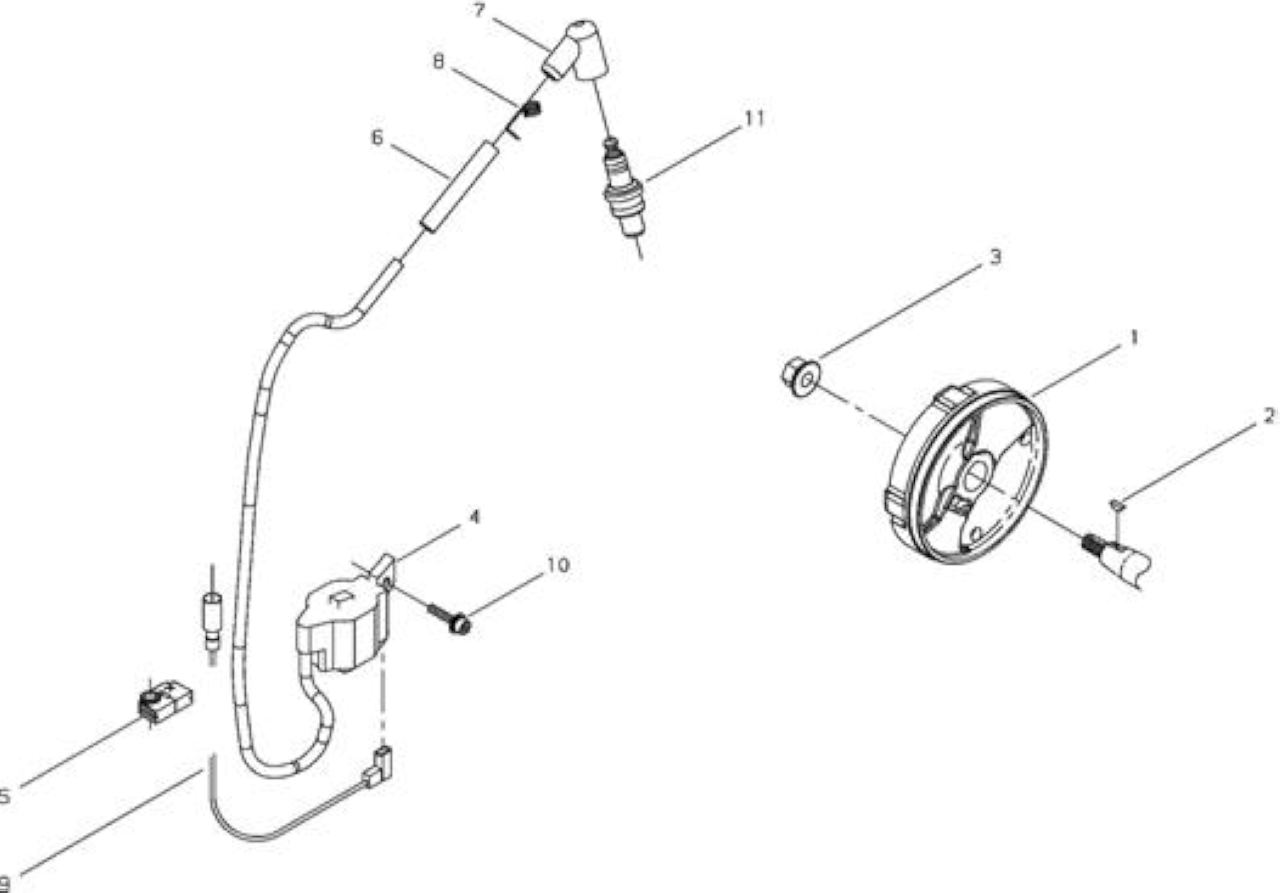

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6890071112

*VEDI SKRA409000450 *

1



2

SKR1240803100

CHIAVELLA

*V381000030

1

3X10

3

SKR2003571220

*VEDI ECRV265000140 *

1



4

SKR6890071020

*VEDI ECRA411000600 *

1



5

ECR6890071311

*VEDI ECRV144000220 *

1



6

ECR7016871660

TUBE

1



7

SKR6290171250

VEDI ECRA427000050 *

1



8

SKR2215472230

*VEDI SKRA426000040 *

1



9

ECR1435001701

LEAD WIRE

2

0.75MM2 L175

10

ECR1102404200

*VEDI ECRV202000190 *

2

M4X20













Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6890075011

*VEDI SKRA051001530

*            1



2

SKR6890075110

*VEDI ECRA500000670

*            1



3

SKR6890075130

*VEDI SKRA504000080

*            1



4

SKR6890075120

*VEDI SKRA506000170

*            1



5

SKR6890075310

*VEDI SKRA518000040

*            1



6

SKR6890075320

*VEDI SKRV450000830

*            1



7

SKR6890075330

*VEDI ECRV253000280

*            1



8

SKR6890075340

*VEDI ECRA606000020

*            1



10

ECR6890075150

*VEDI ECRA511000120

*            1



11

SKR6890075210

*VEDI SKRA520000110

*            1



12

SKR151108051

DADO

1

M8

13

SKR1102205200

*VEDI ECRV203000351

*            4

M5X20

14

SKR1942000070

*VEDI ECRX504003080

*            1

SHINDAIWA







Rif.

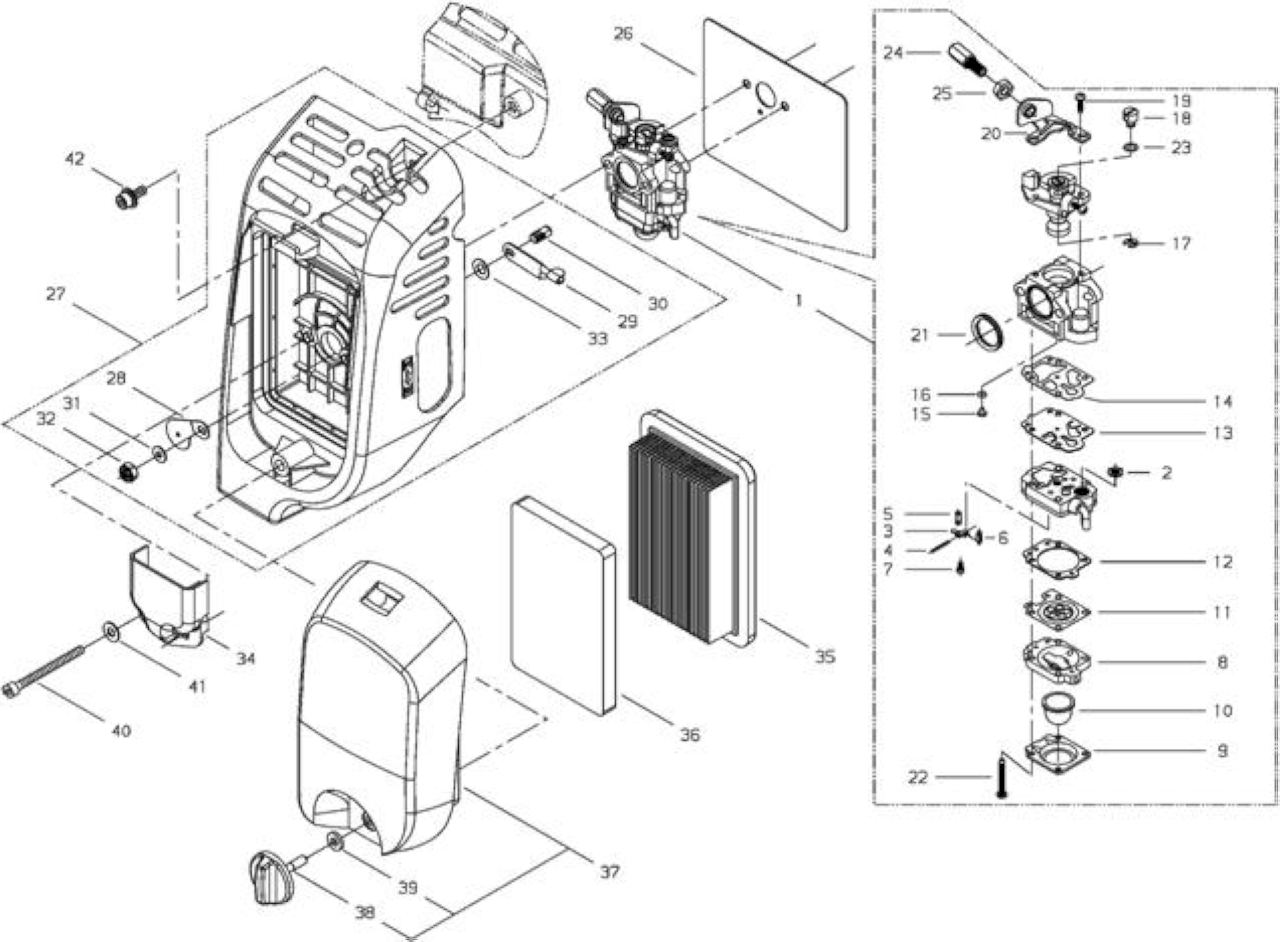

Articolo

Descrizione

Q.tà

Nota

1

SKR6890081011

*VEDI SKRA021002060 *

1



2

SKR7003081380

*VEDI ECR12312610631 *

1



3

SKR2210081230

BILANCIERE

1



4

SKR2210081250

*VEDI ECR12313803930 *

1



5

SKR7293381270

MOLLA

1



6

SKR2003681440

*VEDI ECR12313719830 *

1



7

SKR2001681450

VITE

1



8

SKR2001681420

*VEDI ECR12318005560 *

1



9

SKR2001681510

*VEDI ECR12314205560 *

1



10

SKR2003681670

*VEDI ECR12318140630 *

1



11

SKR3701381310

*VEDI SKRP003000090 *

1



12

SKR2001681280

*VEDI ECR12314005560 *

1



13

SKR7009781320

*VEDI ECR12311240630 *

1



14

SKR7009781310

*VEDI ECR12312540630 *

1



15

SKR6890081330

GETTO PRINCIPALE

1



16

SKR7009781220

*VEDI ECR12318340630 *

1



17

SKR2003681195

ANELLO

1



18

SKR7293381450

NOTTOLINO

1



19

SKR7009781290

VITE CARBURATORE

2



20

SKR2008981130

SUPPORTO

1



21

SKR7293381250

ANELLO

1



22

ECR2001681140

*VEDI ECR12311005560 *

4



23

SKR2008981185

RONDELLA

1



24

SKR2008981110

REGOLATORE CAVO

1



25

SKR2003681120

DADO

1



26

SKR6890081210

*VEDI SKRV103000650 *

1



27

SKR6890082011

*VEDI SKRP021029520 *

1



28

ECR2001881711B

CHOKE PLATE

1



29

SKR2087082120

*VEDI SKRA242000120 *

1



30

SKR2011082140

*VEDI ECRE140000090 *

1



31

SKR160006151

RONDELLA ELASTICA D6

1

6MM

32

SKR1152406211

DADO SINISTRO

1

M6

33

SKR2002481790

*VEDI SKRV347000030 *

1



34

SKR6890082311

*VEDI ECRA244000110 *

1



35

SKR6890082120

*VEDI SKRA226000550 *

1



36

SKR6890082320

*VEDI SKRA226000560 *

1



37

SKR6890082030

*VEDI SKRP021029530 *

1



38

SKR2218231220

*VEDI SKRA235000270 *

1



39

SKR2362721220

*VEDI SKRV323000080 *

1



40

ECR0102005650

BOLT

2

M5X65

41

ECR0161200500

*VEDI ECR90060200005 *

2

5MM

42

ECR1102405160

*VEDI ECRV203000740 *

1

M5X16













Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6890085010

*VEDI ECRA038000080 *

1



2

SKR6820685110

*VEDI ECRA350001050 *

1



3

SKR6820485020

*VEDI SKRA033000020 *

1



4

SKR2000085221

*VEDI SKRV107000010 *

1



5

SKR7293385350

*VEDI SKRV470000890 *

1



6

SKR6890085310

*VEDI ECRV471002451 *

1



7

SKR2211585401

*VEDI SKRA369000040 *

1



8

SKR2212885410

*VEDI SKR2212885401 *

1



9

SKR2212885421

*VEDI SKRA371000000 *

2



10

SKR2212885440

MORSETTO

1



11

SKR2211885460

FILTRO

2



12

SKR2212885470

*VEDI ECRA372000000 *

1



13

SKR2212885480

*VEDI ECRV5830000200 *

1



14

SKR2002085540

*VEDI SKRV490000500 *

3



15

SKR2003585522

*VEDI SKRA356000040 *

1



16

SKR7293585530

* VEDI ECRV471002420 *

1



17

SKR6890085320

TUBETTO

1



18

SKR7293385620

*VEDI SKRV186000210 *

1



19

SKR6820685330

TUBETTO

1



20

SKR2002085540

*VEDI SKRV490000500 *

1



21

ECR3701385310

*VEDI ECRV490000510 *

1



22

ECR7293585550

CLIP

1



23

ECR1106005140

BOLT ADHESIVE

2

M5X14

24

ECR1540110010

*VEDI ECRV303000140 *

2

F15XF5.2XL1.6

25

ECR6890091320

LABEL TRADE

1



26

ECR6820686111

*VEDI ECRC620000360 *

1



27

SKR7293586120

*VEDI SKRC630000170 *

1



28

SKR7293586130

*VEDI SKRV491000240 *

4



29

SKR6820687010

*VEDI SKRC061000280 *

2



30

SKR6820687110

*VEDI SKRC640000050 *

1



31

SKR7293587120

*VEDI SKRC640000020 *

1



32

SKR7245117230

*VEDI ECRC645000000 *

1



33

ECR7293587310

*VEDI ECRC646000070 *

2



34

ECR1940200148

*VEDI ECRX505003350 *

1

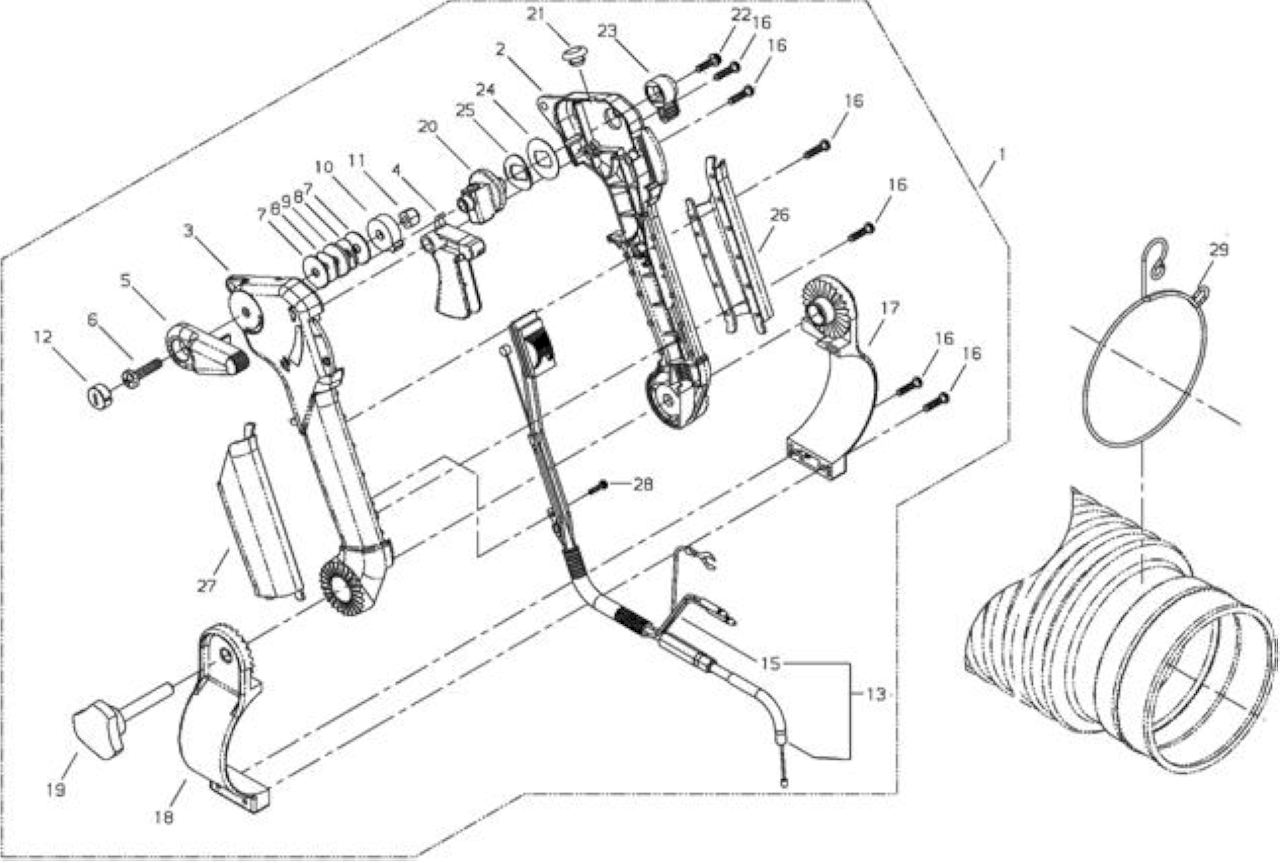

Rif.

Articolo

Descrizione                                  Q.tà

Nota

1

SKR6890184010

*VEDI SKRC044000330 *           1



2

SKR6820984321

*VEDI ECRC400000570 *           1



3

SKR6820984331

*VEDI ECRC400000580 *           1



4

SKR6820984340

*VEDI ECRC450000450 *           1



5

SKR6820984350

*VEDI ECRC453000320 *           1



6

ECR6820984360

*VEDI ECRV204000260 *           1



7

ECR6820984370

*VEDI ECRV304000110 *           2



8

ECR6820984380

*VEDI ECRV453000110 *           2



9

ECR6820984390

RONDELLA                                   1



10

ECR6820984400

*VEDI ECRC472000070 *           1



11

ECR6820984410

*VEDI ECRV264000080 *           1



12

ECR6820984420

*VEDI ECRV192000330 *           1



13

SKR6890184320

*VEDI SKRV043000390 *           1



15

SKR6890184340

*VEDI ECRA440001370 *           1



16

ECR6820984440

*VEDI ECRV252000070 *           6



17

SKR6820984450

*VEDI SKRC405000380 *           1



18

SKR6820984460

*VEDI SKRC405000390 *           1



19

SKR6820984470

*VEDI ECRV299000330 *           1



20

SKR6820984480

*VEDI ECRC457000010 *           1



21

SKR6820984490

*VEDI ECRV162000340 *           1



22

ECR6820984500

*VEDI ECRV252000080 *           1



23

SKR6820984510

*VEDI ECRC453000330 *           1



24

ECR6820984520

*VEDI ECRV345000010 *           1



25

ECR6820984530

ADJ SPRING                                 1



26

ECR6820984541

GRIP                                             1



27

ECR6820984551

*VEDI ECRC412000250 *           1



28

ECR6820984561

*VEDI ECRV251000030 *           1



29

SKR6890184311

*VEDI SKRV49000490 *             1

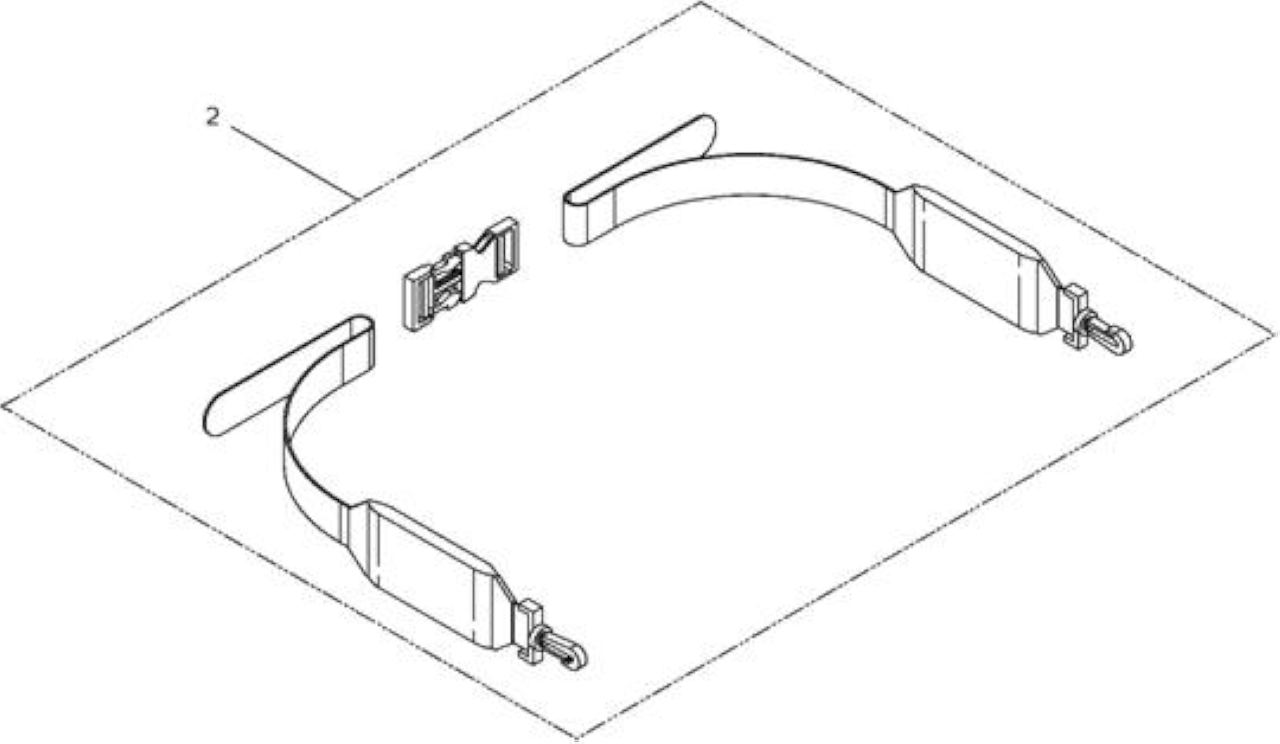

Text Box: 2 SKR6890087030 *VEDI ECRC061000400 * 1

Rif.        Articolo                  Descrizione                                  Q.tà Nota
