TESTA MOTORE CILINDRO MARMITTA CARTER MOTORE

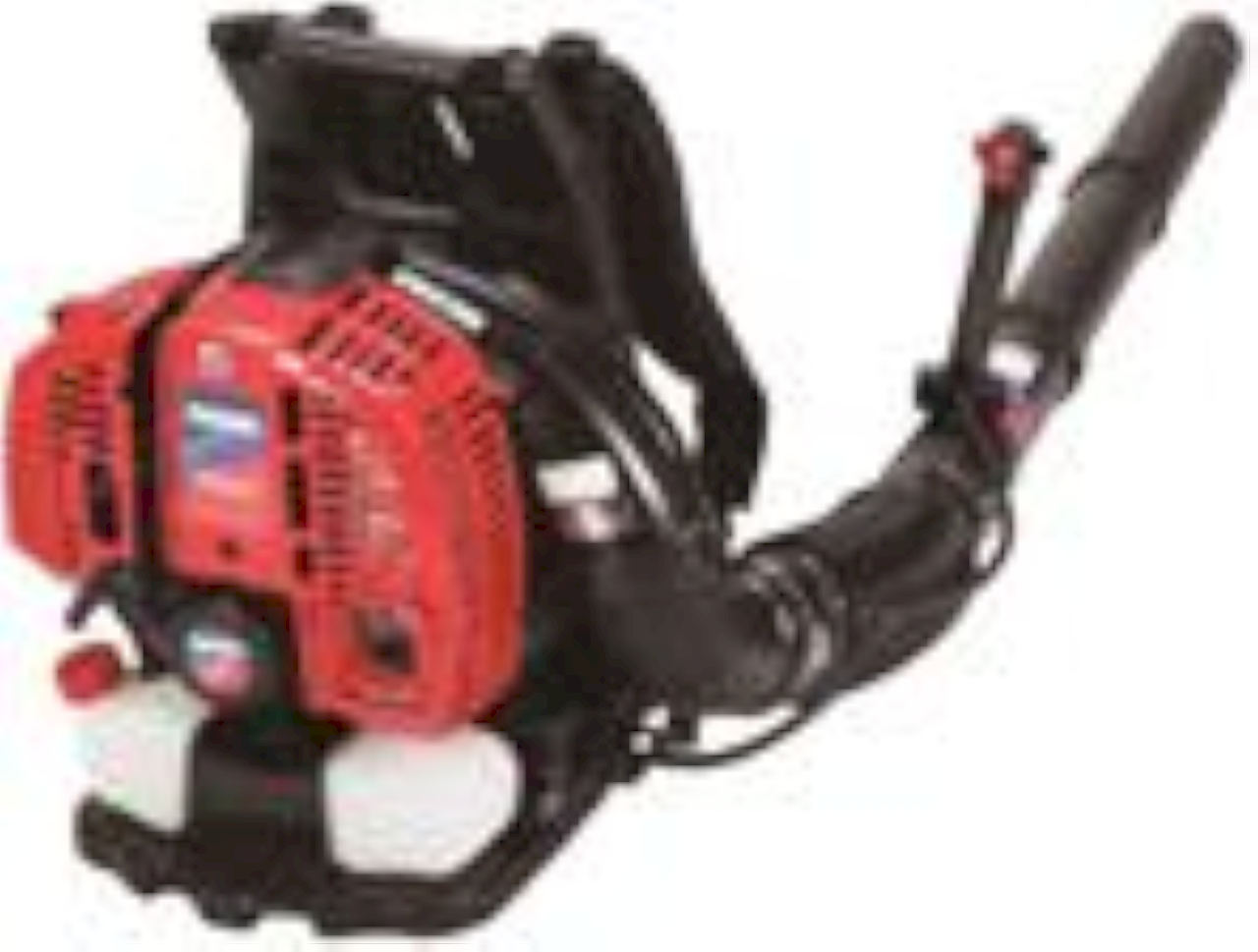

Informazioni tecniche
CILINDRATA	79,7
POTENZA	3,2 (4,35)
VOLUME ARIA	1320
VELOCITà ARIA	90
SERBATOIO MIX	2000
PESO	11,5

PISTONE VENTOLA

TUBOLARI BOBINA AVVIAMENTO FILTRO ARIA SERBATOIO

SERBATOIO (carter rosso) CINGHIE, TELAIO ( CARTER BLU)

CINGHIE, TELAIO ( CARTER ROSSO) IMPUGNATURA ACCEL. CARBURATORE

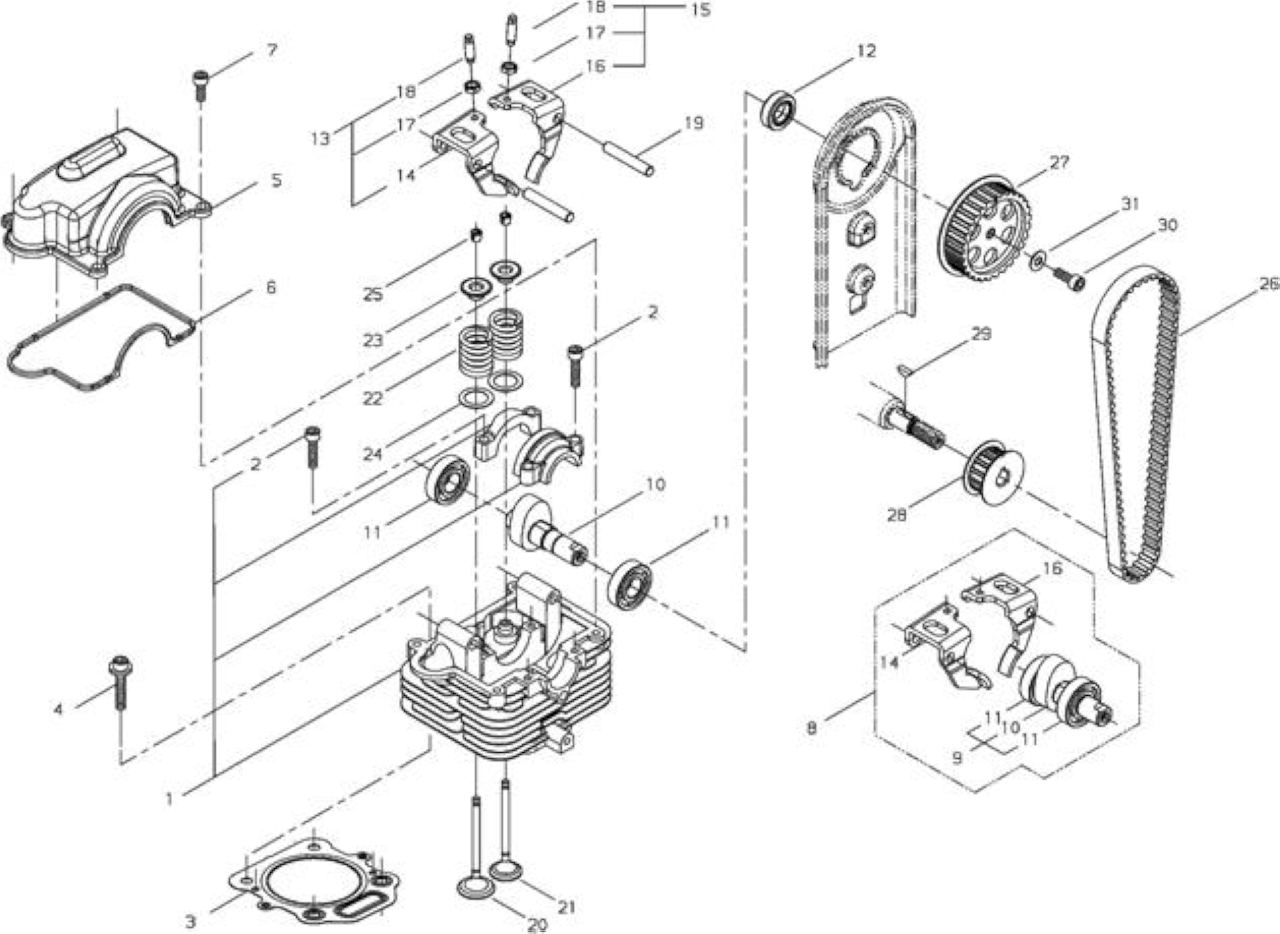

Rif.	Articolo	Descrizione	Q.tà	Nota
1	ECR6891311023	*VEDI ECRP021029630 *	1
2	SKR102005220	*VEDI ECR90010505022 *	4	M5X22
3	SKR6891311260	*VEDI SKRV101000000 *	1
4	ECR1103506350	FLANGE BOLT	4	M6X35
5	SKR6890011271	*VEDI ECRA137000010 *	1
6	SKR6890011281	*VEDI ECRV109000070 *	1
7	SKR102005160	*VEDI ECR90010505016 *	4	M5X16
8	ECR6890098390	*VEDI ECRP021029550 *	1
9	ECR6890013010	*VEDI ECRA621000000 *	1
10	SKR6890013110	*VEDI SKRA621000010 *	1
11	SKR203006001	*VEDI ECR90080036001 *	2	6001 C3
12	SKR6290142260	*VEDI SKRV505000110 *	1
13	ECR6890013031	LOCKER ARM-A	1
14	SKR6890013121	*VEDI ECRA610000020 *	1
15	ECR6890013021	LOCKER ARM-A	1
16	SKR6890013131	*VEDI ECRA610000040 *	1
17	SKR6290144231	*VEDI ECRV263000230 *	2
18	SKR6890013140	* VEDI ECRA613000000 *	2
19	SKR1249260350	* VEDI ECRV624000060 *	2	N6X35.8F6 C3
20	SKR6890011210	*VEDI SKRA603000020 *	1
21	SKR6890011220	*VEDI SKRA603000030 *	1
22	SKR6890011230	*VEDI ECRA604000000 *	2
23	SKR6890011240	*VEDI ECRA606000030 *	2
24	ECR6890011330	*VEDI ECRV393000000 *	2
25	SKR6890011250	*VEDI SKRA605000010 *	4
26	SKR6890013150	*VEDI SKRV196000110 *	1
27	SKR6890013160	*VEDI SKRV176000070 *	1
28	SKR6890013170	*VEDI ECRV176000080 *	1
29	SKR1240803100	CHIAVELLA *V381000030	1	3X10
30	SKR102005140	*VEDI ECR90010505014 *	1	M5X14
31	ECR0161200500	*VEDI ECR90060200005 *	1	5MM

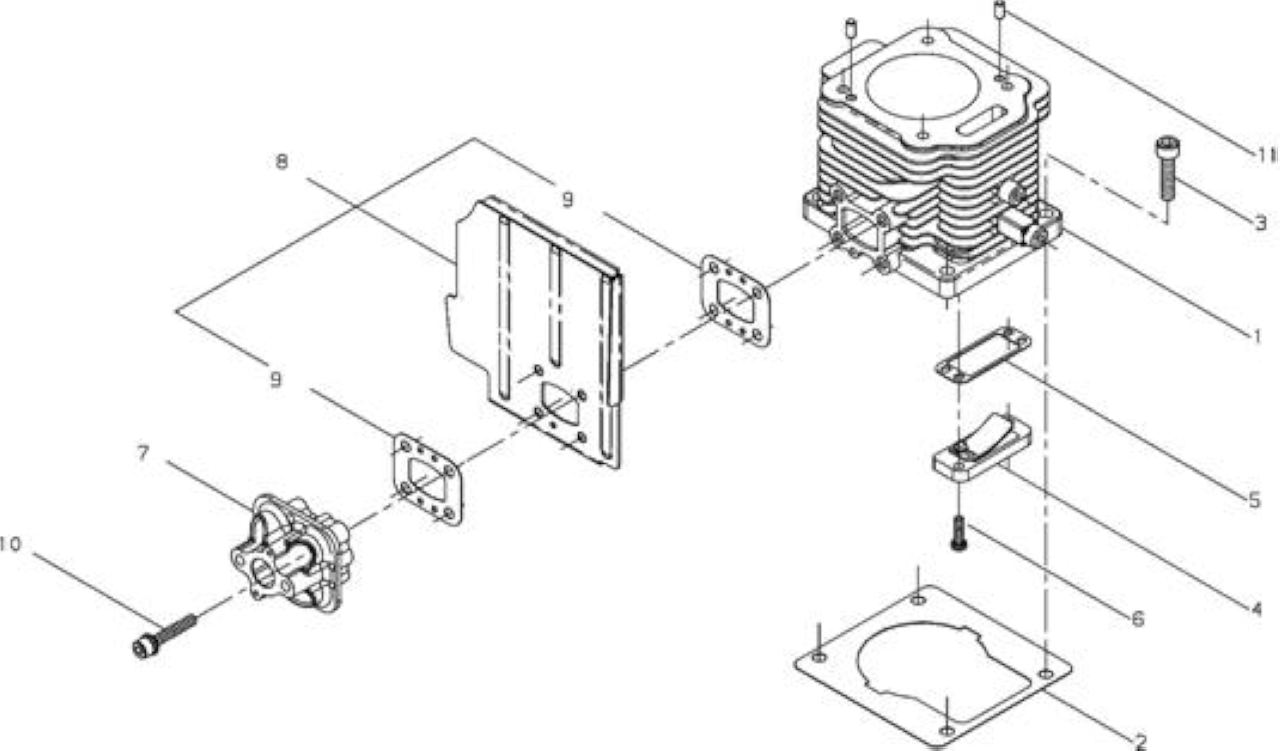

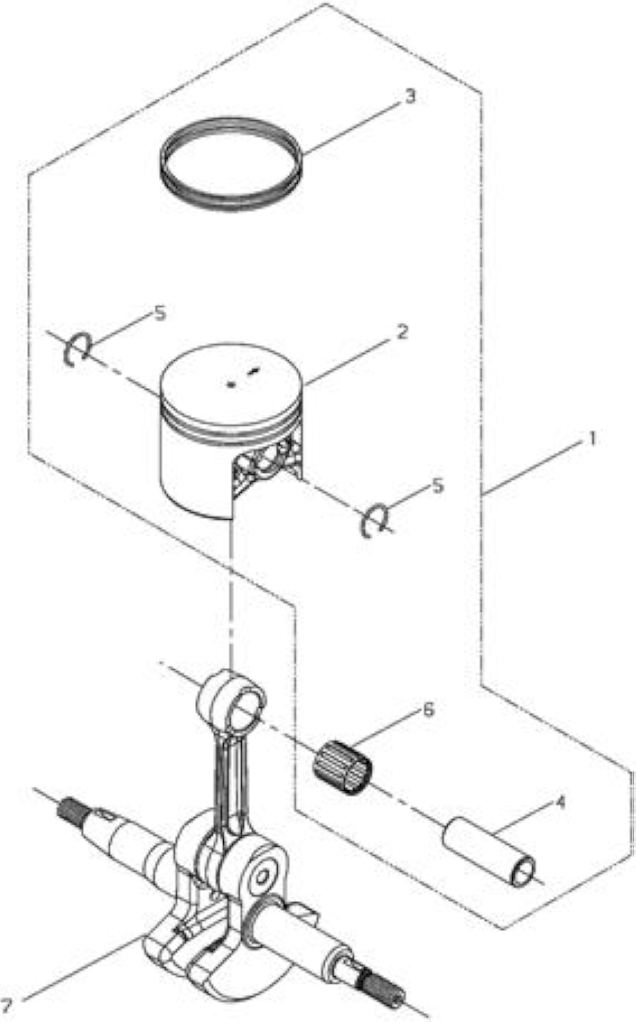

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6891312111	*VEDI SKRA130001100 *	1
2	SKR6890012121	*VEDI ECRV100000330 *	1
3	SKR102006250	BULLONE M6X25	4	M6X25
4	SKR6890012310	*VEDI ECRA024000030 *	1
5	SKR6890012320	*VEDI ECRV109000080 *	1
6	ECR0121004140	*VEDI ECR9146104014 *	2	M4X14
7	SKR6824212210	*VEDI SKRA200000420 *	1
8	ECR6890012333	*VEDI ECRA209000230 *	1
9	SKR6890012220	*VEDI SKRV103000630 *	2
10	ECR1102205305	*VEDI ECRV203000480 *	4	M5X30
11	SKR1249240080	*VEDI ECRV622000040 *	2	E4X8F6 C3

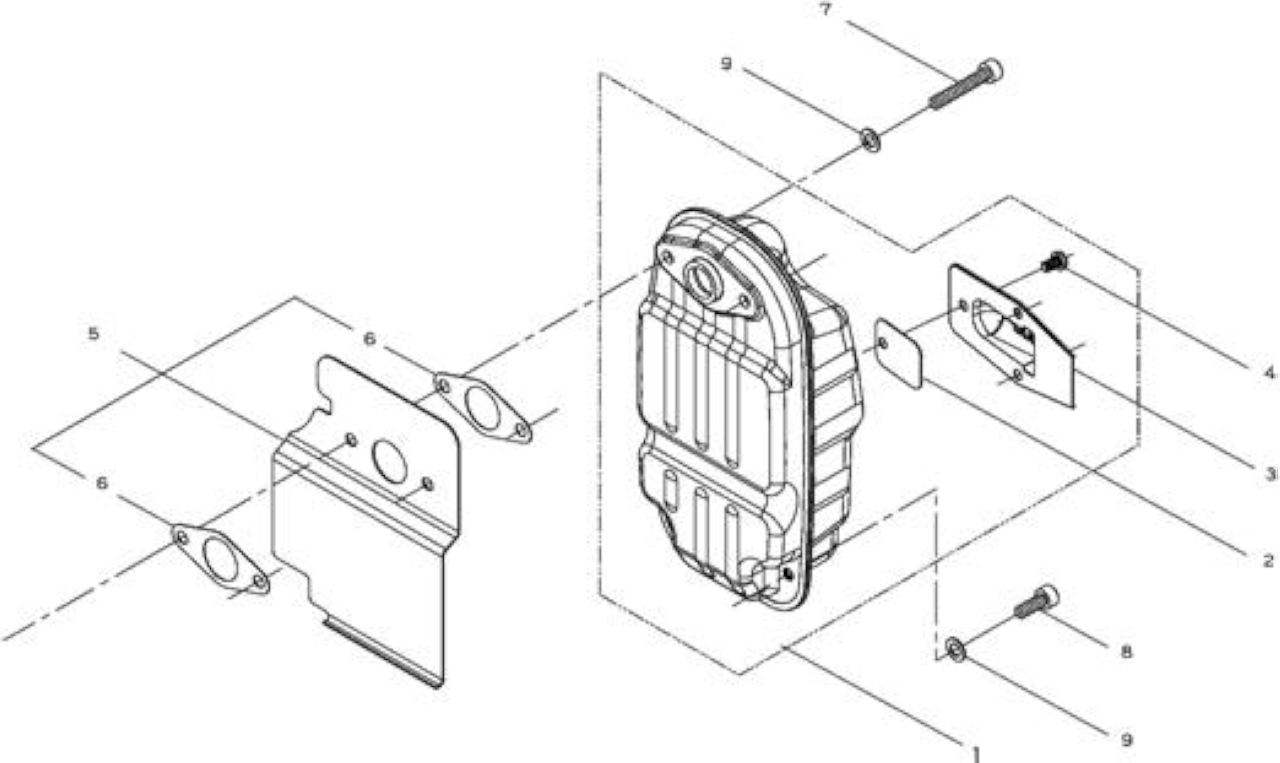

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6890015011	*VEDI ECRA030000101 *	1
2	SKR6890015130	*VEDI ECRA310000160 *	1
3	SKR6890015160	*VEDI ECRA313001211 *	1
4	ECR0121005086	SCREW	3	M5X8
5	SKR6890015210	*VEDI ECRV104001070 *	1
6	SKR6890015320	*VEDI SKRV104001080 *	2
7	ECR0102006355	*VEDI ECR9110906035 *	2	M6X35
8	ECR0102006160	*VEDI ECR90010506016 *	2	M6X16
9	ECR0161006080	*VEDI ECR90060000006 *	4	6MM

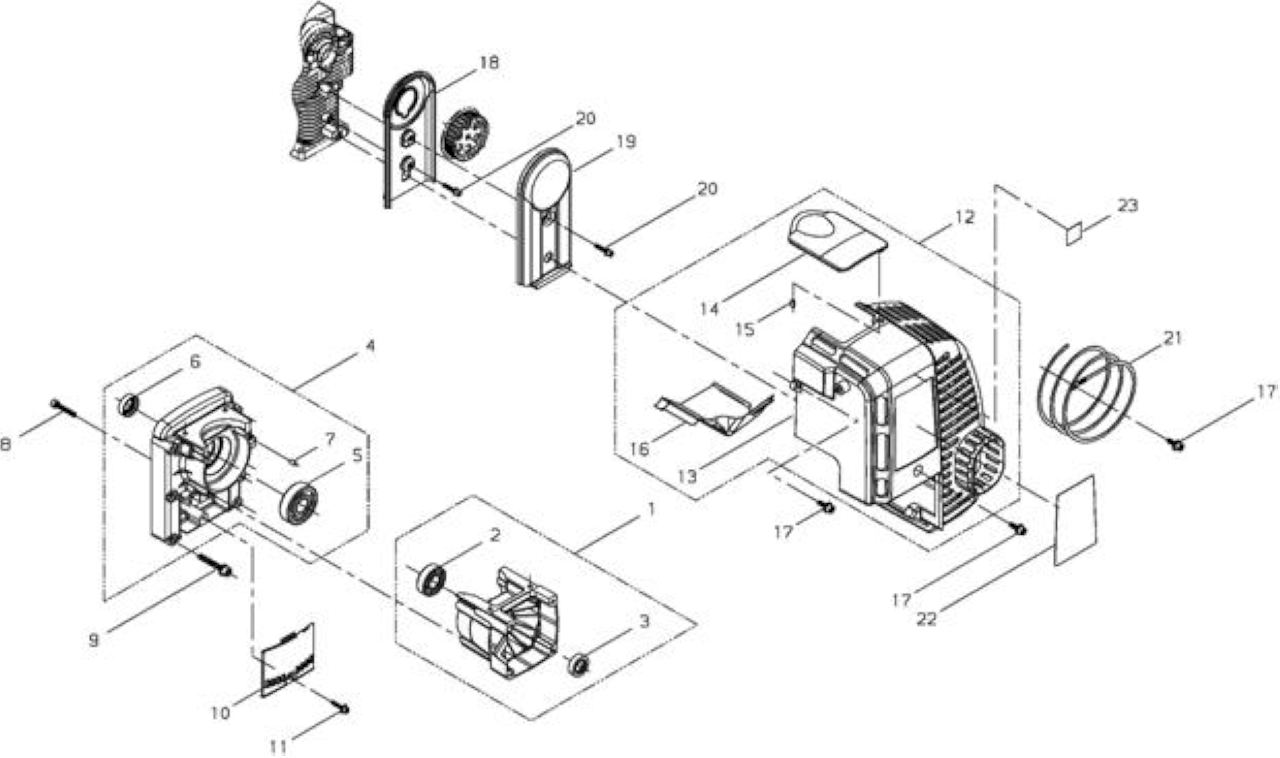

Rif.	Articolo	Descrizione	Q.tà	Nota
1	ECR6891321010	*VEDI ECRP021029640 *	1
2	SKR1290062020	*VEDI SKR200006202 *	1	6202,C3
3	SKR1231012000	*VEDI SKRV508000040 *	1	15X25X7
4	ECR6891321020	*VEDI ECRP021029650 *	1
5	SKR203006303	*VEDI ECR9400036303 *	1	6303 C3
6	SKR1231012000	*VEDI SKRV508000040 *	1	15X25X7
7	SKR1249240080	*VEDI ECRV622000040 *	2	E4X8F6 C3
8	SKR102005300	BULLONE M5X30	4	M5X30
9	ECR1106006400	*VEDI ECRV204000370 *	6	M6X40
10	ECR6890021311	IGNITION COIL COVER	1
11	ECR1102404200	*VEDI ECRV202000190 *	1	M4X20
12	SKR6890031321	*VEDI ECRP021029502 *	1	CARTER BLU
12	SKRA190001041	COPERCHIO MOTORE COMPL.(ROSSO)	1	CARTER ROSSO
13	SKR6890031110	*VEDI SKR6890031321 *	1
14	ECR6890031311	GROMMET	1
15	SKR242740085	SPINOTTO	1	4×8
16	SKR6890031331	*VEDI ECRA322000090 *	1
17	ECR1102405160	*VEDI ECRV203000740 *	4	M5X16
18	SKR6890032110	*VEDI ECRC589000750 *	1
19	SKR6890032120	*VEDI ECRC589000760 *	1
20	SKR1102205120	BULLONE	2	M5X12
21	ECR1439509100	*VEDI ECRV485001330 *	1
22	ECR6891391330	LABEL TRADE	1
23	ECR1940200205	*VEDI ECRX505002780 *	1

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6890098380	*VEDI SKRP021029540 *	1
2	SKR6890041110	*VEDI ECRA10000520 *	1
3	SKR6890041120	*VEDI SKRA101000280 *	2
4	SKR2216941220	*VEDI SKRV610000010 *	1
5	SKR2215541230	*VEDI SKRV580000060 *	2
6	SKR2215541281	*VEDI SKRV557000030 *	1
7	ECR6890042012	*VEDI ECRA011000690 *	1

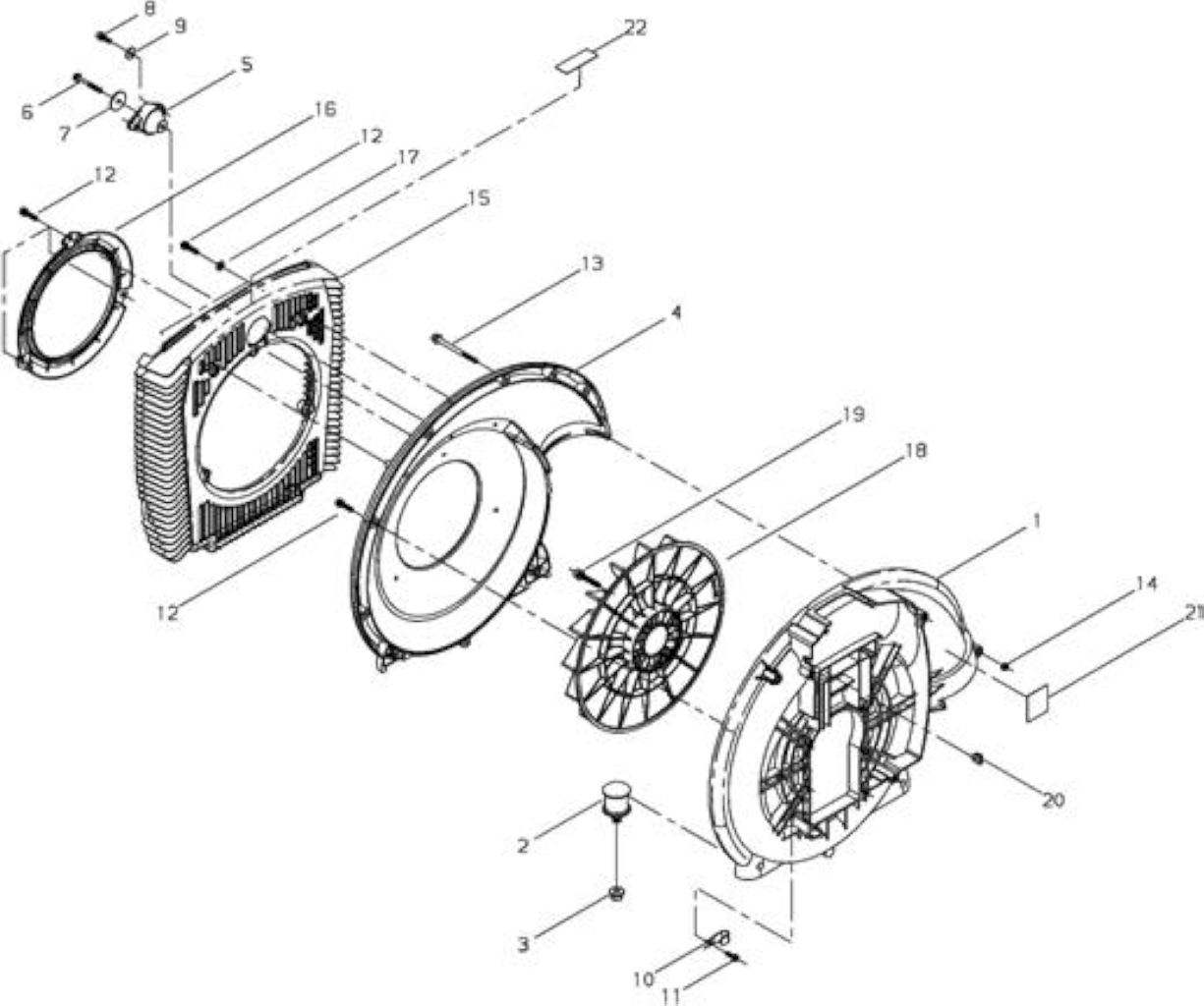

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6890061113	*VEDI SKRE103000880 *	1
2	SKR6820661320	*VEDI ECRV402000070 *	2
3	ECR1152606202	*VEDI ECRV264000090 *	2	M6
4	SKR6890061121	*VEDI SKRE103000870 *	1
5	SKR6820661330	*VEDI SKRV401000190 *	1
6	ECR6820661340	*VEDI ECRV203000440 *	1
7	ECR1540120009	*VEDI ECRV303000130 *	1	F25XF5.5XL2
8	SKR1102005160	BULLONE	2	M5X16
9	ECR1540110010	*VEDI ECRV303000140 *	2	F15XF5.2XL1.6
10	ECR6820671370	CLAMP	1
11	ECR0128005142	SCREW TAPPING	1	5X14
12	ECR7014031480	*VEDI ECRV203000450 *	14
13	SKR1102405700	BULLONE	2	M5X70
14	ECR1150005001	*VEDI ECRV263000110 *	2	M5
15	SKR6891361131	*VEDI ECRE104000171 *	1
16	SKR6890061310	*VEDI ECRA161000100 *	1
17	ECR0161305080	*VEDI ECR90060300005 *	2	5MM
18	SKR1734307001	VENTOLA	1	F257
19	ECR1102406351	BOLT SW	4	M6X35
20	SKR2210031531	GOMMINO	1
21	ECR1940400035	*VEDI ECRX508000260 *	1
22	ECR1940200148	*VEDI ECRX505003350 *	1

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6890063111	*VEDI SKRE160000160 *	1
2	ECR6890063330	*VEDI ECRV581000170 *	1
3	SKR6890063120	*VEDI SKRE164000120 *	1
4	SKR6890063130	*VEDI SKRE165000510 *	1
5	SKR6890063150	*VEDI SKRE165000520 *	1
6	ECR6890063340	*VEDI ECRV495001290 *	1
7	ECR6890063351	*VEDI ECRV495001300 *	1
8	SKR6890063140	*VEDI SKRE165000530 *	1
9	SKR6890063360	*VEDI SKRE165000540 *	1
10	ECR6891391340	*VEDI ECRX543001280 *	1
11	ECR1940200336	LABEL,CAUTION	1

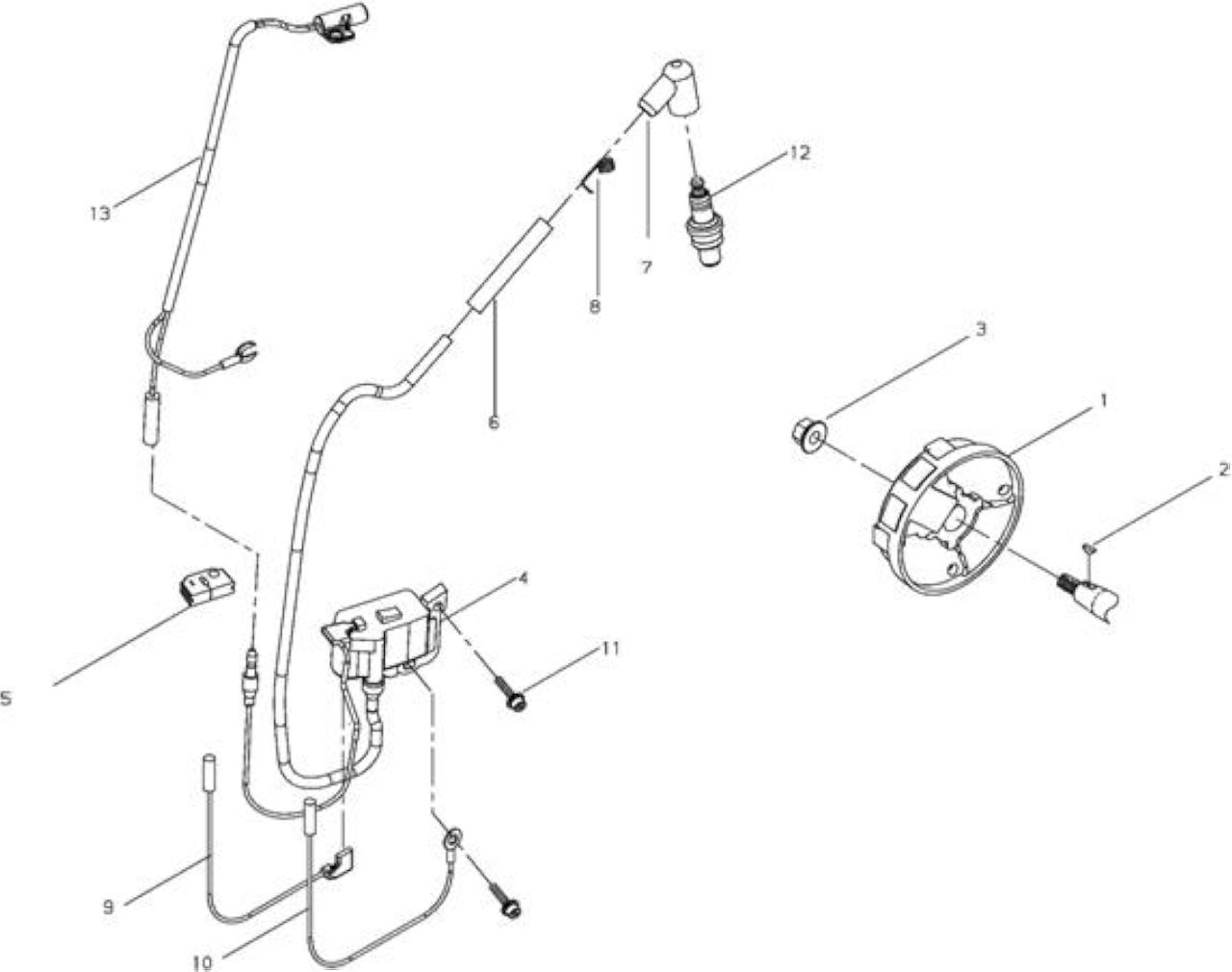

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6891371111	*VEDI ECRA409000460 *	1
2	SKR1240803100	CHIAVELLA *V381000030	1	3X10
3	SKR2003571220	*VEDI ECRV265000140 *	1
4	SKR6891371021	*VEDI SKRA411000590 *	1
5	ECR6890071311	*VEDI ECRV144000220 *	1
6	ECR7016871660	TUBE	1
7	SKR6290171250	VEDI ECRA427000050 *	1
8	SKR2215472230	*VEDI SKRA426000040 *	1
9	ECR1435001701	LEAD WIRE	1	0.75MM2 L175
10	ECR1435011601	*VEDI ECRV485001350 *	1
11	ECR1102404200	*VEDI ECRV202000190 *	2	M4X20
13	SKR6891371311	*VEDI ECRG365000020 *	1

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6890075011	*VEDI SKRA051001530	* 1
2	SKR6890075110	*VEDI ECRA500000670	* 1
3	SKR6890075130	*VEDI SKRA504000080	* 1
4	SKR6890075120	*VEDI SKRA506000170	* 1
5	SKR6890075310	*VEDI SKRA518000040	* 1
6	SKR6890075320	*VEDI SKRV450000830	* 1
7	SKR6890075330	*VEDI ECRV253000280	* 1
8	SKR6890075340	*VEDI ECRA606000020	* 1
9	ECR6890075140	*VEDI ECRA509000090	* 1
10	ECR6890075150	*VEDI ECRA511000120	* 1
11	SKR6890075210	*VEDI SKRA520000110	* 1
12	SKR151108051	DADO	1	M8
13	SKR1102205200	*VEDI ECRV203000351	* 4	M5X20
14	SKR1942000070	*VEDI ECRX504003080	* 1	SHINDAIWA?C4

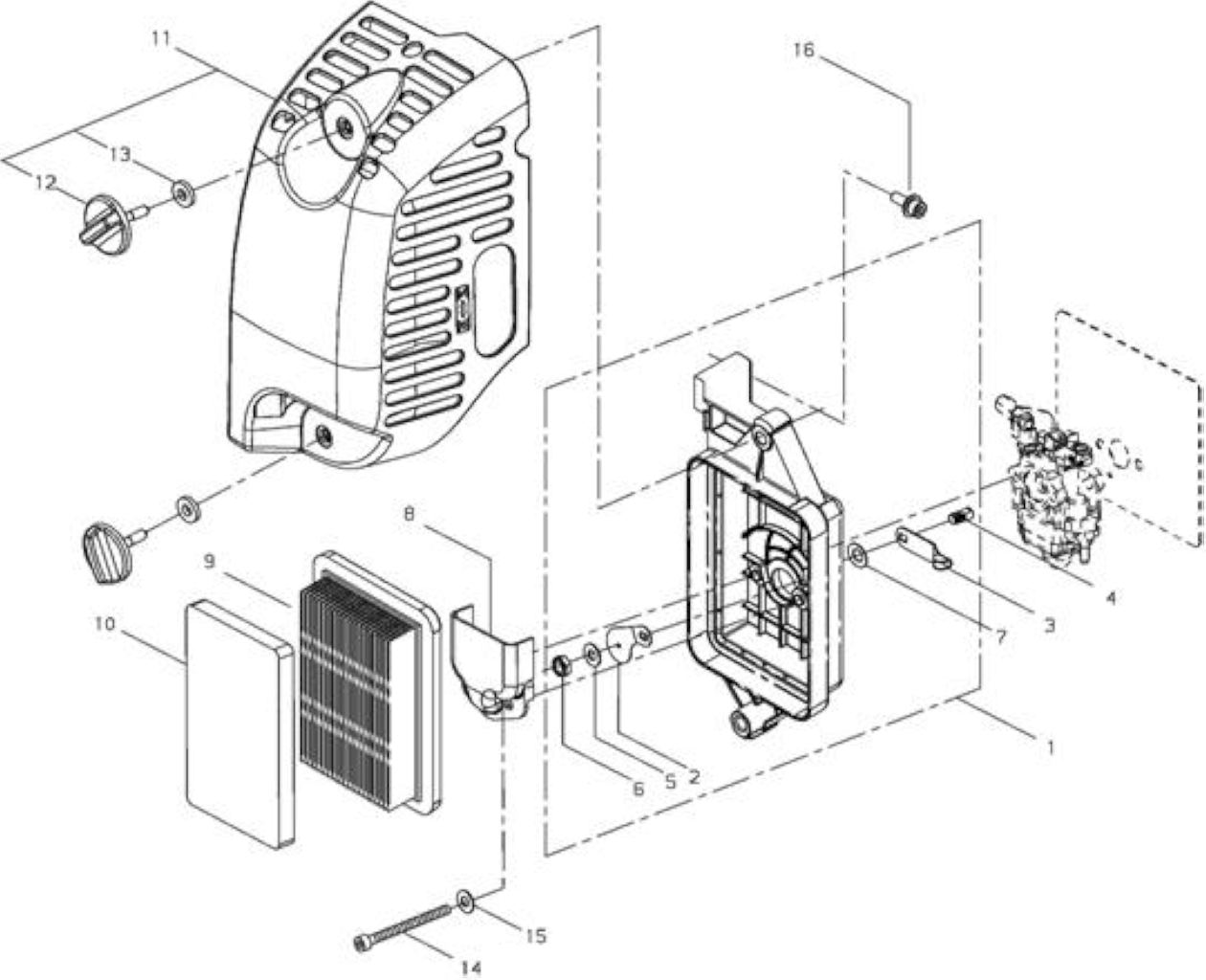

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6891382011	*VEDI SKRP021029660 *	1
2	SKR2001881711	PIASTRINA ARIA	1
3	SKR2087082120	*VEDI SKRA242000120 *	1
4	SKR2011082140	*VEDI ECRE140000090 *	1
5	SKR160006151	RONDELLA ELASTICA D6	1	6MM
6	SKR1152406211	DADO SINISTRO	1	M6
7	SKR2002481790	*VEDI SKRV347000030 *	1
8	SKR6890082311	*VEDI ECRA244000110 *	1
9	SKR6824282120	*VEDI SKRA226000530 *	1
10	SKR6824282310	*VEDI SKRA226000540 *	1
11	SKR6891382030	*VEDI ECRP021029670 *	1	CARTER BLU
11	SKRP021035400	COPERCHIO FILTRO ARIA COMPL.(ROSSO)	1	CARTER ROSSO
12	SKR2218231220	*VEDI SKRA235000270 *	2
13	SKR2362721220	*VEDI SKRV323000080 *	2
14	ECR0102005705	*VEDI ECR9110905070 *	2	M5X70
15	ECR0161200500	*VEDI ECR90060200005 *	2	5MM
16	SKR1102205200	*VEDI ECRV203000351 *	1	M5X20

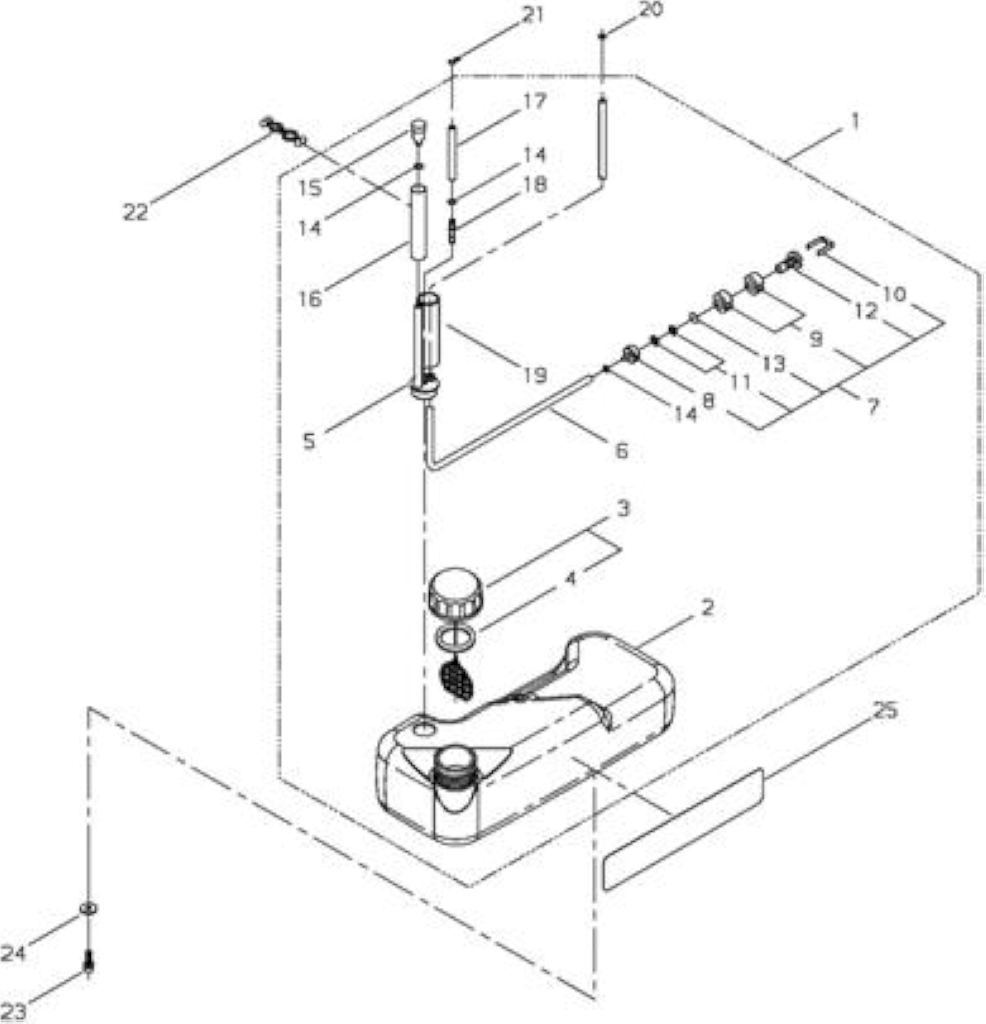

Rif.	Articolo	Descrizione	Q.tà	Nota
1	ECR6891385010	*VEDI ECRA038000060 *	1
2	SKR6820685110	*VEDI ECRA350001050 *	1
3	SKR6820485020	*VEDI SKRA033000020 *	1
4	SKR2000085221	*VEDI SKRV107000010 *	1
5	SKR7293385350	*VEDI SKRV470000890 *	1
6	ECR6891385310	*VEDI ECRV471002410 *	1
7	SKR2211585401	*VEDI SKRA369000040 *	1
8	SKR2212885410	*VEDI SKR2212885401 *	1
9	SKR2212885421	*VEDI SKRA371000000 *	2
10	SKR2212885440	MORSETTO	1
11	SKR2211885460	FILTRO	2
12	SKR2212885470	*VEDI ECRA372000000 *	1
13	SKR2212885480	*VEDI ECRV5830000200 *	1
14	SKR2002085540	*VEDI SKRV490000500 *	3
15	SKR2003585522	*VEDI SKRA356000040 *	1
16	SKR7293585530	* VEDI ECRV471002420 *	1
17	ECR6891385320	*VEDI ECRV471002430 *	1
18	SKR7293385620	*VEDI SKRV186000210 *	1
19	ECR6891385330	*VEDI ECRV471002440 *	1
20	SKR2002085540	*VEDI SKRV490000500 *	1
21	ECR3701385310	*VEDI ECRV490000510 *	1
22	ECR7293585550	CLIP	1
23	ECR1106005140	BOLT ADHESIVE	2	M5X14
24	ECR1540110010	*VEDI ECRV303000140 *	2	F15XF5.2XL1.6
25	SKR6891391320		1

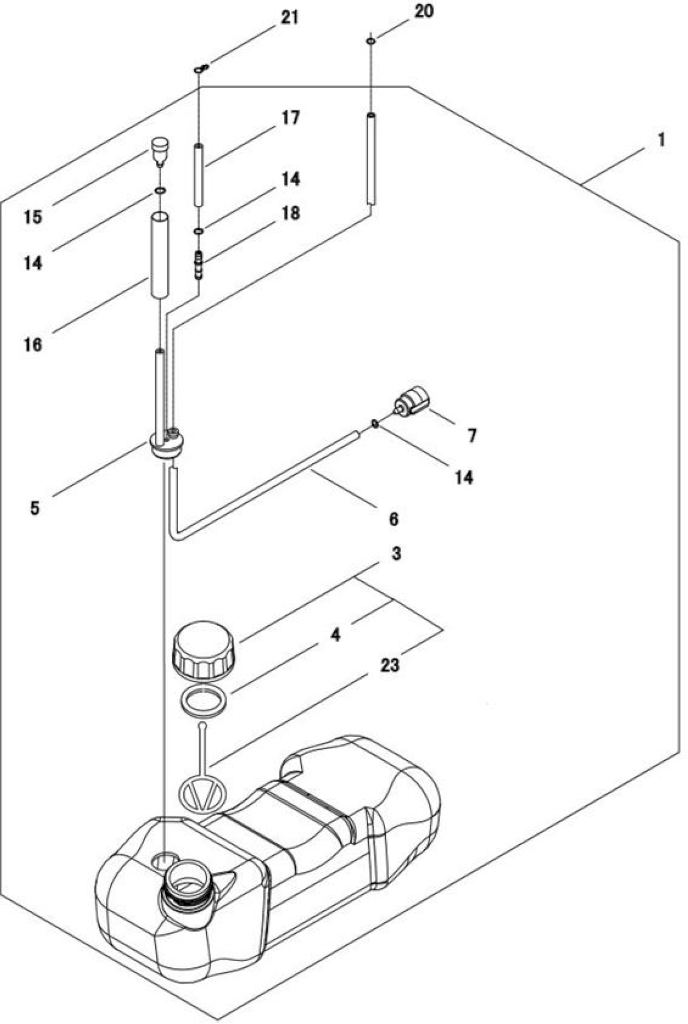

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKRA038000501	*VEDI ECRA038000650 *	1
3	ECRP021014060	*VEDI ECRP021014061 *	1
4	ECR13101655830	*VEDI ECRV107000190 *	1
23	ECR13105156030	MISCELATORE	1
5	SKRV470000890	GOMMINO	1
6	ECRV471002410	FUEL PIPE	1
7	ECRA369000000	*VEDI ECRA369000001 *	1
14	SKRV490000500	*VEDI ECRV490000500 *	3
15	ECR13130056431	VALVOLA SFIATO	1
16	ECRV471003070	PIPE	1
17	ECRV471003060	PIPE	1
18	SKRV186000210	RACCORDO	1
20	SKRV490000500	*VEDI ECRV490000500 *	1
21	ECRV490000510	CLIP	1

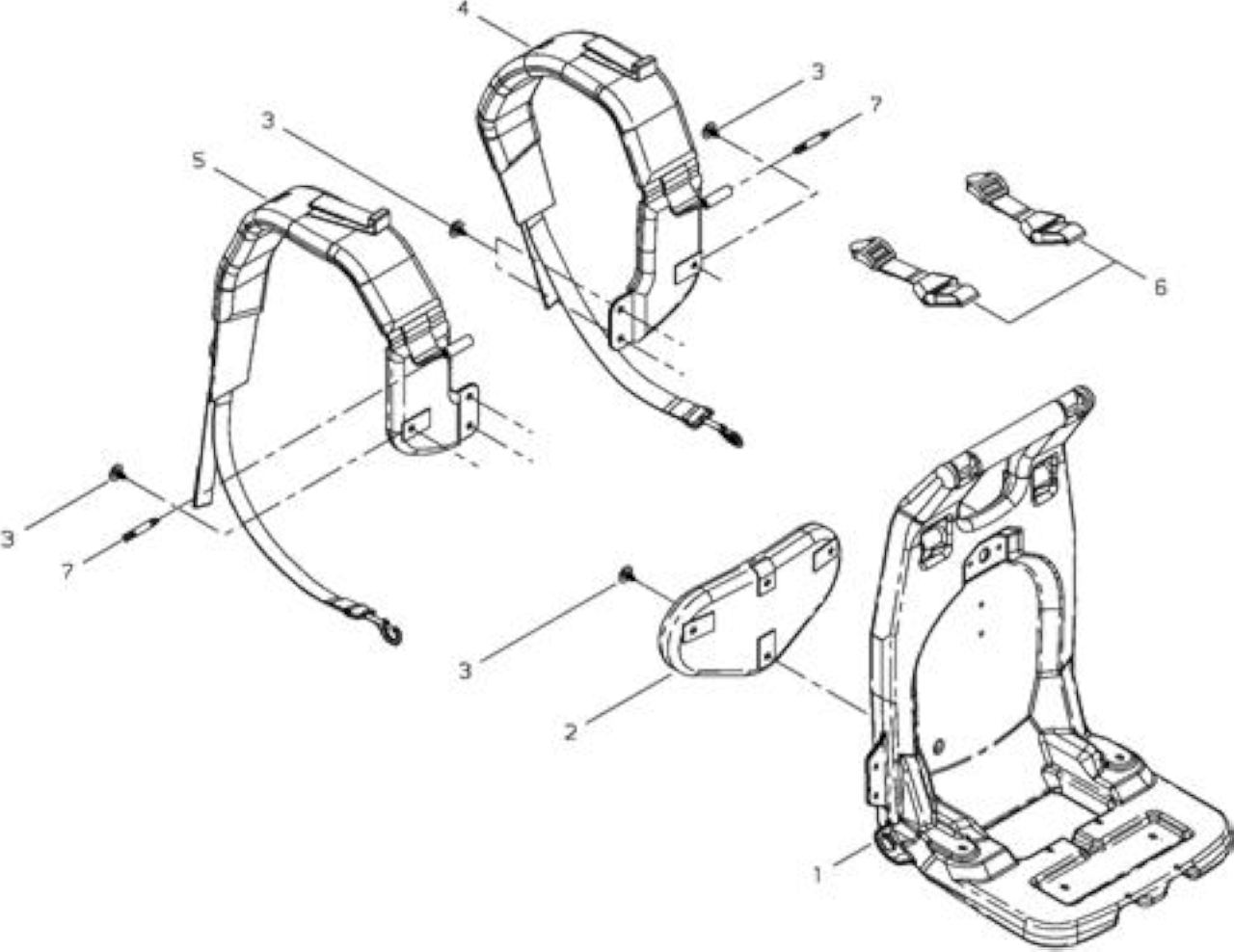

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6891386111	TELAIO	1
2	SKR6891386311	*VEDI SKRC630000090 *	1
3	SKR6891386321	*VEDI SKRV491000260 *	8
4	SKR6891387011	*VEDI SKRC640000031 *	1
5	SKR6891387021	*VEDI SKRC640000041 *	1
6	SKR6891387310	*VEDI SKRC642000010 *	2
7	SKR6891387320	*VEDI SKRV491000040 *	2

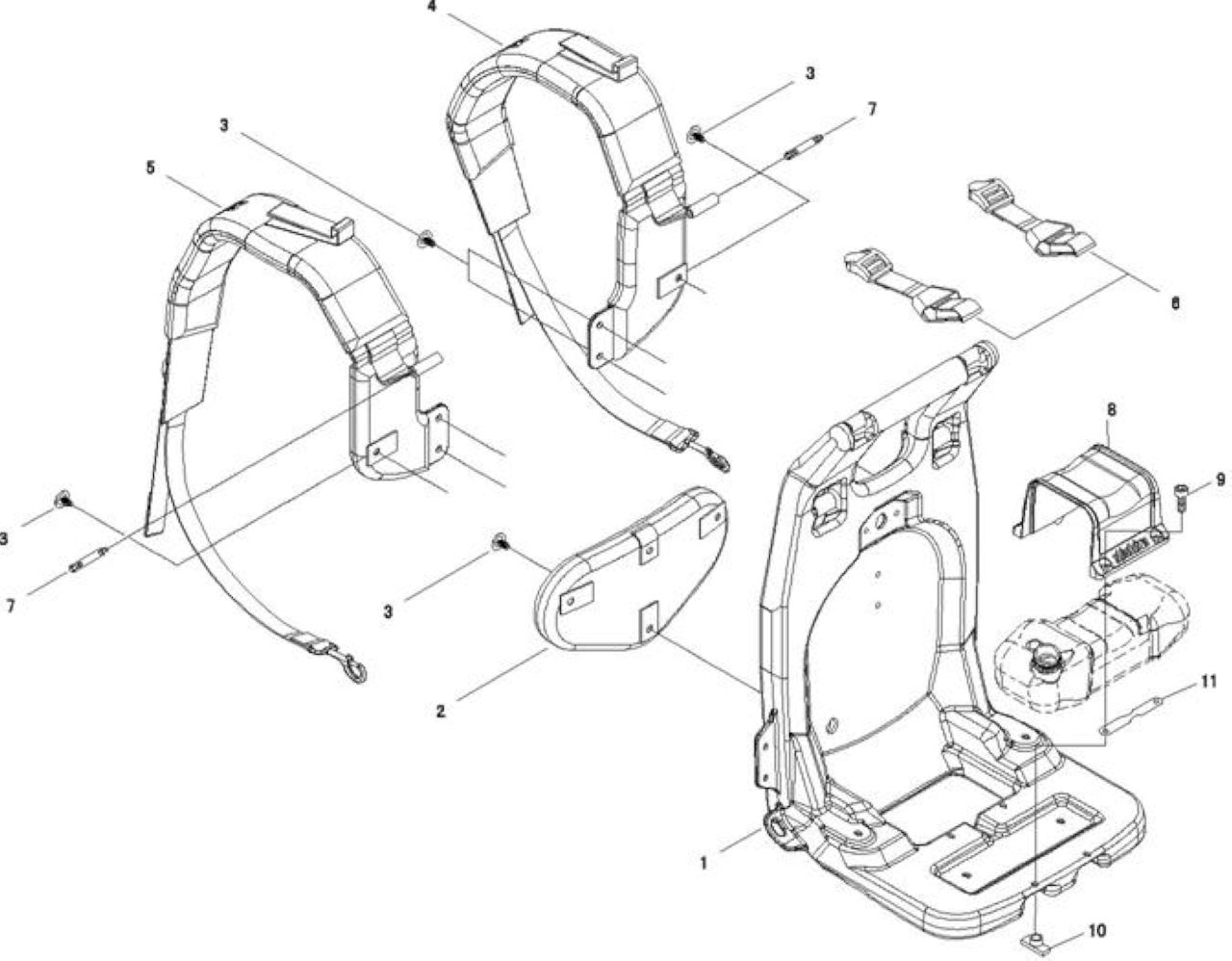

Rif.	Articolo	Descrizione	Q.tà Nota
1	ECRC620000352	*VEDI ECRC620000353 *	1
2	SKRC630000090	CUSCINO	1
3	SKRV491000260	CLIP	8
4	SKRC640000031	*VEDI ECRC640000032 *	1
5	SKRC640000041	*VEDI ECRC640000042 *	1
6	SKRC642000010	CINGHIA DI SOSTEGNO	2
7	SKRV491000040	*VEDI ECRV491000040 *	2
8	SKRA392000150	SUPPORTO SERBATOIO	1
9	ECRV203000740	BOLT PM SPW	4
10	ECRV279000030	NUT,T	4
11	ECRV376001730	SPACER	2

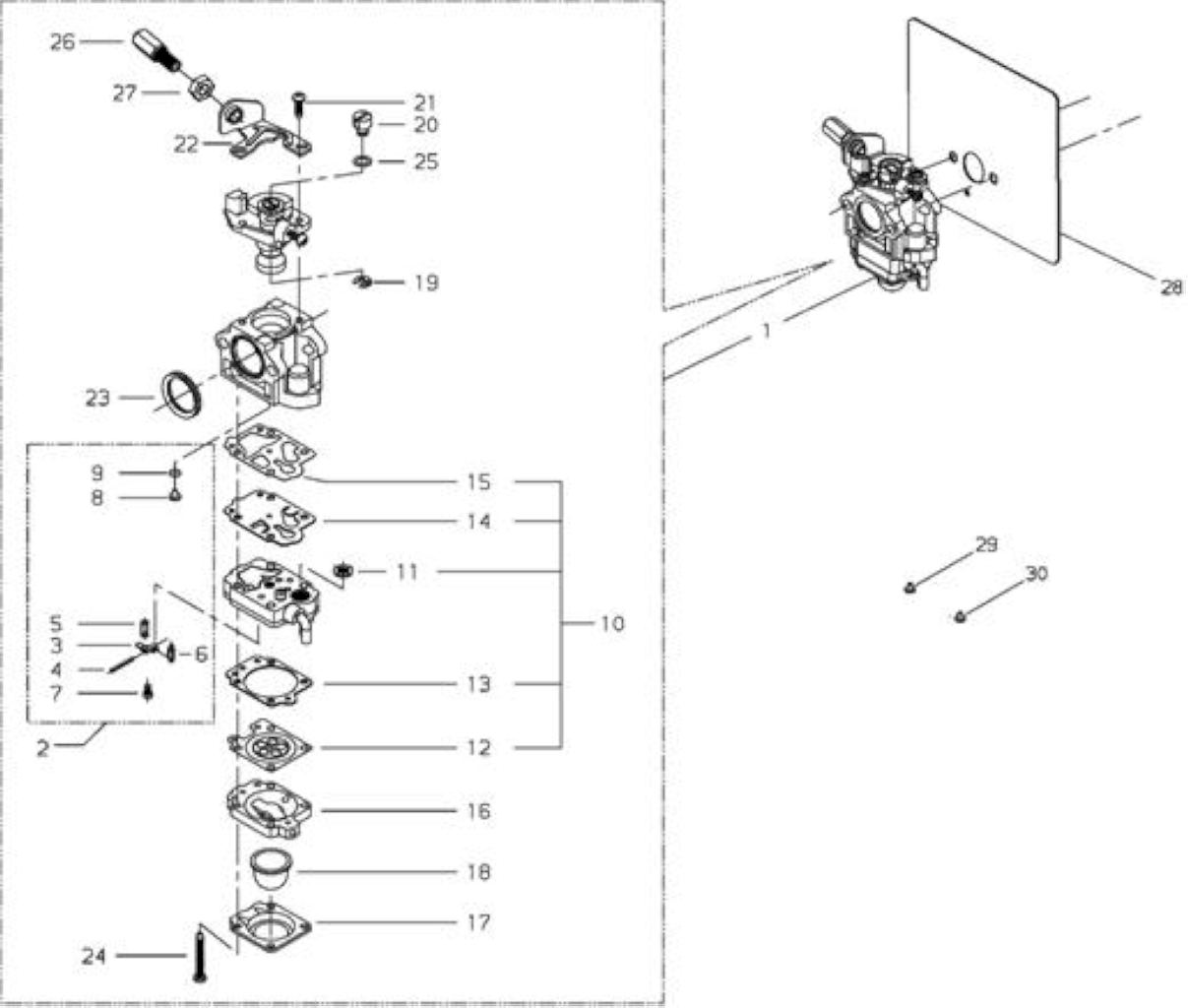

Rif.	Articolo	Descrizione Q.tà	Nota
1	SKR6820984011	*VEDI SKRC044000320 * 1
2	SKR6820984321	*VEDI ECRC400000570 * 1
3	SKR6820984331	*VEDI ECRC400000580 * 1
4	SKR6820984340	*VEDI ECRC450000450 * 1
5	SKR6820984350	*VEDI ECRC453000320 * 1
6	ECR6820984360	*VEDI ECRV204000260 * 1
7	ECR6820984370	*VEDI ECRV304000110 * 2
8	ECR6820984380	*VEDI ECRV453000110 * 2
9	ECR6820984390	RONDELLA 1
10	ECR6820984400	*VEDI ECRC472000070 * 1
11	ECR6820984410	*VEDI ECRV264000080 * 1
12	ECR6820984420	*VEDI ECRV192000330 * 1
13	SKR6820984430	*VEDI SKRV043000380 * 1
14	SKR6820984570	*VEDI SKRV430002560 * 1
15	SKR6820984580	1
16	ECR6820984440	*VEDI ECRV252000070 * 6
17	SKR6820984450	*VEDI SKRC405000380 * 1
18	SKR6820984460	*VEDI SKRC405000390 * 1
19	SKR6820984470	*VEDI ECRV299000330 * 1
20	SKR6820984480	*VEDI ECRC457000010 * 1
21	SKR6820984490	*VEDI ECRV162000340 * 1
22	ECR6820984500	*VEDI ECRV252000080 * 1
23	SKR6820984510	*VEDI ECRC453000330 * 1
24	ECR6820984520	*VEDI ECRV345000010 * 1
25	ECR6820984530	ADJ SPRING 1
26	ECR6820984541	GRIP 1
27	ECR6820984551	*VEDI ECRC412000250 * 1
28	ECR6820984561	*VEDI ECRV251000030 * 1
29	SKR6890184311	*VEDI SKRV49000490 * 1

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6891381010	*VEDI SKRA021002050 *	1
2	ECR6891598330	VALVE-S	1
3	SKR2210081230	BILANCIERE	1
4	SKR2210081250	*VEDI ECR12313803930 *	1
5	SKR7293381270	MOLLA	1
6	SKR2003681440	*VEDI ECR12313719830 *	1
7	SKR2001681450	VITE	1
8	ECR6891381310	*VEDI ECRP003000640 *	1	#58.5(STD)
9	SKR7009781220	*VEDI ECR12318340630 *	1
10	SKR6090298030	*VEDI SKRP050008580 *	1
11	SKR7003081380	*VEDI ECR12312610631 *	1
12	SKR3701381310	*VEDI SKRP003000090 *	1
13	SKR2001681280	*VEDI ECR12314005560 *	1
14	SKR7009781320	*VEDI ECR12311240630 *	1
15	SKR7009781310	*VEDI ECR12312540630 *	1
16	SKR2001681420	*VEDI ECR12318005560 *	1
17	SKR2001681510	*VEDI ECR12314205560 *	1
18	SKR2003681670	*VEDI ECR12318140630 *	1
19	SKR2003681195	ANELLO	1
20	SKR7293381450	NOTTOLINO	1
21	SKR7009781290	VITE CARBURATORE	2
22	SKR2008981130	SUPPORTO	1
23	SKR7293381250	ANELLO	1
24	ECR2001681140	*VEDI ECR12311005560 *	4
25	SKR2008981185	RONDELLA	1
26	SKR2008981110	REGOLATORE CAVO	1
27	SKR2003681120	DADO	1
28	SKR6890081210	*VEDI SKRV103000650 *	1
29	ECR6891598310	MAIN JET	1	1000M?#57.0(STD)
30	ECR6820698350	MAIN JET	1	2000M?#55.0(STD)
