Cilindro, Marmitta Carter, Campana frizione

Pistone, Albero motore, Frizione Bobina

Avviamento Carburatore, Filtro aria Serbatoio

Asta Impugnatura Comandi Cinghia

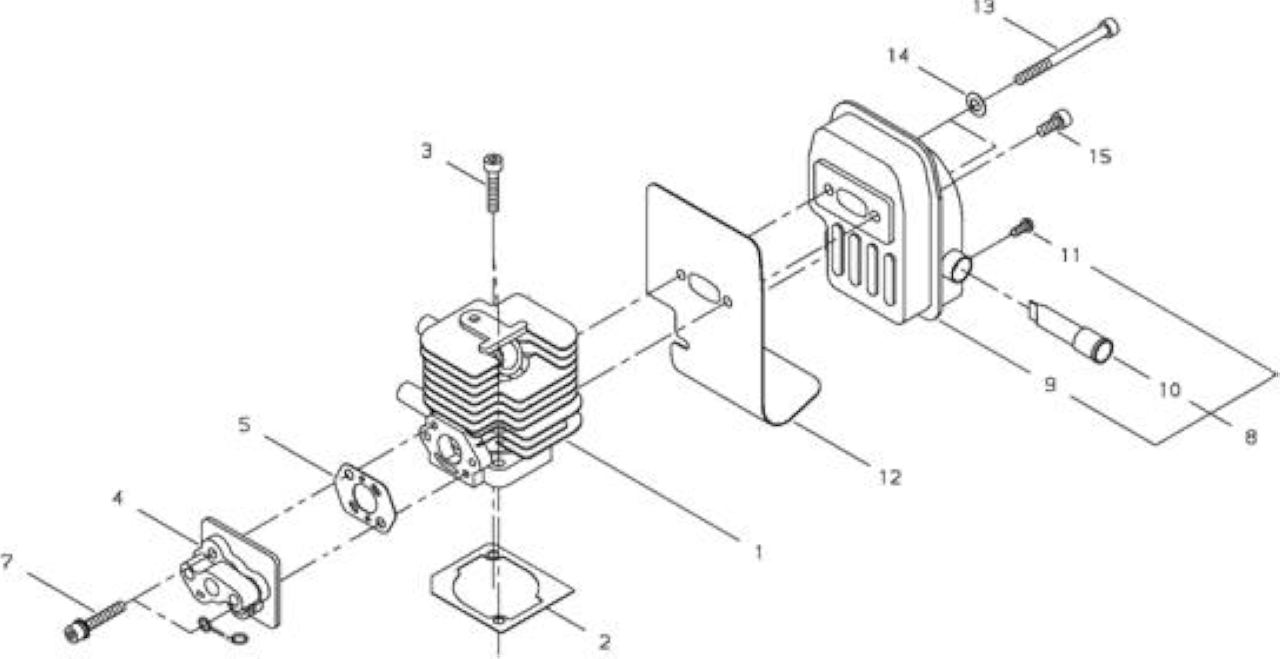

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR2001612112	*VEDI SKRA130001390 *	1
2	SKR2001612120	*VEDI SKRV100000490 *	1
3	SKR102005250	*VEDI ECR90010505025 *	2	M5×25
4	SKR2001612212	*VEDI SKRA200000770 *	1
5	SKR2001612222	*VEDI SKRV103001200 *	1
7	ECR1102205300	*VEDI ECRV203000580 *	2	M5×30
8	SKR7013515100	*VEDI ECRA030000120 *	1
9	SKR7013515110	*VEDI SKR2001815110 *	1
10	SKR7010315150	*VEDI SKRA310000260 *	1
11	ECR0127003062	*VEDI ECR9137403006 *	1
12	SKR2001615122	*VEDI SKR2001615123 *	1
13	ECR0102005500	*VEDI ECR90010505050 *	2	M5×55
14	ECR0161005080	*VEDI ECR90060000005 *	2
15	ECR0102005120	*VEDI ECR90010505012 *	1	M5×12

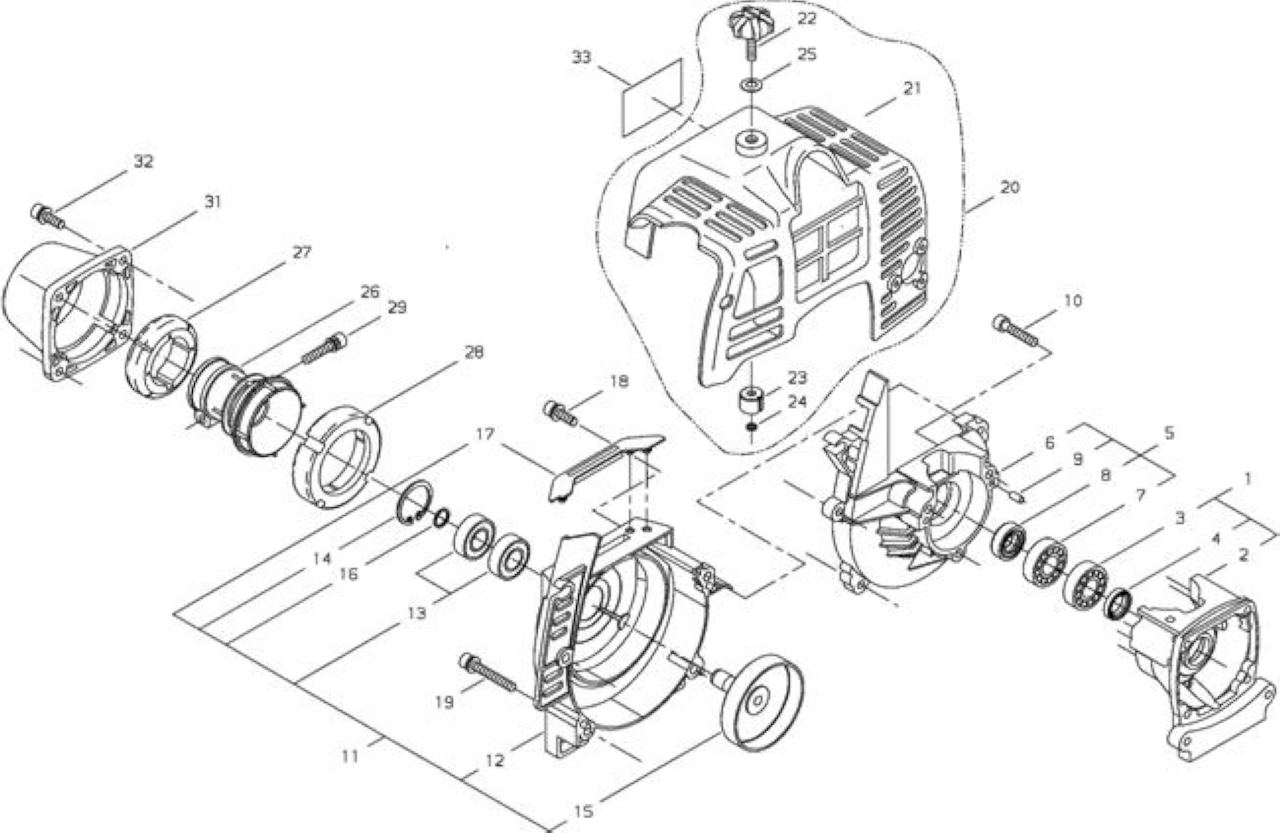

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR2001621100	*VEDI SKRP021017910 *	1
2	SKR2001621111	*VEDI ECRA120000480 *	1
3	SKR1290060010	*VEDI SKRV592000310 *	1	6001 C3
4	SKR2215021250	*VEDI SKRV505000140 *	1
5	ECR6206421020	*VEDI ECR2001621200 *	1
6	SKR2001621120	*VEDI ECRA120000490 *	1
7	SKR1290060010	*VEDI SKRV592000310 *	1	6001 C3
8	SKR2000021211	*VEDI SKRV505000080 *	1
9	SKR1249240080	*VEDI ECRV622000040 *	2
10	SKR102005250	*VEDI ECR90010505025 *	3	M5×25
11	ECR6201031011	*VEDI ECRP021027660 *	1
12	SKR7014031113	*VEDI SKR7023498030 *	1
13	SKR200206000	*VEDI SKR9404406000 *	2	6000ZZ
14	SKR243226120	ANELLO ELASTICO	1	F26
15	SKR2008731210	*VEDI SKRA556000960 *	1
16	SKR2200013320	*VEDI ECR90070600010 *	1
17	SKR7014031130	*VEDI ECRV420002620 *	1
18	SKR1102205160	*VEDI SKRV203000590 *	2	M5×16
19	SKR1102205450	BULLONE	2	M5×45
20	ECR6201032010	*VEDI ECRP021027670 *	1
21	SKR7014032111	*VEDI SKRA160001840 *	1
22	SKR2001831251	*VEDI SKRV299000420 *	1
23	SKR2001831260	*VEDI SKRV353000430 *	1
24	SKR2001831270	*VEDI SKRV490000680 *	1
25	SKR2002481790	*VEDI SKRV347000030 *	1
26	SKR2001831411	*VEDI SKRA575000180 *	1
27	SKR2001831420	*VEDI ECRV420002640 *	1
28	SKR2001831430	*VEDI ECRV420002650 *	1
29	SKR1102305250	BULLONE	1	M5×25
31	SKR7013531470	*VEDI SKRA575000460 *	1
32	SKR1102205160	*VEDI SKRV203000590 *	4	M5×16
33	ECR6500091020	*VEDI ECRX504003270 *	1

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR2007541111	*VEDI SKR7023498310 *	1
2	SKR2000041210	*VEDI SKRA101000400 *	2
3	SKR2007541310	*VEDI SKRV606000060 *	1
4	SKR7003041320	*VEDI SKRV580000070 *	2
5	SKR3701341230	*VEDI SKRV553000080 *	1
6	SKR3701341240	*VEDI SKRV306000250 *	2
7	SKR2001642002	*VEDI SKRA011000930 *	1
8	SKR7014051102	*VEDI SKR7015751101 *	1
9	SKR7014051113	*VEDI SKRA553000060 *	2
10	SKR3701351310	*VEDI SKRA566000050 *	1
11	SKR2008751210	*VEDI SKRA557000040 *	2
12	SKR2008751231	*VEDI SKRV346000040 *	2
13	SKR2210071430	*VEDI SKRV304000150 *	2
14	SKR2001612120	*VEDI SKRV100000490 *	1
15	SKR7023498011	*VEDI SKRP021030500 *	1
16	SKR7023498310	*VEDI SKRP021030530 *	1

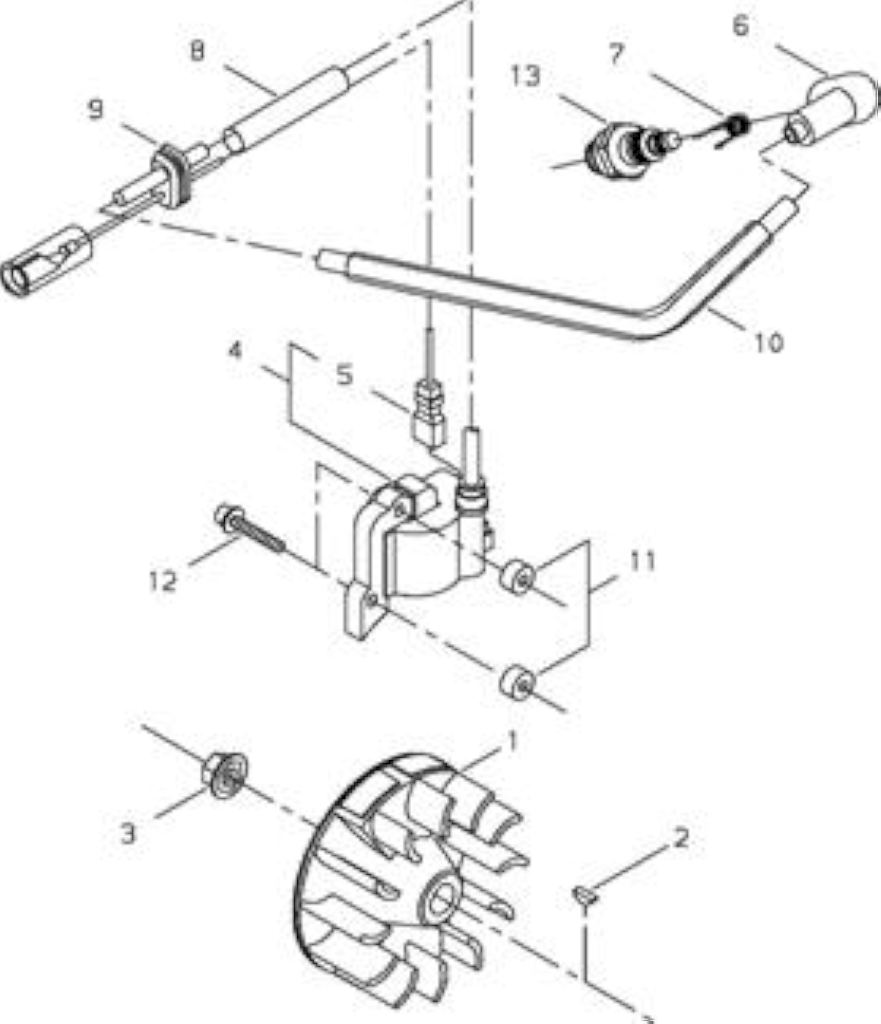

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR2001671200	*VEDI SKRA409000730 *	1
2	SKR240303100	*VEDI ECR9311503010 *	1
3	SKR2003571220	*VEDI ECRV265000140 *	1
4	SKR2001671601	*VEDI SKRA411000880 *	1
5	ECR2001671641	CORD	1
6	SKR2210272220	*VEDI SKRA427000100 *	1
7	SKR2000072230	*VEDI SKRA426000050 *	1
8	ECR2001671651	*VEDI ECRV475005140 *	1
9	SKR2001072110	*VEDI ECRV135000100 *	1
10	ECR2001671660	*VEDI ECRV475004840 *	1
11	SKR7003071620	*VEDI SKRV322000040 *	2
12	ECR1102404261	*VEDI ECRV202000330 *	2	M4×26

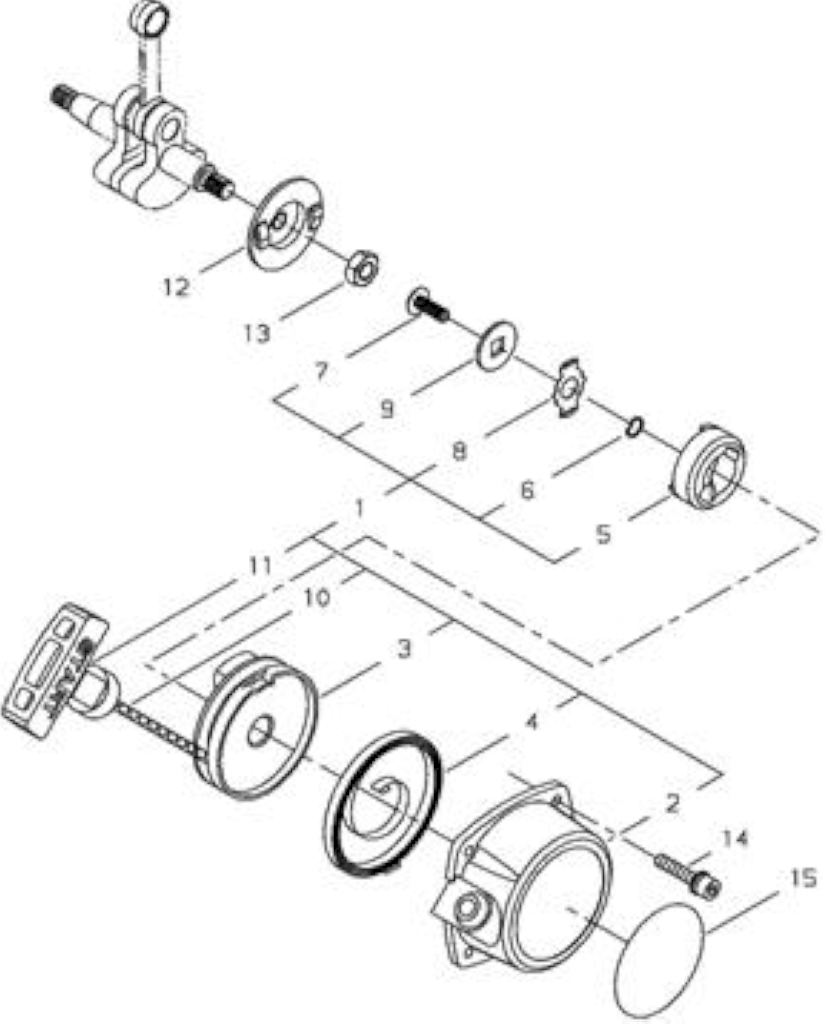

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7293375900	*VEDI SKRA051001860 *	1
2	SKR7006475110	*VEDI SKRA500001060 *	1
3	SKR7293375120	*VEDI SKRA506000120 *	1
4	SKR7006475130	*VEDI SKRA504000050 *	1
5	SKR7293375140	*VEDI SKRA518000010 *	1
6	SKR7006475150	*VEDI SKRV346000030 *	1
7	SKR7293375160	VITE	1
8	SKR7293375170	*VEDI SKRA606000000 *	1
9	SKR7293375180	*VEDI SKRV303000110 *	1
10	SKR7006475190	FUNICELLA AVVIAMENTO	1
11	SKR3200475150	*VEDI ECRA511000090 *	1
12	SKR7006475310	*VEDI SKRA520000080 *	1
13	SKR151108051	DADO	1	M8
14	ECR1106004122	*VEDI ECRV202000380 *	4	M4×12
15	ECR7011775311	NAME PLATE	1

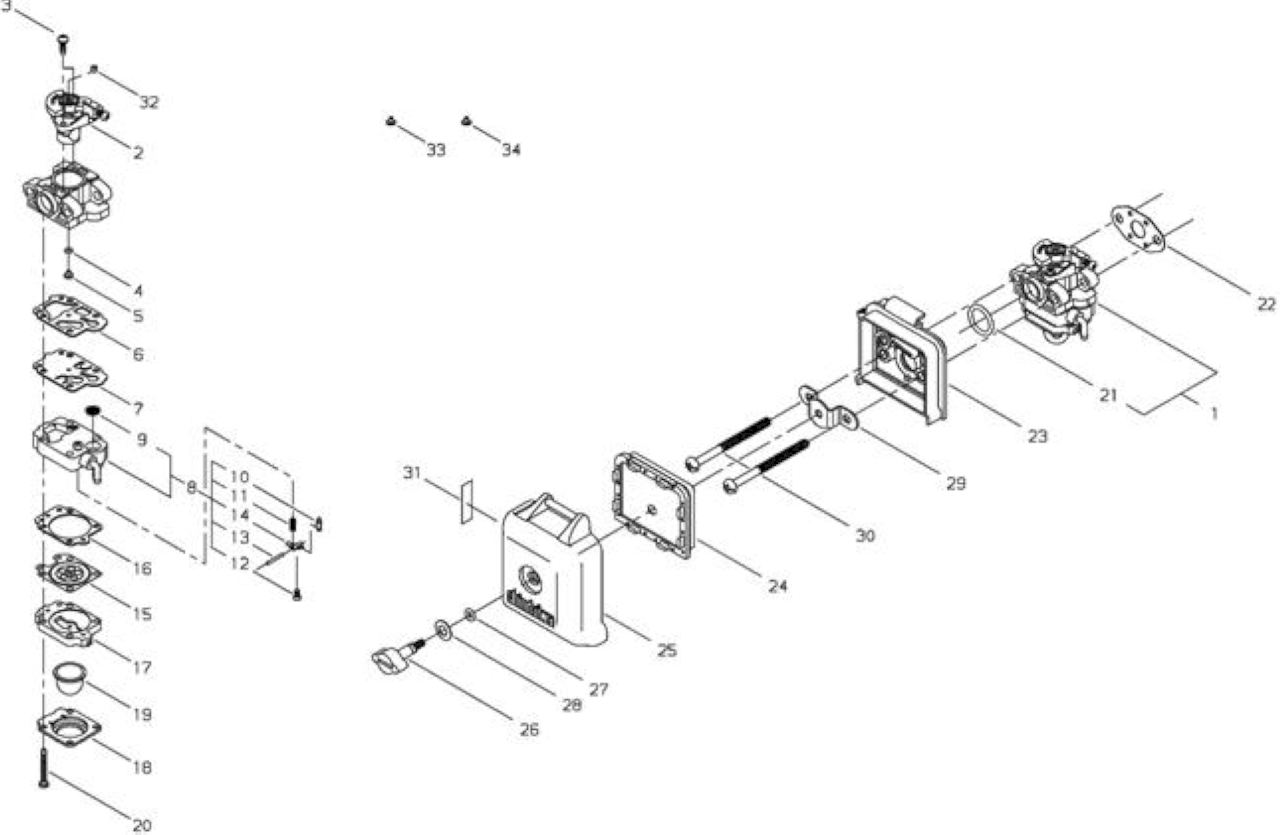

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6206481011	*VEDI SKRA021002140 *	1
2	SKR2001681180	*VEDI ECR12311605160 *	1
3	SKR7006481290	VITE	2
4	SKR7009781220	*VEDI ECR12318340630 *	1
5	SKR6206481310	*VEDI ECRP003000860 *	1
6	SKR7009781310	*VEDI ECR12312540630 *	1
7	SKR7009781320	*VEDI ECR12311240630 *	1
8	SKR2001681410	*VEDI ECRP003000440 *	1
9	SKR7003081380	*VEDI ECR12312610631 *	1
10	SKR2003681440	*VEDI ECR12313719830 *	1
11	SKR2001681270	*VEDI ECRP003000450 *	1
12	SKR2001681450	VITE	1
13	SKR2210081250	*VEDI ECR12313803930 *	1
14	SKR2210081230	BILANCIERE	1
15	SKR3701381310	*VEDI SKRP003000090 *	1
16	SKR2001681280	*VEDI ECR12314005560 *	1
17	SKR2001681420	*VEDI ECR12318005560 *	1
18	SKR2001681510	*VEDI ECR12314205560 *	1
19	SKR2003681670	*VEDI ECR12318140630 *	1
20	ECR2001681140	*VEDI ECR12311005560 *	4
21	SKR2001681250	*VEDI ECR90072000015 *	1
22	SKR2001681530	*VEDI SKRV103001210 *	1
23	SKR7014081710	*VEDI SKRA023000230 *	1
24	SKR6002398031	*VEDI SKRA226000600 *	1
25	SKR7014081760	*VEDI SKRA232000940 *	1
26	SKR2011581780	*VEDI SKRV299000430 *	1
27	SKR2210082430	*VEDI SKRV581000200 *	1
28	SKR2002481790	*VEDI SKRV347000030 *	1
29	SKR2001881721	*VEDI SKRA244000190 *	1
30	ECR1120305608	*VEDI ECR9157905060 *	2	M5×60
31	SKR1940400008	*VEDI ECRX506000130 *	1
32	SKR6207481320	TAPPO	1
33	ECR6006798320	MAIN JET	1	1000M
34	ECR6006798330	MAIN JET	1	2000M

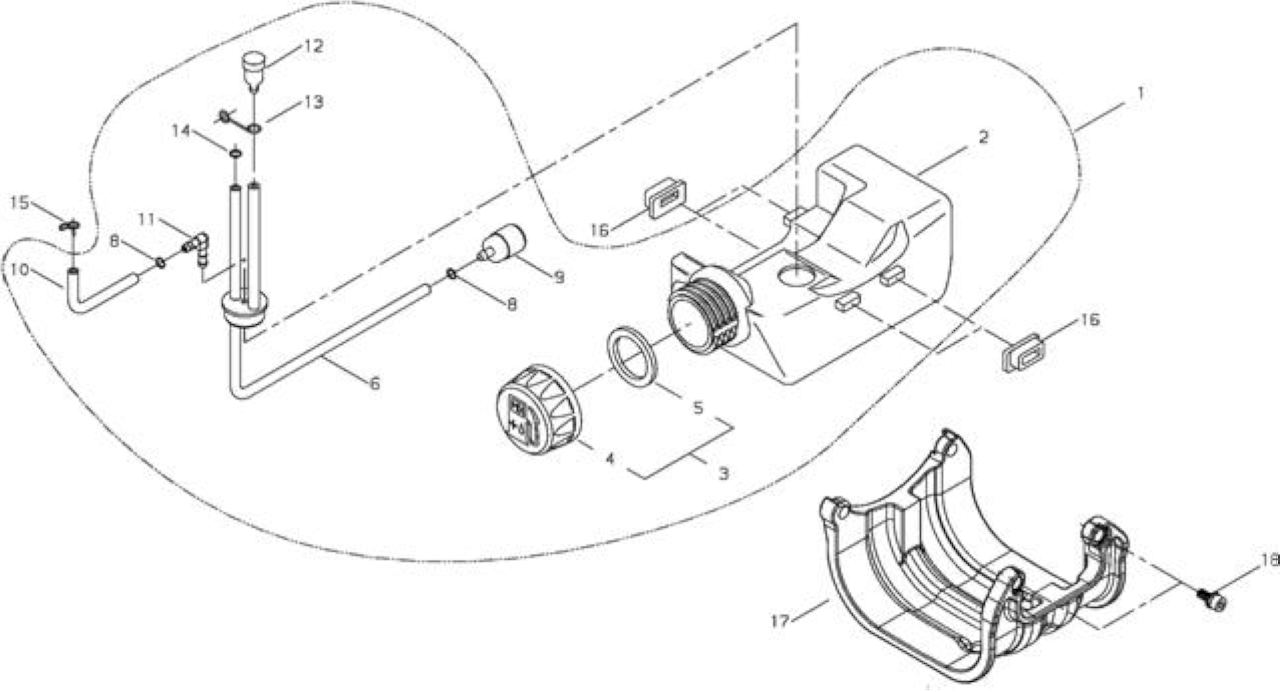

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR2001685003	*VEDI SKRA038000430 *	1
2	SKR2001685112	*VEDI SKRA350001530 *	1
3	SKR7004385201	*VEDI SKRA033000070 *	1
4	SKR7016885210	TAPPO SERBATOIO	1
5	SKR2000085221	*VEDI SKRV107000010 *	1
6	SKR2001685310	*VEDI SKRV470001210 *	1
8	SKR2002085540	*VEDI SKRV490000500 *	2
9	SKR2001685400	*VEDI SKRA369000070 *	1
10	SKR2008983311	*VEDI SKRV471002790 *	1
11	SKR2008785340	*VEDI SKRV186000270 *	1
12	SKR2003585522	*VEDI SKRA356000040 *	1
13	SKR2001612310	*VEDI SKRA358000040 *	1
14	SKR2002085540	*VEDI SKRV490000500 *	1
15	ECR3701385310	*VEDI ECRV490000510 *	1
16	SKR2002486120	*VEDI SKRV420002630 *	4
17	SKR6290285320	*VEDI SKRA175000220 *	1
18	SKR1102205160	*VEDI SKRV203000590 *	2	M5X16

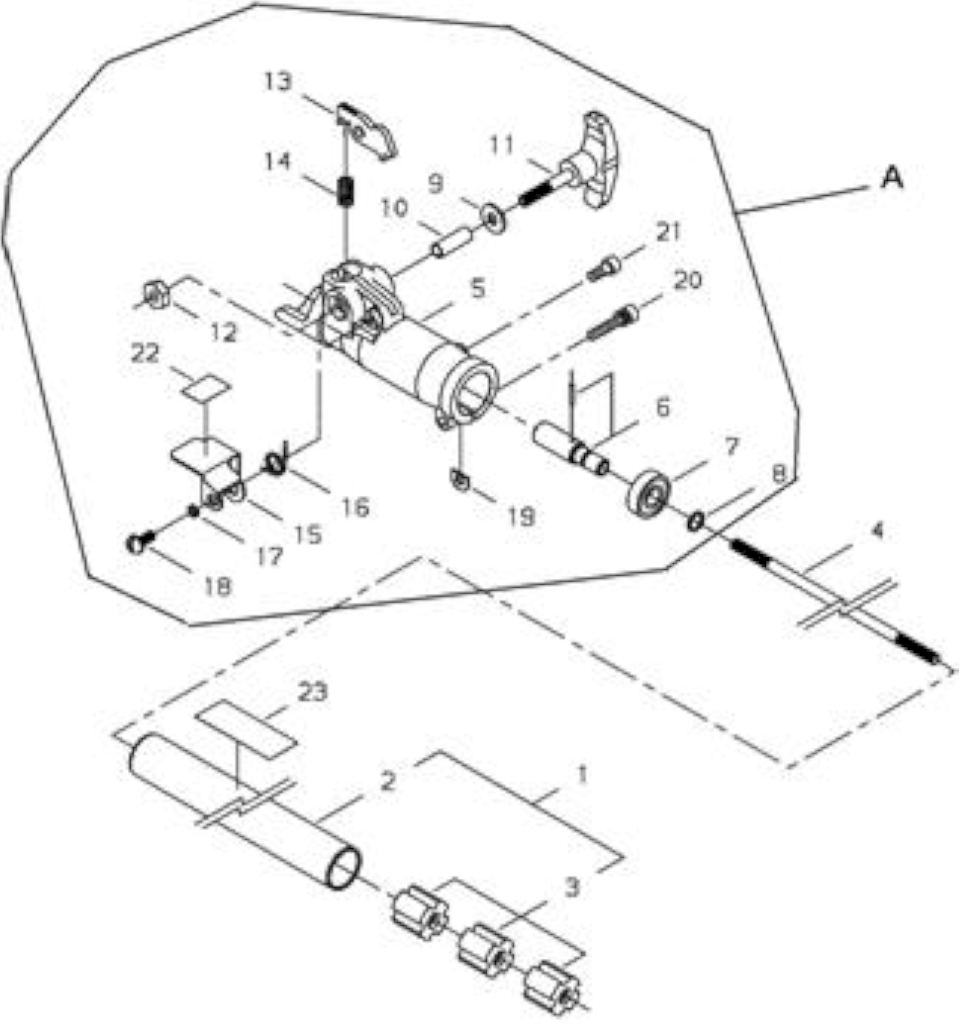

Rif.	Articolo	Descrizione	Q.tà	Nota
A	SKRP021028870	RACCORDO COMPLETO	1
1	SKR6500562010	*VEDI SKRC050001500 *	1
2	SKR6388064320	*VEDI ECRC500000480 *	1	F24×L745
3	SKR2203512121	*VEDI SKRC501000010 *	3
4	SKR6388064340	*VEDI SKRC504000550 *	1	F6×L779
5	SKR3700062220	*VEDI SKRC510000200 *	1
6	SKR6388064360	*VEDI SKRP021028880 *	1
7	SKR200200609	*VEDI SKR90080400609 *	1	609ZZ
8	SKR2242013350	*VEDI ECR90070600009 *	1
9	SKR7203014130	RONDELLA	1
10	SKR1790106220	*VEDI SKRV354000260 *	1
11	SKR6388064380	*VEDI SKRV299000350 *	1
12	SKR6388064410	*VEDI SKRV264000120 *	1
13	SKR3700062310	*VEDI SKRC661000050 *	1
14	SKR1750006001	*VEDI SKRV450000860 *	1
15	SKR3700062340	*VEDI SKRC516000020 *	1
16	SKR1752012400	*VEDI ECRV452000510 *	1
17	SKR1540100004	*VEDI SKRV353000330 *	1
18	SKR1120705120	*VEDI ECR9157705012 *	1	M5×12
19	SKR2200013420	*VEDI SKR2003531460 *	1
20	SKR1102305250	BULLONE	1	M5×25
21	SKR102005120	BULLONE M5X12 T.E.I.	1	M5×12
22	ECR1940100168	ETICHETTA	1
23	ECR1940200303	*VEDI ECRX505003490 *	1

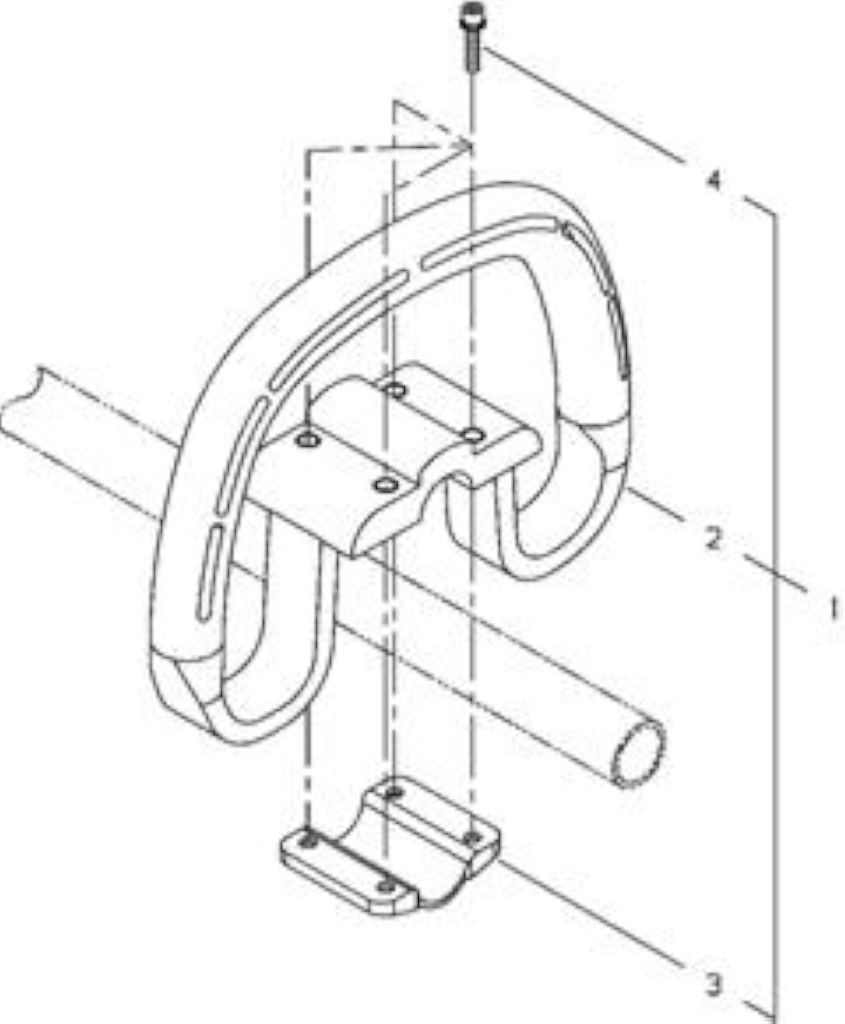

Rif.	Articolo	Descrizione	Q.tà	Nota
1	ECR6203964011	*VEDI ECRP021027830 *	1
2	ECR6290164322	*VEDI ECRC400000640 *	1
3	ECR6290164120	*VEDI ECRC423000430 *	1
4	SKR1102205250	BULLONE	4	M5×25

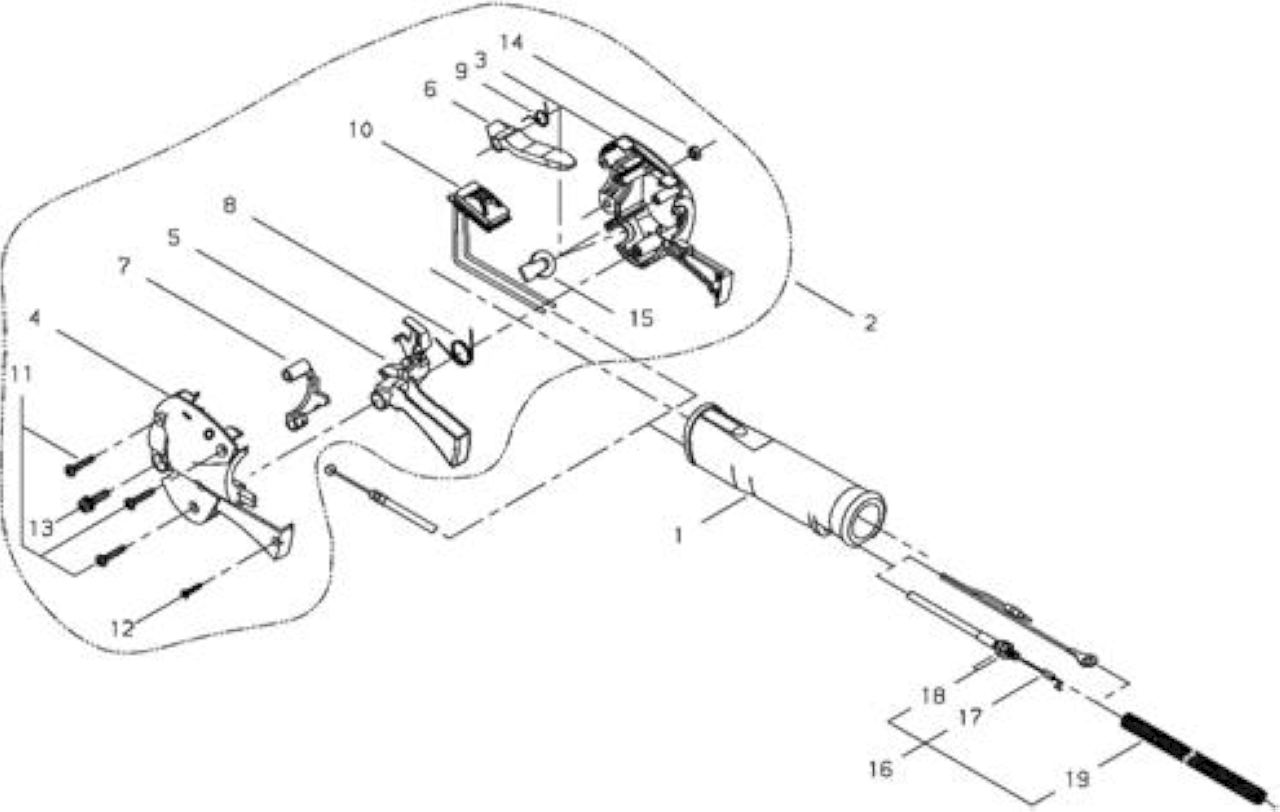

Rif.	Articolo	Descrizione	Q.tà	Nota
1	ECR6390162142	*VEDI ECRC412000260 *	1
2	ECR6302362313	*VEDI ECRC044000450 *	1
3	SKR6390162321	CORPO IMPUGNATURA ACCEL.DX1
4	SKR6390162332	CORPO IMPUGNATURA ACCEL.SX 1
5	SKR6390162341	*VEDI ECRC450000490 * 1
6	SKR6390162352	*VEDI SKRC460000190 * 1
7	SKR6390162361	*VEDI SKRC461000030 * 1
8	SKR6388065350	*VEDI ECRV452000700 * 1
9	SKR6390162370	*VEDI SKRV452000500 * 1
10	SKR6302362320	*VEDI ECRA045000230 * 1
11	ECR6388065360	*VEDI ECRV252000380 * 3
12	ECR6390162390	SCREW TAPPING 1
13	ECR6390162410	SCREW SPW 1
14	ECR0150105030	*VEDI ECR9201705000 * 1
15	ECR6388065411	*VEDI ECRV162000350 * 1
16	ECR6302362330	*VEDI ECRP021028640 * 1
17	SKR6302362170	*VEDI SKRV430002650 * 1
18	SKR150106041	*VEDI ECR90050200006 * 2
19	ECR2242214540	*VEDI ECRV475004520 * 1

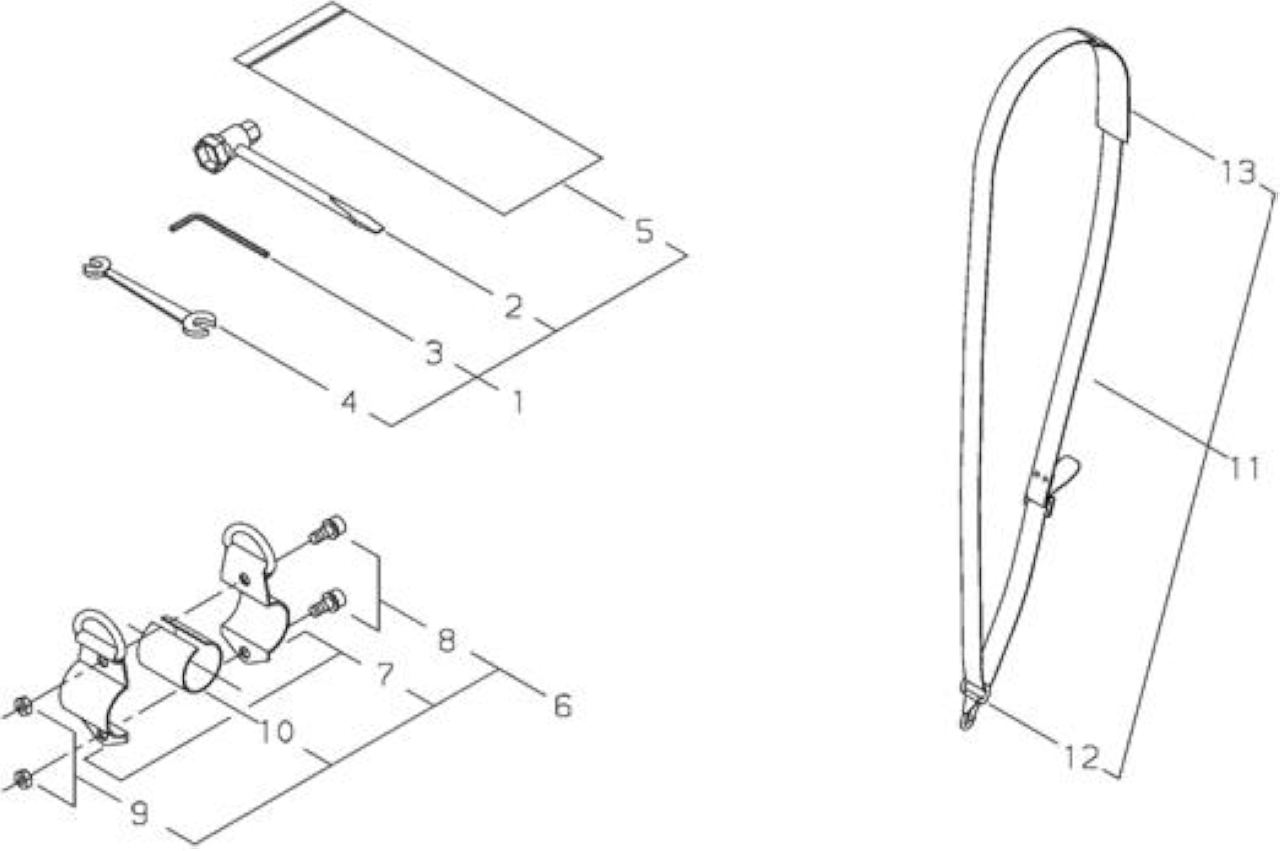

Rif.	Articolo	Descrizione	Q.tà Nota
6	ECR6084098020	HANGER ASSY	1
7	SKR2200012210	GANCIO	2
8	SKR1102005120	BULLONE	2
9	ECR0150005041	*VEDI ECR90050000005 *	2
10	ECR6084098030	SPACER	1
11	ECR2241017202	*VEDI ECRC062000340 *	1
12	ECR3701367310	*VEDI ECRC649000170 *	1
13	SKR2200717220	PROTEZIONE CINGHIA	1
