Cilindro, Marmitta Carter, Campana frizione

Pistone, Albero motore, Frizione Bobina

Avviamento Carburatore, Filtro aria

Carburatore, Filtro aria tipo B Serbatoio


Asta

Coppia conica Impugnatura Para sassi

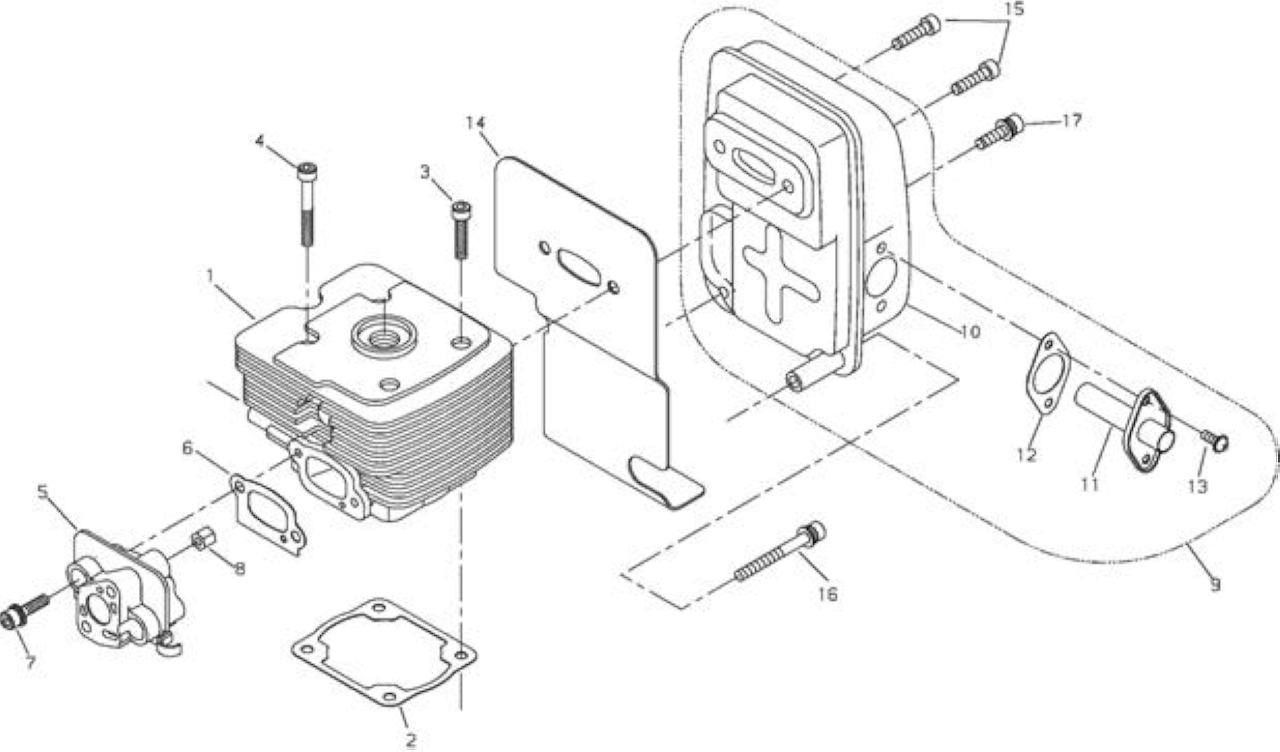

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6203512111

*VEDI SKRA130001350 *

1



2

SKR6203512120

*VEDI SKRV100000450 *

1



3

SKR102005250

*VEDI ECR90010505025 *

3

M5×25

4

SKR102005350

BULLONE

1

M5×35

5

SKR6203512210

*VEDI SKRA200000680 *

1



6

SKR6203512220

*VEDI SKRV103001020 *

1



7

ECR1102205300

*VEDI ECRV203000580 *

2

M5×30(SW,PW)

8

ECR2002412260

*VEDI ECRV263000180 *

2

M5

9

ECR6203515012

*VEDI ECRA030000270 *

1



10

ECR6203515111

*VEDI ECRA300001140 *

1



11

ECR6203515140

*VEDI ECRA313001300 *

1



12

SKR6203515150

GUARNIZIONE

1



13

ECR1123804120

*VEDI ECRV252000180 *

2

M4*12

14

SKR6203515210

*VEDI SKRV104001360 *

1



15

ECR0102006250

*VEDI ECR90010506025 *

2

M6×25

16

SKR1102205450

BULLONE

1

M5×45(SW,PW)

17

SKR1102205160

*VEDI SKRV203000590 *

1

M5×16(SW,PW)

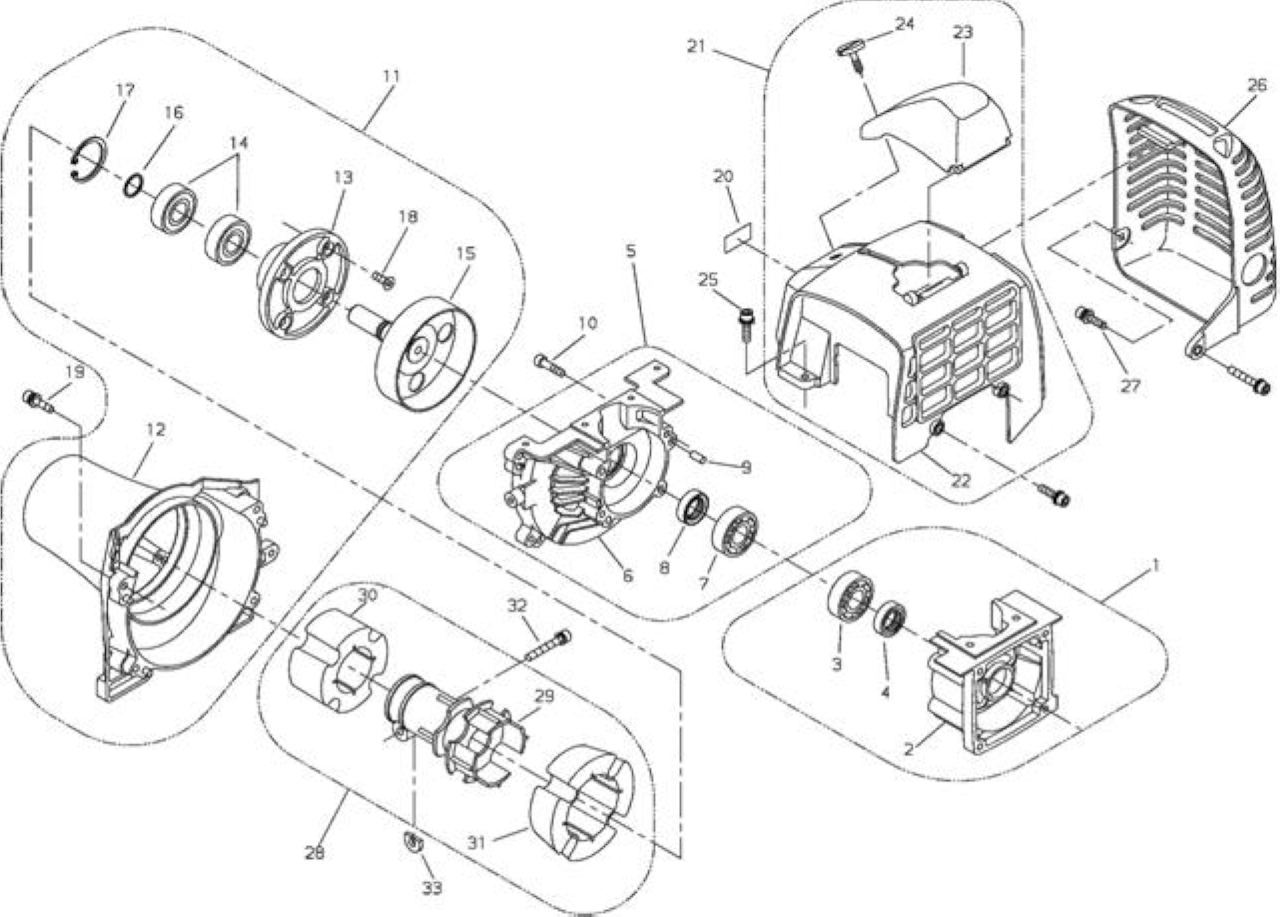

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6203521010

*VEDI ECRP021027760 *

1



2

ECR6203521110

*VEDI ECRA120000370 *

1



3

SKR203006202

*VEDI ECR90081036202 *

1



4

SKR2001021211

*VEDI SKRV508000050 *

1



5

SKR6203521020

CARTER MOTORE SX COMPLETO

1



6

ECR6203521210

CRANK CASE M

1



7

SKR203006202

*VEDI ECR90081036202 *

1



8

SKR2001021211

*VEDI SKRV508000050 *

1



9

ECR1249250100

*VEDI ECRV623000060 *

2

5×10

10

ECR0102005300

*VEDI ECR90010505030 *

4

M5×30

12

SKR6203531110

* VEDI ECRA172001270 *

1



13

SKR6203531310

*VEDI ECRA570000200 *

1



14

SKR200606202

*VEDI ECR90081206202 *

2

6202DDU

15

SKR6203531212

*VEDI SKRA556000870 *

1



16

SKR2001131230

*VEDI ECRV583000180 *

1



17

SKR243235150

ANELLO ELASTICO

1

35MM C

18

ECR1126005161

*VEDI ECRV253000440 *

4

M5×16

19

ECR1102205300

*VEDI ECRV203000580 *

4

M5×30(SW,PW)

20

ECR6203591020

LABEL TRADE

1



21

ECR6203532012

*VEDI ECRP021027790 *

1



22

SKR6203532112

*VEDI ECRA160001650 *

1



23

SKR6203532310

*VEDI ECRA429000120 *

1



24

SKR6203532320

*VEDI ECRV299000390 *

1



25

SKR1102205160

*VEDI SKRV203000590 *

2

M5×16(SW,PW)

26

SKR6203632311

*VEDI SKRA320000780 *

1



27

SKR1102205160

*VEDI SKRV203000590 *

1

M5×16(SW,PW)

28

ECR6203533010

*VEDI ECRA058000010 *

1



29

SKR6203533110

*VEDI SKRA575000440 *

1



30

SKR6203533120

*VEDI ECRV420002490 *

1



31

SKR6203533130

*VEDI ECRV420002500 *

1



32

SKR1102206280

BULLONE

1

M6×28 (SW,PW)

33

SKR2002431460

FERMO

1

















Rif.

Articolo

Descrizione                                  Q.tà

Nota

1

SKR6203541110

*VEDI SKRA100000680 *           1



2

SKR6203541120

*VEDI SKRA101000370 *           2



3

SKR6203541210

*VEDI SKRV609000050 *           1



4

SKR2215241231

*VEDI SKRV580000100 *           2



5

SKR2215041280

*VEDI SKRV556000030 *           1



6

SKR6203542010

*VEDI ECRA011000840 *           1



7

SKR7021051100

*VEDI SKRA056000450 *           1



8

SKR2002051112

*VEDI SKRA552000120 *           1



9

SKR2002051121

*VEDI SKRA555000130 *           4



10

SKR2002051131

*VEDI SKRA566000150 *           4



11

SKR2002051140

PIASTRA FRIZIONE T.V. X C35    1



12

SKR2002051150

*VEDI ECRA557000120 *           2

M8×15.2

13

ECR7021051160

*VEDI ECRV203000880 *           2

M5×16

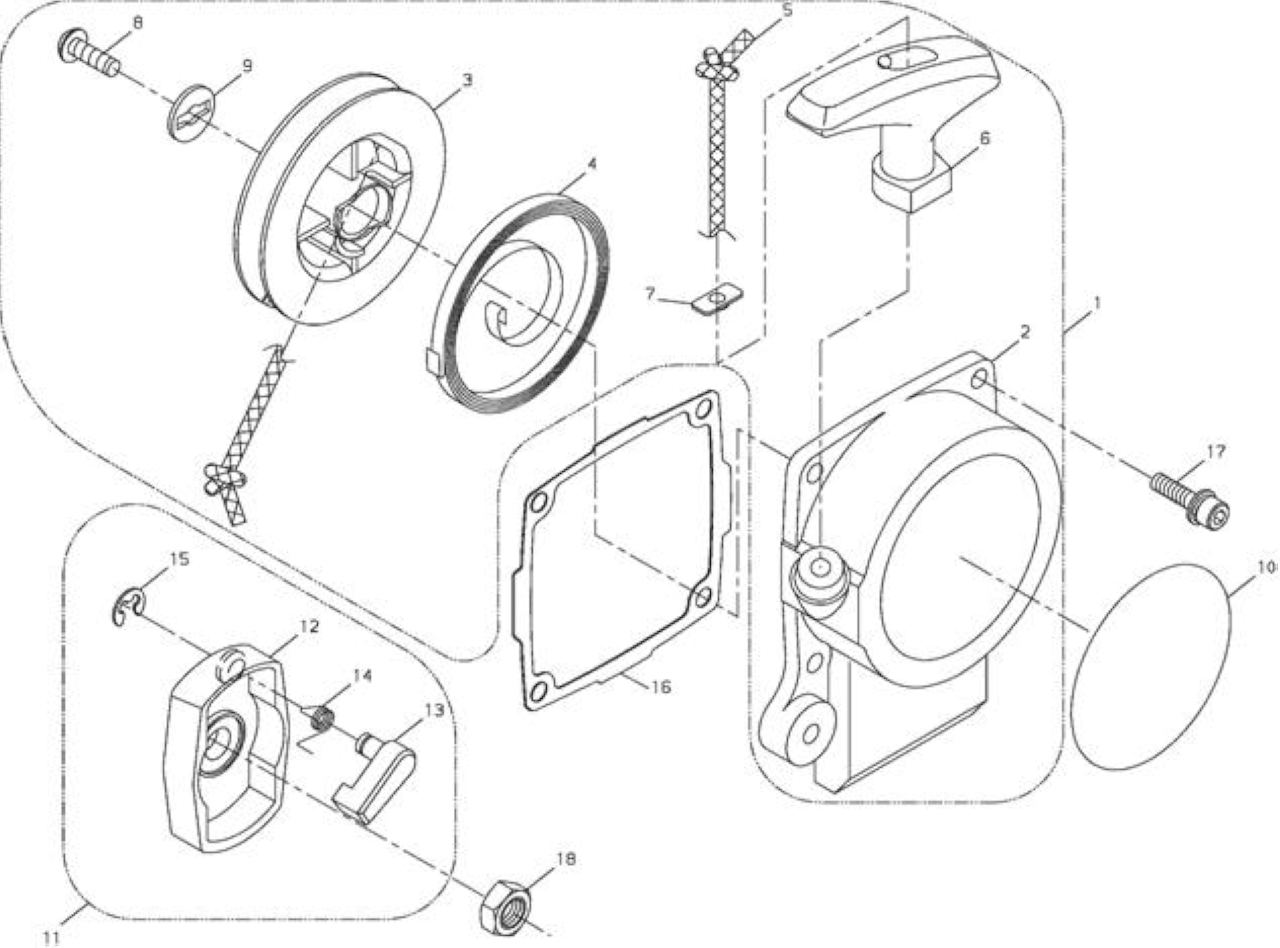

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6203571110

*VEDI SKRA409000650 *

1



2

SKR240303100

*VEDI ECR9311503010 *

1

3×10 A

3

SKR151110061

DADO

1

M10×6

4

SKR160010251

*VEDI ECR90060500010 *

1

M10

5

SKR6203571020

*VEDI SKRA411000790 *

1



6

SKR2215572280

CAVO

1



7

SKR7003071620

*VEDI SKRV322000040 *

2



8

SKR102004240

BULLONE M4X24 T.E.I.

2

M4×24

9

SKR160004101

RONDELLA ELASTICA D4

2

M4

10

SKR2001071650

RONDELLA D4

1

M4

11

SKR2216072220

*VEDI SKRA427000060 *

1



12

SKR2215472230

*VEDI SKRA426000040 *

1



14

ECR6203571320

*VEDI ECRV136000040 *

1


























Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6203575010

*VEDI SKRA050000200 *

1



2

SKR6203575110

* VEDI ECRA500000860 *

1



3

SKR6203575120

*VEDI SKRA506000260 *

1



4

SKR6203575130

*VEDI SKRA504000130 *

1



6

SKR2210475420

MANOPOLA

1



7

SKR2001075210

FERMO IMPUGNATURA AVV.TO

1



8

SKR2003575170

VITE

1



9

SKR2002475140

RONDELLA

1



10

SKR1942000027

*VEDI SKRX504002770 *

1



11

SKR6203575020

*VEDI ECRA052000380 *

1



12

ECR6203575210

*VEDI ECRA520000160 *

1



13

SKR6203575220

*VEDI SKRA514000120 *

1



14

SKR2002475230

*VEDI SKRV452000520 *

1



15

SKR2002475240

*VEDI SKRV583000140 *

1



16

SKR6203575331

*VEDI ECRV105000020 *

1



17

SKR1102205250

BULLONE

4

M5×25 (SW,PW)

18

ECR6203575340

*VEDI ECRV266000070 *

1

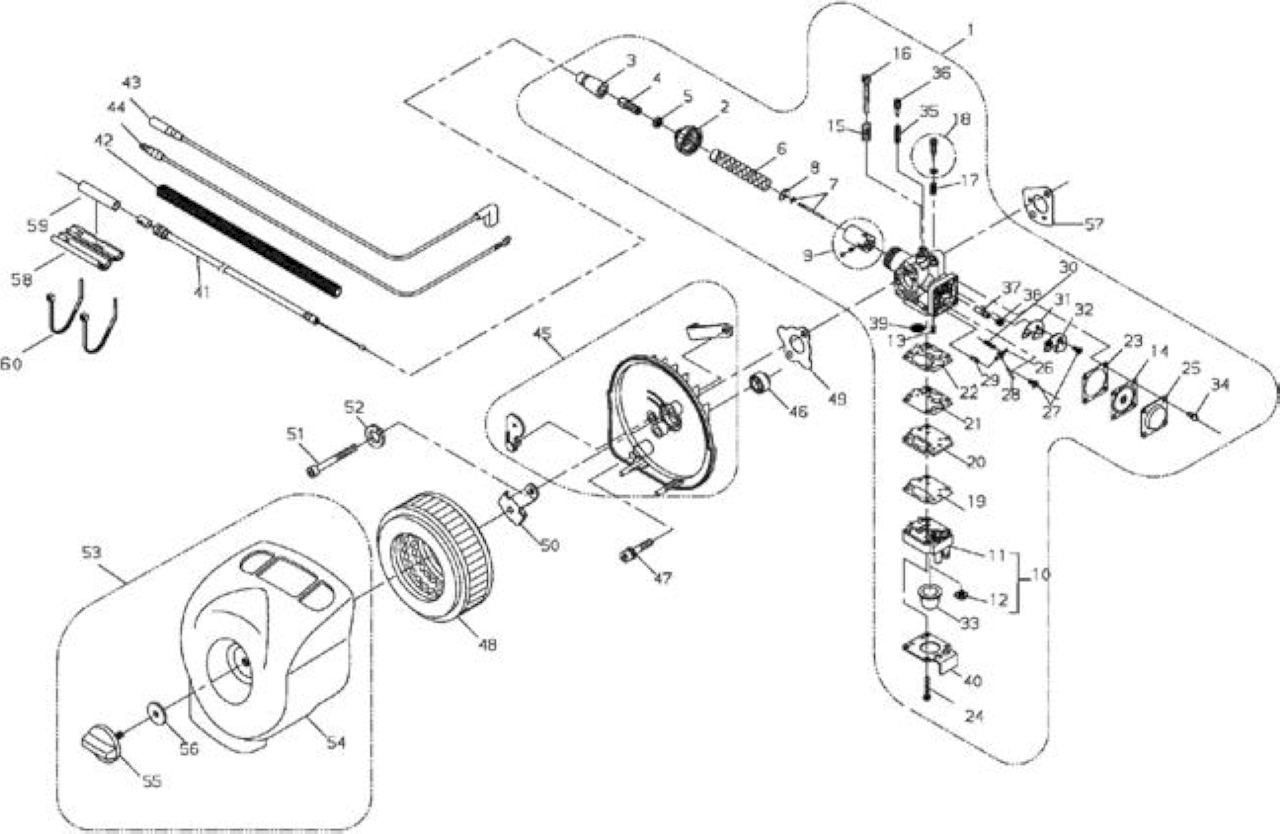

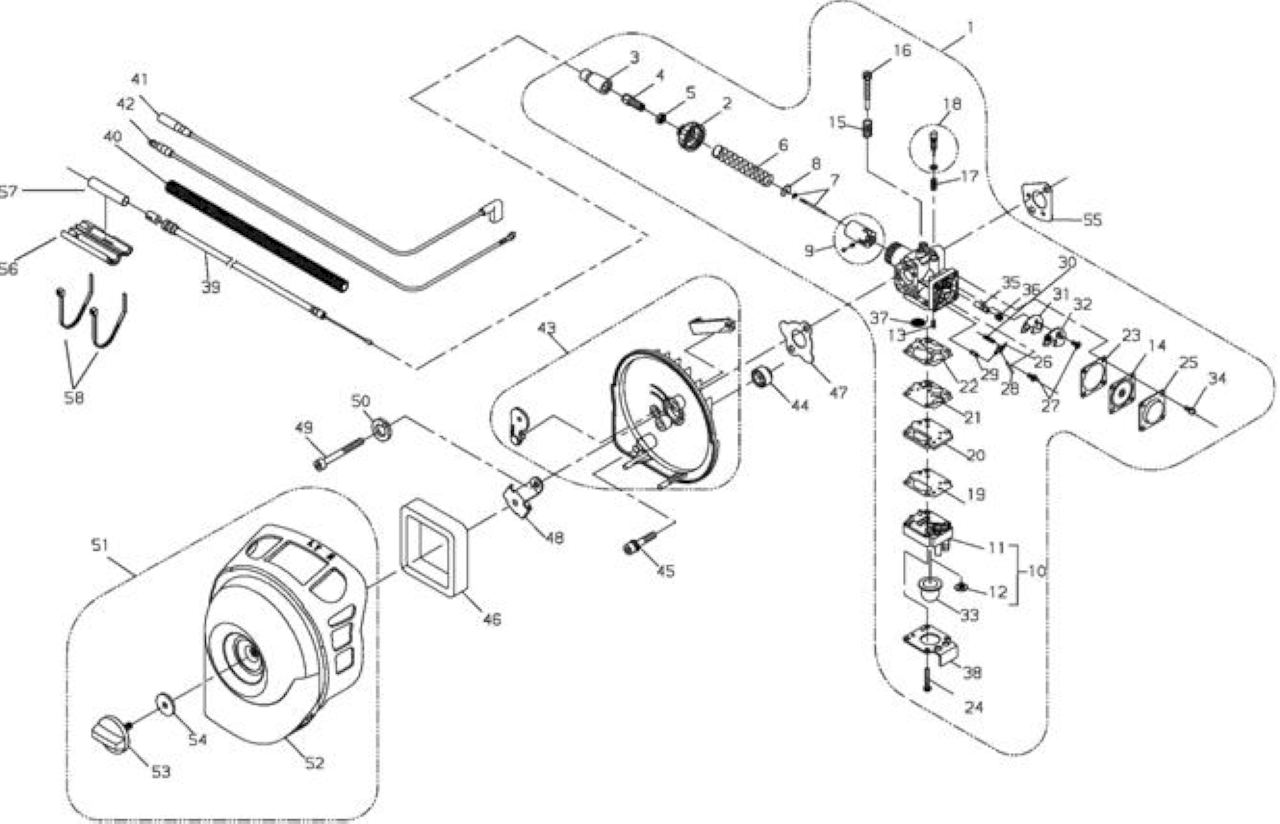

Rif.

Articolo

Descrizione

Q.tà

Nota

1

ECR6210781010

*VEDI ECRA021002580 *

1



2

SKR6208381310

*VEDI ECR12411305910 *

1



3

SKR7292081130

* VEDI ECR12417411120 *

1



4

SKR2002081110

VITE REGOLAZIONE CAVO

1



5

SKR2000081260

*VEDI ECR12411105810 *

1



6

SKR2002081140

MOLLA

1



7

ECR6210781320

JET NEEDLE

1



8

SKR2002081150

*VEDI ECR12411511120 *

1



9

SKR6203581330

VALVOLA ACCELERATORE

1



10

SKR6203581340

*VEDI SKRP004002690 *

1



11

ECR6203581350

*VEDI ECRP004003250 *

1



12

SKR6850181340

*VEDI ECR12437455430 *

1



13

SKR6203581360

*VEDI ECR12436755430 *

1



14

SKR6203581410

*VEDI SKRP004002720 *

1



15

SKR7292081820

MOLLA

1



16

SKR2000081310

*VEDI ECR12415905530 *

1



17

SKR2001181360

*VEDI ECR12435521330 *

1



18

ECR6210781330

MAIN ADJ SCREW

1



19

SKR2001981660

*VEDI ECR12436312710 *

1



20

SKR2001981610

*VEDI ECR12436212710 *

1



21

SKR2001981620

*VEDI ECR12436412710 *

1



22

SKR2001981630

*VEDI ECR12436112710 *

1



23

SKR6203581370

*VEDI ECR12435861830 *

1



24

ECR6203581380

SCREW

4



25

SKR2001981670

*VEDI ECRP004001720 *

1



26

SKR2001181451

*VEDI SKRP004001340 *

1



27

SKR2001181470

VITE

2



28

SKR2001181460

*VEDI ECR12433221330 *

1



29

SKR2001981440

*VEDI ECRP004001660 *

1



30

SKR2004081430

*VEDI ECR12433149930 *

1



31

SKR7021081440

*VEDI SKRP004003000 *

1



32

SKR7021081451

*VEDI ECRP004003010 *

1



33

SKR2008781820

*VEDI ECR12438012710 *

1



34

SKR2000081540

VITE COPERCHIO CARBURATORE

4



35

ECR6203581420

*VEDI ECRP004002730 *

1



36

ECR7021081420

*VEDI ECRP004002980 *

1



37

ECR6850181480

*VEDI ECRP004001640 *

1



38

SKR6203581390

PIASTRA POMPA

1



39

SKR6203583111

*VEDI ECRV430002930 *

1



41

ECR1435213100

*VEDI ECRV485001700 *

1

L310

42

ECR1435013000

*VEDI ECRV485001710 *

1

L300

43

SKR6203582011

*VEDI SKRA023000160 *

1



44

SKR6203582362

*VEDI ECRV323000090 *

1



45

SKR1102205400



1

M5X40 NON GESTITA

46

SKR6208382120

*VEDI SKRA226000680 *

1





Rif.

Articolo

Descrizione

Q.tà

Nota

47

SKR6203582330

*VEDI ECRV103001040 *

1



48

SKR6203582340

*VEDI ECRA244000180 *

1



49

ECR0102005750

*VEDI ECR90010505075 *

2

M5X75

50

ECR0160005131

*VEDI ECR90060500005 *

2

5MM

51

SKR6208382041

* VEDI ECRP021028000 *

1



52

ECR6208382131

CLEANER COVER

1



53

SKR2087033120

*VEDI SKRV299000410 *

1



54

ECR6203582350

*VEDI ECRV303000200 *

1



55

SKR6203581310

*VEDI SKRV103001030 *

1



56

SKR7255082120

*VEDI SKRC482000070 *

1



57

SKR2003782130

*VEDI SKRV475004810 *

1



58

SKR1521012303

FASCETTA

2











Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKRA021002570

CARBURATORE PER T/B530

1



2

ECR12411305910

COPERCHIO VALVOLA

1



3

ECR12417411120

TAPPO REGOLATORE

1



4

ECR12415813410

*VEDI ECR12415813411 *

1



5

ECR12411105810

DADO

1



6

ECR12411411120

MOLLA

1



7

SKR6203581432

*VEDI SKRP004002740 *

1



8

ECR12411511120

SEDE MOLLA

1



9

ECRP004002680

THROTTLE VALVE

1



10

SKRP004002690

CORPO POMPA COMPLETO

1



11

ECRP004003250

PUMP COVER

1



12

ECR12437455430

VALVOLA SFIATO

1



13

ECR12436755430

MOLLA

1



14

SKRP004002720

MEMBRANA C/DISCO

1



15

ECR12416011120

MOLLA VITE REGOLAZIONE

1



16

ECR12415905530

VITE REGOLAZIONE 343SL

1



17

ECR12435521330

MOLLA REGOLAZIONE

1



18

ECR12435412710

VITE REGOLAZIONE 343SL

1



19

ECR12436312710

GUARNIZIONE

1



20

ECR12436212710

CORPO POMPANTE

1



21

ECR12436412710

MEMBRANA POMPANTE

1



22

ECR12436112710

GUARNIZIONE CARBURATORE

1



23

ECRP004000590

*VEDI ECR12435861830 *

1



24

ECR6203581380

SCREW

4



25

SKR2001981670

*VEDI ECRP004001720 *

1



26

ECR12432150430

LEVER, INLET CONTROL

1



27

ECRP004001350

SCREW

2



28

ECR12433221330

SPINOTTO GALLEGGIANTE

1



29

ECRP004001660

VALVOLA SPILLO

1



30

ECR12433149930

MOLLA CARBURATORE

1



31

SKRP004003000

GUARNIZIONE

1



32

ECRP004003010

PIASTRINA

1



33

ECR12438012710

POMPANTE PRIMARIO

1



34

ECRP004001000

SCREW

4



35

ECRP004000890

MOLLA

1



36

ECRP004000880

VITE REGISTRO ARIA

1



37

ECRP004002730

GETTO SPILLO

1



38

ECRP004002980

SEDE SPILLO

1



39

ECRP004001640

SCREEN

1



40

ECRP004002710

PUMP PLATE

1



41

ECRV430002930

CAVO ACCELERATORE

1



42

ECRV475004500

TUBETTO COPRIFILO

1



43

ECRV485001700

LEAD WIRE

1

L310

44

ECRV485001710

LEAD WIRE

1

L300

45

SKRA023000160

CORPO FILTRO ARIA

1



46

ECRV323000090

ISOLATORE

1





Rif.

Articolo

Descrizione

Q.tà

Nota

48

SKRA226000660

*VEDI ECRA226001860 *

1



49

ECRV103001040

GUARNIZIONE

1



50

ECRA244000180

PIASTRINA

1



51

ECR90010505075

BOLT, H.S.H

2

CB-5*75

52

ECR90060500005

RONDELLA APERTA M5

2

SW-5

53

ECRP021027800

* VEDI ECRP021027810 *

1



54

ECRA232000840

CLEANER COVER

1



55

SKRV299000410

*VEDI ECRV299000410 *

1



56

ECRV303000200

WASHER

1



57

SKRV103001030

GUARNIZIONE

ISOL-CARBURATORE

1



58

SKRC482000070

ASTUCCIO CAVI

1



59

SKRV475004810

TUBETTO

1



60

ECRV495001530

BAND

2













1

SKR6203585013

*VEDI ECRA038000330

*

1



2

SKR6203585111

*VEDI ECRA350001370

*

1



3

SKR7016885201

*VEDI SKRA033000010

*

1



4

SKR2000085221

*VEDI SKRV107000010

*

1



5

SKR6203585031

*VEDI SKRP021034560

*

1



6

SKR6203585310

*VEDI SKRV471002480

*

1



7

SKR6203585321

*VEDI SKRV137000090

*

1



8

SKR2002085540

*VEDI SKRV490000500

*

2



9

SKR2216935400

*VEDI SKRA369000100

*

1



10

SKR2219733960

*VEDI SKRA356000050

*

1



11

SKR2002085540

*VEDI SKRV490000500

*

1



12

SKR2014083311

*VEDI SKRV471002490

*

1



13

SKR2002085540

*VEDI SKRV490000500

*

2



14

SKR7293385620

*VEDI SKRV186000210

*

1



15

SKR6203585341

*VEDI ECRV420002510

*

2



16

SKR6203585351

*VEDI ECRV420002520

*

1



17

SKR6203585360

*VEDI ECRA175000210

*

1



18

SKR1102205160

*VEDI SKRV203000590

*

4

M5×16(SW,PW)

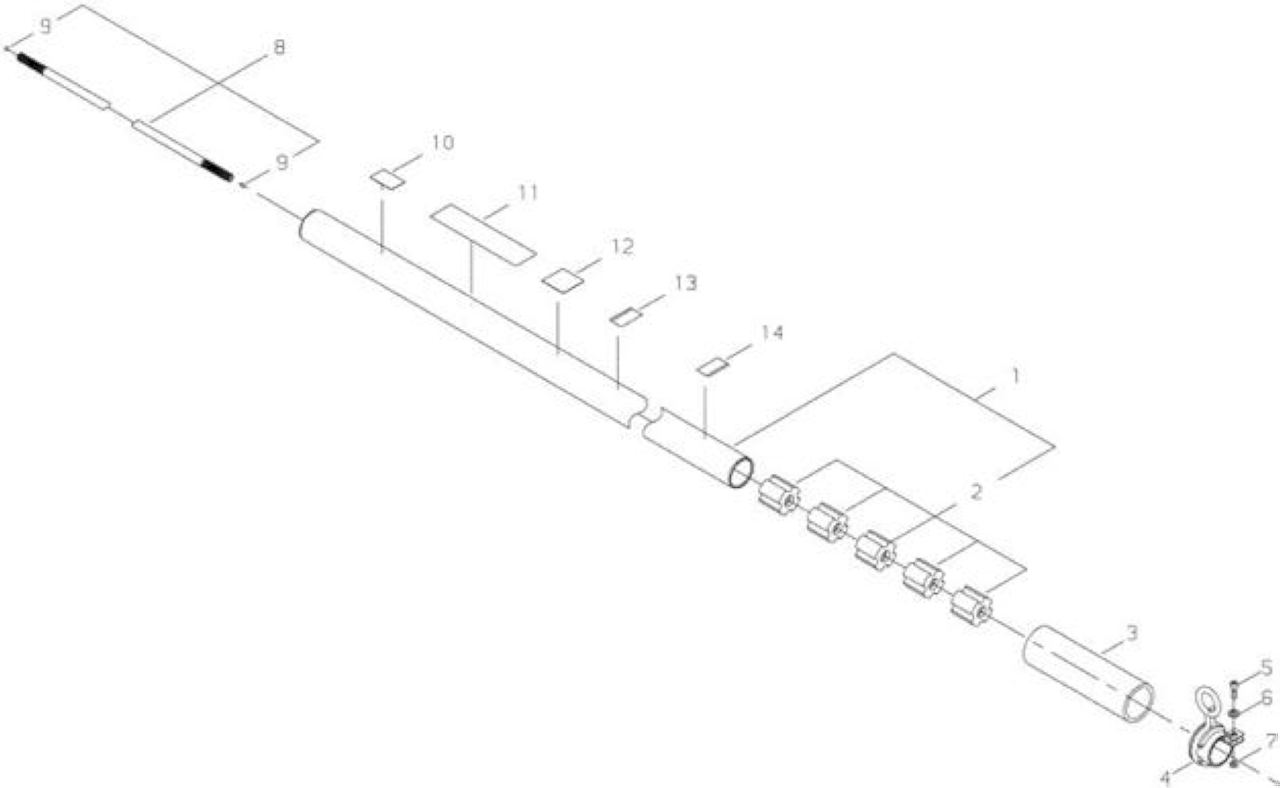

1           SKR6304062010    TUBOLARE C/AMMORTIZZATORI 1

2

SKR6301962120

AMMORTIZZATORE

5

3

SKR6304062311

*VEDI SKRV364000040 *

1

4

SKR2201712210

*VEDI SKRC063000030 *

1

5

SKR102005120

BULLONE M5X12 T.E.I.

1

6

ECR0160005130

SPRING WASHER

1

7

ECR0150005041

*VEDI ECR90050000005 *

1

8

SKR7255012400

*VEDI SKRC504000740 *

1

9

SKR2202112420

*VEDI SKRV585000040 *

2

10

ECR1940200223

*VEDI ECRX517000140 *

1

11

ECR1942200010

*VEDI ECRX505002910 *

1

12

ECR1940400038

*VEDI ECRX508000290 *

1

13

ECR7201712150

*VEDI ECRX524002380 *

1

14

ECR7200512140

*VEDI ECRX505002860 *

1



































































1

SKR6302063020

*VEDI SKRC051000610 *

1



2

SKR6302063111

*VEDI SKRC531000600 *

1



3

SKR200606000

*VEDI ECR90080206000 *

1

6000DDU

4

SKR200006202

*VEDI ECR90081006202 *

1

6202

5

SKR7244713121

*VEDI SKRV513000000 *

1



6

SKR2201513230

*VEDI SKRV358000130 *

1



7

SKR6301963130

*VEDI SKRC534000600 *

1



8

SKR2201513220

*VEDI SKRV651000540 *

1



9

SKR243235150

ANELLO ELASTICO

1

35MM C

10

SKR2202113390

*VEDI SKRV651000550 *

1



11

SKR200006001

*VEDI SKR3707463310 *

1

6001

12

SKR200206001

*VEDI ECR90080406001 *

1

6001ZZ

13

SKR2000031140

*VEDI SKRV583000170 *

1



14

SKR243228120

ANELLO ELASTICO

1

28MM C

15

SKR2201513410

*VEDI SKRV206000250 *

1



16

SKR2201513420

*VEDI SKRV307000230 *

1



17

ECR1102206140

*VEDI ECRV204000740 *

1

M6X14

18

ECR1102206400

*VEDI ECRV204000450 *

1

M6X40

20

SKR7244713240

*VEDI SKRC535000770 *

1



21

SKR2201513290

*VEDI SKRV641000140 *

2



22

SKR6302063171

*VEDI SKRC535000800 *

1



23

SKR2201513270

*VEDI SKRC535000790 *

1



24

SKR6301963310

*VEDI SKRV206000230 *

1



25

SKR7201716130

*VEDI ECRC551000110 *

1



26

SKR150006051

DADO M6

1

M6

27

SKR161306100

RONDELLA

1

6MM















































1

ECR6206064010

*VEDI ECRP021027890 *

1

2

SKR7255514100

*VEDI SKRP021033250 *

1

3

SKR7255514110

*VEDI ECRC423000710 *

1

4

SKR7255514120

*VEDI ECRC423000730 *

1

5

SKR7255514130

COPERCHIO SUPERIORE

1

6

SKR2201514140

*VEDI ECRC423000760 *

1

7

SKR2201514150

*VEDI ECRC423000770 *

1

8

SKR2201514160

*VEDI ECRV420002460 *

2

9

SKR2201514170

*VEDI ECRV420002470 *

2

10

SKR1102205250

BULLONE

8

11

SKR1121006250

VITE

2

12

SKR7251414190

FASCETTA

1

13

SKR7243014200

*VEDI ECRC080000110 *

1

15

SKR2242114230

*VEDI SKRC403000210 *

1

16

SKR7243014270

* VEDI ECRV494000300 *

1

17

SKR7255614260

*VEDI SKRV360000100 *

2





















































1

SKR6400866311

*VEDI SKR6400066311 *

1



2

SKR6290366111

*VEDI SKRC550000430 *

1



3

SKR6290366332

*VEDI SKRP021028450 *

1



4

SKR7248016121

*VEDI SKRC554000040 *

1



6

SKR1102005160

BULLONE

2

M5X16(SW)

7

SKR2242016120

*VEDI SKRV263000130 *

2

M5

8

SKR7248016210

*VEDI SKRC551000060 *

1



9

SKR1102205450

BULLONE

4

M5X45(SW,PW)

10

SKR6400767010

*VEDI SKR6400767011 *

1
