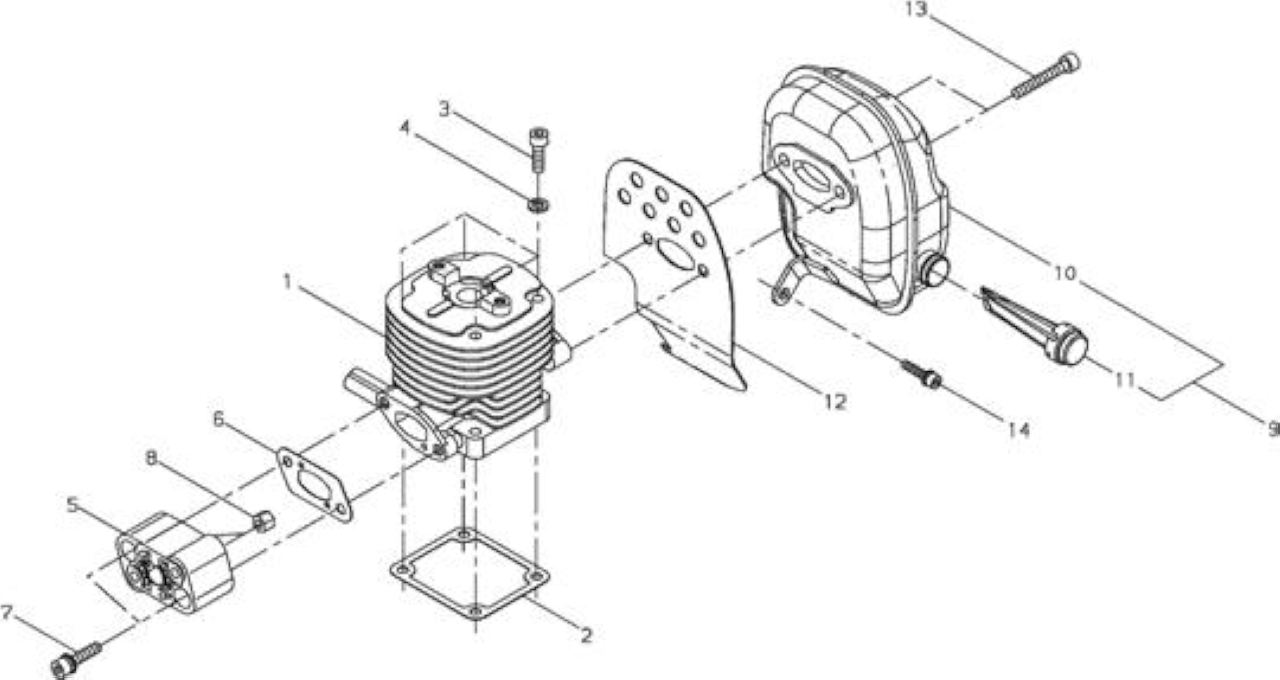

Cilindro, Marmitta

Carter motore, Campana Pistone, Frizione

Modulo accensione, Volano

Informazioni tecniche
CILINDRATA	33,6
POTENZA	1,3 (1,77)
SERBATOIO MIX	760
DIMENSIONE	1.795 X 378 X 351
PESO	7,3

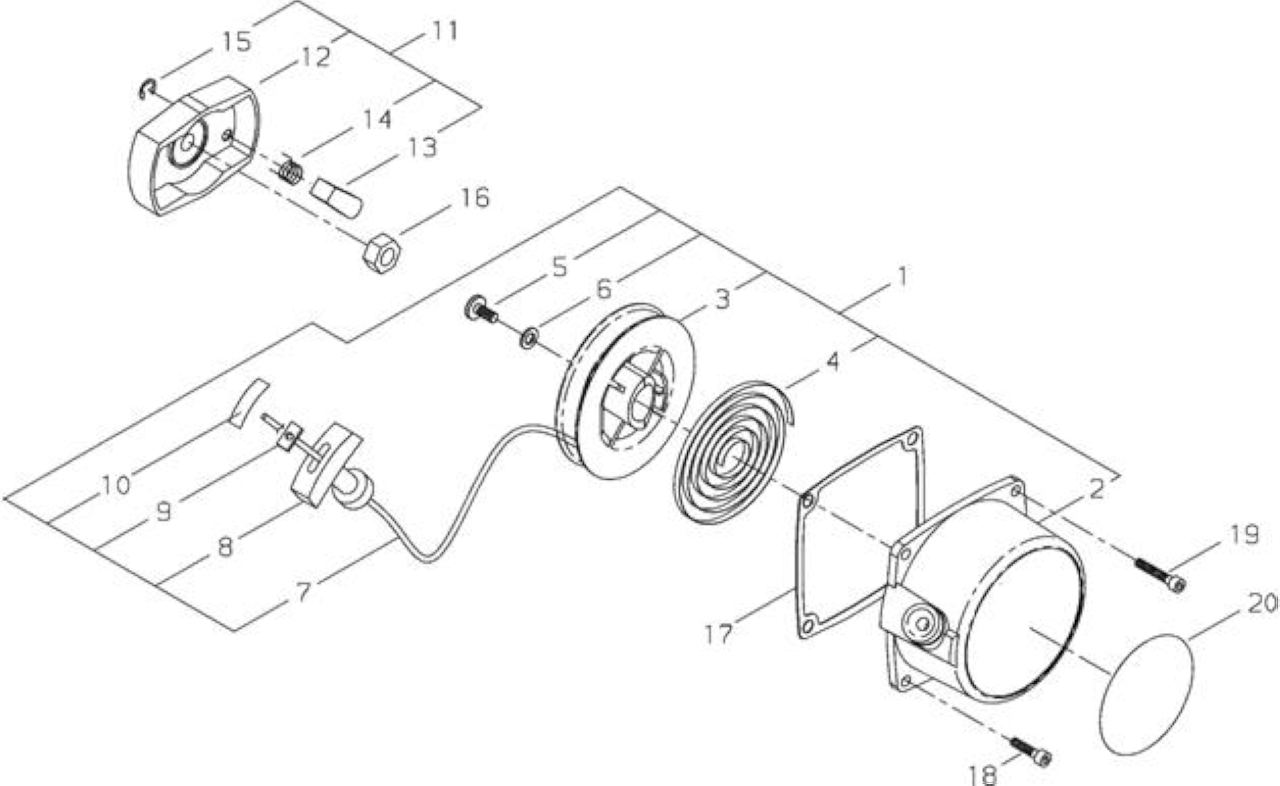

Avviamento Carburatore Serbatoio, Pescante

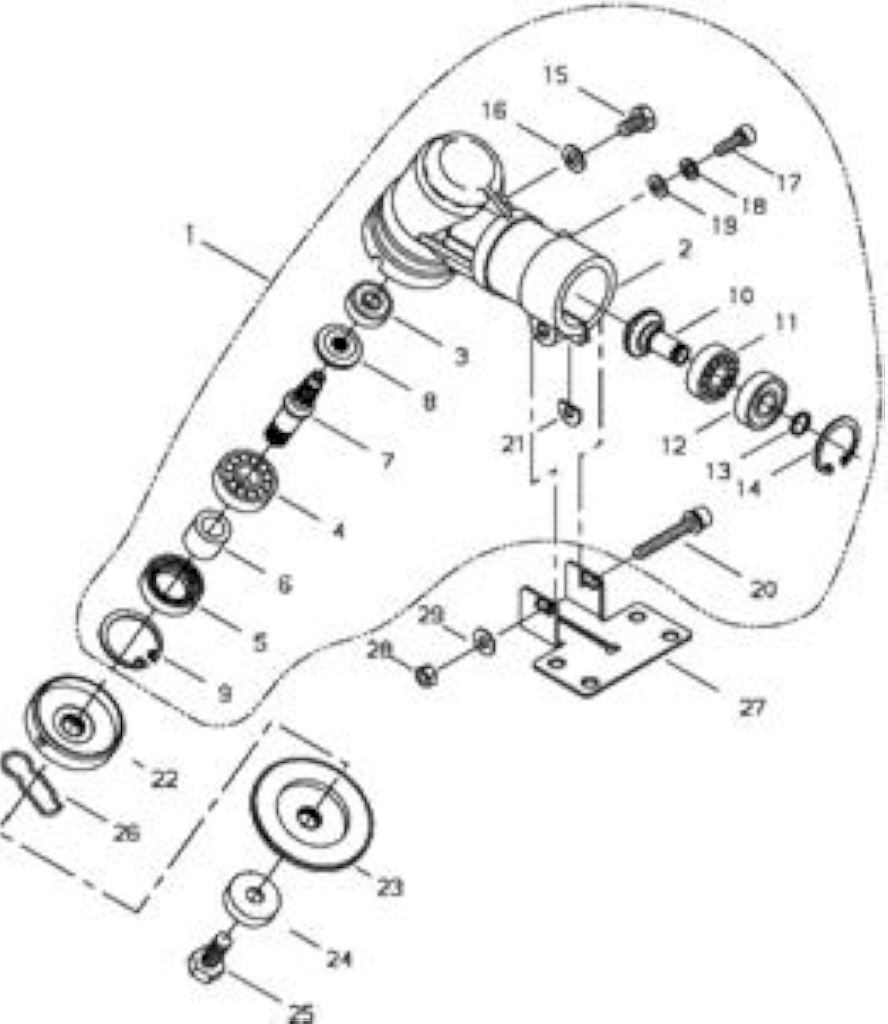

Asta, Tubolare, Acceleratore Coppia Conica

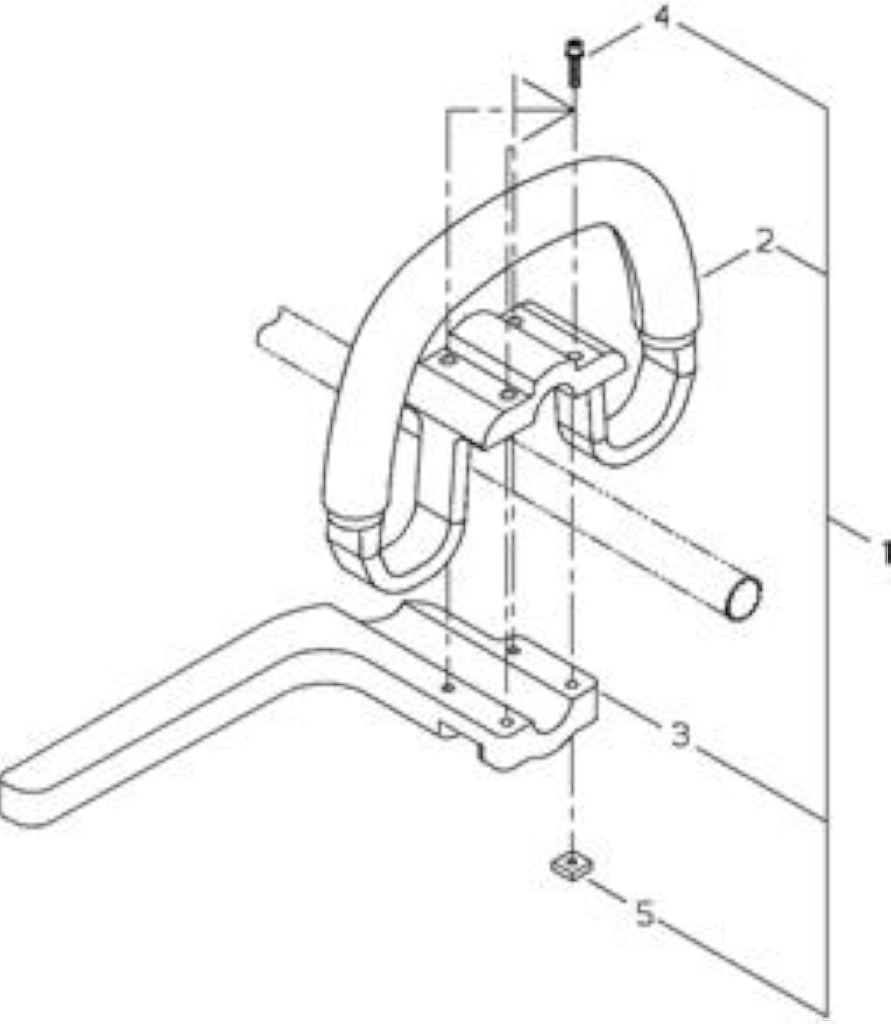

Impugnatura Parasassi

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7019612110	*VEDI SKRA130001371 *	1
2	SKR2001012121	*VEDI SKRV100000470 *	1
3	ECR90010505025	BULLONE BRUGOLA 5X25	4	M5X25
4	ECR90060500005	RONDELLA APERTA M5	4	5MM
5	SKR2006012210	*VEDI SKRA200000640 *	1
6	SKR2001112221	*VEDI SKRV103000950 *	1
7	SKR1102205250	BULLONE	2	M5X25
8	ECR2002412260	*VEDI ECRV263000180 *	2
9	SKR6210215010	*VEDI ECRA030000230 *	1
10	SKR6210415110	*VEDI SKRA300001130 *	1
11	SKR7020015151	*VEDI ECRA310000210 *	1
12	SKR6210415210	*VEDI SKRV104001340 *	1
13	ECR0102006250	*VEDI ECR90010506025 *	2	M6X25
14	SKR1102405120	BULLONE	1	M5X12

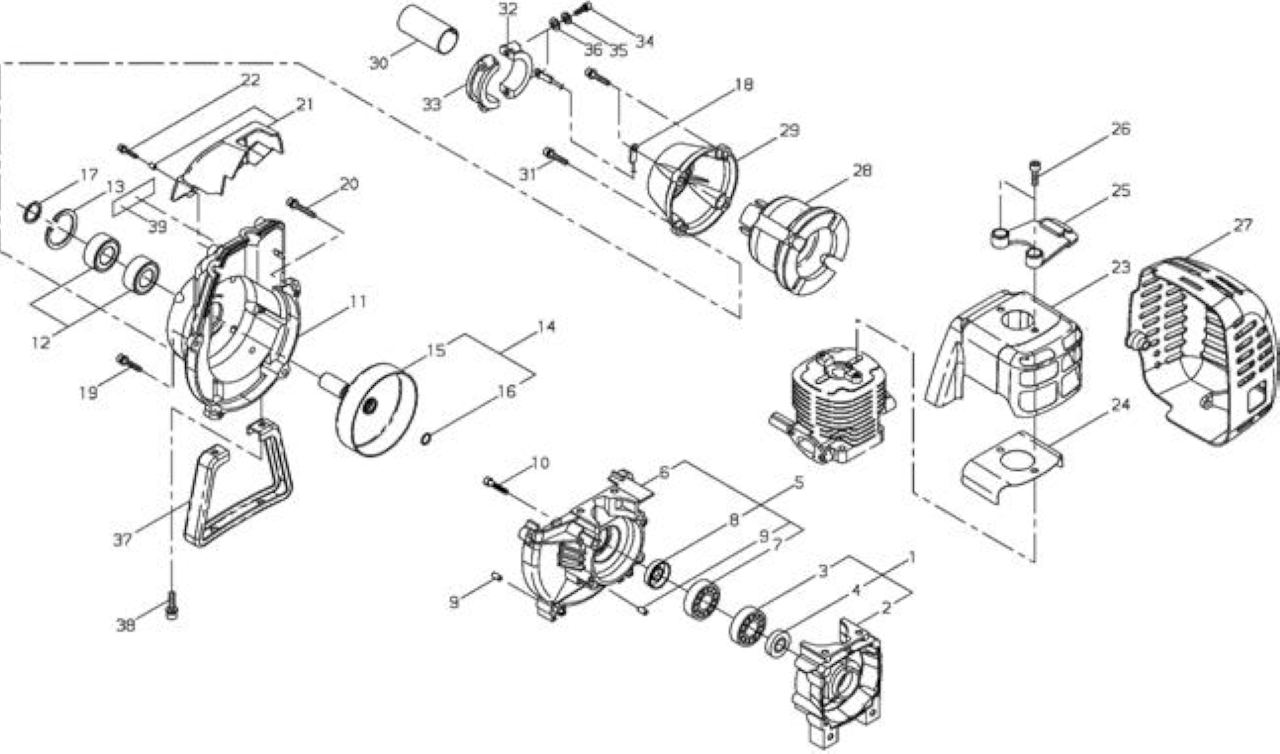

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7293521101	*VEDI ECRP021033430 *	1
2	ECR7293521111	*VEDI ECRA120000080 *	1
3	SKR1290062020	*VEDI SKR200006202 *	1	6202,C3
4	SKR2001021211	*VEDI SKRV508000050 *	1
5	SKR7006221200	*VEDI ECRP021030051 *	1
6	SKR7292121121	*VEDI ECRA120000360 *	1
7	SKR1290062020	*VEDI SKR200006202 *	1	6202,C3
8	SKR2001021211	*VEDI SKRV508000050 *	1
9	ECR1249250100	*VEDI ECRV623000060 *	4	F5XL10
10	ECR90010505030	BULLONE BRUGOLA 5X30	4	M5X30
11	SKR7001231111	*VEDI SKRA172001300 *	1
12	ECR90080206002	CUSCINETTO BB6002	2	6002DDU
13	ECR0243232120	*VEDI ECR9242432000 *	1	32MM
14	SKR2001131200	*VEDI SKRA055000000 *	1
15	SKR2001131210	*VEDI SKR2001131200 *	1
16	SKR2001131220	*VEDI ECRV582000080 *	1
17	SKR2001131230	*VEDI ECRV583000180 *	1
18	ECR7019231510	EARTH CORD	1
19	SKR1102205200	*VEDI ECRV203000351 *	3	M5X20
20	ECR1102205300	*VEDI ECRV203000580 *	1	M5X30
21	SKR7013134100	*VEDI SKRA162000190 *	1
22	SKR1102404160	BULLONE	2	M4X16
23	SKR7019632110	*VEDI SKRA160001600 *	1
24	SKR7019632141	*VEDI SKRV101000020 *	1
25	SKR6210432310	*VEDI SKRA163000020 *	1
26	SKR1102205180	BULLONE	2	M5X18
27	SKR6210432321	*VEDI SKRA320000770 *	1
28	SKR2001135110	*VEDI ECRA575000400 *	1
29	SKR7001235130	*VEDI SKRA575000410 *	1
30	SKR7013635170	SPESSORE	1
31	SKR1102205200	*VEDI ECRV203000351 *	4	M5X20
32	SKR2001135141	*VEDI SKRA575000420 *	1
33	SKR2001135151	*VEDI SKRA575000430 *	1
34	ECR90010505025	BULLONE BRUGOLA 5X25	2	M5X25
35	ECR0160005131	*VEDI ECR90060500005 *	2	5MM
36	ECR0161005080	*VEDI ECR90060000005 *	2	5MM
37	SKR7020033112	*VEDI SKRA175000180 *	1
38	SKR1102205160	*VEDI SKRV203000590 *	2	M5X16
39	ECR7020731150	*VEDI ECRX504002580 *	1

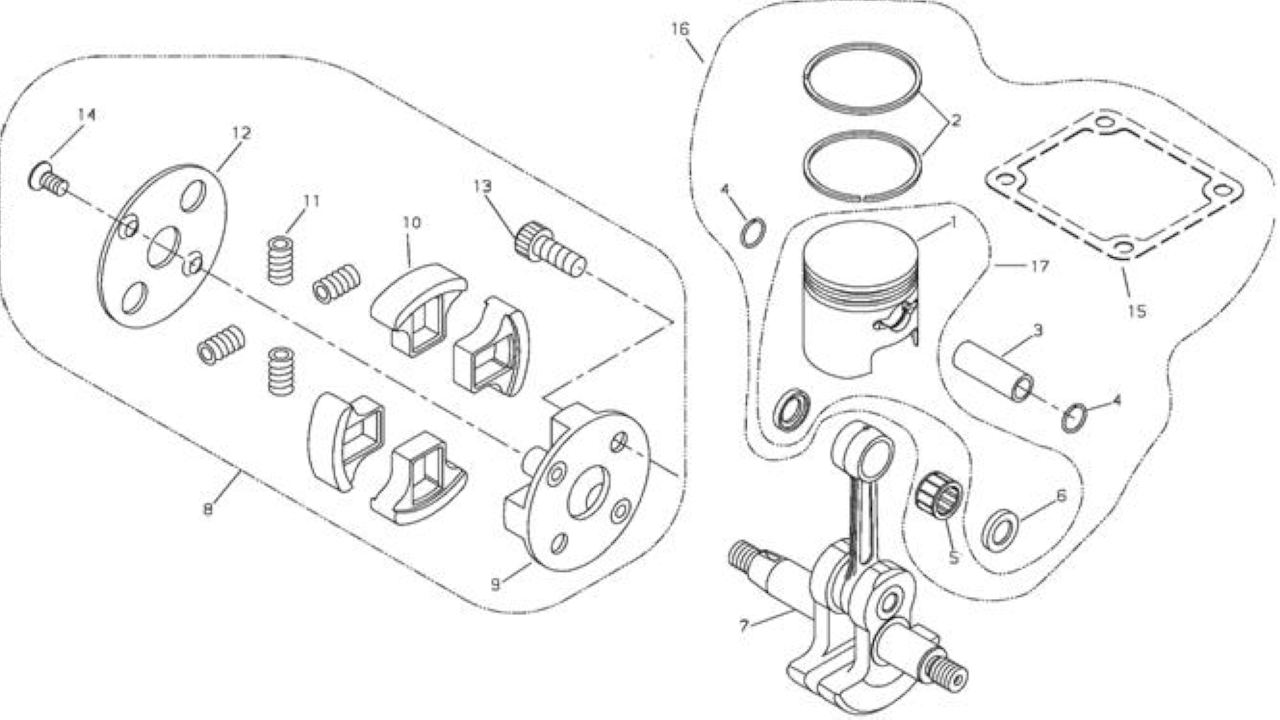

Rif.	Articolo	Descrizione	Q.tà Nota
16	SKR7205198011	*VEDI ECRP021031560 *	1
17	SKR7205198310	*VEDI SKRP021031570 *	1
1	ECR2001041111	*VEDI ECRA100000700 *	1
6	SKR7020041341	*VEDI SKRV307000220 *	2
2	SKR2001041210	*VEDI SKRA101000380 *	2
3	SKR2001041310	*VEDI SKRV608000020 *	1
4	SKR2210041230	*VEDI SKRV580000110 *	2
5	SKR2001041330	*VEDI SKRV555000090 *	1
15	SKR2001012121	*VEDI SKRV100000470 *	1
7	SKR2001042002	*VEDI SKRA011000860 *	1
8	SKR7021051100	*VEDI SKRA056000450 *	1
9	SKR2002051112	*VEDI SKRA552000120 *	1
10	SKR2002051121	*VEDI SKRA555000130 *	4
11	SKR2002051131	*VEDI SKRA566000150 *	4
12	SKR2002051140	PIASTRA FRIZIONE T.V. X C35	1
13	SKR2002051150	*VEDI ECRA557000120 *	2
14	ECR7021051160	*VEDI ECRV203000880 *	2

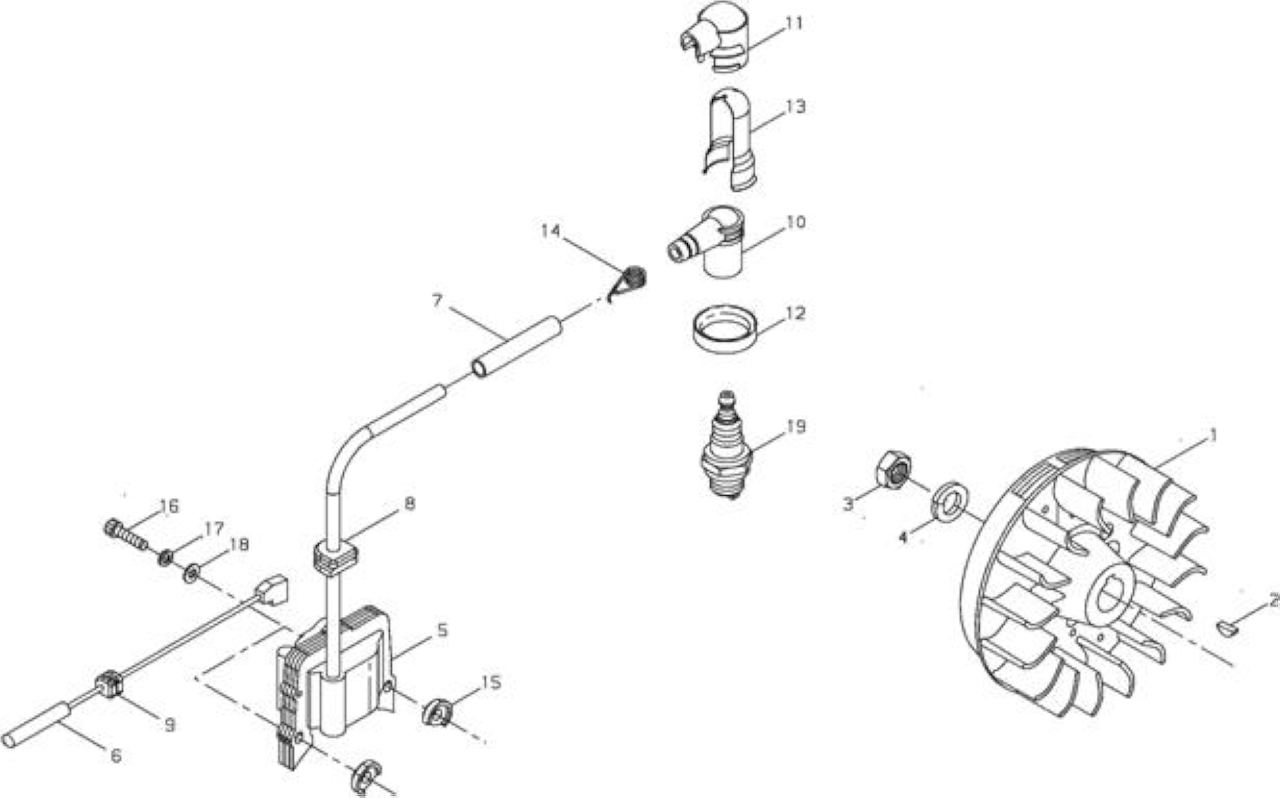

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7020071200	*VEDI SKRA409000640 *	1
2	ECR90050300010	NUT 10 (3N *1.25)	1	3X10
3	ECR0151110061	*VEDI ECR90050300010 *	1	M10
4	ECR90060500010	RONDELLA APERTA M10	1	10MM
5	SKR7020071610	*VEDI SKRA411000780 *	1
6	ECR7020071640	*VEDI ECRA412000030 *	1
7	SKR2001171660	TUBO	1
8	SKR2001172110	*VEDI SKRV135000080 *	1
9	SKR2001172120	*VEDI SKRV136000060 *	1
10	SKR2001072221	*VEDI SKRA427000090 *	1
11	SKR2000072241	*VEDI SKRA429000110 *	1
12	SKR2000072250	*VEDI SKRV495001440 *	1
13	SKR7018072260	*VEDI SKRV151000050 *	1
14	SKR2000072230	*VEDI SKRA426000050 *	1
15	SKR2001071631	*VEDI SKRV352000140 *	2
16	ECR0102004240	*VEDI ECR9110004024 *	2	M4X24
17	ECR0160004101	*VEDI ECR90060500004 *	2	4MM
18	SKR2001071650	RONDELLA D4	2

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7013175900	*VEDI SKRP021035720 *	1
2	SKR7013175110	*VEDI SKRA500000840 *	1
3	SKR7013175120	*VEDI SKRA506000150 *	1
4	SKR2002475130	*VEDI SKRA504000060 *	1
5	SKR2003575170	VITE	1
6	SKR7013175140	* VEDI ECR17721441030 *	1
8	SKR2001075190	*VEDI ECR17722827030 *	1
9	SKR2001075210	FERMO IMPUGNATURA AVV.TO	1
10	SKR2001075230	COPERCHIO IMPUGNATURA AVVIAM.	1
11	SKR7013175200	*VEDI SKRA052000370 *	1
12	SKR7013175211	*VEDI SKRA520000150 *	1
13	SKR2002475220	*VEDI SKRA514000080 *	1
14	SKR2002475230	*VEDI SKRV452000520 *	1
15	SKR2002475240	*VEDI SKRV583000140 *	1
16	SKR2000076210	DADO	1
17	SKR2002076111	*VEDI SKRV105000030 *	1
18	SKR1102204160	BULLONE	3	M4X16
19	ECR1106004203	BOLT ADHESIVE	1	M4X20
20	SKR1942000027	*VEDI SKRX504002770 *	1

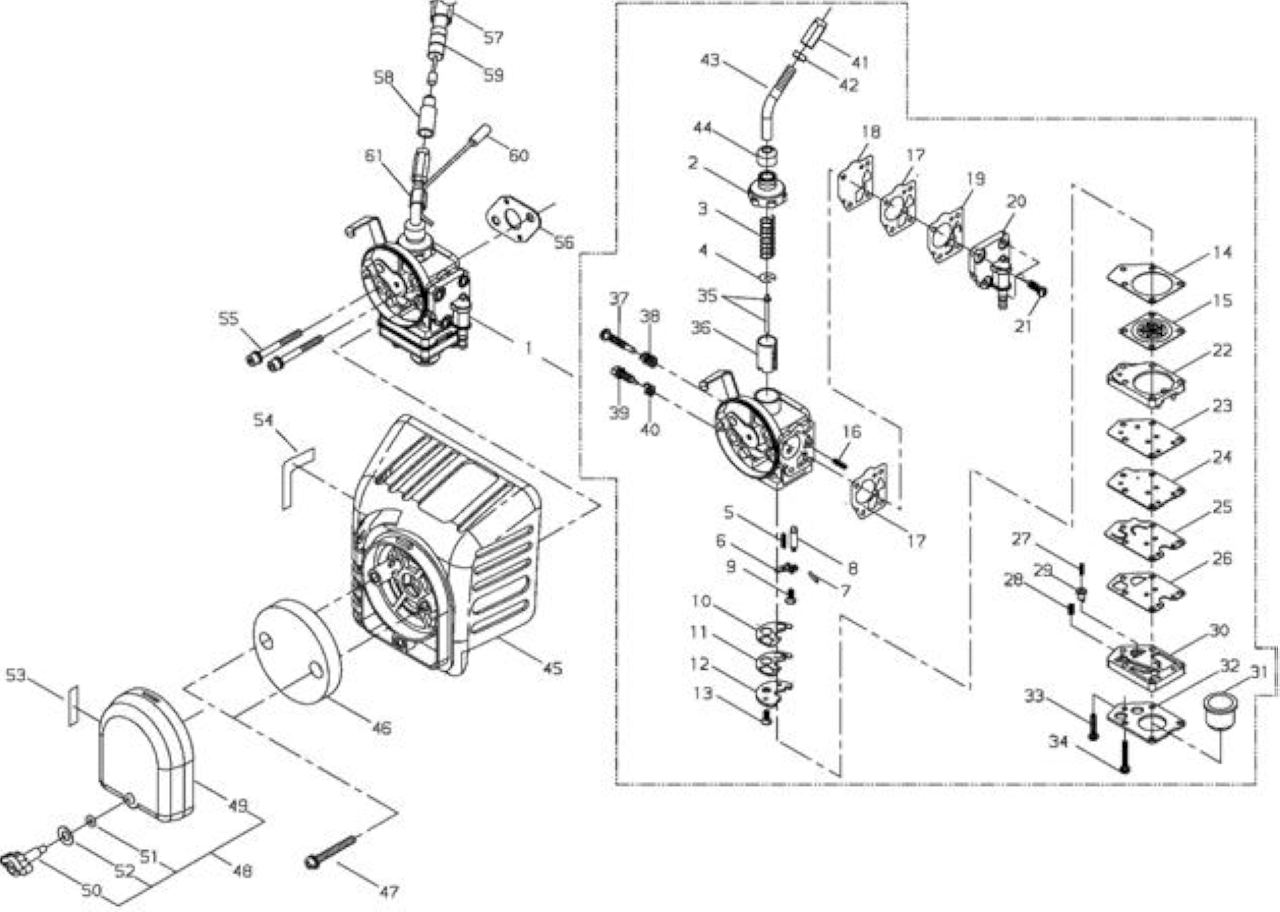

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6210281010	*VEDI SKRA021002490 *	1
2	SKR2005581120	*VEDI SKRP004000700 *	1
3	SKR2000381140	*VEDI ECR12411450330 *	1
4	SKR2000081150	*VEDI ECR12411505530 *	1
5	SKR2004081430	*VEDI ECR12433149930 *	1
6	SKR2001181451	*VEDI SKRP004001340 *	1
7	SKR2001181460	*VEDI ECR12433221330 *	1
8	SKR2000081441	*VEDI SKRP004000930 *	1
9	SKR2001181470	VITE	1
10	SKR2008781420	*VEDI SKRP004002510 *	1
11	SKR2008781411	*VEDI SKRP004002500 *	1
12	SKR7020081430	*VEDI ECRP004002950 *	1
13	SKR2001181470	VITE	1
14	SKR2008781510	*VEDI ECR12435849930 *	1
15	SKR2008781520	*VEDI ECR12434149930 *	1
16	SKR2004081680	*VEDI ECR12435550130 *	2
17	SKR2001181630	*VEDI ECR12436321330 *	2
18	SKR2001181621	*VEDI SKRP004001430 *	1
19	SKR2008781660	*VEDI SKRP004002550 *	1
20	SKR2008781641	*VEDI ECRP004003230 *	1
21	SKR2000081650	VITE	4
22	SKR2008781550	*VEDI ECR12437949930 *	1
23	SKR2008781890	*VEDI SKRP004002600 *	1
24	SKR2008781560	*VEDI ECR12436049930 *	1
25	SKR2008781571	*VEDI SKRP004002530 *	1
26	SKR2008781540	*VEDI ECR12435949930 *	1
27	SKR2008781851	*VEDI SKRP004002580 *	1
28	SKR2008781870	*VEDI ECR12435550130 *	1
29	SKR2008781861	*VEDI SKRP004002590 *	1
30	SKR2008781811	*VEDI SKRP004002570 *	1
31	SKR2008781820	*VEDI ECR12438012710 *	1
32	SKR2008781830	*VEDI ECR12434249930 *	1
33	ECR2008781840	SCREW	1
34	ECR2008781880	SCREW	4
35	SKR6210281320	*VEDI ECRP004003310 *	1
36	SKR7013181180	*VEDI SKRP004002900 *	1
37	SKR2000081310	*VEDI ECR12415905530 *	1
38	SKR7292081820	MOLLA	1
39	SKR6210281330	VITE REGISTRO GETTO MASSIMO	1
40	SKR2001181360	*VEDI ECR12435521330 *	1
41	SKR2005581810	*VEDI SKR12415846630 *	1
42	SKR2000081260	*VEDI ECR12411105810 *	1
43	SKR7010781830	*VEDI SKRP004002870 *	1
44	SKR2005581130	*VEDI ECRP004002180 *	1
45	SKR7010281710	*VEDI SKRA225000490 *	1

Rif.	Articolo	Descrizione	Q.tà	Nota
46	SKR2005681740	*VEDI SKRA226000650	* 1
47	ECR1120704250	*VEDI ECR9157704025	* 2	M4X25
48	SKR2006081761	*VEDI SKRA232000820	* 1
49	SKR2006081770	*VEDI SKRA232000830	* 1
50	SKR2006081781	*VEDI SKRA235000220	* 1
51	SKR2210082430	*VEDI SKRV581000200	* 1
52	SKR2002481790	*VEDI SKRV347000030	* 1
53	SKR1940400008	*VEDI ECRX506000130	* 1
54	ECR1940400010	*VEDI ECRX524002460	* 1
55	ECR1102205550	*VEDI ECRV203000890	* 2	M5X55
56	SKR2001183411	*VEDI SKRV103000960	* 1
57	SKR2002083120	*FUORI PRODUZIONE *	1
58	SKR2000583160	*VEDI SKRA246000020	* 1
59	SKR6200083110	*VEDI SKRV430002890	* 1
60	SKR7005683130	*VEDI ECRV485001860	* 1
61	SKR2006083180	*VEDI ECRV475004760	* 1

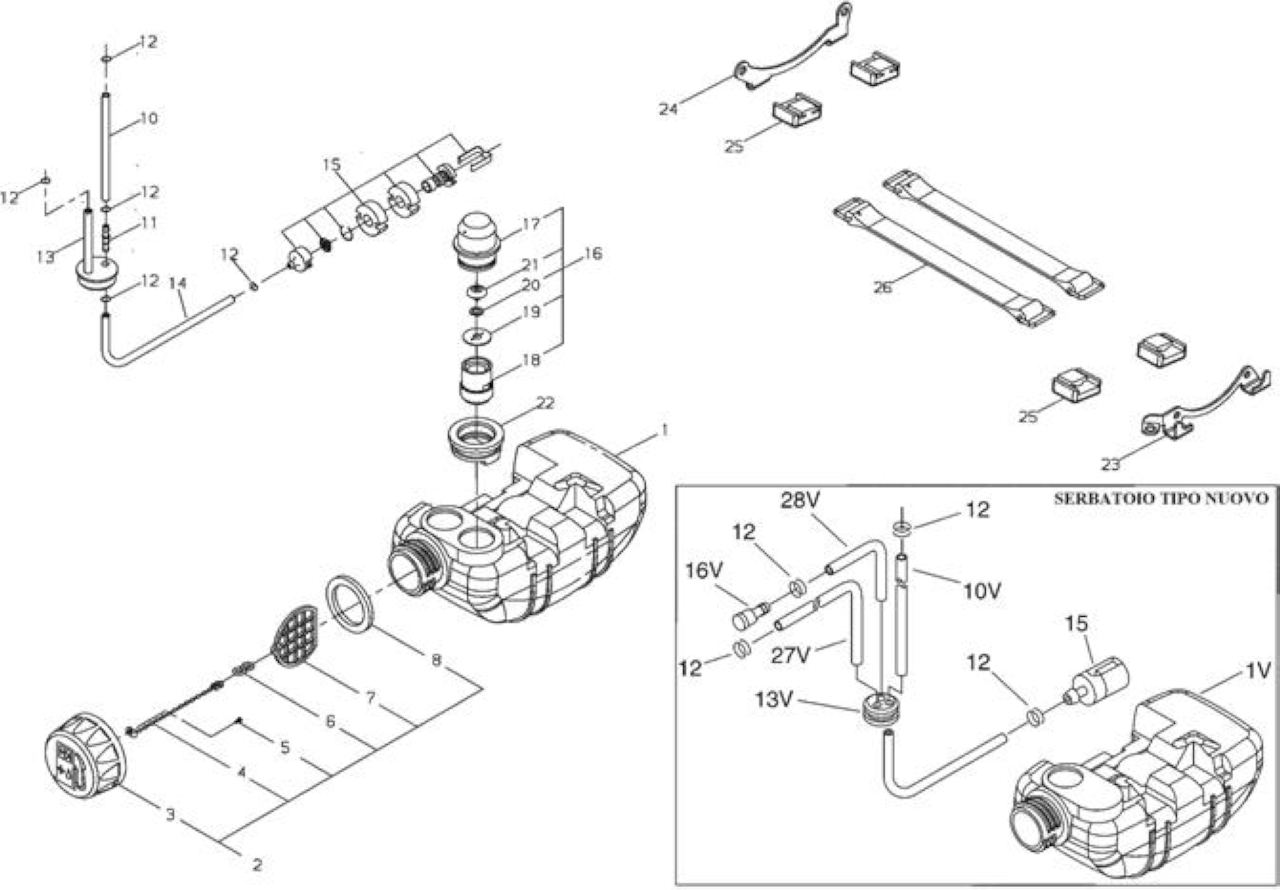

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7020085110	*VEDI SKRA350001360 *	1	FUORI PRODUZIONE
1V	SKRA350001361	SERBATOIO *T.I.12-507	1
2	SKR7016885201	*VEDI SKRA033000010 *	1
3	SKR7016885210	TAPPO SERBATOIO	1
4	SKR2212857250		1
5	SKR127025064		1
6	SKR2215021350		1
7	SKR2215521330		1
8	SKR2000085221	*VEDI SKRV107000010 *	1
10	SKR7020085310	*VEDI SKRV471002650 *	1
11	SKR7293585330	*VEDI ECRV186000230 *	1
12	SKR2002085540	*VEDI SKRV490000500 *	5
13	SKR7020085350	*VEDI SKRV137000080 *	1
14	SKR7020085320	*VEDI ECRV471002660 *	1
10V	ECRV471000750	*VEDI ECRV471000751 *	1
13V	ECR13211555930	*VEDI ECR13211555931 *	1
15	SKR2216935400	*VEDI SKRA369000100 *	1
16	SKR2000085500	*VEDI SKRA039000020 *	1
17	SKR2000085511	*VEDI SKRA362000000 *	1
18	SKR2000085521	*VEDI SKRA358000030 *	1
19	SKR2210085240	*VEDI SKRA359000010 *	1
20	SKR2210085250	*VEDI ECRV303000170 *	1
21	SKR2210085260	*VEDI SKRA356000090 *	1
16V	SKRA356000050	VALVOLA SFIATO	1
22	SKR2000085579	*VEDI SKRV138000020 *	1
23	SKR2002186110	*VEDI SKRA393000180 *	1
24	SKR2001186120	*VEDI ECRA393000190 *	1
25	SKR2001086130	*VEDI SKRV420002390 *	4
26	SKR2001086140	*VEDI SKR2002086140 *	2
27V	ECR13201049030	TUBO 3*6*50	1
28V	ECRV471000760	*VEDI ECRV471000761 *	1

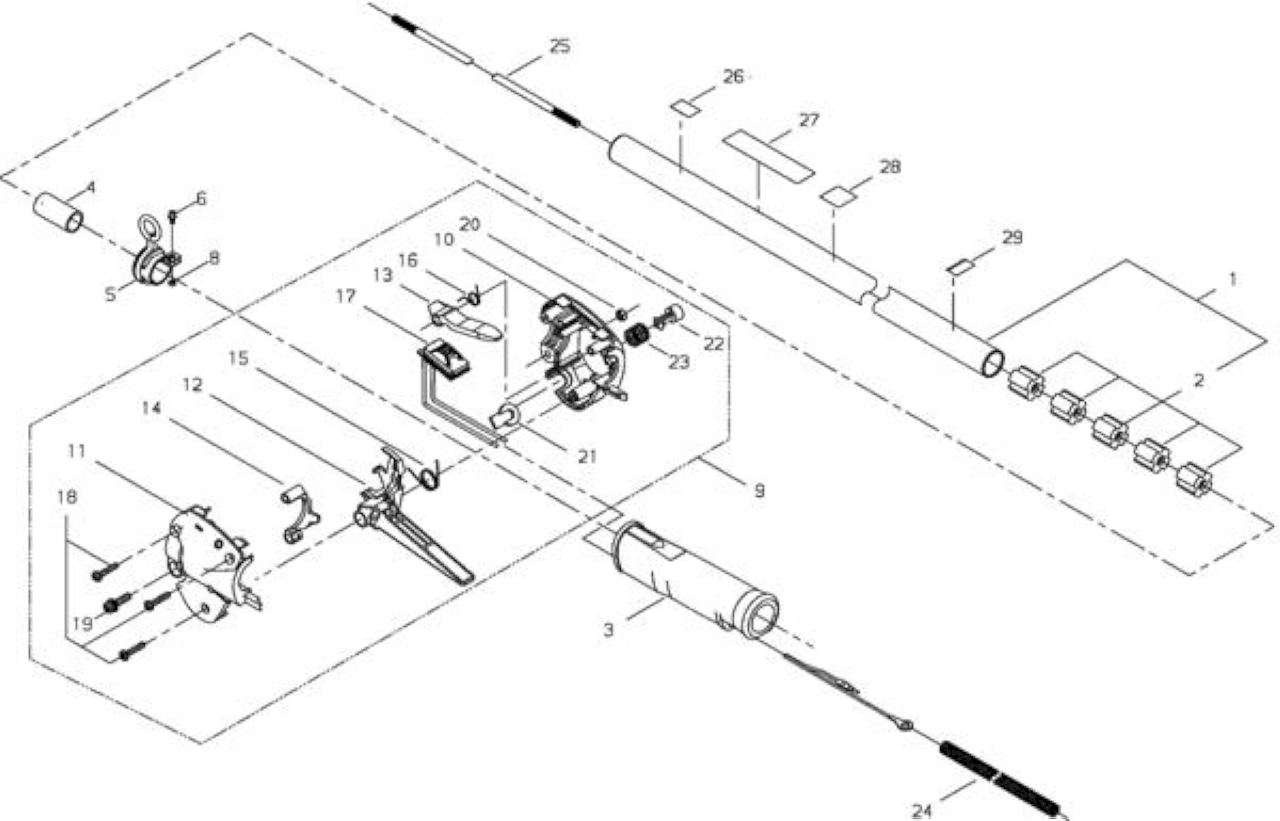

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7247512100	*VEDI SKRP021032850 *	1
2	SKR2246012120	*VEDI ECRC501000060 *	5
3	SKR6304362140	*VEDI SKRC412000380 *	1
4	ECR6300062311	*VEDI ECRV364000030 *	1
5	SKR2200912210	*VEDI ECRC063000010 *	1
6	SKR1102205120	BULLONE	1	M5X12
8	ECR0150005041	*VEDI ECR90050000005 *	1	M5
9	SKR6300062320	*VEDI SKRC044000630 *	1
10	SKR6300062340	*VEDI ECRC401000180 *	1
11	SKR6300062350	*VEDI SKRC401000190 *	1
12	SKR6300262340	*VEDI SKRC450000480 *	1
13	SKR6390162352	*VEDI SKRC460000190 *	1
14	SKR6300262350	*VEDI SKRC461000020 *	1
15	SKR6388065350	*VEDI ECRV452000700 *	1
16	SKR6390162370	*VEDI SKRV452000500 *	1
17	SKR6300062360	*VEDI SKRA045000280 *	1
18	ECR6388065360	*VEDI ECRV252000380 *	3
19	ECR1120605201	*VEDI ECR9157505020 *	1	M5X20
20	ECR0150105030	*VEDI ECR9201705000 *	1	M5
21	ECR6388065411	*VEDI ECRV162000350 *	1
22	SKR7087165170	*VEDI SKRC461000080 *	1
23	SKR7087165180	*VEDI SKRV450001010 *	1
24	SKR7020183140	*VEDI ECRV475004670 *	1
25	SKR7254012410	*VEDI SKRC504000690 *	1

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7255363020	*VEDI SKRC051000590 *	1
2	SKR2204413112	*VEDI SKRC531000610 *	1
3	ECR90080206000	CUSCINETTO BB6000	1	6000DDU
4	ECR90081006201	CUSCINETTO BB6201	1	6201
5	SKR2200013120	*VEDI SKRV510000010 *	1
6	SKR2200013230	*VEDI SKRV356000500 *	1
7	SKR2200013212	*VEDI SKRC534000610 *	1
8	SKR2200013220	*VEDI SKRV651000590 *	1
9	ECR0243232120	*VEDI ECR9242432000 *	1	32MM
10	SKR2246013391	*VEDI SKRV651000500 *	1
11	ECR90080006000	CUSCINETTO BB6000	1	6000
12	SKR9404406000	CUSCINETTO A SFERE 6000ZZ	1	6000ZZ
13	SKR2200013320	*VEDI ECR90070600010 *	1
14	ECR0243226120	*VEDI ECR9242426000 *	1	26MM
15	SKR2201513410	*VEDI SKRV206000250 *	1
16	SKR2201513420	*VEDI SKRV307000230 *	1
17	ECR0102005120	*VEDI ECR90010505012 *	1	M5X12
18	ECR0160005131	*VEDI ECR90060500005 *	1	5MM
19	ECR0161005080	*VEDI ECR90060000005 *	1	5MM
20	ECR1102206400	*VEDI ECRV204000450 *	1	M6X40
21	SKR2201113450	*VEDI ECRV340000280 *	1
22	SKR7255363160	*VEDI SKRC535000840 *	1
23	SKR3701963170	*VEDI SKRC535000850 *	1
24	SKR2200013290	*VEDI SKRC535000860 *	1
25	SKR2200013512	*VEDI SKRV205000480 *	1	FILETTO LUNGO 20MM
25	ECRV205001070	BULLONE FILETTO LUNGO 30MM.	1	FILETTO LUNGO 30MM
26	SKR2200013530	*VEDI SKRV641000150 *	1
27	SKR7244116130	*VEDI SKRC551000140 *	1
28	ECR0150006051	*VEDI ECR90050000006 *	1	M6
29	ECR0161306100	*VEDI ECR90063000006 *	1	6MM

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6501164010	*VEDI SKR6090498310 *	1
2	SKR6290164112	*VEDI SKR6290164113 *	1
3	SKR6501164120	*VEDI ECRC405000400 *	1
4	SKR1102205350	*VEDI ECRV203000600 *	4	M5*35 SPW
5	SKR2242016120	*VEDI SKRV263000130 *	4

Rif.	Articolo	Descrizione	Q.tà	Nota

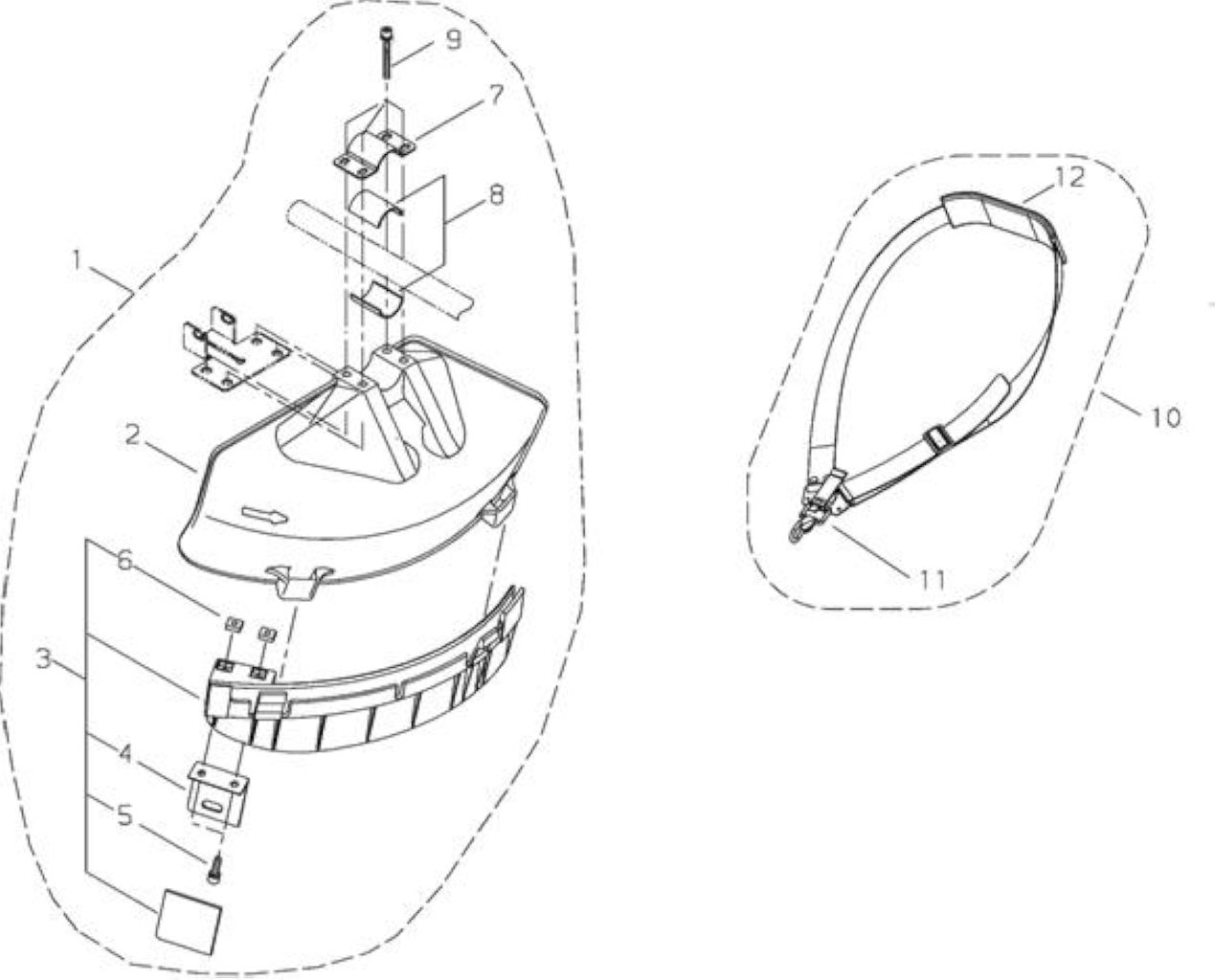

1	SKR6400066311	*VEDI SKRP021028900 *	1
2	SKR6290366111	*VEDI SKRC550000430 *	1
3	SKR6290366332	*VEDI SKRP021028450 *	1
4	SKR7248016121	*VEDI SKRC554000040 *	1
5	SKR1102005160	BULLONE	2	M5X16
6	SKR2242016120	*VEDI SKRV263000130 *	2
7	SKR7248016210	*VEDI SKRC551000060 *	1
8	SKR7244116220	*VEDI ECRV363000160 *	2
9	SKR1102205450	BULLONE	4	M5X45
10	SKR2242117202	*VEDI SKRC062000390 *	1
11	ECR2242117130	*VEDI ECRC649000200 *	1
12	SKR2200717220	PROTEZIONE CINGHIA	1
