Cilindro Marmitta Carter motore

Informazioni tecniche
CILINDRATA	28,9
POTENZA	1,0 (1,36)
SERBATOIO MIX	750
DIMENSIONE	1.800 X 375 X 330
PESO	6

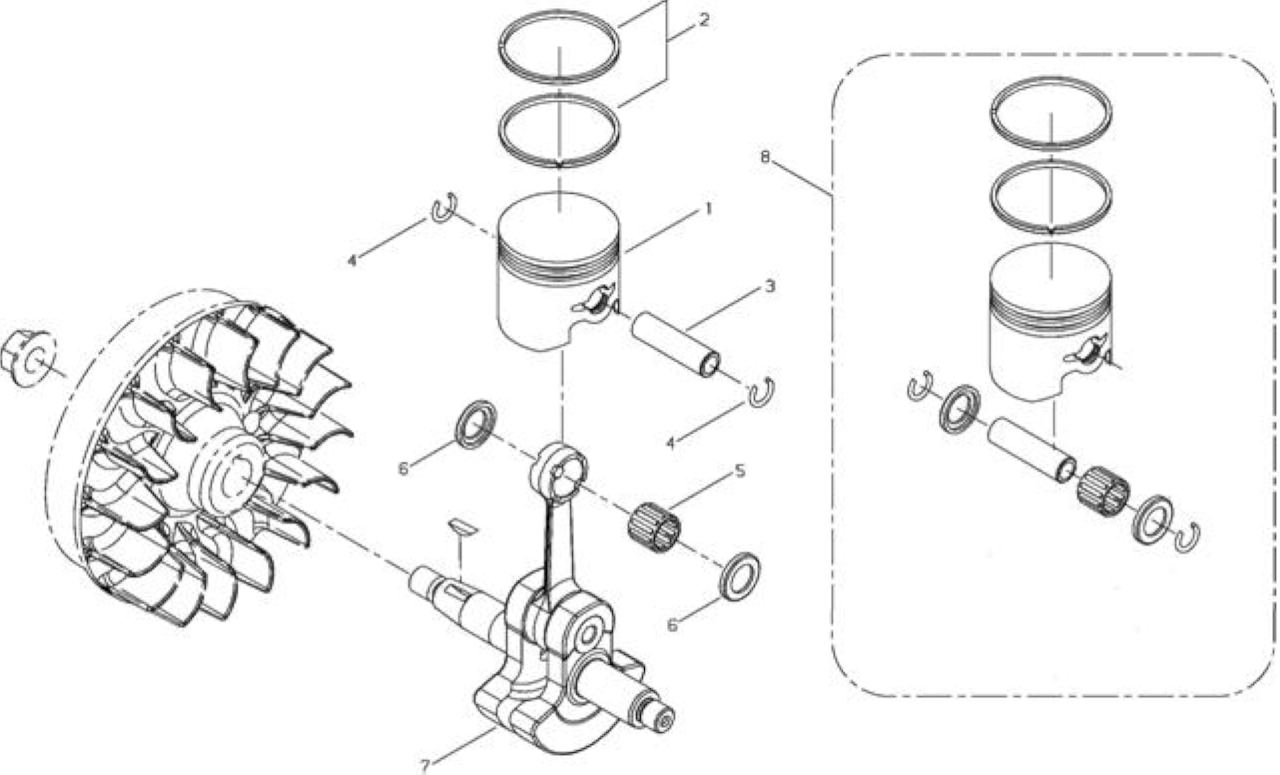

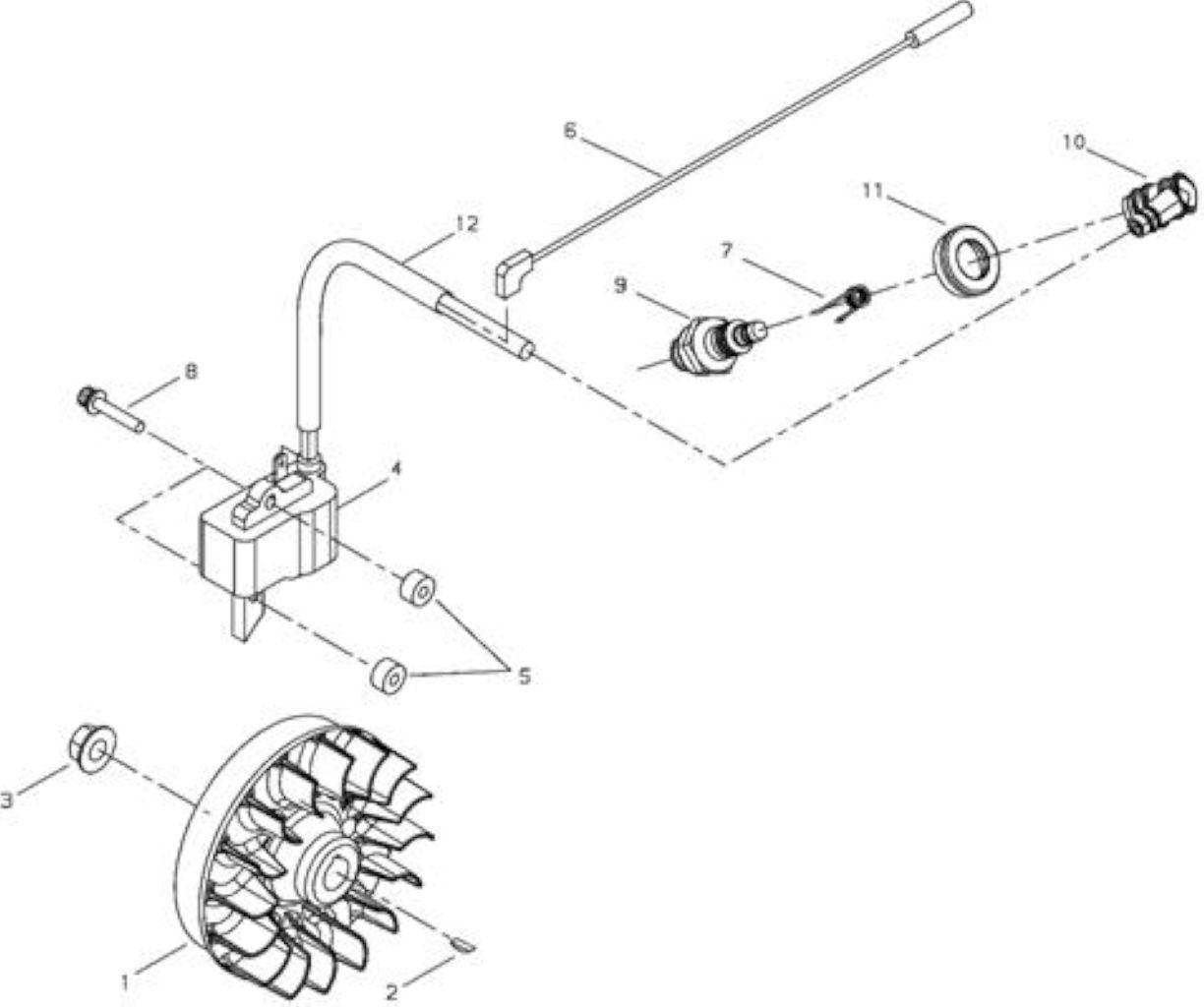

Pistone, Bobina, Volano

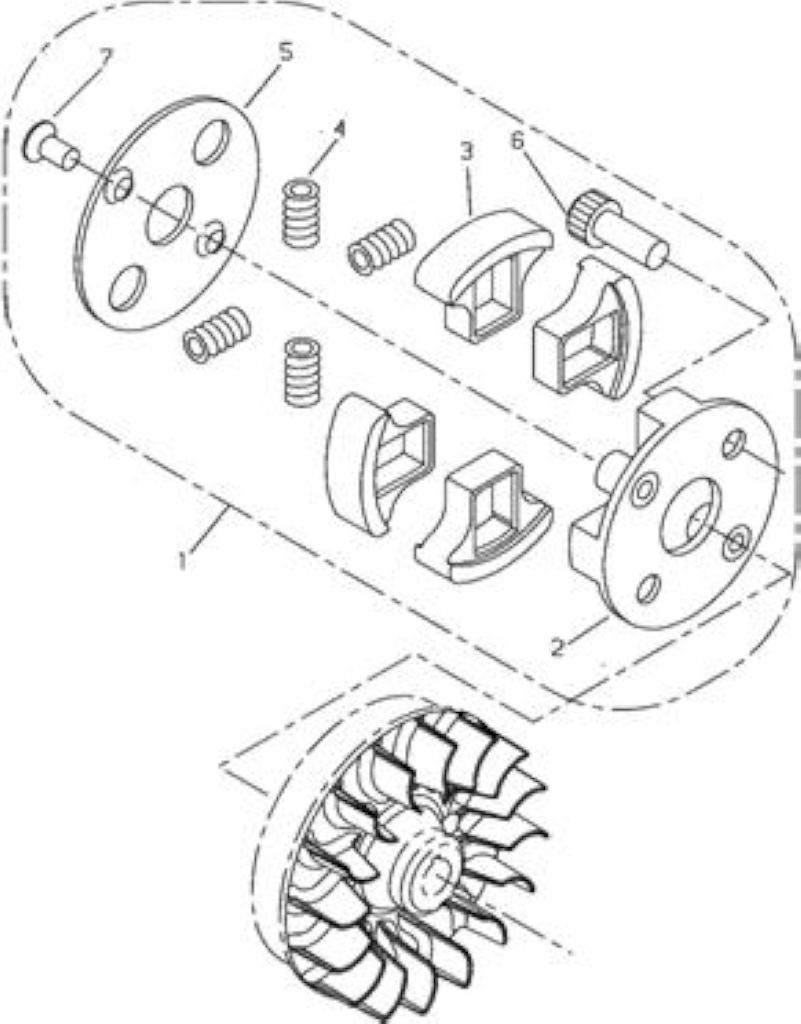

Frizione Bobina

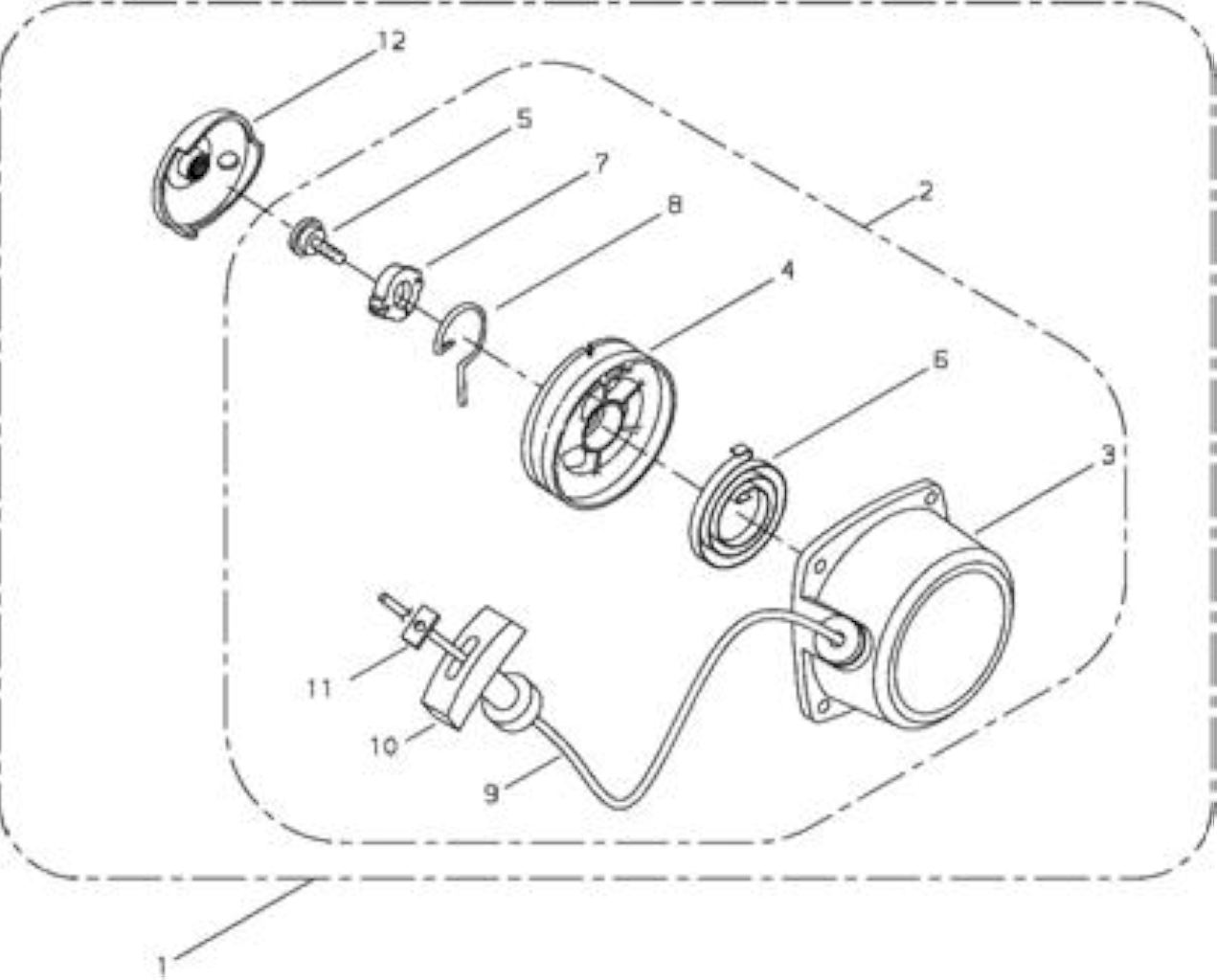

Avviamento 1° tipo

Avviamento 2° tipo Carburatore

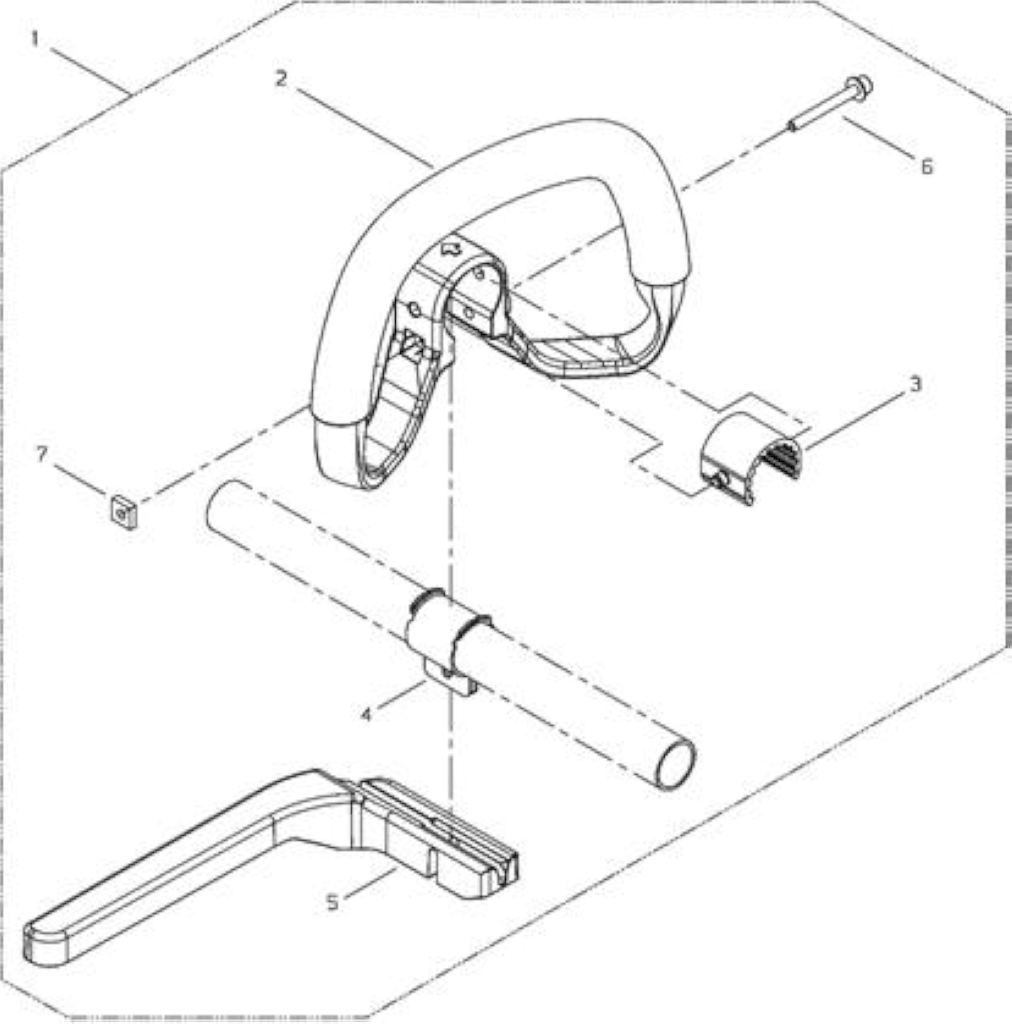

Filtro aria Serbatoio Asta Impugnatura

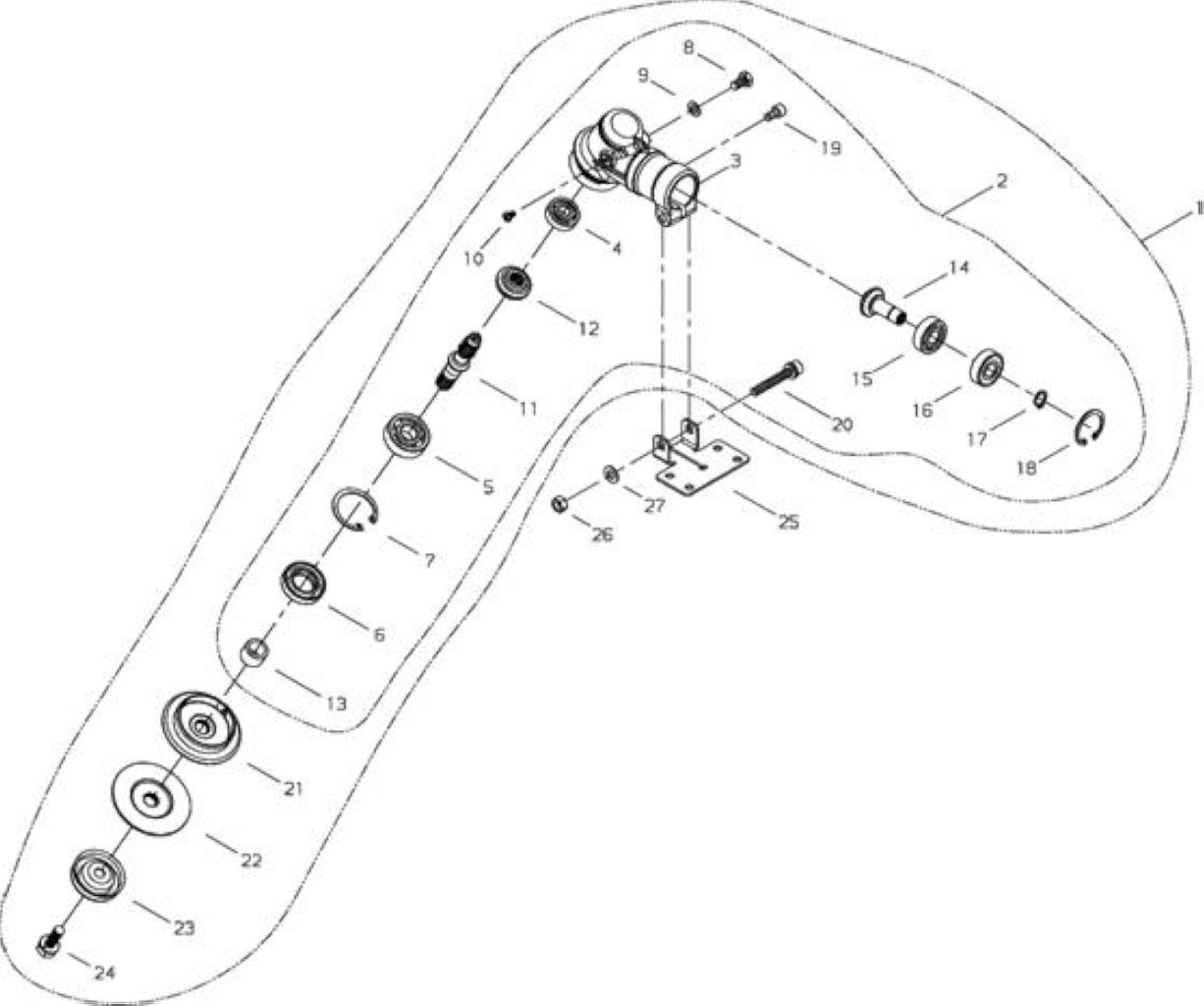

Impugnatura acceleratore Coppia conica

Parasassi Cinghiaggio

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6212812010	*VEDI SKRA130001280 *	1
2	SKR6212812120	*VEDI SKRV100000440 *	1
3	SKR0102005160		4
4	SKR6212812211	*VEDI SKRA200000620 *	1
5	SKR6210012220	*VEDI SKRV103000660 *	1
6	SKR1102205300		2

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6212815010	*VEDI SKRA030000210 *	1
2	SKR6212815400		1
3	SKR6210015392	*VEDI SKRA313001230 *	1
4	SKR6210015370		1
5	SKR6212815410	*VEDI SKRV104001270 *	1
6	SKR0121104080		5
7	SKR6212815211	*VEDI SKRV104001280 *	1
8	SKR0102005555		2
9	SKR0161005085		2
10	SKR0102005120		1

Rif.	Articolo	Descrizione	Q.tà	Nota
1	ECR6212821010	*VEDI ECRP021028130 *	1
2	SKR1290062010	*VEDI SKRV592000110 *	1
3	SKR1231012002	*VEDI SKRV505000090 *	1
4	ECR6212821020	*VEDI ECRP021028140 *	1
5	SKR1290062010	*VEDI SKRV592000110 *	1
6	SKR1231012002	*VEDI SKRV505000090 *	1
7	SKR1249240080	*VEDI ECRV622000040 *	4
8	SKR0102005250		3
9	SKR6212831010	*VEDI ECRP021036850 *	1
10	SKR6212831110		1
11	SKR0203606001		2
12	SKR0243228120		1
13	SKR6212831211	*VEDI SKRA556000790 *	1
14	SKR2000031140	*VEDI SKRV583000170 *	1
15	SKR1102205200	*VEDI ECRV203000351 *	2
16	SKR6212832110	*VEDI SKRA160001550 *	1
17	SKR6212832310	*VEDI ECRA320000690 *	1
18	SKR1106005203		4
19	SKR2002431411		1
20	SKR2002431421	*VEDI ECRV423000040 *	1
21	SKR2002431431	*VEDI ECRV423000050 *	1
22	ECR6212833140	*VEDI ECRA575000490 *	1
23	SKR1102205160	*VEDI SKRV203000590 *	4
24	SKR1102206280	BULLONE	1
25	SKR6212991330		1

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6212841110	*VEDI SKRA100000640 *	1
2	SKR6212841120	*VEDI SKRA101000340 *	2
3	SKR2002441311	*VEDI SKRV607000020 *	1
4	SKR2000041320	*VEDI SKRV580000090 *	2
5	SKR6290141230	*VEDI SKRV554000010 *	1
6	SKR3701941240	*VEDI SKRV392000020 *	2
7	SKR6212842010	*VEDI SKRA011000800 *	1
8	ECRA010000030	*VEDI ECRP021045970 *	1

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR7021051100	*VEDI SKRA056000450 *	1
2	SKR2002051112	*VEDI SKRA552000120 *	1
3	SKR2002051121	*VEDI SKRA555000130 *	4
4	SKR2002051131	*VEDI SKRA566000150 *	4
5	SKR2002051140	PIASTRA FRIZIONE T.V. X C35	1
6	SKR2002051150	*VEDI ECRA557000120 *	2
7	SKR7021051160		2

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6212871110	*VEDI SKRA409000610 *	1
2	SKR0240303100		1
3	SKR2003571220	*VEDI ECRV265000140 *	1
4	SKR6212871210	*VEDI SKRA411000740 *	1
5	SKR7003071620	*VEDI SKRV322000040 *	1
6	SKR1435202100		1
7	SKR2000072230	*VEDI SKRA426000050 *	1
8	SKR1106004204		2
9	SKR1300013506		1
10	SKR2216072220	*VEDI SKRA427000060 *	1
11	SKR2216072260	*VEDI ECRA429000090 *	1
12	SKR6210071310		1

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6212975010	*VEDI SKRA051001690 *	1
2	SKR6212975110	*VEDI SKRA500001290 *	1
3	SKR6212975120	*VEDI SKRA506000240 *	1
4	SKR6212975310	*VEDI SKRC533000080 *	1
5	SKR6212975320	*VEDI SKRV450000910 *	1
6	SKR2002475130	*VEDI SKRA504000060 *	1
7	SKR3701375310	*VEDI ECRV253000310 *	1
8	SKR6212975140		1
9	SKR2001075190	*VEDI ECR17722827030 *	1
10	SKR2001075210	FERMO IMPUGNATURA AVV.TO	1
11	SKR6212975020	*VEDI SKRA052000360 *	1
12	SKR6212991320		1

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6014498310		1
2	SKR6212875010		1
3	SKR6212875110		1
4	SKR6290775120	*VEDI SKRA506000140 *	1
5	SKR3701375310	*VEDI ECRV253000310 *	1
6	SKR7003075130	*VEDI SKRA504000100 *	1
7	SKR3701375320	*VEDI SKRV353000310 *	1
8	SKR3701375330	*VEDI SKRC810000120 *	1
9	SKR6212875140		1
10	SKR2001075190	*VEDI ECR17722827030 *	1
11	SKR2001075210	FERMO IMPUGNATURA AVV.TO	1
12	SKR3701375210	*VEDI SKRA052000300 *	1

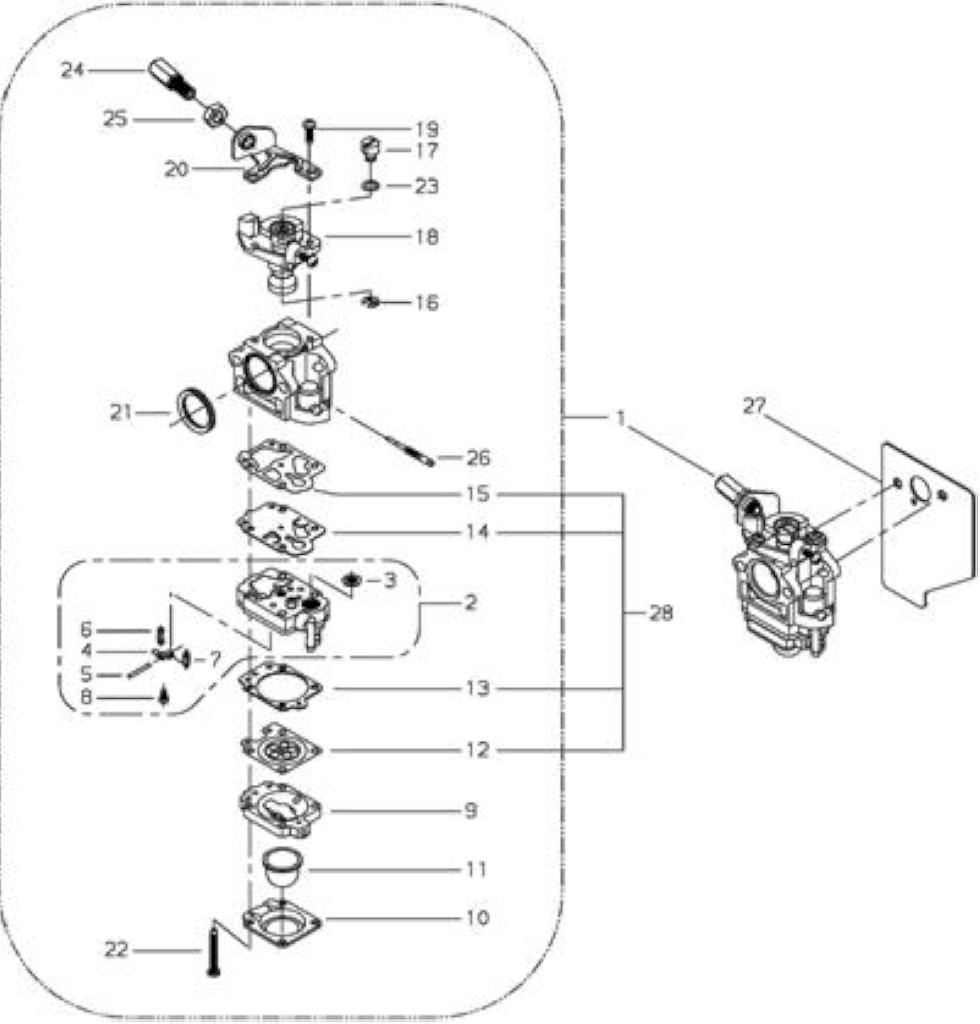

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6212881010	*VEDI SKRA021002350 *	1
2	SKR2001681410	*VEDI ECRP003000440 *	1
3	SKR7003081380	*VEDI ECR12312610631 *	1
4	SKR2210081230	BILANCIERE	1
5	SKR2210081250	*VEDI ECR12313803930 *	1
6	SKR2001681270	*VEDI ECRP003000450 *	1
7	SKR2003681440	*VEDI ECR12313719830 *	1
8	SKR2001681450	VITE	1
9	SKR2001681420	*VEDI ECR12318005560 *	1
10	SKR2001681510	*VEDI ECR12314205560 *	1
11	SKR2003681670	*VEDI ECR12318140630 *	1
12	SKR3714581320	*VEDI ECRP003001850 *	1
13	SKR2001681280	*VEDI ECR12314005560 *	1
14	SKR7009781320	*VEDI ECR12311240630 *	1
15	SKR7009781310	*VEDI ECR12312540630 *	1
16	SKR2003681195	ANELLO	1
17	SKR7293381450	NOTTOLINO	1
18	SKR6212881310		1
19	SKR7009781290	VITE CARBURATORE	2
20	SKR2008981130	SUPPORTO	1
21	SKR7293381250	ANELLO	1
22	SKR2001681140		4
23	SKR2008981185	RONDELLA	1
24	SKR2012381120		1
25	SKR2003681120	DADO	1
26	SKR6210081320	SPILLO	1
27	SKR6212881210	*VEDI SKRV103000920 *	1
28	SKR6014198400		1

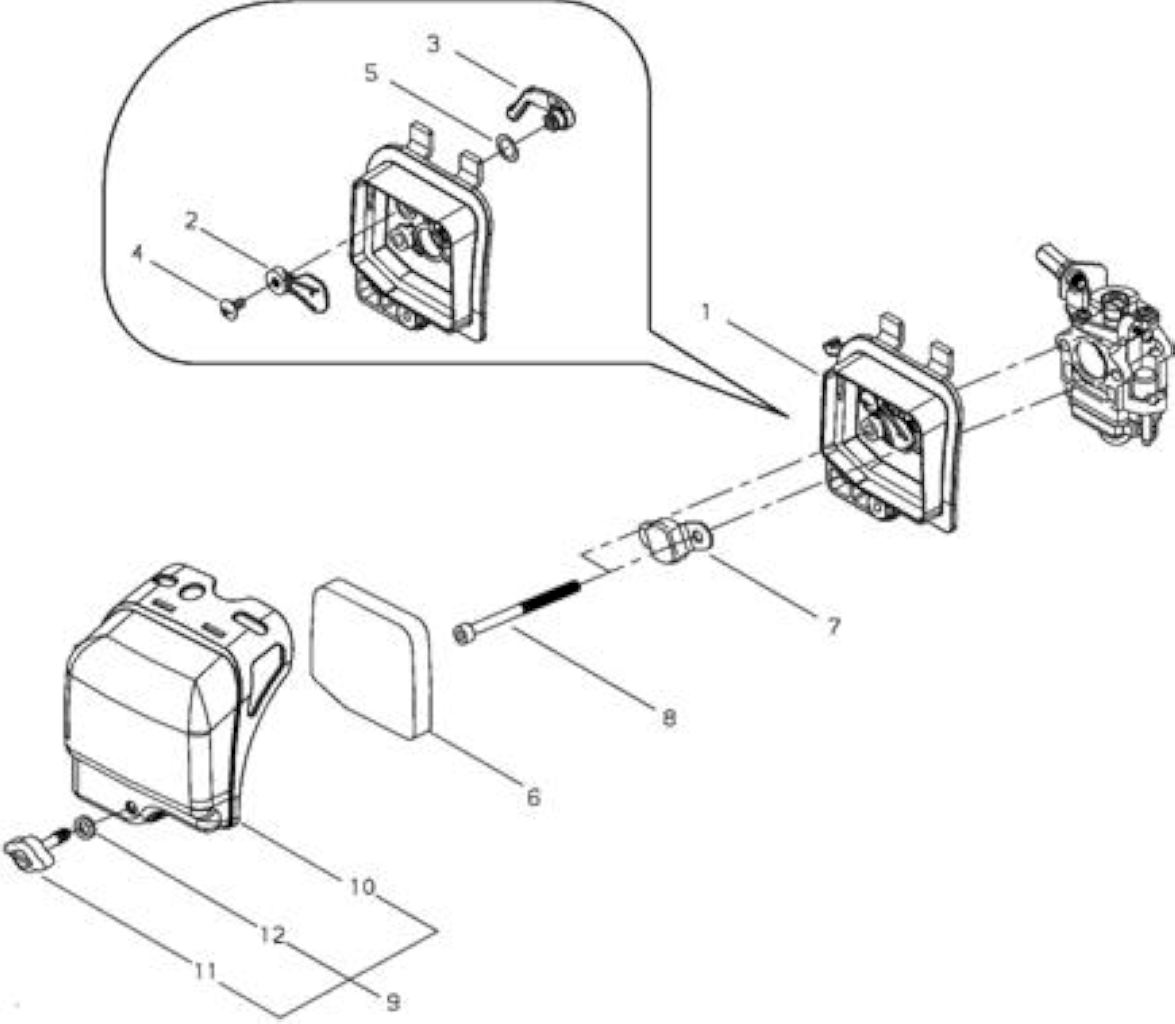

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6210082014	*VEDI SKRA023000020 *	1
2	SKR6210082330		1
3	SKR6210082320		1
4	SKR0127504122		1
5	SKR3811082340		1
6	SKR6210082120	*VEDI SKRA226000570 *	1
7	SKR6210082310	* VEDI ECRA244000120 *	1
8	SKR0102005605		2
9	SKR6210082031	*VEDI SKRA232000640 *	1
10	SKR6210082130		1
11	SKR3703382320	POMELLO	1
12	SKR2362721220	*VEDI SKRV323000080 *	1

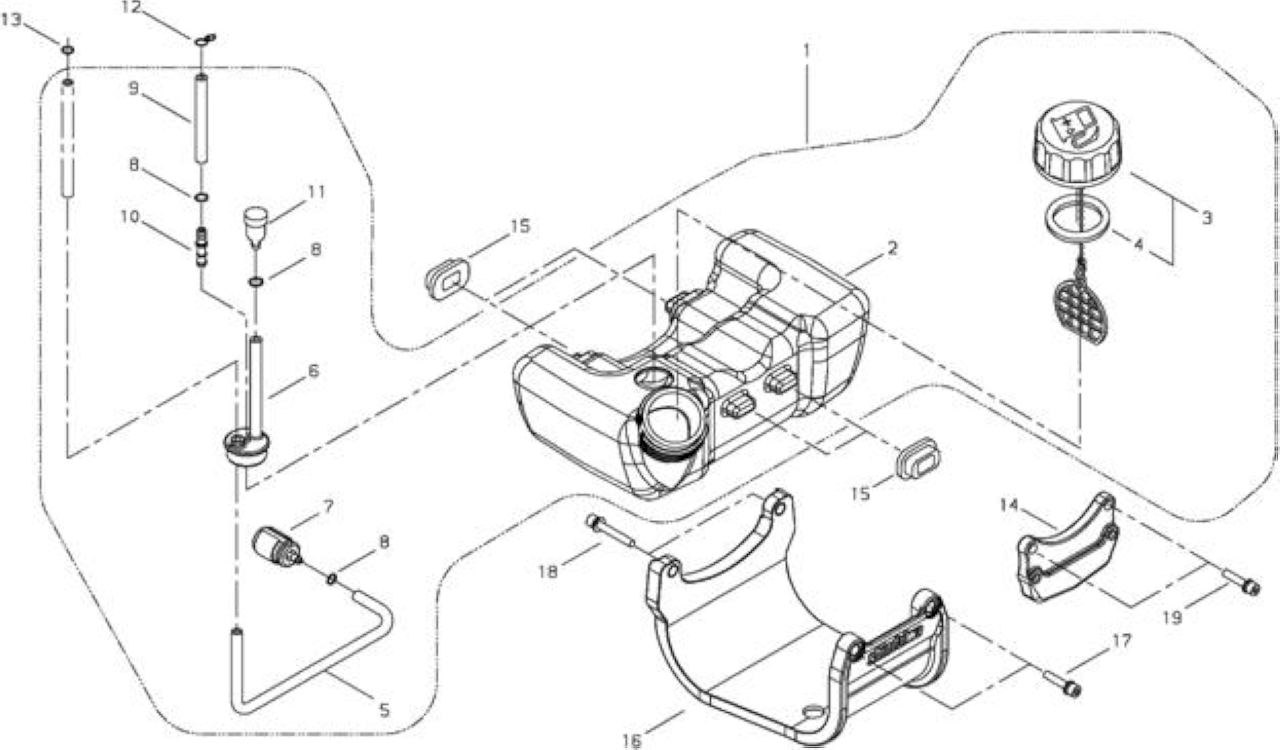

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6212885010	* VEDI SKRA038000520 *	1
2	SKR6212885110	* VEDI SKRA350001890 *	1
3	SKR6820485020	*VEDI SKRA033000020 *	1
4	SKR2000085221	*VEDI SKRV107000010 *	1
5	SKR6203585310	*VEDI SKRV471002480 *	1
6	SKR7293385350	*VEDI SKRV470000890 *	1
7	SKR2211585401	*VEDI SKRA369000040 *	1
8	SKR2002085540	*VEDI SKRV490000500 *	3
9	SKR7017083311	*VEDI ECRV471002580 *	1
10	SKR7293385620	*VEDI SKRV186000210 *	1
11	SKR2003585522	*VEDI SKRA356000040 *	1
12	SKR3701385310		1
13	SKR2002085540	*VEDI SKRV490000500 *	1
14	SKR6212885210	*VEDI SKRA393000170 *	1
15	SKR6290185220	*VEDI SKRV420002220 *	4
16	SKR6212885310	*VEDI SKRA175000170 *	1
17	SKR1102205200	*VEDI ECRV203000351 *	2
18	SKR1102405400		2
19	SKR1106005203		2

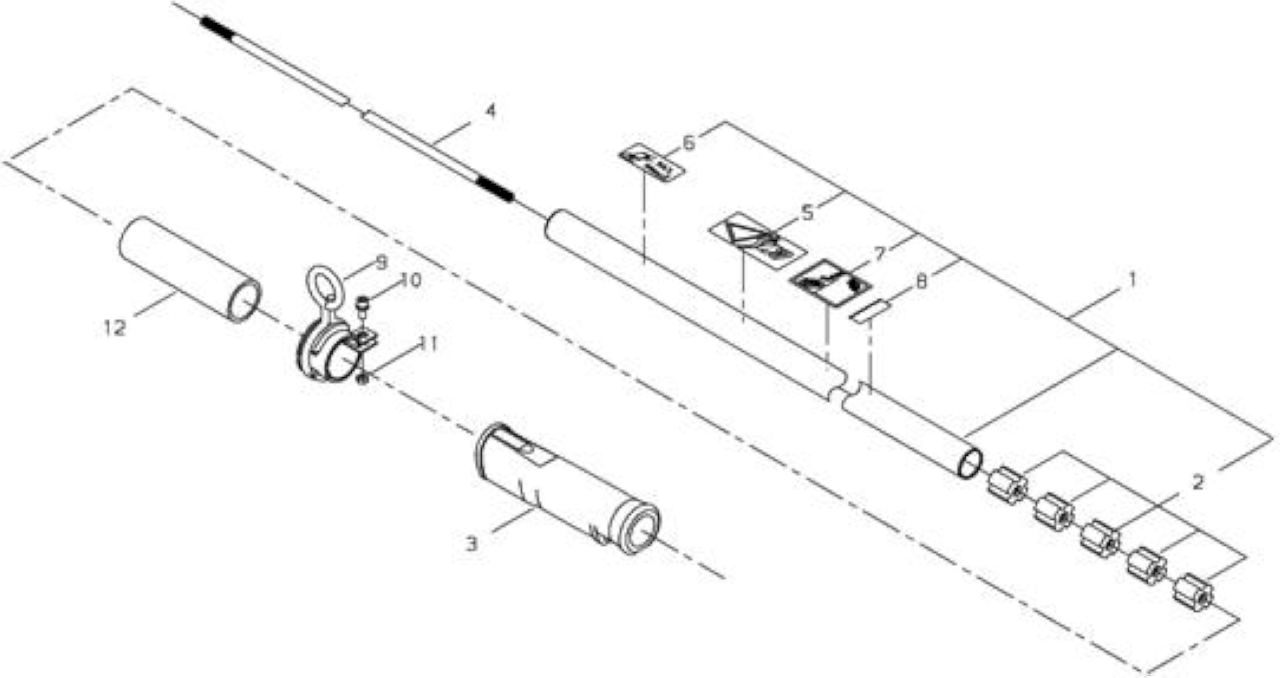

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKRP021036860	TUBO TRASMISSIONE	1
2	SKR6304962120	AMMORTIZZATORE	5
3	SKR6304362140	*VEDI SKRC412000380 *	1
4	SKR7247512400	*VEDI SKRC504000650 *	1
5	ECRX505002910	ETICHETTA	1
6	ECRX505002900	ETICHETTA CAUTION	1
7	ECRX508000250	LABEL DECIBEL	1
8	ECRX524002380	*VEDI ECR89015204930 *	1
9	SKR2200912210	*VEDI ECRC063000010 *	1
10	SKR1102205120	BULLONE	1
11	SKR150005041	DADO M5	1
12	ECRV364000050	PROTECTOR	1

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6014298330	*VEDI SKRP021027360 *	1
2	SKR6412064110		1
3	SKR6412064330	*VEDI SKRV420002370 *	1
4	SKR6412064340		1
5	SKR6412164310		1
6	SKR1102405450		1
7	SKR2242016120	*VEDI SKRV263000130 *	1

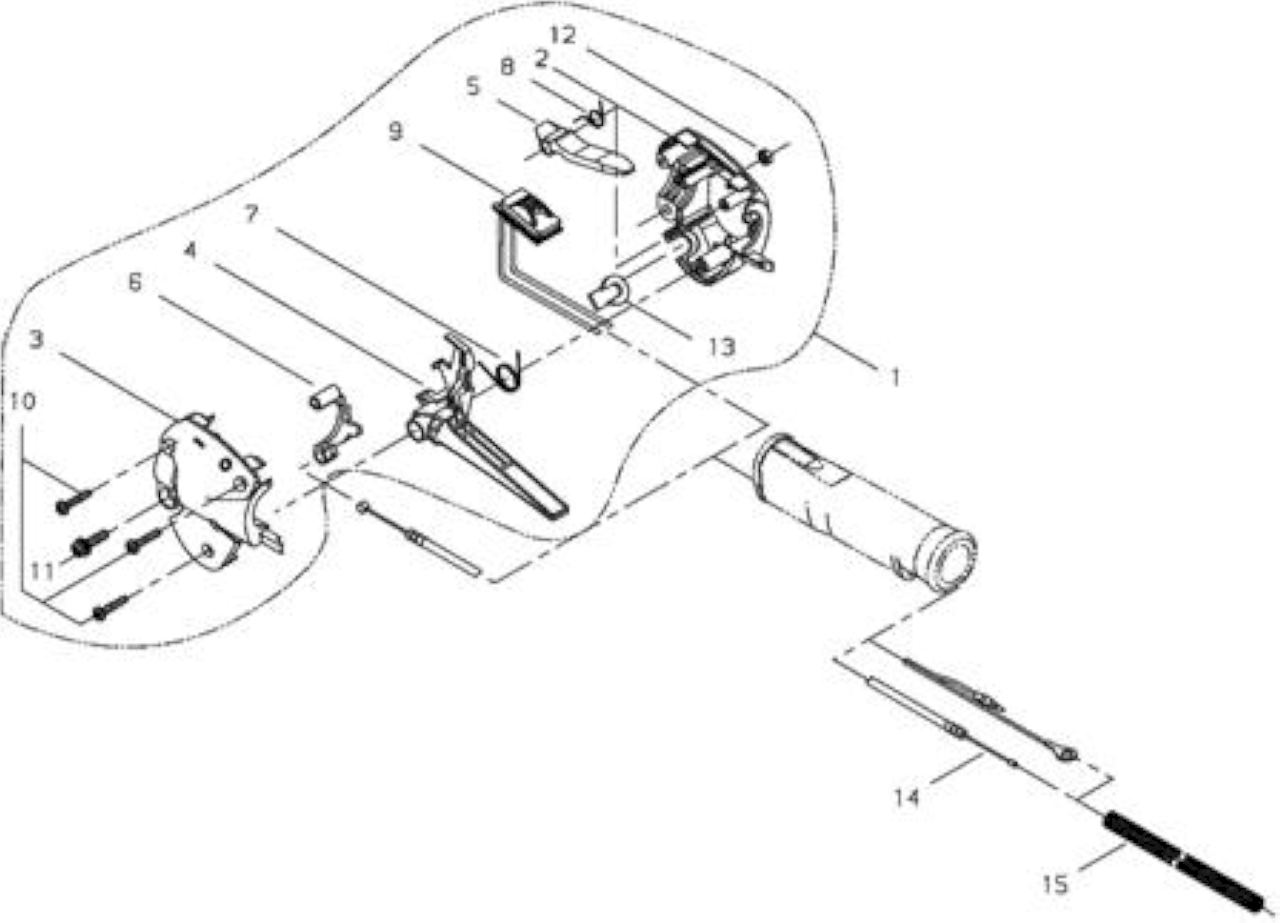

Rif. Articolo Descrizione Q.tà Nota

2 SKR6304362310 CORPO IMPUGNATURA ACCEL.DX1

3	SKR6300062350	*VEDI SKRC401000190 *	1
4	SKR6300262340	*VEDI SKRC450000480 *	1
5	SKR6390162352	*VEDI SKRC460000190 *	1
6	SKR6300262350	*VEDI SKRC461000020 *	1
7	SKR6388065350	*VEDI ECRV452000700 *	1
8	SKR6390162370	*VEDI SKRV452000500 *	1
9	SKR6307662311	INTERRUTTORE	1
10	SKR6388065360		3
11	SKR1120605201		1
12	SKR0150105030		1
13	SKR6388065411		1
14	SKR3701598010	*VEDI SKRV043000690 *	1
15	SKR6390162440		1

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6014298320	*VEDI SKRP021027350 *	1
2	SKR6014198320	*VEDI SKRP021027300 *	1
3	SKR6309163110	*VEDI SKRC531000590 *	1
4	SKR1290006092		1	609
5	SKR1290062015		1	6201
6	SKR2202413121	*VEDI SKRV510000000 *	1
7	SKR0243232120		1	32MM
8	SKR0101406100		1	M6X10
9	SKR0161006080		1	6MM
10	SKR1120304060	VITE	1	M4X6
11	SKR6309163130	*VEDI SKRC534000580 *	1
12	SKR6309163140	*VEDI SKRV651000480 *	1
13	SKR2200013230	*VEDI SKRV356000500 *	1
14	SKR6309163150	*VEDI SKRV651000490 *	1	F8
15	SKR1290060003		1
16	SKR1290060005		1
17	SKR0243010100		1	10MM
18	SKR0243226120		1	26MM
19	SKR0102005100		1	M5X10
20	SKR1102206400		1	M6X40
21	SKR6309163160	*VEDI SKRC535000710 *	1
22	SKR6309163170	*VEDI SKRC535000720 *	1
23	SKR6309263310		1
24	SKR1103108220		1	M8X22
25	SKR6307663310	*VEDI SKRC551000050 *	1
26	SKR0150006051		1	M6
27	SKR0161306100		1	6MM

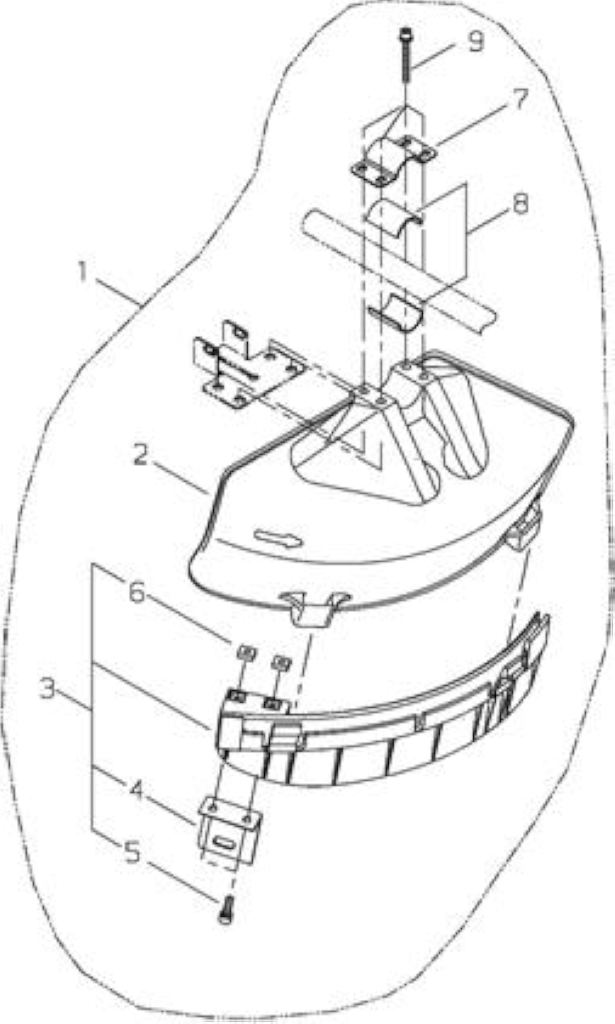

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6400066311	*VEDI SKRP021028900 *	1
2	SKR6290366111	*VEDI SKRC550000430 *	1
3	SKR6290366332	*VEDI SKRP021028450 *	1
4	SKR7248016121	*VEDI SKRC554000040 *	1
5	SKR1102005160	BULLONE	2
6	SKR2242016120	*VEDI SKRV263000130 *	2
7	SKR7248016210	*VEDI SKRC551000060 *	1
8	SKR7244116220	*VEDI ECRV363000160 *	2
9	SKR1102205450	BULLONE	4

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR7200717202	*VEDI SKRC062000330 *	1
2	SKR2200717220	PROTEZIONE CINGHIA	1
3	SKR2201117261	AMMORTIZZATORE	1
4	SKR2200017130	GANCIO	1
