Cilindro, Marmitta Basamento motore, Carter

Pistone, Albero motore, Frizione Bobina

Avviamento Carburatore, Filtro aria Serbatoio

Asta, Comandi Coppia conica Impugnatura Pasa sassi

Carburatore(tipo vecchio), Filtro aria

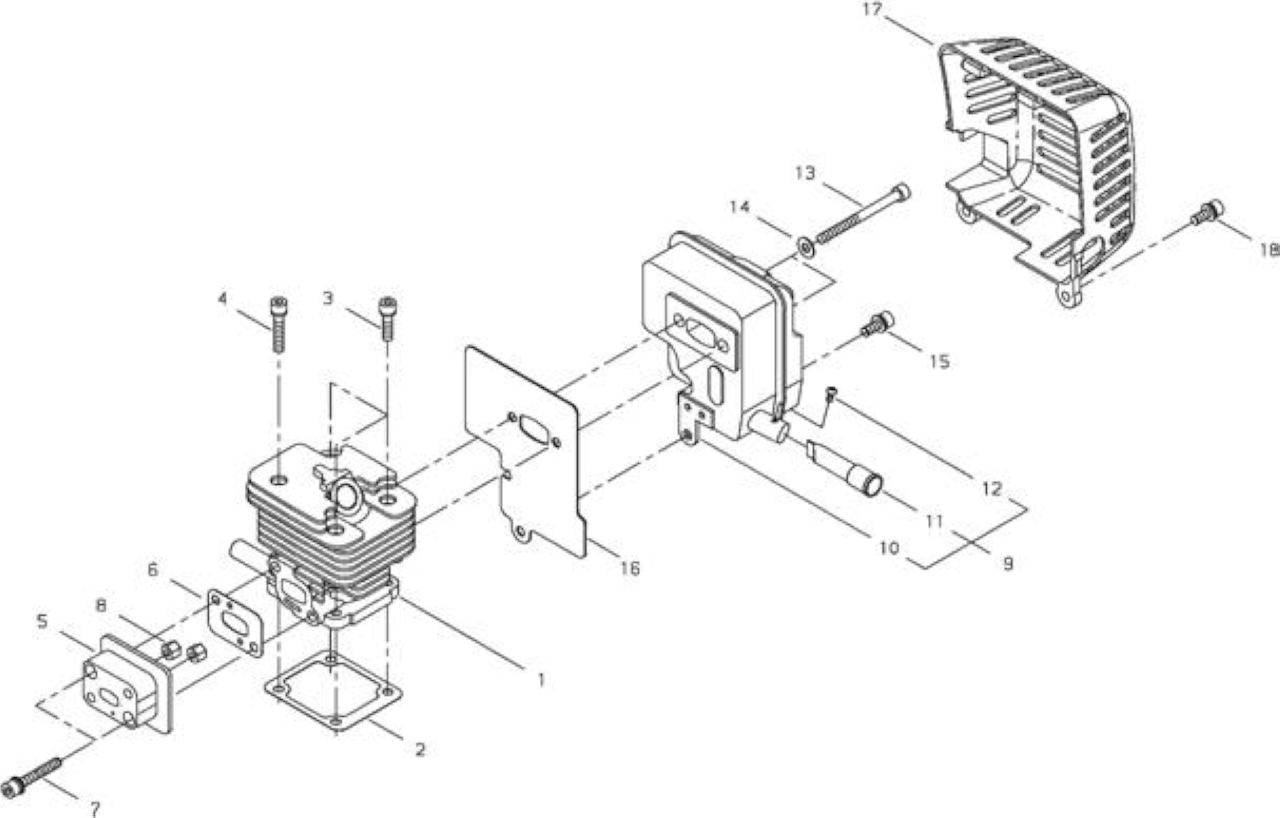

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR2002412110	*VEDI SKRA130001230 *	1
2	SKR6207412120	*VEDI SKRV100000410 *	1
3	SKR1102005160	BULLONE	3
4	ECR1102005300	BOLT SW	1
5	SKR7024412210	*VEDI SKRA200000590 *	1
6	SKR2002412221	*VEDI SKRV103000840 *	1
7	SKR1102205200	*VEDI ECRV203000351 *	2	M5*20(SW,PW)
8	ECR2002412260	*VEDI ECRV263000180 *	2
9	SKR7010315100	*VEDI ECRA030000190 *	1
10	ECR7010315110	MUFFLER	1
11	SKR7010315150	*VEDI SKRA310000260 *	1
12	ECR0127003062	*VEDI ECR9137403006 *	1	MFZN3-C M3*6
13	ECR0102005550	*VEDI ECR90010505055 *	2	M5*55
14	ECR0161005080	*VEDI ECR90060000005 *	2	5MM T:0.8 MFZN3-C
15	SKR1102205120	BULLONE	1	M5*12
16	SKR2002415210	*VEDI SKRV104001200 *	1
17	SKR7010215180	*VEDI SKRA320000650 *	1
18	SKR1102205160	*VEDI SKRV203000590 *	2	M5*16

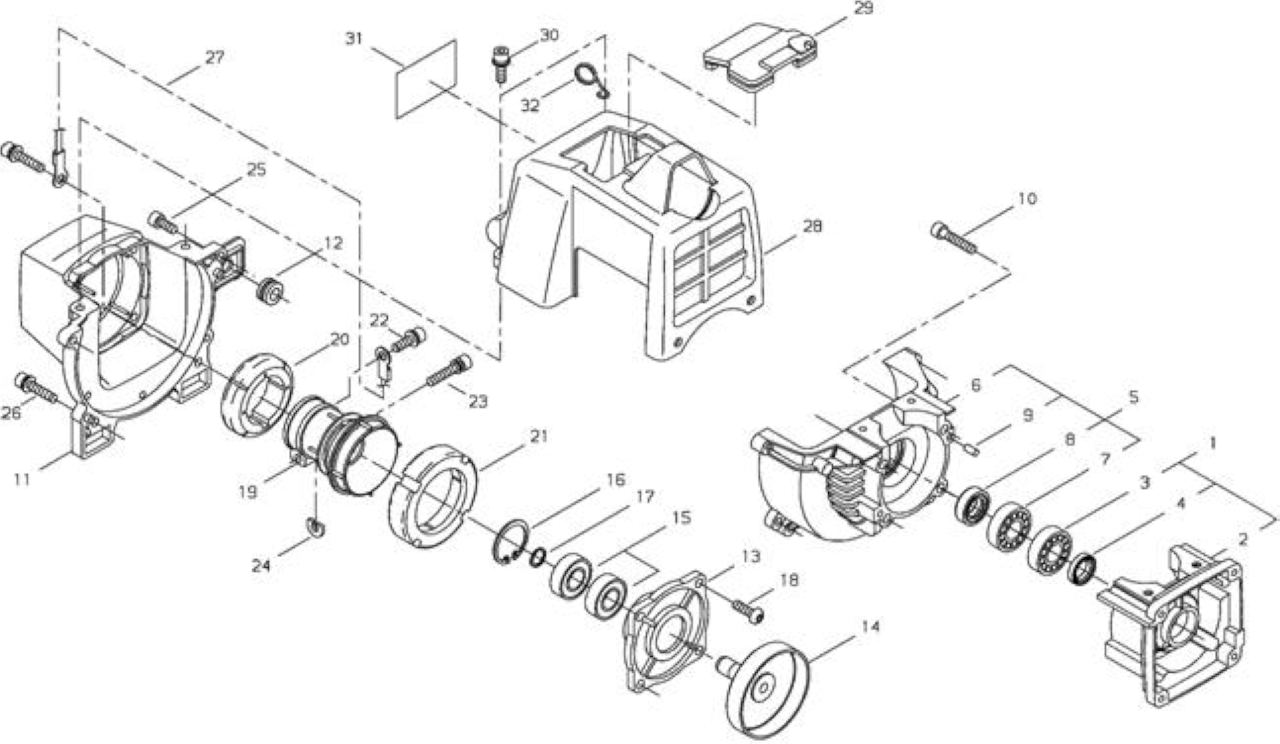

Rif.	Articolo	Descrizione	Q.tà	Nota
1	ECR6207321010	CRANK CASE S COMP	1
2	SKR2002421110	*VEDI ECRA120000250 *	1
3	SKR1290062010	*VEDI SKRV592000110 *	1
4	SKR2000021211	*VEDI SKRV505000080 *	1
5	ECR6207321020	*VEDI ECRP021027920 *	1
6	SKR2002421120	*VEDI ECRA120000260 *	1
7	SKR1290062010	*VEDI SKRV592000110 *	1
8	SKR2000021211	*VEDI SKRV505000080 *	1
9	ECR1249250100	*VEDI ECRV623000060 *	2	5*10
10	SKR102005250	*VEDI ECR90010505025 *	4	M5*25
11	SKR7010231110	*VEDI ECRA172001140 *	1
12	SKR7010531520	GOMMINO	1
13	SKR2002431130	*VEDI ECRA570000190 *	1
14	SKR7257598021	*VEDI SKRA556000760 *	1
15	SKR203606001	*VEDI SKR9400236001 *	2	6001DDU C3 S27
16	SKR243228120	ANELLO ELASTICO	1
17	SKR2000031140	*VEDI SKRV583000170 *	1
18	ECR1121005160	*VEDI ECR9114205016 *	4	M5*16
19	ECR2002431411	*VEDI ECRA575000270 *	1
20	SKR2002431421	*VEDI ECRV423000040 *	1
21	SKR2002431431	*VEDI ECRV423000050 *	1
22	SKR1102205160	*VEDI SKRV203000590 *	1	M5*16
23	SKR1102206280	BULLONE	1	M6*28 SPW
25	SKR1102005180	BULLONE	2	M5*18
26	ECR1102205300	*VEDI ECRV203000580 *	2
27	ECR7019231510	EARTH CORD	1
28	SKR7010231211	*VEDI SKRA160001490 *	1
29	SKR2002431231	*VEDI ECRA429000100 *	1
30	SKR1102205160	*VEDI SKRV203000590 *	2	M5*16
31	ECR6200091020	*VEDI ECRX504002220 *	1
32	SKR2002483152	*VEDI SKRC487000220 *	1

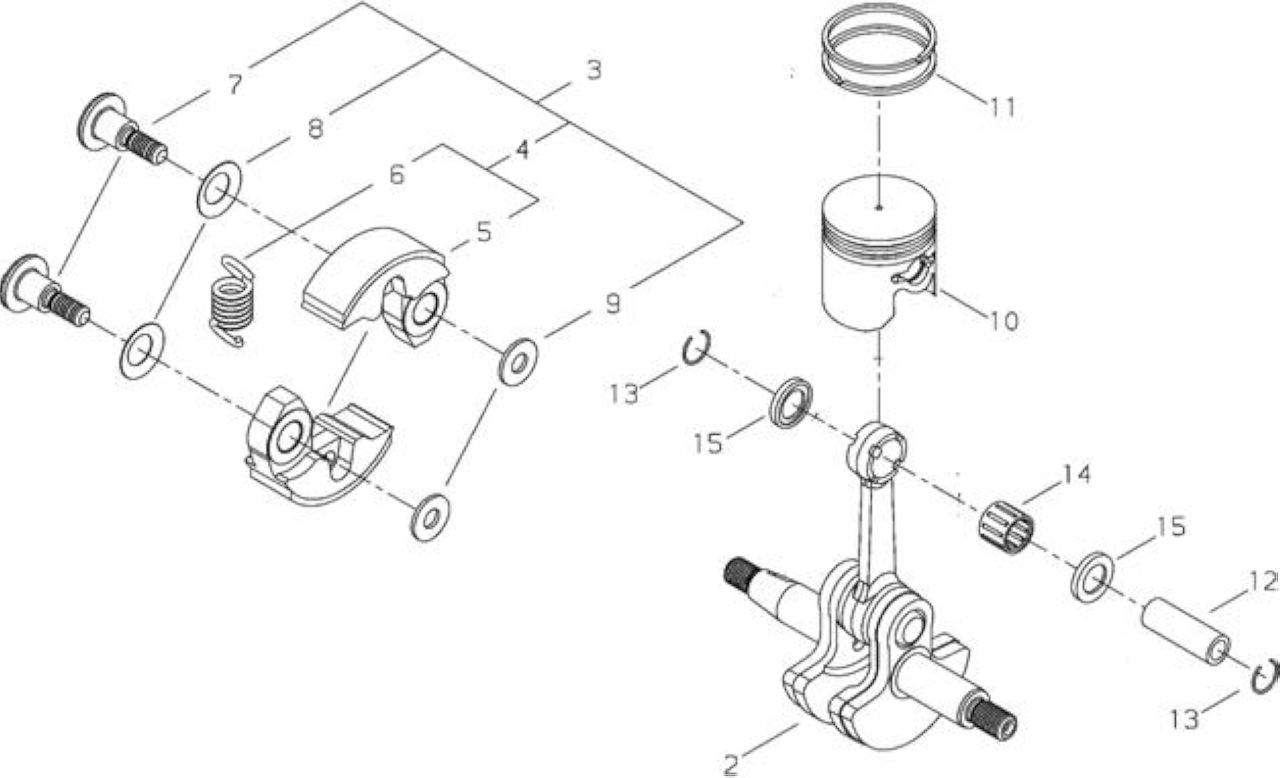

Rif.	Articolo	Descrizione	Q.tà Nota
2	SKR2002442001	ALBERO MOTORE	1
3	SKR7257598031	*VEDI SKRA056000410	* 1
4	ECR7257598040	*VEDI ECRA056000420	* 1
5	SKR7257598050	*VEDI SKRA553000120	* 2
6	SKR7257598060	*VEDI SKRA566000110	* 1
7	SKR7257598071	*VEDI ECRA557000080	* 2
8	SKR2008751231	*VEDI SKRV346000040	* 2
9	SKR2210071430	*VEDI SKRV304000150	* 2
10	SKR2002441110	*VEDI SKRA100000610	* 1
11	SKR2002441210	*VEDI SKRA101000330	* 2
12	SKR2002441311	*VEDI SKRV607000020	* 1
13	SKR2000041320	*VEDI SKRV580000090	* 2
14	SKR3701941230	*VEDI SKR6290141230	* 1
15	SKR3701941240	*VEDI SKRV392000020	* 2

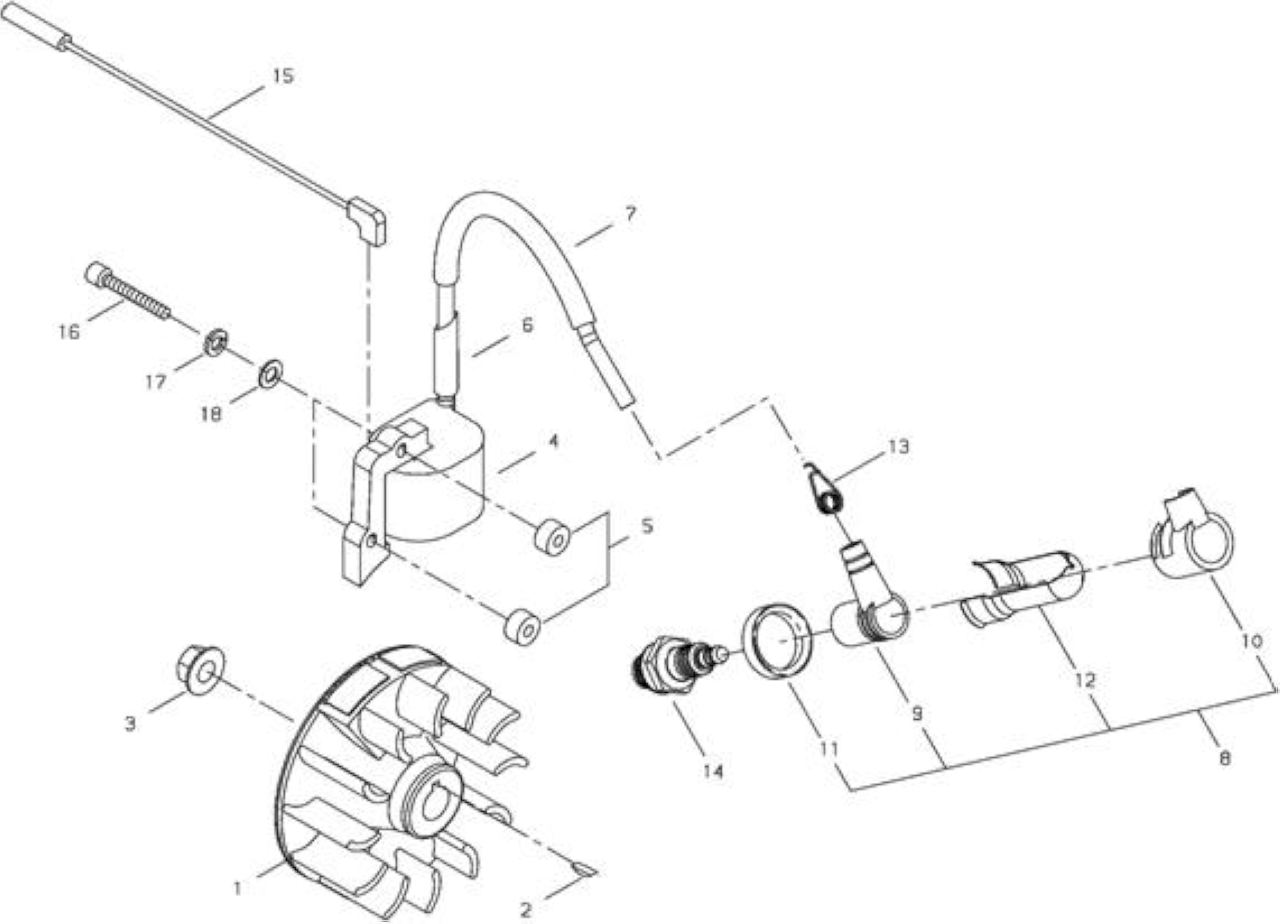

Rif.	Articolo	Descrizione Q.tà	Nota
1	SKR2002471201	*VEDI SKRA409000570 * 1
2	SKR240303100	*VEDI ECR9311503010 * 1	3*10
3	SKR2003571220	*VEDI ECRV265000140 * 1
4	SKR2002471610	*VEDI SKRA411000910 * 1
5	SKR7003071620	*VEDI SKRV322000040 * 2
6	ECR2002472112	*VEDI ECRV475004640 * 1
7	ECR7016871660	TUBE 1	L=50
8	SKR7022372200	*VEDI ECRA427000070 * 1
9	SKR2001072221	*VEDI SKRA427000090 * 1
10	SKR2000072241	*VEDI SKRA429000110 * 1
11	SKR2000072250	*VEDI SKRV495001440 * 1
12	SKR7018072260	*VEDI SKRV151000050 * 1
13	SKR2000072230	*VEDI SKRA426000050 * 1
15	ECR7010274130	*VEDI ECRV485001510 * 1
16	ECR0102004300	*VEDI ECR90010504030 * 2
17	ECR0160004101	*VEDI ECR90060500004 * 2	4MM MFZN3-C
18	ECR0161304080	*VEDI ECR90060300004 * 2	4MM MFZN3-C

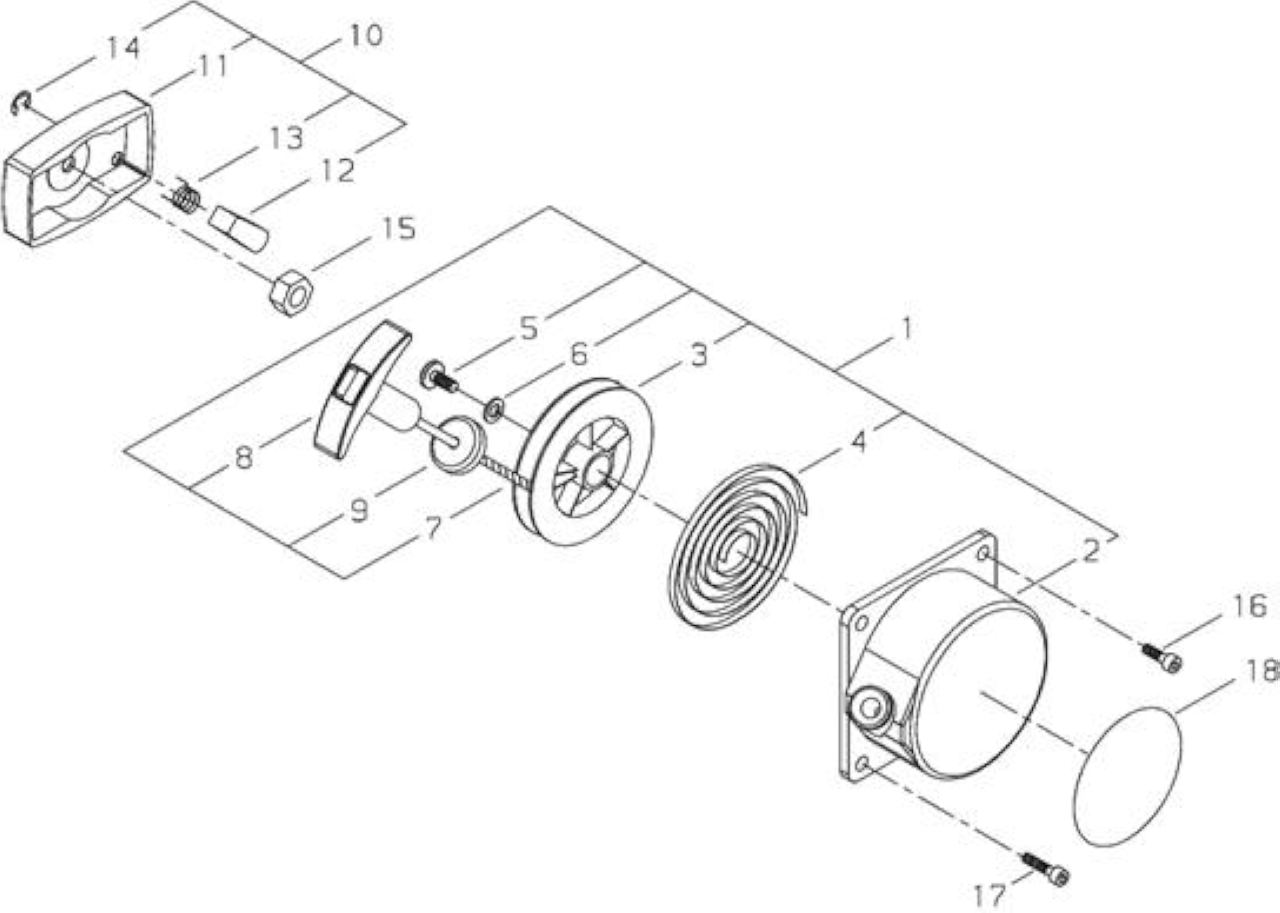

Rif.	Articolo	Descrizione	Q.tà	Nota
1	ECR7010275901	*VEDI ECRA051001670 *	1
2	SKR7010275111	CARTER AVVIAMENTO	1
3	SKR2002475120	*VEDI SKRA506000230 *	1
4	SKR2002475130	*VEDI SKRA504000060 *	1
5	SKR2003575170	VITE	1
6	SKR2002475140	RONDELLA	1
8	SKR2002475190	*VEDI ECR17722844330 *	1
9	SKR2002475180	GOMMINO	1
10	SKR2002475200	*VEDI SKRA052000350 *	1
11	SKR2002475210	*VEDI SKRA520000130 *	1
12	SKR2002475220	*VEDI SKRA514000080 *	1
13	SKR2002475230	*VEDI SKRV452000520 *	1
14	SKR2002475240	*VEDI SKRV583000140 *	1
15	SKR2003543230	DADO	1
16	ECR1102405160	*VEDI ECRV203000740 *	2	M5*16 (SW,PW)
17	SKR1102205250	BULLONE	2	M5*25 (SW,PW)
18	ECR7000575240	*VEDI ECRX504001930 *	1

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7017081020	*VEDI SKRA021002360 *	1
2	SKR7292081120	*VEDI SKR12411346630 *	1
3	SKR2001181140	*VEDI ECRP004000440 *	1
4	SKR2000081150	*VEDI ECR12411505530 *	1
5	SKR2000081310	*VEDI ECR12415905530 *	1
6	SKR7292081820	MOLLA	1
7	SKR2008781480	MOLLA	1
8	SKR2001981450	*VEDI ECR12432121330 *	1
9	SKR2001181460	*VEDI ECR12433221330 *	1
10	SKR2000081441	*VEDI SKRP004000930 *	1
11	SKR2001181470	VITE	1
12	SKR2008781420	*VEDI SKRP004002510 *	1
13	SKR2008781411	*VEDI SKRP004002500 *	1
14	SKR2008781430	*VEDI ECR12434512710 *	1
15	SKR2001181470	VITE	1
16	SKR2008781510	*VEDI ECR12435849930 *	1
17	SKR2008781520	*VEDI ECR12434149930 *	1
18	SKR2001181680	*VEDI ECR12436721330 *	1
19	SKR2001181630	*VEDI ECR12436321330 *	1
20	SKR2001181621	*VEDI SKRP004001430 *	1
21	SKR2008781660	*VEDI SKRP004002550 *	1
22	SKR2008781640	*VEDI SKR2008781641 *	1
23	SKR2000081650	VITE	4
24	SKR2008781550	*VEDI ECR12437949930 *	1
25	SKR2008781890	*VEDI SKRP004002600 *	1
26	SKR2008781540	*VEDI ECR12435949930 *	1
27	SKR2008781560	*VEDI ECR12436049930 *	1
28	SKR2008781571	*VEDI SKRP004002530 *	1
29	SKR2008781851	*VEDI SKRP004002580 *	1
30	SKR2008781870	*VEDI ECR12435550130 *	1
31	SKR2008781861	*VEDI SKRP004002590 *	1
32	SKR2008781811	*VEDI SKRP004002570 *	1
33	SKR2008781820	*VEDI ECR12438012710 *	1
34	SKR2008781830	*VEDI ECR12434249930 *	1
35	ECR2008781840	SCREW	1
36	ECR2008781880	SCREW	4
37	SKR7017081170	*VEDI ECRP004002920 *	1
38	SKR7017081180	*VEDI ECRP004002930 *	1
39	SKR7292081130	* VEDI ECR12417411120 *	1
40	SKR7292081140	*VEDI ECR12415813411 *	1
41	SKR2000081260	*VEDI ECR12411105810 *	1
42	SKR7010281710	*VEDI SKRA225000490 *	1
43	SKR2005681740	*VEDI SKRA226000650 *	1
44	ECR1120704250	*VEDI ECR9157704025 *	2
45	ECR2011581770	*VEDI ECRA232000760 *	1
46	SKR2002481770	*VEDI SKRA232000780 *	1

Rif.	Articolo	Descrizione	Q.tà	Nota
47	SKR2011581780	*VEDI SKRV299000430 *	1
48	SKR2210082430	*VEDI SKRV581000200 *	1
49	SKR2002481790	*VEDI SKRV347000030 *	1
50	SKR1940400008	*VEDI ECRX506000130 *	1
51	ECR0102005650	BOLT	2	M5X65
52	ECR0160005131	*VEDI ECR90060500005 *	2	5MM MFZN3-C
53	SKR7024483410	*VEDI SKRV103000890 *	1
54	SKR2008781531	*VEDI ECRP004002520 *	1

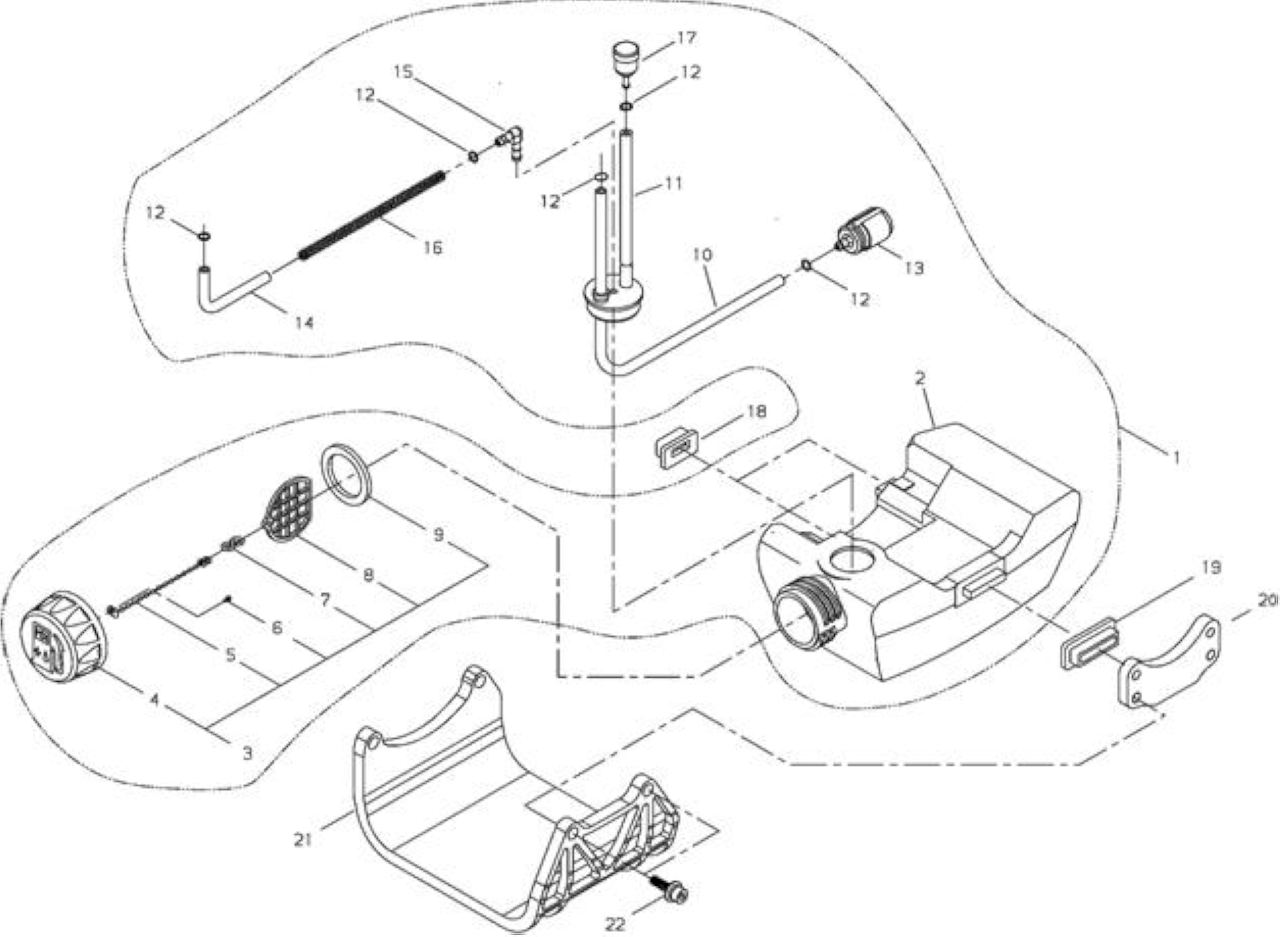

1	SKR7016885001	*VEDI SKRP021036450	*	1
2	SKR7024485110	*VEDI SKRA350001240	*	1
3	SKR7016885201	*VEDI SKRA033000010	*	1
4	SKR7016885210	TAPPO SERBATOIO		1
6	ECR0127025064	*VEDI ECR9148302506	*	1
9	SKR2000085221	*VEDI SKRV107000010	*	1
10	SKR7017085310	*VEDI SKRV471002570	*	1
11	SKR2008985350	*VEDI SKR2001685310	*	1
12	SKR2002085540	*VEDI SKRV490000500	*	5
13	SKR2211585401	*VEDI SKRA369000040	*	1
14	SKR7017083311	*VEDI ECRV471002580	*	1
15	SKR2008785340	*VEDI SKRV186000270	*	1
16	SKR2001983320	*VEDI ECRV451000840	*	1
17	SKR2219733960	*VEDI SKRA356000050	*	1
18	SKR2002486120	*VEDI SKRV420002630	*	2
19	SKR2002486130	*VEDI SKR6207485220	*	1
20	SKR6207485210	*VEDI ECRA393000150	*	1
21	SKR6207485310	*VEDI SKRA175000150	*	1
22	SKR1102205200	*VEDI ECRV203000351	*	2	M5*20(SW,PW)

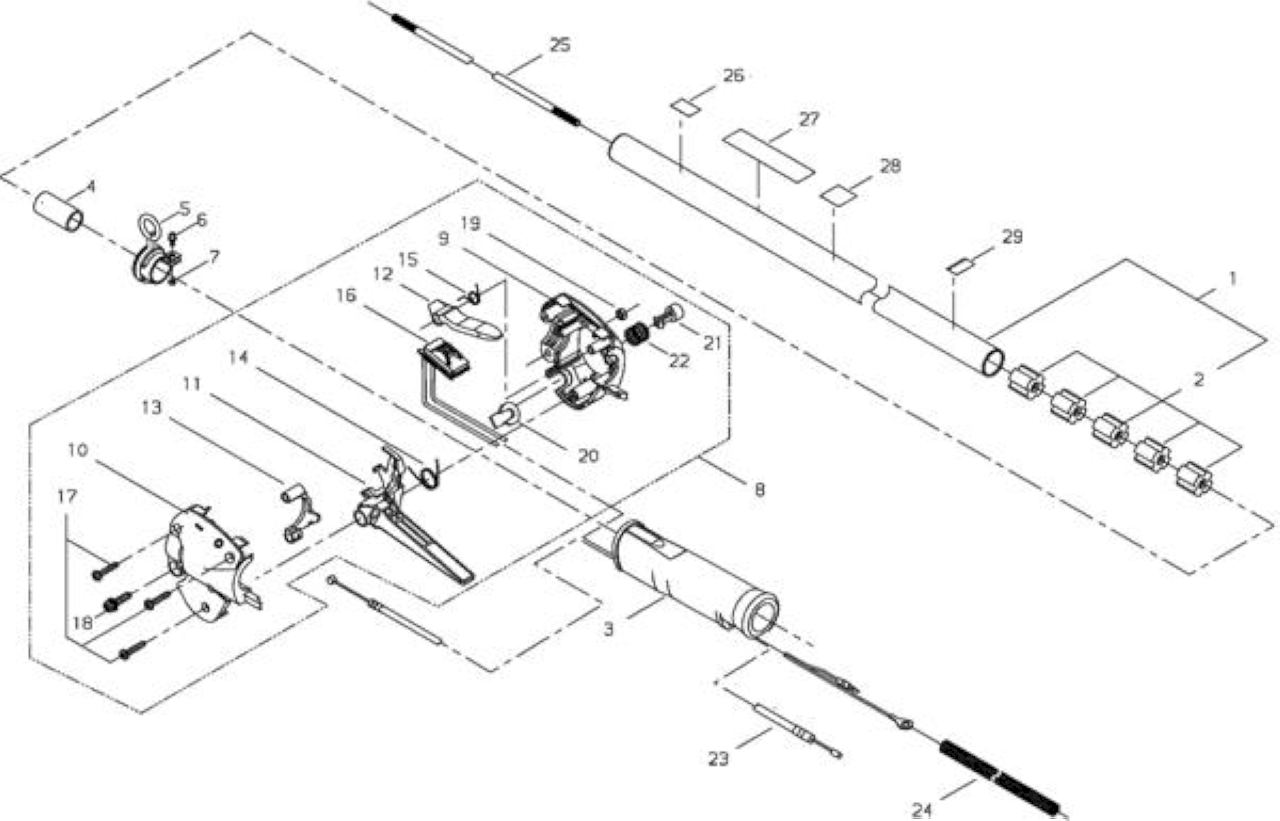

1	SKR2202412102	*VEDI SKR7244112100	*	1
2	SKR2202412120	*VEDI ECRC501000040	*	5
3	SKR6304362140	*VEDI SKRC412000380	*	1
4	ECR6300062311	*VEDI ECRV364000030	*	1
5	SKR2200912210	*VEDI ECRC063000010	*	1
6	SKR1102205120	BULLONE		1	M5*12
7	SKR150005041	DADO M5		1	M5 MFZN3-C
8	SKR6300062320	*VEDI SKRC044000630	*	1
9	SKR6300062340	*VEDI ECRC401000180	*	1
10	SKR6300062350	*VEDI SKRC401000190	*	1
11	SKR6300262340	*VEDI SKRC450000480	*	1
12	SKR6390162352	*VEDI SKRC460000190	*	1
13	SKR6300262350	*VEDI SKRC461000020	*	1
14	SKR6388065350	*VEDI ECRV452000700	*	1
15	SKR6390162370	*VEDI SKRV452000500	*	1
16	SKR6300062360	*VEDI SKRA045000280	*	1
17	ECR6388065360	*VEDI ECRV252000380	*	3
18	ECR1120605201	*VEDI ECR9157505020	*	1	M5*20
19	ECR0150105030	*VEDI ECR9201705000	*	1
20	ECR6388065411	*VEDI ECRV162000350	*	1
21	SKR7087165170	*VEDI SKRC461000080	*	1
22	SKR7087165180	*VEDI SKRV450001010	*	1
23	SKR7003683110	*VEDI SKRV430003400	*	1
24	SKR7020183140	*VEDI ECRV475004670	*	1
25	SKR2200012413	*VEDI SKRC504000620	*	1
26	ECR1940200223	*VEDI ECRX517000140	*	1	MAX 8500MIN-1
27	ECR1942200010	*VEDI ECRX505002910	*	1
28	ECR1940400038	*VEDI ECRX508000290	*	1	113DB(A)
29	ECR7201712150	*VEDI ECRX524002380	*	1

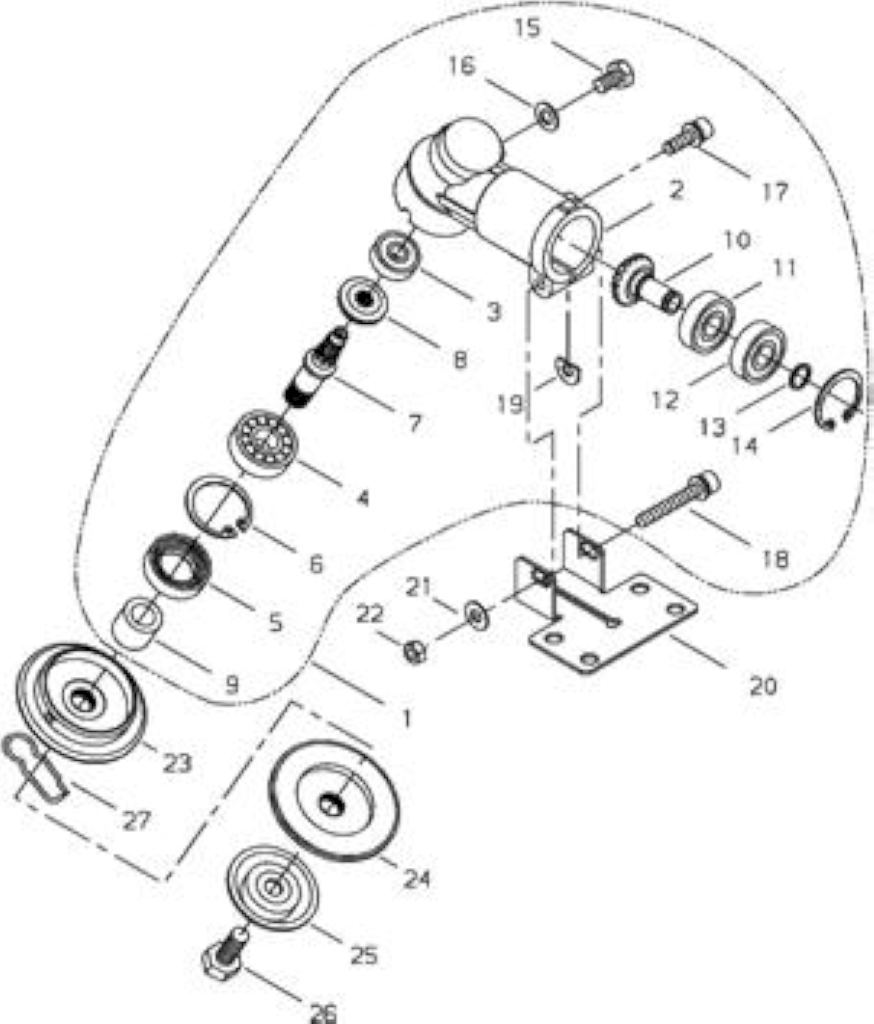

1	SKR6300063020	*VEDI SKRC051000480 *	1
2	SKR2202413112	*VEDI SKRC531000580 *	1
3	SKR204600609	*VEDI SKR9402840609 *	1
4	SKR200006201	*VEDI ECR90081006201 *	1
5	SKR2202413121	*VEDI SKRV510000000 *	1
6	SKR243232120	ANELLO ELASTICO	1	32MM
7	SKR7243513210	*VEDI SKRC534000570 *	1
8	SKR2202413220	*VEDI SKRV651000450 *	1
9	SKR2200013230	*VEDI SKRV356000500 *	1
10	SKR2202413391	*VEDI SKRV651000460 *	1
11	SKR200006901	*VEDI ECR90085506901 *	1
12	SKR200206901	*VEDI ECR90085906901 *	1	6901ZZ
13	SKR2000031140	*VEDI SKRV583000170 *	1
14	SKR243224120	*VEDI SKR9242424000 *	1
15	SKR2201513410	*VEDI SKRV206000250 *	1
16	SKR2201513420	*VEDI SKRV307000230 *	1
17	SKR1102205160	*VEDI SKRV203000590 *	1	M5*16
18	ECR1102206400	*VEDI ECRV204000450 *	1
19	SKR2201113450	*VEDI ECRV340000280 *	1
20	SKR7244116130	*VEDI SKRC551000140 *	1
21	SKR161306100	RONDELLA	1
22	SKR150006051	DADO M6	1	M6
23	SKR2202413912	*VEDI SKRC535000640 *	1
24	SKR6300063170	*VEDI SKRC535000650 *	1
25	SKR2202413291	*VEDI SKRC535000630 *	1
26	SKR2200013512	*VEDI SKRV205000480 *	1
27	SKR2200013530	*VEDI SKRV641000150 *	1

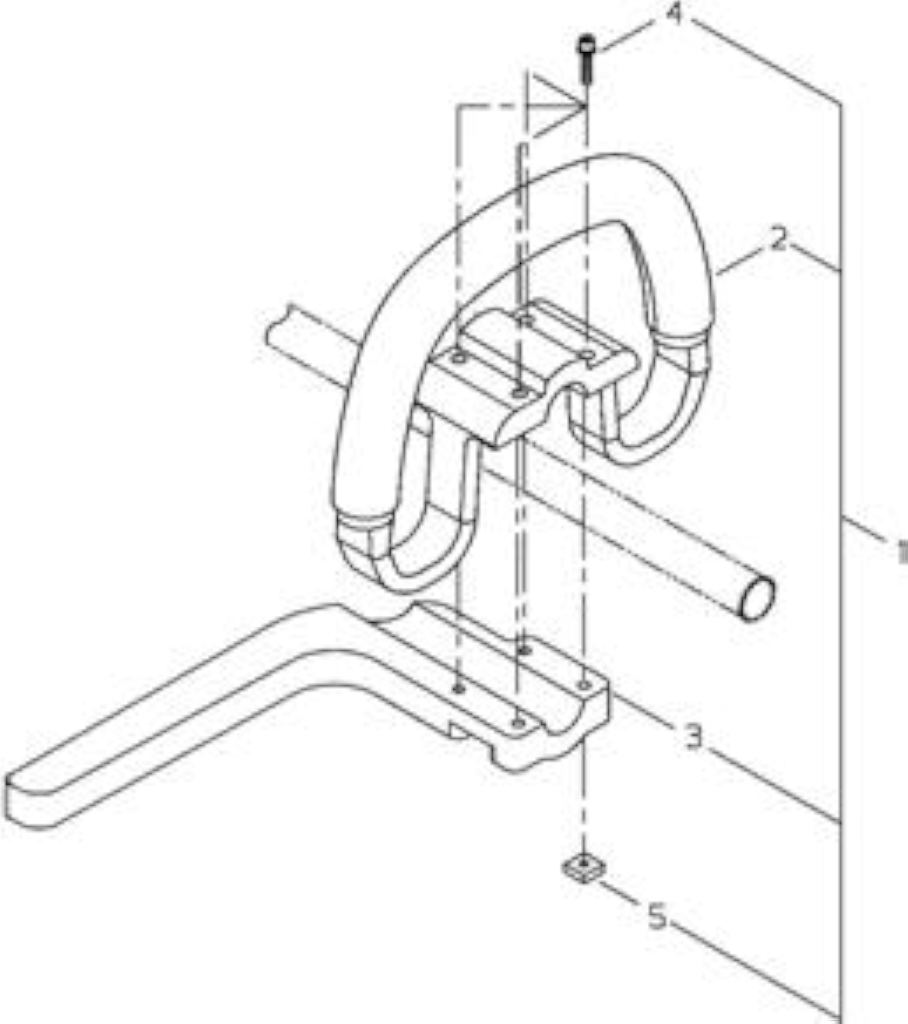

1	SKR6207464011	*VEDI SKRP021027930 *	1
2	ECRC040000290	HANDLE	1
3	ECRC405000410	SUPPORTO IMPUGNATURA	1
4	ECRV203000600	*VEDI ECR90016205035 *	4	M5*35 SPW
5	SKRV263000130	DADO	4

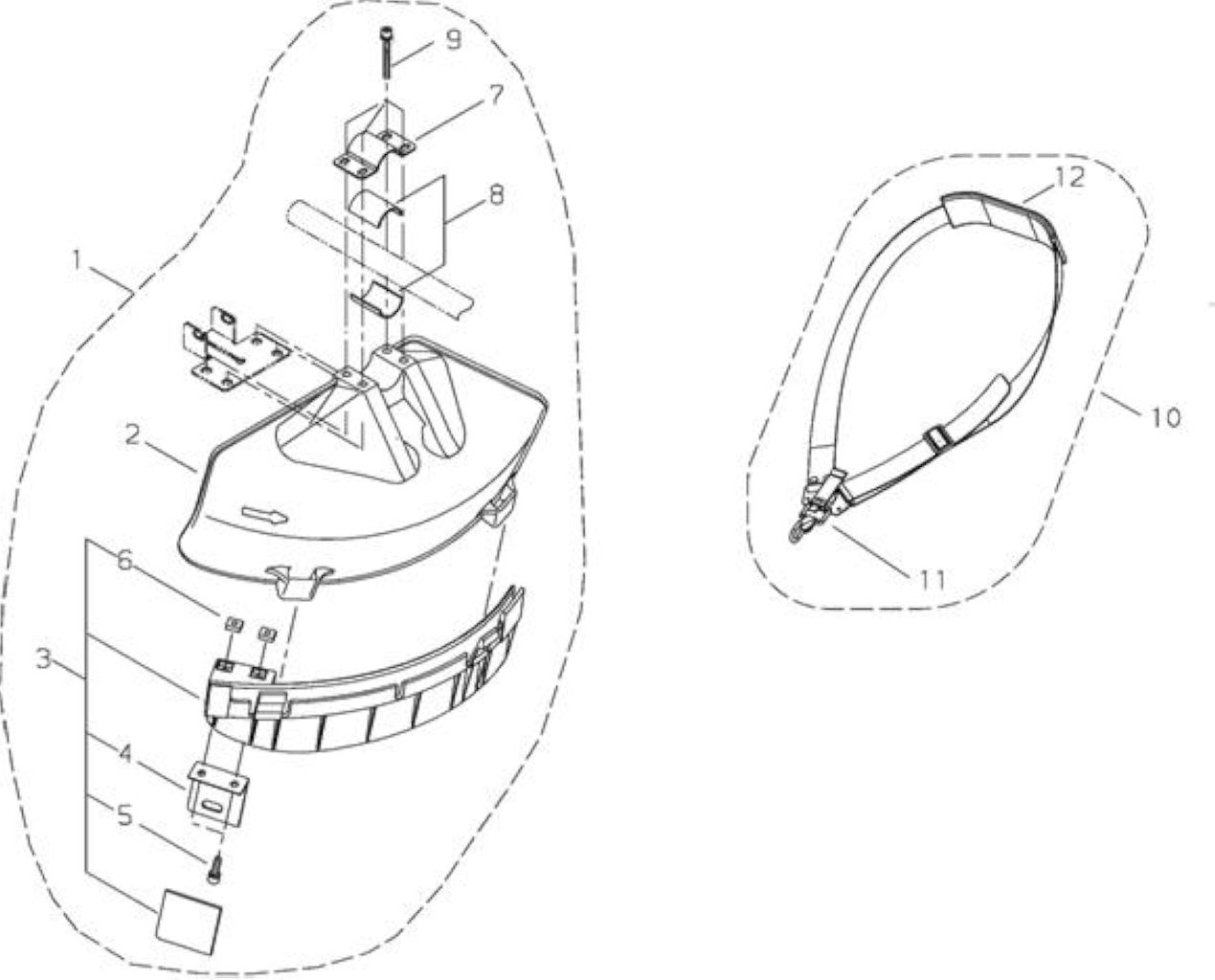

1	SKR6290366322	*VEDI SKRP021028440 * SBAT230/T230/T2500/T260 T.N.	1
2	SKR6290366111	*VEDI SKRC550000430 *	1
3	SKR6290366332	*VEDI SKRP021028450 *	1
4	SKR7248016121	*VEDI SKRC554000040 *	1
5	SKR1102005160	BULLONE	2
6	SKR2242016120	*VEDI SKRV263000130 *	2
7	SKR7248016210	*VEDI SKRC551000060 *	1
8	SKR7248016220	SPESSORE	2
9	SKR1102205450	BULLONE	4	M5X45 SPW
10	SKR2242117202	*VEDI SKRC062000390 *	1
11	ECR2242117130	*VEDI ECRC649000200 *	1
12	SKR2200717220	PROTEZIONE CINGHIA	1

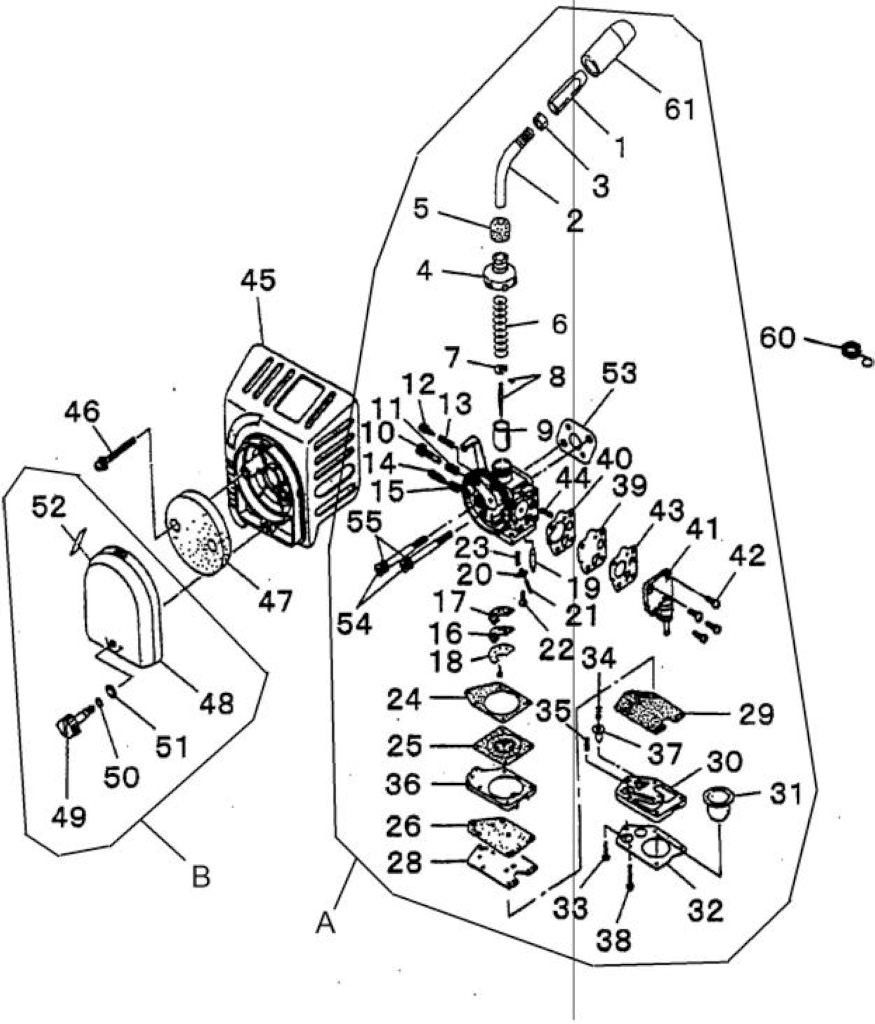

Rif.	Articolo	Descrizione	Q.tà	Nota
A	SKR6200081010	*VEDI SKRA021002410 *	1
1	SKR2005581810	*VEDI SKR12415846630 *	1
2	SKR7010781830	*VEDI SKRP004002870 *	1
3	SKR2000081260	*VEDI ECR12411105810 *	1
4	SKR2005581120	*VEDI SKRP004000700 *	1
5	SKR2005581130	*VEDI ECRP004002180 *	1
6	SKR2000381140	*VEDI ECR12411450330 *	1
7	SKR2000081150	*VEDI ECR12411505530 *	1
8	SKR7017081170	*VEDI ECRP004002920 *	1
9	SKR7017081180	*VEDI ECRP004002930 *	1
10	SKR2000081310	*VEDI ECR12415905530 *	1
11	SKR2000081320	*VEDI ECR12433305630 *	1
12	SKR2000081330	*VEDI ECRP004000880 *	1
13	SKR7292081820	MOLLA	1
14	SKR2001181351	*VEDI ECRP004001300 *	1
15	SKR2001181360	*VEDI ECR12435521330 *	1
16	SKR2008781411	*VEDI SKRP004002500 *	1
17	SKR2008781420	*VEDI SKRP004002510 *	1
18	SKR2008781430	*VEDI ECR12434512710 *	1
19	SKR2000081441	*VEDI SKRP004000930 *	1
20	SKR2001981450	*VEDI ECR12432121330 *	1
21	SKR2001181460	*VEDI ECR12433221330 *	1
22	SKR2001181470	VITE	2
23	SKR2008781480	MOLLA	1
24	SKR2008781510	*VEDI ECR12435849930 *	1
25	SKR2008781520	*VEDI ECR12434149930 *	1
26	SKR2008781540	*VEDI ECR12435949930 *	1
28	SKR2008781560	*VEDI ECR12436049930 *	1
29	SKR2008781571	*VEDI SKRP004002530 *	1
30	SKR2008781811	*VEDI SKRP004002570 *	1
31	SKR2008781820	*VEDI ECR12438012710 *	1
32	SKR2008781830	*VEDI ECR12434249930 *	1
33	SKR2008781840		1
34	SKR2008781851	*VEDI SKRP004002580 *	1
35	SKR2008781870	*VEDI ECR12435550130 *	4
36	SKR2008781890	*VEDI SKRP004002600 *	1
37	SKR2008781861	*VEDI SKRP004002590 *	1
38	SKR2008781880		1
39	SKR2001181621	*VEDI SKRP004001430 *	1
40	SKR2001181630	*VEDI ECR12436321330 *	2
41	SKR2008781640	*VEDI SKR2008781641 *	1
B	SKR2002481800	*VEDI SKRP021034400 *
42	SKR2000081650	VITE	1
43	SKR2008781660	*VEDI SKRP004002550 *	1
45	SKR7010281710	*VEDI SKRA225000490 *	1
46	SKR1120704250		2

Rif.	Articolo	Descrizione	Q.tà	Nota
47	SKR2005681740	*VEDI SKRA226000650 *	1
48	SKR2002481770	*VEDI SKRA232000780 *	1
49	SKR2011581780	*VEDI SKRV299000430 *	1
50	SKR2210082430	*VEDI SKRV581000200 *	1
51	SKR2002481790	*VEDI SKRV347000030 *	1
52	SKR1940400008	*VEDI ECRX506000130 *	2
53	SKR7024483410	*VEDI SKRV103000890 *	1
54	SKR010205650		2
55	ECR0160005130	SPRING WASHER	2
60	SKR2002483152	*VEDI SKRC487000220 *	1
61	SKR2000583160	*VEDI SKRA246000020 *	1
17	SKR2008781420	*VEDI SKRP004002510 *	1
24	SKR2008781510	*VEDI ECR12435849930 *	1
26	SKR2008781540	*VEDI ECR12435949930 *	1
36	SKR2008781890	*VEDI SKRP004002600 *	1
40	SKR2001181630	*VEDI ECR12436321330 *	1
	SKR2008781921	*VEDI ECRP050009250 *	1
16	SKR2008781411	*VEDI SKRP004002500 *	1
25	SKR2008781520	*VEDI ECR12434149930 *	1
29	SKR2008781571	*VEDI SKRP004002530 *	1
39	SKR2001181621	*VEDI SKRP004001430 *	1
43	SKR2008781660	*VEDI SKRP004002550 *	1
