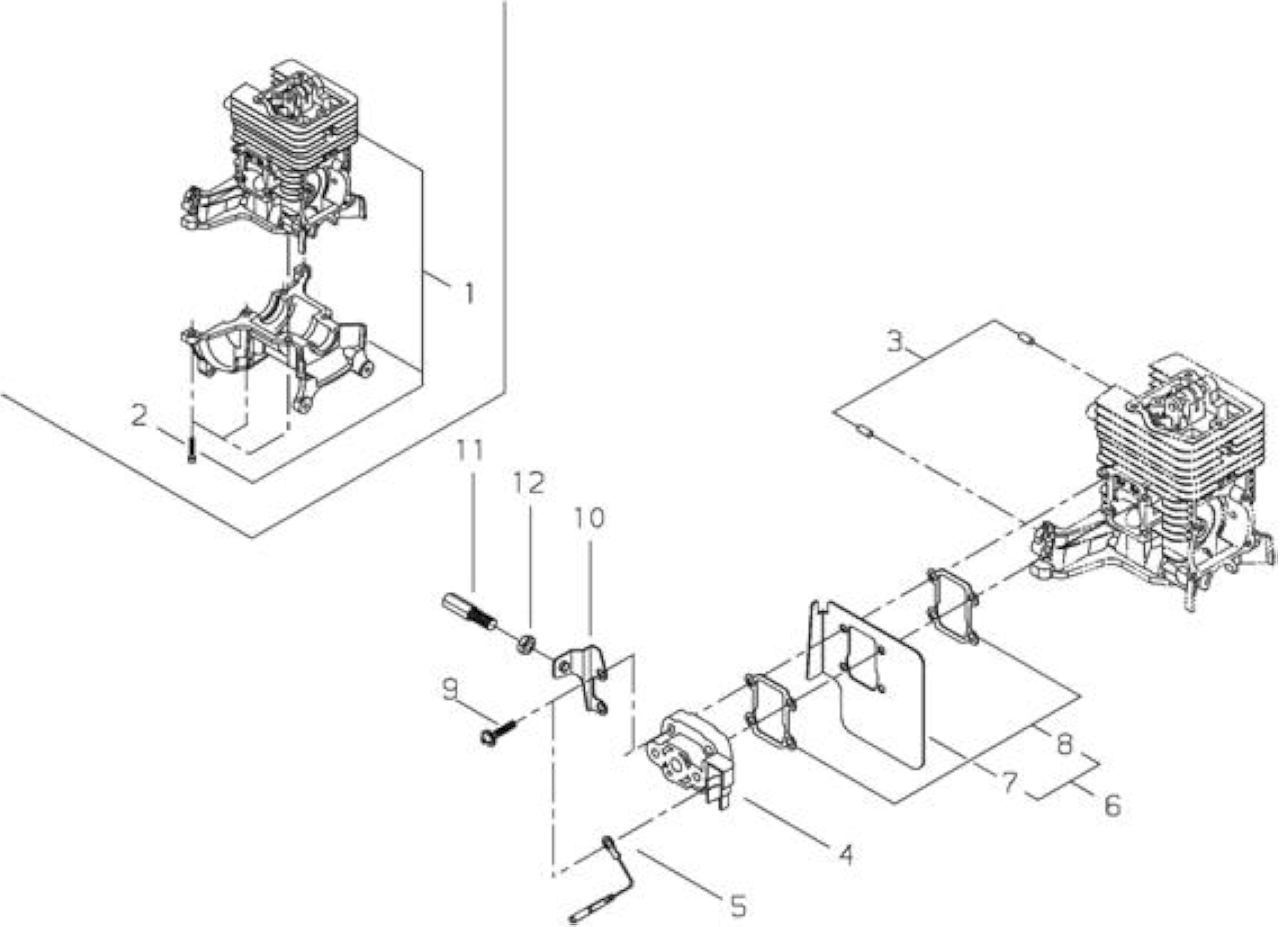

Cilindro, Collettore aspirazione Marmitta

Carter copri cilindro, Campana Pistone, Albero motore Distribuzione

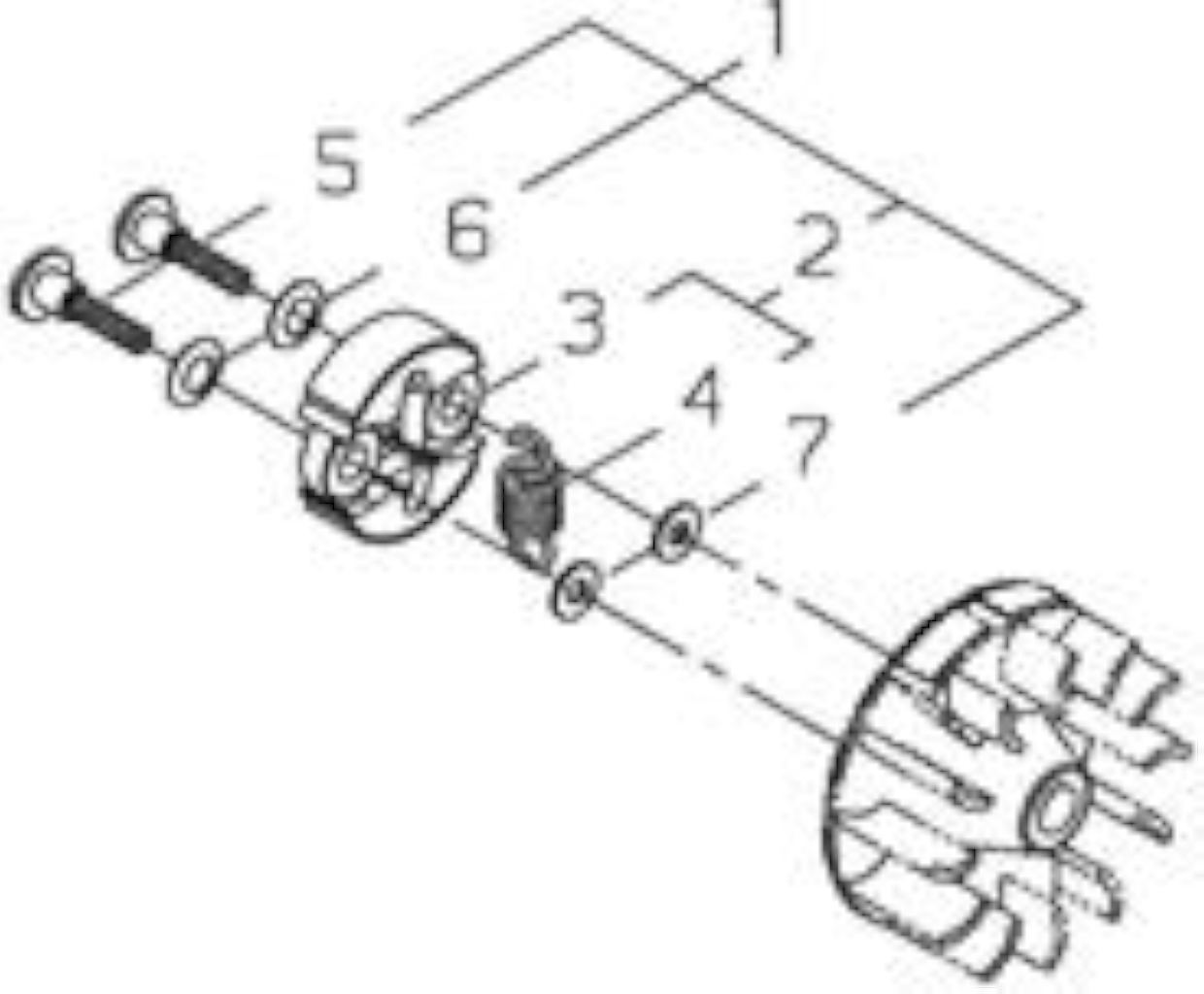

Frizione

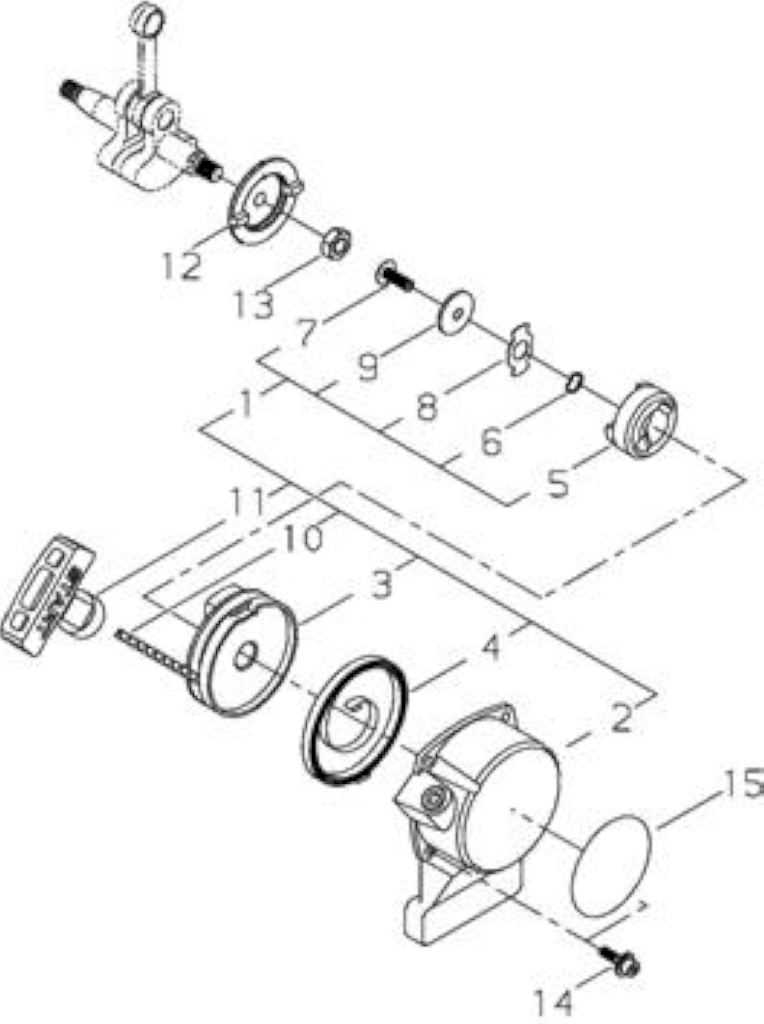

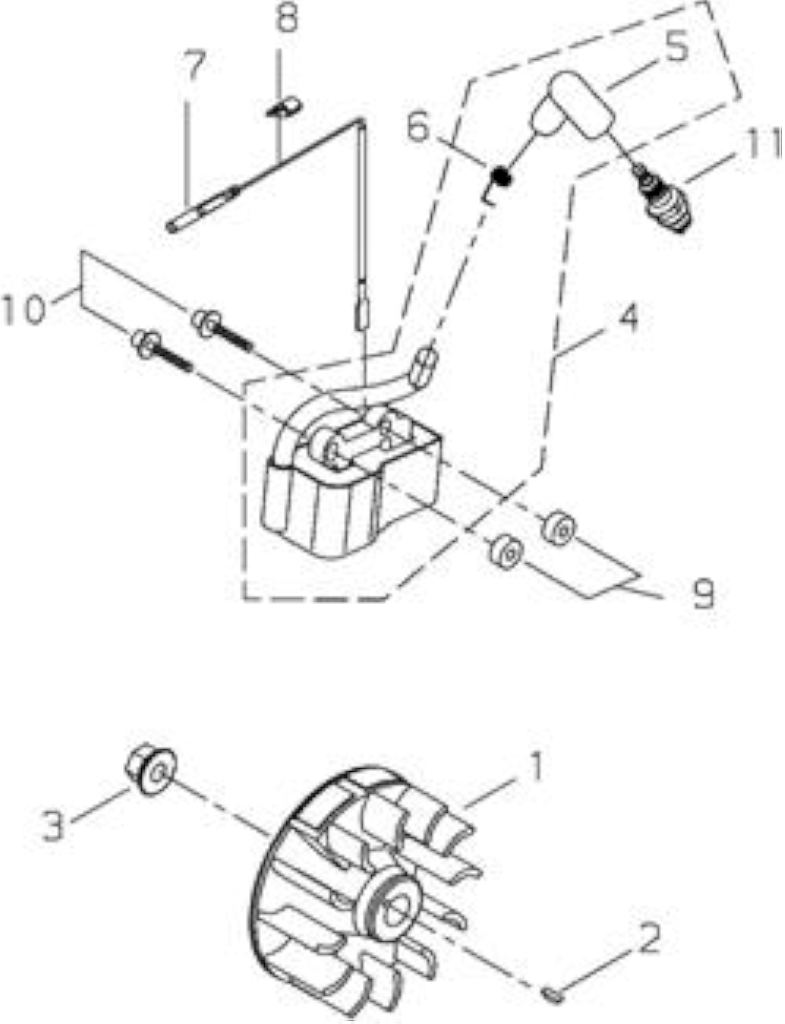

Modulo accensione, Volano Avviamento

Carburatore Filtro aria Serbatoio

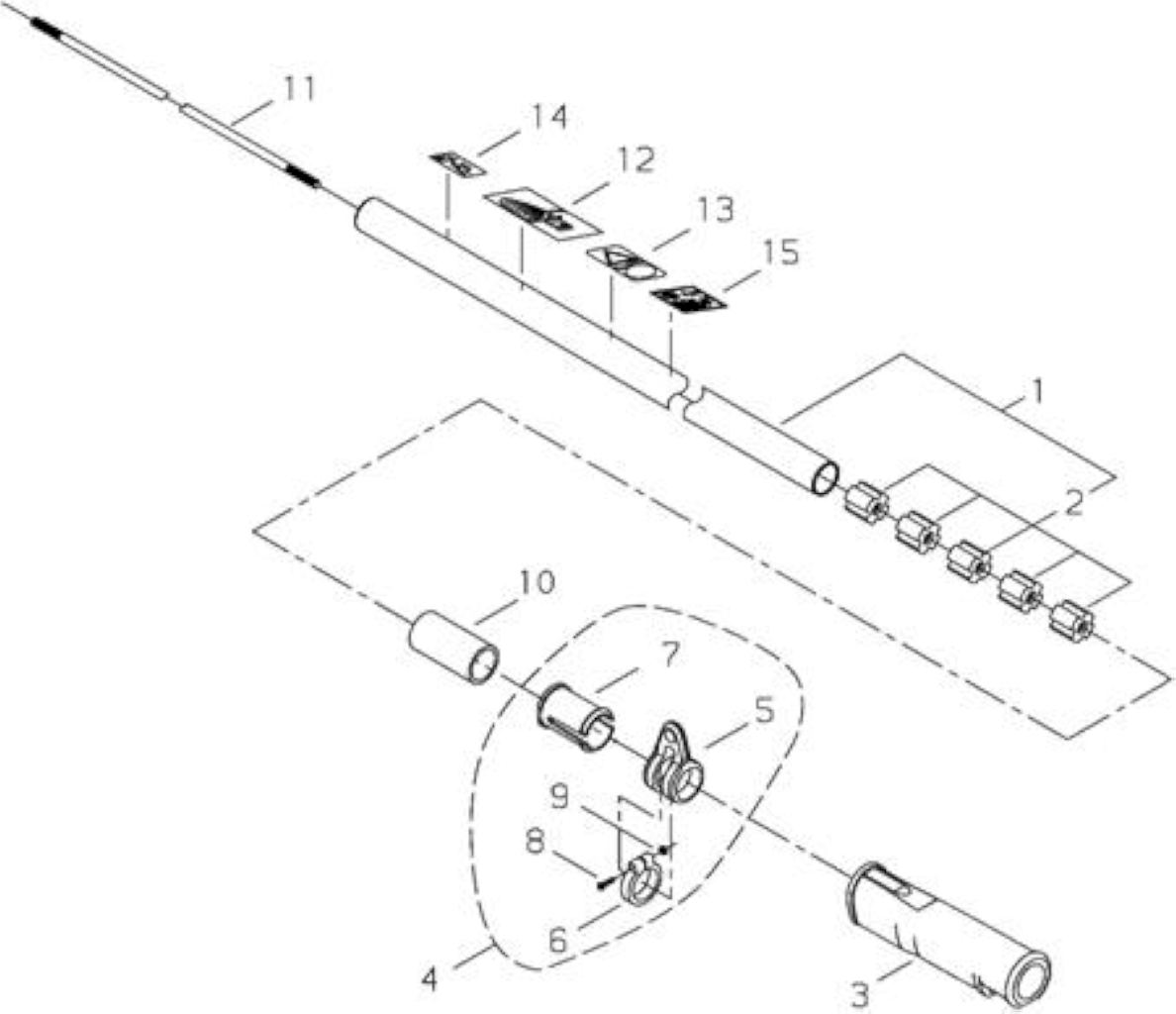

Asta trasmissione, Tubolare Acceleratore

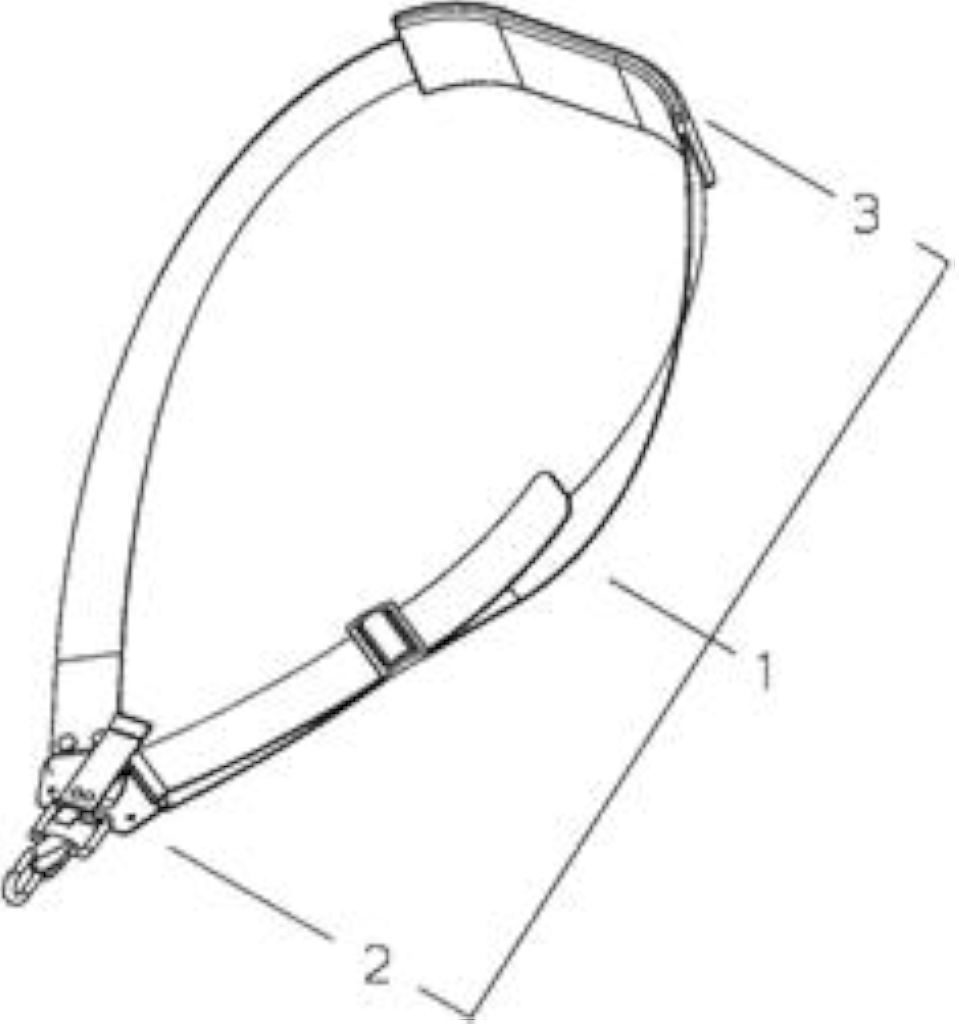

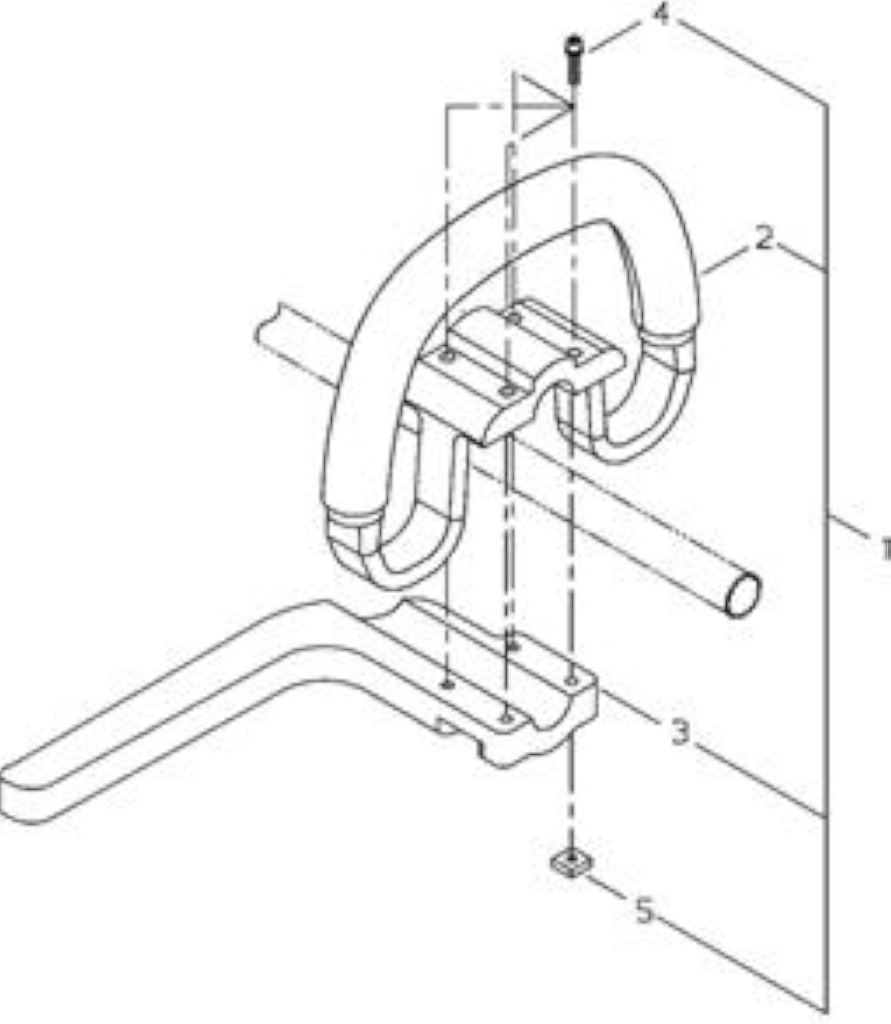

Coppia conica Impugnatura Parasassi Cinghiaggio

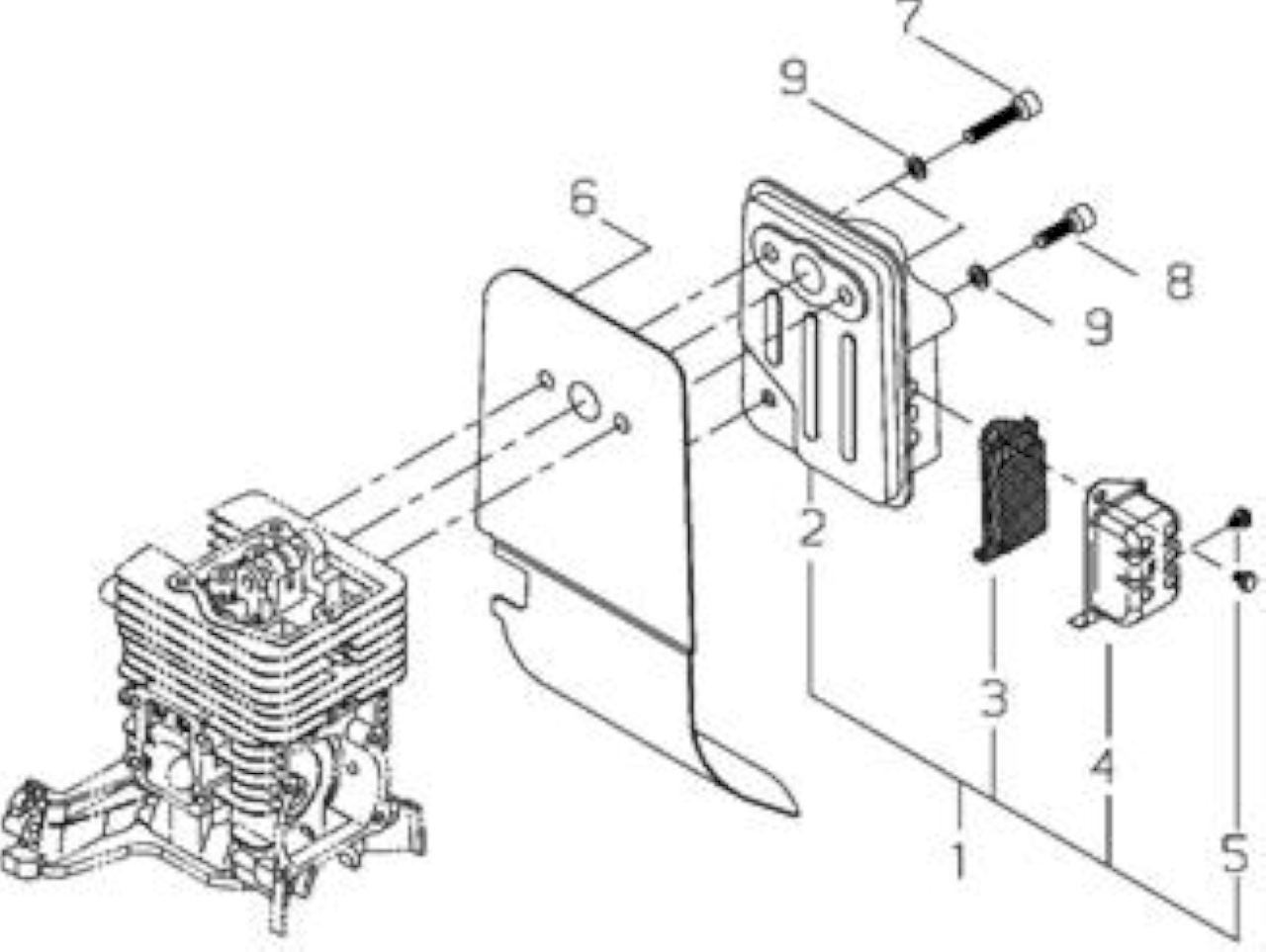

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6090898330

*VEDI SKRP021027580 *

1



2

ECR90010505016

BULLONE BRUGOLA 5X16

6

M5X16

3

SKR1249240080

*VEDI ECRV622000040 *

2

E4X8F6 C3

4

SKR6290212310

*VEDI SKRA024000050 *

1



5

ECR1435001101

*VEDI ECRV485001260 *

1

L110

6

SKR6290212320

*VEDI SKRA209000250 *

1



7

ECR6290112320

BAFFLE PLATE

1



8

SKR6290112220

*VEDI SKRV103001130 *

2



9

ECR1120605225

*VEDI ECR9158205022 *

4

M5X22

10

SKR6290183310

SUPPORTO CAVO ACC.

1



11

SKR6290283310

*VEDI SKRC486000030 *

1



12

ECR0150106048

*VEDI ECR9201806000 *

1

M6

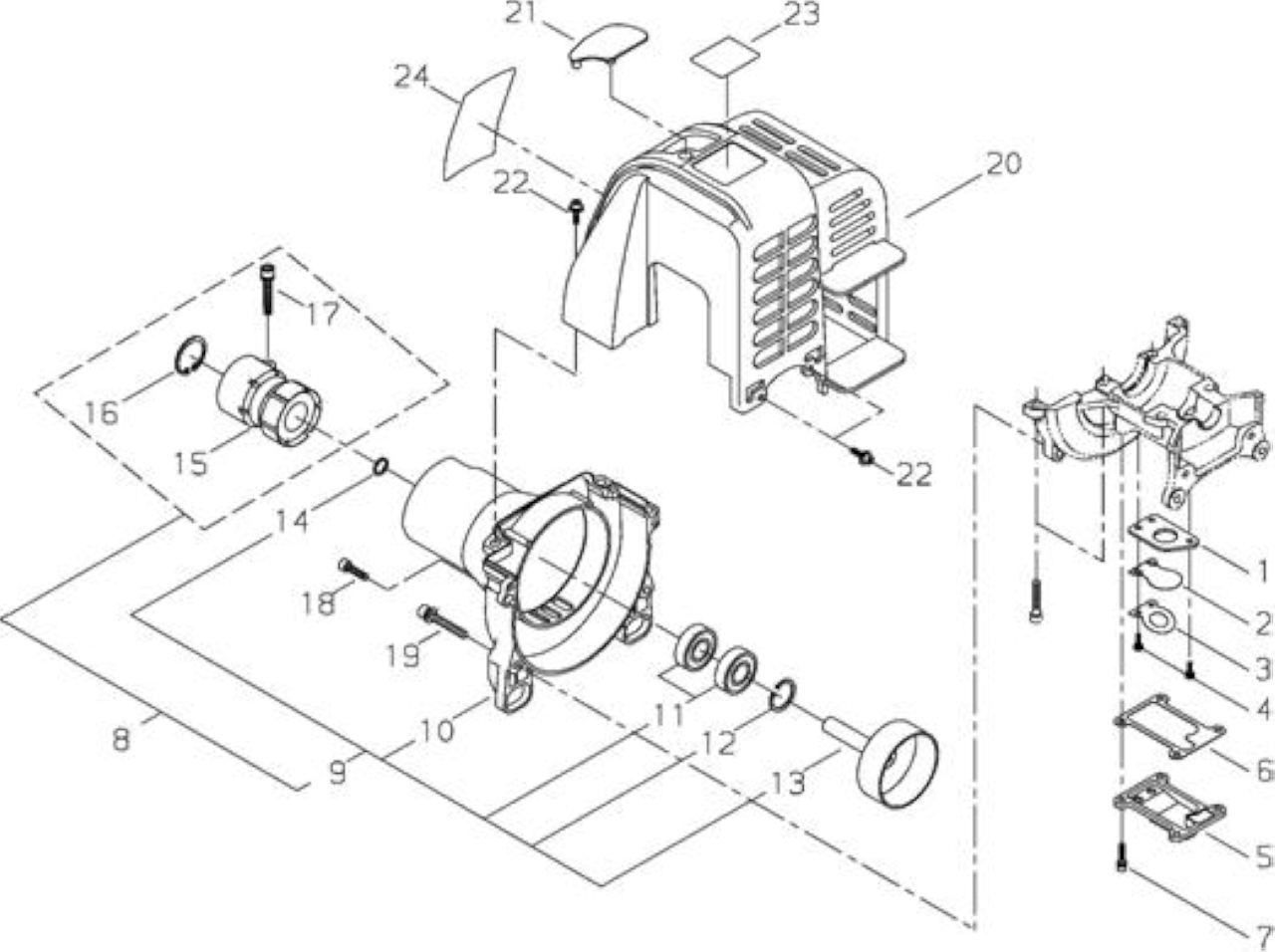

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6290715011

*VEDI ECRA030000342 *

1



3

SKR6290215131

*VEDI ECRA310000390 *

1



4

SKR6290715161

PIASTRINA

1



5

ECR1120404060

SCREW,PM-SW

2

M4X6

6

SKR6290115210

*VEDI ECRV104001430 *

1



7

ECR6290115310

*VEDI ECRV203001000 *

2



8

ECR90010505016

BULLONE BRUGOLA 5X16

1

M5X16

9

ECR0161005080

*VEDI ECR90060000005 *

3

5MM











Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6290121320

*VEDI ECRA200000750 *

1



2

SKR7232083121

*VEDI ECRA211000030 *

1



3

SKR7232083132

*VEDI ECRA212000040 *

1



4

ECR0121103100

SCREW-SW

3

M3X10

5

SKR6290121120

*VEDI ECRA1230000000 *

1



6

SKR6290121130

*VEDI ECRV109000100 *

1



7

ECR1102204120

*VEDI ECRV202000340 *

4

M4X12

8

SKRP021027520

*VEDI ECRP021027521 *

1



9

ECR6290131013

*VEDI ECRP021028300 *

1



10

SKR6290131112

*VEDI ECRA172001840 *

1



11

SKR9404406000

CUSCINETTO A SFERE 6000ZZ

2

6000ZZ

12

ECR0243226120

*VEDI ECR9242426000 *

1

26MM

13

SKR6210031210

*VEDI SKRA556000610 *

1



14

SKR2200013320

*VEDI ECR90070600010 *

1



15

SKR2008731411

*VEDI SKRA575000190 *

1



16

ECR0243240170

*VEDI ECR9242440000 *

1

40MM

17

SKR1102005220

BULLONE

1

M5X22

18

ECR90010505016

BULLONE BRUGOLA 5X16

2

M5X16

19

SKR1102205450

BULLONE

2

M5X45

20

SKR6290132111

*VEDI SKRA160001861 *

1



21

SKR6290132312

*VEDI SKRA429000140 *

1



22

SKR1102404160

BULLONE

4

M4X16

23

ECR6291091320

*VEDI ECRX504002160 *

1



24

ECR1942000106

*VEDI ECRX504002530 *

1

SHINDAIWA?C4

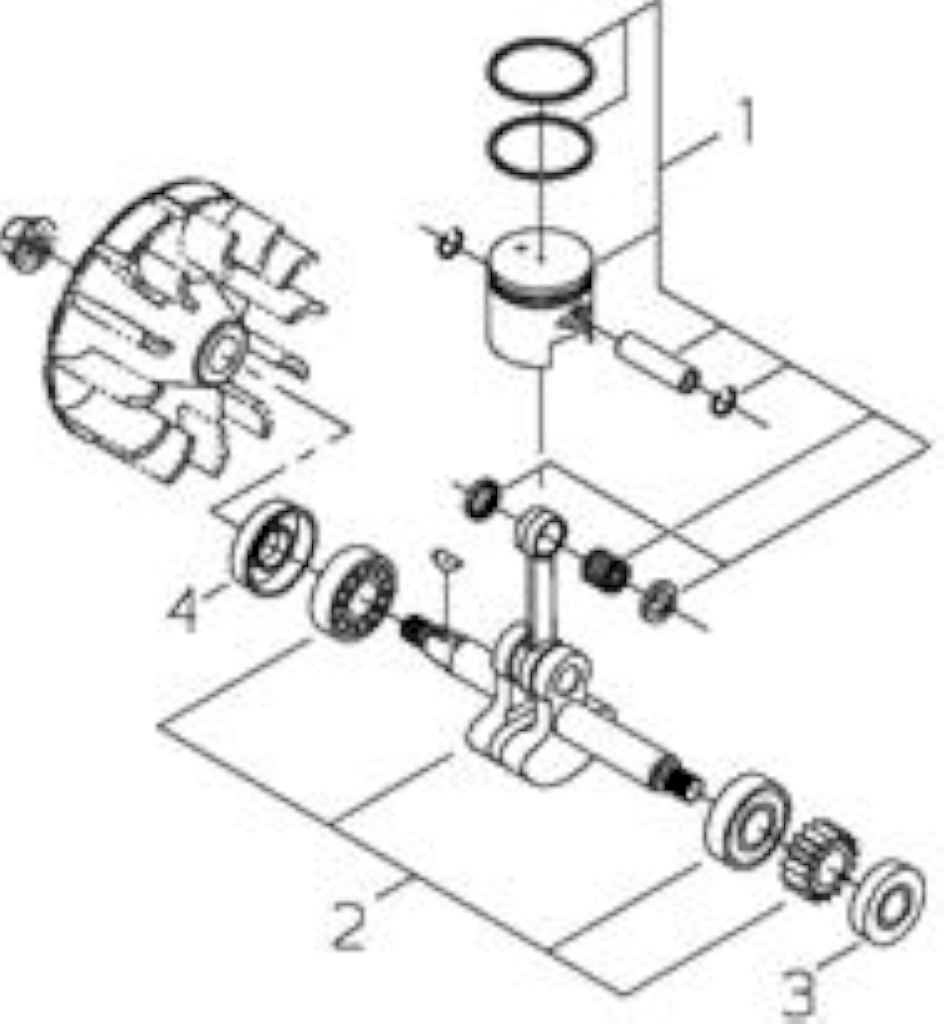

Rif.

Articolo

Descrizione

Q.tà Nota

1

SKR6290241310

*VEDI SKRP021033930 *

1

2

SKR6290242020

ALBERO MOTORE COMPLETO

1

3

SKR6290142260

*VEDI SKRV505000110 *

1

4

SKR6290142270

*VEDI SKRV505000120 *

1

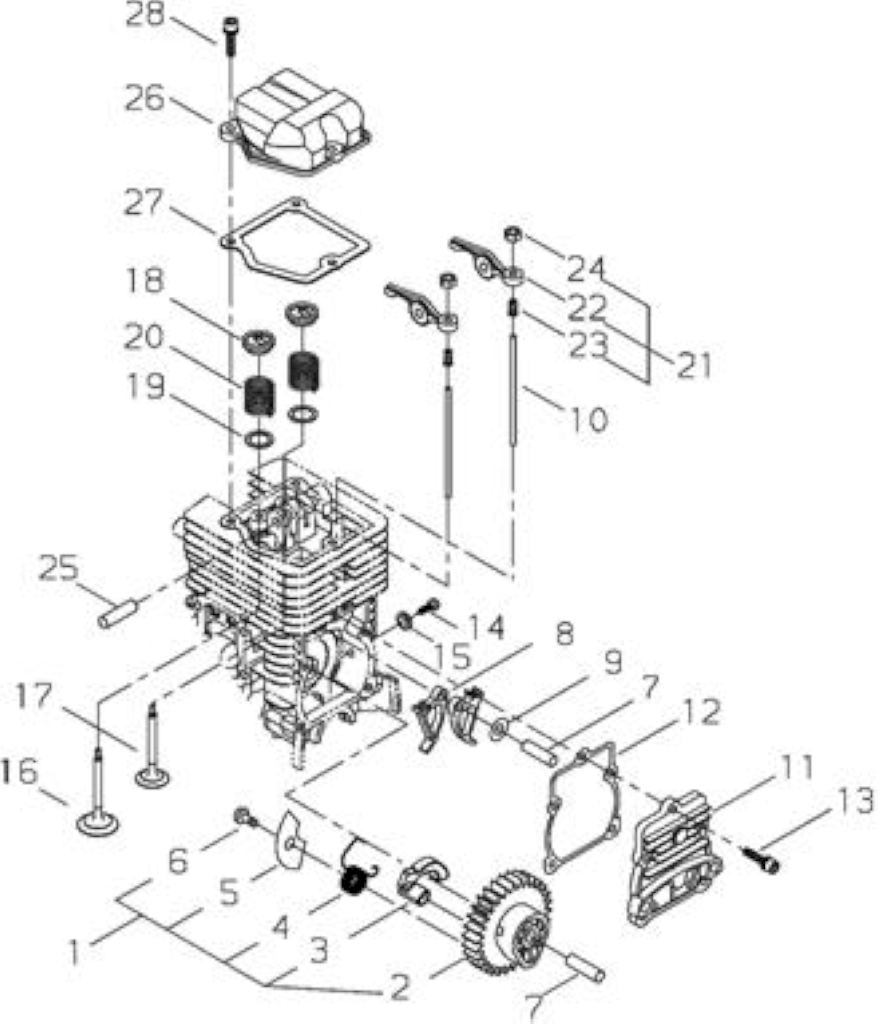

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6290543011

*VEDI SKRA063000000 *

1



2

SKR6290243310

*VEDI SKRA622000000 *

1



3

SKR6290743120

*VEDI ECRA146000000 *

1



4

SKR1752008900

MOLLA

1



5

ECR6290543131

*VEDI ECRC603000240 *

1



6

ECR0128004062

*VEDI ECR9144904006 *

1

4X6

7

SKR1249250290

*VEDI ECRV623000030 *

2

N5X29.8F6-C3

8

SKR6290743210

*VEDI SKRA600000000 *

2



9

SKR1162010000

*VEDI SKRV303000220 *

1

5MM

10

SKR6290843220

*VEDI SKRA607000010 *

2



11

SKR6290143330

*VEDI SKRA136000010 *

1



12

SKR6290143240

*VEDI SKRV109000110 *

1



13

SKR1102204140

BULLONE

5

M4X14

14

ECR6290143310

*VEDI ECRV253000540 *

1



15

ECR1540110028

*VEDI ECRV303000120 *

1

F10XF5.5XL2

16

SKR6290244111

*VEDI SKRA603000040 *

1



17

SKR6290244121

*VEDI SKRA603000050 *

1



18

SKR6290844140

*VEDI ECRA606000040 *

2



19

SKR6290844310

*VEDI ECRV392000030 *

2



20

SKR6290144130

*VEDI ECRA604000010 *

2



21

SKR6290744010

*VEDI ECRA610000050 *

2



22

SKR6290144210

*VEDI ECRA610000060 *

2



23

SKR6290744220

*VEDI ECRA613000010 *

2



24

SKR6290144231

*VEDI ECRV263000230 *

2



25

ECR1249250310

*VEDI ECRV623000040 *

1

NTN F5X31.8

26

SKR6290144241

*VEDI SKRA137000020 *

1



27

SKR6290144250

*VEDI SKRV109000120 *

1



28

SKR1102204140

BULLONE

3

M4X14



























Rif.

Articolo

Descrizione

Q.tà Nota

1

ECR6290151012

*VEDI ECRA056000520 *

1

2

SKRA056000530

*VEDI ECRA056000531 *

1

3

SKR7014051113

*VEDI SKRA553000060 *

2

4

SKRA566000200

*VEDI ECRA566000201 *

1

5

SKR2008751210

*VEDI SKRA557000040 *

2

6

SKR2008751231

*VEDI SKRV346000040 *

2

7

SKR2210071430

*VEDI SKRV304000150 *

2













Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6290571110

*VEDI ECRA409000740 *

1



2

ECR9311503010

CHIAVELLA

1

3X10

3

SKR2003571220

*VEDI ECRV265000140 *

1



4

SKR6290571310

*VEDI ECRA411000890 *

1



5

SKR6290571250

CAPPUCCIO CANDELA

1



6

SKR6290571320

* VEDI ECRA426000020 *

1



7

ECR1435002001

*VEDI ECRV485001910 *

1



8

SKR6290171310

GOMMINO

1



9

SKR7003071620

*VEDI SKRV322000040 *

2



10

ECR1102404265

*VEDI ECRV202000360 *

2

M4X26

11

ECR1300110005

*VEDI ECRA425000040 *

1

CMR5H













Rif.

Articolo

Descrizione                                  Q.tà

Nota

1

SKR6290175012

*VEDI SKRA051001490 *           1



2

SKR6290175111

*VEDI ECRA500000620 *           1



3

SKR6290175120

*VEDI SKRA506000130 *           1



4

SKR7006475130

*VEDI SKRA504000050 *           1



5

SKR6290175310

*VEDI SKRA518000020 *           1



6

SKR7006475150

*VEDI SKRV346000030 *           1



7

SKR7293375160

VITE                                              1



8

SKR7293375170

*VEDI SKRA606000000 *           1



9

SKR7293375180

*VEDI SKRV303000110 *           1



11

SKR3200475150

*VEDI ECRA511000090 *           1



12

SKR7006475310

*VEDI SKRA520000080 *           1



13

ECR0151108051

*VEDI ECR90050300008 *          1

M8

14

SKR1102404160

BULLONE                                     2

M4X16

15

SKR1942000070

*VEDI ECRX504003080 *           1

SHINDAIWA?C4

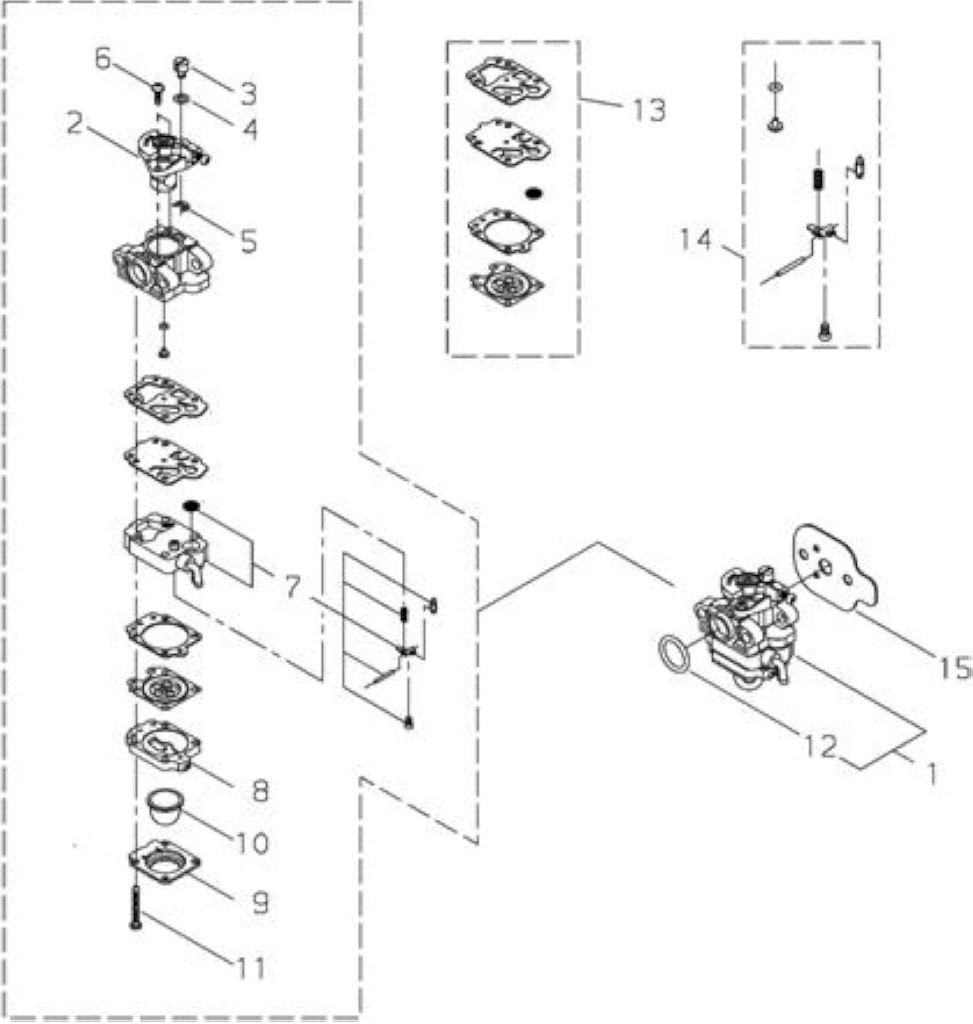

Rif.

Articolo

Descrizione

Q.tà Nota

1

SKR6290881011

*VEDI SKRA021002740 *

1

2

ECR6290881311

VALVE

1

3

SKR7293381450

NOTTOLINO

1

4

SKR2008981185

RONDELLA

1

5

SKR2003681195

ANELLO

1

6

SKR7006481290

VITE

2

7

SKR3701381350

CORPO POMPA COMPLETO

1

8

SKR2001681420

*VEDI ECR12318005560 *

1

9

SKR2001681510

*VEDI ECR12314205560 *

1

10

SKR2003681670

*VEDI ECR12318140630 *

1

11

ECR2001681140

*VEDI ECR12311005560 *

4

12

SKR2001681250

*VEDI ECR90072000015 *

1

13

SKR6090298030

*VEDI SKRP050008580 *

1

14

ECR6090898360

*VEDI ECRP050008590 *

1

15

SKR6290181211

*VEDI SKRV103001140 *

1

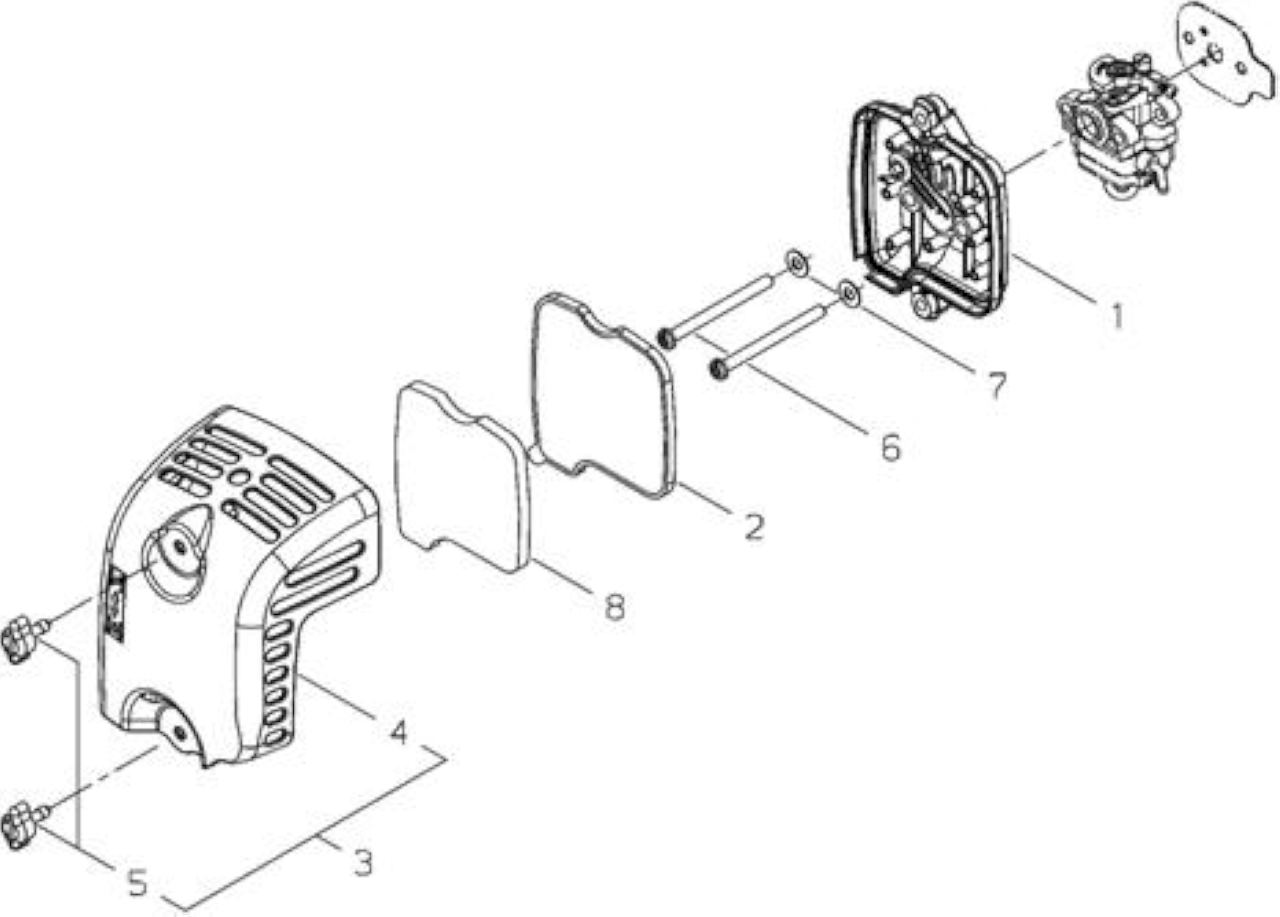

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6290882010

*VEDI SKRA023000200 *

1



2

SKR6290882120

*VEDI SKRA226000690 *

1



3

SKR6290882030

*VEDI SKRP021028520 *

1



4

SKR6290882130

COPERCHIO FILTRO ARIA

1



5

SKR6290182330

*VEDI SKRV299000400 *

2



6

ECR1120305605

*VEDI ECR9158105060 *

2

M5X60

7

ECR0161305080

*VEDI ECR90060300005 *

2

5MM

8

SKR6290882310

*VEDI SKRA226000700 *

1

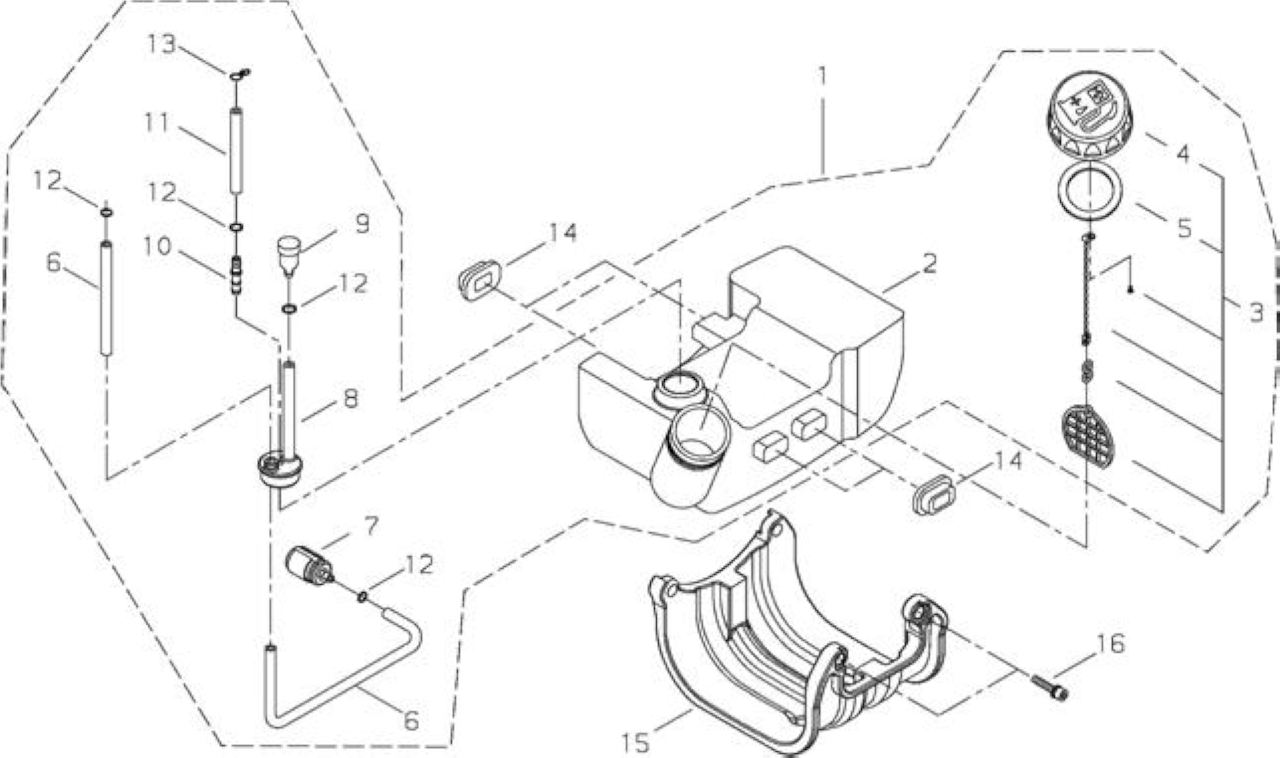

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6890685310

* VEDI ECRP021029591 *

1



2

SKR6290185110

*VEDI SKRA350001010 *

1



3

SKR7016885201

*VEDI SKRA033000010 *

1



4

SKR7016885210

TAPPO SERBATOIO

1



5

SKR2000085221

*VEDI SKRV107000010 *

1



6

SKR6290185310

*VEDI ECRV471002350 *

1



7

SKR2001685400

*VEDI SKRA369000070 *

1



8

SKR2011285351

*VEDI ECRV470000880 *

1



9

SKR2219733960

*VEDI SKRA356000050 *

1



10

SKR7293385620

*VEDI SKRV186000210 *

1



11

SKR6890685320

* VEDI ECRV471002360 *

1



12

SKR2002085540

*VEDI SKRV490000500 *

4



13

ECR3701385310

*VEDI ECRV490000510 *

1



14

SKR6290185220

*VEDI SKRV420002220 *

4



15

SKR6290285320

*VEDI SKRA175000220 *

1



16

SKR1102205200

*VEDI ECRV203000351 *

2

M5X20











Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6390162010

*VEDI ECRC050002100 *

1



2

SKR2203512121

*VEDI SKRC501000010 *

5



3

ECR6390162142

*VEDI ECRC412000260 *

1



4

SKR3300862340

*VEDI ECRC063000000 *

1



5

SKR3300862151

AGGANCIO CINGHIA

1



6

SKR3300862311

*VEDI ECRV495001330 *

1



7

SKR3300862321

*VEDI ECRV363000110 *

1



8

ECR1120304160

*VEDI ECR9157804016 *

1

M4X16

9

ECR0150004031

*VEDI ECR90050000004 *

1

M4

10

SKR6500662310

*VEDI ECRV363000120 *

1



11

SKR2207012410

*VEDI SKRC504000500 *

1



12

ECR1942000084

*VEDI ECRX504002780 *

1

SHINDAIWA,PROFESSIONA L

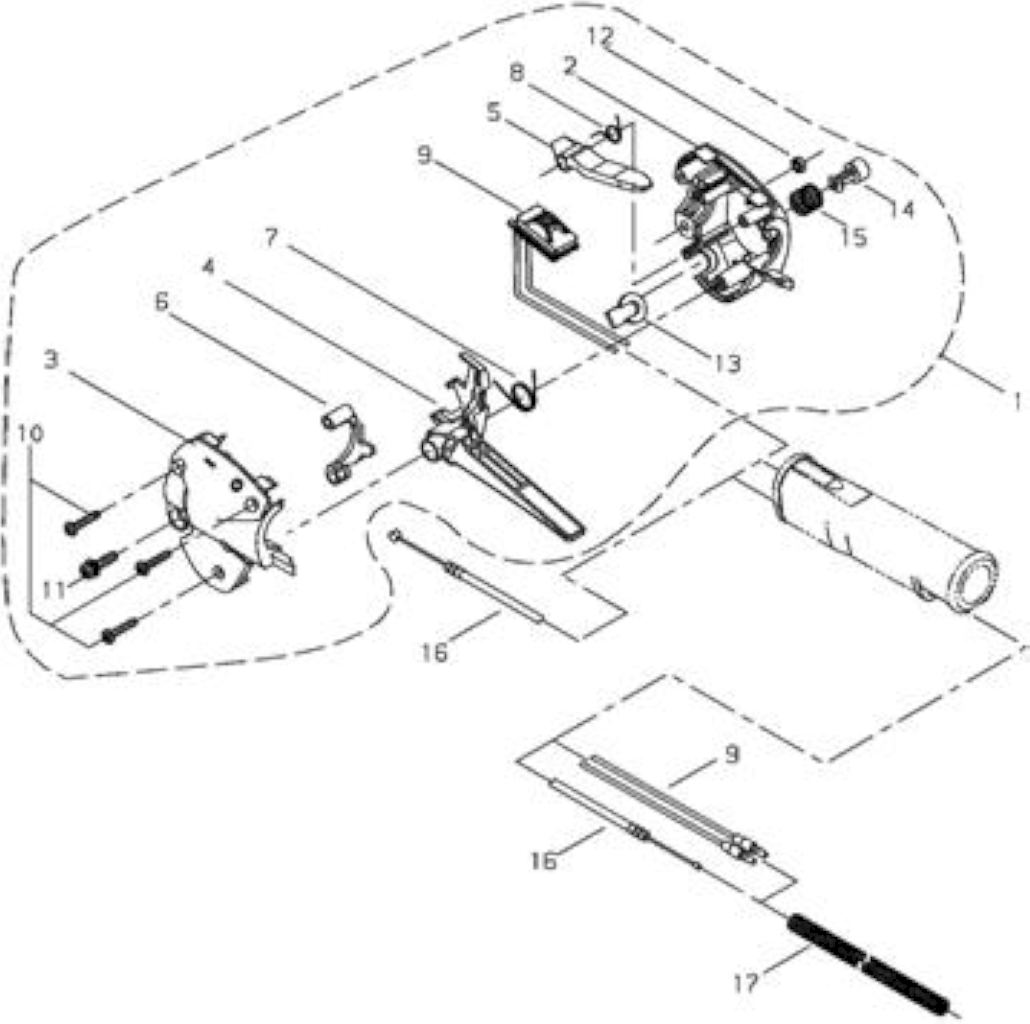

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6390462020

*VEDI ECRC044001100 *

1



2           SKR7254962320    CORPO IMPUGNATURA ACCEL.DX1

3

SKR6300262330

*VEDI ECRC401000150

*

1



4

SKR6300262340

*VEDI SKRC450000480

*

1



5

SKR6390162352

*VEDI SKRC460000190

*

1



6

SKR6300262350

*VEDI SKRC461000020

*

1



7

SKR6388065350

*VEDI ECRV452000700

*

1



8

SKR6390162370

*VEDI SKRV452000500

*

1



9

SKR6390162380

*VEDI ECRA440001570

*

1



10

ECR6388065360

*VEDI ECRV252000380

*

3



11

ECR1120605201

*VEDI ECR9157505020

*

1

M5X20

12

ECR0150105030

*VEDI ECR9201705000

*

1

M5

13

ECR6388065411

*VEDI ECRV162000350

*

1



14

SKR7087165170

*VEDI SKRC461000080

*

1



15

SKR7087165180

*VEDI SKRV450001010

*

1



16

SKR6390162173

*VEDI ECRV430003250

*

1



17

ECR6390162440

TUBE



1

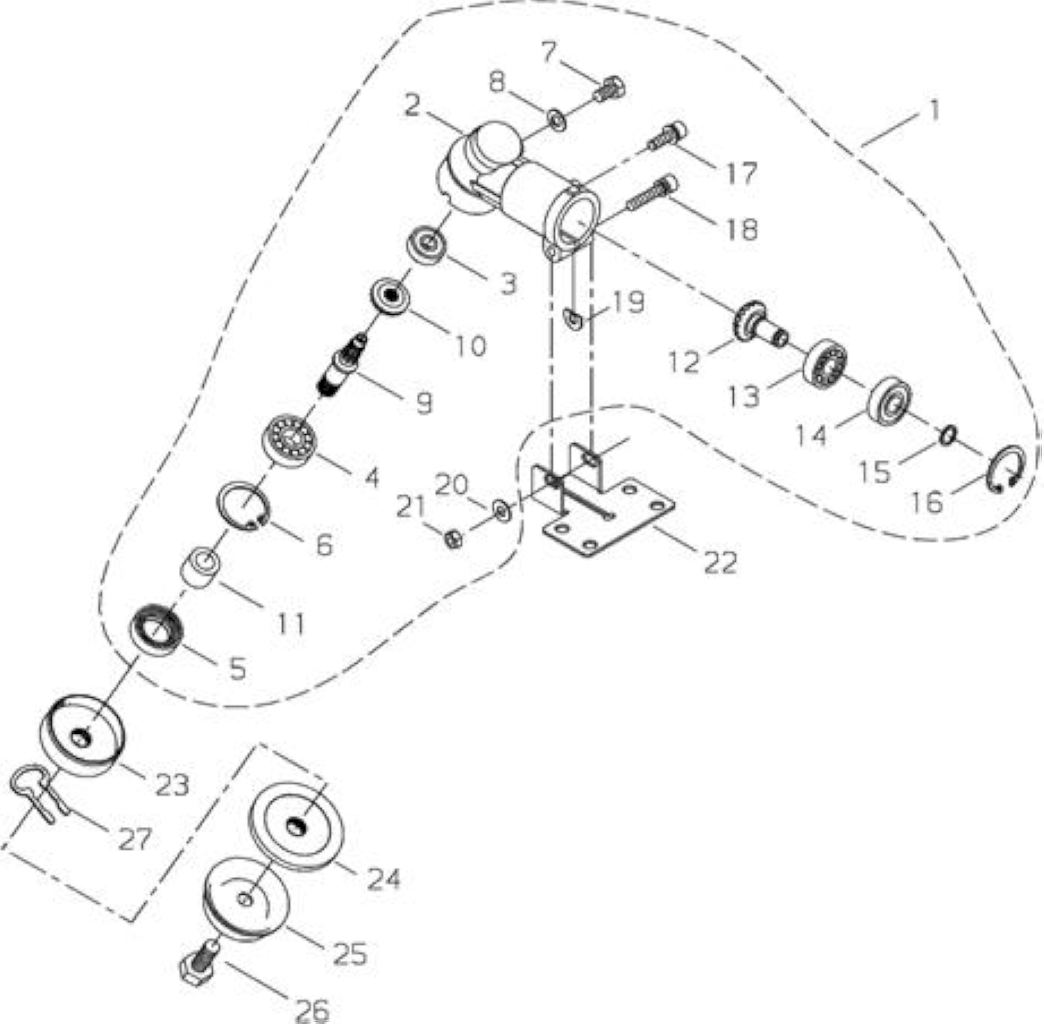

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6390163022

*VEDI SKRC051000680 *

1



2

SKR2203513113

*VEDI SKRC531000710 *

1



3

ECR90081200626

CUSCINETTO A SFERE 626DD

1

626DDU

4

ECR90080006000

CUSCINETTO BB6000

1

6000

5

SKR2203513140

*VEDI SKRV509000000 *

1



6

ECR0243226120

*VEDI ECR9242426000 *

1

26MM

7

ECR0101406100

*VEDI ECR9103006010 *

1

M6X10

8

SKR2200013410

GUARNIZIONE

1



9

SKR2241013210

*VEDI SKRC534000680 *

1



10

SKR2203513220

*VEDI SKRV651000690 *

1



11

SKR2203513230

*VEDI SKRV356000480 *

1



12

SKR2203513391

*VEDI SKRV651000700 *

1



13

ECR90080000608

CUSCINETTO BB608

1

608

14

ECR90080400608

CUSCINETTO BB608

1

608ZZ

15

SKR2203513340

*VEDI ECRV582000140 *

1



16

ECR0243222100

*VEDI ECR9242422000 *

1

22MM C

17

SKR1102205160

*VEDI SKRV203000590 *

1

M5X16

18

SKR1102205350

*VEDI ECRV203000600 *

1

M5X35

19

SKR2200013420

*VEDI SKR2003531460 *

1



20

ECR0161305080

*VEDI ECR90060300005 *

1

5MM

21

ECR0150005041

*VEDI ECR90050000005 *

1

M5

22

SKR7248016130

*VEDI SKRC551000150 *

1



23

SKR2203513242

*VEDI SKRC535000510 *

1



24

SKR6501163171

*VEDI ECRC535000681 *

1



25

SKR3701363311

PROTEZIONE BULLONE

1



26

SKR2203513271

*VEDI SKRV216000040 *

1



27

SKR2241013530

*VEDI ECRV490000530 *

1



















Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6090498310

*VEDI SKRP021027530 *

1



2

SKR6290164113

*VEDI ECRC400000630 *

1



3

SKR6501164120

*VEDI ECRC405000400 *

1



4

SKR1102205350

*VEDI ECRV203000600 *

4

M5X35

5

SKR2242016120

*VEDI SKRV263000130 *

4











Rif.

Articolo

Descrizione

Q.tà

Nota

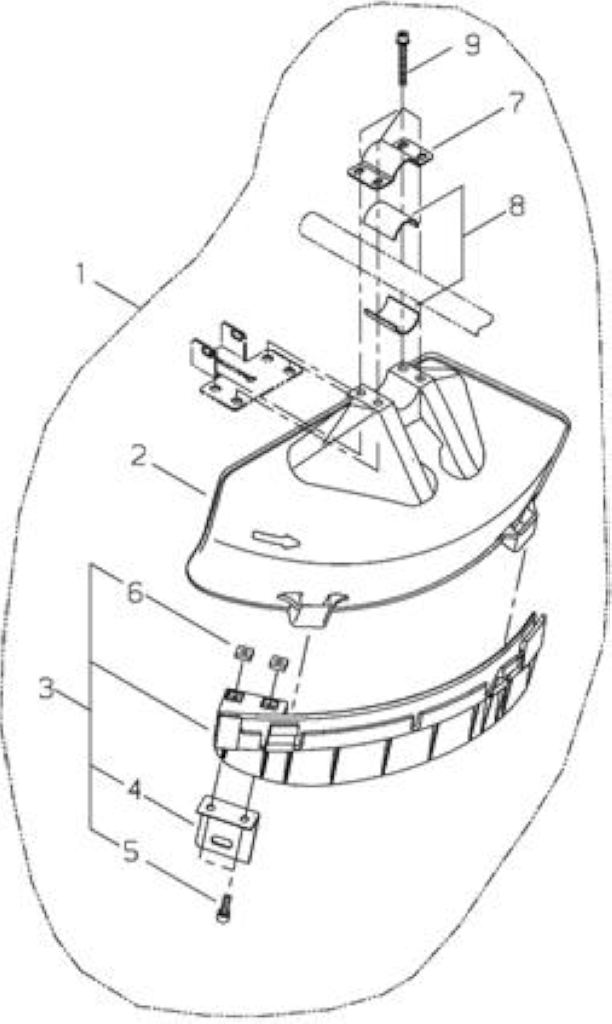

1

SKR6290366322

*VEDI SKRP021028440 * SBAT230/T230/T2500/T260 T.N.

1



2

SKR6290366111

*VEDI SKRC550000430 *

1



3

SKR6290366332

*VEDI SKRP021028450 *

1



4

SKR7248016121

*VEDI SKRC554000040 *

1



5

SKR1102005160

BULLONE

2

M5X16

6

SKR2242016120

*VEDI SKRV263000130 *

2



7

SKR7248016210

*VEDI SKRC551000060 *

1



8

SKR7248016220

SPESSORE

2



9

SKR1102205450

BULLONE

4

M5X45



















Rif.

Articolo

Descrizione

Q.tà Nota

1

SKR2242117202

*VEDI SKRC062000390 *

1

2

ECR2242117130

*VEDI ECRC649000200 *

1

3

SKR2200717220

PROTEZIONE CINGHIA

1
