Cilindro, Marmitta Carter, Campana frizione

Pistone, Albero motore, Frizione, Valvole Bobina

Avviamento Carburatore, Filtro aria Serbatoio

Asta, Comandi Coppia conica Impugnatura Para sassi

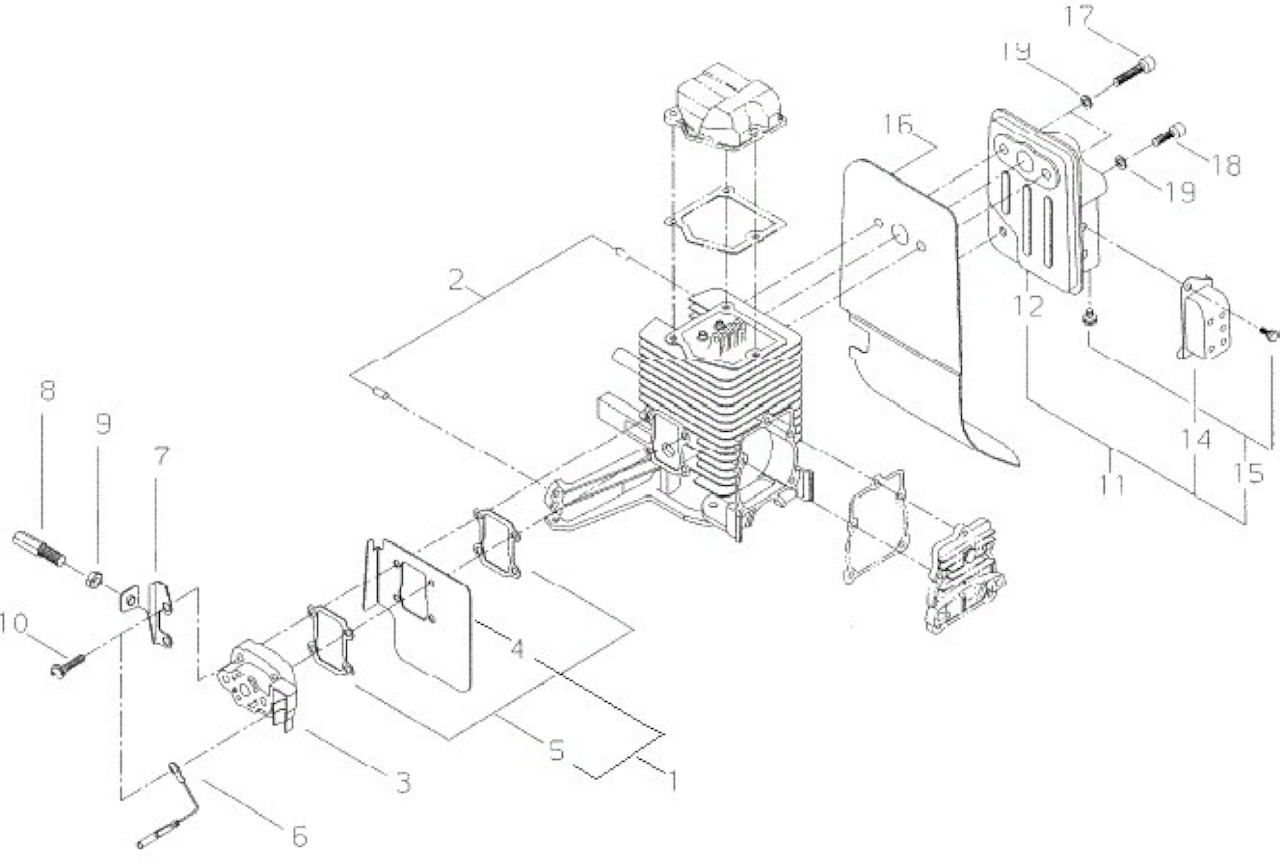

Rif.	Articolo	Descrizione	Q.tà Nota
2	SKR1249240080	*VEDI ECRV622000040 *	2
3	SKR6290212310	*VEDI SKRA024000050 *	1
1	SKR6290212320	*VEDI SKRA209000250 *	1
4	ECR6290112320	BAFFLE PLATE	1
5	SKR6290112220	*VEDI SKRV103001130 *	2
6	ECR1435001101	*VEDI ECRV485001260 *	1
7	SKR6290183310	SUPPORTO CAVO ACC.	1
8	SKR6290283310	*VEDI SKRC486000030 *	1
9	ECR0150106048	*VEDI ECR9201806000 *	1
10	ECR1120605220	SCREW PM SPW	4
11	SKR6290315010	*VEDI ECRA030000331 *	1
12	ECR6290215110	MUFFLER	1
14	ECR6290215160	EXHAUST OUTLET	1
15	ECR1120404060	SCREW,PM-SW	2
16	SKR6290115210	*VEDI ECRV104001430 *	1
17	ECR6290115310	*VEDI ECRV203001000 *	2
18	SKR102005160	*VEDI ECR90010505016 *	1
19	SKR161005080	RONDELLA D5	3

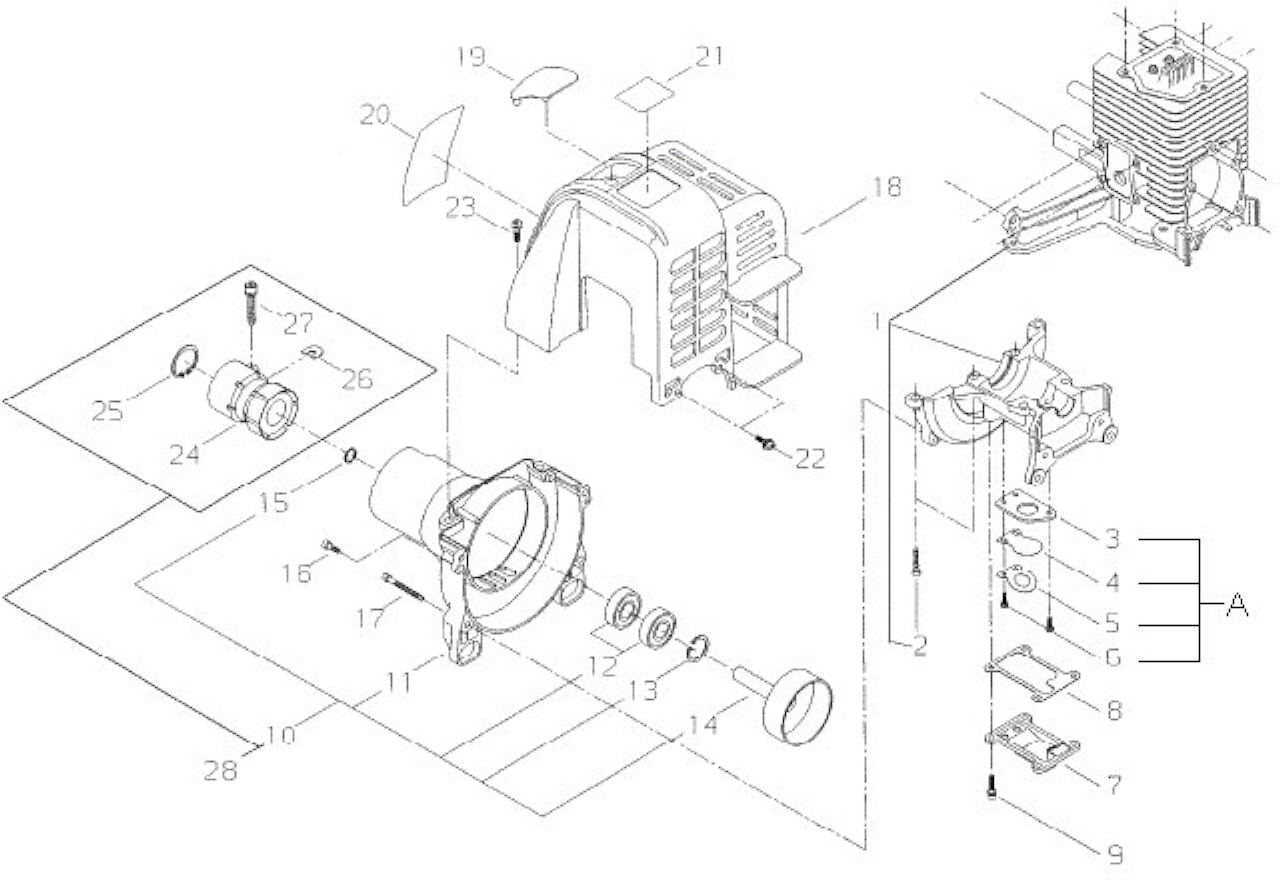

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6090298010	CILINDRO X T2500	1
2	SKR102005160	*VEDI ECR90010505016 *	6
A	ECR6290221310	REED VALVE SET	1
3	SKR6290121320	*VEDI ECRA200000750 *	1
4	SKR7232083121	*VEDI ECRA211000030 *	1
5	SKR7232083132	*VEDI ECRA212000040 *	1
6	ECR0121103100	SCREW-SW	3
7	SKR6290121120	*VEDI ECRA1230000000 *	1
8	SKR6290121130	*VEDI ECRV109000100 *	1
9	ECR1102204120	*VEDI ECRV202000340 *	4
28	SKR6090298020		1
10	ECR6290131011	*VEDI ECR6290131012 *	1
11	SKR6290131111	*VEDI SKR6290131112 *	1
12	SKR200206000	*VEDI SKR9404406000 *	2
13	SKR243226120	ANELLO ELASTICO	1
14	SKR2008731211	*VEDI SKR2008731210 *	1
15	SKR2200013320	*VEDI ECR90070600010 *	1
24	SKR2008731410	*VEDI SKR2008731411 *	1
25	SKR243240170	ANELLO ELASTICO	1
26	SKR2001831460	SPESSORE	1
27	SKR1102005220	BULLONE	1
16	SKR102005160	*VEDI ECR90010505016 *	2
17	SKR102005350	BULLONE	2
18	SKR6290132111	*VEDI SKRA160001861 *	1
19	SKR6290132311		1
20	SKR1942000071	ETICHETTA	1
21	ECR6290191030	LABEL TRADE	1
22	SKR1102404160	BULLONE	2
23	SKR1102404160	BULLONE	2

Rif.	Articolo	Descrizione	Q.tà	Nota

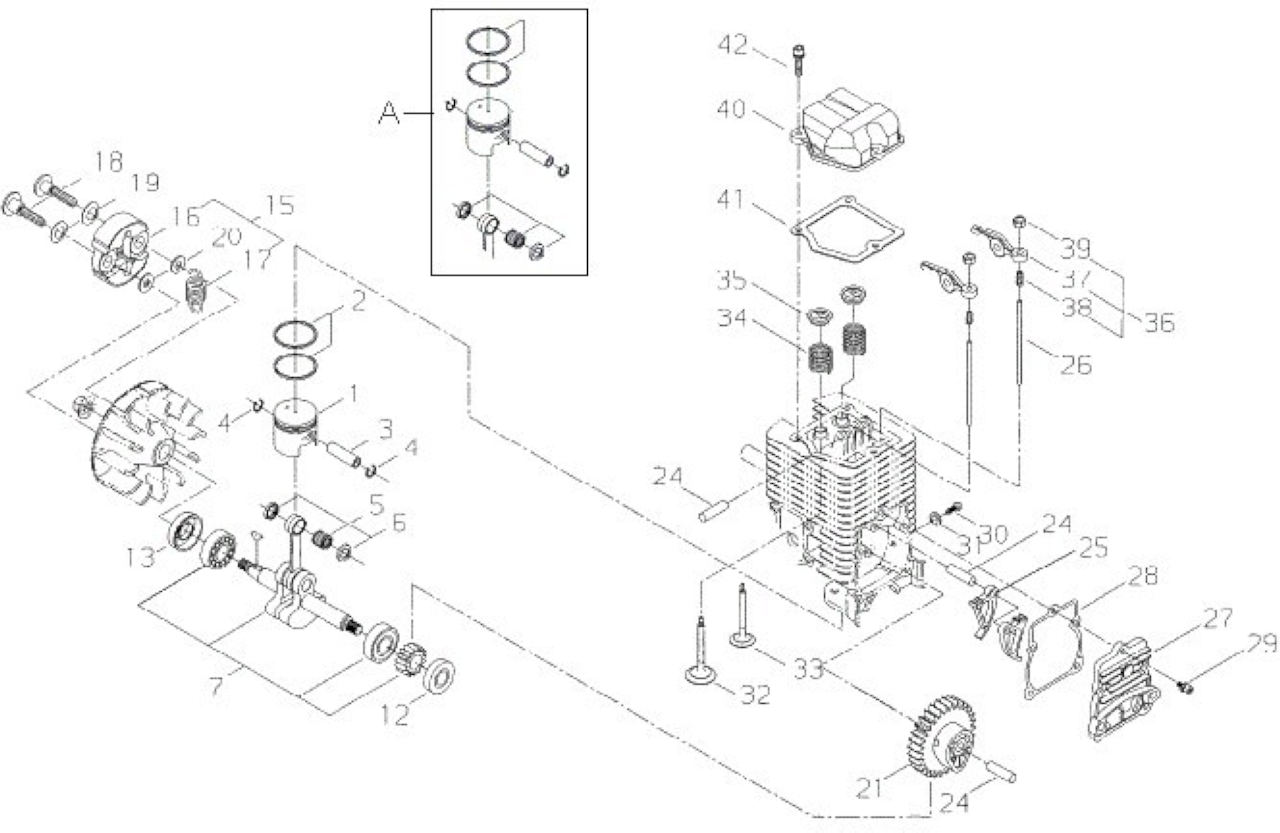

A	SKR6290241310	*VEDI SKRP021033930 *	1
1	ECR6290241110	PISTON	1
2	SKR6290241120	*VEDI ECRA101000390 *	2
3	SKR6290141210	*VEDI ECRV607000040 *	1
4	SKR2000041320	*VEDI SKRV580000090 *	2
5	SKR6290141230	*VEDI SKRV554000010 *	1
6	SKR3701941240	*VEDI SKRV392000020 *	2
7	SKR6290242020	ALBERO MOTORE COMPLETO	1
12	SKR6290142260	*VEDI SKRV505000110 *	1
13	SKR6290142270	*VEDI SKRV505000120 *	1
15	SKR6290151021	*VEDI SKRA056000530 *	1
16	SKR7014051113	*VEDI SKRA553000060 *	2
17	SKR7014051220	*VEDI SKRA566000050 *	1
18	SKR2008751210	*VEDI SKRA557000040 *	2
19	SKR2008751231	*VEDI SKRV346000040 *	2
20	SKR2210071430	*VEDI SKRV304000150 *	2
21	SKR6290243310	*VEDI SKRA622000000 *	1
24	SKR1249250290	*VEDI ECRV623000030 *	3
25	SKR6290143210	*VEDI SKR6290743210 *	2
26	SKR6290143220	ASTA BILANCIERE	2
27	SKR6290143330	*VEDI SKRA136000010 *	1
28	SKR6290143240	*VEDI SKRV109000110 *	1
29	SKR1102204140	BULLONE	5
30	ECR6290143310	*VEDI ECRV253000540 *	1
31	ECR1540110028	*VEDI ECRV303000120 *	1
32	SKR6290244110	*VEDI SKR6290244111 *	1
33	SKR6290244120	*VEDI SKR6290244121 *	1
34	SKR6290144130	*VEDI ECRA604000010 *	2
35	SKR6290144140	*VEDI SKR6290844140 *	2
36	SKR6290144010	*VEDI SKR6290144011 *	2
37	SKR6290144210	*VEDI ECRA610000060 *	2
38	SKR6290144220	VITE REGOLAZIONE	2
39	SKR6290144230		2
40	SKR6290144240	*VEDI SKR6290144241 *	1
41	SKR6290144250	*VEDI SKRV109000120 *	1
42	SKR1102204140	BULLONE	3

Rif.	Articolo	Descrizione	Q.tà Nota

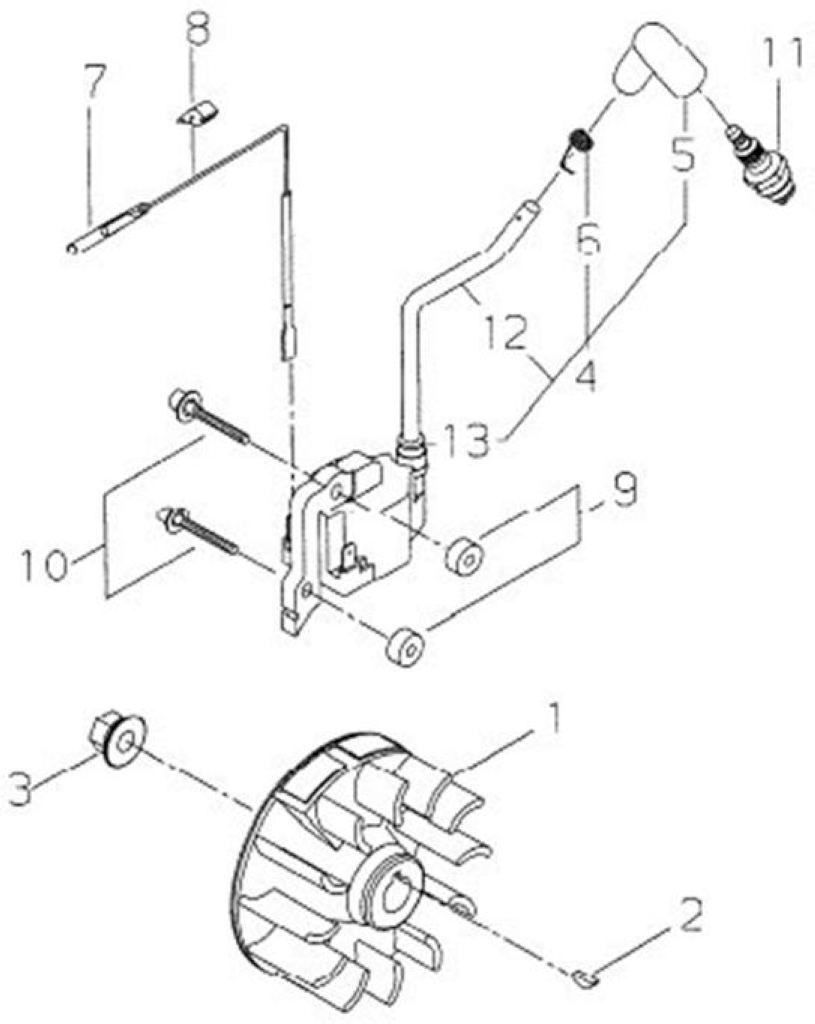

1	SKR2001671200	*VEDI SKRA409000730 *	1
2	SKR240303100	*VEDI ECR9311503010 *	1
3	SKR2003571220	*VEDI ECRV265000140 *	1
4	SKR6290271310	ACCENSIONE	1
5	SKR6290171250	VEDI ECRA427000050 *	1
6	SKR2215472230	*VEDI SKRA426000040 *	1
12	SKR6290171220		1
13	ECR2007771630	*VEDI ECRV494000270 *	1
8	SKR6290171310	GOMMINO	1
9	SKR7003071620	*VEDI SKRV322000040 *	2
10	ECR1102404261	*VEDI ECRV202000330 *	2

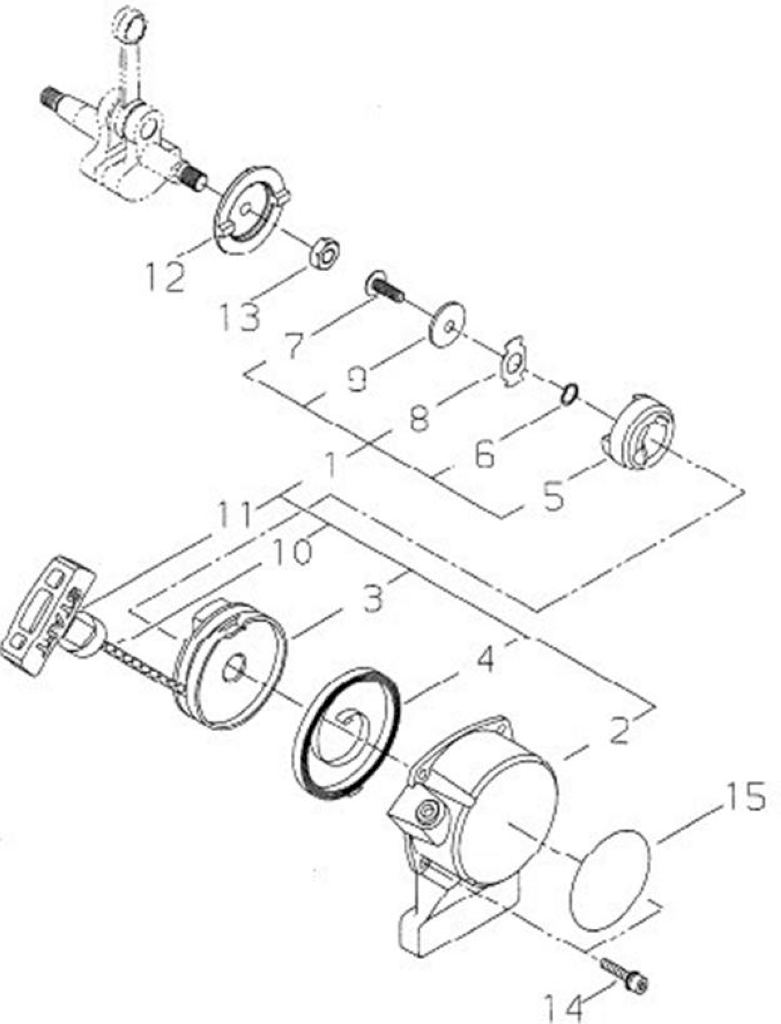

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6290175012	*VEDI SKRA051001490	* 1
2	SKR6290175111	*VEDI ECRA500000620	* 1
3	SKR6290175120	*VEDI SKRA506000130	* 1
4	SKR7006475130	*VEDI SKRA504000050	* 1
5	SKR6290175310	*VEDI SKRA518000020	* 1
6	SKR7006475150	*VEDI SKRV346000030	* 1
7	SKR7293375160	VITE	1
8	SKR7293375170	*VEDI SKRA606000000	* 1
9	SKR7293375180	*VEDI SKRV303000110	* 1
11	SKR3200475150	*VEDI ECRA511000090	* 1
12	SKR7006475310	*VEDI SKRA520000080	* 1
13	SKR151108051	DADO	1
14	SKR1102404160	BULLONE	2
15	SKR1942000070	*VEDI ECRX504003080	* 1

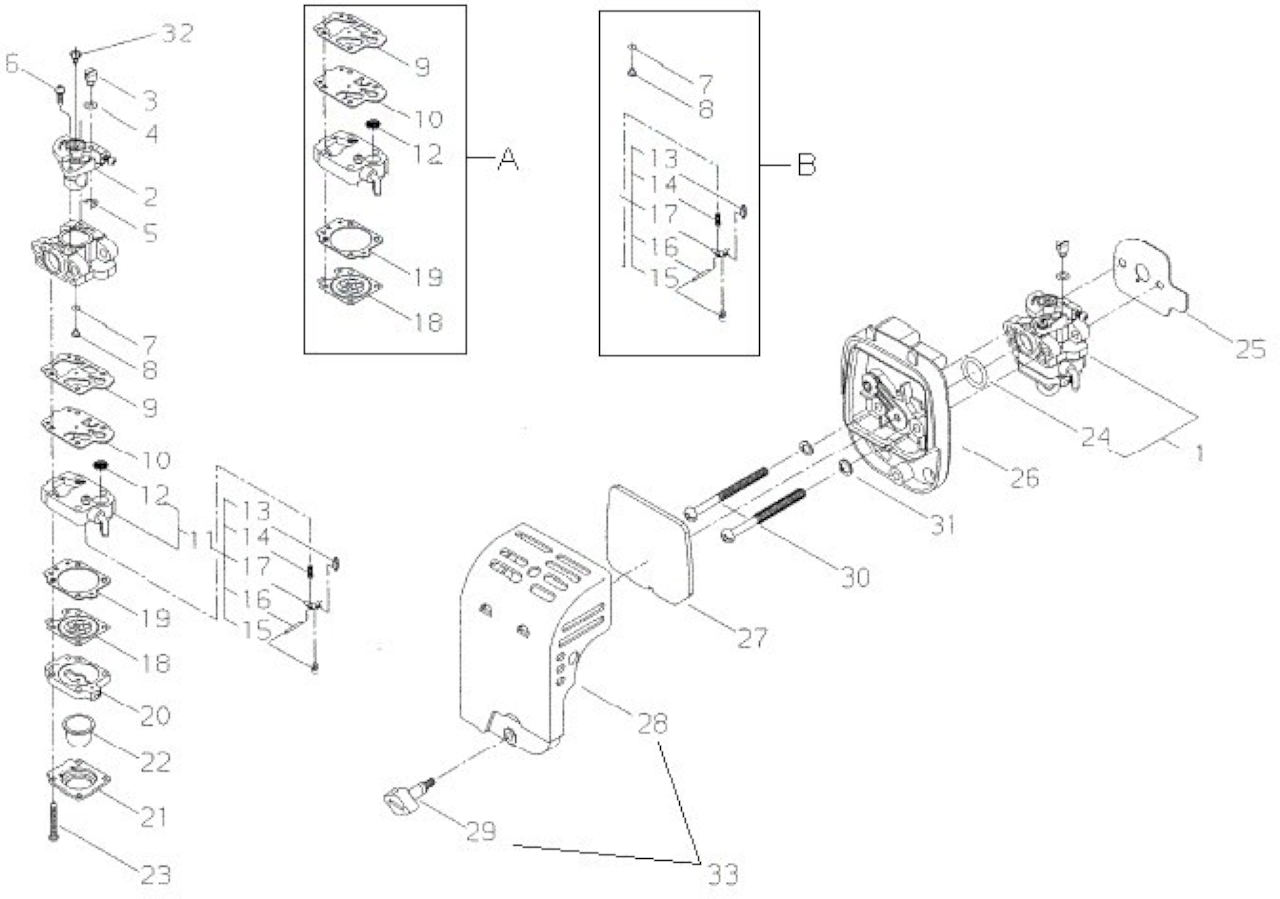

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6290381010	*VEDI ECRA021002440 *	1
2	SKR6290181320	VALVOLA ACCELERATORE	1
32	SKR2215481270	*VEDI ECR12314644330 *	1
3	SKR7293381450	NOTTOLINO	1
4	SKR2008981185	RONDELLA	1
5	SKR2003681195	ANELLO	1
6	SKR7006481290	VITE	1
7	SKR7009781220	*VEDI ECR12318340630 *	1
8	ECR6290181340	*VEDI ECR12318445030 *	1
9	SKR7009781310	*VEDI ECR12312540630 *	1
10	SKR7009781320	*VEDI ECR12311240630 *	1
11	SKR3701381350	CORPO POMPA COMPLETO	1
12	SKR7003081380	*VEDI ECR12312610631 *	1
13	SKR2003681440	*VEDI ECR12313719830 *	1
14	SKR7293381270	MOLLA	1
15	SKR2001681450	VITE	1
16	SKR2210081250	*VEDI ECR12313803930 *	1
17	SKR2210081230	BILANCIERE	1
18	SKR3701381310	*VEDI SKRP003000090 *	1
19	SKR2001681280	*VEDI ECR12314005560 *	1
20	SKR2001681420	*VEDI ECR12318005560 *	1
21	SKR2001681510	*VEDI ECR12314205560 *	1
22	SKR2003681670	*VEDI ECR12318140630 *	1
23	ECR2001681140	*VEDI ECR12311005560 *	4
24	SKR2001681250	*VEDI ECR90072000015 *	1
25	SKR6290181211	*VEDI SKRV103001140 *	1
26	SKR6290182011	SUPPORTO FILTRO ARIA	1
27	SKR6290282120	*VEDI SKRA226001470 *	1
33	ECR6290282030	*VEDI ECRP021037301 *	1
28	SKR6290182131	COPERCHIO FILTRO ARIA 1 POMELLO	1
29	SKR6290182330	*VEDI SKRV299000400 *	1
30	ECR1120305608	*VEDI ECR9157905060 *	2
31	ECR0161305080	*VEDI ECR90060300005 *	2
A	SKR6090298030	*VEDI SKRP050008580 *	1
B	SKR6090298040	KIT SPILLO C/BILANCIERE	1

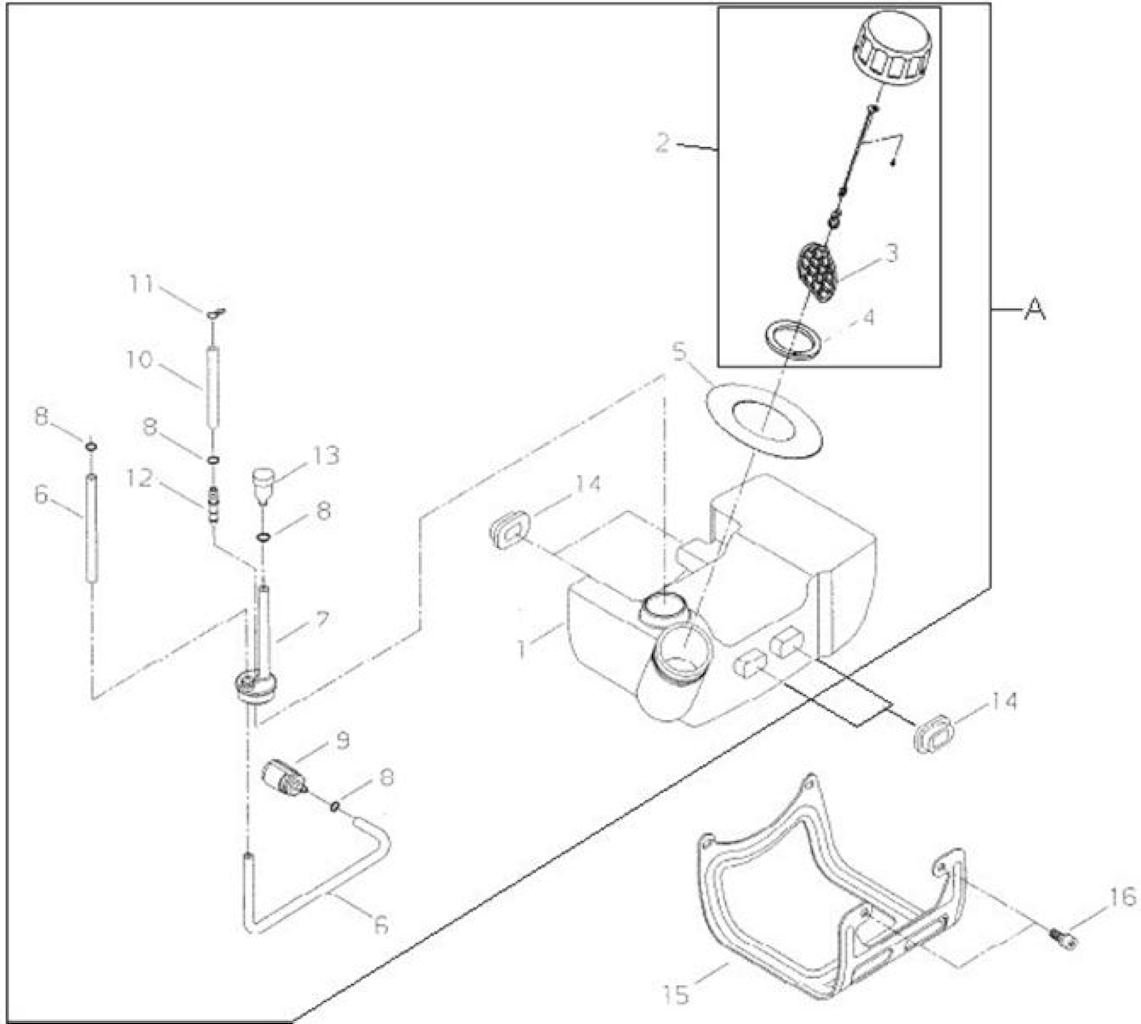

A	ECR6290385011	*VEDI ECRA038000300	*	1
1	SKR6290185110	*VEDI SKRA350001010	*	1
2	SKR7016885201	*VEDI SKRA033000010	*	1
3	SKR7016885210	TAPPO SERBATOIO		1
4	SKR2000085221	*VEDI SKRV107000010	*	1
5	SKR1950002000			1
6	SKR6290185310	*VEDI ECRV471002350	*	1
7	SKR2014485350	*VEDI ECRV470001050	*	1
8	SKR2002085540	*VEDI SKRV490000500	*	4
9	SKR2001685400	*VEDI SKRA369000070	*	1
10	ECR2011285360	PIPE		1
11	ECR3701385310	*VEDI ECRV490000510	*	1
12	SKR7293385620	*VEDI SKRV186000210	*	1
13	SKR2219733960	*VEDI SKRA356000050	*	1
14	SKR6290185220	*VEDI SKRV420002220	*	4
15	SKR7013586130	*VEDI SKR6290285320 *		1

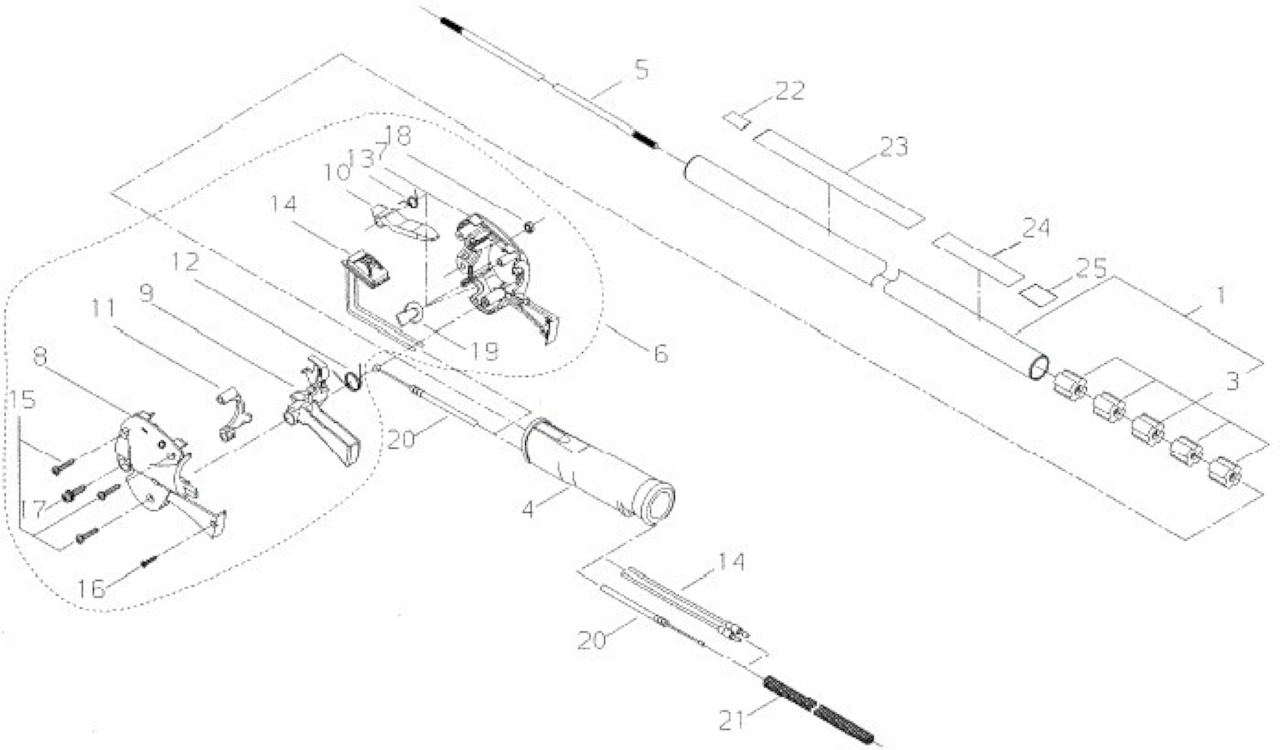

1	SKR6390162010	*VEDI ECRC050002100 *	1
3	SKR2203512120	*VEDI SKR2203512121 *	5
4	SKR6390162140	*VEDI ECRC412000261 *	1
5	SKR2207012410	*VEDI SKRC504000500 *	1
6	SKR6390162312	*VEDI SKR6390162313 *	1
7	SKR6390162321	CORPO IMPUGNATURA ACCEL.DX1
8	SKR6390162332	CORPO IMPUGNATURA ACCEL.SX 1
9	SKR6390162341	*VEDI ECRC450000490 * 1
10	SKR6390162351	*VEDI SKR6390162352 * 1
11	SKR6390162361	*VEDI SKRC461000030 * 1
12	SKR6388065350	*VEDI ECRV452000700 * 1
13	SKR6390162370	*VEDI SKRV452000500 * 1
14	SKR6390162380	*VEDI ECRA440001570 * 1
15	ECR6388065360	*VEDI ECRV252000380 * 3
16	ECR6390162390	SCREW TAPPING 1
17	ECR6390162410	SCREW SPW 1
18	ECR0150105030	*VEDI ECR9201705000 * 1
19	ECR6388065411	*VEDI ECRV162000350 * 1
20	SKR6390162173	*VEDI ECRV430003250 * 1
21	ECR6390162440	TUBE 1
22	ECR1940200236	LABEL CAUTION 1
23	ECR1942000072	LABEL TRADE 1
24	SKR1940200090	1
25	ECR1940400033	LABEL DECIBEL 1

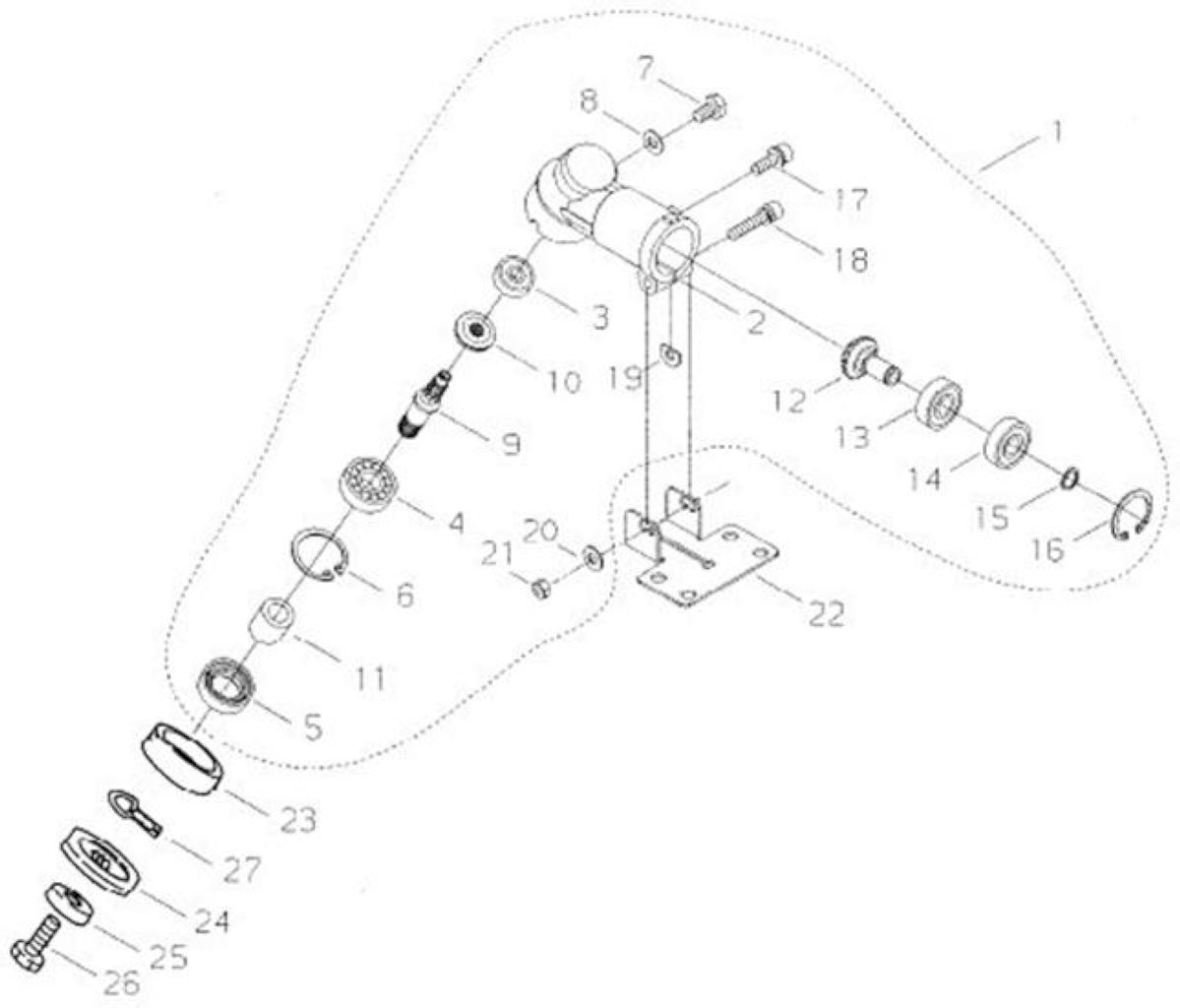

1	SKR6390163022	*VEDI SKRC051000680 *	1
2	SKR2203513113	*VEDI SKRC531000710 *	1
3	SKR200600626	*VEDI ECR90081200626 *	1
4	SKR200006000	*VEDI ECR90080006000 *	1
5	SKR2203513140	*VEDI SKRV509000000 *	1
6	SKR243226120	ANELLO ELASTICO	1
7	SKR101406100	BULLONE M6X10	1
8	SKR2200013410	GUARNIZIONE	1
9	SKR3701363130	*VEDI SKR2241013210 *	1
10	SKR2203513220	*VEDI SKRV651000690 *	1
11	SKR2203513230	*VEDI SKRV356000480 *	1
12	SKR2203513391	*VEDI SKRV651000700 *	1
13	SKR200000608	*VEDI ECR90080000608 *	1
14	SKR200200608	*VEDI ECR9080400608 *	1
15	SKR2203513340	*VEDI ECRV582000140 *	1
16	SKR243222100	ANELLO ELASTICO	1
17	SKR1102205160	*VEDI SKRV203000590 *	1
18	SKR1102305250	BULLONE	1
19	SKR2200013420	*VEDI SKR2003531460 *	1
20	ECR0161305080	*VEDI ECR90060300005 *	1
21	SKR150005041	DADO M5	1
22	SKR7248016130	*VEDI SKRC551000150 *	1
23	SKR2203513242	*VEDI SKRC535000510 *	1
24	SKR6501163171	*VEDI ECRC535000681 *	1
25	SKR3701363311	PROTEZIONE BULLONE	1
26	SKR2203513271	*VEDI SKRV216000040 *	1
27	SKR2241013530	*VEDI ECRV490000530 *	1

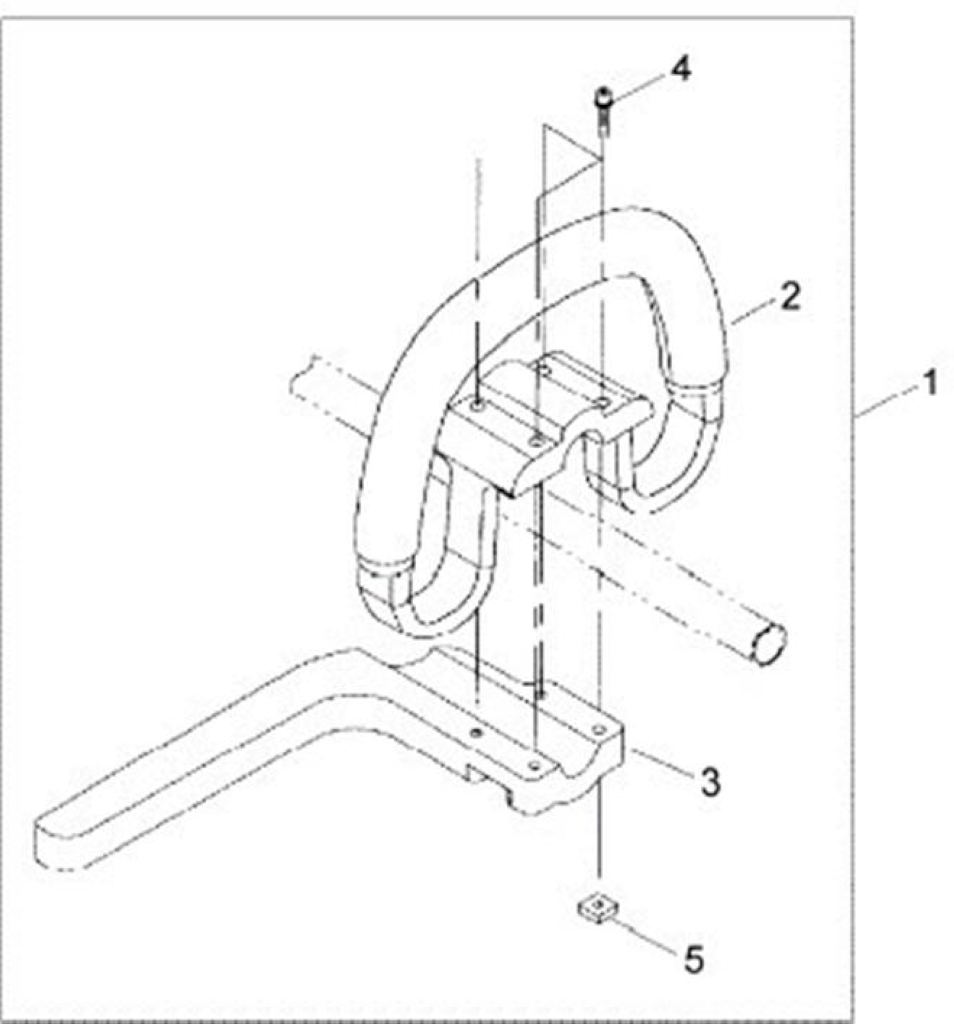

1	SKR6501164010	*VEDI SKR6090498310 *	1
2	SKR6290164112	*VEDI SKR6290164113 *	1
3	SKR6501164120	*VEDI ECRC405000400 *	1
4	SKR1102205350	*VEDI ECRV203000600 *	4
5	SKR2242016120	*VEDI SKRV263000130 *	4

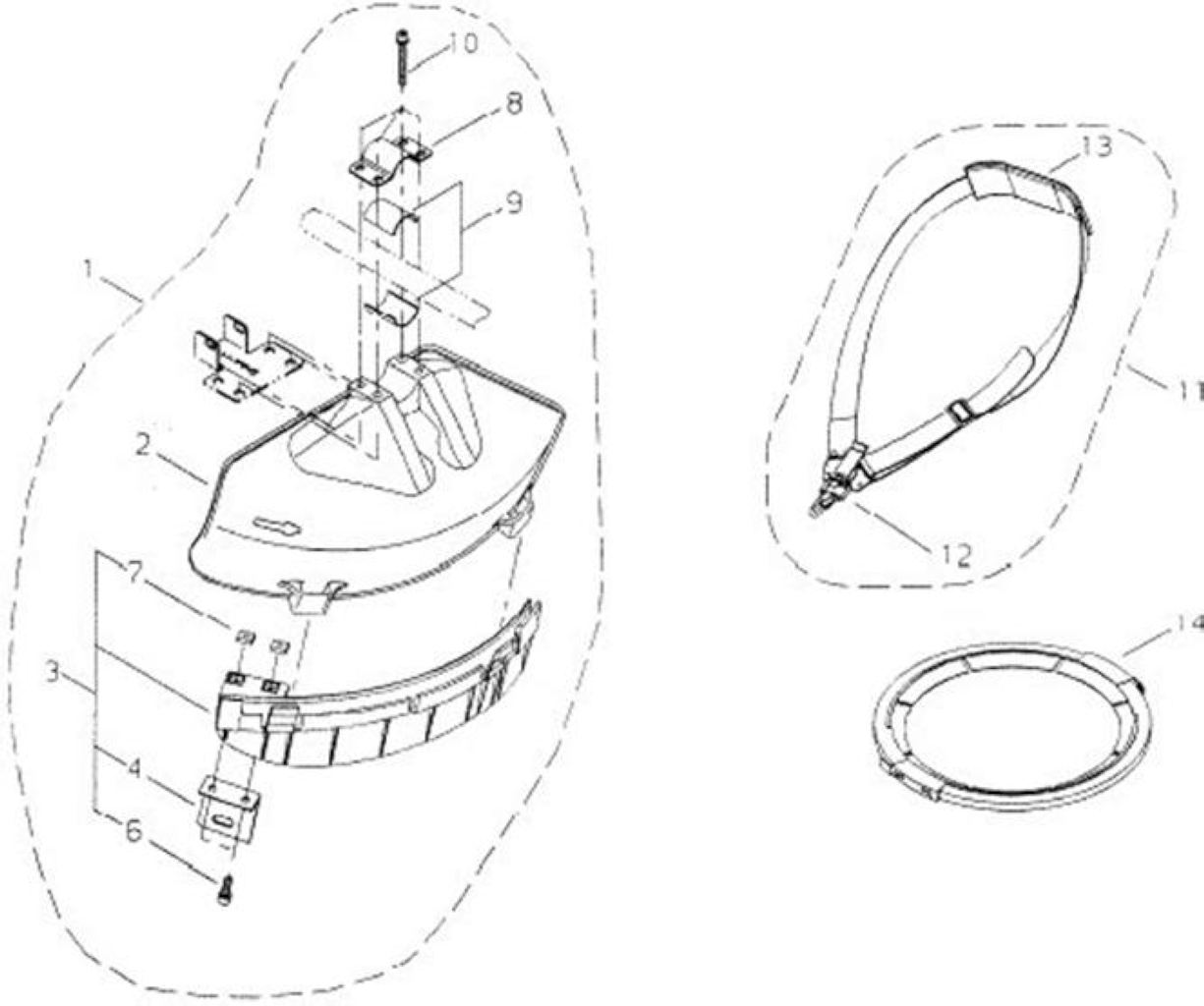

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6290366320		1
2	SKR6290366110	*VEDI SKR6290366111 *	1
3	SKR6290366330		1
4	SKR7248016121	*VEDI SKRC554000040 *	1
6	SKR1102005160	BULLONE	2
7	SKR2242016120	*VEDI SKRV263000130 *	2
8	SKR7248016210	*VEDI SKRC551000060 *	1
9	SKR7248016220	SPESSORE	1
10	SKR1102205450	BULLONE	4
11	SKR2242117202	*VEDI SKRC062000390 *	1
12	ECR2242117130	*VEDI ECRC649000200 *	1
13	SKR2200717220	PROTEZIONE CINGHIA	1
