Cilindro, Marmitta

Carter motore, Carter copri cilindro Pistone, Albero motore, Frizione Modulo accensione, Volano Avviamento

Carburatore, Filtro aria Serbatoio

Asta trasmissione, Tubolare, Acceleratore Coppia conica

Impugnatura Parasassi

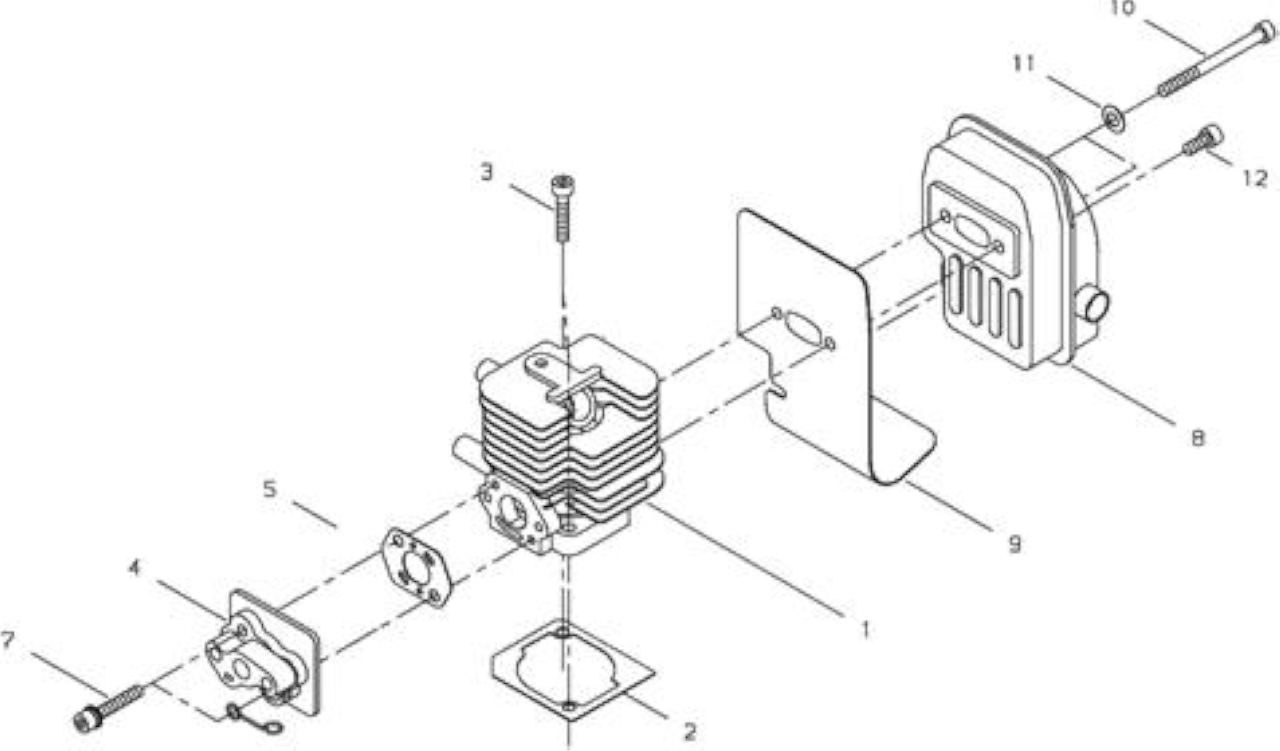

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6280912111	*VEDI SKRA130001380 *	1
2	SKR2001612120	*VEDI SKRV100000490 *	1
3	ECR90010505025	BULLONE BRUGOLA 5X25	2	M5*25
4	SKRA200000770	*VEDI ECRA200000771 *	1
5	SKR2001612222	*VEDI SKRV103001200 *	1
7	ECR1102205300	*VEDI ECRV203000580 *	2
8	SKR7013515110	*VEDI SKR2001815110 *	1
9	SKR2001615123	*VEDI SKRV104001500 *	1
10	ECR0102005500	*VEDI ECR90010505050 *	2	M5*50
11	ECR0161005080	*VEDI ECR90060000005 *	2	5MM T:0.8 MFZN3-C
12	ECR0102005120	*VEDI ECR90010505012 *	1	M5*12

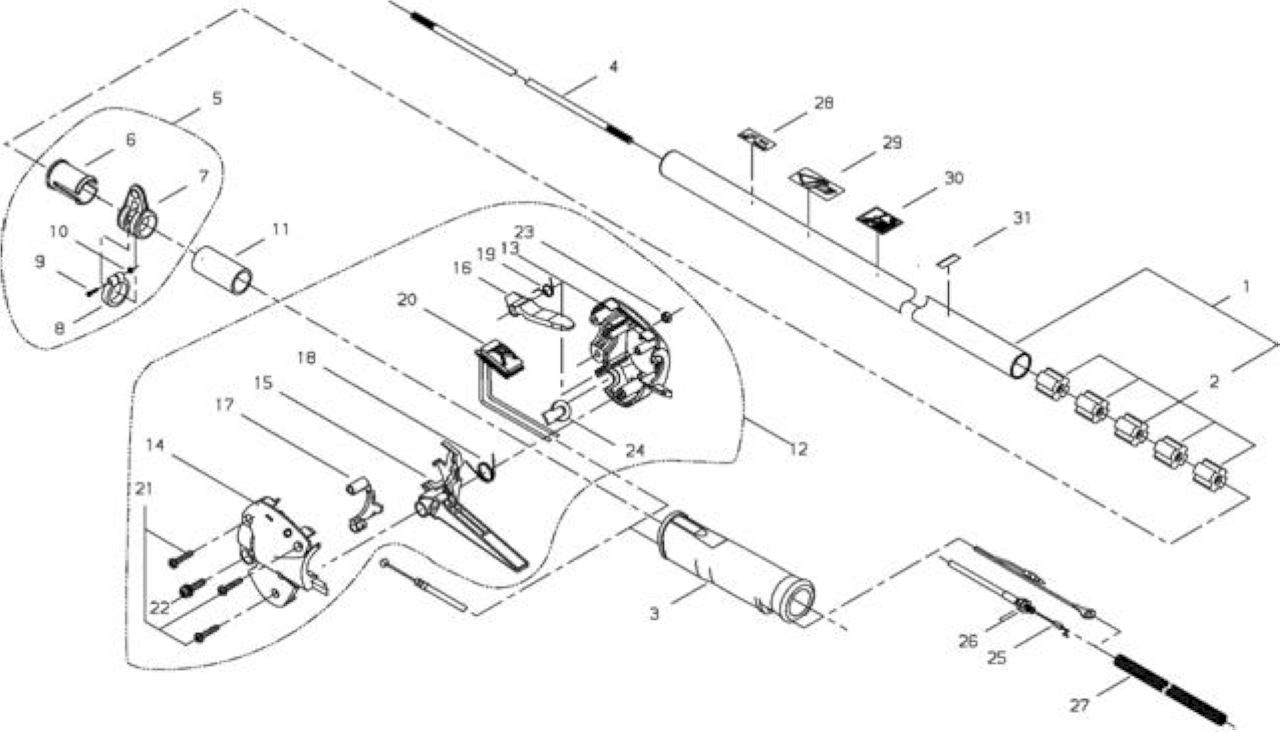

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR2001621100	*VEDI SKRP021017910 *	1
2	SKR2001621111	*VEDI ECRA120000480 *	1
3	SKR1290060010	*VEDI SKRV592000310 *	1	6001
4	SKR2215021250	*VEDI SKRV505000140 *	1
5	ECR2001621200	*VEDI ECRP021017920 *	1
6	SKR2001621120	*VEDI ECRA120000490 *	1
7	SKR1290060010	*VEDI SKRV592000310 *	1	6001
8	SKR2000021211	*VEDI SKRV505000080 *	1
9	SKR1249240080	*VEDI ECRV622000040 *	2
10	ECR90010505025	BULLONE BRUGOLA 5X25	3	M5X25
11	ECR6207831010	*VEDI ECRP021027960 *	1
12	SKR7014031112	*VEDI SKR7014031113 *	1
13	SKR2001631212	*VEDI SKRA556000650 *	1
14	SKR2000031140	*VEDI SKRV583000170 *	1
15	SKR1102205160	*VEDI SKRV203000590 *	2	M5X16
16	SKR1102205450	BULLONE	2	M5X45 SPW
17	ECR3702732100	*VEDI ECRP021025190 *	1
18	SKR7014032111	*VEDI SKRA160001840 *	1
19	SKR2001831251	*VEDI SKRV299000420 *	1
20	SKR2001831260	*VEDI SKRV353000430 *	1
21	SKR2001831270	*VEDI SKRV490000680 *	1
22	SKR2002481790	*VEDI SKRV347000030 *	1
23	SKR2001831411	*VEDI SKRA575000180 *	1
24	SKR2001831420	*VEDI ECRV420002640 *	1
25	SKR2001831430	*VEDI ECRV420002650 *	1
26	SKR1102305250	BULLONE	1	M5X25
28	SKR7013531470	*VEDI SKRA575000460 *	1
29	ECR7014031480	*VEDI ECRV203000450 *	4
30	ECR7019231510	EARTH CORD	1
31	SKR6211091320	ETICHETTA	1

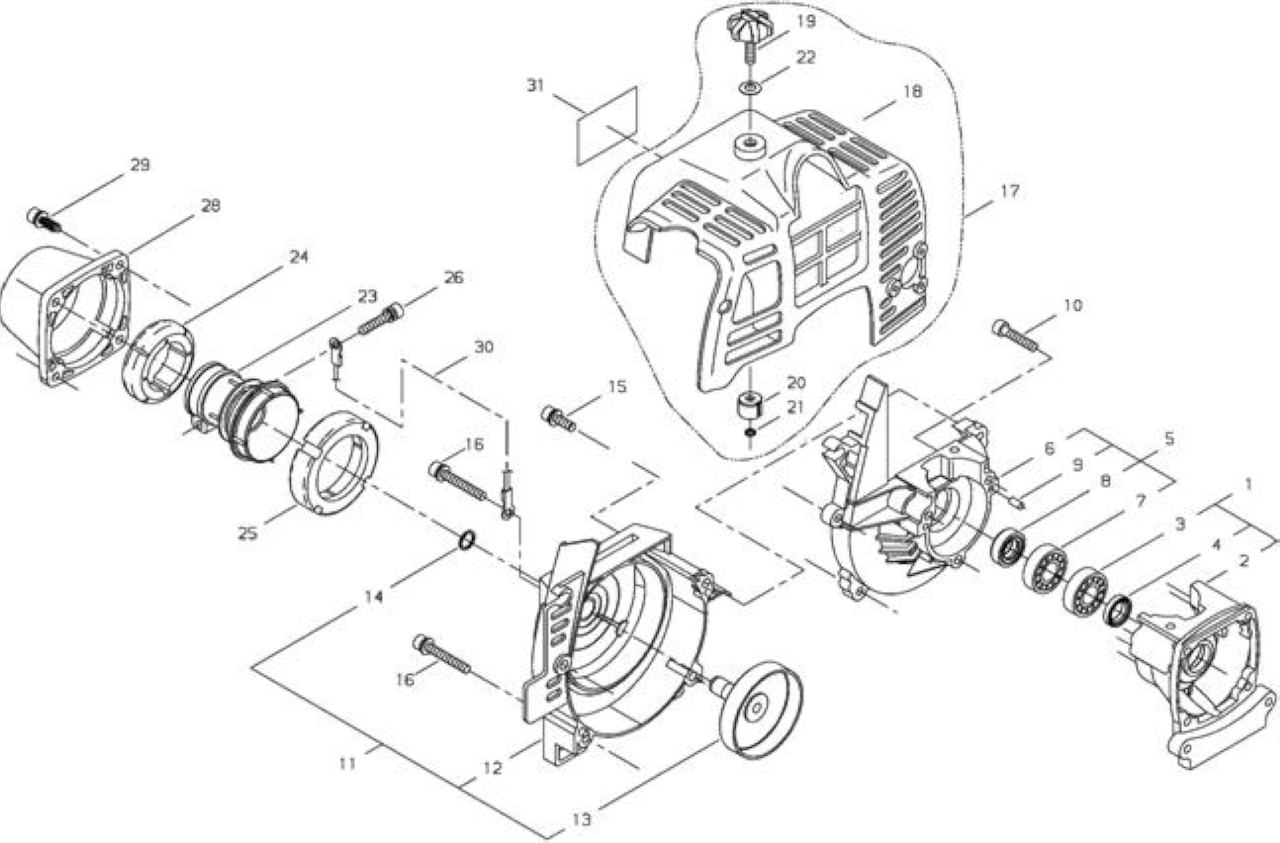

Rif.	Articolo	Descrizione	Q.tà Nota
15	SKR7023498011	*VEDI SKRP021030500 *	1
16	SKR7023498310	*VEDI SKRP021030530 *	1
1	SKR2007541111	*VEDI SKR7023498310 *	1
6	SKR3701341240	*VEDI SKRV306000250 *	2
2	SKR2000041210	*VEDI SKRA101000400 *	2
3	SKR2007541310	*VEDI SKRV606000060 *	1
4	SKR7003041320	*VEDI SKRV580000070 *	2
5	SKR3701341230	*VEDI SKRV553000080 *	1
14	SKR2001612120	*VEDI SKRV100000490 *	1
7	SKR2001642002	*VEDI SKRA011000930 *	1
8	SKR2008751101	*VEDI SKR7014051102 *	1
9	SKR2003551111	*VEDI SKR6700051011 *	2
10	SKR2003551221	*VEDI SKRA566000060 *	1
11	SKR2008751210	*VEDI SKRA557000040 *	2
12	SKR2008751231	*VEDI SKRV346000040 *	2
13	SKR2210071430	*VEDI SKRV304000150 *	2

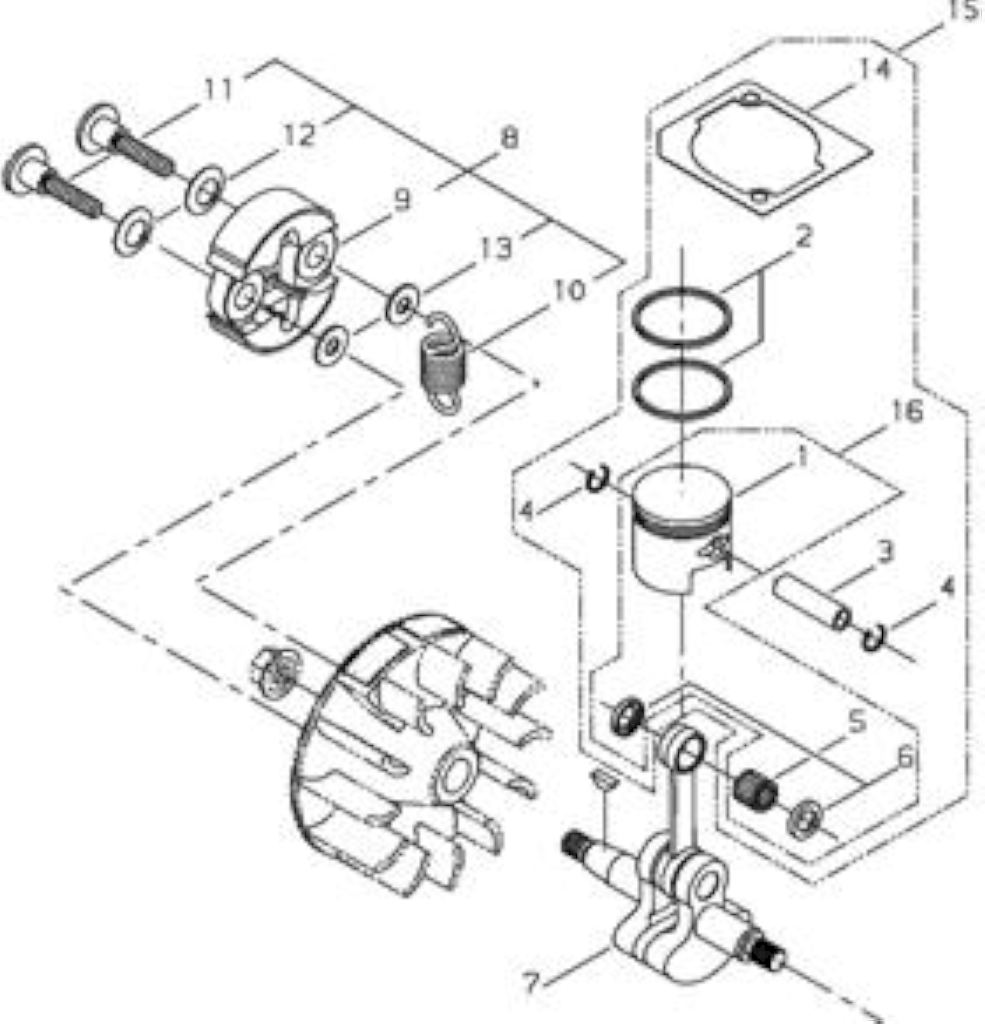

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR2001671200	*VEDI SKRA409000730	* 1
2	ECR9311503010	CHIAVELLA	1
3	SKR2003571220	*VEDI ECRV265000140	* 1
4	SKR2001671601	*VEDI SKRA411000880	* 1
5	ECR2001671641	CORD	1
6	SKR7022372200	*VEDI ECRA427000070	* 1
7	SKR2001072221	*VEDI SKRA427000090	* 1
8	SKR2000072241	*VEDI SKRA429000110	* 1
9	SKR2000072250	*VEDI SKRV495001440	* 1
10	SKR7018072260	*VEDI SKRV151000050	* 1
11	SKR2000072230	*VEDI SKRA426000050	* 1
12	ECR2001671651	*VEDI ECRV475005140	* 1	L50
13	SKR2001072110	*VEDI ECRV135000100	* 1
14	ECR2001671660	*VEDI ECRV475004840	* 1	L125
15	SKR7003071620	*VEDI SKRV322000040	* 2
16	ECR1102404261	*VEDI ECRV202000330	* 2	M4×26

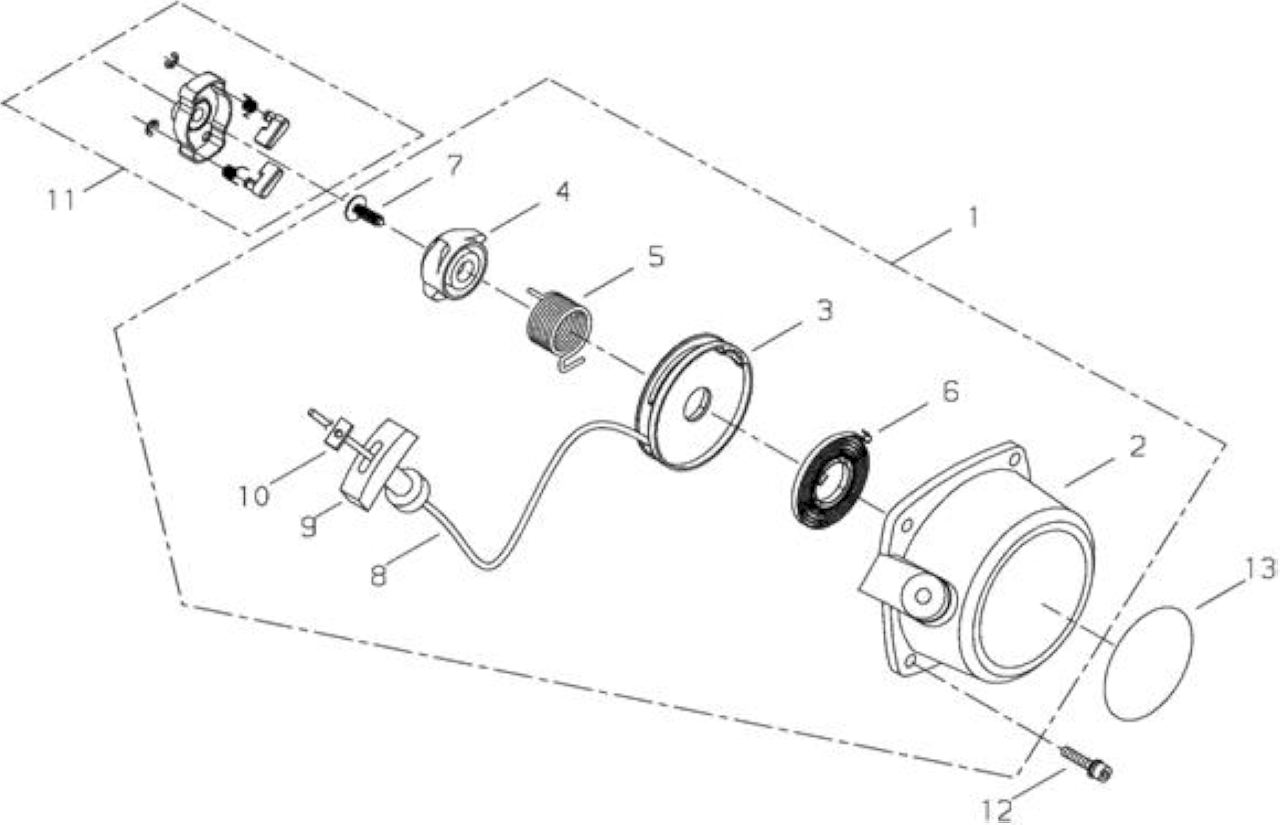

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR3707675010	*VEDI SKRA051001570 *	1
2	SKR3707675110	*VEDI ECRA500000690 *	1
3	SKR3707675120	*VEDI ECRP022006830 *	1
4	SKR3707675310	*VEDI SKRP022008280 *	1
5	SKR3707675320	*VEDI SKRV452000460 *	1
6	SKR7003075130	*VEDI SKRA504000100 *	1
7	SKR3701375310	*VEDI ECRV253000310 *	1
9	SKR2001075190	*VEDI ECR17722827030 *	1
10	SKR2001075210	FERMO IMPUGNATURA AVV.TO	1
11	SKR6211075020	*VEDI SKRA052000320 *	1
12	ECR1106004122	*VEDI ECRV202000380 *	4	M4X12
13	ECR7011775311	NAME PLATE	1

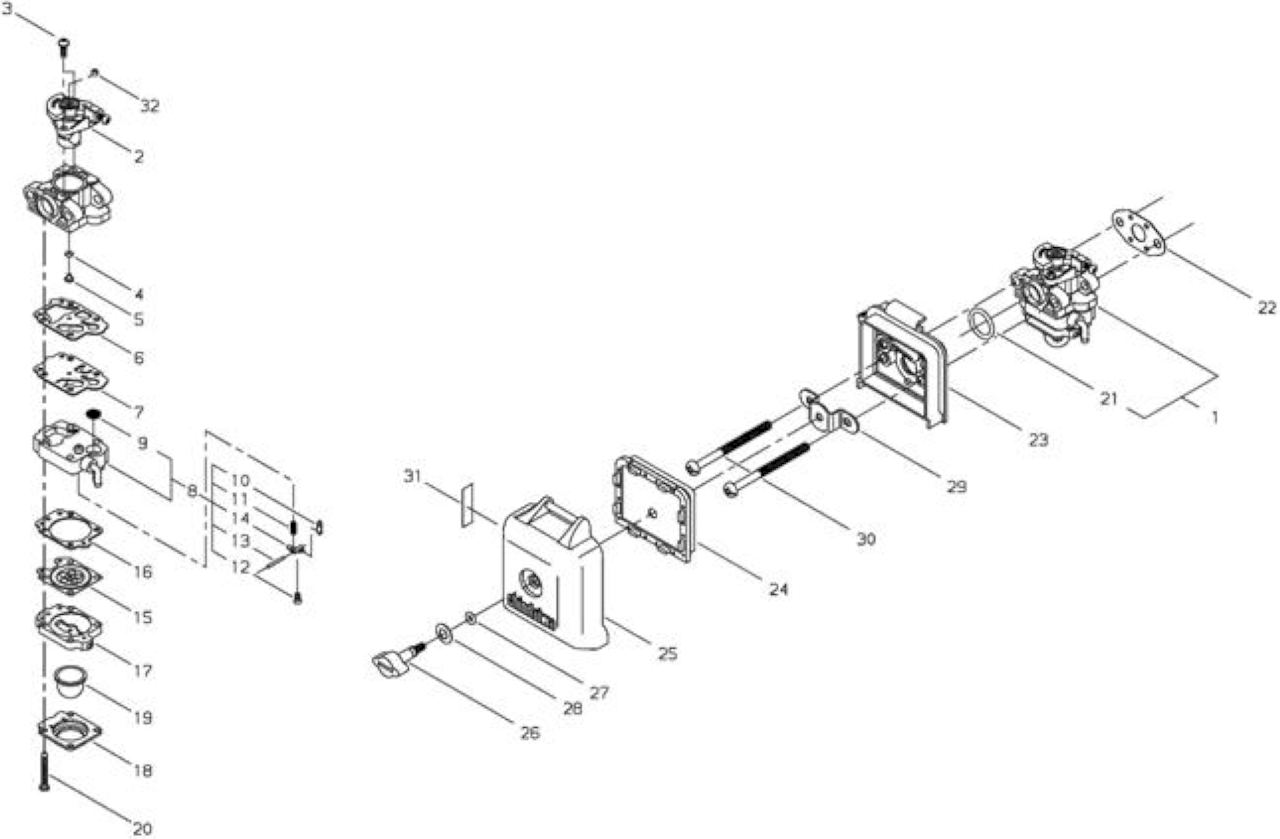

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6206481011	*VEDI SKRA021002140 *	1
2	SKR2001681180	*VEDI ECR12311605160 *	1
32	SKR6207481320	TAPPO	1
3	SKR7006481290	VITE	2
4	SKR7009781220	*VEDI ECR12318340630 *	1
5	SKR6206481310	*VEDI ECRP003000860 *	1
6	SKR7009781310	*VEDI ECR12312540630 *	1
7	SKR7009781320	*VEDI ECR12311240630 *	1
8	SKR2001681410	*VEDI ECRP003000440 *	1
9	SKR7003081380	*VEDI ECR12312610631 *	1
10	SKR2003681440	*VEDI ECR12313719830 *	1
11	SKR2001681270	*VEDI ECRP003000450 *	1
12	SKR2001681450	VITE	1
13	SKR2210081250	*VEDI ECR12313803930 *	1
14	SKR2210081230	BILANCIERE	1
15	SKR3701381310	*VEDI SKRP003000090 *	1
16	SKR2001681280	*VEDI ECR12314005560 *	1
17	SKR2001681420	*VEDI ECR12318005560 *	1
18	SKR2001681510	*VEDI ECR12314205560 *	1
19	SKR2003681670	*VEDI ECR12318140630 *	1
20	ECR2001681140	*VEDI ECR12311005560 *	4
21	SKR2001681250	*VEDI ECR90072000015 *	1
22	SKR2001681530	*VEDI SKRV103001210 *	1
23	SKR7014081710	*VEDI SKRA023000230 *	1
24	SKR6002398031	*VEDI SKRA226000600 *	1
25	SKR7014081760	*VEDI SKRA232000940 *	1
26	SKR2011581780	*VEDI SKRV299000430 *	1
27	SKR2210082430	*VEDI SKRV581000200 *	1
28	SKR2002481790	*VEDI SKRV347000030 *	1
29	SKR2001881721	*VEDI SKRA244000190 *	1
30	ECR1120305608	*VEDI ECR9157905060 *	2	M5×60
31	SKR1940400008	*VEDI ECRX506000130 *	1

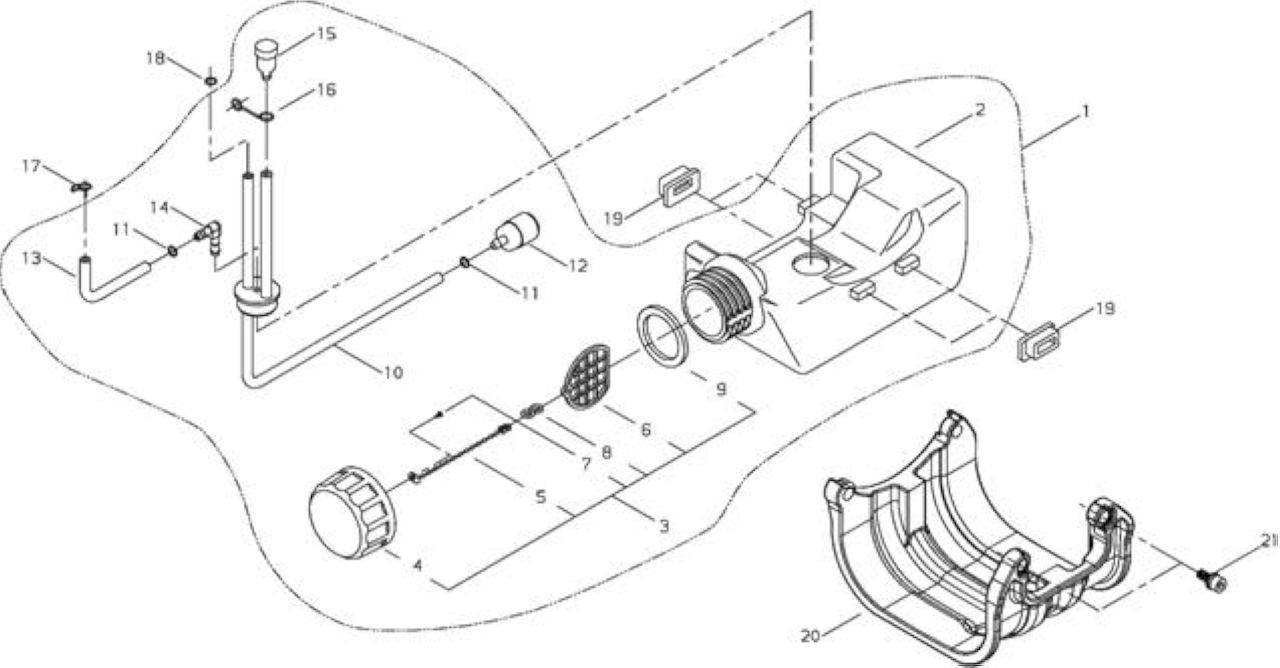

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7019285001	*VEDI SKRP021030440 *	1
2	SKR2001685112	*VEDI SKRA350001530 *	1
3	SKR7016885201	*VEDI SKRA033000010 *	1
4	SKR7016885210	TAPPO SERBATOIO	1
5	SKR2212857250		1
6	SKR2215521330		1
7	ECR0127025064	*VEDI ECR9148302506 *	1
8	SKR2215021350		1
9	SKR2000085221	*VEDI SKRV107000010 *	1
10	SKR2001685310	*VEDI SKRV470001210 *	1
11	SKR2002085540	*VEDI SKRV490000500 *	2
12	SKR2001685400	*VEDI SKRA369000070 *	1
13	SKR2008983311	*VEDI SKRV471002790 *	1
14	SKR2008785340	*VEDI SKRV186000270 *	1
15	SKR2003585522	*VEDI SKRA356000040 *	1
16	SKR2001612310	*VEDI SKRA358000040 *	1
17	ECR3701385310	*VEDI ECRV490000510 *	1
18	SKR2002085540	*VEDI SKRV490000500 *	1
19	SKR2002486120	*VEDI SKRV420002630 *	4
20	SKR6290285320	*VEDI SKRA175000220 *	1
21	SKR1102205160	*VEDI SKRV203000590 *	2	M5X16

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7243212100	*VEDI SKR6301098310 *	1
2	SKR2203512121	*VEDI SKRC501000010 *	5
3	ECR6390162142	*VEDI ECRC412000260 *	1
4	SKR2207012410	*VEDI SKRC504000500 *	1
5	SKR3300862340	*VEDI ECRC063000000 *	1
6	SKR3300862321	*VEDI ECRV363000110 *	1
7	SKR3300862151	AGGANCIO CINGHIA	1
8	SKR3300862311	*VEDI ECRV495001330 *	1
9	ECR1120304160	*VEDI ECR9157804016 *	1	M4*16
10	ECR0150004031	*VEDI ECR90050000004 *	1	M4 MFZN3-C
11	SKR6500662310	*VEDI ECRV363000120 *	1
12	SKR6307662021	*VEDI SKRC044000350 *	1
13	SKR6300262320	*VEDI ECRC401000140 *	1
14	SKR6300262330	*VEDI ECRC401000150 *	1
15	SKR6300262340	*VEDI SKRC450000480 *	1
16	SKR6390162352	*VEDI SKRC460000190 *	1
17	SKR6300262350	*VEDI SKRC461000020 *	1
18	SKR6388065350	*VEDI ECRV452000700 *	1
19	SKR6390162370	*VEDI SKRV452000500 *	1
20	SKR6307662310	* VEDI ECRA440001390 *	1
21	ECR6388065360	*VEDI ECRV252000380 *	3
22	ECR1120605201	*VEDI ECR9157505020 *	1	M5*20
23	ECR0150105030	*VEDI ECR9201705000 *	1
24	ECR6388065411	*VEDI ECRV162000350 *	1
25	SKR6300262170	*VEDI SKRV430002620 *	1
26	SKR0150106041		2	M6 MFZN3-C
27	SKR2242214540		1
28	SKR1940200223		1	MAX 8500MIN-1
29	SKR1942200010		1
30	SKR1940400036		1	111DB(A)
31	SKR7201712150		1

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6390163022	*VEDI SKRC051000680 *	1
2	SKR2203513113	*VEDI SKRC531000710 *	1
3	ECR90081200626	CUSCINETTO A SFERE 626DD	1	626DDU
4	ECR90080006000	CUSCINETTO BB6000	1	6000
5	SKR2203513140	*VEDI SKRV509000000 *	1
6	ECR0243226120	*VEDI ECR9242426000 *	1	F26
7	ECR0101406100	*VEDI ECR9103006010 *	1
8	SKR2200013410	GUARNIZIONE	1
9	SKR2241013210	*VEDI SKRC534000680 *	1
10	SKR2203513220	*VEDI SKRV651000690 *	1
11	SKR2203513230	*VEDI SKRV356000480 *	1
12	SKR2203513391	*VEDI SKRV651000700 *	1
13	ECR90080000608	CUSCINETTO BB608	1	608
14	ECR90080400608	CUSCINETTO BB608	1	608ZZ
15	SKR2203513340	*VEDI ECRV582000140 *	1
16	ECR0243222100	*VEDI ECR9242422000 *	1	F22
17	SKR1102205160	*VEDI SKRV203000590 *	1	M5×16
18	SKR1102205350	*VEDI ECRV203000600 *	1	M5×35
19	SKR2200013420	*VEDI SKR2003531460 *	1
20	ECR0161305080	*VEDI ECR90060300005 *	1
21	ECR0150005041	*VEDI ECR90050000005 *	1
22	SKR7248016130	*VEDI SKRC551000150 *	1
23	SKR2203513242	*VEDI SKRC535000510 *	1
24	SKR2241013251	*VEDI SKRC535000520 *	1
25	SKR2203513290	*VEDI SKRC535000530 *	1
26	SKR2203513271	*VEDI SKRV216000040 *	1
27	SKR2241013530	*VEDI ECRV490000530 *	1

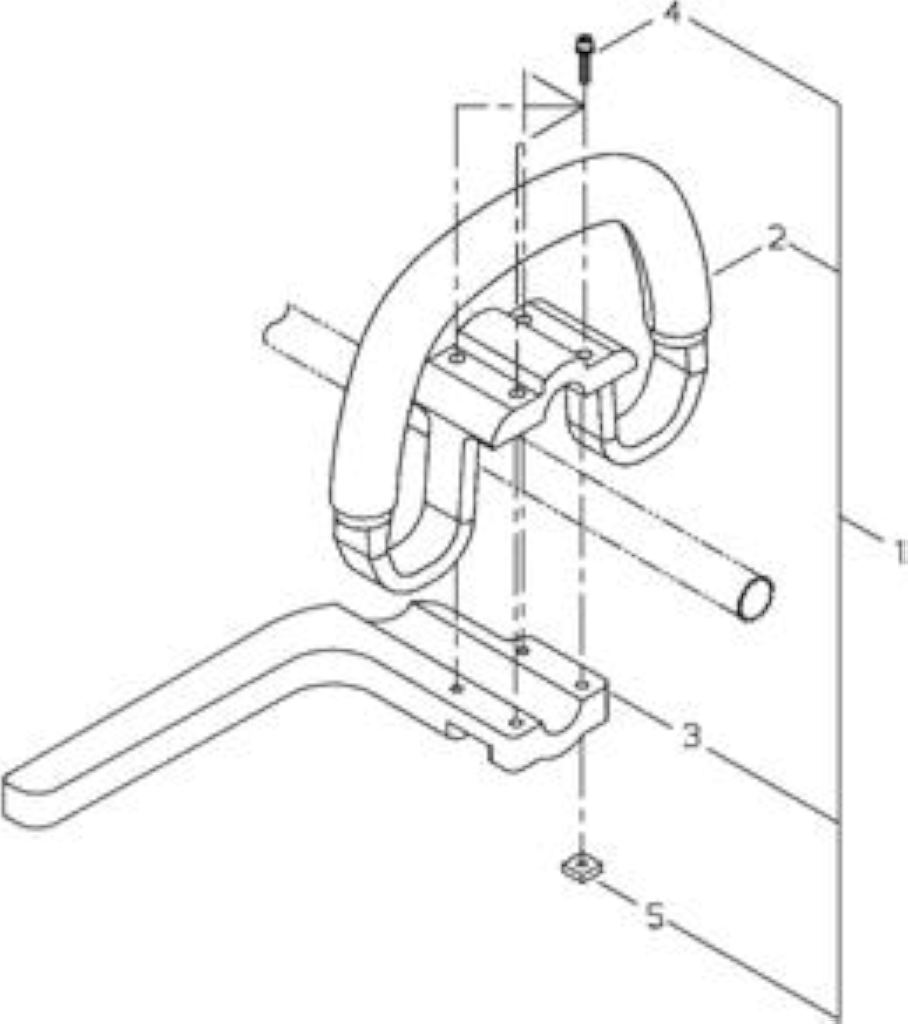

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6501164010	*VEDI SKR6090498310 *	1
2	SKR6290164112	*VEDI SKR6290164113 *	1
3	SKR6501164120	*VEDI ECRC405000400 *	1
4	SKR1102205350	*VEDI ECRV203000600 *	4	M5*35 SPW
5	SKR2242016120	*VEDI SKRV263000130 *	4

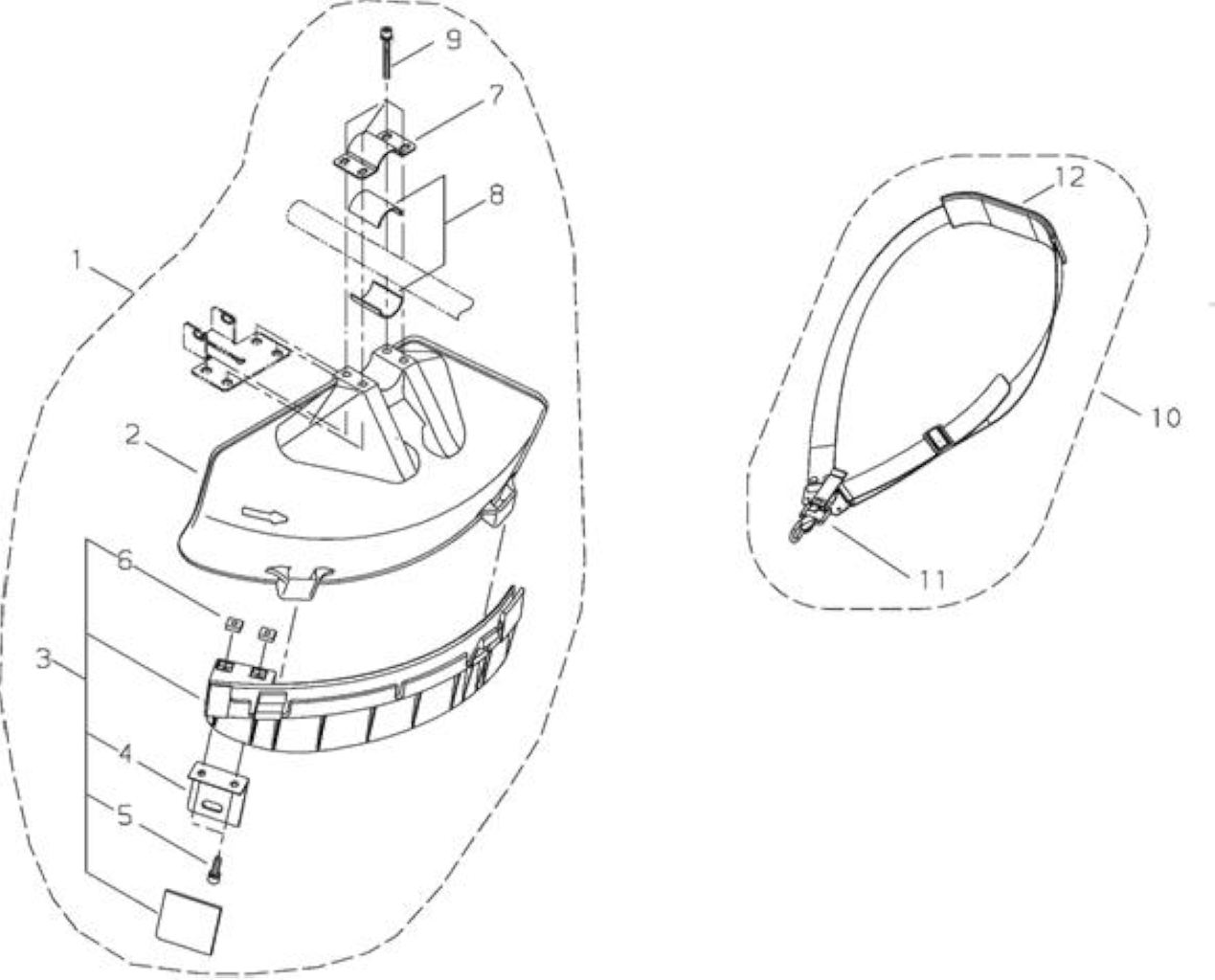

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6290366322	*VEDI SKRP021028440 * SBAT230/T230/T2500/T260 T.N.	1
2	SKR6290366111	*VEDI SKRC550000430 *	1
3	SKR6290366332	*VEDI SKRP021028450 *	1
4	SKR7248016121	*VEDI SKRC554000040 *	1
5	SKR1102005160	BULLONE	2
6	SKR2242016120	*VEDI SKRV263000130 *	2
7	SKR7248016210	*VEDI SKRC551000060 *	1
8	SKR7248016220	SPESSORE	2
9	SKR1102205450	BULLONE	4	M5X45 SPW
10	SKR2242117202	*VEDI SKRC062000390 *	1
11	ECR2242117130	*VEDI ECRC649000200 *	1
12	SKR2200717220	PROTEZIONE CINGHIA	1
