Cilindro, Marmitta Avviamento, Carter Motore

Pistone, Albero motore, Frizione, Valvole Bobina

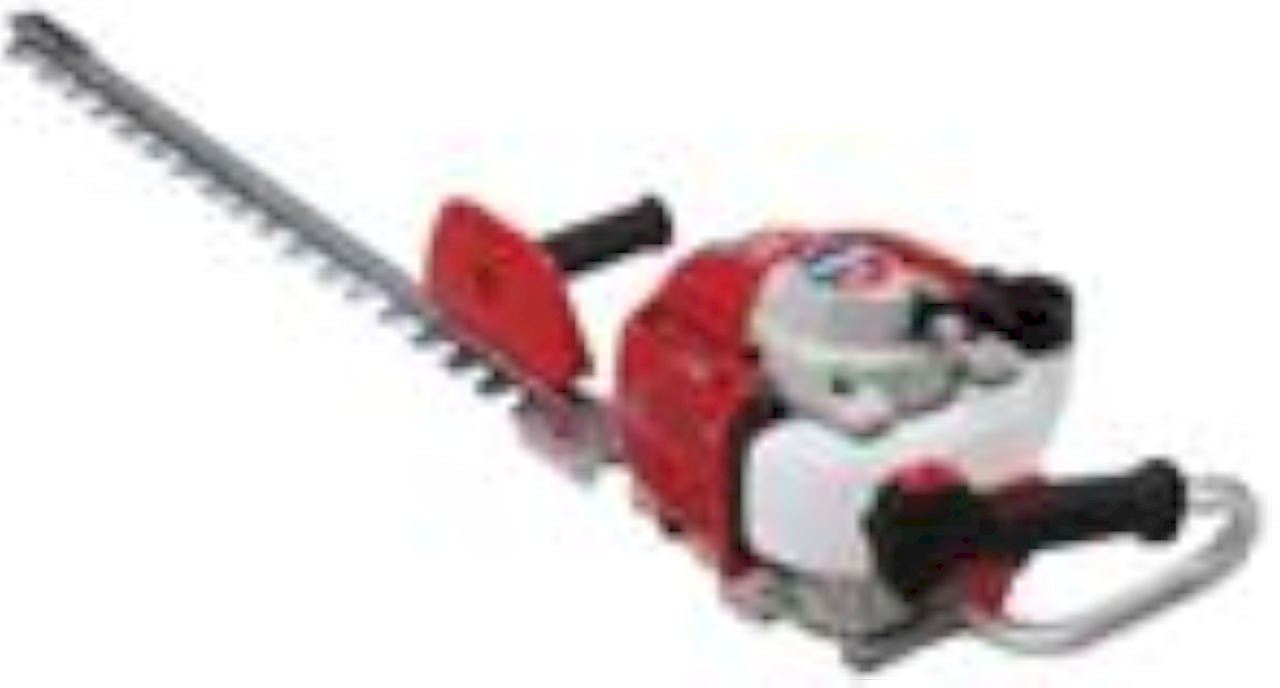

Informazioni tecniche
CILINDRATA	24,5
POTENZA	0,76 (1)
SERBATOIO MIX	550
LUNGHEZZA LAMA EFFETTIVA	1008
TIPO LAMA	RINFORZATA, MOVIMENTO RECIPROCO
PESO	6,1

Carburatore, Filtro aria (1 pomello) Carburatore, Filtro aria (2 pomelli)

Serbatoio

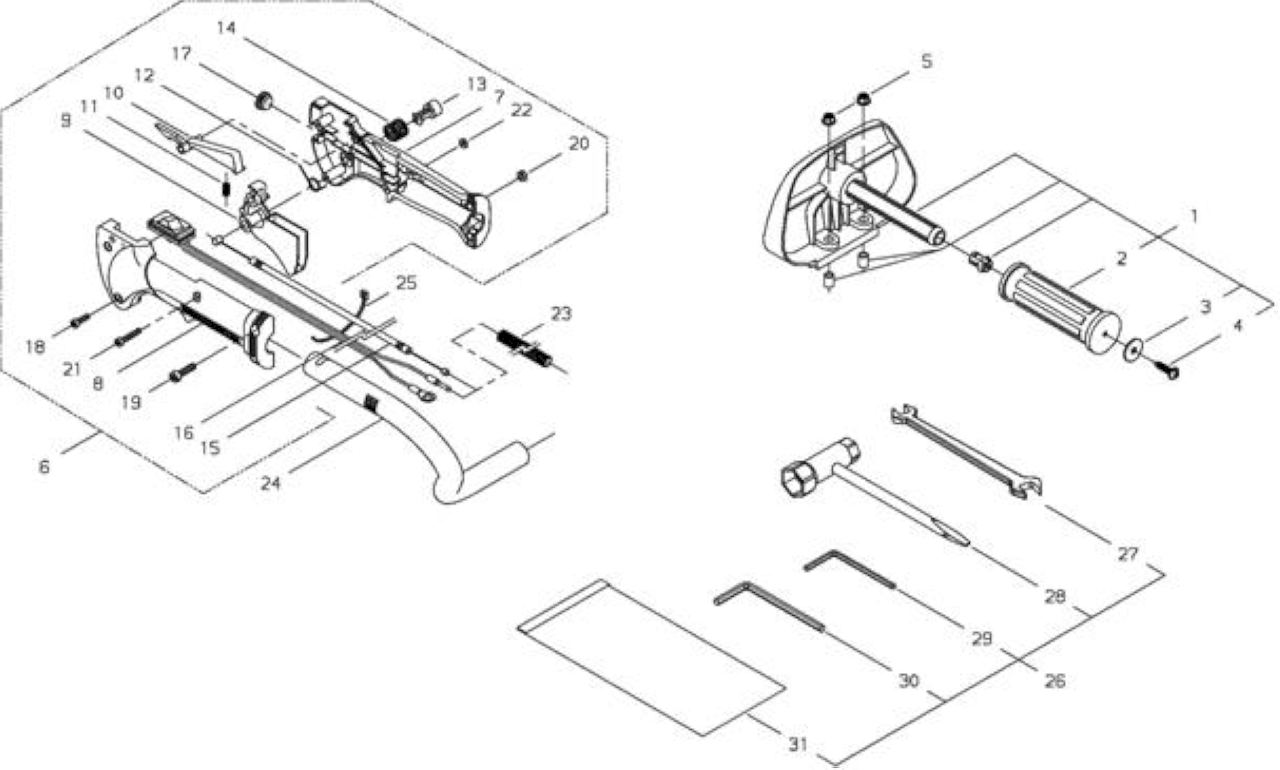

Scatola ingranaggi, Lame (30) Scatola ingranaggi, Lame (40) Impugnatura

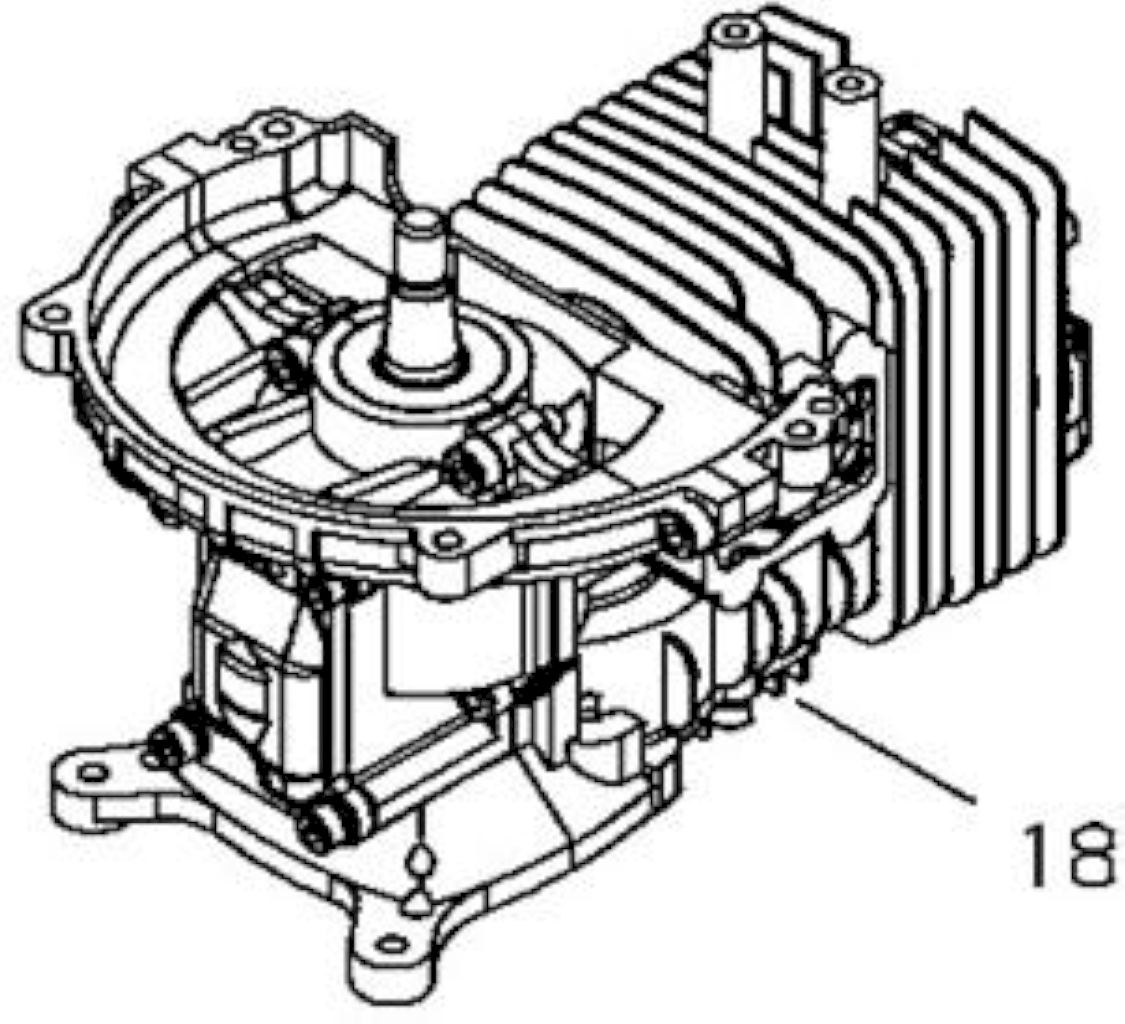

Motore Completo

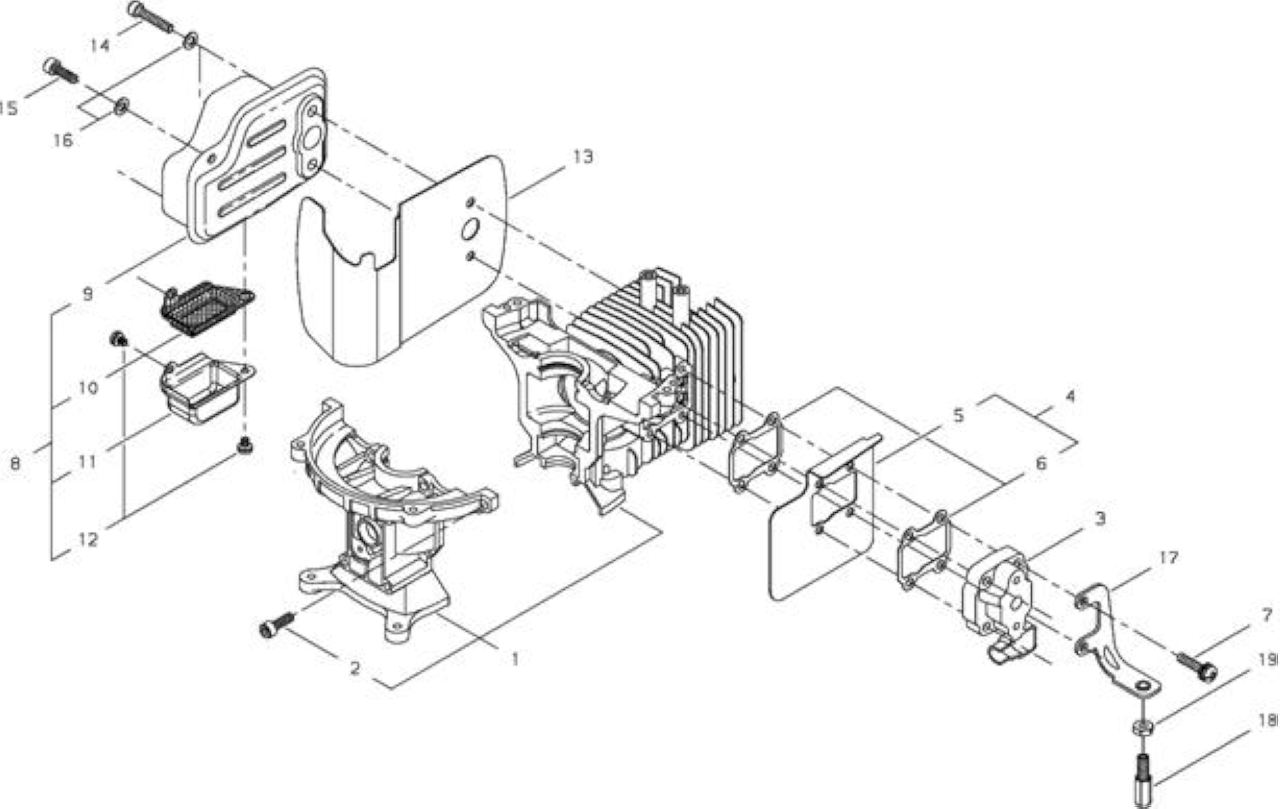

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6060098351	*VEDI SKRP021027390 *	1
2	SKR102005160	*VEDI ECR90010505016 *	6	M5×16
3	SKR6290212310	*VEDI SKRA024000050 *	1
4	SKR6290212320	*VEDI SKRA209000250 *	1
5	ECR6290112320	BAFFLE PLATE	1
6	SKR6290112220	*VEDI SKRV103001130 *	2
7	ECR1120605225	*VEDI ECR9158205022 *	4
8	SKR3880015010	*VEDI ECRA030000342 *	1
9	SKR6290215111	MARMITTA	1
10	SKR6290215131	*VEDI ECRA310000390 *	1
11	SKR3880015160	TERMINALE MARMITTA	1
12	ECR1120404060	SCREW,PM-SW	2
13	SKR6290115210	*VEDI ECRV104001430 *	1
14	ECR6290115310	*VEDI ECRV203001000 *	2	M5×25
15	SKR102005160	*VEDI ECR90010505016 *	1	M5×16
16	SKR161005080	RONDELLA D5	3
17	SKR6260083310	*VEDI ECRV152002310 *	1
18	SKR6290283310	*VEDI SKRC486000030 *	1
19	ECR0150106048	*VEDI ECR9201806000 *	1	M6

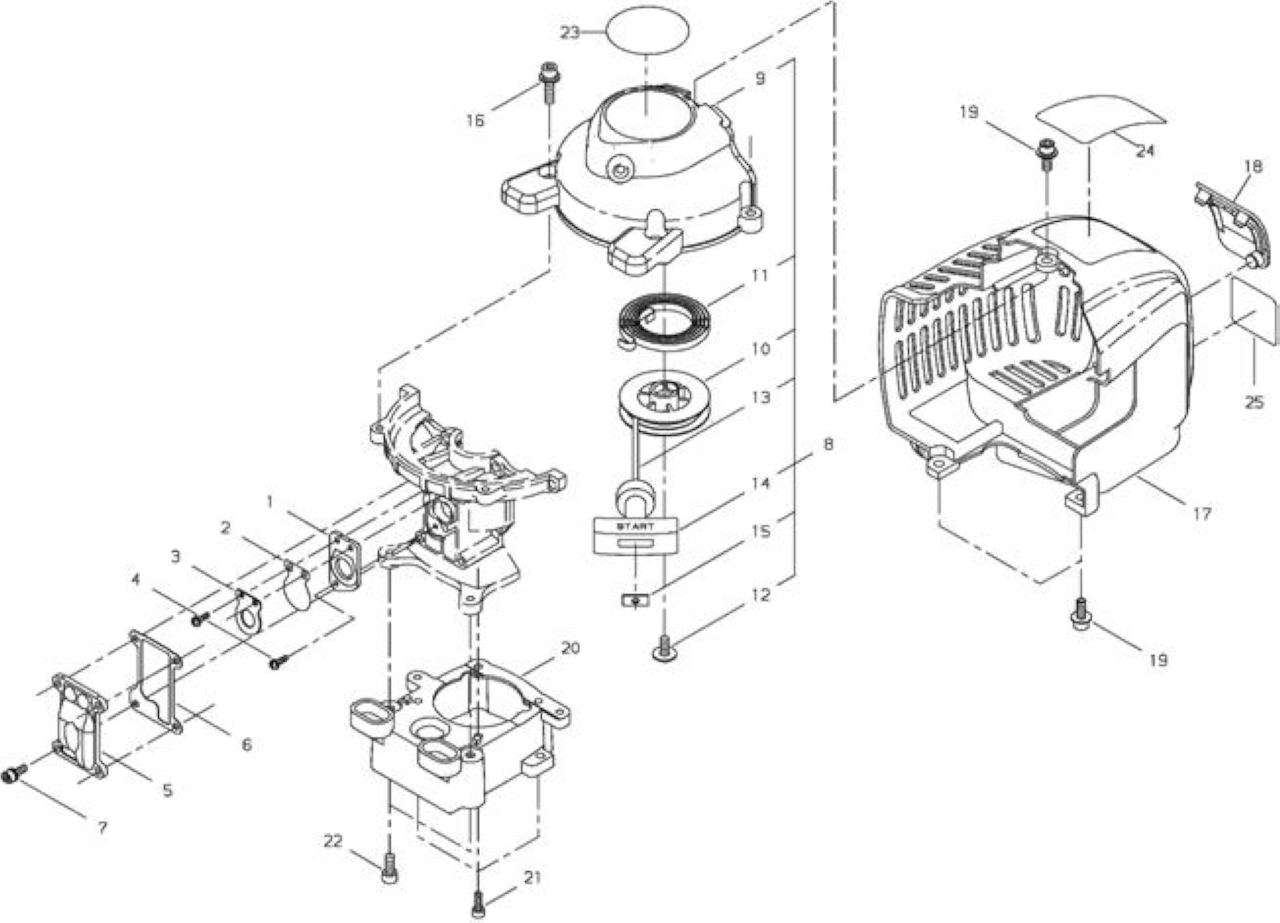

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6290121320	*VEDI ECRA200000750 *	1
2	SKR7232083121	*VEDI ECRA211000030 *	1
3	SKR7232083132	*VEDI ECRA212000040 *	1
4	ECR0121103100	SCREW-SW	3	M3*10
5	SKR6290121120	*VEDI ECRA1230000000 *	1
6	SKR6290121130	*VEDI ECRV109000100 *	1
7	ECR1102204120	*VEDI ECRV202000340 *	4	M4*12
8	SKR6260031011	*VEDI ECRA051001810 *	1
9	SKR6260031111	CARTER VENTOLA	1
10	SKR6260031320	*VEDI SKRA506000340 *	1
11	SKR7003075130	*VEDI SKRA504000100 *	1
12	ECR6260031310	SCREW	1
14	SKR2001075190	*VEDI ECR17722827030 *	1
15	SKR2001075210	FERMO IMPUGNATURA AVV.TO	1
16	ECR1106005202	*VEDI ECRV203001010 *	4	M5*20
17	SKRA160002270	CARTER CILINDRO (ROSSO)	1	CARTER ROSSO
17	SKR6260032110	*VEDI SKRA160001751 *	1	CARTER BLU
18	SKR6290132312	*VEDI SKRA429000140 *	1	CARTER BLU
18	ECRA429000130	GOMMINO	1	CARTER ROSSO
19	ECR1106005141	*VEDI ECRV203001020 *	3	M5*14
20	SKR6260033310	*VEDI SKRA570000250 *	1
21	SKR102004120	*VEDI ECR90010505022 *	4	M4*12
22	SKR102005120	BULLONE M5X12 T.E.I.	2	M5*12
23	SKR1942000070	*VEDI ECRX504003080 *	1
24	ECR1942000106	*VEDI ECRX504002530 *	1	SHINDAIWA?C4
25	ECR6260191320	*VEDI ECRX543001430 *	1

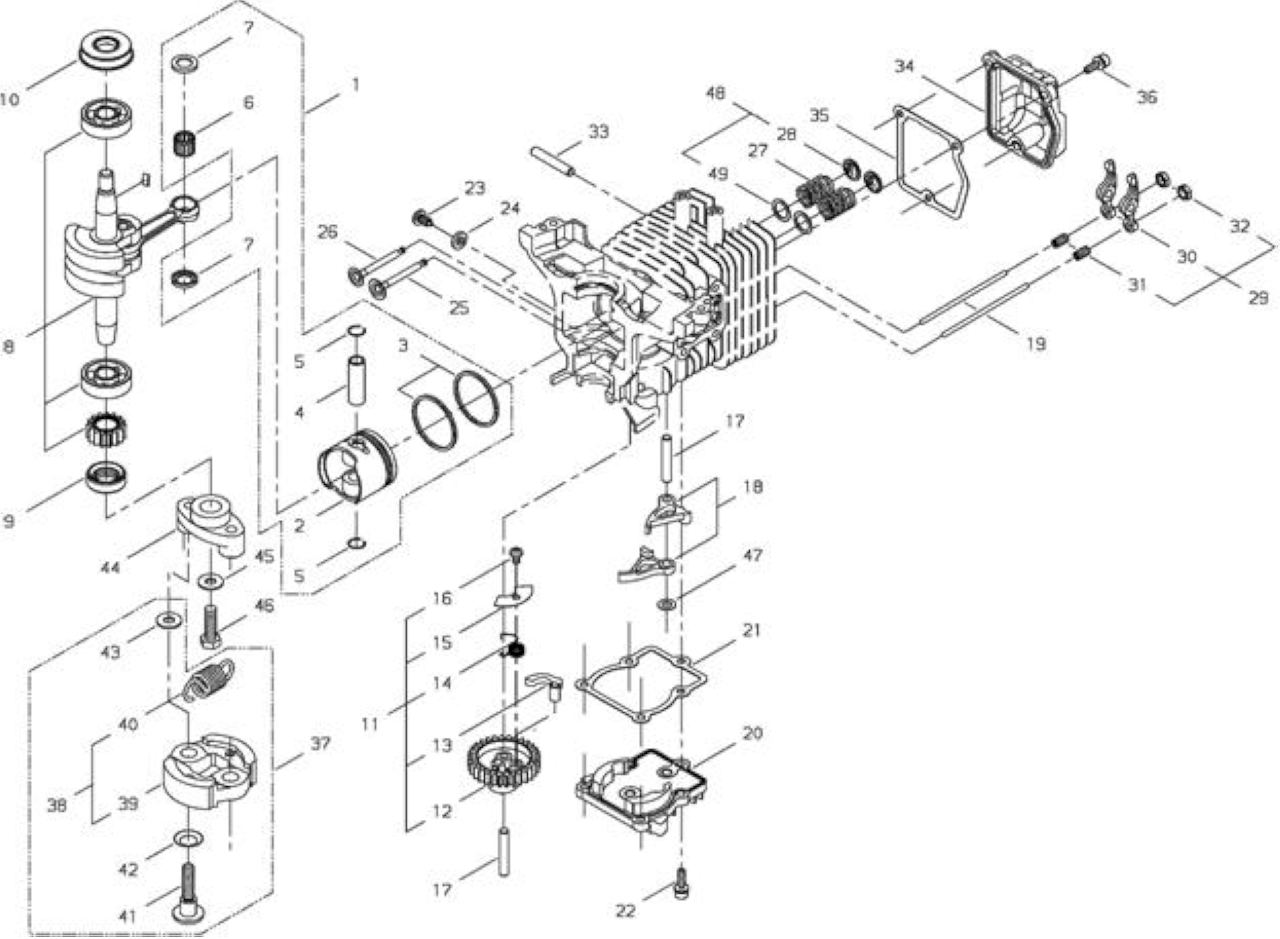

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6290241310	*VEDI SKRP021033930 *	1
2	ECR6290241110	PISTON	1
3	SKR6290241120	*VEDI ECRA101000390 *	2
4	SKR6290141210	*VEDI ECRV607000040 *	1
5	SKR2000041320	*VEDI SKRV580000090 *	2
6	SKR6290141230	*VEDI SKRV554000010 *	1
7	SKR3701941240	*VEDI SKRV392000020 *	2
8	SKR6260042020	ALBERO MOTORE COMPLETO	1
9	SKR6290142260	*VEDI SKRV505000110 *	1
10	SKR6290142270	*VEDI SKRV505000120 *	1
11	SKR6290543011	*VEDI SKRA063000000 *	1
12	SKR6290243310	*VEDI SKRA622000000 *	1
13	SKR6290743120	*VEDI ECRA146000000 *	1
14	SKR1752008900	MOLLA	1
15	ECR6290543131	*VEDI ECRC603000240 *	1
16	ECR0128004062	*VEDI ECR9144904006 *	1
17	SKR1249250290	*VEDI ECRV623000030 *	2	F5*L29.8
18	SKR6290743210	*VEDI SKRA600000000 *	2
19	SKR6290843220	*VEDI SKRA607000010 *	2
20	SKR6290143330	*VEDI SKRA136000010 *	1
21	SKR6290143240	*VEDI SKRV109000110 *	1
22	SKR1102204140	BULLONE	5	M4*14
23	ECR6290143310	*VEDI ECRV253000540 *	1
24	ECR1540110028	*VEDI ECRV303000120 *	1
25	SKR6290244111	*VEDI SKRA603000040 *	1
26	SKR6290244121	*VEDI SKRA603000050 *	1
27	SKR6290144130	*VEDI ECRA604000010 *	2
28	SKR6290844140	*VEDI ECRA606000040 *	2
29	SKR6290744010	*VEDI ECRA610000050 *	2
30	SKR6290144210	*VEDI ECRA610000060 *	2
31	SKR6290744220	*VEDI ECRA613000010 *	2
32	SKR6290144231	*VEDI ECRV263000230 *	2
33	ECR1249250310	*VEDI ECRV623000040 *	1	F5×31.8
34	SKR6290144241	*VEDI SKRA137000020 *	1
35	SKR6290144250	*VEDI SKRV109000120 *	1
36	SKR1102204140	BULLONE	3	M4*14
37	SKR6260051010	*VEDI ECRA056000470 *	1
38	ECR6260051020	*VEDI ECRA056000480 *	1
39	SKR2011551111	MASSA FRIZIONE	2
40	SKR6260051310	*VEDI ECRA566000170 *	1
41	SKR2008751210	*VEDI SKRA557000040 *	2
42	SKR2008751231	*VEDI SKRV346000040 *	2
43	SKR2210071430	*VEDI SKRV304000150 *	2
44	ECR2087051211	*VEDI ECRA552000130 *	1
45	SKR2210071430	*VEDI SKRV304000150 *	1
46	SKR2087051220	*VEDI ECRV204000480 *	1	M6*18

Rif.	Articolo	Descrizione	Q.tà Nota
47	SKR1162010000	*VEDI SKRV303000220 *	1
48	SKR6090898370	*VEDI ECRP021027590 *	2
49	SKR6290844310	*VEDI ECRV392000030 *	2

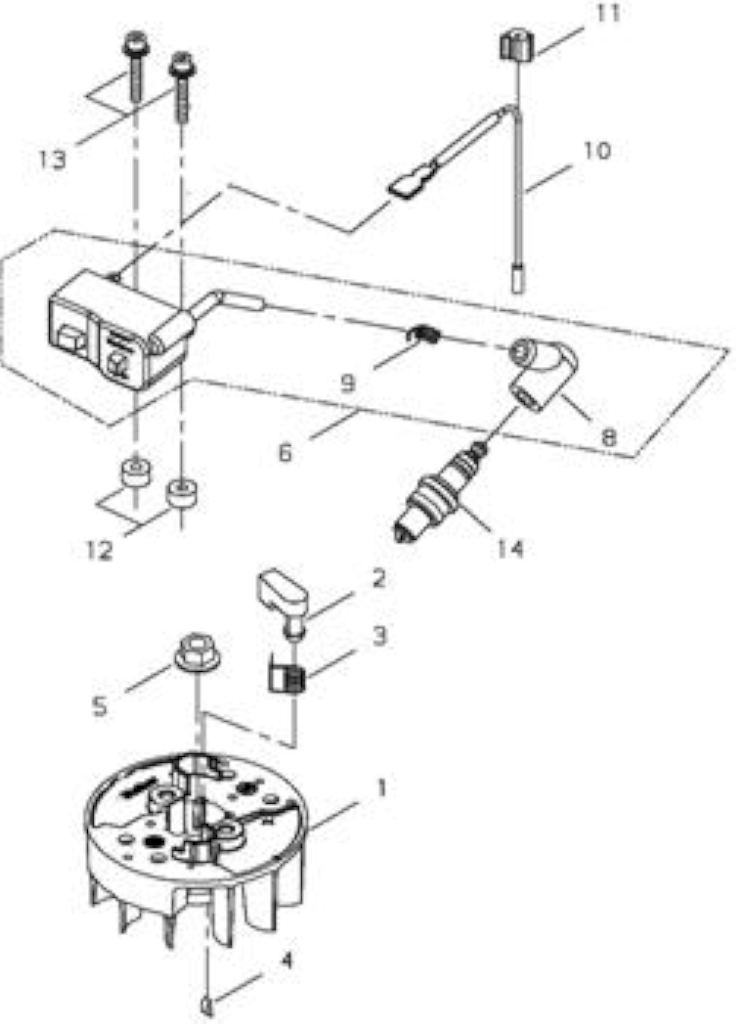

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6260071111	* VEDI ECRA409000680 *	1
2	SKR2087071120	*VEDI SKRA514000190 *	1
3	SKR2087071130	*VEDI ECRV452000620 *	1
4	SKR240303100	*VEDI ECR9311503010 *	1	3*10
5	SKR2003571220	*VEDI ECRV265000140 *	1	M8
6	SKR6260071320	*VEDI SKRA411000850 *	1	CARTER BLU (MB-43A)
6	SKRA411001200	ACCENSIONE MBU-45	1	CARTER ROSSO (MBU-45)
8	SKR6290571250	CAPPUCCIO CANDELA	1
9	SKR6290571320	* VEDI ECRA426000020 *	1
10	ECR1435002001	*VEDI ECRV485001910 *	1
11	SKR6290171310	GOMMINO	1
12	SKR7003071620	*VEDI SKRV322000040 *	2
13	ECR1102404265	*VEDI ECRV202000360 *	2	M4*26

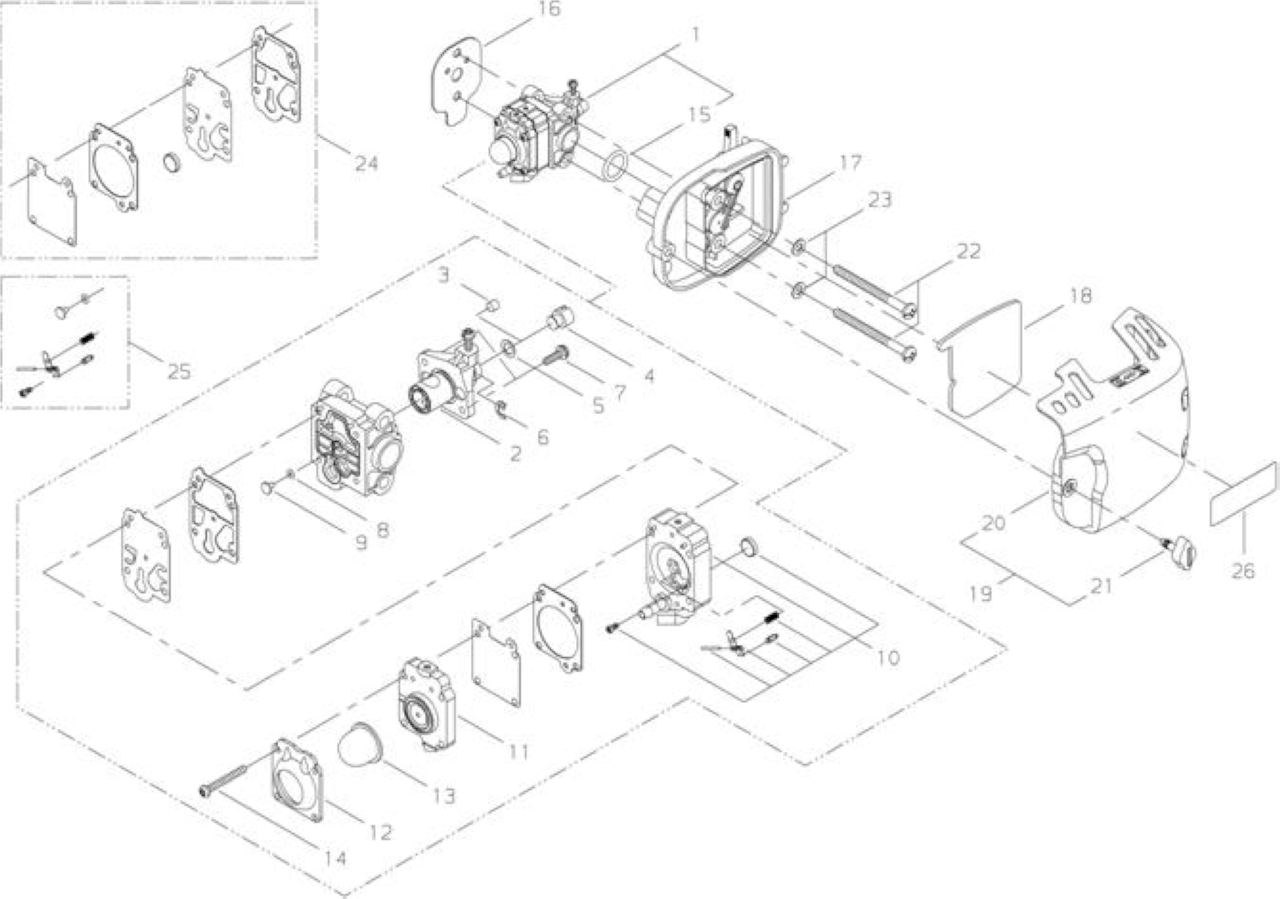

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6260081010	*VEDI SKRA021002680 *	1
2	SKR6290181320	VALVOLA ACCELERATORE	1
3	SKR6207481320	TAPPO	1
4	SKR7293381450	NOTTOLINO	1
5	SKR2008981185	RONDELLA	1
6	SKR2003681195	ANELLO	1
7	SKR7006481290	VITE	2
8	SKR7009781220	*VEDI ECR12318340630 *	1
9	SKR6290281310	*VEDI ECR12318444430 *	1
10	SKR3701381350	CORPO POMPA COMPLETO	1
11	SKR2001681420	*VEDI ECR12318005560 *	1
12	SKR2001681510	*VEDI ECR12314205560 *	1
13	SKR2003681670	*VEDI ECR12318140630 *	1
14	ECR2001681140	*VEDI ECR12311005560 *	4
15	SKR2001681250	*VEDI ECR90072000015 *	1
16	SKR6290181211	*VEDI SKRV103001140 *	1
17	SKR6290582010	CORPO FILTRO ARIA 1 FORO*VEDI NOTE*	1
18	SKR6290282120	*VEDI SKRA226001470 *	1
19	SKR6260082030	*VEDI ECRP021037301 *	1
20	ECR6260082130	CLEANER COVER	1
21	SKR6290182330	*VEDI SKRV299000400 *	1
22	ECR1120305605	*VEDI ECR9158105060 *	2
23	ECR0161305080	*VEDI ECR90060300005 *	2
24	SKR6090298030	*VEDI SKRP050008580 *	1
25	SKR6090298040	KIT SPILLO C/BILANCIERE	1
26	ECR1940200148	*VEDI ECRX505003350 *	1

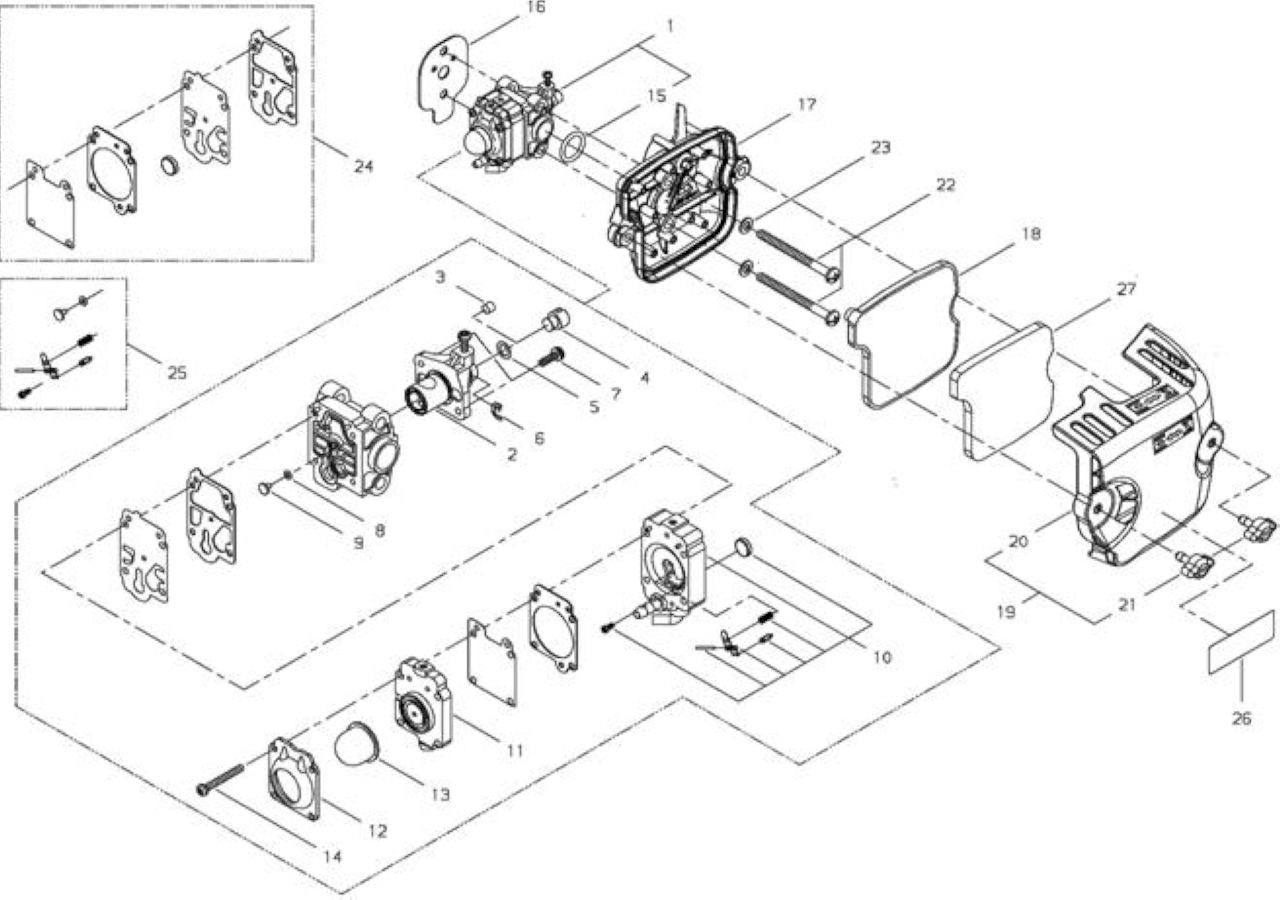

1	SKR6260081010	*VEDI SKRA021002680 *	1	CARTER BLU(WALBRO)
1	SKRA021003321	*VEDI ECRA021003322 *	1	CARTER ROSSO(ZAMA)
2	SKR6290181320	VALVOLA ACCELERATORE	1	WALBRO
3	SKR6207481320	TAPPO	1	WALBRO
4	SKR7293381450	NOTTOLINO	1	WALBRO
5	SKR2008981185	RONDELLA	1	WALBRO
6	SKR2003681195	ANELLO	1	WALBRO
7	SKR7006481290	VITE	2	WALBRO
8	SKR7009781220	*VEDI ECR12318340630 *	1	WALBRO
9	SKR6290281310	*VEDI ECR12318444430 *	1	WALBRO
10	SKR3701381350	CORPO POMPA COMPLETO	1	WALBRO
11	SKR2001681420	*VEDI ECR12318005560 *	1	WALBRO
12	SKR2001681510	*VEDI ECR12314205560 *	1	WALBRO
13	SKR2003681670	*VEDI ECR12318140630 *	1	WALBRO
14	ECR2001681140	*VEDI ECR12311005560 *	4	WALBRO
15	SKR2001681250	*VEDI ECR90072000015 *	1
16	SKR6290181211	*VEDI SKRV103001140 *	1
17	SKR6290882010	*VEDI SKRA023000200 *	1	CARTER BLU
17	SKRA023000261	CORPO FILTRO ARIA 2 FORI-ROSSO-	1	CARTER ROSSO
18	SKR6290882120	*VEDI SKRA226000690 *	1
19	SKR6290882030	*VEDI SKRP021028520 *	1	CARTER BLU
20	SKRA232000911	*VEDI ECRA232000912 *	1	CARTER ROSSO
20	SKR6290882130	COPERCHIO FILTRO ARIA	1	CARTER BLU
21	SKR6290182330	*VEDI SKRV299000400 *	2
22	ECR1120305605	*VEDI ECR9158105060 *	2
23	ECR0161305080	*VEDI ECR90060300005 *	2
24	SKR6090298030	*VEDI SKRP050008580 *	1	WALBRO
25	SKR6090298040	KIT SPILLO C/BILANCIERE	1	WALBRO
26	ECR1940200148	*VEDI ECRX505003350 *	1
27	SKR6290882310	*VEDI SKRA226000700 *	1

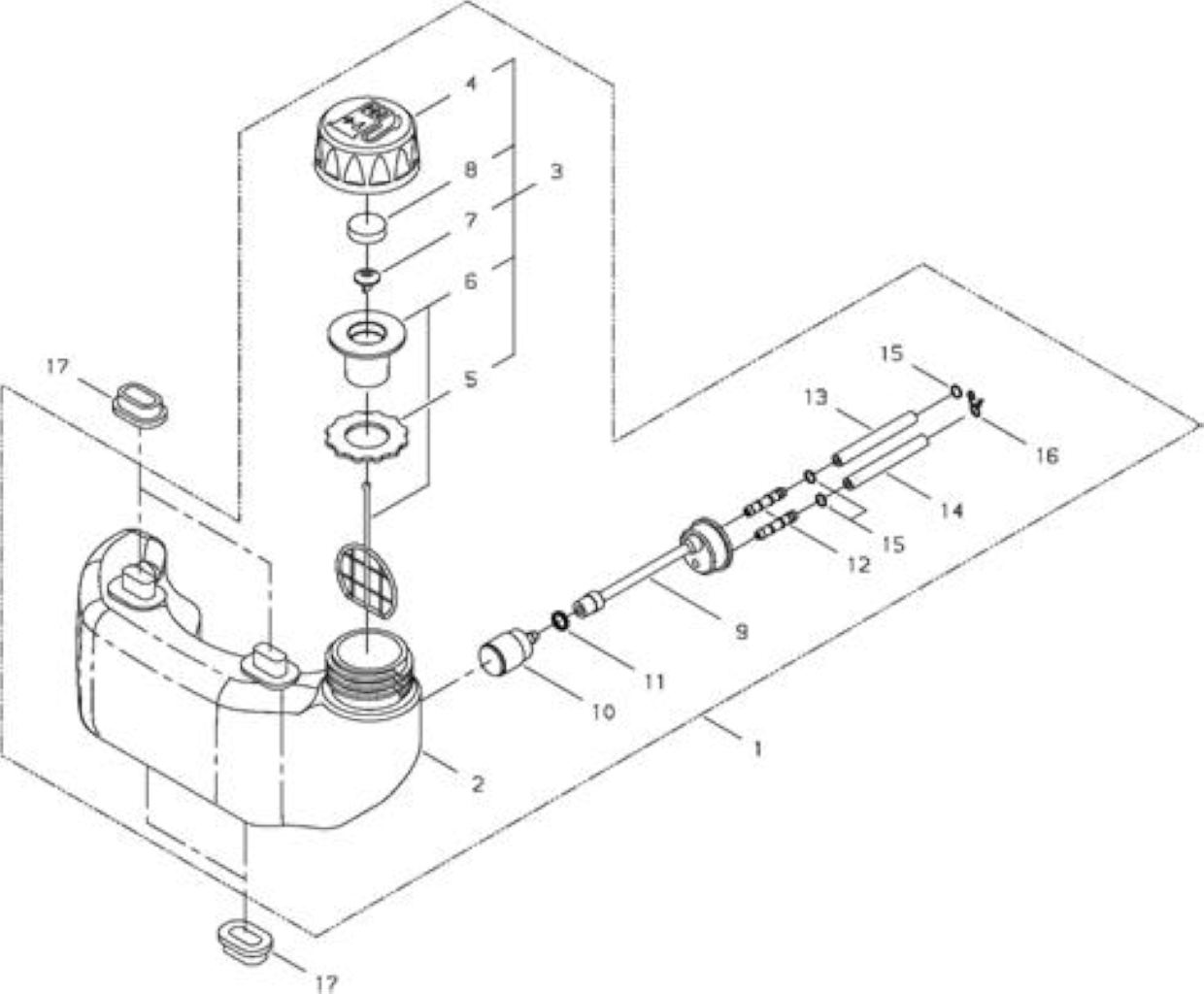

1	SKR6260185310	SERBATOIO COMPL.		1
2	SKR6260085110	*VEDI ECRA350001460	*	1
3	SKR6280085021	*VEDI SKRA033000130	*	1
5	SKR2087085160	*VEDI ECRV107000050	*	1
6	SKR6280085310	SUPPORTO		1
7	SKR2087085320	*VEDI ECRE263000040	*	1
8	SKR2087085210	GUARNIZIONE		1
9	SKR2087085121	*VEDI SKRV470001190	*	1
10	SKR2001685400	*VEDI SKRA369000070	*	1
11	SKR2000085350	*VEDI SKRV490000610	*	1
12	SKR7293385620	*VEDI SKRV186000210	*	2
13	SKR2011083311	*VEDI ECRV471002730	*	1
14	SKR2011285361	*VEDI ECRV471002740	*	1
15	SKR2002085540	*VEDI SKRV490000500	*	3
16	ECR3701385310	*VEDI ECRV490000510	*	1
17	SKR6290185220	*VEDI SKRV420002220	*	4

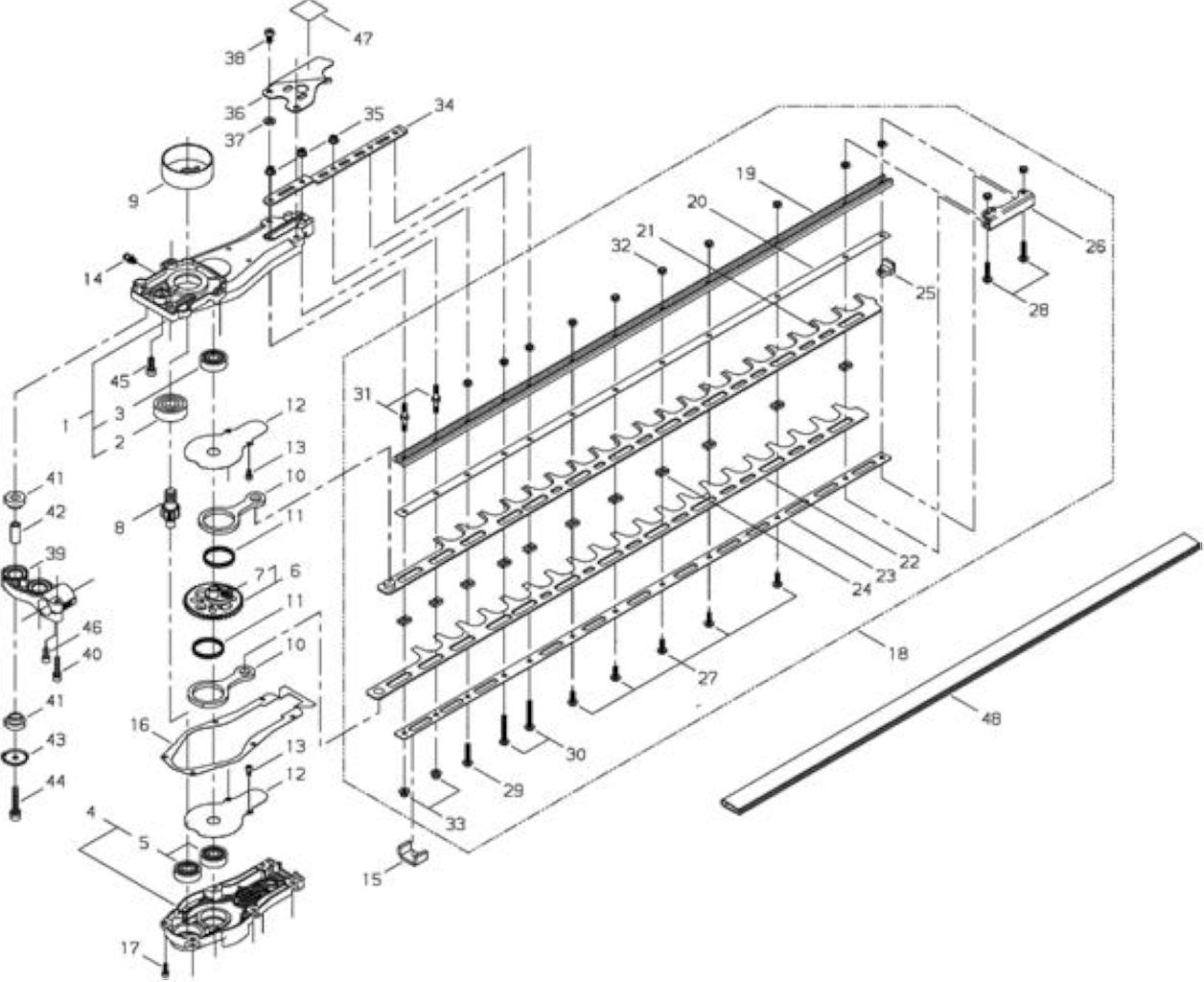

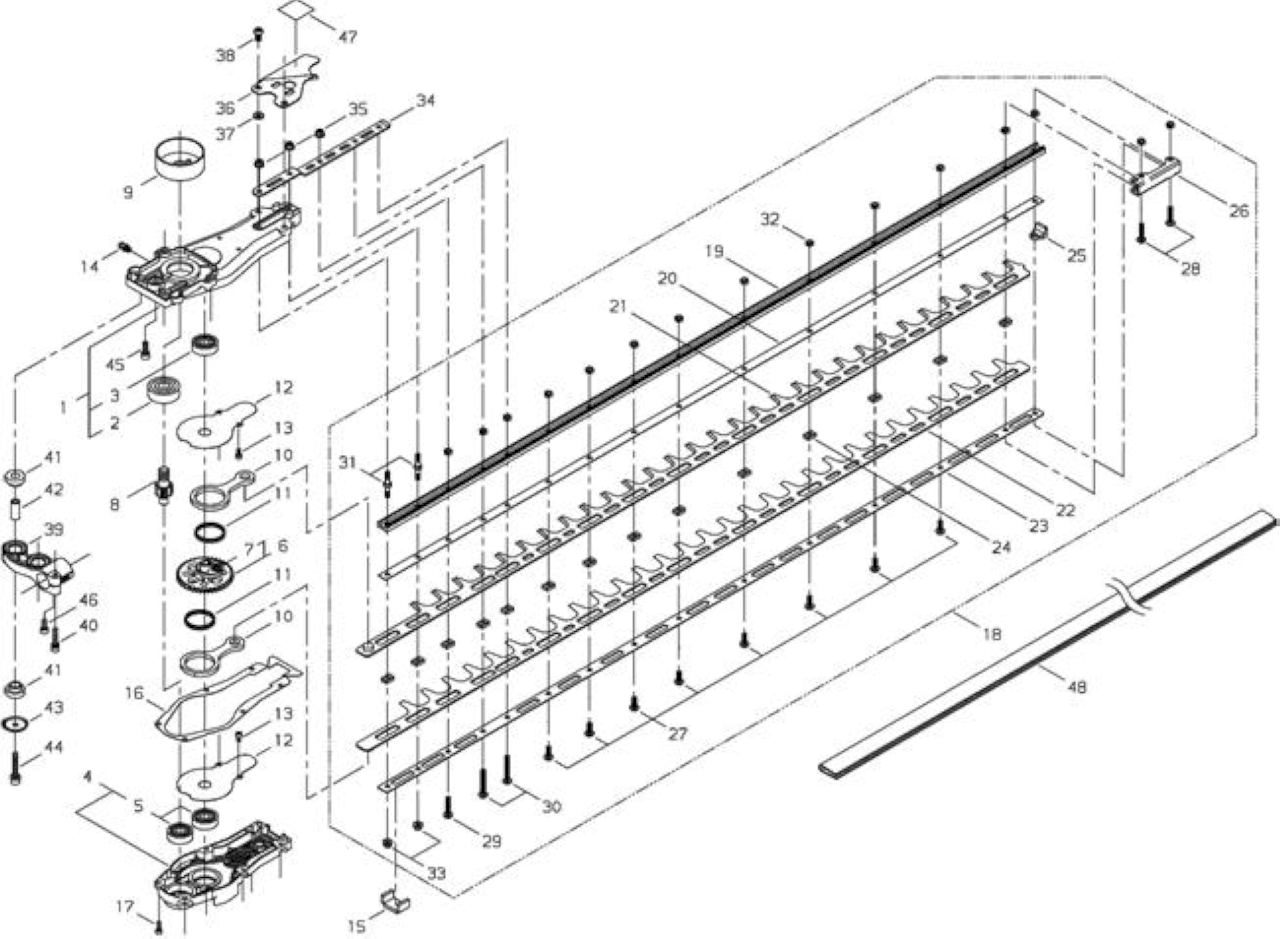

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6360061010	*VEDI SKRP021028700 *	1
2	SKR200606301	*VEDI ECR9400206301 *	1	6301DDU
3	SKR200206200	CUSCIN. A SFERE 6200ZZ *FUORI PROD*	1	6200ZZ
4	SKR6360061020	*VEDI SKRP021028710 *	1
5	SKR200206200	CUSCIN. A SFERE 6200ZZ *FUORI PROD*	2	6200ZZ
6	SKR6360061030	*VEDI ECRV060000060 *	1
7	SKR6360061320	*VEDI SKRV203001030 *	4	M5*6
8	SKR6360061150	*VEDI ECRV655000030 *	1
9	SKR2087061420	*VEDI SKRA556000930 *	1
10	SKR6360061170	*VEDI SKRC532000200 *	2
11	SKR6360061330	*VEDI SKRV572000000 *	2
12	SKR6360061340	*VEDI ECRC603000250 *	2
13	ECR0102004080	*VEDI ECR90010504008 *	4	M4*8
14	SKR2087061640	*VEDI ECRV187000080 *	1
15	SKR6360061350	*VEDI SKRV541000200 *	1
16	SKR6360061360	*VEDI SKRV110000100 *	1
17	SKR102004140	BULLONE M4X14	6	M4*14
18	ECR6360062013	*VEDI ECRX041000150 *	1	30"
19	SKR1850170004	*VEDI ECRX425000510 *	1	30"
20	SKR6360062310	*VEDI SKRX425000520 *	1
21	SKR1850070006	*VEDI SKRX411000800 *	1	30" T2.2
22	SKR1850070007	*VEDI SKRX411000810 *	1	30" T2.2
23	SKR6360062320	*VEDI SKRX425000530 *	1
24	SKR6360062331	*VEDI SKRV376001350 *	11
25	SKR6360062340	*VEDI ECRV376001360 *	1
26	SKR6360062350	*VEDI ECRV152002280 *	1
27	SKR1123005140	*VEDI SKRV203001150 *	5	M5*14
28	SKR1123005220	*VEDI SKRV20300104 *	2	M5*22
29	SKR1123005250	*VEDI SKRV203001050 *	1	M5*25
30	ECR1123005350	*VEDI ECRV203001060 *	2	M5*35
31	SKR6360062370	*VEDI SKRV223000020 *	2
32	SKR7293561240	*VEDI SKRV263000240 *	12	M5
33	SKR1152505231	*VEDI SKRV263000250 *	2	M5
34	SKR6360062361	*VEDI ECRV152002290 *	1
35	SKR1152505231	*VEDI SKRV263000250 *	3	M5
36	SKR6360063310	*VEDI ECRV152002300 *	1
37	ECR6360063320	*VEDI ECRV323000110 *	2
38	ECR1121006120	SCREW BUTTON	2	M6*12
39	SKR2087065413	*VEDI SKRC415000080 *	1
40	SKR1102305250	BULLONE	1	M5*25
41	SKR2087065421	*VEDI SKRV420002580 *	4
42	SKR1540110200	*VEDI SKRV354000300 *	2
43	SKR2087065430	*VEDI SKRV304000220 *	2
44	ECR1102006350	*VEDI ECRV204000530 *	2	M6*35
45	ECR0102006160	*VEDI ECR90010506016 *	3	M6*16

Rif.	Articolo	Descrizione	Q.tà	Nota
46	SKR102005120	BULLONE M5X12 T.E.I.	1	M5*12
47	ECR1940200147	LABEL,CAUTION	1

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6360061010	*VEDI SKRP021028700 *	1
2	SKR200606301	*VEDI ECR9400206301 *	1	6301DDU
3	SKR200206200	CUSCIN. A SFERE 6200ZZ *FUORI PROD*	1	6200ZZ
4	SKR6360061020	*VEDI SKRP021028710 *	1
5	SKR200206200	CUSCIN. A SFERE 6200ZZ *FUORI PROD*	2	6200ZZ
6	SKR6360061030	*VEDI ECRV060000060 *	1
7	SKR6360061320	*VEDI SKRV203001030 *	4	M5*6
8	SKR6360061150	*VEDI ECRV655000030 *	1
9	SKR2087061420	*VEDI SKRA556000930 *	1
10	SKR6360061170	*VEDI SKRC532000200 *	2
11	SKR6360061330	*VEDI SKRV572000000 *	2
12	SKR6360061340	*VEDI ECRC603000250 *	2
13	ECR0102004080	*VEDI ECR90010504008 *	4	M4*8
14	SKR2087061640	*VEDI ECRV187000080 *	1
15	SKR6360061350	*VEDI SKRV541000200 *	1
16	SKR6360061360	*VEDI SKRV110000100 *	1
17	SKR102004140	BULLONE M4X14	6	M4*14
18	ECR6360162013	*VEDI ECRX041000160 *	1	40"
19	SKR1850190003	*VEDI ECRX425000620 *	1	40"
20	SKR6360162310	*VEDI ECRX425000630 *	1
21	SKR1850090004	*VEDI SKRX411000910 *	1	40" T2.2
22	SKR1850090005	*VEDI SKRX411000920 *	1	40" T2.2
23	SKR6360162320	*VEDI ECRX425000640 *	1
24	SKR6360062331	*VEDI SKRV376001350 *	14
25	SKR6360062340	*VEDI ECRV376001360 *	1
26	SKR6360062350	*VEDI ECRV152002280 *	1
27	SKR1123005140	*VEDI SKRV203001150 *	8	M5*14
28	SKR1123005220	*VEDI SKRV20300104 *	2	M5*22
29	SKR1123005250	*VEDI SKRV203001050 *	1	M5*25
30	ECR1123005350	*VEDI ECRV203001060 *	2	M5*35
31	SKR6360062370	*VEDI SKRV223000020 *	2
32	SKR7293561240	*VEDI SKRV263000240 *	15	M5
33	SKR1152505231	*VEDI SKRV263000250 *	2	M5
34	SKR6360062361	*VEDI ECRV152002290 *	1
35	SKR1152505231	*VEDI SKRV263000250 *	3	M5
36	SKR6360063310	*VEDI ECRV152002300 *	1
37	ECR6360063320	*VEDI ECRV323000110 *	2
38	ECR1121006120	SCREW BUTTON	2	M6*12
39	SKR2087065413	*VEDI SKRC415000080 *	1
40	SKR1102305250	BULLONE	1	M5*25
41	SKR2087065421	*VEDI SKRV420002580 *	4
42	SKR1540110200	*VEDI SKRV354000300 *	2
43	SKR2087065430	*VEDI SKRV304000220 *	2
44	ECR1102006350	*VEDI ECRV204000530 *	2	M6*35
45	ECR0102006160	*VEDI ECR90010506016 *	3	M6*16

Rif.	Articolo	Descrizione	Q.tà	Nota
46	ECR0102005120	*VEDI ECR90010505012 *	1	M5*12
47	ECR1940200147	LABEL,CAUTION	1

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR2087064104	*VEDI SKRC040000390	* 1
2	SKR2087064122	*VEDI SKRC403000450	* 1
3	SKR1540120011	*VEDI ECRV323000120	* 1
4	ECR2216032220	*VEDI ECRV253000550	* 1
5	SKR1152505231	*VEDI SKRV263000250	* 2	M5
6	SKR6460065011	*VEDI SKRC041000080	* 1
7	SKR7087165112	*VEDI ECRC412000510	* 1
8	ECR7087165122	*VEDI ECRC412000520	* 1
9	SKR7087165130	*VEDI ECRC450000581	* 1
10	SKR7087165140	*VEDI ECRC460000240	* 1
11	SKR7087165150	*VEDI ECRV450001020	* 1
12	SKR7087165160	MOLLA	1
13	SKR7087165170	*VEDI SKRC461000080	* 1
14	SKR7087165180	*VEDI SKRV450001010	* 1
15	SKR6460065310	*VEDI ECRV430003170	* 1
16	SKR7087165202	*VEDI SKRA440001530	* 1
17	SKR2215033630	TAPPO	1
18	ECR7087165311	*VEDI ECRV252000360	* 3	4×16
19	ECR7087165320	*VEDI ECRV253000580	* 2	M5×20
20	ECR0150105030	*VEDI ECR9201705000	* 2	M5
21	ECR7087165331	*VEDI ECRV252000370	* 1	M4×23
22	ECR7087165340	*VEDI ECRV262000100	* 1	M4
23	ECR6460065320	TUBE	1
24	SKR2087065311	*VEDI ECRC410000700	* 1
25	ECR1521012305	*VEDI ECRV495002400	* 1

Rif. Articolo Descrizione Q.tà Nota
