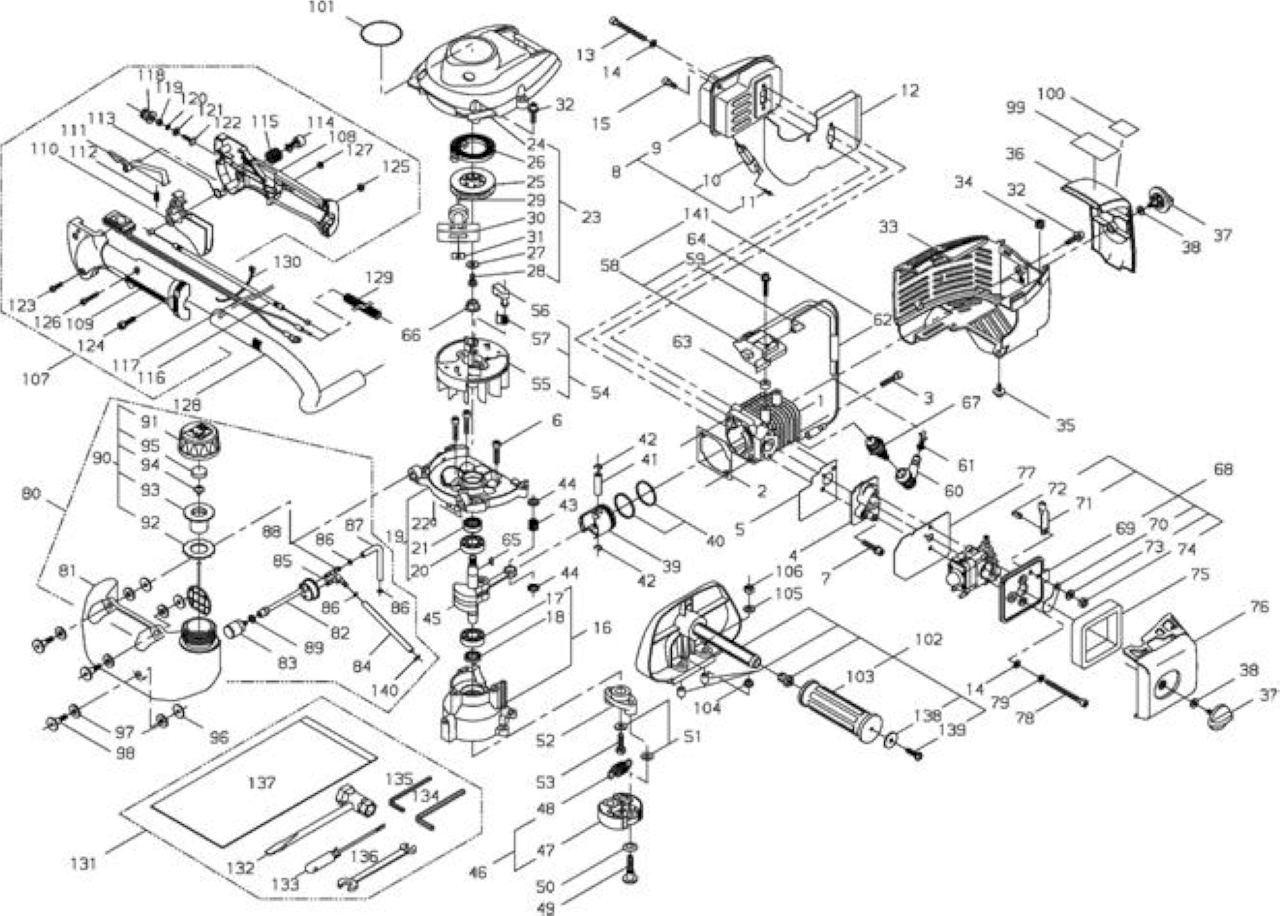

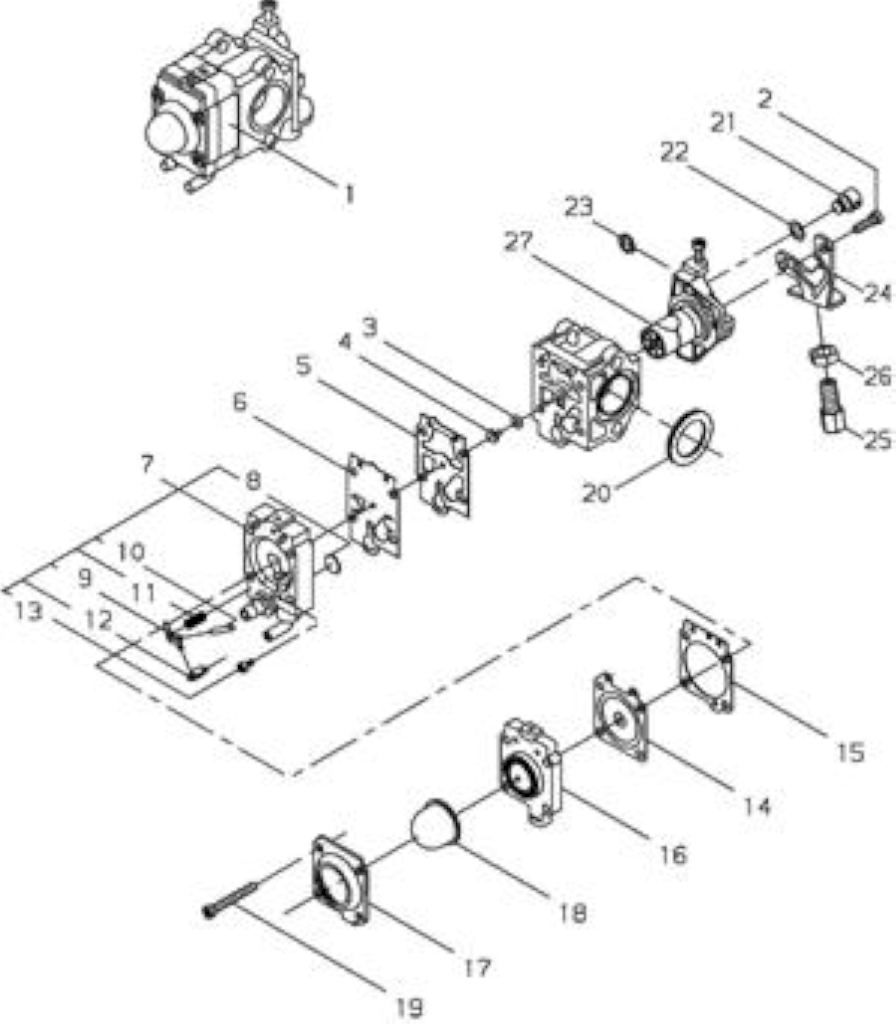

Gruppo motore Carburatore

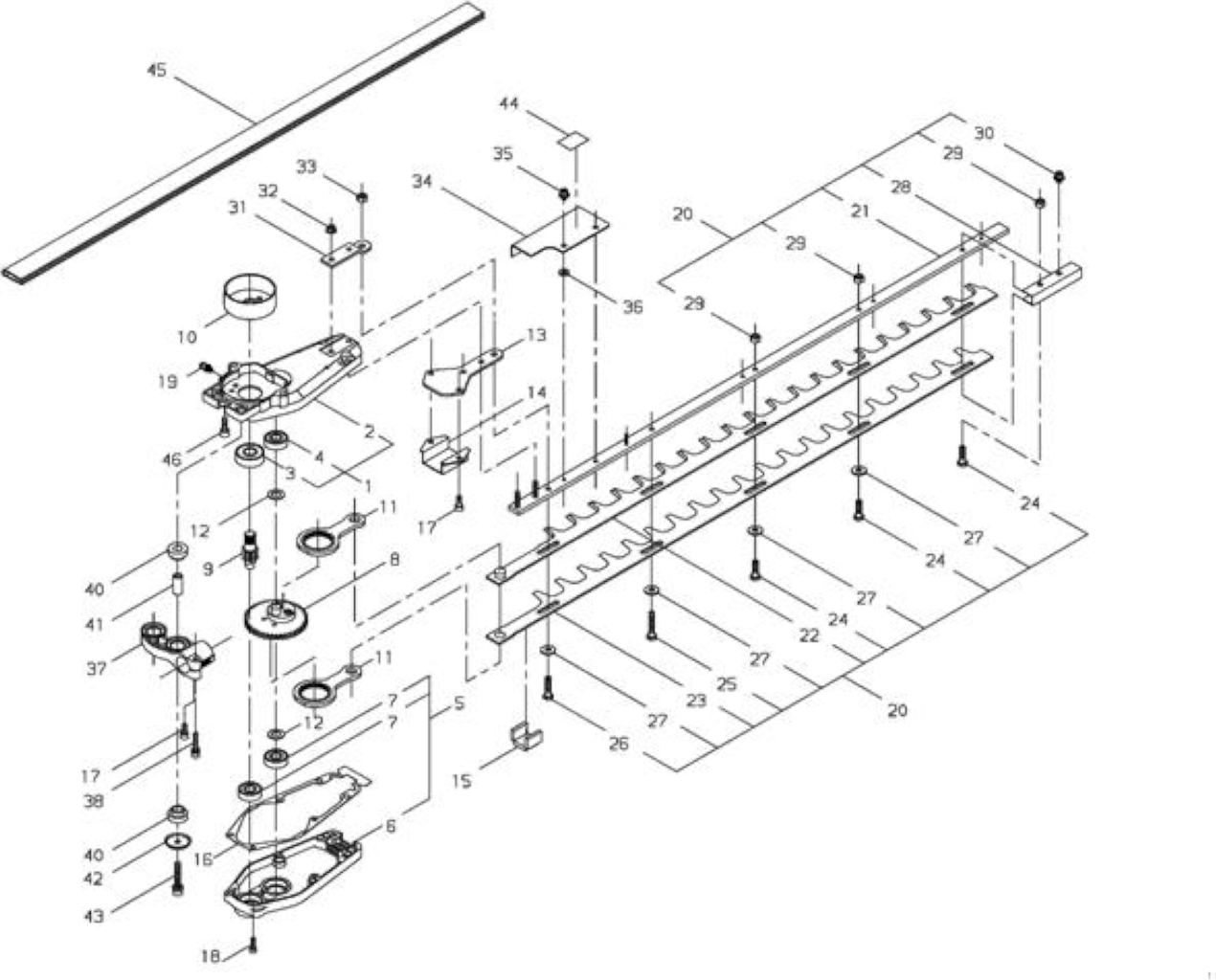

Lame, trasmissione

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6280912111	*VEDI SKRA130001380 *	1
2	SKR2087012121	*VEDI SKRV100000480 *	1
3	SKR102005250	*VEDI ECR90010505025 *	5	M5×25
4	SKRA200000770	*VEDI ECRA200000771 *	1
5	SKR2087012220	*VEDI SKRV103001170 *	1
7	ECR1102205300	*VEDI ECRV203000580 *	2	M5×30
8	SKR7087115100	*VEDI SKRA030000300 *	1
9	SKR7087115110	*VEDI SKR7087115100 *	1
10	SKR7087115120	*VEDI SKRA310000240 *	1
11	ECR0127003062	*VEDI ECR9137403006 *	1
12	SKR2087015122	*VEDI SKRV104001450 *	1
13	SKR102005500	BULLONE M5X50 T.E.I.	2	M5×50
14	SKR161005080	RONDELLA D5	4	F5
15	SKR102005120	BULLONE M5X12 T.E.I.	1	M5×12
16	SKR2087021100	CARTER MOTORE (A)	1
17	SKR1290060010	*VEDI SKRV592000310 *	1	6001
18	SKR2215021250	*VEDI SKRV505000140 *	1
19	SKR2087021301	CARTER MOTORE (B)	1
20	SKR1290060010	*VEDI SKRV592000310 *	1	6001
21	SKR2000021211	*VEDI SKRV505000080 *	1
22	SKR1249240080	*VEDI ECRV622000040 *	2
23	SKR2087031102	*VEDI SKRA051001830 *	1
24	SKR2087031112	*VEDI ECRA500001010 *	1
25	SKR7003075120	*VEDI SKRA506000330 *	5
26	SKR7003075130	*VEDI SKRA504000100 *	1
27	SKR7003075140	RONDELLA	1
28	SKR2003575170	VITE	1
30	SKR2001075190	*VEDI ECR17722827030 *	1
31	SKR2001075210	FERMO IMPUGNATURA AVV.TO	1
32	ECR1106005202	*VEDI ECRV203001010 *	5	M5×20
33	SKR2087032111	*VEDI ECRA160001780 *	1
34	SKR2001172120	*VEDI SKRV136000060 *	1
35	ECR1106004163	*VEDI ECRV202000200 *	2	M4×16
36	SKR2087033111	*VEDI SKRA160001800 *	1
37	SKR2087033120	*VEDI SKRV299000410 *	2
38	SKR2362721220	*VEDI SKRV323000080 *	2	F5
39	SKR2007541110	*VEDI SKR2007541111 *	1
40	SKR2000041210	*VEDI SKRA101000400 *	2
41	SKR2007541310	*VEDI SKRV606000060 *	1
42	SKR7003041320	*VEDI SKRV580000070 *	2
43	SKR3701341230	*VEDI SKRV553000080 *	1
44	SKR3701341240	*VEDI SKRV306000250 *	2
45	SKR2087042101	*VEDI ECRA011000910 *	1
46	SKR7014051012	*VEDI SKRA056000510 *	1
47	SKR7014051113	*VEDI SKRA553000060 *	2
48	SKR3701351310	*VEDI SKRA566000050 *	1

Rif.	Articolo	Descrizione Q.tà	Nota
49	SKR2008751210	*VEDI SKRA557000040 * 2	M6
50	SKR2008751231	*VEDI SKRV346000040 * 2
51	SKR2210071430	*VEDI SKRV304000150 * 3	F6
52	ECR2087051211	*VEDI ECRA552000130 * 1
53	SKR2087051220	*VEDI ECRV204000480 * 1	M6×18
54	ECR2087071100	ROTOR SUB ASSY 1
55	SKR2087071110	*VEDI ECRA409000720 * 1
56	SKR2087071120	*VEDI SKRA514000190 * 1
57	SKR2087071130	*VEDI ECRV452000620 * 1
58	SKR2087071202	*VEDI SKRA411000860 * 1
59	ECR2087071222	CORD 1
61	SKR2000072230	*VEDI SKRA426000050 * 1
62	ECR2001671651	*VEDI ECRV475005140 * 1	F8
63	SKR7003071620	*VEDI SKRV322000040 * 2
64	ECR1102404261	*VEDI ECRV202000330 * 2	M4×26
65	SKR240303100	*VEDI ECR9311503010 * 1
66	SKR2003571220	*VEDI ECRV265000140 * 1	M8
67	ECR1300013406	*VEDI ECR15901010130 * 1	BMR6A
68	SKR2087082100	*VEDI SKRA023000220 * 1
69	SKR2087082111	SUPPORTO FILTRO 1
70	SKR2011582120	1
71	SKR2087082120	*VEDI SKRA242000120 * 1
72	SKR2011082140	*VEDI ECRE140000090 * 1
73	SKR160006151	RONDELLA ELASTICA D6 1
74	SKR1152406211	DADO SINISTRO 1
75	SKR2087082210	*VEDI SKRA226000730 * 1
76	SKR2087082312	*VEDI SKRA232000930 * 1
77	SKR2087082411	*VEDI SKRV103001180 * 1
78	SKR102005550	BULLONE 2	M5×55
79	SKR160005131	RONDELLA ELASTICA D5 2	F5
80	SKR6280085013	*VEDI SKRA038000380 * 1
81	SKR2087085251	*VEDI SKRA350001480 * 1
82	SKR2087085121	*VEDI SKRV470001190 * 1
83	SKR2001685400	*VEDI SKRA369000070 * 1
84	SKR2087085132	*VEDI SKRV471002760 * 1
85	SKR2008785340	*VEDI SKRV186000270 * 1
86	SKR2002085540	*VEDI SKRV490000500 * 3
87	SKR2087085140	TUBO 1
88	SKR7293385620	*VEDI SKRV186000210 * 1
89	SKR2000085350	*VEDI SKRV490000610 * 1
90	SKR6280085021	*VEDI SKRA033000130 * 1
91	SKR2087085151	*VEDI SKRA033000110 * 1
92	SKR2087085160	*VEDI ECRV107000050 * 1
93	SKR6280085310	SUPPORTO 1
94	SKR2087085320	*VEDI ECRE263000040 * 1

Rif.	Articolo	Descrizione		Q.tà	Nota
95	SKR2087085210	GUARNIZIONE		1
96	SKR1540110022	SPESSORE		3	F18×F5.2 T=1.6
97	SKR2087085230	*VEDI ECRV324000000	*	6
98	SKR2087085240	BULLONE		3	M5
99	ECR1940200148	*VEDI ECRX505003350	*	1
100	ECR1940400048	*VEDI ECRX508000220	*	1	106DB(A)
101	ECR2087091120	LABEL TRADE		1
102	SKR2087064104	*VEDI SKRC040000390	*	1
103	SKR2087064122	*VEDI SKRC403000450	*	1
104	ECR1152605212	*VEDI ECRV263000330	*	1	M5
105	ECR0161306100	*VEDI ECR90063000006	*	1	F6 T=1.0
106	SKR1152506210	*VEDI SKRV264000160	*	1	M6
107	SKR2087065103	*VEDI SKRC044001080	*	1
108	SKR7087165112	*VEDI ECRC412000510	*	1
109	ECR7087165122	*VEDI ECRC412000520	*	1
110	SKR7087165130	*VEDI ECRC450000581	*	1
111	SKR7087165140	*VEDI ECRC460000240	*	1
112	SKR7087165150	*VEDI ECRV450001020	*	1
113	SKR7087165160	MOLLA		1
114	SKR7087165170	*VEDI SKRC461000080	*	1
115	SKR7087165180	*VEDI SKRV450001010	*	1
116	SKR7087165191	*VEDI ECRV430003140	*	1
117	SKR7087165202	*VEDI SKRA440001530	*	1
118	SKR2087065110	*VEDI ECRC473000060	*	1
119	SKR2087065120	*VEDI ECRV262000110	*	1
120	ECR2087065320	SPRING WASHER		1
121	ECR2087065141	WASHER		1
122	SKR2087065150	*VEDI ECRV202000370 *		1
123	ECR7087165311	*VEDI ECRV252000360 *		3	4×16
124	ECR7087165320	*VEDI ECRV253000580 *		2	M5×20
125	ECR0150105030	*VEDI ECR9201705000 *		2	M5
126	ECR7087165331	*VEDI ECRV252000370 *		1	M4×23
127	ECR7087165340	*VEDI ECRV262000100 *		1	M4
128	SKR2087065311	*VEDI ECRC410000700 *		1
129	ECR2001983140	*VEDI ECRV475005090 *		1
130	ECR1521012305	*VEDI ECRV495002400 *		1
138	SKR1540120011	*VEDI ECRV323000120 *		1	F20×F5.5 T=1.6
139	ECR2216032220	*VEDI ECRV253000550 *		1	5×20
141	ECR2087098310	*VEDI ECRP021035060 *

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7087181100	*VEDI SKRA021002690 *	1
2	SKR7009781290	VITE CARBURATORE	2
3	SKR7009781220	*VEDI ECR12318340630 *	1
4	SKR7293481230	GETTO	1
5	SKR7009781310	*VEDI ECR12312540630 *	1
6	SKR7009781320	*VEDI ECR12311240630 *	1
7	SKR7293381410	CORPO POMPA	1
8	SKR7003081380	*VEDI ECR12312610631 *	1
9	SKR2210081230	BILANCIERE	1
10	SKR2210081250	*VEDI ECR12313803930 *	1
11	SKR7293381270	MOLLA	1
12	SKR2003681440	*VEDI ECR12313719830 *	1
13	SKR2001681450	VITE	1
14	SKR2210081260	*VEDI SKR3701381310 *	1
15	SKR2001681280	*VEDI ECR12314005560 *	1
16	SKR2001681420	*VEDI ECR12318005560 *	1
17	SKR2001681510	*VEDI ECR12314205560 *	1
18	SKR2003681670	*VEDI ECR12318140630 *	1
19	ECR2001681140	*VEDI ECR12311005560 *	4
20	SKR7293381250	ANELLO	1
21	SKR7293381450	NOTTOLINO	1
22	SKR2008981185	RONDELLA	1
23	SKR2003681195	ANELLO	1
24	SKR2008981130	SUPPORTO	1
25	SKR2008981110	REGOLATORE CAVO	1
26	SKR2003681120	DADO	1
27	ECR2087081210	*VEDI ECR2087081220 *	1

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR2087061103	*VEDI SKRP021018920 *	1
2	SKR2087061113	*VEDI SKRC531000690 *	1
3	SKR200606201	*VEDI ECR90081206201 *	1	6201DDU
4	SKR200206000	*VEDI SKR9404406000 *	1	6000ZZ
5	SKR2087061203	*VEDI ECRP021018930 *	1
6	SKR2087061213	*VEDI SKRC539000070 *	1
7	SKR200206000	*VEDI SKR9404406000 *	2	6000ZZ
8	SKR2087061301	*VEDI SKRV060000080 *	1
9	SKR2087061410	*VEDI SKRV655000050 *	1
10	SKR2087061420	*VEDI SKRA556000930 *	1
11	SKR2087061500	*VEDI SKRC532000210 *	2
12	SKR1540111008	*VEDI ECRV307000240 *	2
13	SKR2087061611	*VEDI SKRV150002430 *	1
14	SKR2087061621	*VEDI ECRC538000140 *	1
15	SKR2087061630	*VEDI SKRV541000210 *	1
16	SKR2087061650	*VEDI SKRV110000130 *	1
17	SKR102005120	BULLONE M5X12 T.E.I.	3	M5×12
18	SKR102004140	BULLONE M4X14	6	M4×14
19	SKR2087061640	*VEDI ECRV187000080 *	1
20	SKR7087262101	*VEDI SKR6381062010 *	1	CARB·EPA
20	SKR6381062010	*VEDI SKRX041000070 *	1	CE·YB?EC
21	SKR2087062201	*VEDI SKRP021018940 *	1
22	SKR1850070000	*VEDI SKR1850070004 *	1	CARB·EPA
22	SKR1850070004	*VEDI SKRX411000870 *	1	CE·YB?EC
23	SKR1850070001	*VEDI SKR1850070005 *	1	CARB·EPA
23	SKR1850070005	*VEDI SKRX411000880 *	1	CE·YB?EC
24	SKR2087062110	*VEDI SKRV204000570 *	3	M6
25	SKR2087062120	*VEDI SKRV204000520 *	1	M6
26	SKR2087062150	*VEDI SKRV204000510 *	1	M6
27	SKR2087062131	*VEDI SKRV304000240 *	4
28	SKR2087062141	*VEDI ECRV152002340 *	1
29	SKR1152506210	*VEDI SKRV264000160 *	3	M6
30	SKR2087063120	*VEDI ECRV203001130 *	1	M5×8
31	SKR2087062210	*VEDI SKRV152002330 *	1
32	ECR1152605212	*VEDI ECRV263000330 *	2	M5
33	SKR1152506210	*VEDI SKRV264000160 *	1	M6
34	SKR2087063211	*VEDI ECRV152002350 *	1
35	SKR2087063120	*VEDI ECRV203001130 *	2	M5×8
36	SKR2362721220	*VEDI SKRV323000080 *	2	F5
37	SKR2087065413	*VEDI SKRC415000080 *	1
38	SKR1102305250	BULLONE	1	M5×25
40	SKR2087065420	*VEDI SKR2087065421 *	4
41	SKR1540110200	*VEDI SKRV354000300 *	2
42	SKR2087065430	*VEDI SKRV304000220 *	2
43	ECR1102006350	*VEDI ECRV204000530 *	2	M6×35
44	ECR1940200147	LABEL,CAUTION	1

Rif. Articolo Descrizione Q.tà Nota
