Cilindro, Marmitta Avviamento, Carter motore

Pistone, Albero motore, Frivione, Valvole Bobina, Volano

Informazioni tecniche
CILINDRATA	24,5
POTENZA	0,76 (1)
SERBATOIO MIX	550
LUNGHEZZA LAMA EFFETTIVA	519

Carburatore, Filtro aria Carburatore (Walbro) Carburatore (Zama) Serbatoio

TIPO LAMA RINFORZATA, MOVIMENTO RECIPROCO, TAGLIO DOPPIOScatola ingranaggi, Lame (24)

PESO 6,2

Scatola ingranaggi, Lame (30) Impugnatura

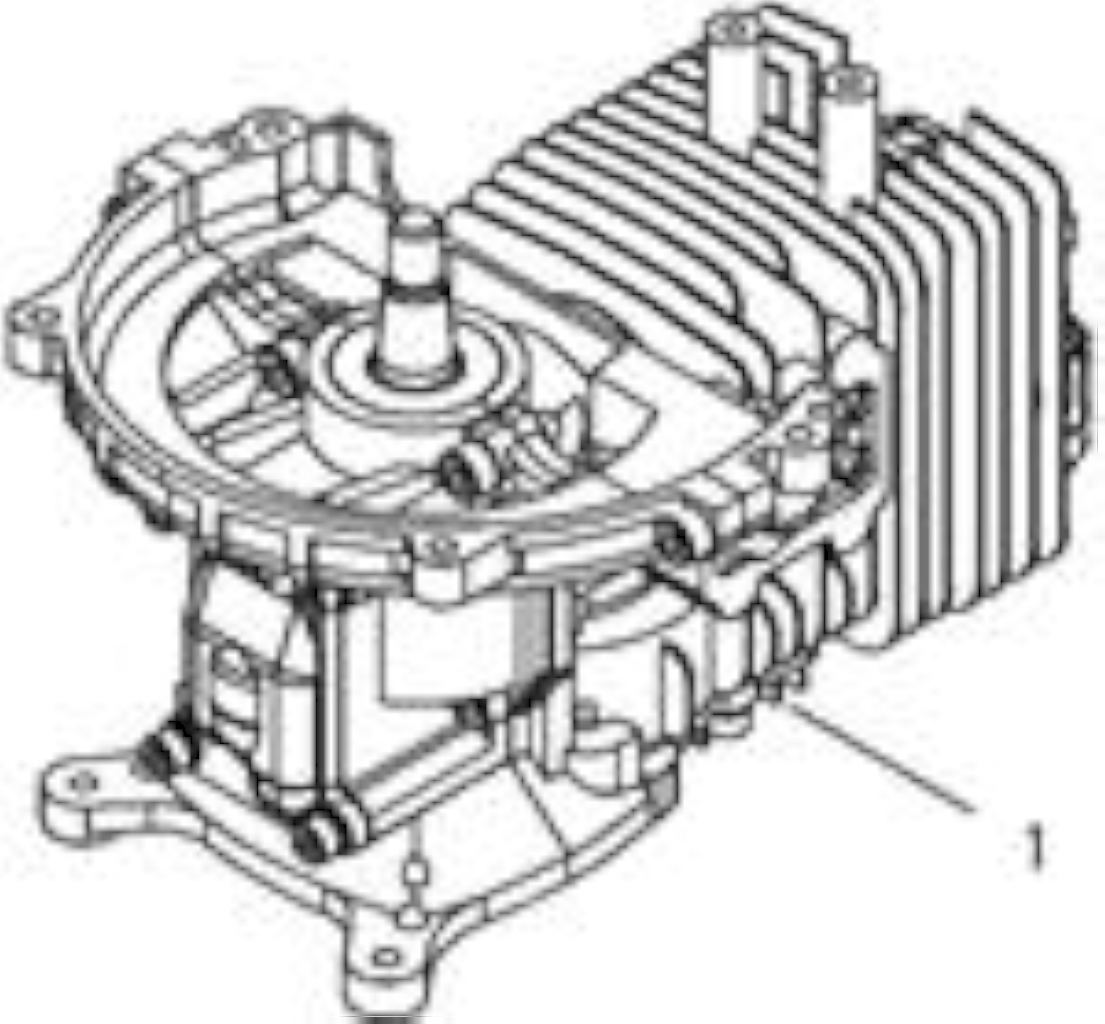

Blocco motore

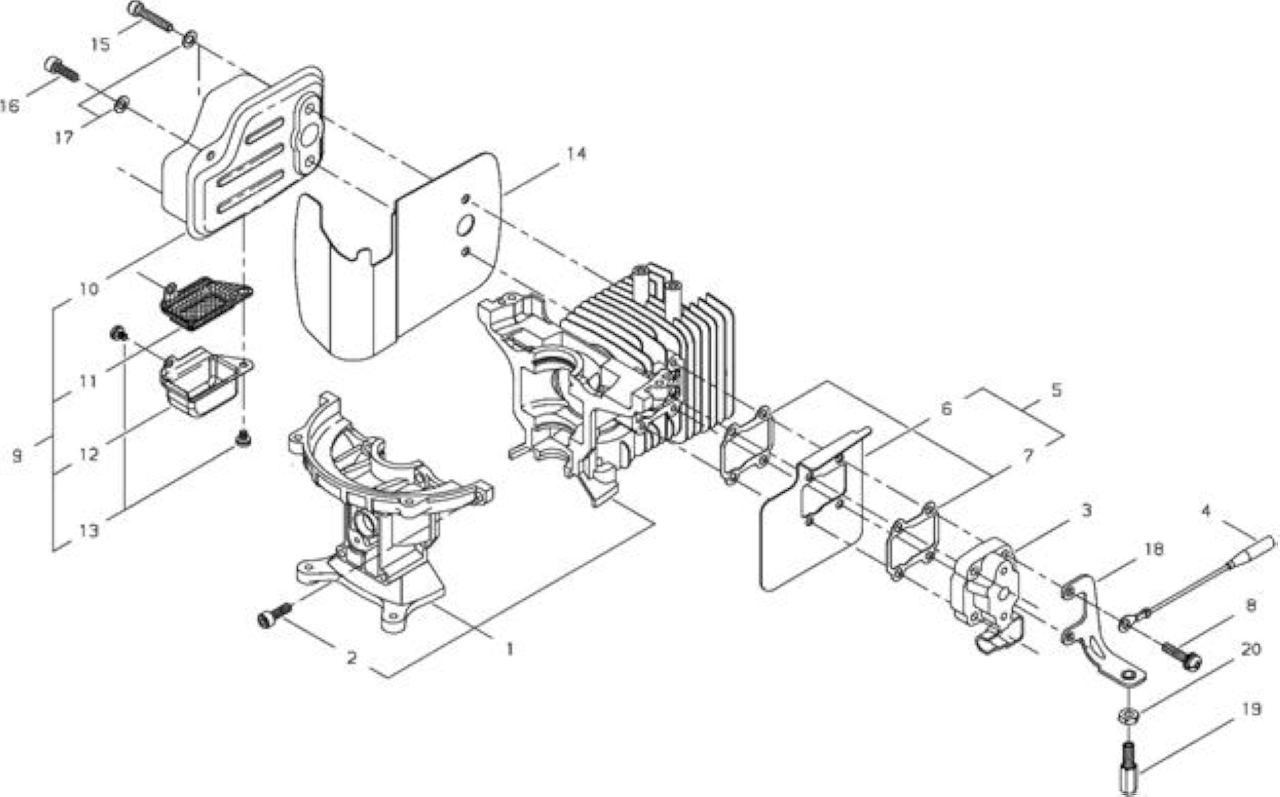

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6060098351	*VEDI SKRP021027390 *	1
2	SKR102005160	*VEDI ECR90010505016 *	6	M5×16
3	SKR6290212310	*VEDI SKRA024000050 *	1
4	ECR1435001101	*VEDI ECRV485001260 *	1	L110
5	SKR6290212320	*VEDI SKRA209000250 *	1
6	ECR6290112320	BAFFLE PLATE	1
7	SKR6290112220	*VEDI SKRV103001130 *	2
8	ECR1120605225	*VEDI ECR9158205022 *	4
9	SKR3880015010	*VEDI ECRA030000342 *	1
10	SKR6290215111	MARMITTA	1
11	SKR6290215131	*VEDI ECRA310000390 *	1
12	SKR3880015160	TERMINALE MARMITTA	1
13	ECR1120404060	SCREW,PM-SW	2
14	SKR6290115210	*VEDI ECRV104001430 *	1
15	ECR6290115310	*VEDI ECRV203001000 *	2	M5×25
16	SKR102005160	*VEDI ECR90010505016 *	1	M5×16
17	SKR161005080	RONDELLA D5	3
18	SKR6260083310	*VEDI ECRV152002310 *	1
19	SKR6290283310	*VEDI SKRC486000030 *	1
20	ECR0150106048	*VEDI ECR9201806000 *	1	M6

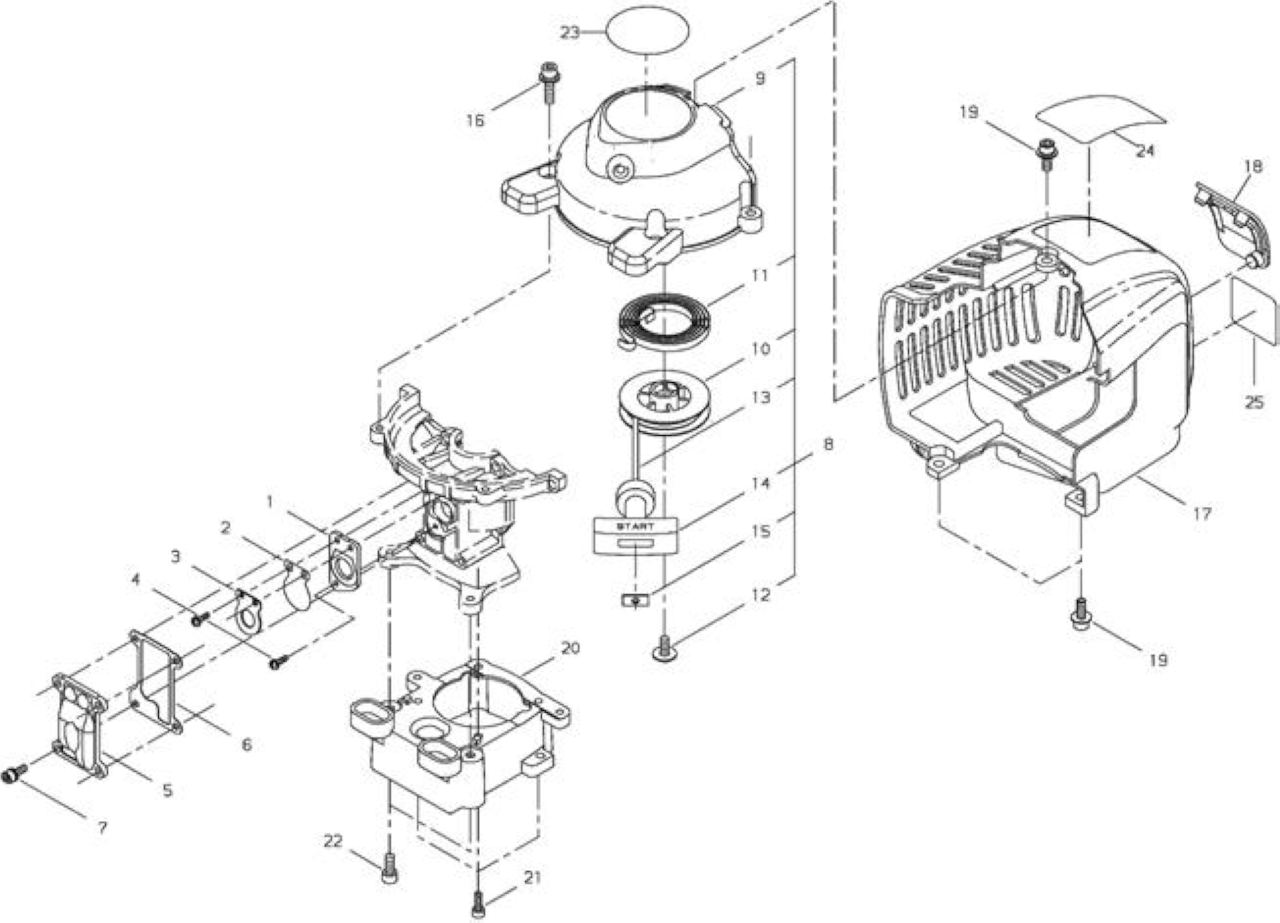

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6290121320	*VEDI ECRA200000750 *	1
2	SKR7232083121	*VEDI ECRA211000030 *	1
3	SKR7232083132	*VEDI ECRA212000040 *	1
4	ECR0121103100	SCREW-SW	3	M3*10
5	SKR6290121120	*VEDI ECRA1230000000 *	1
6	SKR6290121130	*VEDI ECRV109000100 *	1
7	ECR1102204120	*VEDI ECRV202000340 *	4	M4*12
8	SKR6260031011	*VEDI ECRA051001810 *	1
9	SKR6260031111	CARTER VENTOLA	1
10	SKR6260031320	*VEDI SKRA506000340 *	1
11	SKR7003075130	*VEDI SKRA504000100 *	1
12	ECR6260031310	SCREW	1
14	SKR2001075190	*VEDI ECR17722827030 *	1
15	SKR2001075210	FERMO IMPUGNATURA AVV.TO	1
16	ECR1106005202	*VEDI ECRV203001010 *	4	M5*20
17	SKR6260032110	*VEDI SKRA160001751 *	1	CARTER BLU
17	SKRA160002270	CARTER CILINDRO (ROSSO)	1	CARTER ROSSO
18	SKR6290132312	*VEDI SKRA429000140 *	1	CARTER BLU
18	ECRA429000130	GOMMINO		CARTER ROSSO
19	ECR1106005141	*VEDI ECRV203001020 *	3	M5*14
20	SKR6260033310	*VEDI SKRA570000250 *	1
21	SKR102004120	*VEDI ECR90010505022 *	4	M4*12
22	SKR102005120	BULLONE M5X12 T.E.I.	2	M5*12
23	SKR1942000070	*VEDI ECRX504003080 *	1
24	ECR1942000106	*VEDI ECRX504002530 *	1	SHINDAIWA?C4
25	ECR6880191320	LABEL TRADE	1

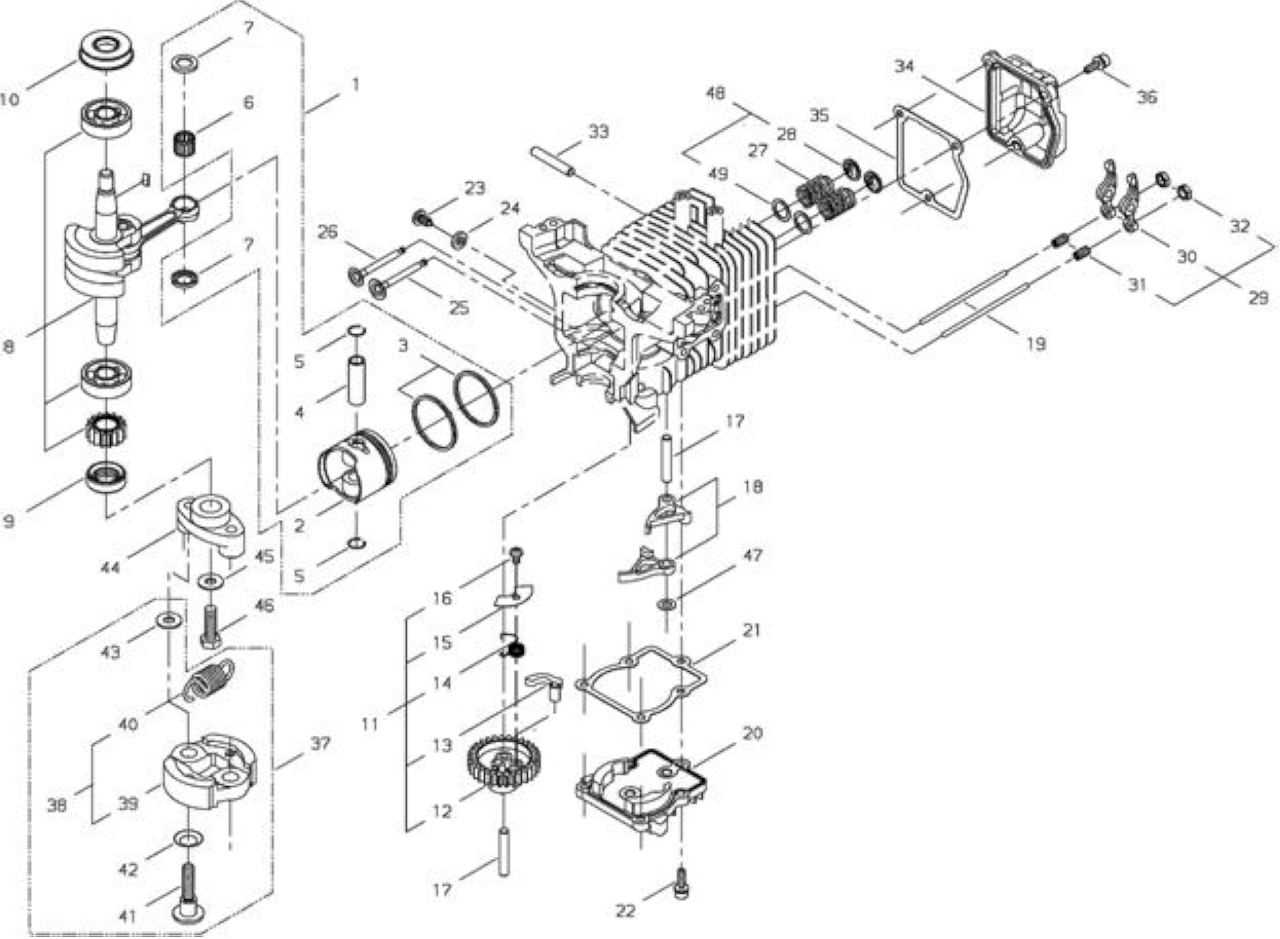

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6290241310	*VEDI SKRP021033930 *	1
2	ECR6290241110	PISTON	1
3	SKR6290241120	*VEDI ECRA101000390 *	2
4	SKR6290141210	*VEDI ECRV607000040 *	1
5	SKR2000041320	*VEDI SKRV580000090 *	2
6	SKR6290141230	*VEDI SKRV554000010 *	1
7	SKR3701941240	*VEDI SKRV392000020 *	2
8	SKR6260042020	ALBERO MOTORE COMPLETO	1
9	SKR6290142260	*VEDI SKRV505000110 *	1
10	SKR6290142270	*VEDI SKRV505000120 *	1
11	SKR6290543011	*VEDI SKRA063000000 *	1
12	SKR6290243310	*VEDI SKRA622000000 *	1
13	SKR6290743120	*VEDI ECRA146000000 *	1
14	SKR1752008900	MOLLA	1
15	ECR6290543131	*VEDI ECRC603000240 *	1
16	ECR0128004062	*VEDI ECR9144904006 *	1
17	SKR1249250290	*VEDI ECRV623000030 *	2	F5*L29.8
18	SKR6290743210	*VEDI SKRA600000000 *	2
19	SKR6290843220	*VEDI SKRA607000010 *	2
20	SKR6290143330	*VEDI SKRA136000010 *	1
21	SKR6290143240	*VEDI SKRV109000110 *	1
22	SKR1102204140	BULLONE	5	M4*14
23	ECR6290143310	*VEDI ECRV253000540 *	1
24	ECR1540110028	*VEDI ECRV303000120 *	1
25	SKR6290244111	*VEDI SKRA603000040 *	1
26	SKR6290244121	*VEDI SKRA603000050 *	1
27	SKR6290144130	*VEDI ECRA604000010 *	2
28	SKR6290844140	*VEDI ECRA606000040 *	2
29	SKR6290744010	*VEDI ECRA610000050 *	2
30	SKR6290144210	*VEDI ECRA610000060 *	2
31	SKR6290744220	*VEDI ECRA613000010 *	2
32	SKR6290144231	*VEDI ECRV263000230 *	2
33	ECR1249250310	*VEDI ECRV623000040 *	1	F5×31.8
34	SKR6290144241	*VEDI SKRA137000020 *	1
35	SKR6290144250	*VEDI SKRV109000120 *	1
36	SKR1102204140	BULLONE	3	M4*14
37	SKR6260051010	*VEDI ECRA056000470 *	1
38	ECR6260051020	*VEDI ECRA056000480 *	1
39	SKR2011551111	MASSA FRIZIONE	2
40	SKR6260051310	*VEDI ECRA566000170 *	1
41	SKR2008751210	*VEDI SKRA557000040 *	2
42	SKR2008751231	*VEDI SKRV346000040 *	2
43	SKR2210071430	*VEDI SKRV304000150 *	2
44	ECR2087051211	*VEDI ECRA552000130 *	1
45	SKR2210071430	*VEDI SKRV304000150 *	1
46	SKR2087051220	*VEDI ECRV204000480 *	1	M6*18

Rif.	Articolo	Descrizione	Q.tà Nota
47	SKR1162010000	*VEDI SKRV303000220 *	1
48	SKR6090898370	*VEDI ECRP021027590 *	2
49	SKR6290844310	*VEDI ECRV392000030 *	2

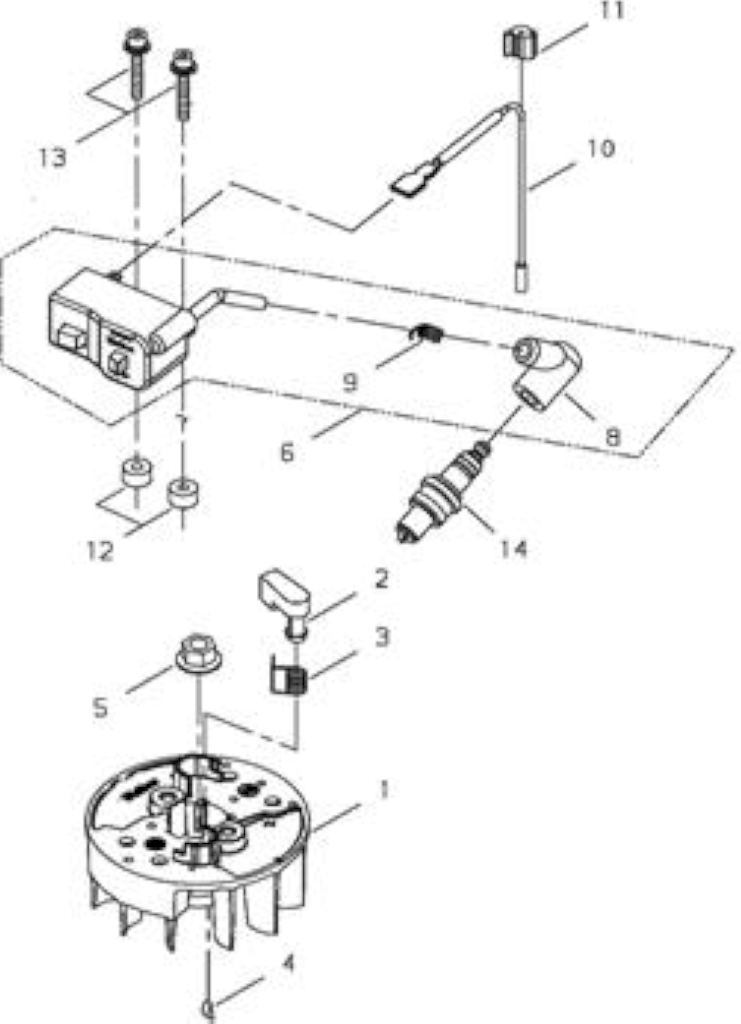

1	SKR6260071111	* VEDI ECRA409000680 *	1
2	SKR2087071120	*VEDI SKRA514000190 *	1
3	SKR2087071130	*VEDI ECRV452000620 *	1
4	SKR240303100	*VEDI ECR9311503010 *	1	3*10
5	SKR2003571220	*VEDI ECRV265000140 *	1	M8
6	SKR6260071320	*VEDI SKRA411000850 *	1	CARTER BLU (MB-43A)
6	SKRA411001200	ACCENSIONE MBU-45	1	CARTER ROSSO (MBU-45)
8	SKR6290571250	CAPPUCCIO CANDELA	1
9	SKR6290571320	* VEDI ECRA426000020 *	1
10	ECR1435002001	*VEDI ECRV485001910 *	1
11	SKR6290171310	GOMMINO	1
12	SKR7003071620	*VEDI SKRV322000040 *	2
13	ECR1102404265	*VEDI ECRV202000360 *	2	M4*26

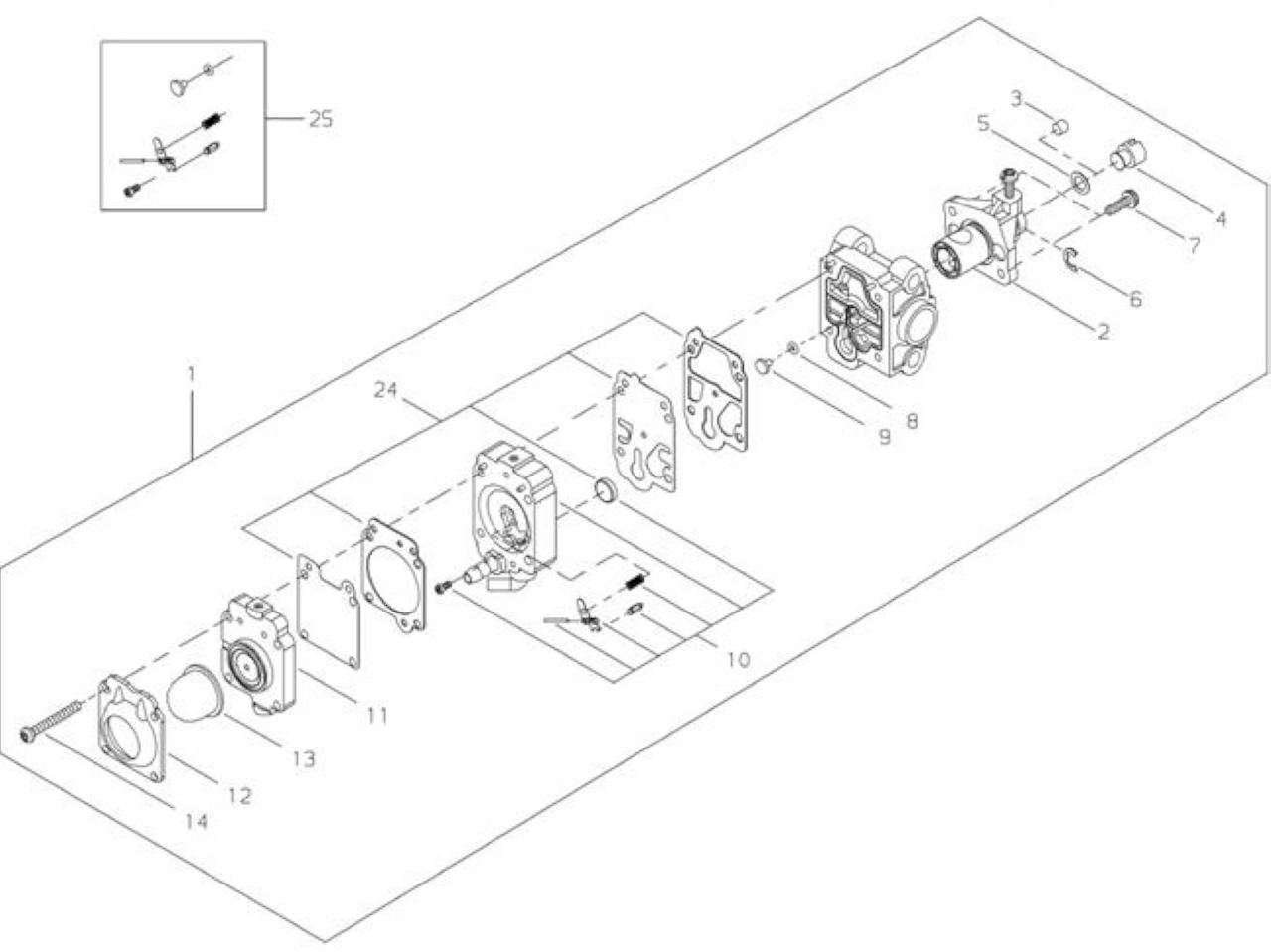

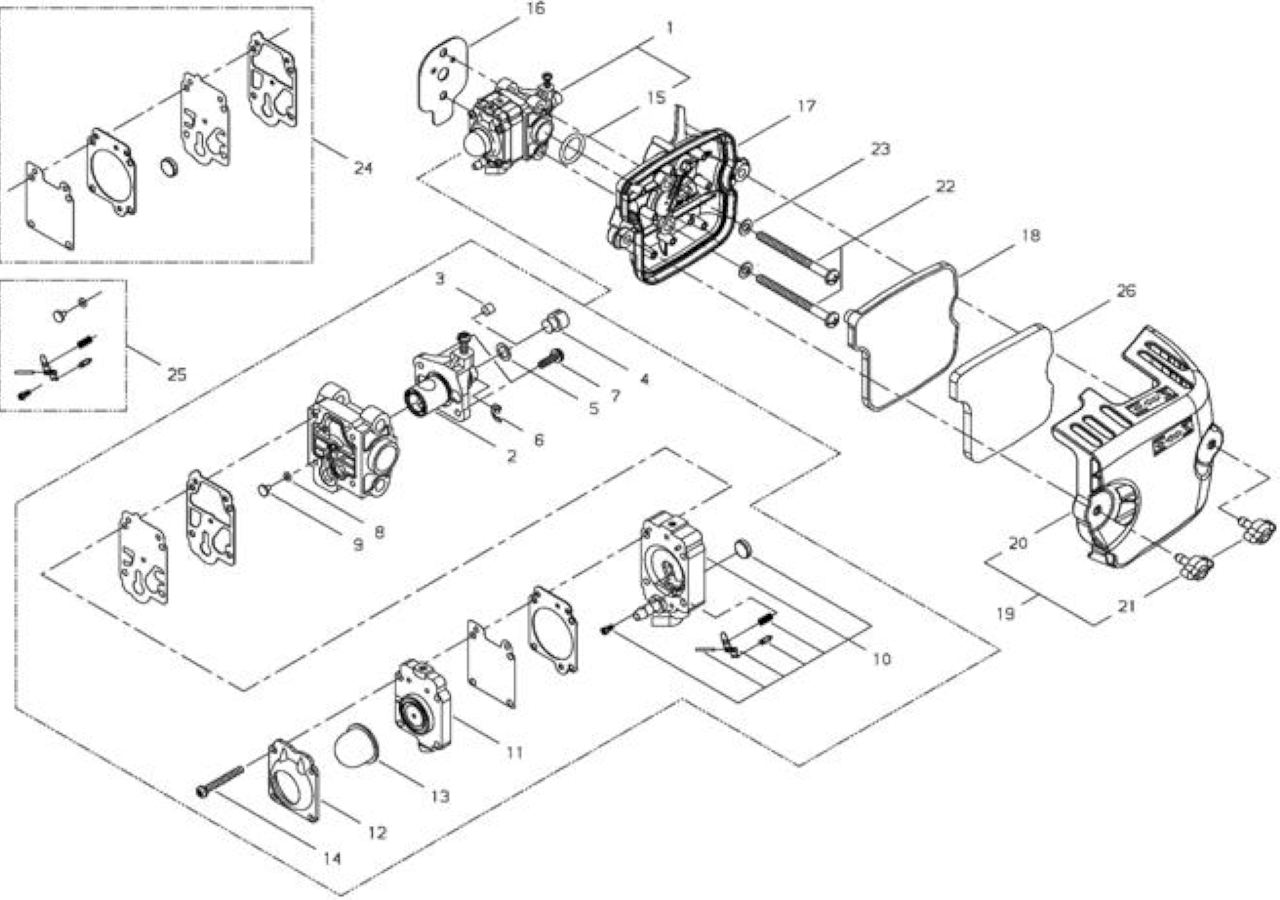

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6260081010	*VEDI SKRA021002680 *	1	CARTER BLU(WALBRO)
1	SKRA021003321	*VEDI ECRA021003322 *	1	CARTER ROSSO(ZAMA)
2	SKR6290181320	VALVOLA ACCELERATORE	1	WALBRO
3	SKR6207481320	TAPPO	1	WALBRO
4	SKR7293381450	NOTTOLINO	1	WALBRO
5	SKR2008981185	RONDELLA	1	WALBRO
6	SKR2003681195	ANELLO	1	WALBRO
7	SKR7006481290	VITE	2	WALBRO
8	SKR7009781220	*VEDI ECR12318340630 *	1	WALBRO
9	SKR6290281310	*VEDI ECR12318444430 *	1	WALBRO
10	SKR3701381350	CORPO POMPA COMPLETO	1	WALBRO
11	SKR2001681420	*VEDI ECR12318005560 *	1	WALBRO
12	SKR2001681510	*VEDI ECR12314205560 *	1	WALBRO
13	SKR2003681670	*VEDI ECR12318140630 *	1	WALBRO
14	ECR2001681140	*VEDI ECR12311005560 *	4	WALBRO
15	SKR2001681250	*VEDI ECR90072000015 *	1
16	SKR6290181211	*VEDI SKRV103001140 *	1
17	SKR6290882010	*VEDI SKRA023000200 *	1	CARTER BLU
17	SKRA023000261	CORPO FILTRO ARIA 2 FORI-ROSSO-	1	CARTER ROSSO
18	SKR6290882120	*VEDI SKRA226000690 *	1
19	SKR6290882030	*VEDI SKRP021028520 *	1
20	SKRA232000911	*VEDI ECRA232000912 *	1	CARTER ROSSO
20	SKR6290882130	COPERCHIO FILTRO ARIA	1	CARTER BLU
21	SKR6290182330	*VEDI SKRV299000400 *	2
22	ECR1120305605	*VEDI ECR9158105060 *	2
23	ECR0161305080	*VEDI ECR90060300005 *	2
24	SKR6090298030	*VEDI SKRP050008580 *	1	WALBRO
25	SKR6090298040	KIT SPILLO C/BILANCIERE	1	WALBRO
26	SKR6290882310	*VEDI SKRA226000700 *	1

Rif.	Articolo	Descrizione	Q.tà Nota
1	SKR6260081010	*VEDI SKRA021002680 *	1
2	SKR6290181320	VALVOLA ACCELERATORE	1
3	SKR6207481320	TAPPO	1
4	SKR7293381450	NOTTOLINO	1
5	SKR2008981185	RONDELLA	1
6	SKR2003681195	ANELLO	1
7	SKR7006481290	VITE	2
8	SKR7009781220	*VEDI ECR12318340630 *	1
9	SKR6290281310	*VEDI ECR12318444430 *	1
10	SKR3701381350	CORPO POMPA COMPLETO	1
11	SKR2001681420	*VEDI ECR12318005560 *	1
12	SKR2001681510	*VEDI ECR12314205560 *	1
13	SKR2003681670	*VEDI ECR12318140630 *	1
14	SKR2001681140		4
24	SKR6090298030	*VEDI SKRP050008580 *	1
25	SKR6090298040	KIT SPILLO C/BILANCIERE	1

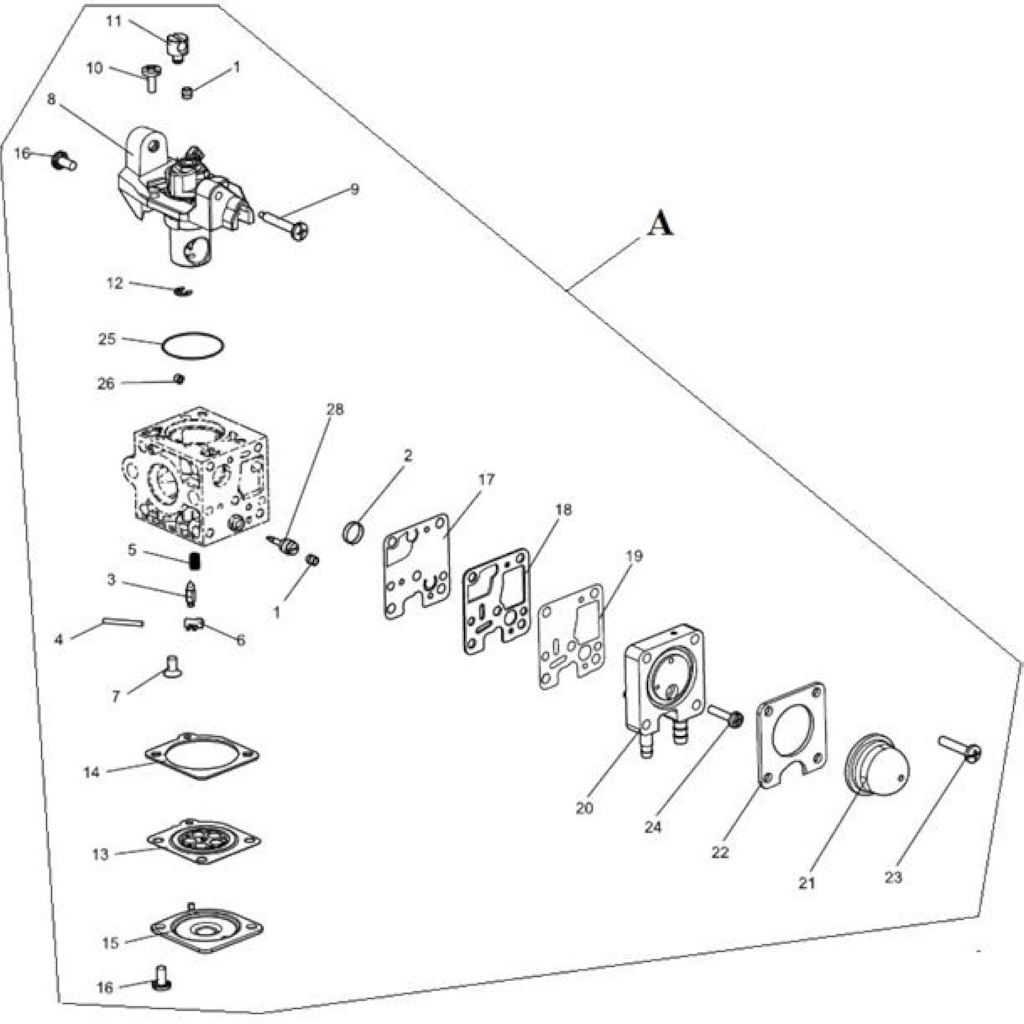

Rif.	Articolo	Descrizione	Q.tà	Nota
A	SKRA021003321	*VEDI ECRA021003322 *	1
1	ECRP005001270	TAPPO LIMITATORE (NERO)	2
2	ECRP005000010	ANELLO	1
3	ECR12533708260	SPILLO CARBURATORE	1
4	ECR12533813930	SPINOTTO BILANCIERE	1
5	ECRP005000940	MOLLA	1
6	ECR12532308260	BILANCIERE CARBURATORE	1
7	ECR12533942030	VITE BILANCIERE	1
8	ECRP005002140	COVER ASY, ROTOR	1
9	ECRP005002110	SCREW,THROTTLEADJUST	1
10	ECR12534413931	VITE CARBURATORE	3
11	ECRP005002200	POST	1
12	ECRP005000190	E-RING	1
13	ECRP005001780	MEMBRANA C/DISCO	1
14	ECRP005000200	GUARNIZIONE	1
15	ECR12534252130	COPERCHIO MEMBRANA	1
16	ECR12534452130	VITE	3
17	ECRP005000210	DIAPHRAGM, PUMP	1
18	ECRP005000220	GASKET, PUMP	1
19	ECRP005000230	SURGE, DIAPHRAGM	1
20	ECRP005002130	BASE ASY,PRIMER	1
21	ECR12538146730	*VEDI ECR12538108660 *	1
22	ECRP005002150	RETAINER, PRIM. PUMP	1
23	ECRP005001900	SCREW	4
24	ECRP005000270	VITE	1
25	ECRP005000280	O-RING	1
26	ECRP005001000	RULLINO	1
28	ECRP005001260	VITE REGOLAZIONE	1

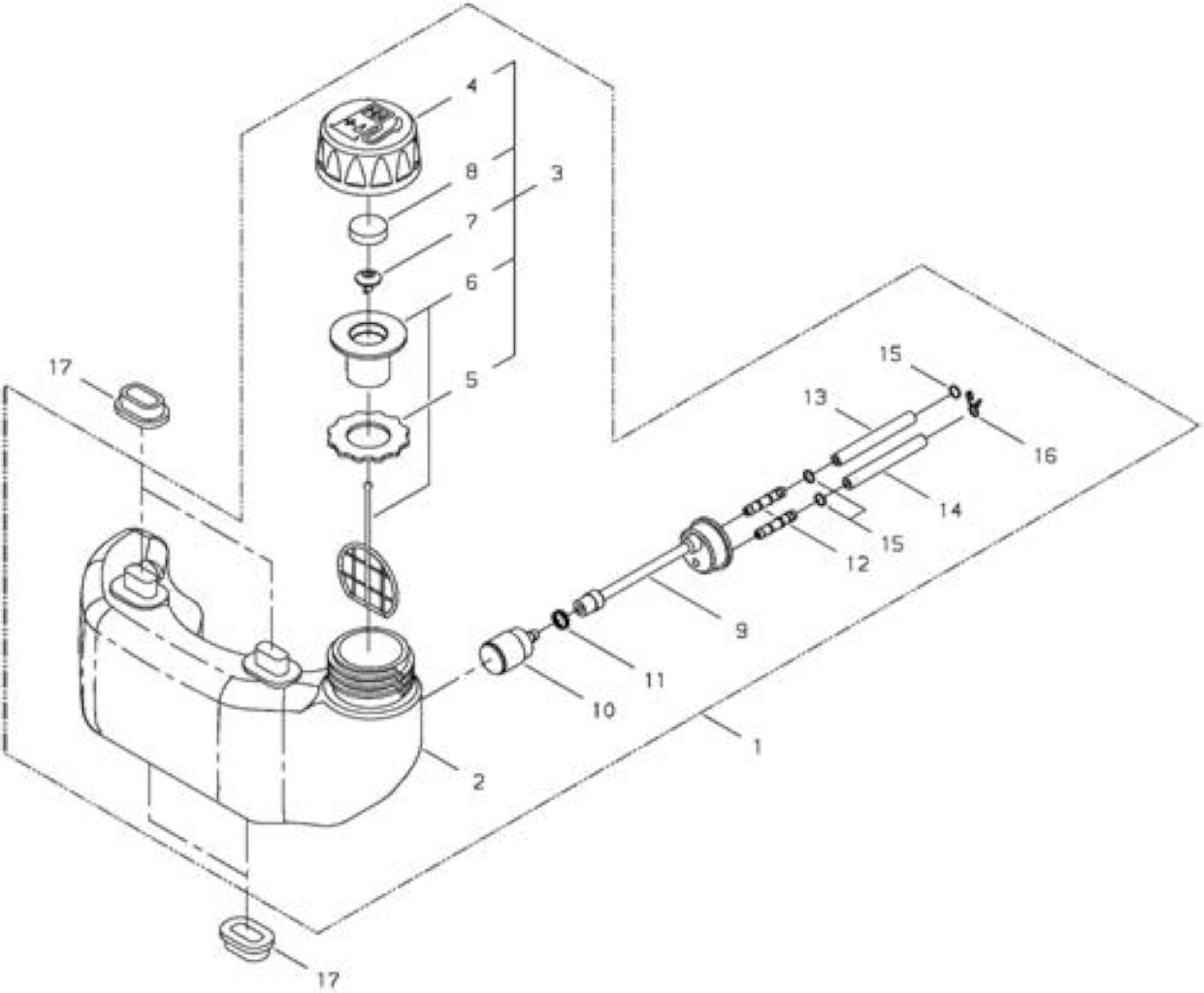

1	SKR6260185310	SERBATOIO COMPL.		1
2	SKR6260085110	*VEDI ECRA350001460	*	1
3	SKR6280085021	*VEDI SKRA033000130	*	1
4	SKR2087085151	*VEDI SKRA033000110	*	1
5	SKR2087085160	*VEDI ECRV107000050	*	1
6	SKR6280085310	SUPPORTO		1
7	SKR2087085320	*VEDI ECRE263000040	*	1
8	SKR2087085210	GUARNIZIONE		1
9	SKR2087085121	*VEDI SKRV470001190	*	1
10	SKR2001685400	*VEDI SKRA369000070	*	1
11	SKR2000085350	*VEDI SKRV490000610	*	1
12	SKR7293385620	*VEDI SKRV186000210	*	2
13	SKR2011083311	*VEDI ECRV471002730	*	1
14	SKR2011285361	*VEDI ECRV471002740	*	1
15	SKR2002085540	*VEDI SKRV490000500	*	3
16	ECR3701385310	*VEDI ECRV490000510	*	1
17	SKR6290185220	*VEDI SKRV420002220	*	4

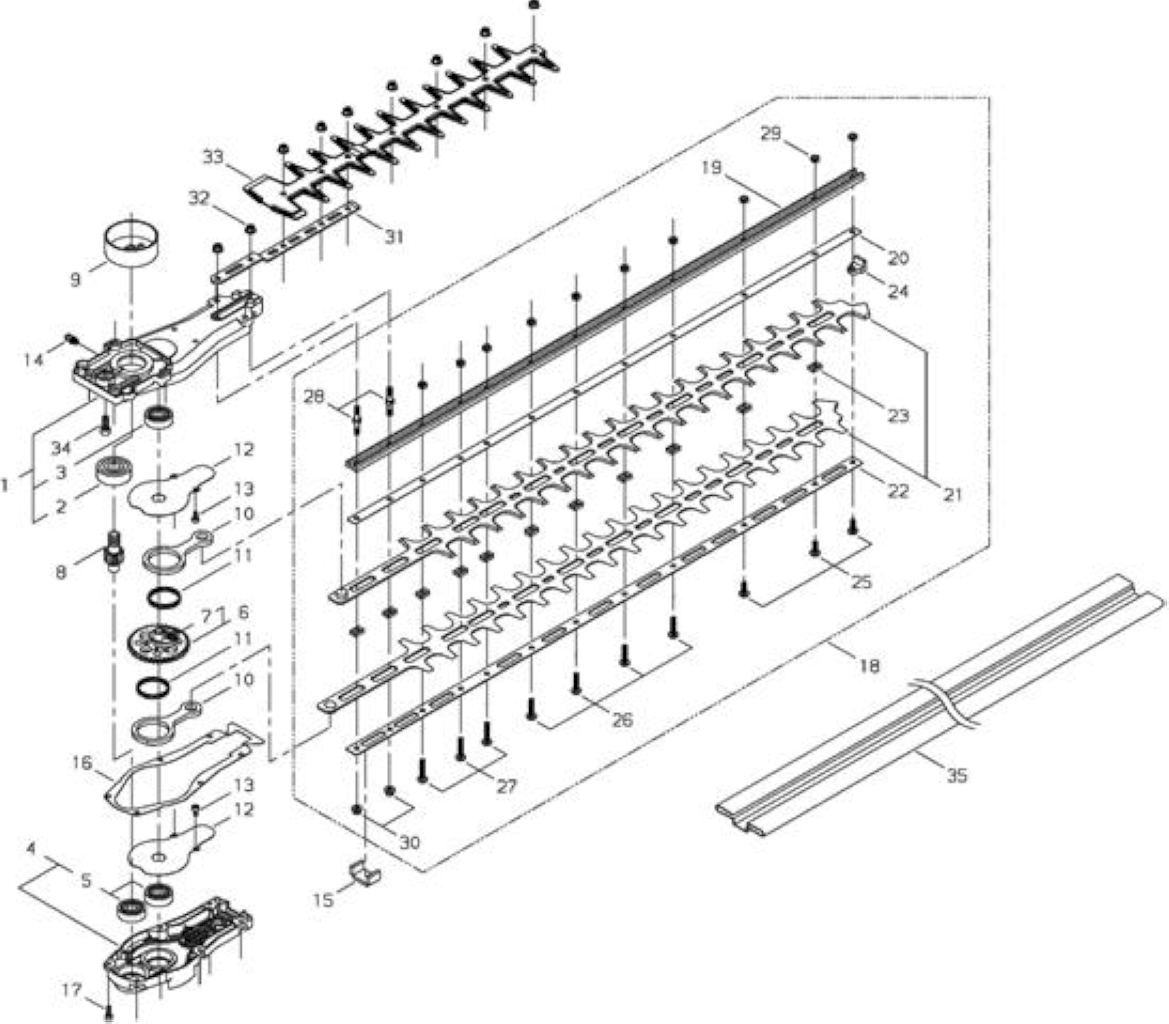

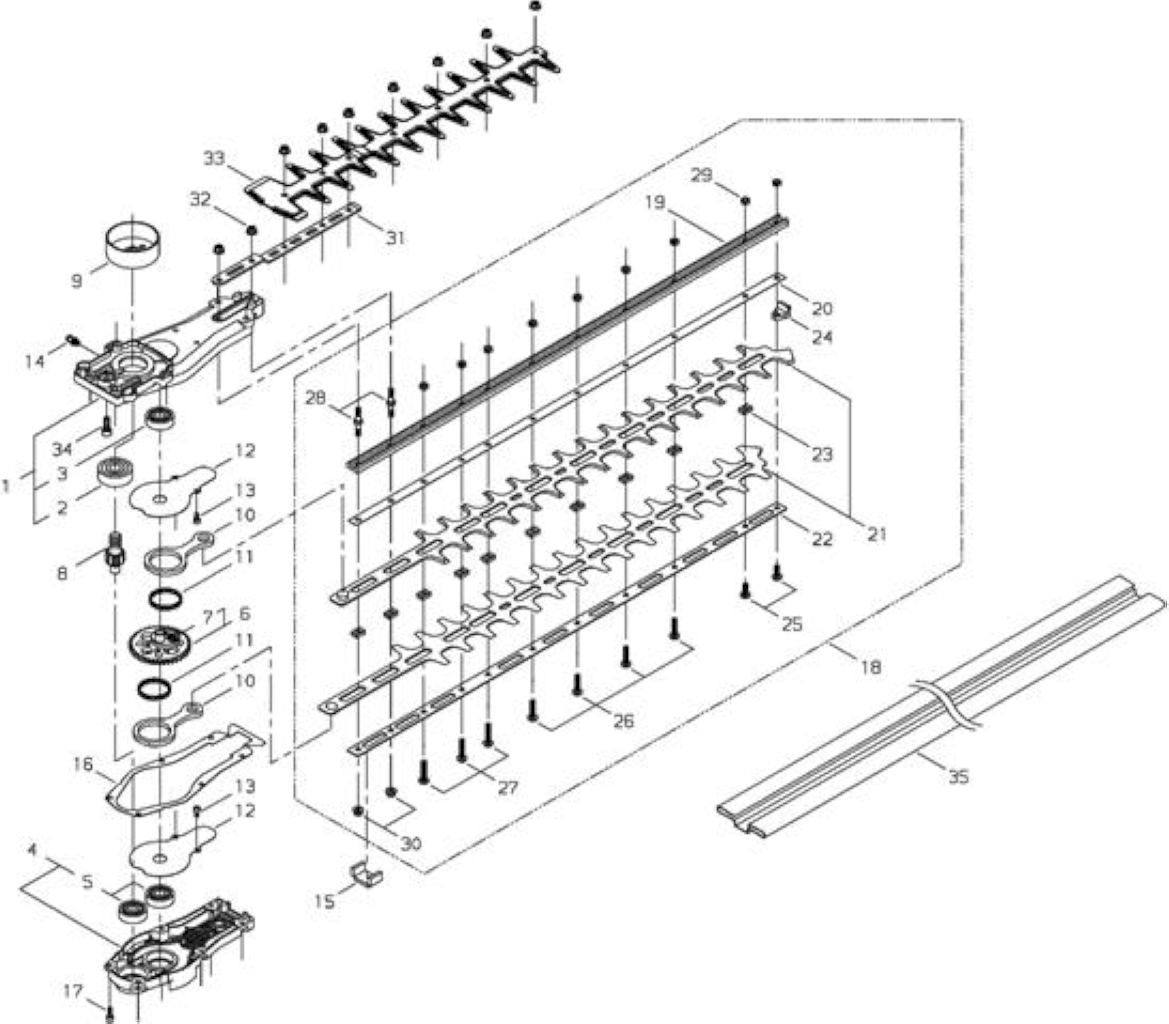

1	SKR6360061010	*VEDI SKRP021028700 *	1
2	SKR200606301	*VEDI ECR9400206301 *	1	6301DDU
3	SKR200206200	CUSCIN. A SFERE 6200ZZ *FUORI PROD*	1	6200ZZ
4	SKR6360061020	*VEDI SKRP021028710 *	1
5	SKR200206200	CUSCIN. A SFERE 6200ZZ *FUORI PROD*	2	6200ZZ
6	SKR6360061030	*VEDI ECRV060000060 *	1
7	SKR6360061320	*VEDI SKRV203001030 *	4	M5X6
8	SKR6360061150	*VEDI ECRV655000030 *	1
9	SKR2087061420	*VEDI SKRA556000930 *	1
10	SKR6360061170	*VEDI SKRC532000200 *	2
11	SKR6360061330	*VEDI SKRV572000000 *	2
12	SKR6360061340	*VEDI ECRC603000250 *	2
13	ECR0102004080	*VEDI ECR90010504008 *	4	M4X8
14	SKR2087061640	*VEDI ECRV187000080 *	1
15	SKR6360061350	*VEDI SKRV541000200 *	1
16	SKR6360061360	*VEDI SKRV110000100 *	1
17	SKR102004140	BULLONE M4X14	6	M4X14
18	SKR6360662011	*VEDI SKRX041000130 *	1	24"
19	SKR1850160006	*VEDI ECRX425000660 *	1	24"
20	SKR6360262310	*VEDI ECRX425000670 *	1
21	SKR1850060106	*VEDI SKRX411000970 *	2	24" T2.2
22	SKR6360262320	*VEDI ECRX425000680 *	1
23	SKR6360062331	*VEDI SKRV376001350 *	10
24	SKR6360062340	*VEDI ECRV376001360 *	1
25	SKR1123005140	*VEDI SKRV203001150 *	2	M5X14
26	SKR1123005220	*VEDI SKRV20300104 *	4	M5X22
27	SKR1123005250	*VEDI SKRV203001050 *	3	M5X25
28	SKR6360062370	*VEDI SKRV223000020 *	2
29	SKR7293561240	*VEDI SKRV263000240 *	9	M5
30	SKR1152505231	*VEDI SKRV263000250 *	2	M5
31	SKR6360062361	*VEDI ECRV152002290 *	1
32	SKR1152505231	*VEDI SKRV263000250 *	9	M5
33	SKR6360663310	*VEDI SKRX431000060 *	1
34	ECR0102006160	*VEDI ECR90010506016 *	3	M6X16

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6360061010	*VEDI SKRP021028700 *	1
2	SKR200606301	*VEDI ECR9400206301 *	1	6301DDU
3	SKR200206200	CUSCIN. A SFERE 6200ZZ *FUORI PROD*	1	6200ZZ
4	SKR6360061020	*VEDI SKRP021028710 *	1
5	SKR200206200	CUSCIN. A SFERE 6200ZZ *FUORI PROD*	2	6200ZZ
6	SKR6360061030	*VEDI ECRV060000060 *	1
7	SKR6360061320	*VEDI SKRV203001030 *	4	M5X6
8	SKR6360061150	*VEDI ECRV655000030 *	1
9	SKR2087061420	*VEDI SKRA556000930 *	1
10	SKR6360061170	*VEDI SKRC532000200 *	2
11	SKR6360061330	*VEDI SKRV572000000 *	2
12	SKR6360061340	*VEDI ECRC603000250 *	2
13	ECR0102004080	*VEDI ECR90010504008 *	4	M4X8
14	SKR2087061640	*VEDI ECRV187000080 *	1
15	SKR6360061350	*VEDI SKRV541000200 *	1
16	SKR6360061360	*VEDI SKRV110000100 *	1
17	SKR102004140	BULLONE M4X14	6	M4X14
18	ECR6360762011	*VEDI ECRX041000140 *	1	30"
19	SKR1850170004	*VEDI ECRX425000510 *	1	30"
20	SKR6360062310	*VEDI SKRX425000520 *	1
21	SKR1850070104	*VEDI SKRX411000980 *	2	30" T2.2
22	SKR6360062320	*VEDI SKRX425000530 *	1
23	SKR6360062331	*VEDI SKRV376001350 *	11
24	SKR6360062340	*VEDI ECRV376001360 *	1
25	SKR1123005140	*VEDI SKRV203001150 *	3	M5X14
26	SKR1123005220	*VEDI SKRV20300104 *	4	M5X22
27	SKR1123005250	*VEDI SKRV203001050 *	3	M5X25
28	SKR6360062370	*VEDI SKRV223000020 *	2
29	SKR7293561240	*VEDI SKRV263000240 *	10	M5
30	SKR1152505231	*VEDI SKRV263000250 *	2	M5
31	SKR6360062361	*VEDI ECRV152002290 *	1
32	SKR1152505231	*VEDI SKRV263000250 *	5	M5
33	SKR6360663310	*VEDI SKRX431000060 *	1
34	ECR0102006160	*VEDI ECR90010506016 *	3	M6X16

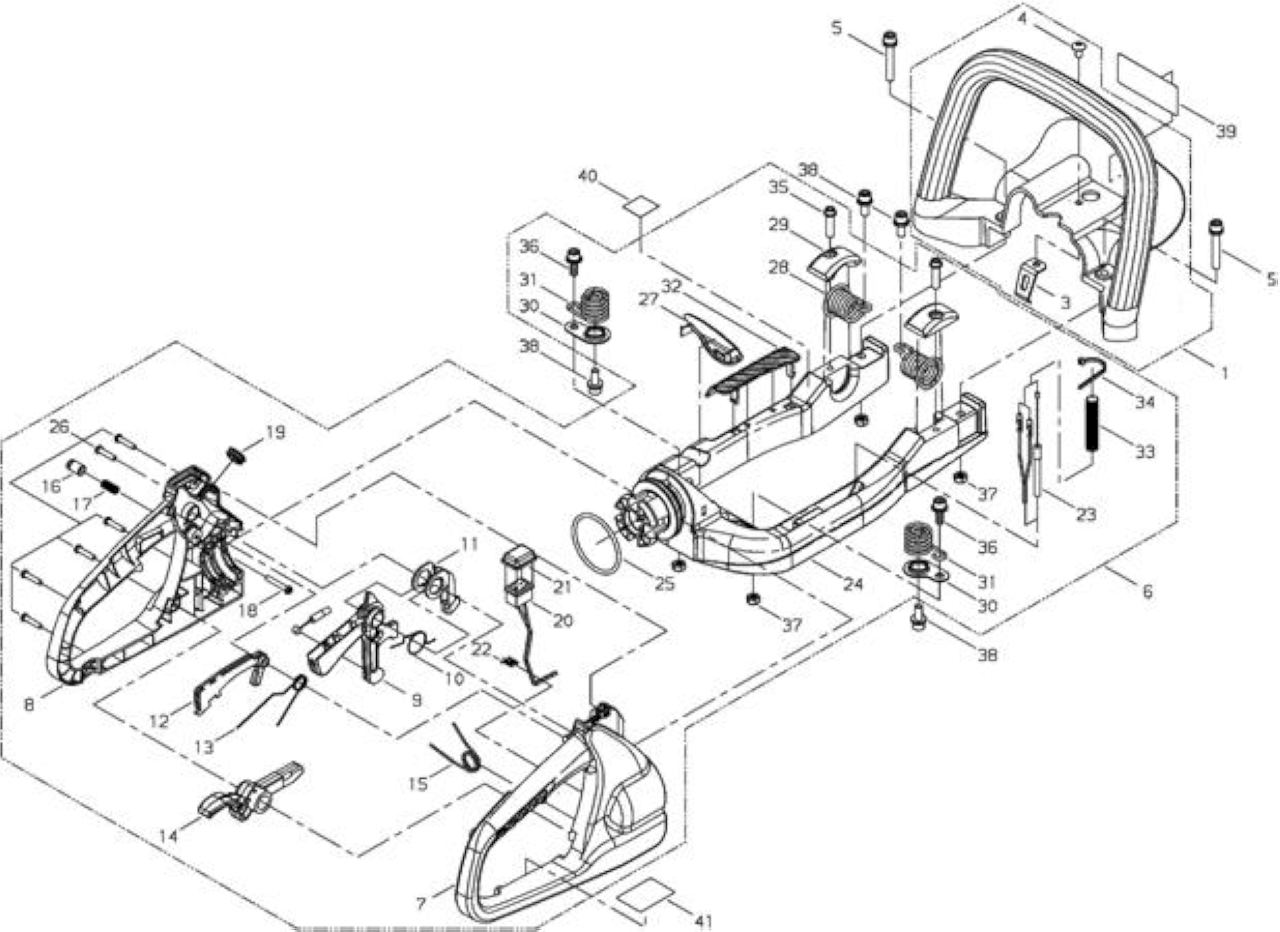

1	SKR6880164010	*VEDI SKRC040000440 *	1
3	ECR6880164310	*VEDI ECRC427000040 *	1
4	ECR0121505103	*VEDI ECR90020905010 *	1	M5X10
5	ECR1102206400	*VEDI ECRV204000450 *	2	M6X40
6	SKR6880165010	*VEDI SKRC041000070 *	1
7	SKR6880165110	*VEDI ECRC410000660 *	1
8	SKR6880165120	*VEDI ECRC410000670 *	1
9	SKR6880165330	*VEDI ECRC450000560 *	1
10	SKR6880165340	MOLLA DI RITORNO	1
11	ECR6880165350	*VEDI ECRC453000370 *	1
12	SKR6880165360	LEVA FERMO ACCELERATORE	1
13	SKR6880165370	MOLLA LEVA ACC.	1
14	SKR6880165380	LEVA	1
15	SKR6880165390	MOLLA	1
16	ECR6880165400	*VEDI ECRC463000060 *	1
17	ECR6880165410	COIL SPRING	1
18	ECR1127304250	*VEDI ECRV252000320 *	1	4X25
19	ECR6880165420	*VEDI ECRV162000400 *	1
20	SKR6880165430	*VEDI ECRA440001510 *	1
21	ECR6880165440	*VEDI ECRA447000060 *	1
22	ECR6880165450	*VEDI ECRV490000670 *	1
23	SKR6880165460	*VEDI ECRV430003160 *	1
24	SKR6880165470	*VEDI SKRC600001210 *	1
25	SKR230205000	*VEDI ECR9250105000 *	1	G50
26	ECR1127204180	*VEDI ECRV252000330 *	6	4X18
27	ECR6880165480	*VEDI ECRC411000110 *	1
28	SKR6880165490	*VEDI SKRV450001030 *	2
29	ECR6880165500	*VEDI ECRV456000160 *	2
30	SKR6880165510	*VEDI ECRV456000150 *	2
31	SKR6880165520	*VEDI SKRV450001000 *	2
32	SKR6880165530	*VEDI SKRC604000490 *	1
33	ECR6880165540	*VEDI ECRV475005080 *	1
34	ECR1521012305	*VEDI ECRV495002400 *	1
35	SKR2216932220	*VEDI ECRV204000710 *	2	6X23
36	ECR1102406180	BOLT SLPW	2	M6X18
37	SKR1152506210	*VEDI SKRV264000160 *	4	M6
38	ECR1103806160	*VEDI ECRV204000500 *	4	M6X16 F12.5XT1.6
39	ECR1940200148	*VEDI ECRX505003350 *	1
40	ECR1940200205	*VEDI ECRX505002780 *	1
41	ECR1940100396	*VEDI ECRX505003370 *	1
