Cilindro, Marmitta Carter, Campana frizione

Pistone, Albero motore, Frizione Bobina

Informazioni tecniche
CILINDRATA	33,6
POTENZA	1,3 (1,77)
SERBATOIO MIX	760
DIMENSIONE	1.800 X 566 X 511
PESO	7,6

Avviamento Carburatore, Filtro aria

Serbatoio Asta

Coppia conica Impugnatura Para sassi

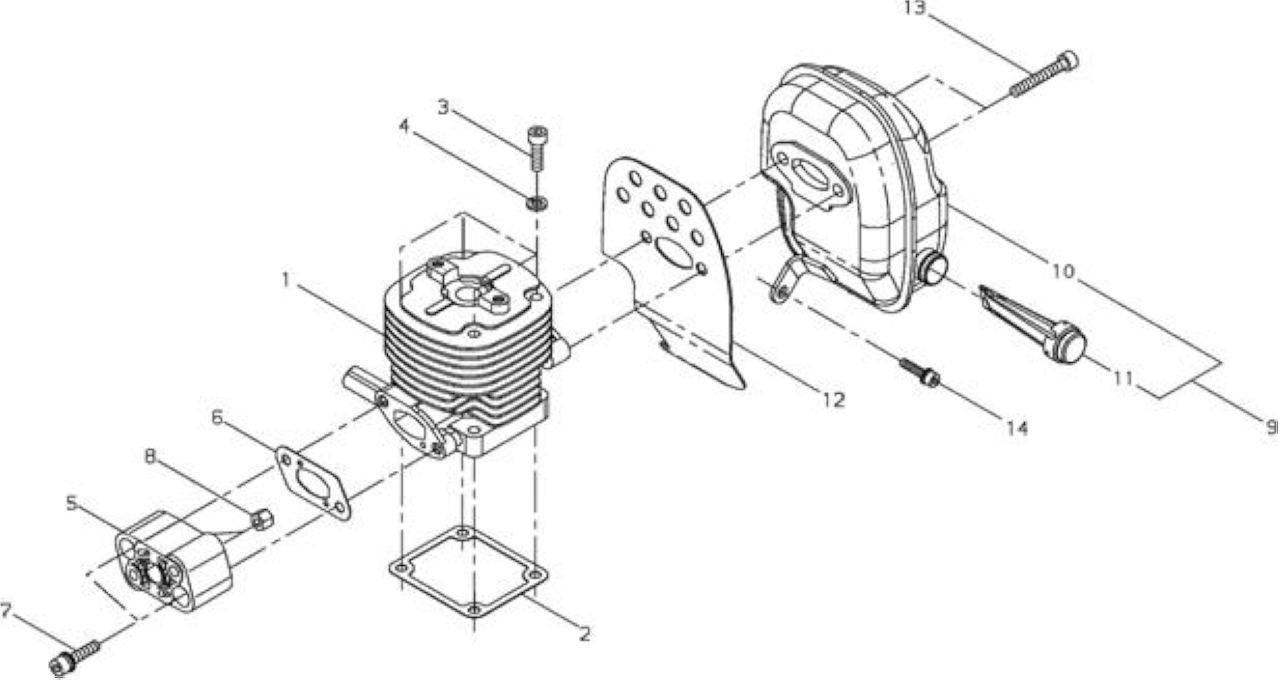

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7019612110	*VEDI SKRA130001371 *	1
2	SKR2001012121	*VEDI SKRV100000470 *	1
3	SKR0102005250		4	M5X25
4	SKR0160005131		4	5MM
5	SKR2006012210	*VEDI SKRA200000640 *	1
6	SKR2001112221	*VEDI SKRV103000950 *	1
7	SKR1102205250	BULLONE	2	M5X25
8	SKR2002412260		2
9	SKR6210215010	*VEDI ECRA030000230 *	1
10	SKR6210415110	*VEDI SKRA300001130 *	1
11	SKR7020015151	*VEDI ECRA310000210 *	1
12	SKR6210415210	*VEDI SKRV104001340 *	1
13	SKR0102006250		2	M6X25
14	SKR1102405120	BULLONE	1	M5X12

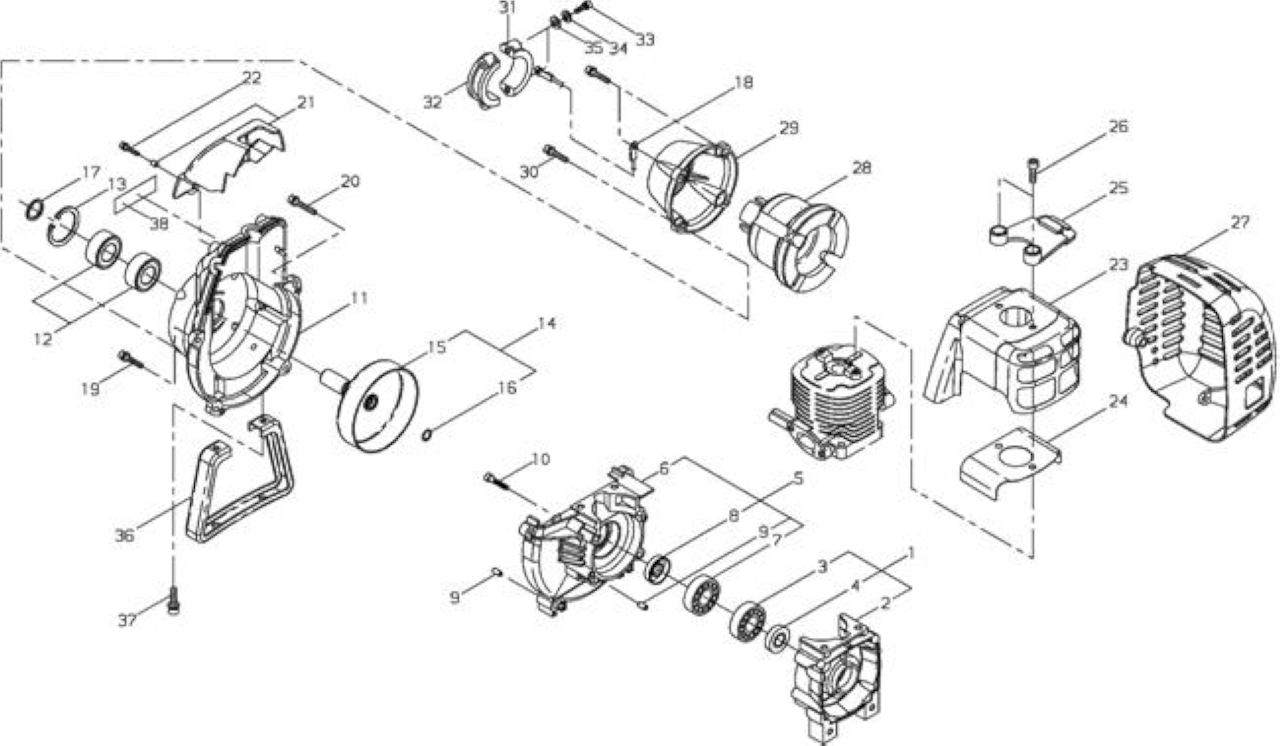

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7293521101	*VEDI ECRP021033430 *	1
2	SKR7293521111		1
3	SKR1290062020	*VEDI SKR200006202 *	1	6202,C3
4	SKR2001021211	*VEDI SKRV508000050 *	1
5	SKR7006221200	*VEDI ECRP021030051 *	1
6	SKR7292121121	*VEDI ECRA120000360 *	1
7	SKR1290062020	*VEDI SKR200006202 *	1	6202,C3
8	SKR2001021211	*VEDI SKRV508000050 *	1
9	SKR1249250100		4	F5XL10
10	SKR0102005300		4	M5X30
11	SKR7001231111	*VEDI SKRA172001300 *	1
12	SKR0200606002		2	6002DDU
13	SKR0243232120		1	32MM C
14	SKR2001131200	*VEDI SKRA055000000 *	1
15	SKR2001131210	*VEDI SKR2001131200 *	1
16	SKR2001131220	*VEDI ECRV582000080 *	1
17	SKR2001131230	*VEDI ECRV583000180 *	1
18	SKR7019231510		1
19	SKR1102205200	*VEDI ECRV203000351 *	3	M5X20
20	SKR1102205300		1	M5X30
21	SKR7013134100	*VEDI SKRA162000190 *	1
22	SKR1102404160	BULLONE	2	M4X16
23	SKR7019632110	*VEDI SKRA160001600 *	1
24	SKR7019632141	*VEDI SKRV101000020 *	1
25	SKR6210432310	*VEDI SKRA163000020 *	1
26	SKR1102205180	BULLONE	2	M5X18
27	SKR6210432321	*VEDI SKRA320000770 *	1
28	SKR2001135110	*VEDI ECRA575000400 *	1
29	SKR7001235130	*VEDI SKRA575000410 *	1
30	SKR1102205200	*VEDI ECRV203000351 *	4	M5X20
31	SKR2001135141	*VEDI SKRA575000420 *	1
32	SKR2001135151	*VEDI SKRA575000430 *	1
33	SKR0102005250		2	M5X25
34	SKR0160005131		2	5MM
35	SKR0161005080		2	5MM
36	SKR7020033112	*VEDI SKRA175000180 *	1
37	SKR1102205160	*VEDI SKRV203000590 *	2	M5X16
38	SKR7020031151		1

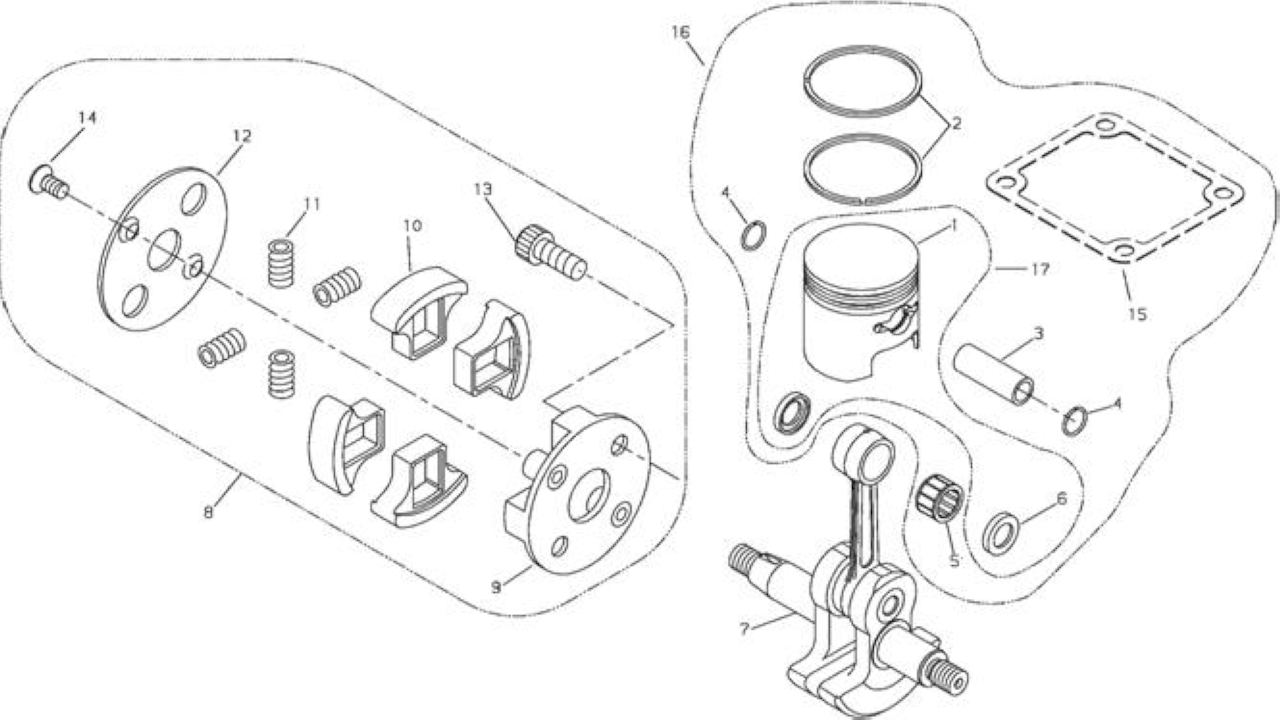

Rif.	Articolo	Descrizione	Q.tà Nota
16	SKR7205198011	*VEDI ECRP021031560 *	1
17	SKR7205198310	*VEDI SKRP021031570 *	1
1	SKR2001041111		1
6	SKR7020041341	*VEDI SKRV307000220 *	2
2	SKR2001041210	*VEDI SKRA101000380 *	2
3	SKR2001041310	*VEDI SKRV608000020 *	1
4	SKR2210041230	*VEDI SKRV580000110 *	2
5	SKR2001041330	*VEDI SKRV555000090 *	1
15	SKR2001012121	*VEDI SKRV100000470 *	1
7	SKR2001042002	*VEDI SKRA011000860 *	1
8	SKR7021051100	*VEDI SKRA056000450 *	1
9	SKR2002051112	*VEDI SKRA552000120 *	1
10	SKR2002051121	*VEDI SKRA555000130 *	4
11	SKR2002051131	*VEDI SKRA566000150 *	4
12	SKR2002051140	PIASTRA FRIZIONE T.V. X C35	1
13	SKR2002051150	*VEDI ECRA557000120 *	2
14	ECR7021051160	*VEDI ECRV203000880 *	2

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7020071200	*VEDI SKRA409000640	* 1
2	SKR0240303100		1	3X10
3	SKR0151110061		1	M10
4	SKR0160010251		1	10MM
5	SKR7020071610	*VEDI SKRA411000780	* 1
6	SKR7020071640		1
7	SKR2001171660	TUBO	1
8	SKR2001172110	*VEDI SKRV135000080	* 1
9	SKR2001172120	*VEDI SKRV136000060	* 1
10	SKR2001072221	*VEDI SKRA427000090	* 1
11	SKR2000072241	*VEDI SKRA429000110	* 1
12	SKR2000072250	*VEDI SKRV495001440	* 1
13	SKR7018072260	*VEDI SKRV151000050	* 1
14	SKR2000072230	*VEDI SKRA426000050	* 1
15	SKR2001071631	*VEDI SKRV352000140	* 2
16	SKR0102004240		2	M4X24
17	SKR0160004101		2	4MM
18	SKR2001071650	RONDELLA D4	2

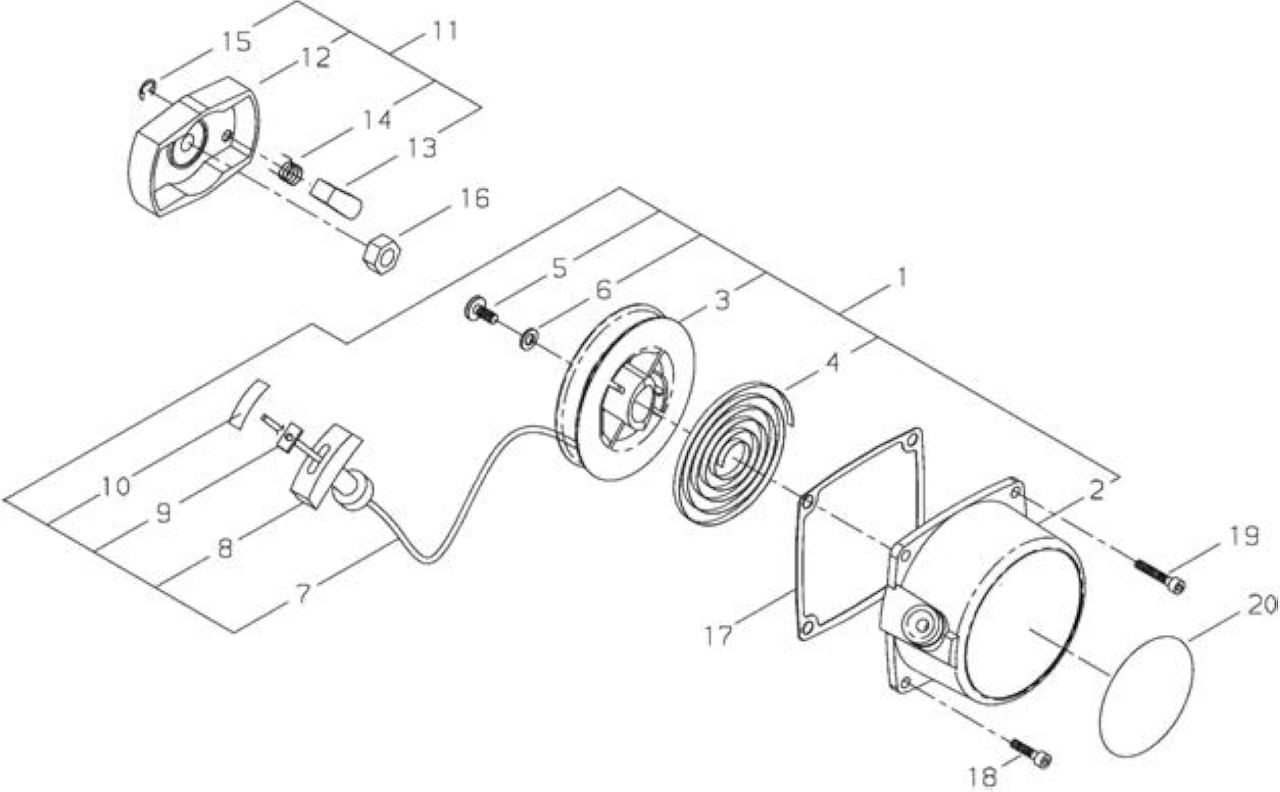

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7013175900	*VEDI SKRP021035720 *	1
2	SKR7013175110	*VEDI SKRA500000840 *	1
3	SKR7013175120	*VEDI SKRA506000150 *	1
4	SKR2002475130	*VEDI SKRA504000060 *	1
5	SKR2003575170	VITE	1
6	SKR7013175140	* VEDI ECR17721441030 *	1
7	SKR2002075180	FUNICELLA AVVIAMENTO	1
8	SKR2001075190	*VEDI ECR17722827030 *	1
9	SKR2001075210	FERMO IMPUGNATURA AVV.TO	1
10	SKR2001075230	COPERCHIO IMPUGNATURA AVVIAM.	1
11	SKR7013175200	*VEDI SKRA052000370 *	1
12	SKR7013175211	*VEDI SKRA520000150 *	1
13	SKR2002475220	*VEDI SKRA514000080 *	1
14	SKR2002475230	*VEDI SKRV452000520 *	1
15	SKR2002475240	*VEDI SKRV583000140 *	1
16	SKR2000076210	DADO	1
17	SKR2002076111	*VEDI SKRV105000030 *	1
18	SKR1102204160	BULLONE	3	M4X16
19	SKR1106004203		1	M4X20
20	SKR1942000027	*VEDI SKRX504002770 *	1

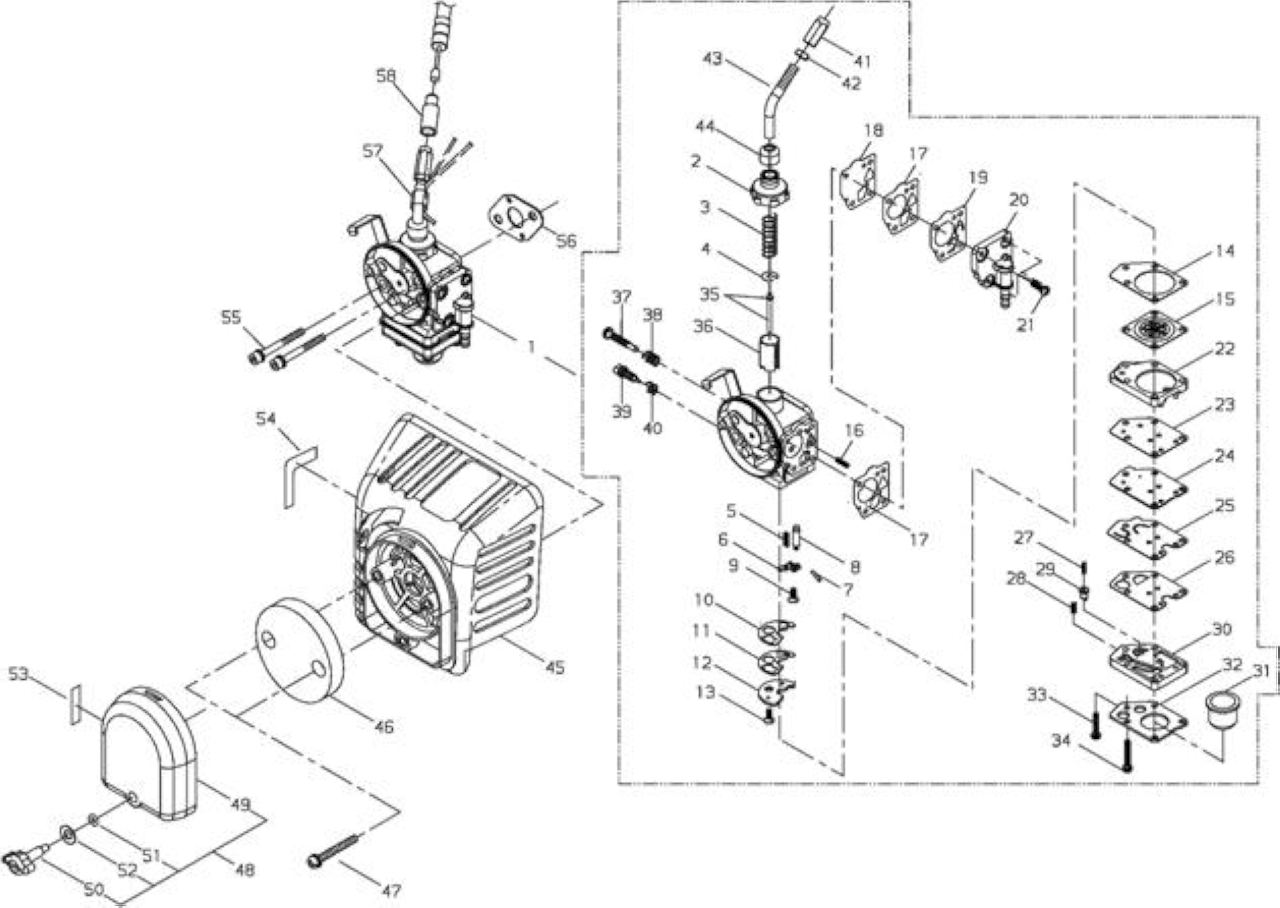

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6210281010	*VEDI SKRA021002490 *	1
2	SKR2005581120	*VEDI SKRP004000700 *	1
3	SKR2000381140	*VEDI ECR12411450330 *	1
4	SKR2000081150	*VEDI ECR12411505530 *	1
5	SKR2004081430	*VEDI ECR12433149930 *	1
6	SKR2001181451	*VEDI SKRP004001340 *	1
7	SKR2001181460	*VEDI ECR12433221330 *	1
8	SKR2000081441	*VEDI SKRP004000930 *	1
9	SKR2001181470	VITE	1
10	SKR2008781420	*VEDI SKRP004002510 *	1
11	SKR2008781411	*VEDI SKRP004002500 *	1
12	SKR7020081430	*VEDI ECRP004002950 *	1
13	SKR2001181470	VITE	1
14	SKR2008781510	*VEDI ECR12435849930 *	1
15	SKR2008781520	*VEDI ECR12434149930 *	1
16	SKR2004081680	*VEDI ECR12435550130 *	2
17	SKR2001181630	*VEDI ECR12436321330 *	2
18	SKR2001181621	*VEDI SKRP004001430 *	1
19	SKR2008781660	*VEDI SKRP004002550 *	1
20	SKR2008781641	*VEDI ECRP004003230 *	1
21	SKR2000081650	VITE	4
22	SKR2008781550	*VEDI ECR12437949930 *	1
23	SKR2008781890	*VEDI SKRP004002600 *	1
24	SKR2008781560	*VEDI ECR12436049930 *	1
25	SKR2008781571	*VEDI SKRP004002530 *	1
26	SKR2008781540	*VEDI ECR12435949930 *	1
27	SKR2008781851	*VEDI SKRP004002580 *	1
28	SKR2008781870	*VEDI ECR12435550130 *	1
29	SKR2008781861	*VEDI SKRP004002590 *	1
30	SKR2008781811	*VEDI SKRP004002570 *	1
31	SKR2008781820	*VEDI ECR12438012710 *	1
32	SKR2008781830	*VEDI ECR12434249930 *	1
33	SKR2008781840		1
34	SKR2008781880		4
35	SKR6210281320	*VEDI ECRP004003310 *	1
36	SKR7013181180	*VEDI SKRP004002900 *	1
37	SKR2000081310	*VEDI ECR12415905530 *	1
38	SKR7292081820	MOLLA	1
39	SKR6210281330	VITE REGISTRO GETTO MASSIMO	1
40	SKR2001181360	*VEDI ECR12435521330 *	1
41	SKR2005581810	*VEDI SKR12415846630 *	1
42	SKR2000081260	*VEDI ECR12411105810 *	1
43	SKR7010781830	*VEDI SKRP004002870 *	1
44	SKR2005581130	*VEDI ECRP004002180 *	1
45	SKR7010281710	*VEDI SKRA225000490 *	1

Rif.	Articolo	Descrizione	Q.tà	Nota
46	SKR2005681740	*VEDI SKRA226000650	* 1
47	SKR1120704250		2	M4X25
48	SKR2006081761	*VEDI SKRA232000820	* 1
49	SKR2006081770	*VEDI SKRA232000830	* 1
50	SKR2006081781	*VEDI SKRA235000220	* 1
51	SKR2210082430	*VEDI SKRV581000200	* 1
52	SKR2002481790	*VEDI SKRV347000030	* 1
53	SKR1940400008	*VEDI ECRX506000130	* 1
54	SKR1940400010		1
55	SKR1102205550		2	M5X55
56	SKR2001183411	*VEDI SKRV103000960	* 1
57	SKR2006083180	*VEDI ECRV475004760	* 1
58	SKR2000583160	*VEDI SKRA246000020	* 1

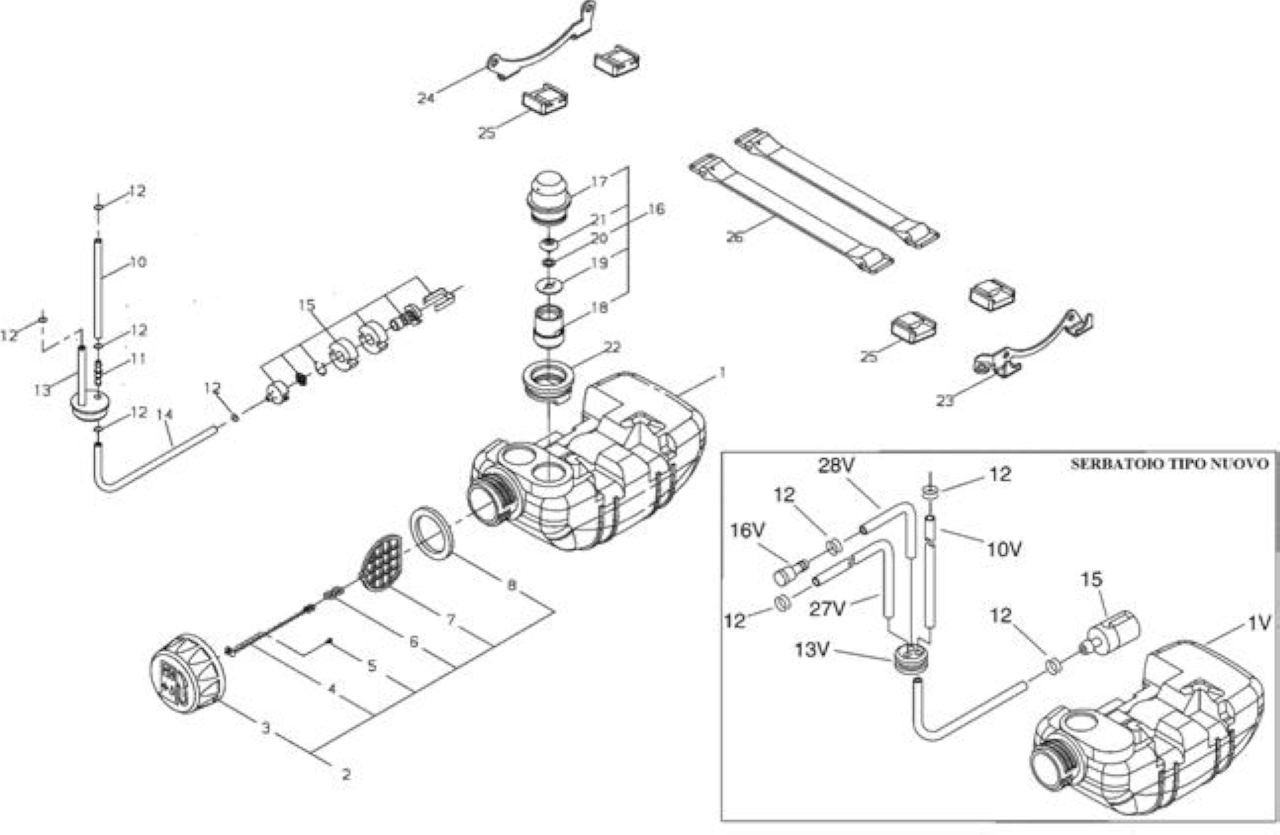

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7020085110	*VEDI SKRA350001360 *	1	FUORI PRODUZIONE
1V	SKRA350001361	SERBATOIO *T.I.12-507	1
2	SKR7016885201	*VEDI SKRA033000010 *	1
3	SKR7016885210	TAPPO SERBATOIO	1
4	SKR2212857250		1
5	SKR127025064		1	2.5X6
6	SKR2215021350		1
7	SKR2215521330		1
8	SKR2000085221	*VEDI SKRV107000010 *	1
10	SKR7020085310	*VEDI SKRV471002650 *	1
11	SKR7293585330	*VEDI ECRV186000230 *	1
12	SKR2002085540	*VEDI SKRV490000500 *	5
13	SKR7020085350	*VEDI SKRV137000080 *	1
14	SKR7020085320	*VEDI ECRV471002660 *	1
10V	ECRV471000750	*VEDI ECRV471000751 *	1
13V	ECR13211555930	*VEDI ECR13211555931 *	1
15	SKR2216935400	*VEDI SKRA369000100 *	1
16	SKR2000085500	*VEDI SKRA039000020 *	1
17	SKR2000085511	*VEDI SKRA362000000 *	1
18	SKR2000085521	*VEDI SKRA358000030 *	1
19	SKR2210085240	*VEDI SKRA359000010 *	1
20	SKR2210085250	*VEDI ECRV303000170 *	1
21	SKR2210085260	*VEDI SKRA356000090 *	1
16V	SKRA356000050	VALVOLA SFIATO	1
22	SKR2000085572	*VEDI SKRV138000020 *	1
23	SKR2002186110	*VEDI SKRA393000180 *	1
24	SKR2001186120	*VEDI ECRA393000190 *	1
25	SKR2001086130	*VEDI SKRV420002390 *	4
26	SKR2001086140	*VEDI SKR2002086140 *	2
27V	ECR13201049030	TUBO 3*6*50	1
28V	ECRV471000760	*VEDI ECRV471000761 *	1

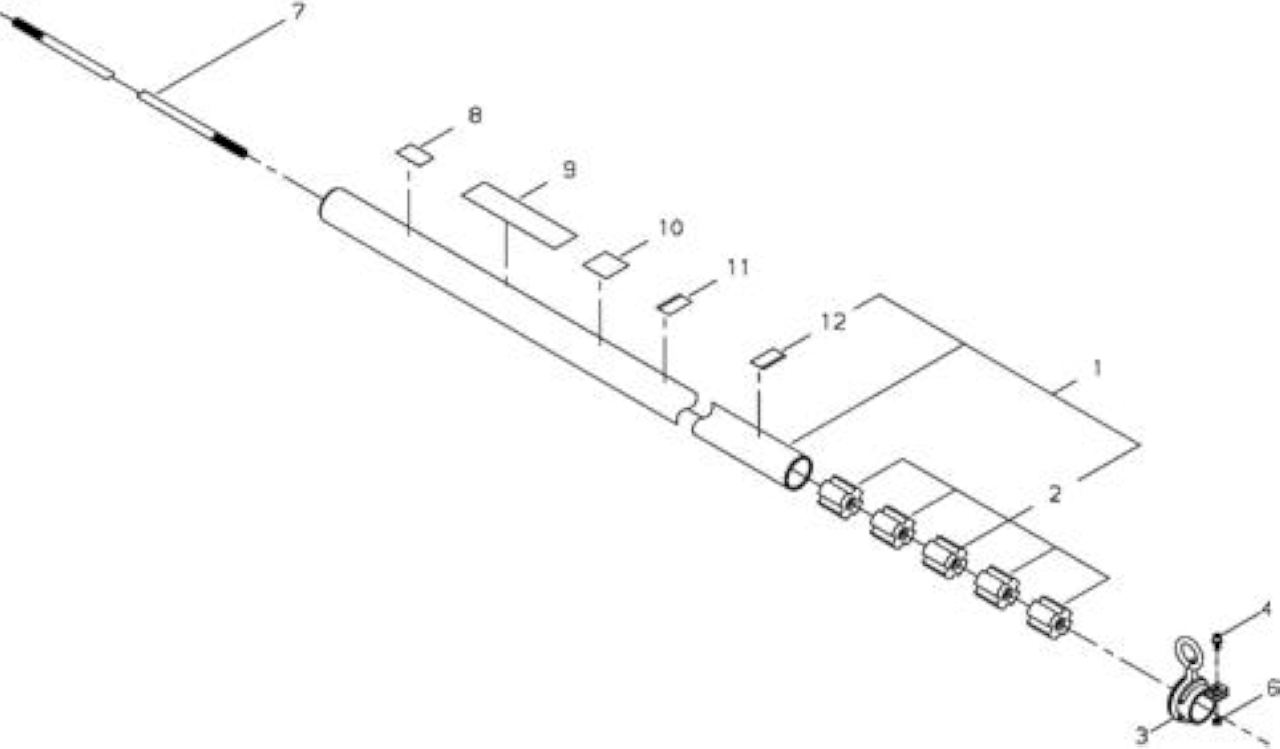

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7254012102	*VEDI ECRC050001830 *	1
2	SKR2201512120	*VEDI SKRC501000070 *	5
3	SKR2201712210	*VEDI SKRC063000030 *	1
4	SKR1102205120	BULLONE	1	M5X12
6	SKR150005041	DADO M5	1	M5
7	SKR7254012410	*VEDI SKRC504000690 *	1
8	ECR1940200223	*VEDI ECRX517000140 *	1	MAX 8500MIN-1
9	ECR1942200010	*VEDI ECRX505002910 *	1
10	ECR1940400040	LABEL DECIBEL	1	115DB(A)
11	ECR7201712150	*VEDI ECRX524002380 *	1
12	ECR7200512140	*VEDI ECRX505002860 *	1

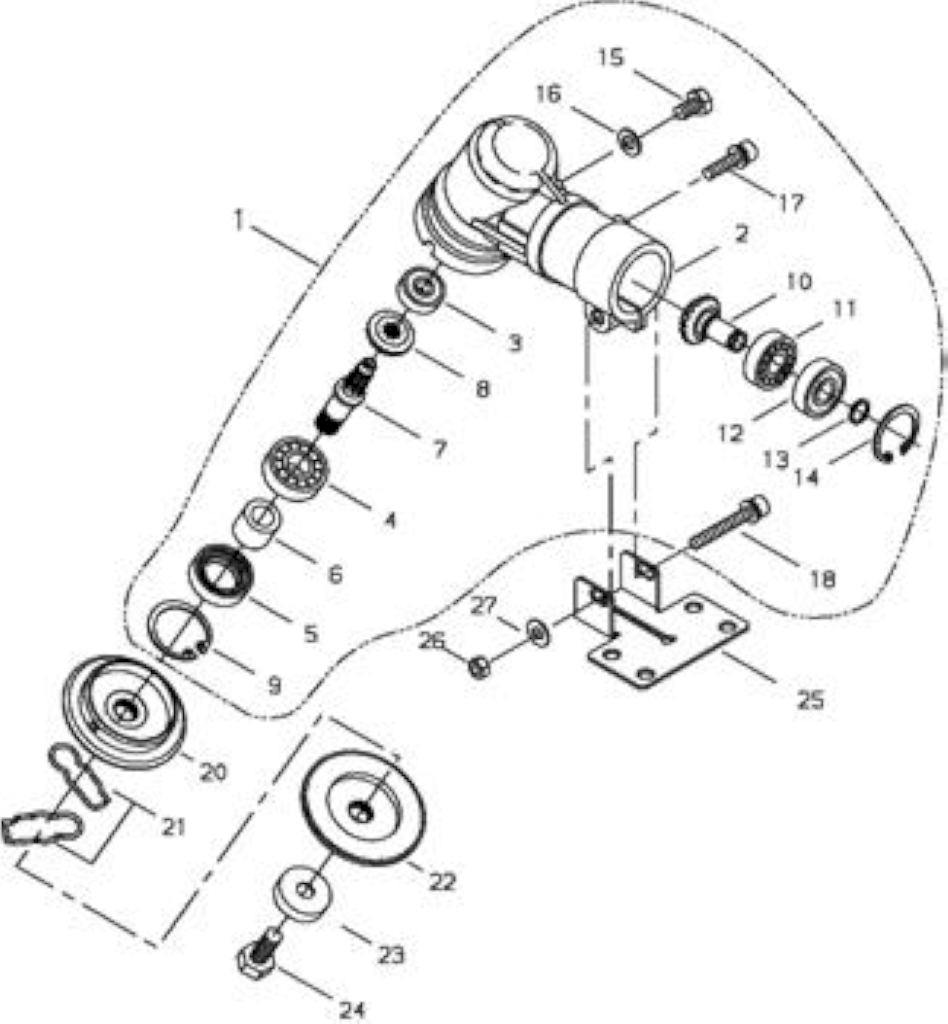

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6302063020	*VEDI SKRC051000610 *	1
2	SKR6302063111	*VEDI SKRC531000600 *	1
3	SKR200606000	*VEDI ECR90080206000 *	1	6000DDU
4	SKR200006202	*VEDI ECR90081006202 *	1	6202
5	SKR7244713121	*VEDI SKRV513000000 *	1
6	SKR2201513230	*VEDI SKRV358000130 *	1
7	SKR6301963130	*VEDI SKRC534000600 *	1
8	SKR2201513220	*VEDI SKRV651000540 *	1
9	SKR243235150	ANELLO ELASTICO	1	35MM C
10	SKR2201513390	* VEDI ECRV651000520 *	1
11	SKR200006001	*VEDI SKR3707463310 *	1	6001
12	SKR200206001	*VEDI ECR90080406001 *	1	6001ZZ
13	SKR2000031140	*VEDI SKRV583000170 *	1
14	SKR243228120	ANELLO ELASTICO	1	28MM C
15	SKR2201513410	*VEDI SKRV206000250 *	1
16	SKR2201513420	*VEDI SKRV307000230 *	1
17	ECR1102206140	*VEDI ECRV204000740 *	1	M6X14
18	ECR1102206400	*VEDI ECRV204000450 *	1	M6X40
20	SKR7244713240	*VEDI SKRC535000770 *	1
21	SKR2201513290	*VEDI SKRV641000140 *	2
22	SKR6302063171	*VEDI SKRC535000800 *	1
23	SKR2201513270	*VEDI SKRC535000790 *	1
24	SKR6301963310	*VEDI SKRV206000230 *	1
25	SKR7201716130	*VEDI ECRC551000110 *	1
26	SKR150006051	DADO M6	1	M6
27	SKR161306100	RONDELLA	1	6MM

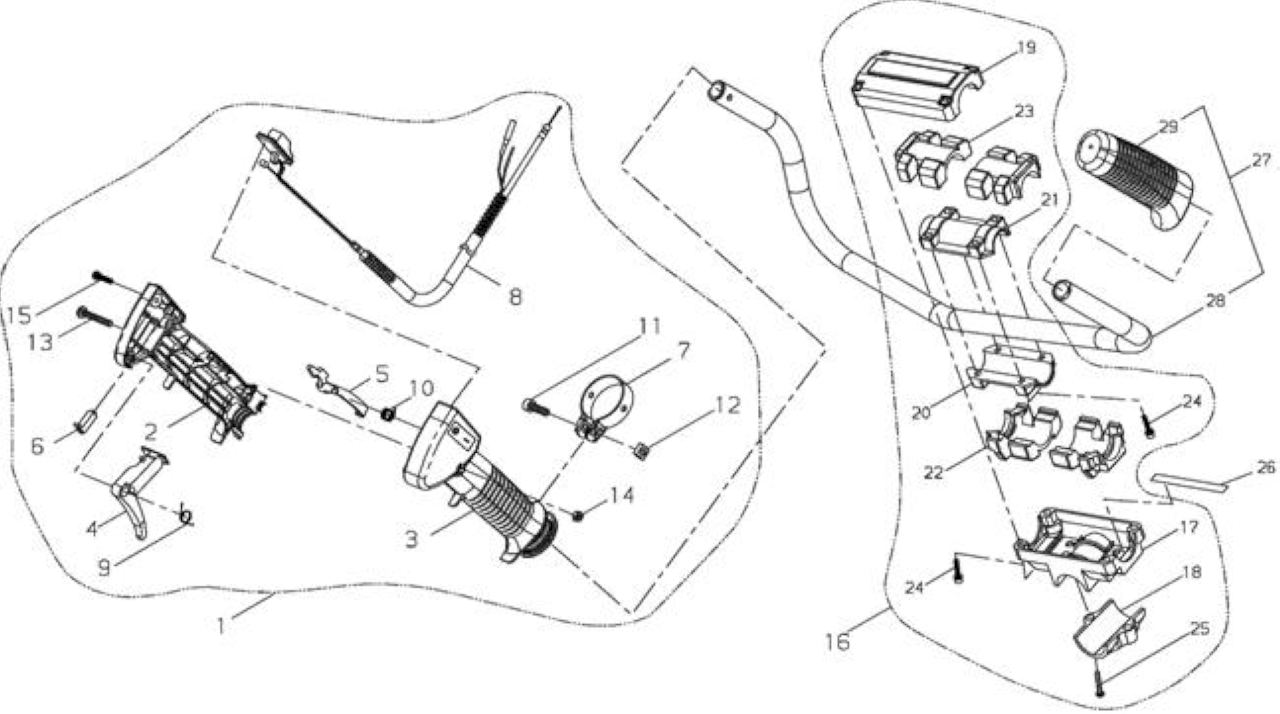

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR7245114502	*VEDI SKRC044000870 *	1
2	SKR7245114510		1
3	SKR7245114520		1
4	SKR7245114530	*VEDI ECRC450000530 *	1
5	SKR7245114540	FERMO LEVA ACCELERATORE	1
6	SKR7245114550	*VEDI ECRC461000050 *	1
7	SKR7245114560	*VEDI ECRV495001510 *	1
8	SKR7245114570	*VEDI SKRV043000530 *	1
9	SKR7245114580	*VEDI SKRV452000530 *	1
10	SKR7245114590	*VEDI SKRV452000540 *	1
11	SKR102006200	BULLONE	1	M6X20
12	SKR7245114610	*VEDI ECRV264000140 *	1
13	ECR1120305351	*VEDI ECR9158005035 *	1	M5X35
14	ECR7245114630	*VEDI ECR0150105030 *	1
15	ECR7245114620	SCREW TAPPING	1
16	SKR7255514100	*VEDI SKRP021033250 *	1
17	SKR7255514110	*VEDI ECRC423000710 *	1
18	SKR7255514120	*VEDI ECRC423000730 *	1
19	SKR7255514130	COPERCHIO SUPERIORE	1
20	SKR2201514140	*VEDI ECRC423000760 *	1
21	SKR2201514150	*VEDI ECRC423000770 *	1
22	SKR2201514160	*VEDI ECRV420002460 *	2
23	SKR2201514170	*VEDI ECRV420002470 *	2
24	SKR1102205250	BULLONE	8	M5X25
25	SKR1121006250	VITE	2	M6X25
26	SKR7251414190	FASCETTA	1
27	SKR7254014201	*VEDI SKRP021035340 *	1
28	SKR7254014212		1
29	SKR7245114320	*VEDI ECRC403000420 *	1

Rif.	Articolo	Descrizione	Q.tà	Nota
1	SKR6400767011	*VEDI SKRC062000430 *	1
2	SKR6400866311	*VEDI SKR6400066311 *	1
3	SKR6290366111	*VEDI SKRC550000430 *	1
4	SKR6290366332	*VEDI SKRP021028450 *	1
5	SKR7248016121	*VEDI SKRC554000040 *	1
6	SKR1102005160	BULLONE	2	M5X16
7	SKR2242016120	*VEDI SKRV263000130 *	2
8	SKR7248016210	*VEDI SKRC551000060 *	1
9	SKR1102205450	BULLONE	4	M5X45
