Cilindro, Marmitta

Copri cilindro, Carter motore, Campana Frizione, Albero motore, Pistone Volano, Modulo accensione Avviamento

Carburatore, Filtro aria Serbatoio

Tubolare, Flessibile, Acceleratore Coppia conica

Impugnatura Parasassi Zaino

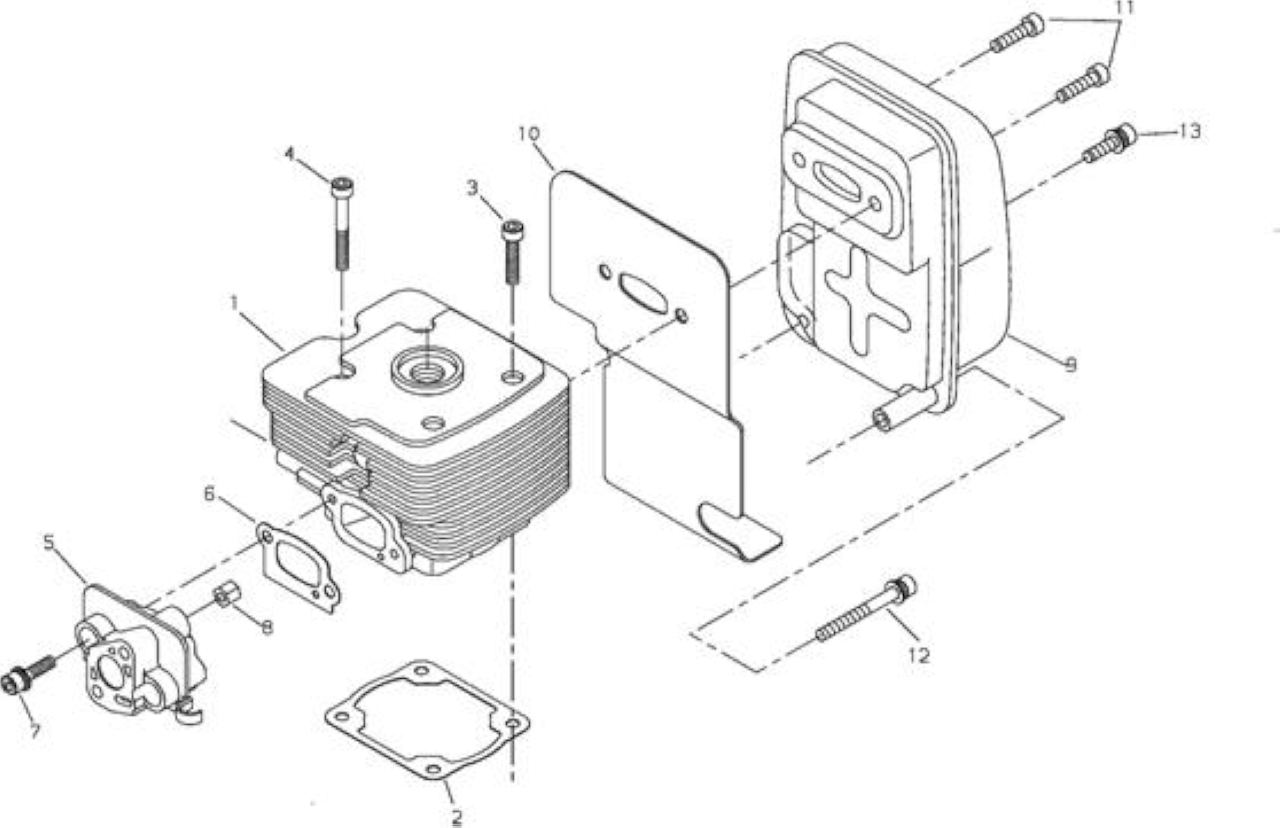

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6203512111

*VEDI SKRA130001350 *

1



2

SKR6203512120

*VEDI SKRV100000450 *

1



3

SKR102005250

*VEDI ECR90010505025 *

3

M5×25

4

SKR102005350

BULLONE

1

M5×35

5

SKR6203512210

*VEDI SKRA200000680 *

1



6

SKR6203512220

*VEDI SKRV103001020 *

1



7

ECR1102205300

*VEDI ECRV203000580 *

2

M5×30(SW,PW)

8

ECR2002412260

*VEDI ECRV263000180 *

2

M5

9

SKR6208315110

*VEDI ECRA300001210 *

1



10

SKR6203515210

*VEDI SKRV104001360 *

1



11

SKR102006250

BULLONE M6X25

2

M6×25

12

SKR1102205450

BULLONE

1

M5×45(SW,PW)

13

SKR1102205160

*VEDI SKRV203000590 *

1

M5×16(SW,PW)

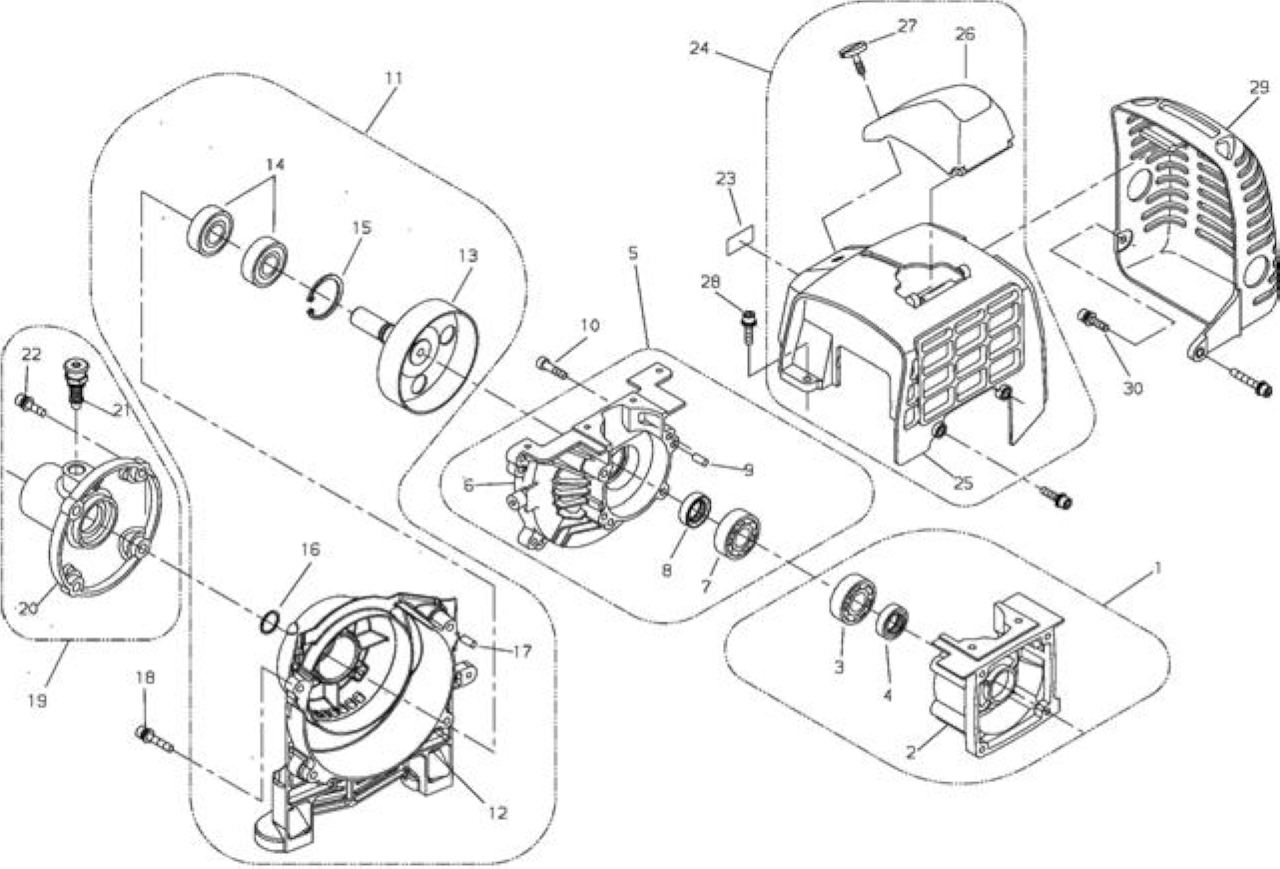

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6203521010

*VEDI ECRP021027760 *

1



2

ECR6203521110

*VEDI ECRA120000370 *

1



3

SKR203006202

*VEDI ECR90081036202 *

1



4

SKR2001021211

*VEDI SKRV508000050 *

1



5

SKR6203521020

CARTER MOTORE SX COMPLETO

1



6

ECR6203521210

CRANK CASE M

1



7

SKR203006202

*VEDI ECR90081036202 *

1



8

SKR2001021211

*VEDI SKRV508000050 *

1



9

ECR1249250100

*VEDI ECRV623000060 *

2

5×10

10

SKR102005300

BULLONE M5X30

4

M5×30

11

SKR6208331012

*VEDI ECRP021027970 *

1



12

ECR6208331111

FAN COVER

1



13

SKR6208331210

*VEDI SKRA556000920 *

1



14

SKR200606202

*VEDI ECR90081206202 *

2

6202DDU

15

SKR243235150

ANELLO ELASTICO

1

35MM C

16

SKR2001131230

*VEDI ECRV583000180 *

1



17

ECR1249250100

*VEDI ECRV623000060 *

3

5×10

18

ECR1102205300

*VEDI ECRV203000580 *

4

M5×30(SW,PW)

19

ECR6208335010

*VEDI ECRP021027980 *

1



20

SKR2005135130

* VEDI ECRA570000210 *

1



21

SKR2011235200

*VEDI SKRP021018640 *

1



22

SKR1102205200

*VEDI ECRV203000351 *

4

M5×20(SW,PW)

23

ECR6208391320

*VEDI ECRX504002930 *

1



24

ECR6203532012

*VEDI ECRP021027790 *

1



25

SKR6203532112

*VEDI ECRA160001650 *

1



26

SKR6203532310

*VEDI ECRA429000120 *

1



27

SKR6203532320

*VEDI ECRV299000390 *

1

M5

28

SKR1102205160

*VEDI SKRV203000590 *

2

M5×16(SW,PW)

29

SKR6203632311

*VEDI SKRA320000780 *

1



30

SKR1102205160

*VEDI SKRV203000590 *

1

M5×16(SW,PW)

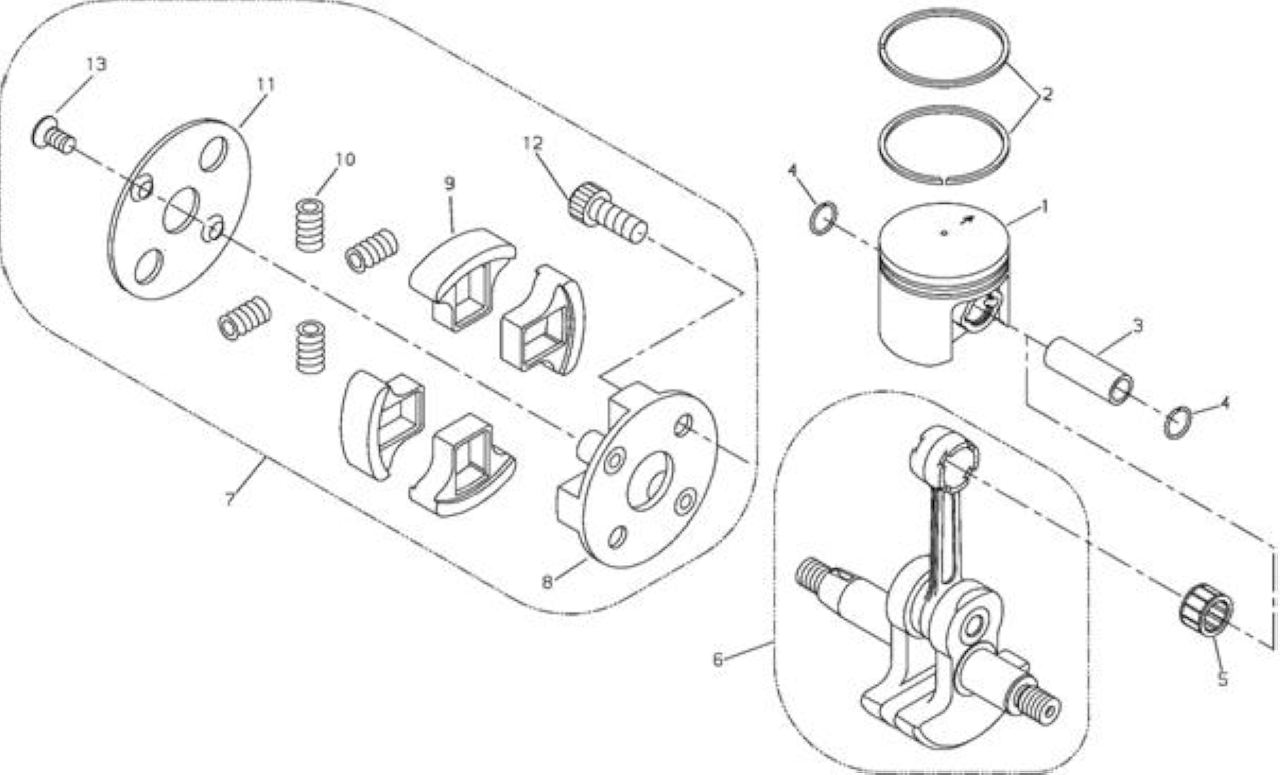

Rif.

Articolo

Descrizione                                  Q.tà

Nota

1

SKR6203541110

*VEDI SKRA100000680 *           1



2

SKR6203541120

*VEDI SKRA101000370 *           2



3

SKR6203541210

*VEDI SKRV609000050 *           1



4

SKR2215241231

*VEDI SKRV580000100 *           2



5

SKR2215041280

*VEDI SKRV556000030 *           1



6

SKR6203542010

*VEDI ECRA011000840 *           1



7

SKR7021051100

*VEDI SKRA056000450 *           1



8

SKR2002051112

*VEDI SKRA552000120 *           1



9

SKR2002051121

*VEDI SKRA555000130 *           4



10

SKR2002051131

*VEDI SKRA566000150 *           4



11

SKR2002051140

PIASTRA FRIZIONE T.V. X C35    1



12

SKR2002051150

*VEDI ECRA557000120 *           2

M8×15.2

13

ECR7021051160

*VEDI ECRV203000880 *           2

M5×16

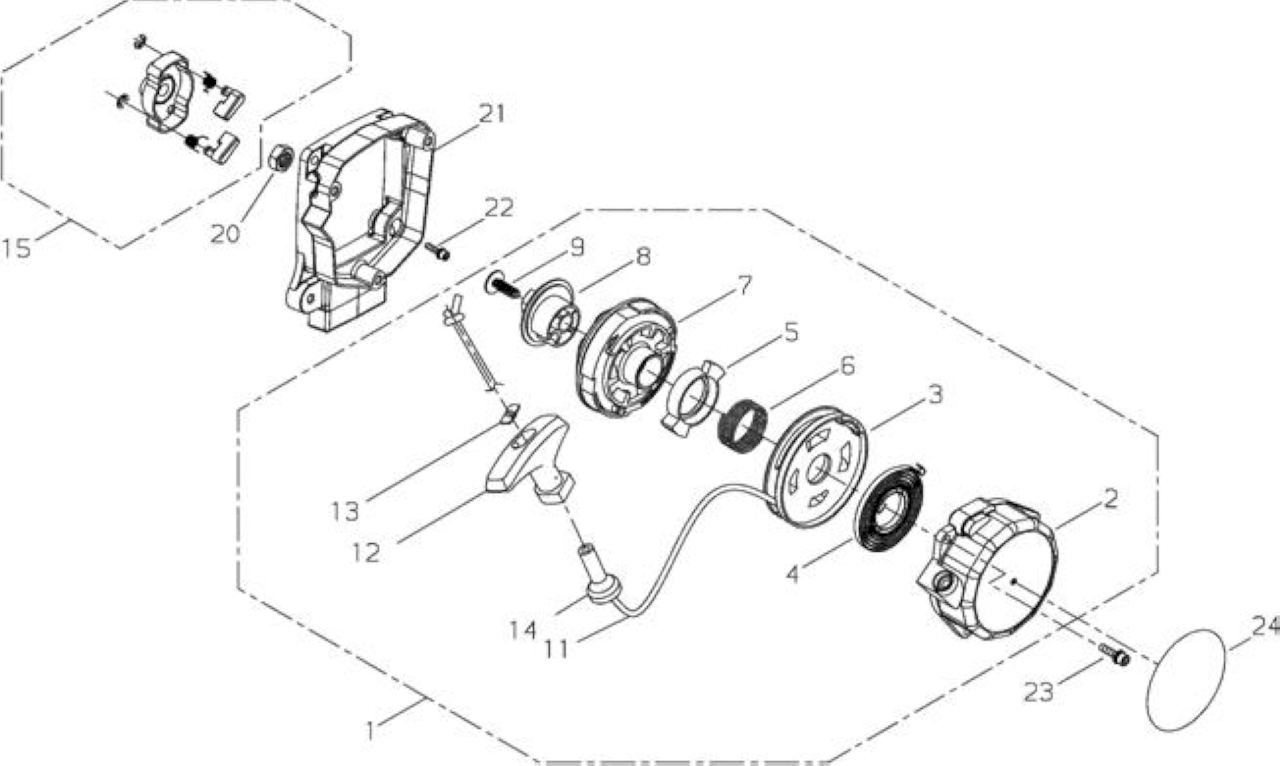

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6203571110

*VEDI SKRA409000650 *

1



2

SKR240303100

*VEDI ECR9311503010 *

1

3×10 A

3

SKR151110061

DADO

1

M10×6

4

SKR160010251

*VEDI ECR90060500010 *

1

M10

5

SKR6203571020

*VEDI SKRA411000790 *

1



6

SKR2215572280

CAVO

1



7

SKR7003071620

*VEDI SKRV322000040 *

2



8

ECR0102004240

*VEDI ECR9110004024 *

2

M4×24

9

SKR160004101

RONDELLA ELASTICA D4

2

M4

10

SKR2001071650

RONDELLA D4

1

M4

11

SKR2216072220

*VEDI SKRA427000060 *

1



12

SKR2215472230

*VEDI SKRA426000040 *

1



14

ECR6203571320

*VEDI ECRV136000040 *

1











Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6208375010

*VEDI SKRA050000260 *

1



2

SKR6208375110

*VEDI ECRA500000940 *

1



3

SKR6208375120

*VEDI SKRA506000310 *

1



4

SKR6208375130

*VEDI SKRA504000160 *

1



5

SKR6208375320

*VEDI ECRP022004670 *

1



6

SKR6208375330

*VEDI ECRP022004660 *

1



7

SKR6208375340

*VEDI ECRA053000080 *

1



8

SKR6208375350

*VEDI ECRP022004720 *

1



9

ECR6208375360

*VEDI ECRV253000510 *

1



12

SKR2210475420

MANOPOLA

1



13

SKR2001075210

FERMO IMPUGNATURA AVV.TO

1



14

SKR2011275180

SPESSORE

1



15

SKR6208375020

*VEDI ECRA052000420 *

1



20

ECR6208375380

NUT

1

M10

21

SKR6208375311

* VEDI ECRV376001340 *

1



22

SKR1102205250

BULLONE

4

M5×25 (SW,PW)

23

ECR1106005163

BOLT ADHESIVE

3

M5×16 (SW,PW)

24

SKR1942000027

*VEDI SKRX504002770 *

1











Rif.

Articolo

Descrizione

Q.tà

Nota

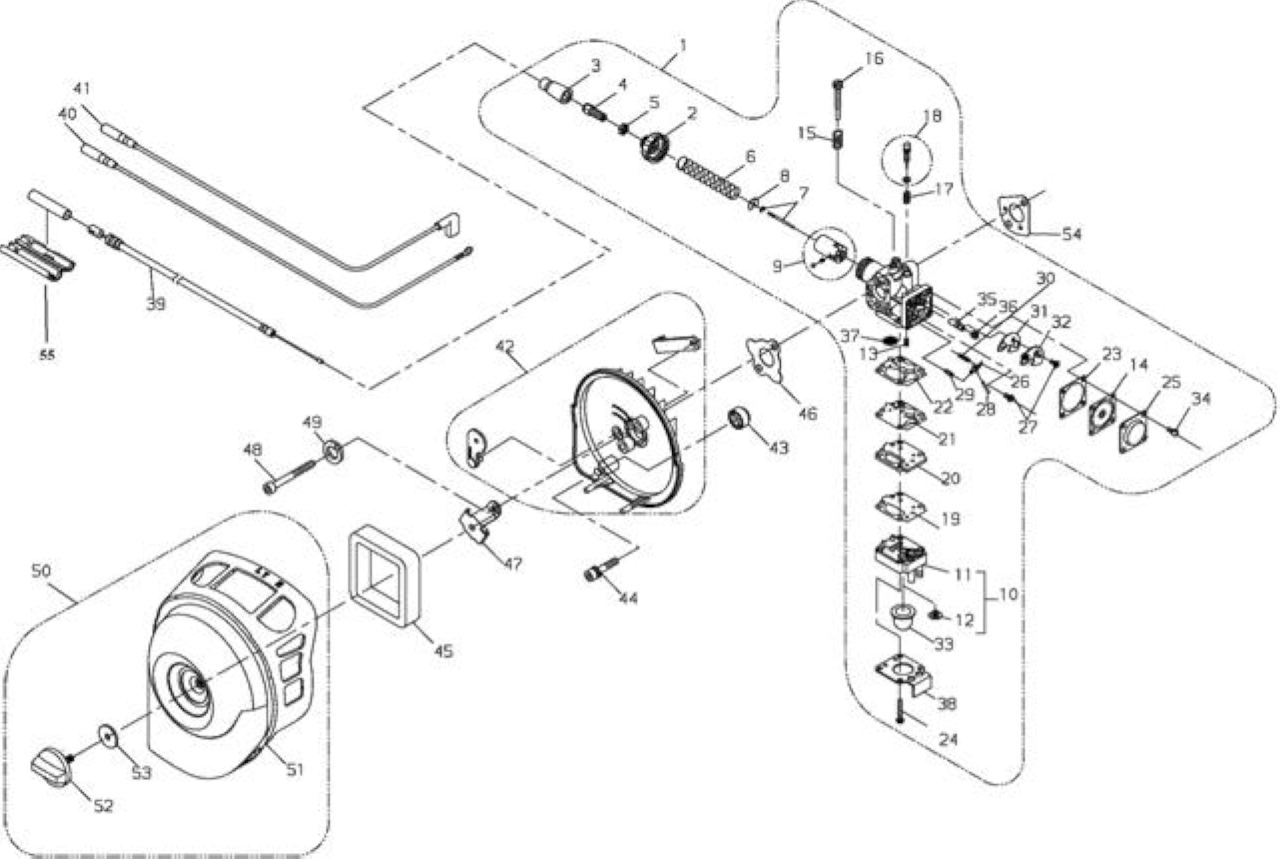

1

SKR6210981010

*VEDI SKRA021002640 *

1



2

SKR6208381310

*VEDI ECR12411305910 *

1



3

SKR2000583160

*VEDI SKRA246000020 *

1



4

SKR6208381330

*VEDI ECRP004003240 *

1



5

SKR2000081260

*VEDI ECR12411105810 *

1



6

SKR2002081140

MOLLA

1



7

ECR6210981320

SPILLO GETTO

1



8

SKR2002081150

*VEDI ECR12411511120 *

1



9

SKR6203581330

VALVOLA ACCELERATORE

1



10

SKR6203581340

*VEDI SKRP004002690 *

1



11

ECR6203581350

*VEDI ECRP004003250 *

1



12

SKR6850181340

*VEDI ECR12437455430 *

1



13

SKR6203581360

*VEDI ECR12436755430 *

1



14

SKR6203581410

*VEDI SKRP004002720 *

1



15

SKR2001181360

*VEDI ECR12435521330 *

1



16

ECR6210981330

MAIN ADJ SCREW

1



17

SKR7292081820

MOLLA

1



18

SKR2000081310

*VEDI ECR12415905530 *

1



19

SKR2001981660

*VEDI ECR12436312710 *

1



20

SKR2001981610

*VEDI ECR12436212710 *

1



21

SKR2001981620

*VEDI ECR12436412710 *

1



22

SKR2001981630

*VEDI ECR12436112710 *

1



23

SKR6203581370

*VEDI ECR12435861830 *

1



24

ECR6203581380

SCREW

4



25

SKR2001981670

*VEDI ECRP004001720 *

1



26

SKR2001181451

*VEDI SKRP004001340 *

1



27

SKR2001181470

VITE

2



28

SKR2001181460

*VEDI ECR12433221330 *

1



29

SKR2001981440

*VEDI ECRP004001660 *

1



30

SKR2004081430

*VEDI ECR12433149930 *

1



31

SKR7021081440

*VEDI SKRP004003000 *

1



32

SKR7021081451

*VEDI ECRP004003010 *

1



33

SKR2008781820

*VEDI ECR12438012710 *

1



34

SKR2000081540

VITE COPERCHIO CARBURATORE

4



35

ECR6203581420

*VEDI ECRP004002730 *

1

36

ECR7021081420

*VEDI ECRP004002980 *

1

37

ECR6850181480

*VEDI ECRP004001640 *

1

38

SKR6203581390

PIASTRA POMPA

1

39

SKR6206083110

*VEDI SKRV430003030 *

1

40

ECR1435211900

*VEDI ECRV485001870 *

1

41

ECR1435011601

*VEDI ECRV485001350 *

1

42

SKR6203582011

*VEDI SKRA023000160 *

1

43

SKR6203582362

*VEDI ECRV323000090 *

1

45

SKR6208382120

*VEDI SKRA226000680 *

1

46

SKR6203582330

*VEDI ECRV103001040 *

1



Rif.

Articolo

Descrizione

Q.tà

Nota

47

SKR6203582340

*VEDI ECRA244000180 *

1



48

ECR90010505075

BOLT, H.S.H

2

M5×75

49

SKR160005131

RONDELLA ELASTICA D5

2

M5

50

SKR6208382041

* VEDI ECRP021028000 *

1



51

ECR6208382131

CLEANER COVER

1



52

SKR2087033120

*VEDI SKRV299000410 *

1

M5

53

ECR6203582350

*VEDI ECRV303000200 *

1



54

SKR6203581310

*VEDI SKRV103001030 *

1



55

SKRC482000070

ASTUCCIO CAVI

1

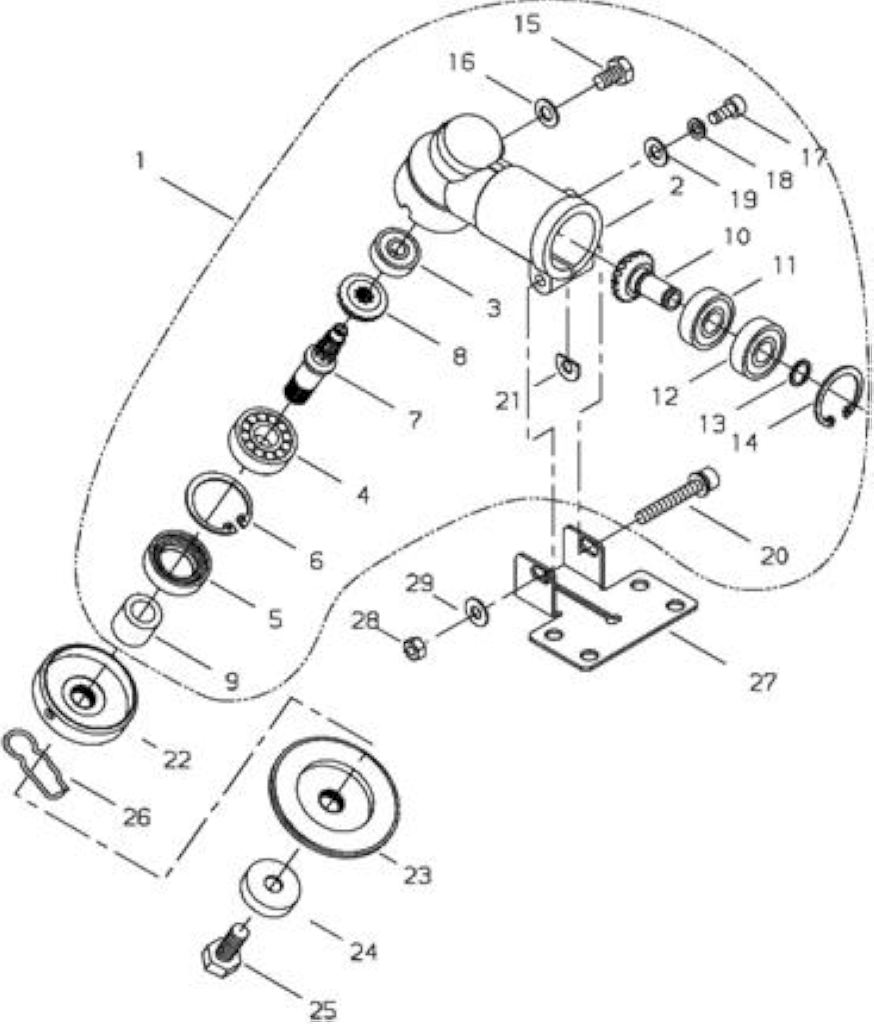

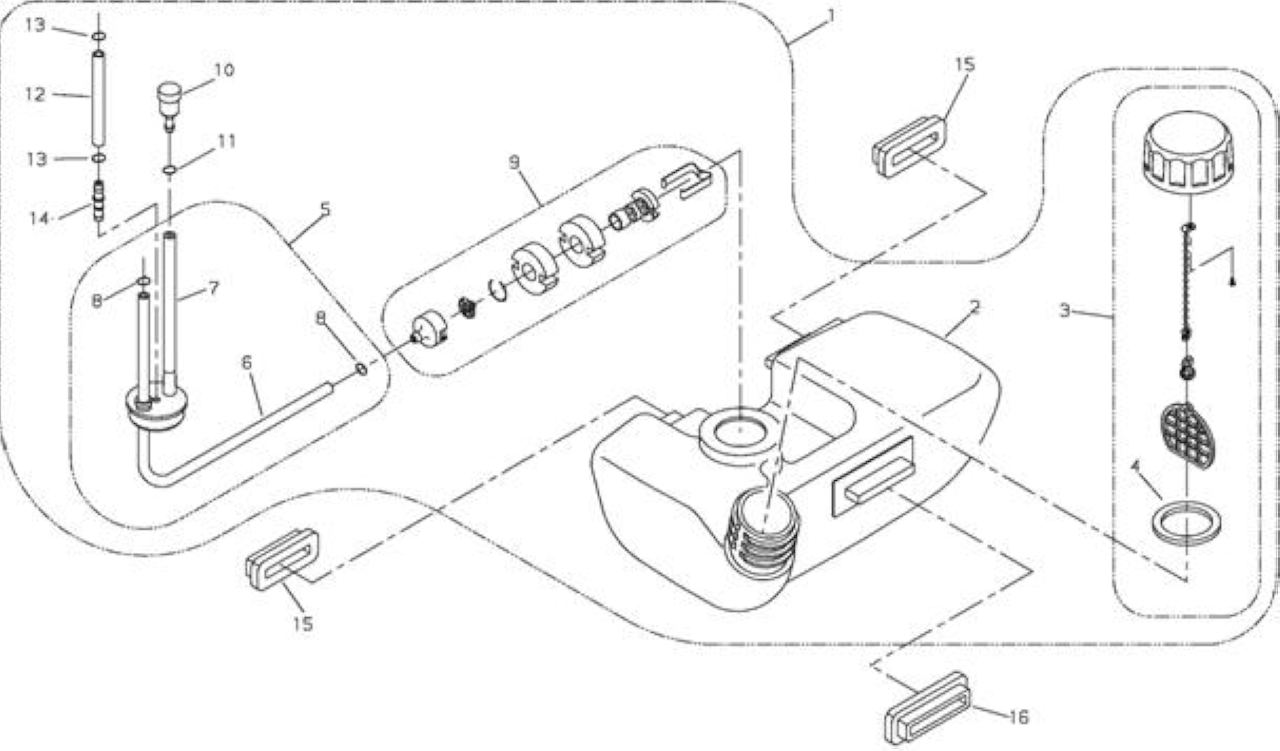

Rif.

Articolo

Descrizione

Q.tà Nota

1

ECRA038000330

*VEDI ECRP021040564 *

1

2

SKR6203585111

*VEDI ECRA350001370 *

1

3

SKR7016885201

*VEDI SKRA033000010 *

1

4

SKR2000085221

*VEDI SKRV107000010 *

1

5

SKR6203585031

*VEDI SKRP021034560 *

1

6

SKR6203585310

*VEDI SKRV471002480 *

1

7

SKR6203585321

*VEDI SKRV137000090 *

1

8

SKR2002085540

*VEDI SKRV490000500 *

2

9

SKR2216935400

*VEDI SKRA369000100 *

1

10

SKR2219733960

*VEDI SKRA356000050 *

1

11

SKR2002085540

*VEDI SKRV490000500 *

1

12

SKR2014083311

*VEDI SKRV471002490 *

1

13

SKR2002085540

*VEDI SKRV490000500 *

2

14

SKR7293385620

*VEDI SKRV186000210 *

1

15

SKR6203585341

*VEDI ECRV420002510 *

2

16

SKR6203585351

*VEDI ECRV420002520 *

1

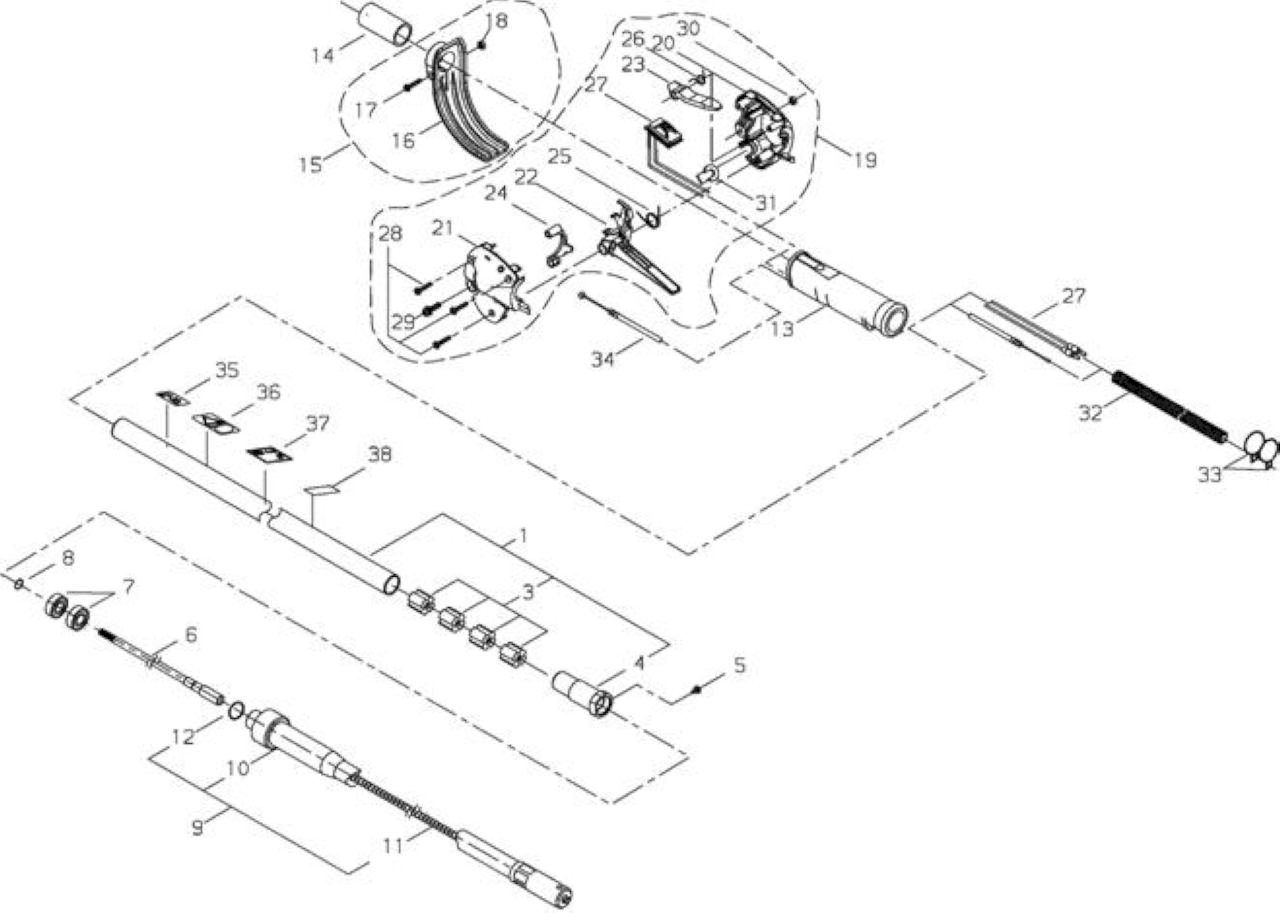

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6304962010

*VEDI SKRP021028680 *

1



3

SKR6304962120

AMMORTIZZATORE

4



4

SKR7251712130

* VEDI ECRC510000260 *

1



5

SKR2205612340

*VEDI ECRV253000460 *

1



6

SKR6304962211

*VEDI SKRC504000830 *

1



7

SKR200206900

*VEDI ECR90085906900 *

2

6900ZZ

8

SKR243010100

*VEDI SKR9242310000 *

1

10MM C

9

SKR6304961010

*VEDI SKRC057000220 *

1



10

SKR6304961110

*VEDI SKRC057000230 *

1



11

SKR6304961120

*VEDI SKRC506000270 *

1



12

SKR2205611140

*VEDI SKRV581000260 *

1



13

SKR6304362140

*VEDI SKRC412000380 *

1



14

ECR6300062311

*VEDI ECRV364000030 *

1



15

ECR7251762331

*VEDI ECRP021033080 *

1



16

SKR7251762341

*VEDI ECRA248000030 *

1



17

SKR1120605250

VITE

1

M5×25(SW,PW)

18

SKR150005041

DADO M5

1

M5 MFZN?-C

19

SKR6304962310

*VEDI ECRC044000960 *

1



20         SKR6304362310    CORPO IMPUGNATURA ACCEL.DX1

21

SKR6300062350

*VEDI SKRC401000190

*

1



22

SKR6300262340

*VEDI SKRC450000480

*

1



23

SKR6390162352

*VEDI SKRC460000190

*

1



24

SKR6300262350

*VEDI SKRC461000020

*

1



25

SKR6388065350

*VEDI ECRV452000700

*

1



26

SKR6390162370

*VEDI SKRV452000500

*

1



27

SKR6304962320

*VEDI ECRA440001490

*

1



28

ECR6388065360

*VEDI ECRV252000380

*

3



29

ECR1120605201

*VEDI ECR9157505020

*

1

M5×20(SW,PW)

30

ECR0150105030

*VEDI ECR9201705000

*

1

M5

31

ECR6388065411

*VEDI ECRV162000350

*

1



32

ECR6304962330

*VEDI ECRV475005000

*

1



33

SKR6304962340





2



34

SKR6304962170

*VEDI SKRV430003040

*

1



35

ECR1940200223

*VEDI ECRX517000140

*

1

MAX 8500MIN-1

36

ECR1942200010

*VEDI ECRX505002910

*

1



37

ECR1940400039

*VEDI ECRX508000310

*

1

114DB(A)

38

ECR7201712150

*VEDI ECRX524002380

*

1

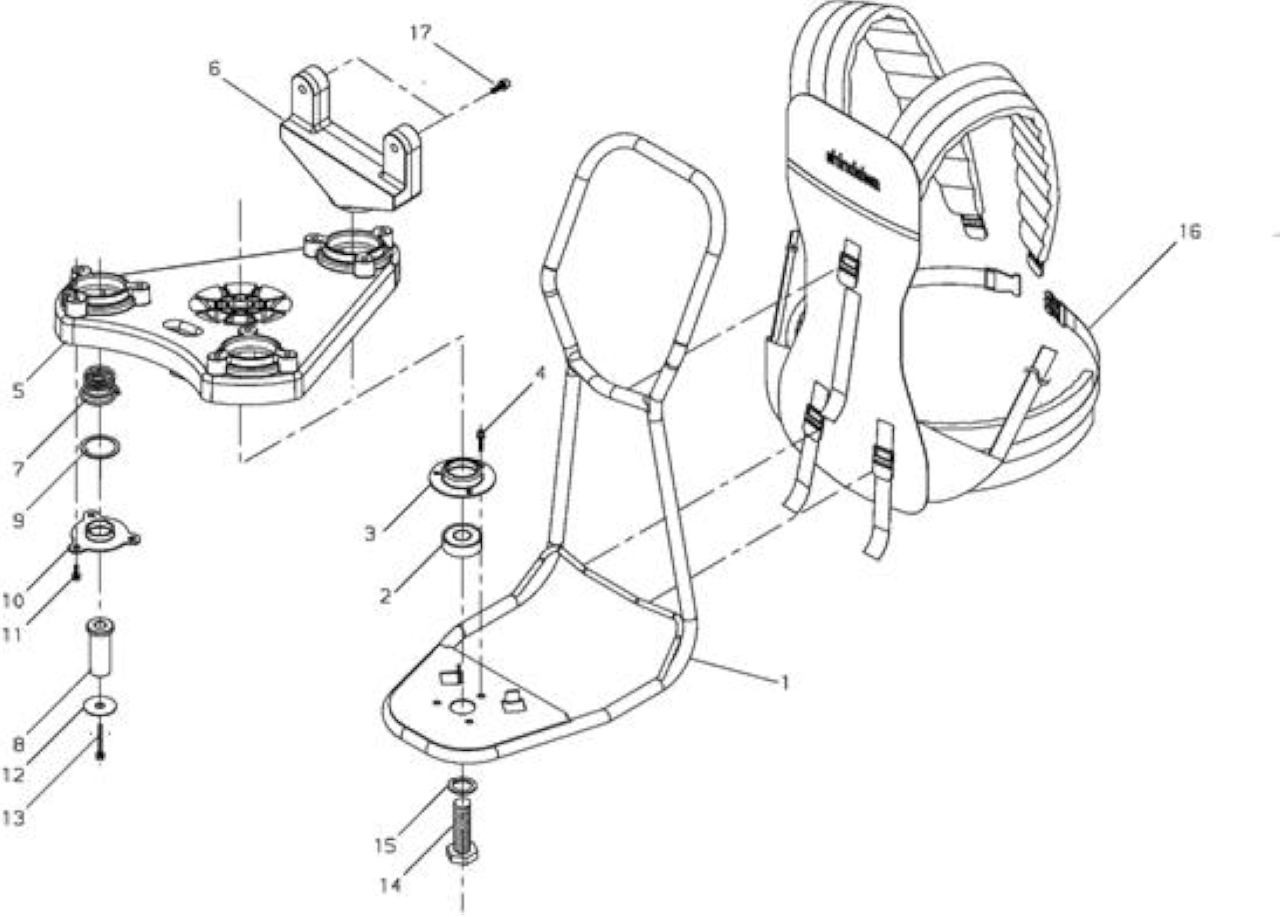

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR7255363020

*VEDI SKRC051000590 *

1



2

SKR2204413112

*VEDI SKRC531000610 *

1



3

SKR200606000

*VEDI ECR90080206000 *

1



4

SKR200006201

*VEDI ECR90081006201 *

1



5

SKR2200013120

*VEDI SKRV510000010 *

1



6

SKR243232120

ANELLO ELASTICO

1



7

SKR2200013212

*VEDI SKRC534000610 *

1



8

SKR2200013220

*VEDI SKRV651000590 *

1



9

SKR2200013230

*VEDI SKRV356000500 *

1



10

SKR2246013391

*VEDI SKRV651000500 *

1



11

SKR200006000

*VEDI ECR90080006000 *

1



12

SKR200206000

*VEDI SKR9404406000 *

1



13

SKR2200013320

*VEDI ECR90070600010 *

1



14

SKR243226120

ANELLO ELASTICO

1



15

SKR2201513410

*VEDI SKRV206000250 *

1

M10×10

16

SKR2201513420

*VEDI SKRV307000230 *

1



17

SKR102005120

BULLONE M5X12 T.E.I.

1

M5×12

18

SKR160005131

RONDELLA ELASTICA D5

1

M5

19

SKR161005080

RONDELLA D5

1

M5

20

ECR1102206400

*VEDI ECRV204000450 *

1

M6×40(SW,PW)

21

SKR2201113450

*VEDI ECRV340000280 *

1



22

SKR7255363160

*VEDI SKRC535000840 *

1



23

SKR3701963170

*VEDI SKRC535000850 *

1



24

SKR2200013290

*VEDI SKRC535000860 *

1



25

SKR2200013512

*VEDI SKRV205000480 *

1

M8

26

SKR2200013530

*VEDI SKRV641000150 *

1



27

SKR7244116130

*VEDI SKRC551000140 *

1



28

SKR150006051

DADO M6

1

M6

29

SKR161306100

RONDELLA

1

M6

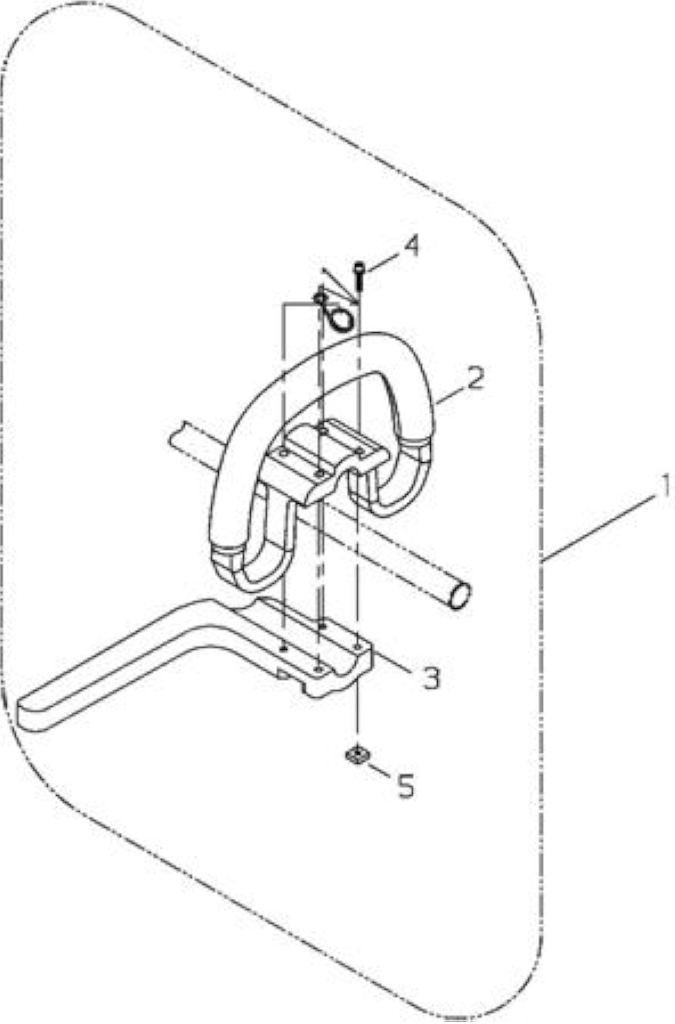

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6207464011

*VEDI SKRP021027930 *

1



2

ECR6207464111

*VEDI ECRC040000290 *

1



3

SKR6207464120

*VEDI ECRC405000410 *

1



4

SKR1102205350

*VEDI ECRV203000600 *

4

M5*35 SPW

5

SKR2242016120

*VEDI SKRV263000130 *

4

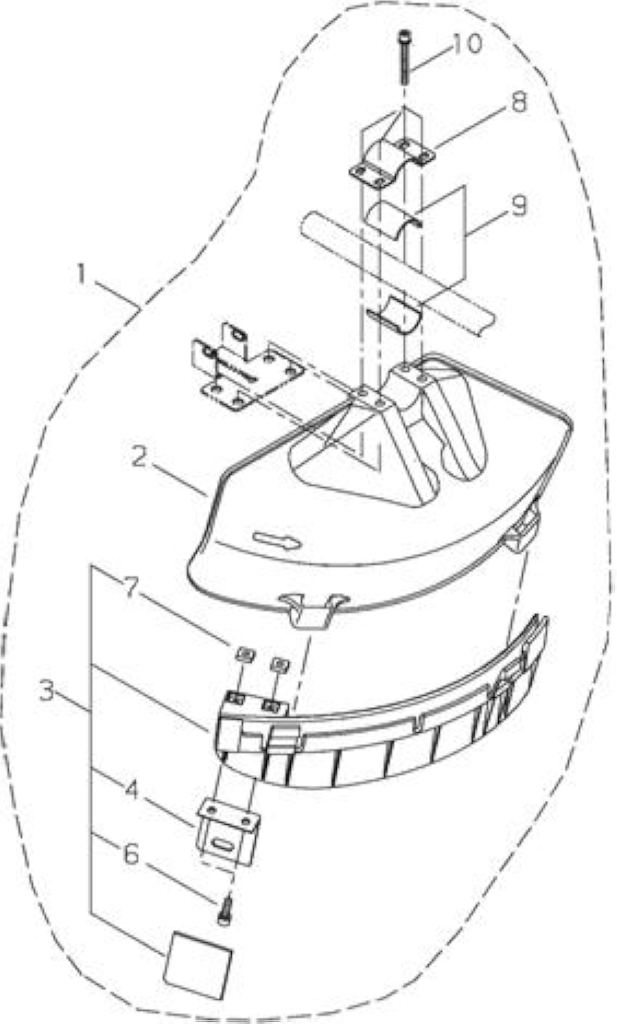

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6400066311

*VEDI SKRP021028900 *

1



2

SKR6290366111

*VEDI SKRC550000430 *

1



3

SKR6290366332

*VEDI SKRP021028450 *

1



4

SKR7248016121

*VEDI SKRC554000040 *

1



6

SKR1102005160

BULLONE

2

M5X16(SW)

7

SKR2242016120

*VEDI SKRV263000130 *

2

M5

8

SKR7248016210

*VEDI SKRC551000060 *

1



9

SKR7244116220

*VEDI ECRV363000160 *

2



10

SKR1102205450

BULLONE

4

M5X45(SW,PW)













Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6208386110

*VEDI SKRC066000060 *

1



2

SKR200606202

*VEDI ECR90081206202 *

1

6202DDU

3

SKR6208386310

*VEDI ECRC530000070 *

1



4

SKR1102205160

*VEDI SKRV203000590 *

3

M5X16(SW,PW)

5

SKR6208387110

*VEDI ECRC632000160 *

1



6

SKR6208387310

SUPPORTO

1



7

SKR1750339901

*VEDI SKRV450000960 *

3



8

SKR1540110203

*VEDI ECRV353000400 *

3



9

SKR6208387320

COLLARINO

3



10

SKR6208387330

*VEDI ECRJ133000020 *

3



11

SKR1102205160

*VEDI SKRV203000590 *

9

M5X16(SW,PW)

12

SKR1540120011

*VEDI ECRV323000120 *

3



13

ECR1102005500

*VEDI ECRV203000850 *

3

M5X50(SW)

14

SKR0101010350

*VEDI ECRV206000260 *

1

M10X35

15

SKR160010251

*VEDI ECR90060500010 *

1

M10

16

SKR6208386121

*VEDI SKRC630000140 *

1



17

SKR1102205160

*VEDI SKRV203000590 *

2

M5X16(SW,PW)
