Motore, marmitta

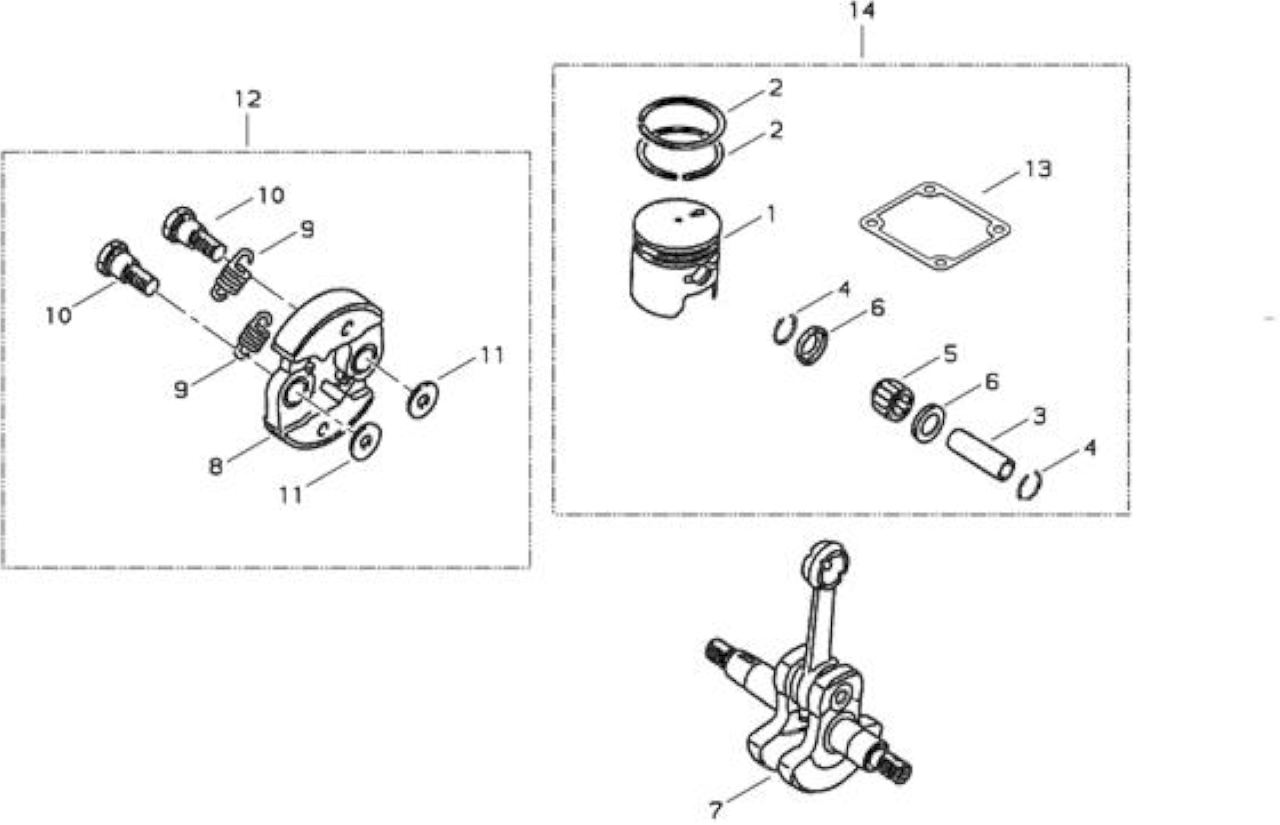

Carter frizione, campana frizione Pistone, albero motore, frizione Bobina, volano

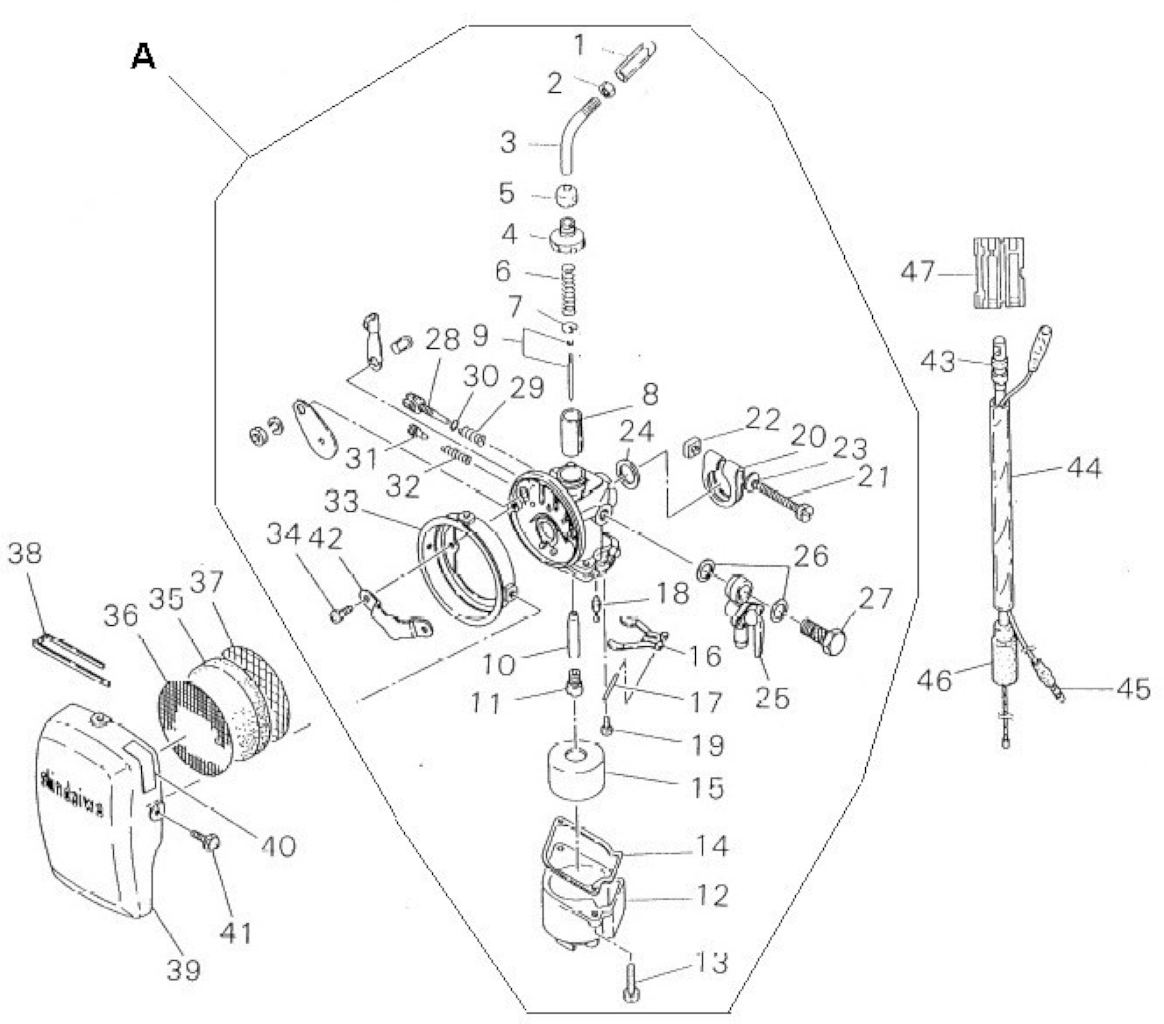

Avviamento Carburatore, Filtro aria

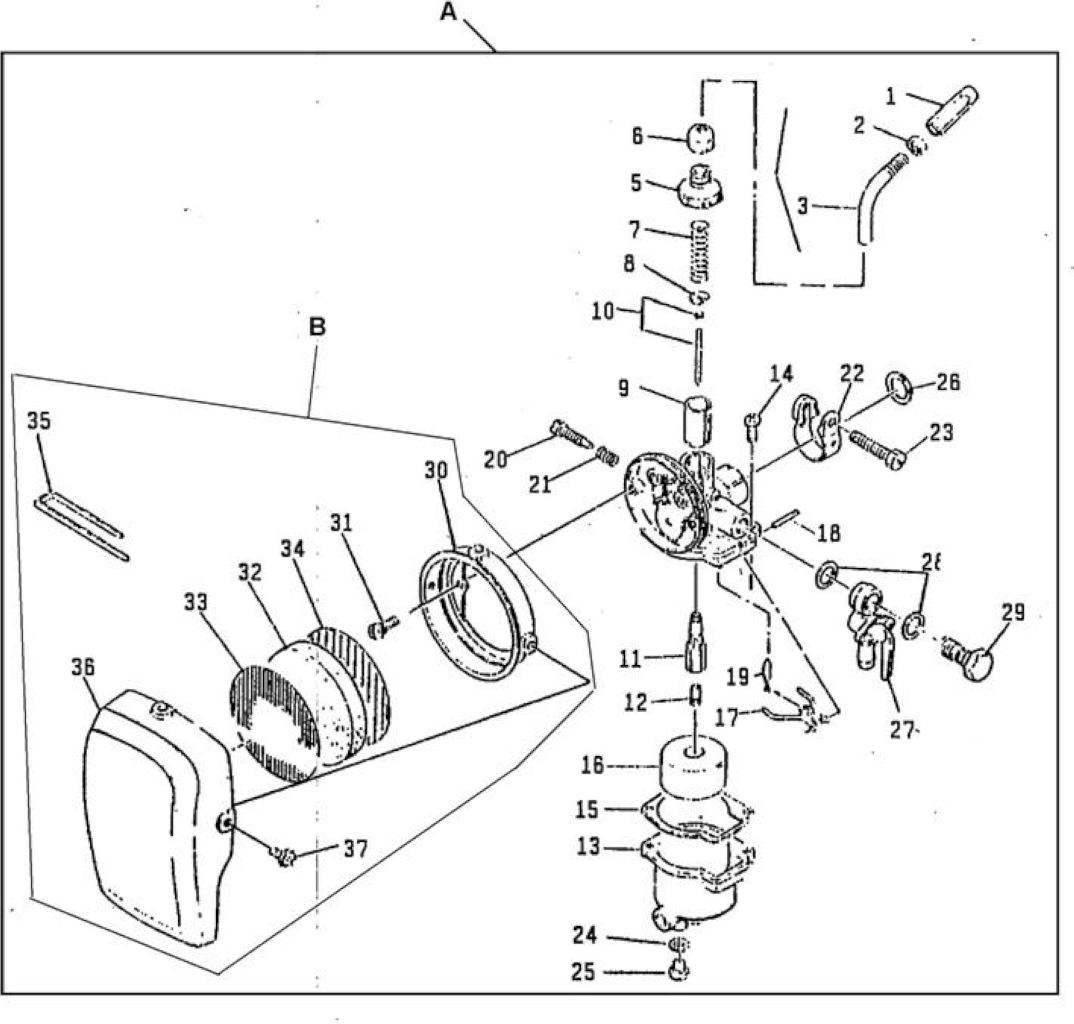

Carburatore 'tipo vecchio' Serbatoio, Zaino

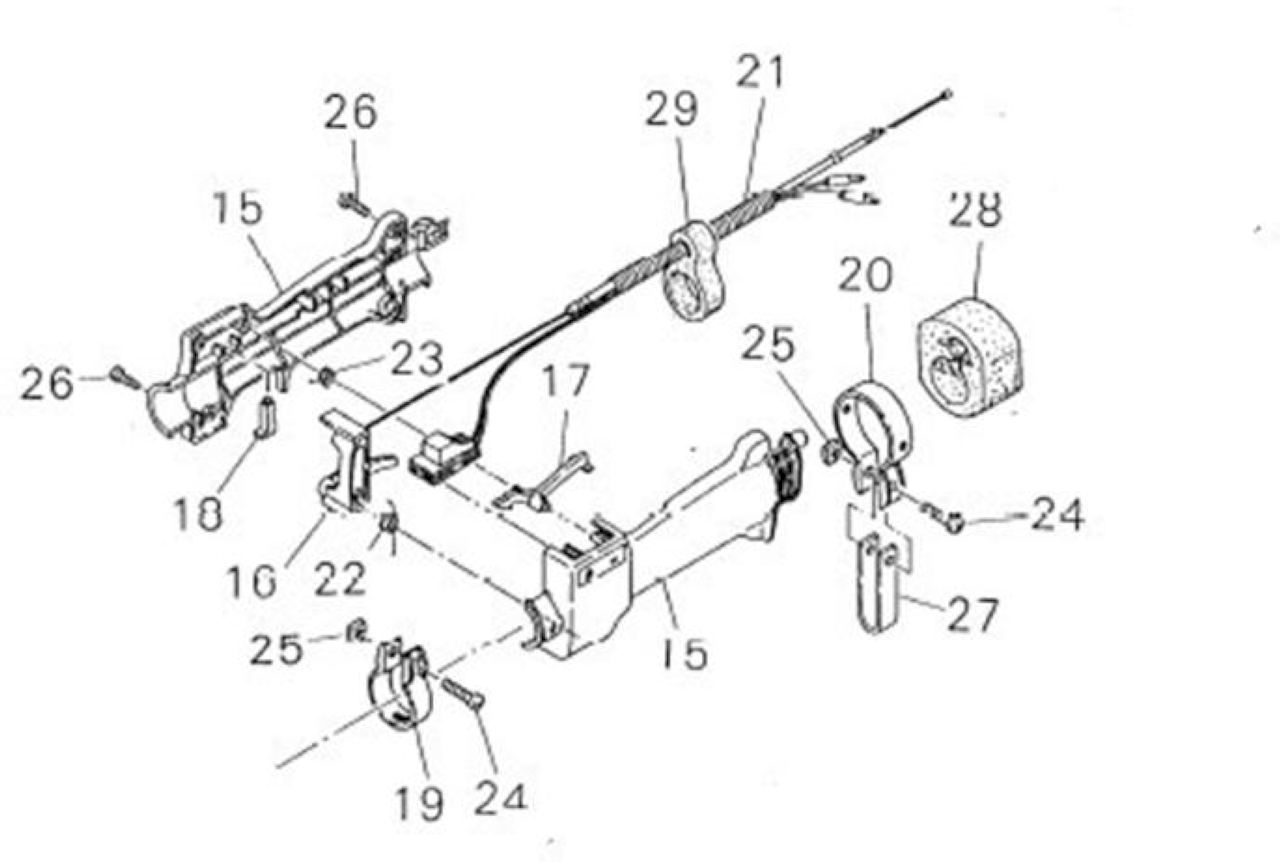

Asta rigida e flessibile, acceleratore Impugnatura acceler. 'tipo vecchio' Coppia conica

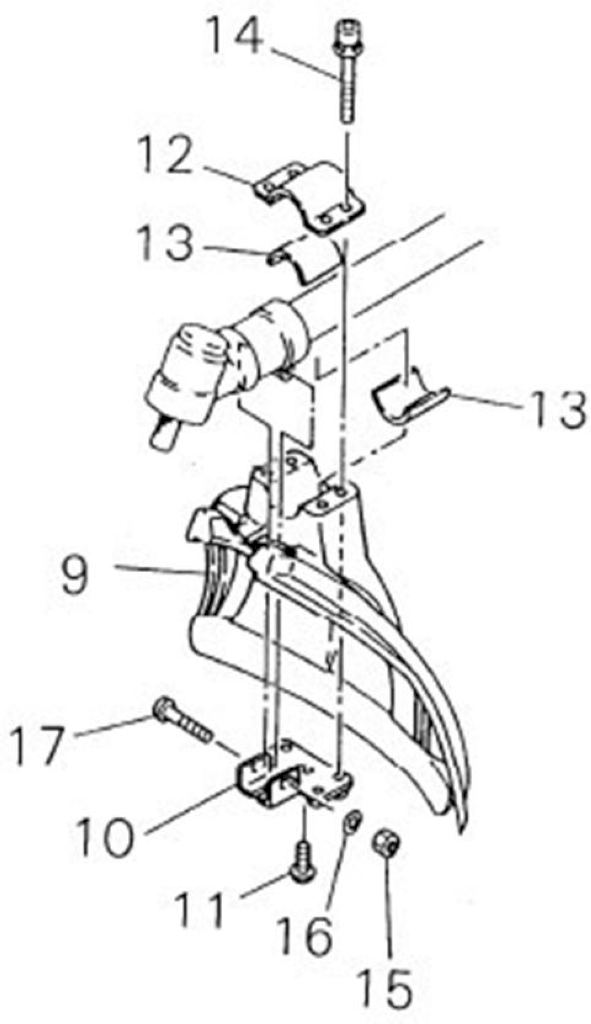

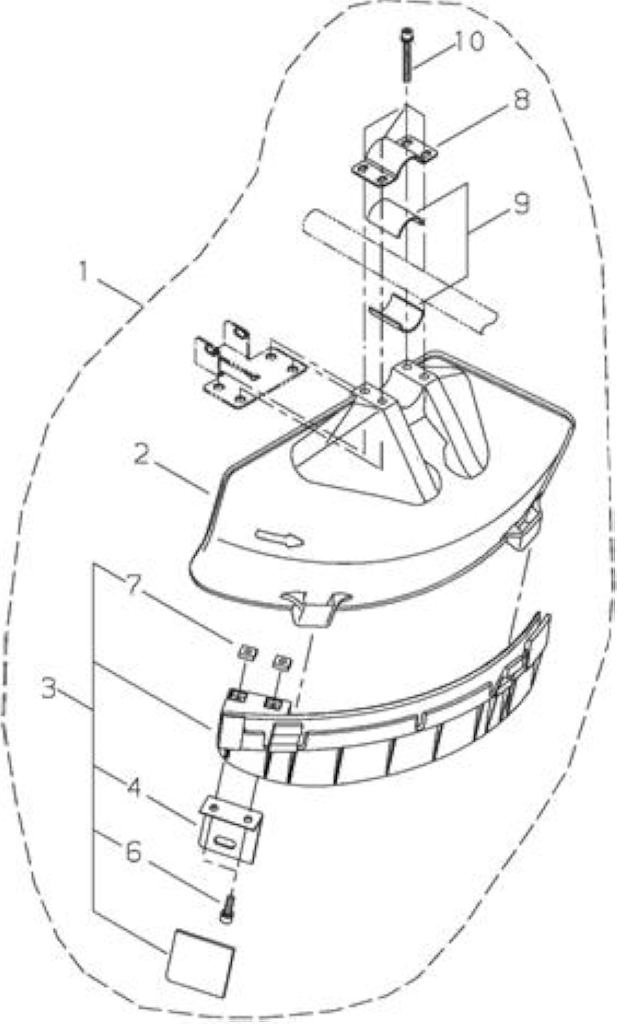

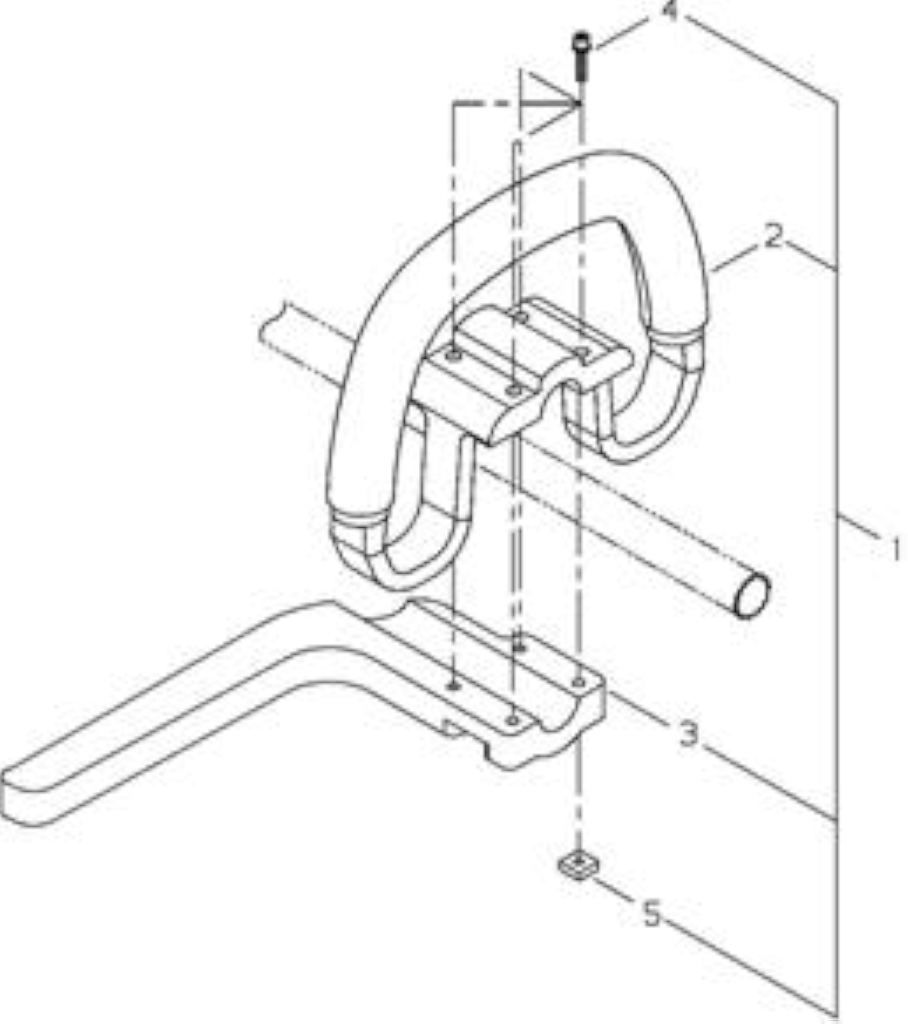

Impugnatura L "tipo nuovo" Impugnatura L 'tipo vecchio' Parassassi "tipo nuovo" Parassassi 'tipo vecchio'

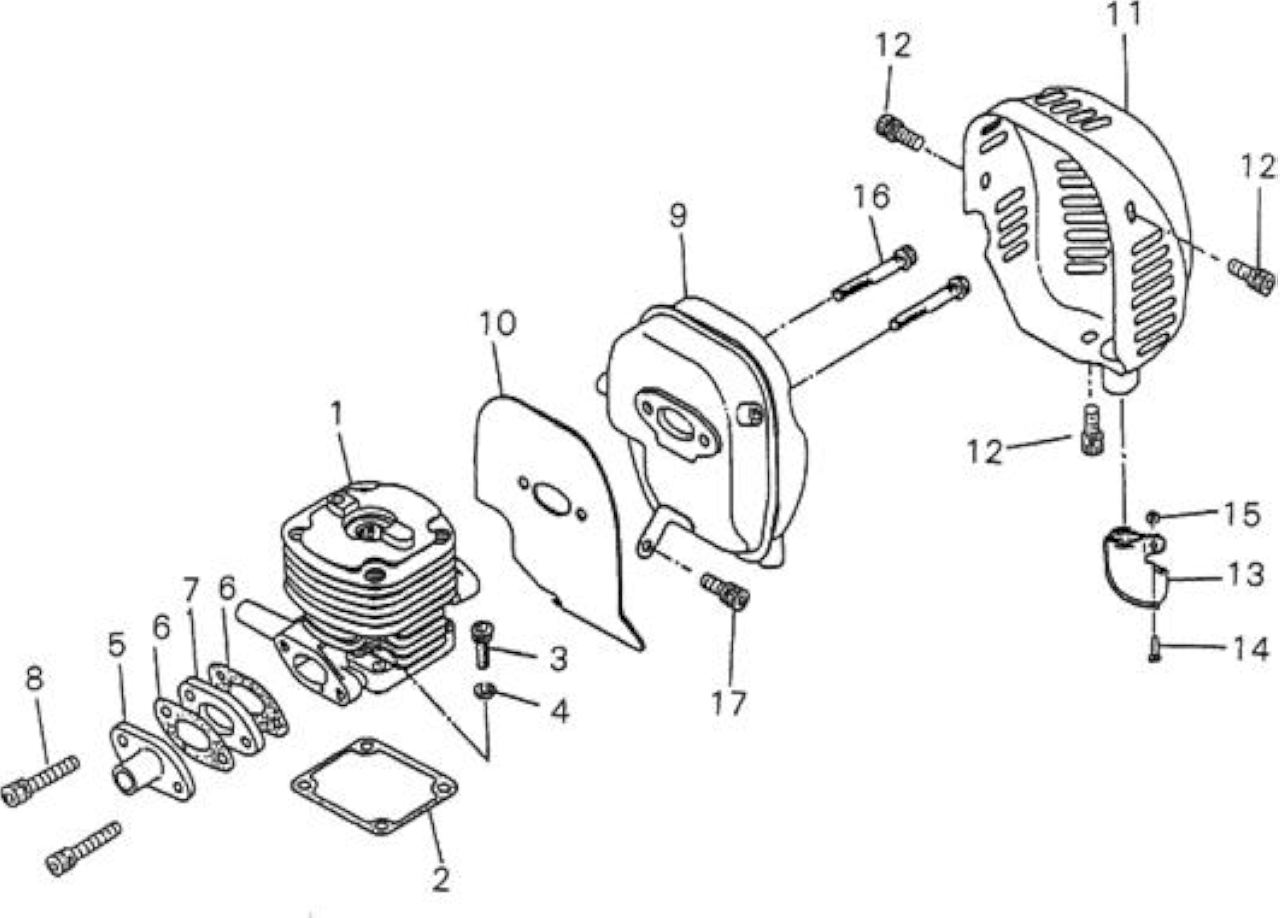

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR7019612110

*VEDI SKRA130001371 *

1



2

SKR2001012121

*VEDI SKRV100000470 *

1



3

SKR102005250

*VEDI ECR90010505025 *

4

M5X25

4

SKR160005131

RONDELLA ELASTICA D5

4



5

SKR2005112211

COLLETTORE

1



6

SKR2005112221

*VEDI SKRV103001070 *

2



7

SKR2005112230

*VEDI ECRA200000700 *

1



8

SKR1102205250

BULLONE

2

M5X25

9

SKR2005115110

*VEDI ECRA300001190 *

1



10

SKR2005015210

*VEDI SKRV104001400 *

1



11

SKR2005115310

CARTER MARMITTA

1



12

SKR1102405100

BULLONE

3

M5X10

13

SKR2005015410

*VEDI SKRA313001310 *

1



14

SKR1120304100

VITE

1

M4X10

15

SKR150004031

DADO ESAG. M4

1



16

SKR102006250

BULLONE M6X25

2

M6X25

17

SKR1102405120

BULLONE

1

M5X12

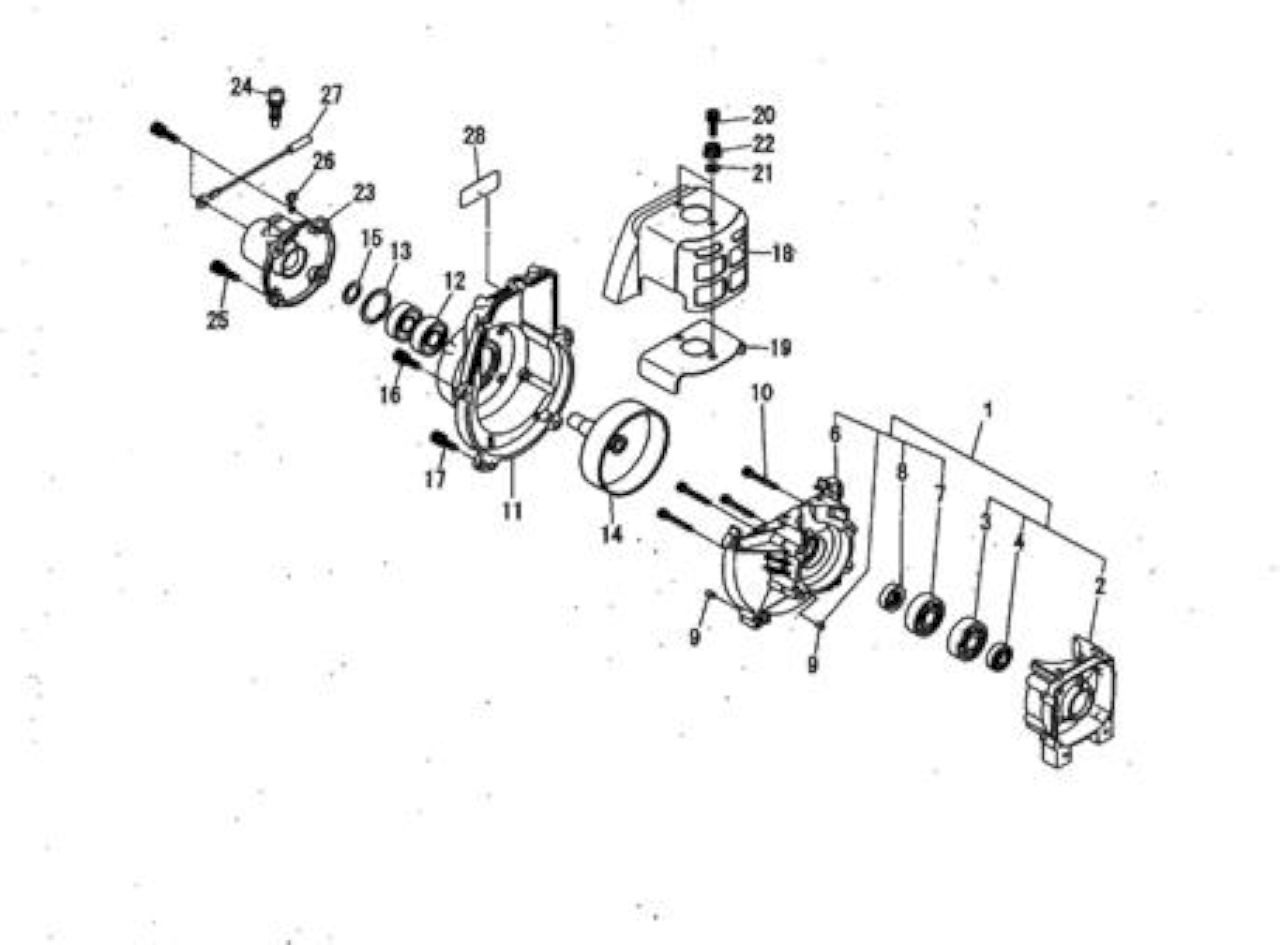

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR2005121000

CARTER MOTORE COMPLETO 1/6

1



2

SKR2005121110

*VEDI ECRA120000400 *

1



3

SKR1290062020

*VEDI SKR200006202 *

1

6202,C3

4

SKR2001021211

*VEDI SKRV508000050 *

1



6

SKR7001221121

* VEDI ECRA120001051 *

1



7

SKR1290062020

*VEDI SKR200006202 *

1

6202,C3

8

SKR2001021211

*VEDI SKRV508000050 *

1



9

ECR1249250100

*VEDI ECRV623000060 *

4

F5XL10

10

SKR102005300

BULLONE M5X30

4

M5X30

11

SKR7001231111

*VEDI SKRA172001300 *

1



12

SKR200606002

*VEDI ECR90080206002 *

2

6002DDU

13

SKR243232120

ANELLO ELASTICO

1

32MM C

14

SKR2005031210

*VEDI SKR7005131210 *

1



15

SKR2001131230

*VEDI ECRV583000180 *

1



16

SKR1102205200

*VEDI ECRV203000351 *

2

M5X20

17

SKR1102205350

*VEDI ECRV203000600 *

2

M5X35

18

SKR7019632110

*VEDI SKRA160001600 *

1



19

SKR7019632141

*VEDI SKRV101000020 *

1



20

ECR1102005140

BOLT SW

2

M5X14

21

SKR7019632150

*VEDI ECRV340000260 *

2



22

SKR7019632160

*VEDI SKRA459000020 *

2



23

SKR2005135130

* VEDI ECRA570000210 *

1



24

SKR2011235200

*VEDI SKRP021018640 *

1



25

SKR1102205200

*VEDI ECRV203000351 *

4

M5X20

26

SKR2002483152

*VEDI SKRC487000220 *

1



27

SKR7005683140

*VEDI ECRV485001830 *

1



28

ECR7011231150

*VEDI ECRX504002810 *

1



















Rif.

Articolo

Descrizione

Q.tà Nota

1

SKR2001041110

*VEDI SKR7205198310 *

1

2

SKR2001041210

*VEDI SKRA101000380 *

2

3

SKR2001041310

*VEDI SKRV608000020 *

1

4

SKR2210041230

*VEDI SKRV580000110 *

2

5

SKR2001041330

*VEDI SKRV555000090 *

1

6

SKR7020041341

*VEDI SKRV307000220 *

2

7

SKR2001042002

*VEDI SKRA011000860 *

1

8

SKR2005051111

*VEDI SKRA553000160 *

2

9

SKR2005051121

*VEDI SKRA566000160 *

2

10

SKR2001051130

VEDI * ECRA557000130 *

2

11

SKR2001051141

*VEDI ECRV306000290 *

2

12

SKR2005051102

*VEDI SKRP021034100 *

1

13

SKR2001012121

*VEDI SKRV100000470 *

1

14

SKR7205198011

*VEDI ECRP021031560 *

1

















Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR2001071201

*VEDI SKRA409000670 *

1



2

SKR240303100

*VEDI ECR9311503010 *

1



3

SKR151110061

DADO

1



4

SKR160010251

*VEDI ECR90060500010 *

1



5

SKR2001171611

*VEDI SKRA411000820 *

1



6

SKR2001071631

*VEDI SKRV352000140 *

2



7

ECR1102404261

*VEDI ECRV202000330 *

2

M4X2612.9

10

SKR2001171660

TUBO

1



11

SKR7292071711

*VEDI SKRA416000000 *

1



13

SKR1102404120

BULLONE

2

M4X12

16

SKR2001172110

*VEDI SKRV135000080 *

1



17

SKR2001172120

*VEDI SKRV136000060 *

1



18

SKR2210272220

*VEDI SKRA427000100 *

1



19

SKR2000072230

*VEDI SKRA426000050 *

1

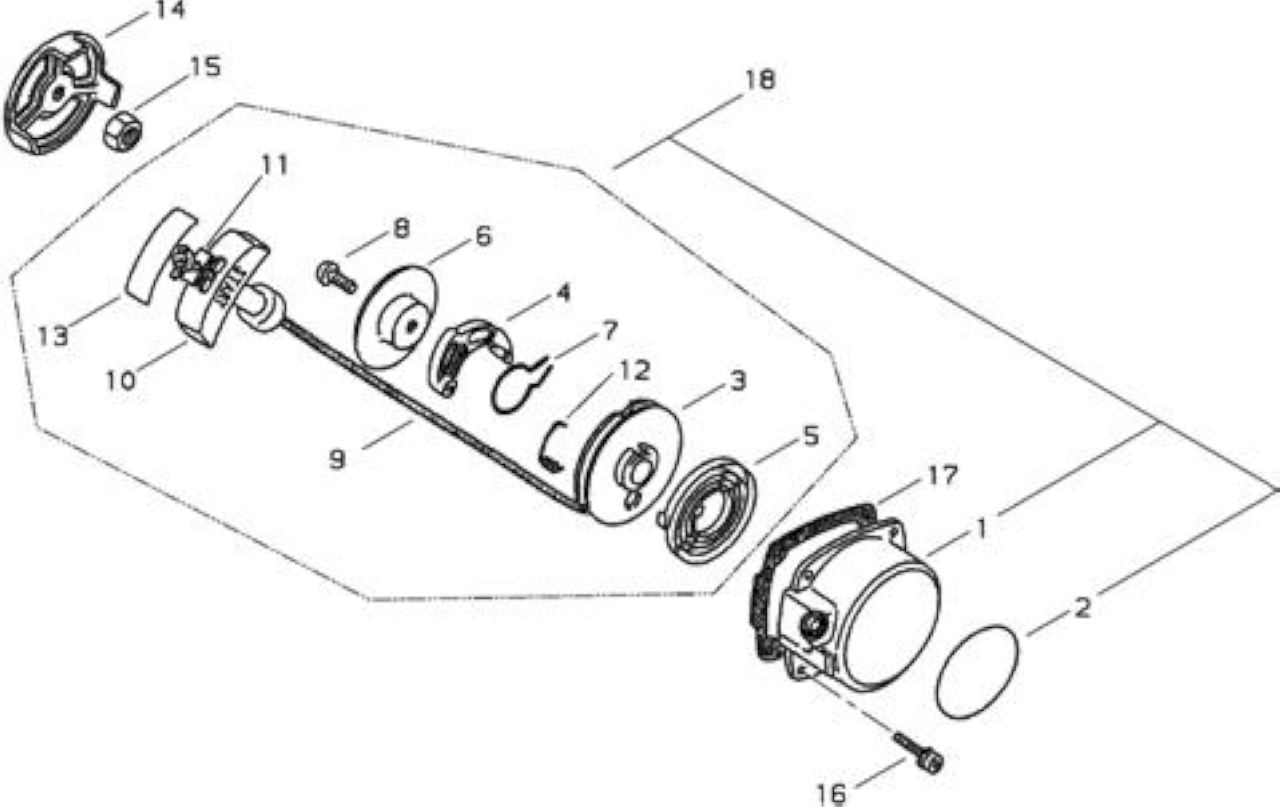

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR7002075110

*VEDI ECRA500000880 *

1



2

ECR2005175240

NAME PLATE

1



3

SKR2002075120

*VEDI ECRA506000270 *

1



4

SKR2000075130

*VEDI SKRA514000130 *

1



5

SKR2002075140

*VEDI SKRA504000140 *

1



6

SKR2000075150

*VEDI ECRA518000050 *

1



7

SKR2000075160

*VEDI ECRV452000550 *

1



8

SKR2000075170

VITE M5X12

1



10

SKR2001075190

*VEDI ECR17722827030 *

1



11

SKR2001075210

FERMO IMPUGNATURA AVV.TO

1



12

SKR2000075220

*VEDI SKRV452000560 *

1



13

SKR2001075230

COPERCHIO IMPUGNATURA AVVIAM.

1



14

SKR7000075230

*VEDI SKRA520000170 *

1



15

SKR2000076210

DADO

1



16

SKR1102204160

BULLONE

4

M4X16

17

SKR2002076111

*VEDI SKRV105000030 *

1



18

SKR7002075100

*VEDI SKRA050000240 *

1

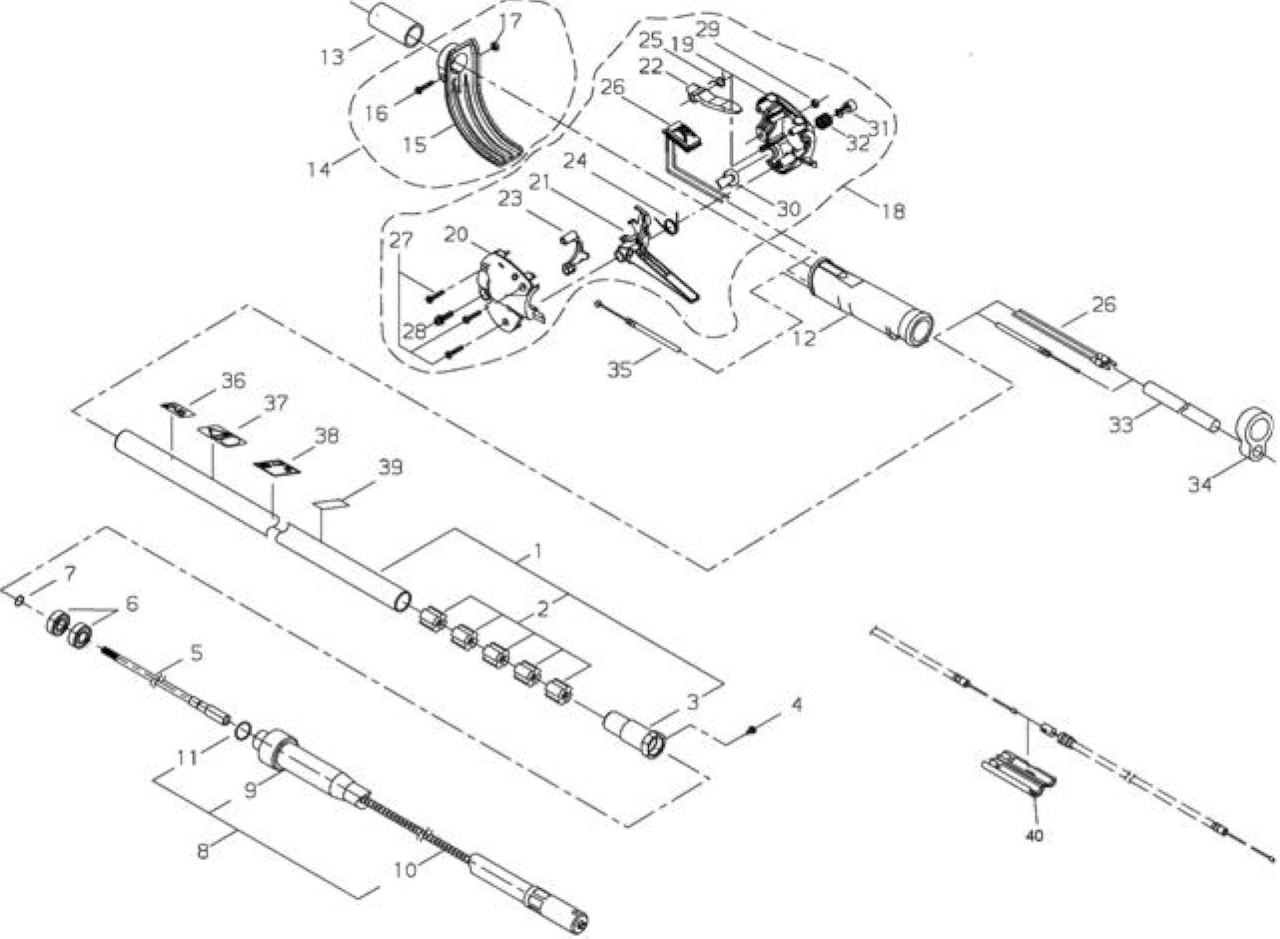

Rif.

Articolo

Descrizione

Q.tà

Nota

A

SKR7019981020

*VEDI SKRA020000180 *

1



1

SKR2005581810

*VEDI SKR12415846630 *

1



2

SKR2000081260

*VEDI ECR12411105810 *

1



3

SKR2005581830

*VEDI ECR12416849930 *

1



4

SKR2005581120

*VEDI SKRP004000700 *

1



5

SKR2005581130

*VEDI ECRP004002180 *

1



6

SKR2000381140

*VEDI ECR12411450330 *

1



7

SKR2000081150

*VEDI ECR12411505530 *

1



8

SKR2005581182

*VEDI ECRP004002200 *

1



9

SKR2005581212

*VEDI SKRP004002220 *

1



10

SKR2005581232

*VEDI SKRP004000660 *

1



11

SKR2005581242

*VEDI SKR12412213210 *

1



12

SKR2002781310

*VEDI SKR2004581310 *

1



13

SKR2001481320

VITE

2



14

SKR2001481330

*VEDI SKRP004001510 *

1



15

SKR2001481340

*VEDI ECR12413311120 *

1



16

SKR2001481350

*VEDI ECR12412146630 *

1



17

SKR2001481360

*VEDI ECR12413246630 *

1



18

SKR2001481381

*VEDI SKRP004000470 *

1



19

SKR2001481390

VITE

1



20

SKR2001481510

FASCETTA DI TENUTA

1



21

ECR2001481521

BULLONE PER FASCETTA

1



22

SKR2001481530

DADO

1



23

SKR2001481540

RONDELLA

1



24

SKR2001081570

GUARNIZIONE

*ECR12414946630

1



25

SKR2005581610

*VEDI SKRP004000430 *

1



26

SKR2005581620

*VEDI ECR12413011120 *

2



27

SKR2005581630

*VEDI ECRP004002310 *

1



28

SKR2001481810

*VEDI ECR12415946630 *

1



29

SKR2001081820

*VEDI ECR12416011120 *

1



30

SKR2001481830

* VEDI ECR12435613020 *

1



31

SKR2000081330

*VEDI ECRP004000880 *

1



32

SKR2000081340

*VEDI ECRP004000890 *

1



33

SKR2001081711

*VEDI ECRA225000500 *

1



34

SKR2000081730

VITE

2



35

SKR2000081740

*VEDI SKRA226000670 *

1



36

SKR2000081750

*VEDI SKRA230000030 *

1



37

SKR2001081760

*VEDI SKRA230000040 *

1



38

SKR2001081781

*VEDI SKRA238000060 *

1



39

SKR2001081771

*VEDI SKRA232000870 *

1



40

SKR1940400008

*VEDI ECRX506000130 *

1



41

SKR2000081735

VITE

3



42

SKR2001481790

*VEDI ECRA244000150 *

1



43

SKR7005683200

*VEDI SKRV430003000 *

1



44

SKR2002083120

*FUORI PRODUZIONE *

1





Rif.

Articolo

Descrizione

Q.tà Nota

45

SKR7005683130

*VEDI ECRV485001860 *

1

46

SKR2000583160

*VEDI SKRA246000020 *

1

47

SKR7005683190

*VEDI SKRC482000090 *

1







Rif.

Articolo

Descrizione

Q.tà

Nota

A

SKR2005581001

*VEDI SKR2005581004 *

1



B

SKR2001081701

*VEDI ECRA027000090 *

1



1

SKR2005581810

*VEDI SKR12415846630 *

1



2

SKR2000081260

*VEDI ECR12411105810 *

1



3

SKR2005581830

*VEDI ECR12416849930 *

1



5

SKR2005581120

*VEDI SKRP004000700 *

1



6

SKR2005581130

*VEDI ECRP004002180 *

1



7

SKR2000081140

*VEDI ECR12411405530 *

1



8

SKR2000081150

*VEDI ECR12411505530 *

1



9

SKR2005581181

*VEDI SKR2005581182 *

1



10

SKR2005581211

SPILLO

1



11

SKR2005581230

*VEDI SKRP004002230 *

1



12

SKR2005581241

VALVOLA PRINCIPALE

1



13

SKR2005581310

* FUORI PRODUZIONE * VASCHETTA

1



15

SKR2001081330

*VEDI ECRP004000540 *

1



16

SKR2005581340

*VEDI ECRP004002260 *

1



17

SKR2005581351

BILANCIERE

1



18

SKR2000181360

PERNO

1



19

SKR2005581381

VALVOLA SPILLO

1



20

SKR2000081310

*VEDI ECR12415905530 *

1



21

SKR2001081820

*VEDI ECR12416011120 *

1



22

SKR2001081511

FASCETTA

1



24

SKR2005581550

GUARNIZIONE

1



25

SKR2005581560

VITE

1



26

SKR2001081570

GUARNIZIONE

*ECR12414946630

1



27

SKR2005581610

*VEDI SKRP004000430 *

1



28

SKR2005581620

*VEDI ECR12413011120 *

2



29

SKR2005581630

*VEDI ECRP004002310 *

1



30

SKR2001081711

*VEDI ECRA225000500 *

1



32

SKR2000081740

*VEDI SKRA226000670 *

1



33

SKR2000081750

*VEDI SKRA230000030 *

1



34

SKR2000081760

*VEDI ECRA228000020 *

1



35

SKR2001081781

*VEDI SKRA238000060 *

1



36

SKR2001081771

*VEDI SKRA232000870 *

1

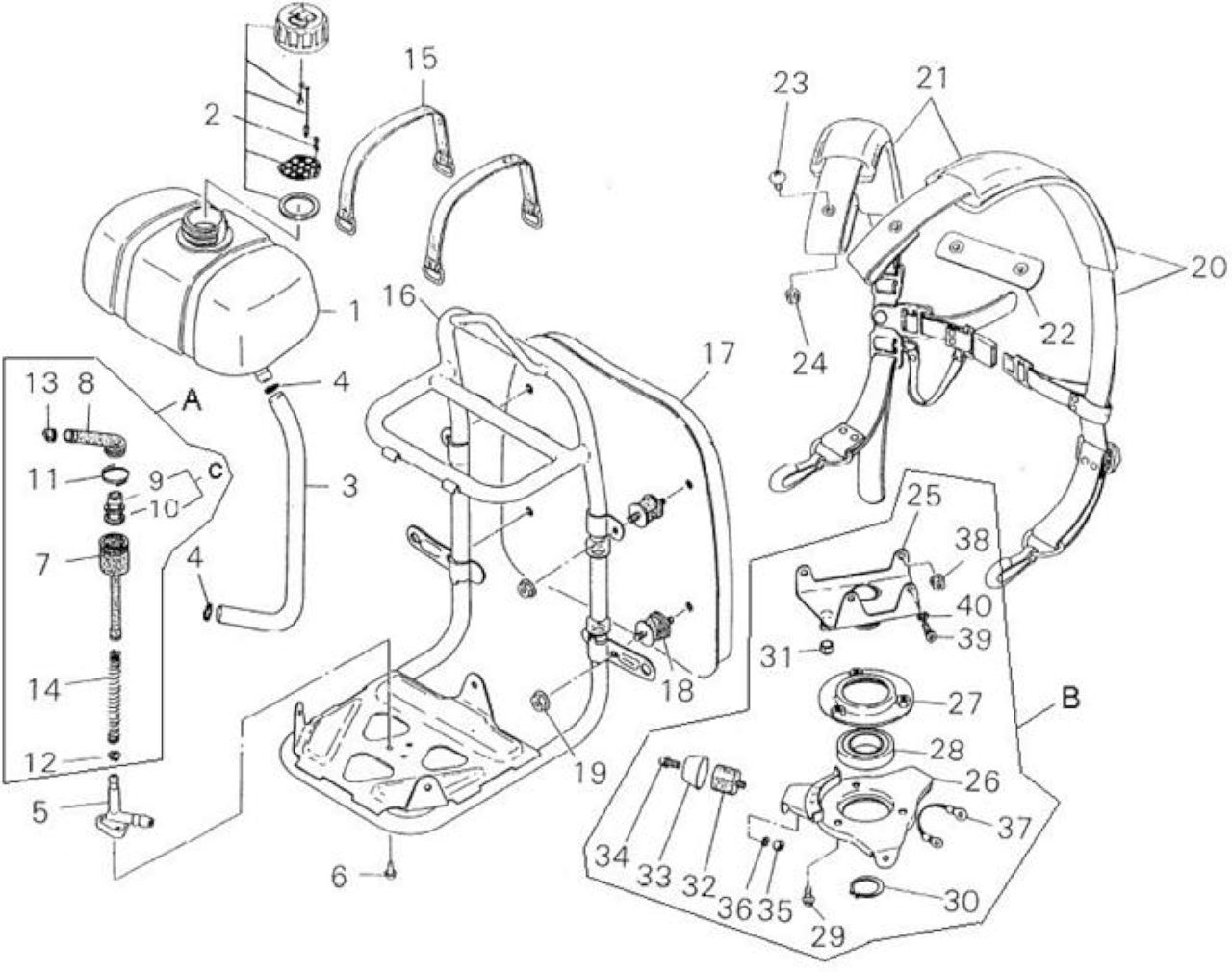

Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR2005085110

*VEDI SKRA350001410 *

1



2

SKR7019985202

*VEDI SKRA033000310 *

1



3

SKR2005185410

*VEDI ECRV471002680 *

1



4

SKR2005185420

FERMO

2



5

SKR2005085461

*VEDI ECRV186000240 *

1



6

SKR1120240100

VITE AUTOFILETTANTE D4X10

3



A

SKR2005185503

*VEDI SKRA037000010

*

1

7

SKR2005185510

*VEDI SKRV470001120

*

1

8

SKR2005185521

*VEDI SKRV470001130

*

1

C

SKR2299900001

SET FILTRO                          *DARE SKR7005185502



1

9

SKR2005185540

*VEDI SKRA368000040

*

1

10

SKR2005185531

*VEDI SKRA369000050

*

1

11

SKR2005085580

FERMO



1

12

SKR2005085560

FERMO



1

13

SKR2005185570

FERMO



1

14

SKR2005185590

*VEDI ECR2005185590

*

1

15

SKR2001086140

*VEDI SKR2002086140

*

2

16

SKR2005186112

*VEDI SKRC066000030

*

1

17

SKR2005186120

*VEDI SKRC630000110

*

1

18

SKR2005186160

*VEDI SKRV401000210

*

4

19

SKR1152605112





4

20

SKR7019986200

*VEDI SKRC061000360

*

1

21

SKR2204417230

*VEDI SKR7245117330

*

2

22

SKR2005186320

FASCETTA



1

23

SKR121506140

VITE



2

24

SKR2201197840

*VEDI SKRV264000150

*

2

B

SKR2005187001

*VEDI ECRP021018290

*

1

25

SKR2005087110

*VEDI ECRC632000120

*

1

26

SKR2005087120

*VEDI SKRC627000130

*

1

27

SKR2005087131

*VEDI ECRC628000050

*

1

28

SKR200206005

CUSCINETTO A SFERE 6005ZZ

1

29

SKR1120605100

VITE

3

30

SKR243025120

ANELLO ELASTICO

1

31

SKR2005087150

CUSCINO AMMORT.

1

32

SKR2005087160

*VEDI SKRV401000450 *

3

33

SKR2005087170

*VEDI SKRV423000060 *

3

34

SKR1120605100

VITE

3

35

SKR150005041

DADO M5

3

36

SKR160005131

RONDELLA ELASTICA D5

3

37

SKR2005187210

CAVO MASSA

1

38

SKR150005041

DADO M5

2

39

SKR1102005120

BULLONE

2

40

SKR160005131

RONDELLA ELASTICA D5

2







Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR7251712100

*VEDI SKRC050001980 *

1



2

SKR2200012120

*VEDI SKR2202412120 *

5



3

SKR7251712130

* VEDI ECRC510000260 *

1



4

SKR2205612340

*VEDI ECRV253000460 *

1



5

SKR7251712410

*VEDI SKRC504000820 *

1



6

SKR200206900

*VEDI ECR90085906900 *

2

6900ZZ

7

SKR243010100

*VEDI SKR9242310000 *

1

10MM C

8

SKR7251761010

*VEDI SKRC057000200 *

1



9

SKR7251761110

*VEDI SKRC057000210 *

1



10

SKR7251711121

*VEDI SKRC506000260 *

1



11

SKR2205611140

*VEDI SKRV581000260 *

1



12

SKR6304362140

*VEDI SKRC412000380 *

1



13

ECR6300062311

*VEDI ECRV364000030 *

1



14

ECR7251762331

*VEDI ECRP021033080 *

1



15

SKR7251762341

*VEDI ECRA248000030 *

1



16

SKR1120605250

VITE

1

M5X25

17

SKR150005041

DADO M5

1

M5

18

SKR7251762310

*VEDI SKRC044000940 *

1



19

SKR6300062340

*VEDI ECRC401000180 *

1



20

SKR6300062350

*VEDI SKRC401000190 *

1



21

SKR6300262340

*VEDI SKRC450000480 *

1



22

SKR6390162352

*VEDI SKRC460000190 *

1



23

SKR6300262350

*VEDI SKRC461000020 *

1



24

SKR6388065350

*VEDI ECRV452000700 *

1



25

SKR6390162370

*VEDI SKRV452000500 *

1



26

SKR7251762350

*VEDI SKRA440001480 *

1



27

ECR6388065360

*VEDI ECRV252000380 *

3



28

ECR1120605201

*VEDI ECR9157505020 *

1

M5X20

29

ECR0150105030

*VEDI ECR9201705000 *

1

M5

30

ECR6388065411

*VEDI ECRV162000350 *

1



31

SKR7087165170

*VEDI SKRC461000080 *

1



32

SKR7087165180

*VEDI SKRV450001010 *

1



33

ECR7251762320

*VEDI ECRV470001180 *

1



34

SKR2007983140

*VEDI ECRC487000320 *

1



35

SKR7251762170

*VEDI SKRV430003010 *

1



36

ECR1940200223

*VEDI ECRX517000140 *

1

MAX 8500MIN1

37

ECR1942200010

*VEDI ECRX505002910 *

1



38

ECR1940400035

*VEDI ECRX508000260 *

1

110DB(A)

39

ECR7201712150

*VEDI ECRX524002380 *

1



40

SKR7005683190

*VEDI SKRC482000090 *









Rif.

Articolo

Descrizione

Q.tà Nota

15

SKR7243012800

*VEDI SKRP022025100 *

1

16

SKR7243012730

*VEDI ECRC450000520 *

1

17

SKR7243012740

*VEDI ECRC460000200 *

1

18

SKR7245114550

*VEDI ECRC461000050 *

1

19

SKR7245114560

*VEDI ECRV495001510 *

1

20

SKR7243012750

MORSETTO

*ECRV495001480

1

21

SKR7251712762

CAVO ACC.RE                                    *VEDI NOTE*

1

22

SKR7245114580

*VEDI SKRV452000530 *

1

23

SKR7245114590

*VEDI SKRV452000540 *

1

24

SKR1120306200

VITE

2

25

SKR7245114610

*VEDI ECRV264000140 *

2

26

ECR7245114620

SCREW TAPPING

4

27

SKR7251712180

SUPPORTO

1

28

SKR7251712190

SUPPORTO IN GOMMA

1

29

SKR2007983140

*VEDI ECRC487000320 *

1











Rif.

Articolo

Descrizione

Q.tà

Nota

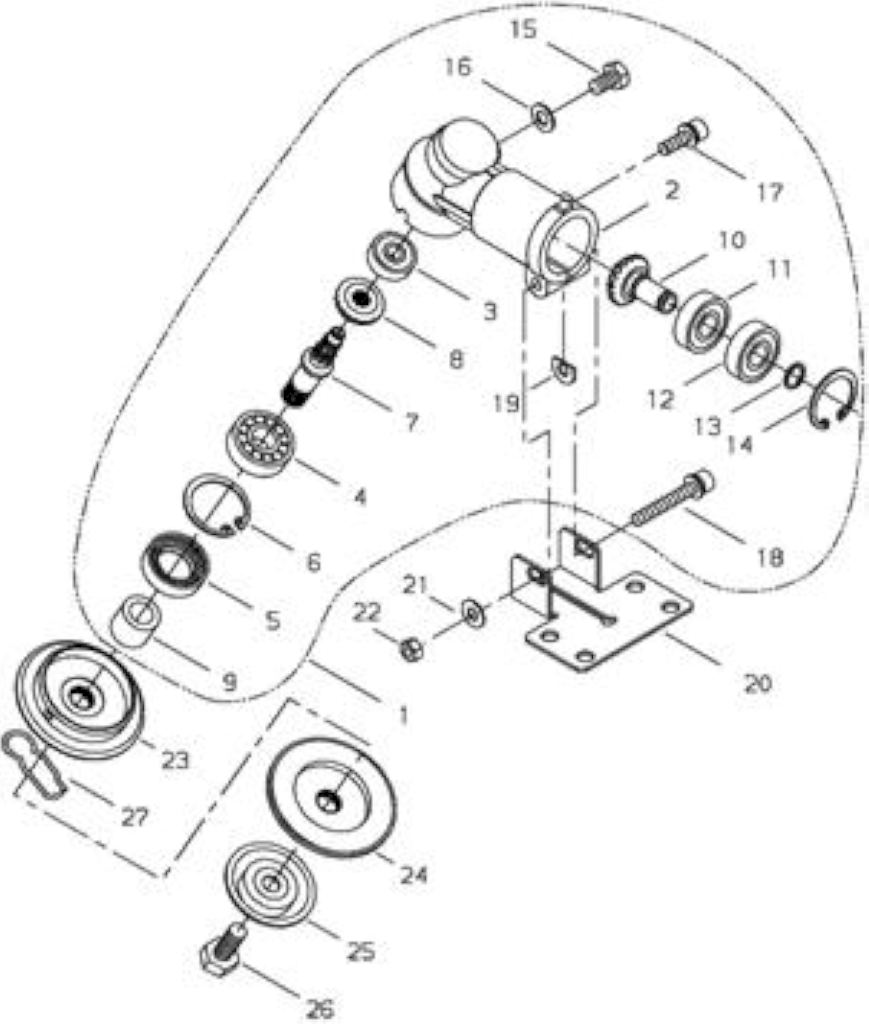

1

SKR6300063020

*VEDI SKRC051000480 *

1



2

SKR2202413112

*VEDI SKRC531000580 *

1



3

SKR204600609

*VEDI SKR9402840609 *

1



4

SKR200006201

*VEDI ECR90081006201 *

1



5

SKR2202413121

*VEDI SKRV510000000 *

1



6

SKR243232120

ANELLO ELASTICO

1

32MM

7

SKR2200013212

*VEDI SKRC534000610 *

1



7

SKR7243513210

*VEDI SKRC534000570 *

1



8

SKR2200013220

*VEDI SKRV651000590 *

1



8

SKR2202413220

*VEDI SKRV651000450 *

1



9

SKR2200013230

*VEDI SKRV356000500 *

1



10

SKR2200013390

*VEDI SKRV651000600 *

1



10

SKR2202413391

*VEDI SKRV651000460 *

1



11

SKR200006901

*VEDI ECR90085506901 *

1



12

SKR200206901

*VEDI ECR90085906901 *

1

6901ZZ

13

SKR2000031140

*VEDI SKRV583000170 *

1



14

SKR243224120

*VEDI SKR9242424000 *

1



15

SKR2201513410

*VEDI SKRV206000250 *

1



16

SKR2201513420

*VEDI SKRV307000230 *

1



17

SKR1102205160

*VEDI SKRV203000590 *

1

M5*16

18

ECR1102206400

*VEDI ECRV204000450 *

1



19

SKR2201113450

*VEDI ECRV340000280 *

1



20

SKR7244116130

*VEDI SKRC551000140 *

1



21

SKR161306100

RONDELLA

1



22

SKR150006051

DADO M6

1

M6

23

SKR2202413912

*VEDI SKRC535000640 *

1



24

SKR6300063170

*VEDI SKRC535000650 *

1



25

SKR2202413291

*VEDI SKRC535000630 *

1



26

SKR2200013512

*VEDI SKRV205000480 *

1



27

SKR2200013530

*VEDI SKRV641000150 *

1

















Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6501164010

*VEDI SKR6090498310 *

1



2

SKR6290164112

*VEDI SKR6290164113 *

1



3

SKR6501164120

*VEDI ECRC405000400 *

1



4

SKR1102205350

*VEDI ECRV203000600 *

4

M5*35 SPW

5

SKR2242016120

*VEDI SKRV263000130 *

4







Rif.

Articolo

Descrizione

Q.tà Nota

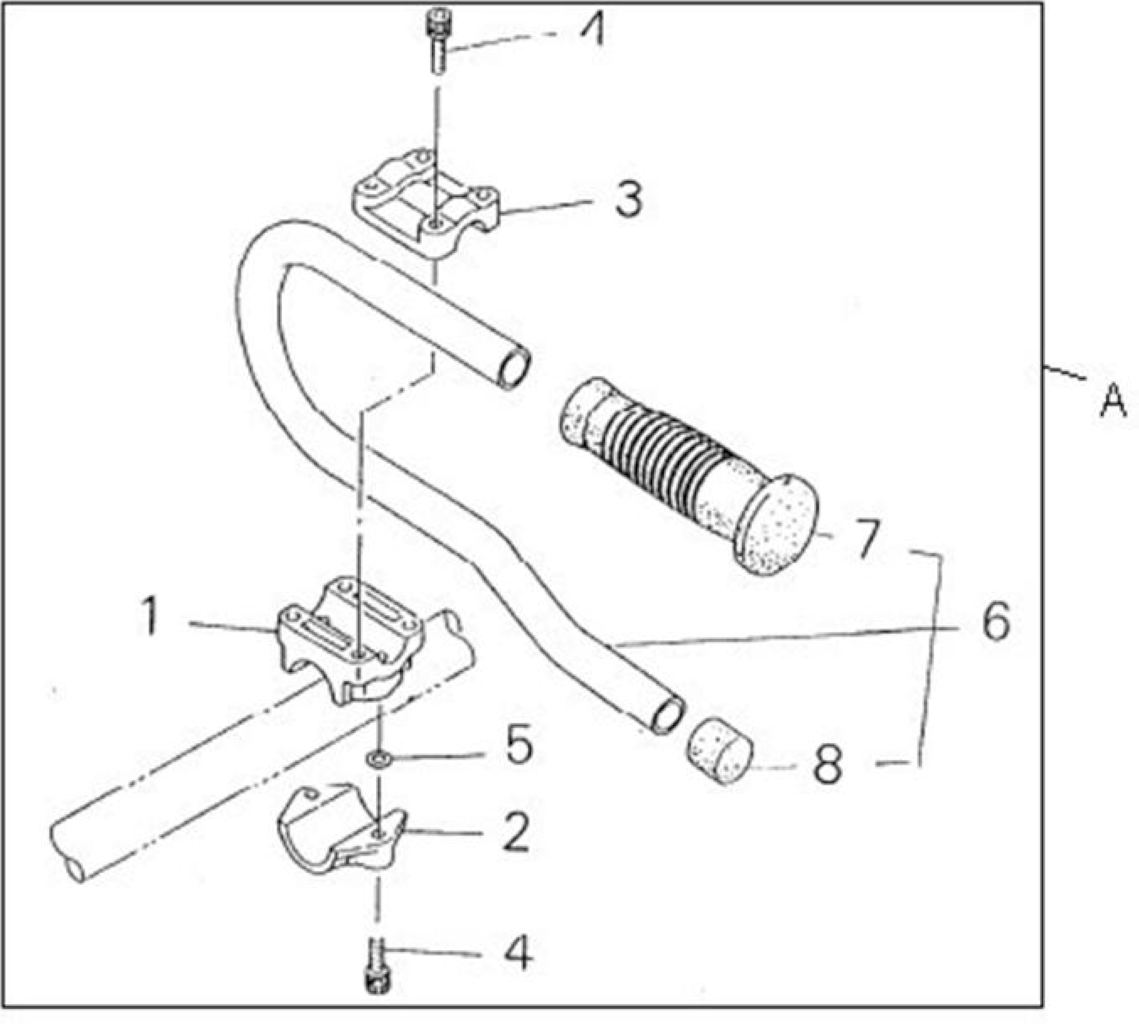

A

SKR7209114100

*VEDI SKR3400464020 *

1

1

SKR7205114110

SUPPORTO IMPUGNATURA

1

2

SKR7205114120

COPERCHIO SUPPORTO INF

*FUORI PROD*

1

3

SKR7205114131

COPERCHIO SUPPORTO * FUORI PROD*

1

4

SKR1102205250

BULLONE

6

5

SKR161005080

RONDELLA D5

1

6

SKR7243014200

*VEDI ECRC080000110 *

1

7

SKR2242114230

*VEDI SKRC403000210 *

1

8

SKR7243014270

* VEDI ECRV494000300 *

1







Rif.

Articolo

Descrizione

Q.tà

Nota

1

SKR6400066311

*VEDI SKRP021028900 *

1



2

SKR6290366111

*VEDI SKRC550000430 *

1



3

SKR6290366332

*VEDI SKRP021028450 *

1



4

SKR7248016121

*VEDI SKRC554000040 *

1



6

SKR1102005160

BULLONE

2

M5X16(SW)

7

SKR2242016120

*VEDI SKRV263000130 *

2

M5

8

SKR7248016210

*VEDI SKRC551000060 *

1



9

SKR7244116220

*VEDI ECRV363000160 *

2



10

SKR1102205450

BULLONE

4

M5X45(SW,PW)











Rif.

Articolo

Descrizione

Q.tà Nota

9

SKR7248016113

*VEDI SKR7201716003 *

1

10

SKR7244116130

*VEDI SKRC551000140 *

1

11

SKR1120240100

VITE AUTOFILETTANTE D4X10

1

12

SKR7248016210

*VEDI SKRC551000060 *

1

13

SKR7244116220

*VEDI ECRV363000160 *

2

14

SKR1102205450

BULLONE

4

15

SKR150006051

DADO M6

1

16

SKR161306100

RONDELLA

1

17

ECR1102206400

*VEDI ECRV204000450 *

1
